4K 48MP HDMI Camera Set 3.5X 90X Industrial Lab Simul Focal Stereo Microscope Trinocular Microscope For Phone Soldering Repair
Includes all taxes
Meet your Seller
-
$658.19Sold by BILLIONS BIRDS
Description
key Feature:
3.5X-90X zoom magnification power with crisp sharp images
Sturdy all-metal pillar stand
Powerful 56-LED ring light with dimmer
This stereo microscope has a 56-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
Key Feature:
An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
3.5x-90x super wide zoom magnification power
Bright cool light 56-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Specification:
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.67X-4.5X, using the Barlow lenses
Working Distance: 8" (200mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Illumination: 56-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps

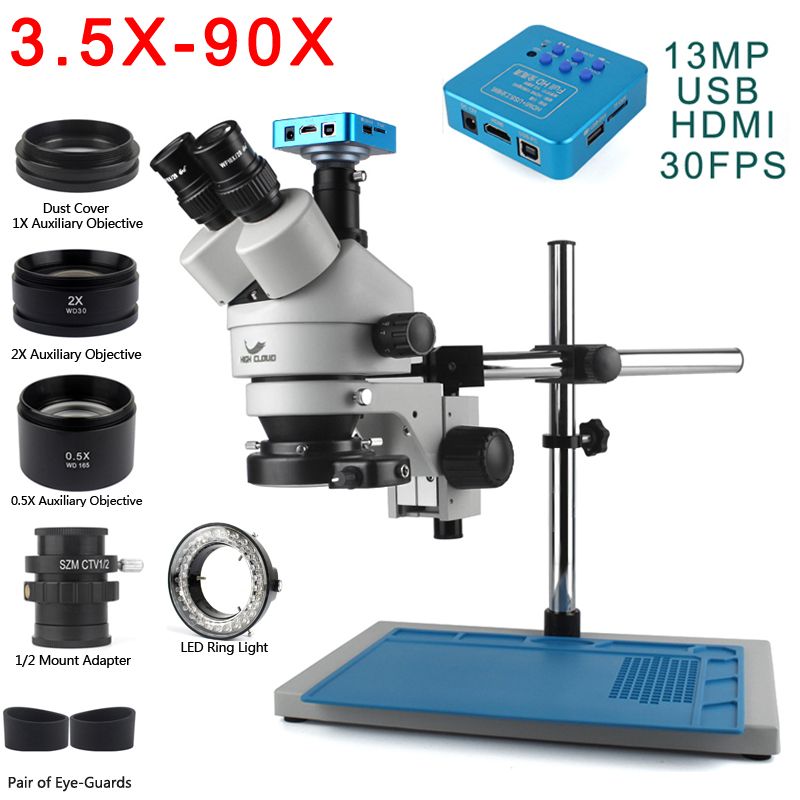

Package incluede: 7X-90X
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X Eyepieces
1 x 56-LED Ring Light with Adapter (12V)
1 x Table Stand
1 x Focusing Rack
1 x C-mount Adapter
1 x Pair of Eye-Guards
1 x Dust Cover
1 X Blue mat
1 x 0.5x lens
1x camera set (4 specifications as option selection)
Package incluede: 3.5X-90X
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X Eyepieces
1 x 56-LED Ring Light with Adapter (12V)
1 x Table Stand
1 x Focusing Rack
1 x C-mount Adapter
1 x Pair of Eye-Guards
1 x Dust Cover
1 X Blue mat
1 x 0.5x lens
1 x 2.0x lens
1 x CTV 1/2 Adapter
1x camera set (4 specifications as option selection)
48MP 4K 60Fps HDMI USB
â—† 48 million pixel imported Panasonic CMOS image sensor;
â—† Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;
HDMI 1080P 60 frame image output;
â—†USB2.0 driver free output 1080P 30 frame image output;
4K video recording;
â—†48 million photos, JPG format, photo size 4608x3456;
One-click freezing/thawing function;
â—†48 megapixel photography and 1080P video recording;
Electronic zoom function;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual/automatic white balance, red, green, blue adjustable;
â—† Provide 8 line drawing functions, line color, thickness, position adjustable;
Display/close center cross;
Support TF card storage, up to 64GB;
Support remote control operation, take photos without jitter image more clear;
â—† Support Chinese and English menu language (default English);
Support shutdown setting parameters save;
â—† Strong metal shell;
Camera specifications:
The sensor : 1/2.33 inch Panasonic 48 megapixel CMOS sensor
Pixel size : 1.335µm × 1.335µm
HDMI output : 1920*1080 60PFS
USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input voltage : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support
Menu language : English/Chinese
Remote control : Support remote control operation
Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
Packing size : 145*130*70mm
Packing List of camera set:
1* Camera body
1* Power adapter
1 * HDMI cables
1 * USB cable
1* Remote control (no battery due to logistics requirements)
13MP 30Fps HDMI USB
Feature:
The sensor: gc2053
Overall dimension: 20*70*70mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)
Package incluede
1 x Camera Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x Camera remote
1 x Hard copy
13MP 60Fps HDMI VGA
Feature:
The sensor: gc2053
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)
Package incluede
1 x Camera Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x Camera remote
1 x Hard copy
13MP VGA
Overall dimension: 70*50*50mm
Video Interface:VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/2.7"
Pixel size:3.0um*3.0um
Pixel array: 1920*1080
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:60dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution:1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)
Package incluede
1 x Camera Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x LED ring lamp holder
1 x Link line
1 x Hard copy
