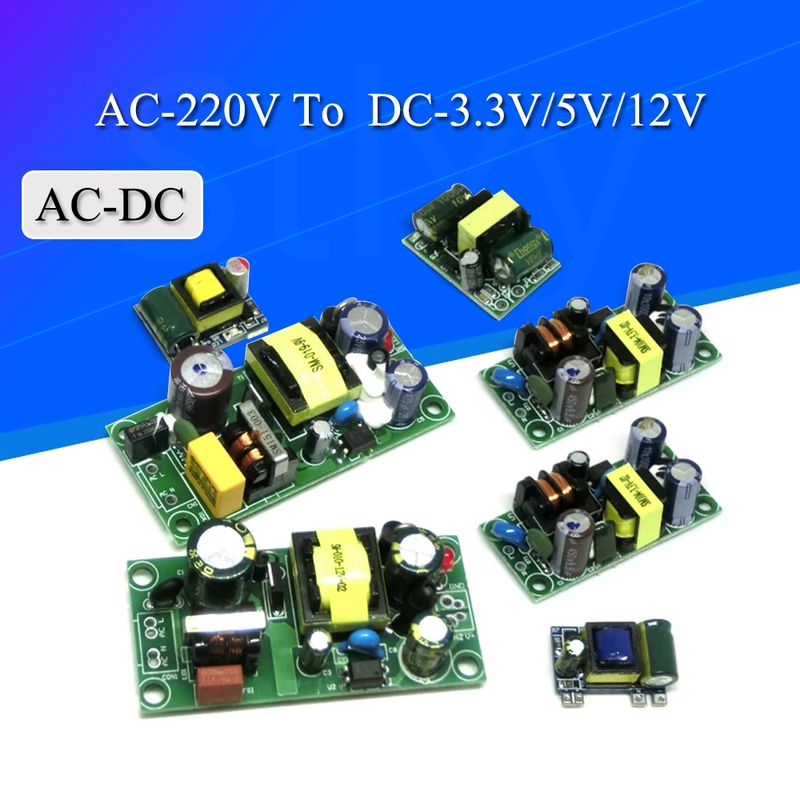

AC-DC 3.3V/5V/12V Precision Buck Converter AC 220v to 5v DC step down Transformer power supply module 1A 12W

$3.01

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

5V700毫安

产品特点

1. 输出指标:绿色
2. 满载功率:<4W
3. 空载功率:<0.05W
4. 工作温度:-20~70
5. 测试电阻:5V 时为 7 欧姆(4.9V)
6. 输出功率:3.5W,效率约为80%
7. 输入电压范围:交流50V-277V 直流70V-390V
8. 输出电流:5VmA-700mA,全负载时进入恒流模式
9. 输出保护:过压、过流、过温、短路保护等。
10. Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of small current and large current
11. Output voltage: 5V+-0.15v no load and full load,light load minus 0.1V,rebound when heavy load,50% load ripple 60mV
12. Capacitance temperature is 105° 10,000 hours,more than 5 years at 70°,and about 20-50 years at room temperature (not recommended for use above 70°).
Product Size

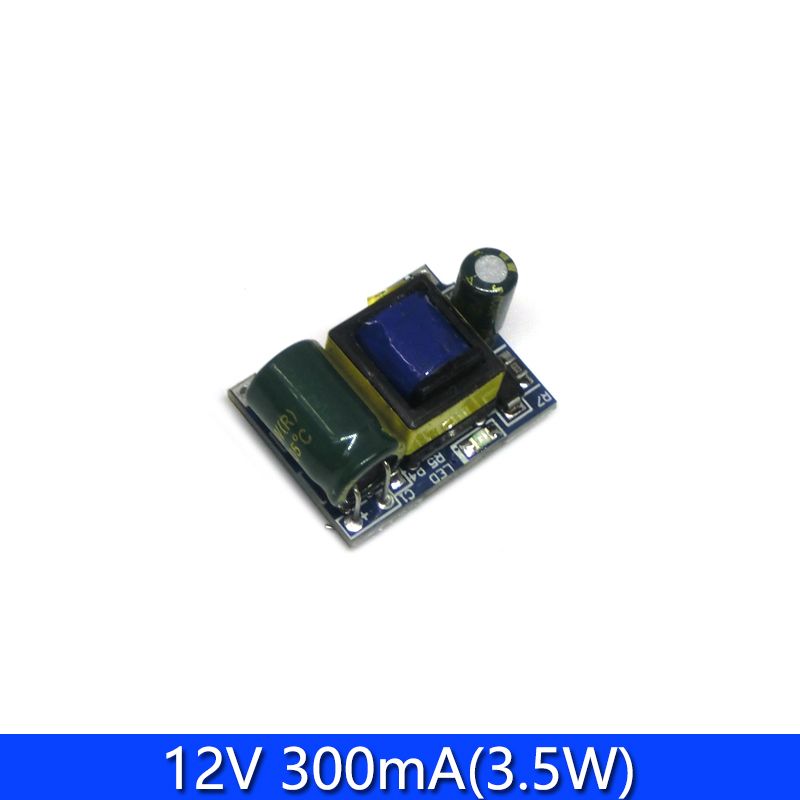

12V300mA
Product Features
1. Output indicator: green
2. No-load power: <0.05W
3. Full load power: <4W
4. Working temperature: -20~70
5. Test resistance: 40 ohms (12V) for 12V
6. Output power: 3.5W,efficiency is about 80%
7. Input voltage range: AC50V-277V DC70V-390V
8. Output current: 12VmA-300mA,enters constant current mode when fully loaded
9. Output protection: overvoltage,overcurrent,overtemperature,short circuit protection,etc.
10. Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of small current and large current
11. Output voltage: 12V-0.05v+0.3v no load and full load,light load minus 0.1V,rebound when heavy load,50% load ripple 100mV
12. Capacitance temperature is 105° 10,000 hours,more than 5 years at 70°,and about 20-50 years at room temperature (not recommended for use above 70°).


Product Size

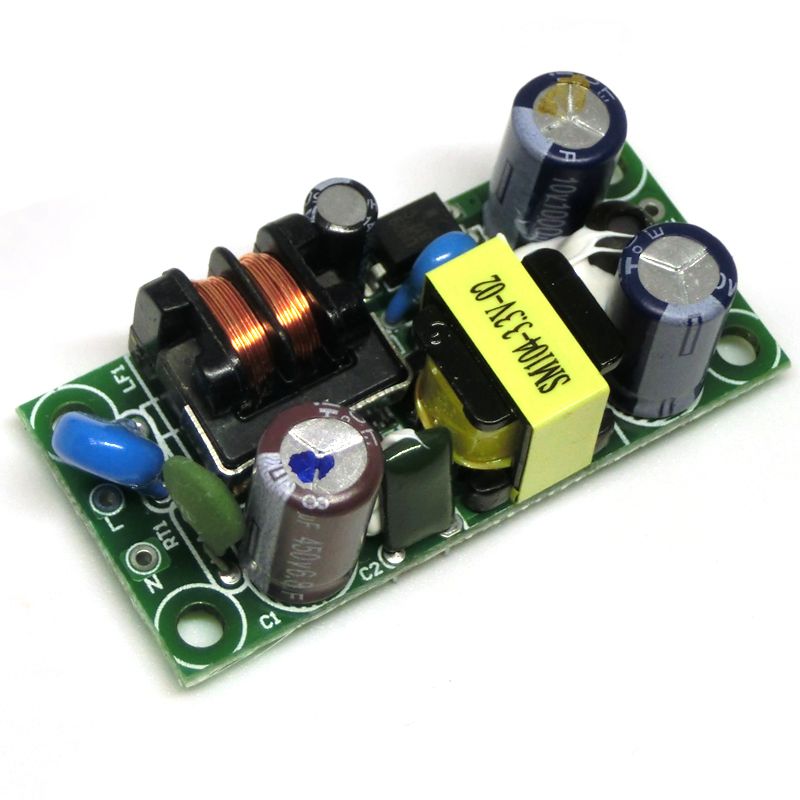

3.3V 700MA
Input voltage: Ac85-265V 50/60HZ or DC100v-370v
Output voltage: Dc3.3V (+0.2V)
Output current: 700 mA
Power: 3.5W
Small Current: Limit 0 A
High Current: Limit 700 mA
Peak current: 800 mA
Output Voltage Range 3.1-3.5V

Ripple: 60mV

5V 700mA:
Step Down Module
Condition: New
With temperature protection,over current protection and short circuit protection,high and low voltage isolation,AC85 ~ 265 v wide voltage input,ac/dc current,431 precision voltage stability DC5V output
Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
Imput current: 0.0273A(AC110V) 0.014A(AC220V)
Input Inrush Current: 20A
Output voltage: DC 5V (+ / - 0.2 V)
Output current 700 mA
Power 3.5 W
Operating temperature -20~60°
Relative humidity 40-90%RH
Output 5V,min current 0a,max current 700mA,peak current: 800mA,output range: 4.8~5.2v,ripple wave: 60mV
Output power:0-4W(DC current)
Output efficiency: 80%
Switch machine overshoot: MAX 10%
Output voltage rise time: MAX 100MS
Output over voltage: 4.8-5.2V,recovery:Lock,restart after recovery
Output over power protection:YES,recovery:Lock,restart after recovery
Short-circuit protection: YES,automatic recovery after problem solved
Temperature protection: YES,recovery:Lock,restart after recovery
Overcurrent protection: YES,recovery:Lock,restart after recovery
Size: 29.89 x 20.57 x18mm12V 450mA:
- 整体隔离型工业级内置电源模块,温度保护,过流保护和短路保护,AC 85 ~ 265v宽电压输入,431精密电压,DC12V输出,小尺寸,稳定性能, cost-effective
-输入电压:AC85 ~ 265v 50/60 HZ
-输出电压 DC12V (±0.1V)
-输出电流 450MA
- 功率 5W
