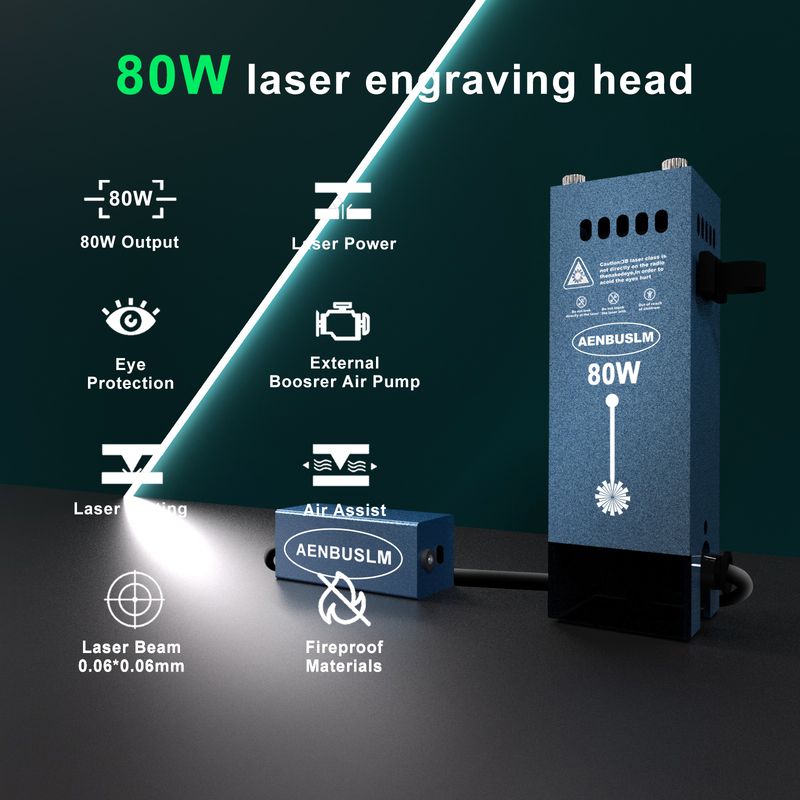

AENBUSLM 80W Laser Engraving Head Laser Engraver Nozzle Laser Module Laser Cutting Machine Laser Cutter CNC Woodworking Tool

$193.10

Includes all taxes

Ships From
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Mainboard upgrade version; this laser module is suitable for 12V/24V laser engravers.


Product Upgrade The product is equipped with an air pump, so there's no need to purchase an additional air pump.

This product is a new upgrade to laser engraving and air pump in one.

After turning on the air pump, the engraving machine module is connected and you can start working immediately.


The newly upgraded 40W-80W laser module is powerful, with an engraving speed 6-7 times faster than traditional laser modules, and the stainless steel engraving effect is improved.

The laser engraving precision is 3-4 times higher than traditional laser modules, and the conversion is faster and faster.

The exact power and laser power are calculated according to international standards, and the actual power is normal. (The product parameters and product information we describe are the result of rigorous testing)


40W-80W Technical Parameters

Light Source Blue-shell semiconductor laser

Material Aviation aluminum

Color Polar oxygen black

Module Core Material Copper casing


Optical Output Power 40W-80W

Focusing Power

80W Laser Wavelength 450nm

Power Supply Voltage 12-24V

Power Control PWMTTL (signal control voltage 0-5V)

Power Current 4A

Interface Specifications 3-pin 2.54mm 4-pin 2.54mm

Light Shape Fixed focus (20mm depending on the fixed focus column equipped)

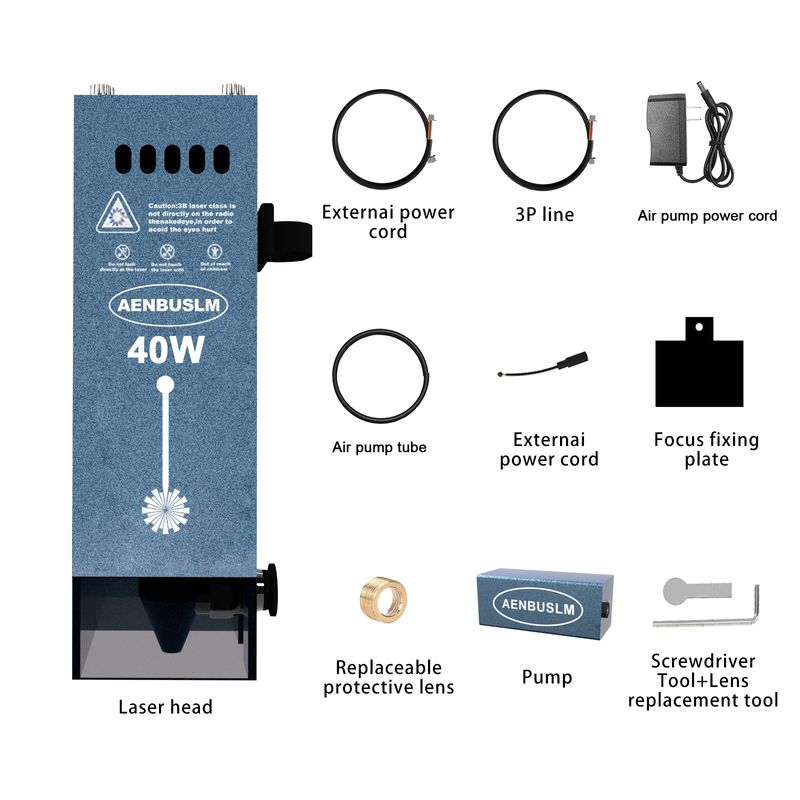

List includes 4P line1, 3P line1, DC short line1, focal length column1, laser module1

20,000 hours lifespan. (If the smoke is hazy, add a fan when carving or cutting.)

The entire body upgrade comes with a laser protection heat dissipation hood, ensuring a longer, more durable, and better quality machine.

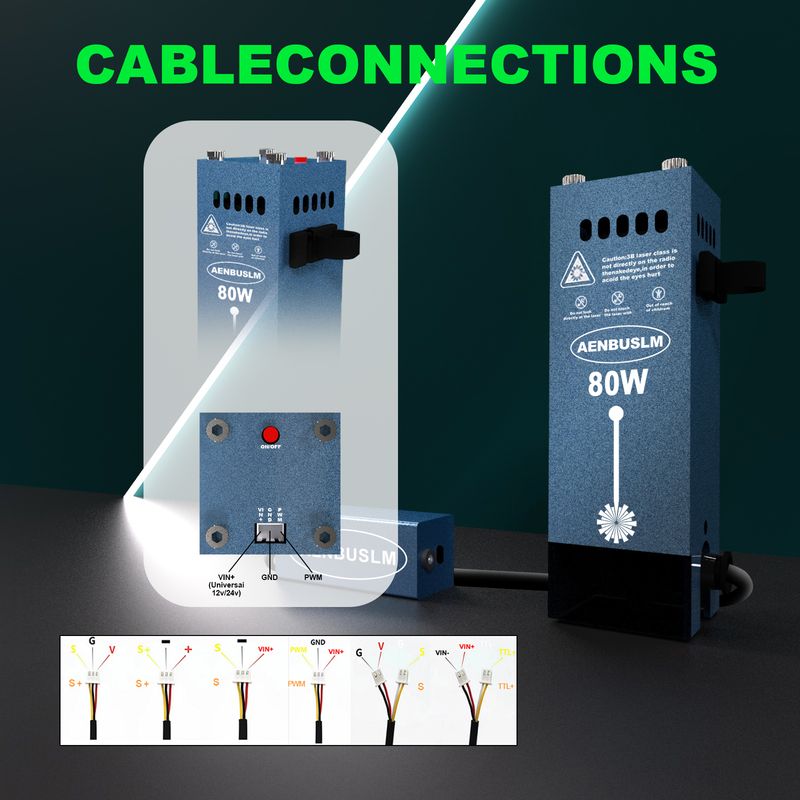

Buyer's Note Please pay attention to the line order 3P line connection method, 12V line + red line, GND - black line, PWM + yellow line. Please check carefully if it needs replacing.

Buyer's Note Please pay attention to the line order 4P line connection method, 12V + red line, 12V - black line, TTL + yellow line, TTL white line. Please check carefully.

Caution Only for

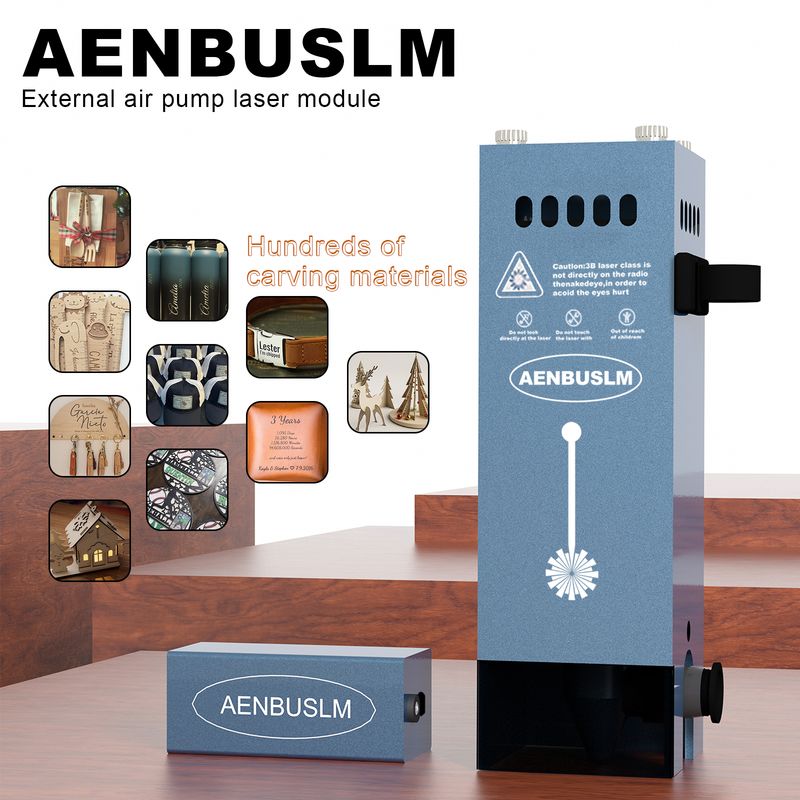

The laser module can be used on 95% of cutting, CNC engraving, and DIY laser engraving machines on the market. Additionally, it is suitable for various materials such as wood, MDF, leather, bamboo, black acrylic, or alumina, realizing your DIY freedom and providing endless fun. (Cannot engrave bluepurplewhitetransparent materials, aluminum without an oxide layer).


The laser module comes with two types of laser shields the magnetic shield is suitable for use without air assistance, and the adjustable shield is suitable for use with air assistance, allowing you to choose a different enclosure to suit your engraving needs and personal preference. A variety of options are available to provide multiple safeguards for your safety.

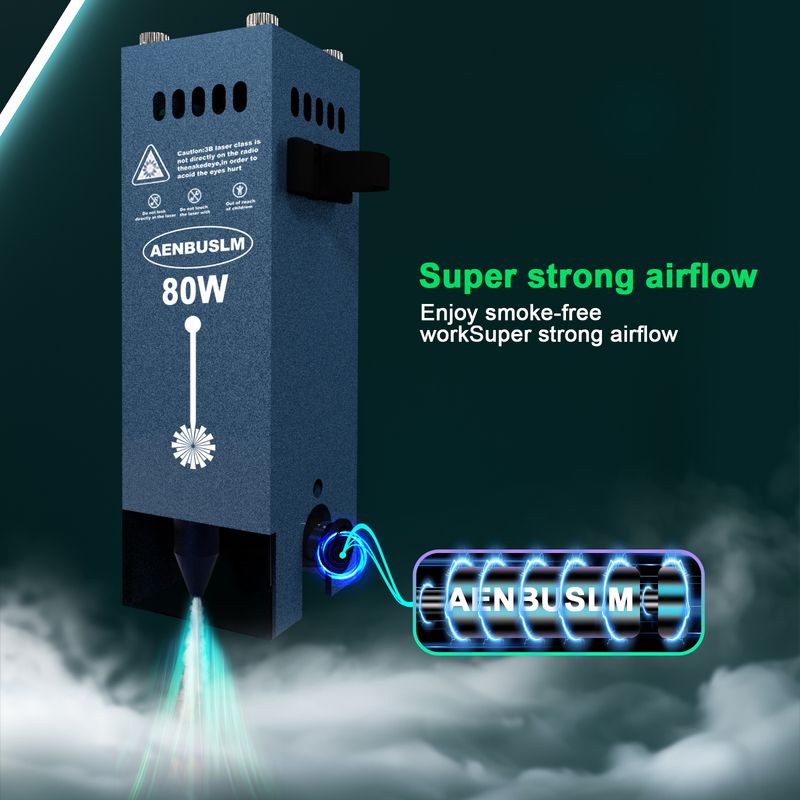

PROFESSIONAL AIR ASSISTANCE AND HEAT DISSIPATION DESIGN This air-assisted laser module can make material edges cleaner and clearer when cuttingengraving. It can increase the efficiency of the laser cutter, saving time and enjoying concise beauty. The laser cutting module has a built-in fan cooling system. Fan speed is 10,000 rpm. Efficient cooling for a longer lifespan. Only 300-400 MW of power reduction with 100% output power in 30 minutes. Original, high-quality diode with a lifespan of up to 20,000 hours. The removable eye protection cover effectively filters out blue light.

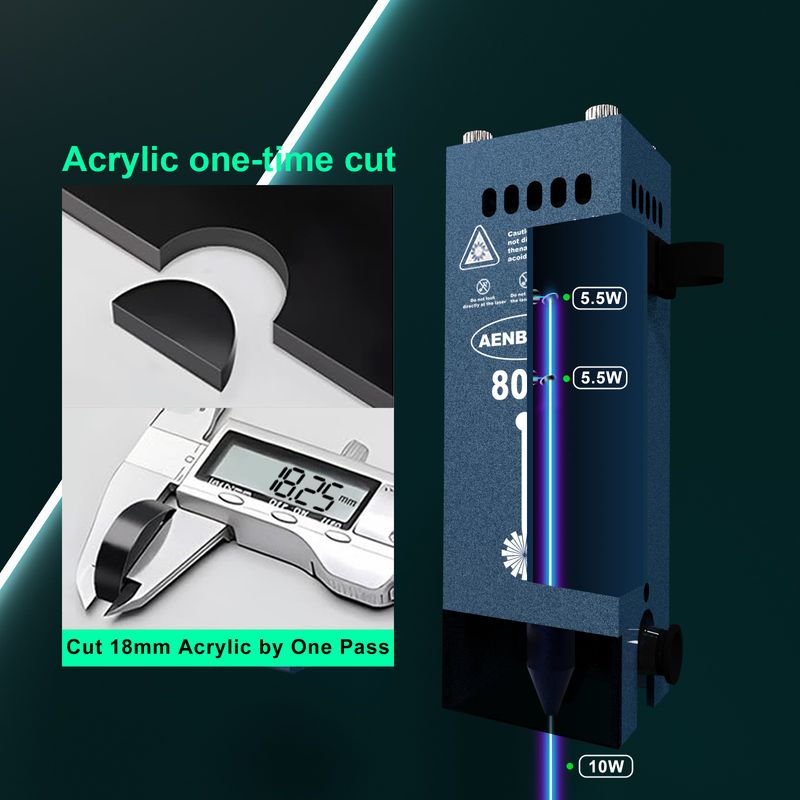

True FAC compression technology Super-fast engraving speed of up to 400 mms on 304 stainless steel. Excellent cutting performance a speed of 1.6 mms for cutting 10 mm plywood, surpassing that of an 80 W laser.


Box list 4P line1, 3P line1, DC short line1, column focal length1, laser module1. Please note the line order 3P line connection mode, 12V + red line, GND-black line, PWM + line.
