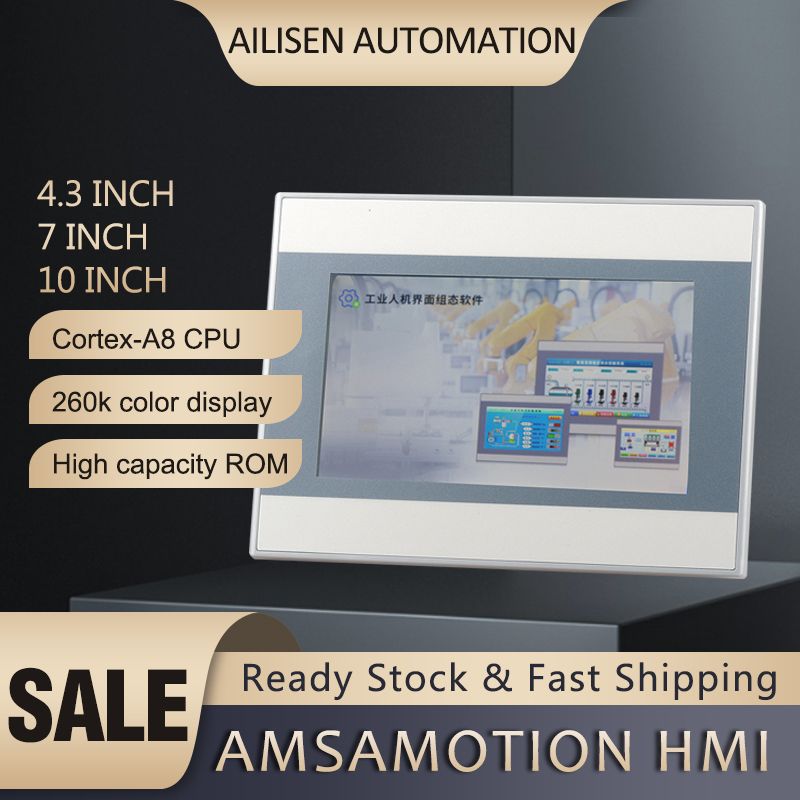

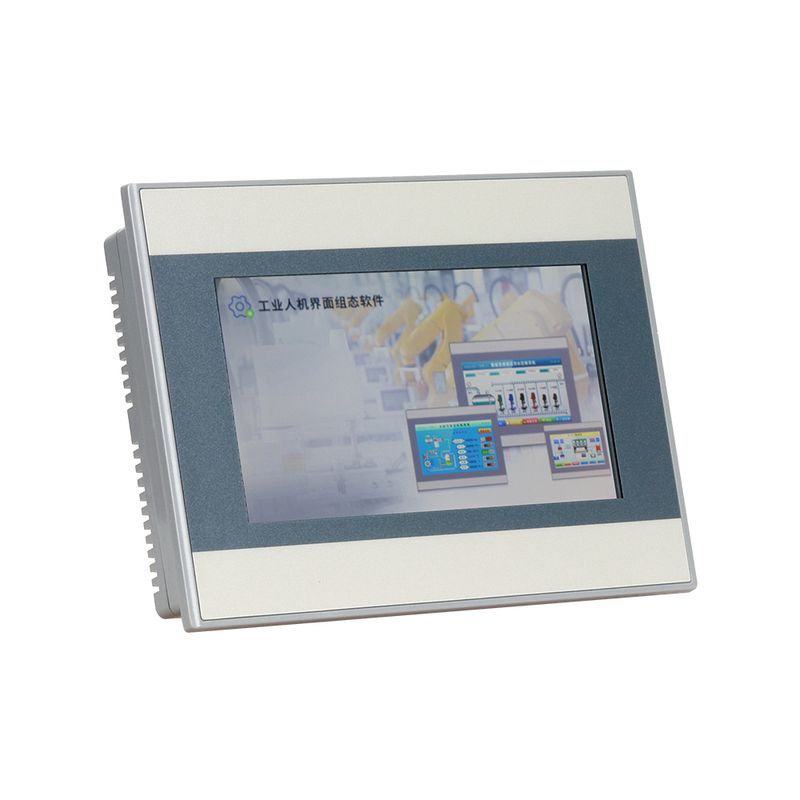

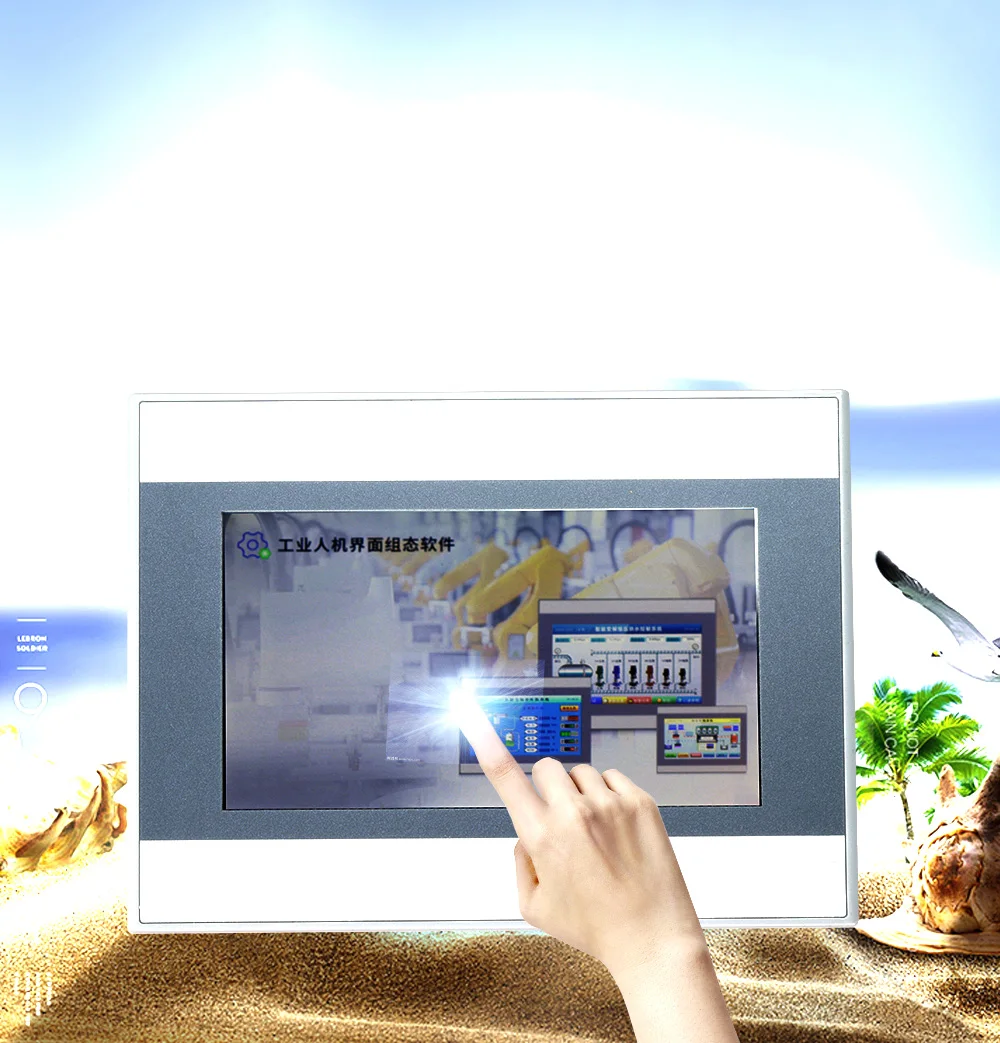

AMSAMOTION 4.3 7 10 Inch Touch Panel AMX-MT070IE HMI With Ethernet Touch Screen for Delta Siemens Weinview Mitsubishi More PLC

$99.25

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

HMI Software

HMI software, Smart Manager PRO V2.02 or higher

Download here>>>>>>

If the download fails, please contact customer service to request the software

Display

  • High resolution: 800*480

  • LCD brightness: 400

  • High contrast: 500:1

  • Backlight type: LED

  • Backlight life >30,000 hours

  • Display color: 16.7M

  • Visible range: 80/80/80/80

Touch

  • Touch type: 4-wire resistive

  • Touch Accuracy: Action Area Length (X) ±2%; Width (Y) ±2%

Storage

  • Flash (FLASH): 128MB

  • Memory (RAM): 128MB

Processor

ARM Cortex-A7 single core 1GHz

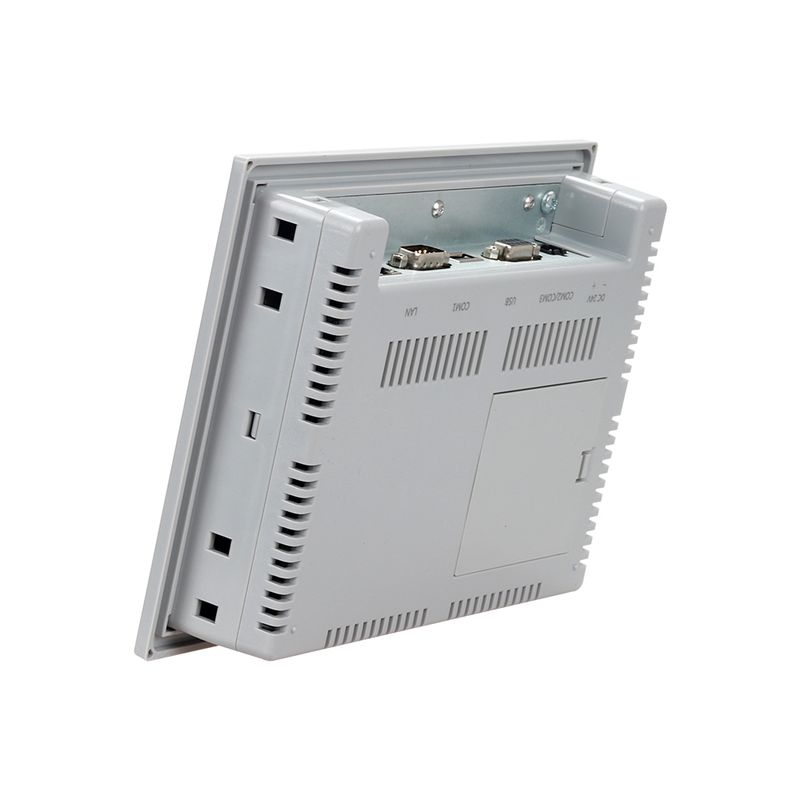

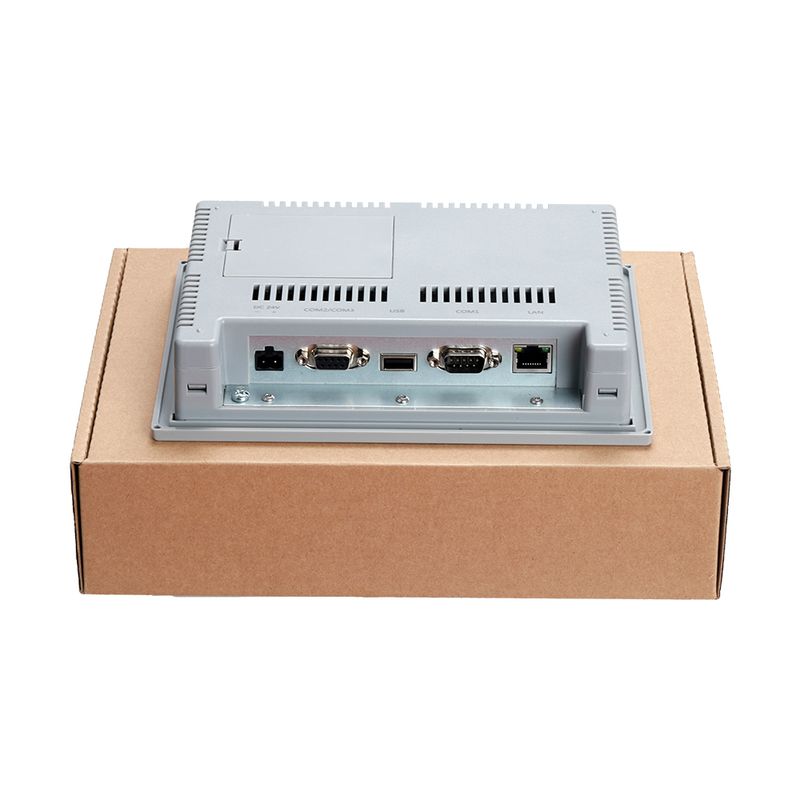

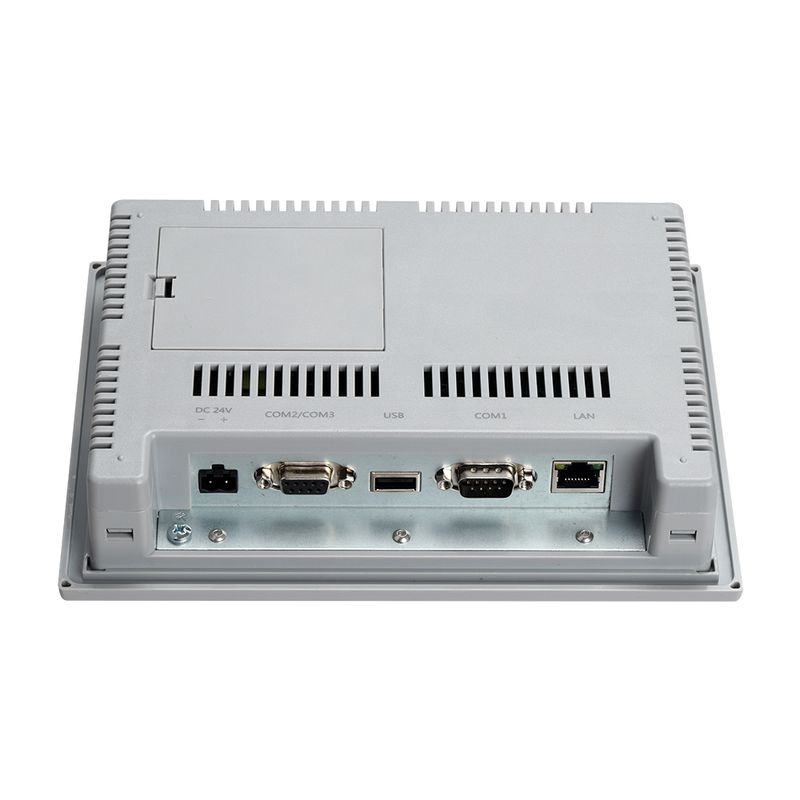

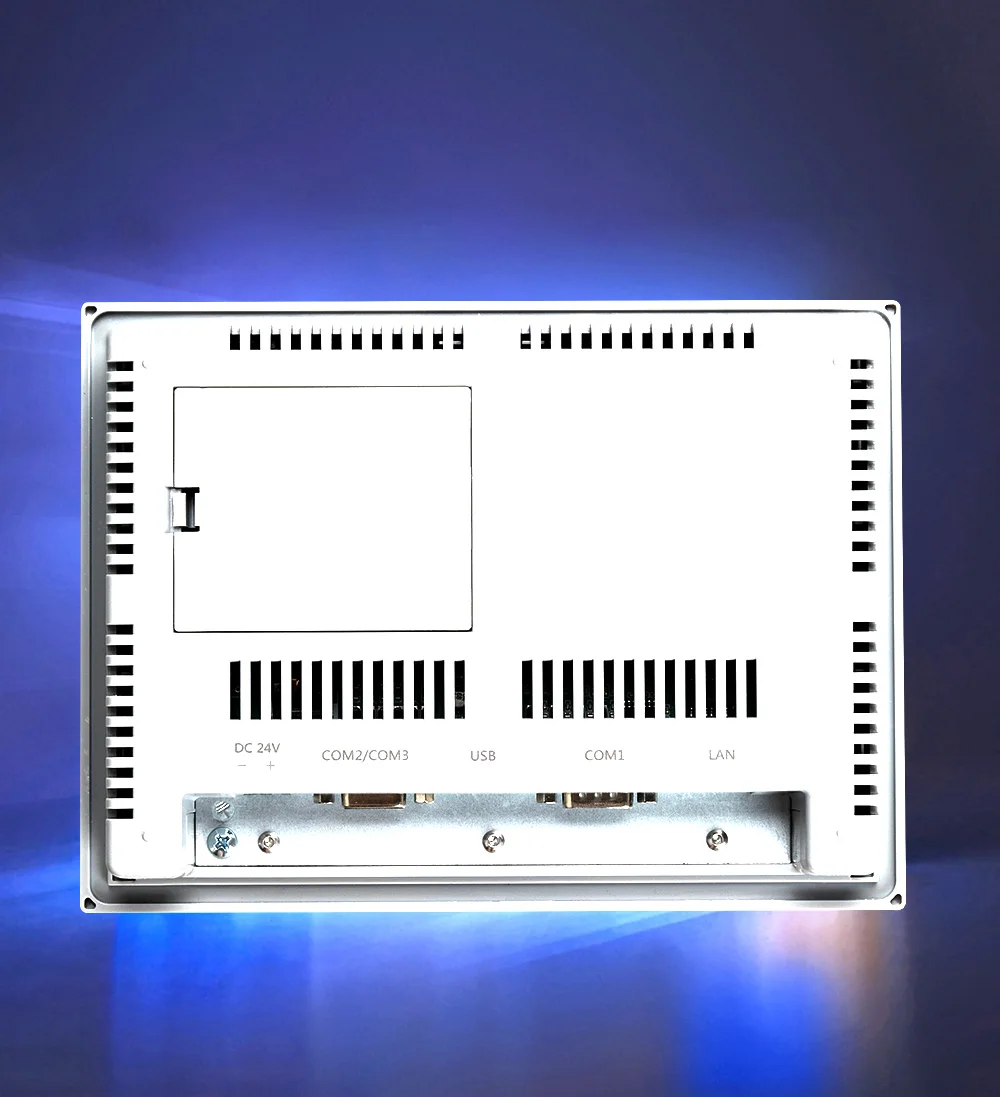

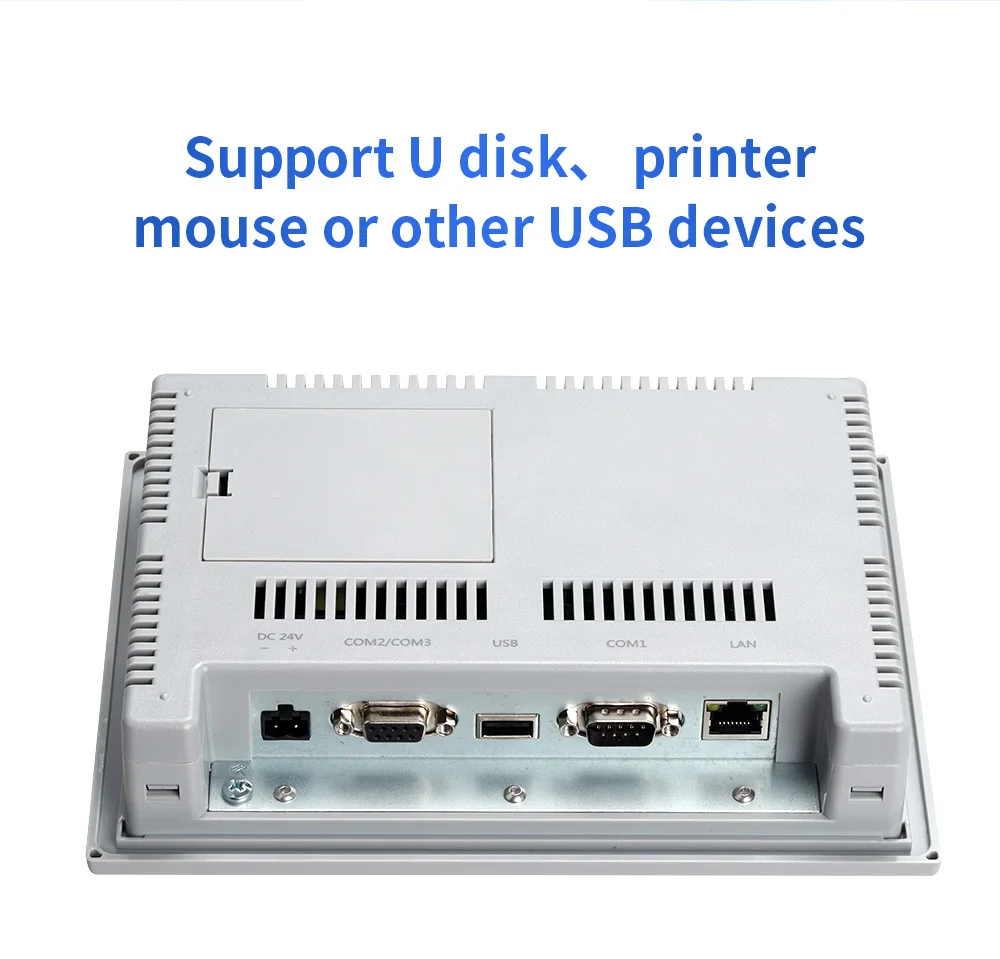

Communication Interface

  • USB Host:USB 2.0*1

  • RS-232: COM1

  • RS-485: COM2: 2W/4W;

  • COM3: 2W

  • Ethernet: 10/100Mbps auto-sensing

  • 4G Long Range: Scalable

Perpetual Calendar

system built-in

Power Supply

  • Input power: 9-36±10%VDC

  • Power consumption: 420mA@24VDC

  • Power isolation: built-in

  • Withstand voltage: 500VAC (1 minute)

  • Insulation resistance: over 50MΩ@500VDC

Specification

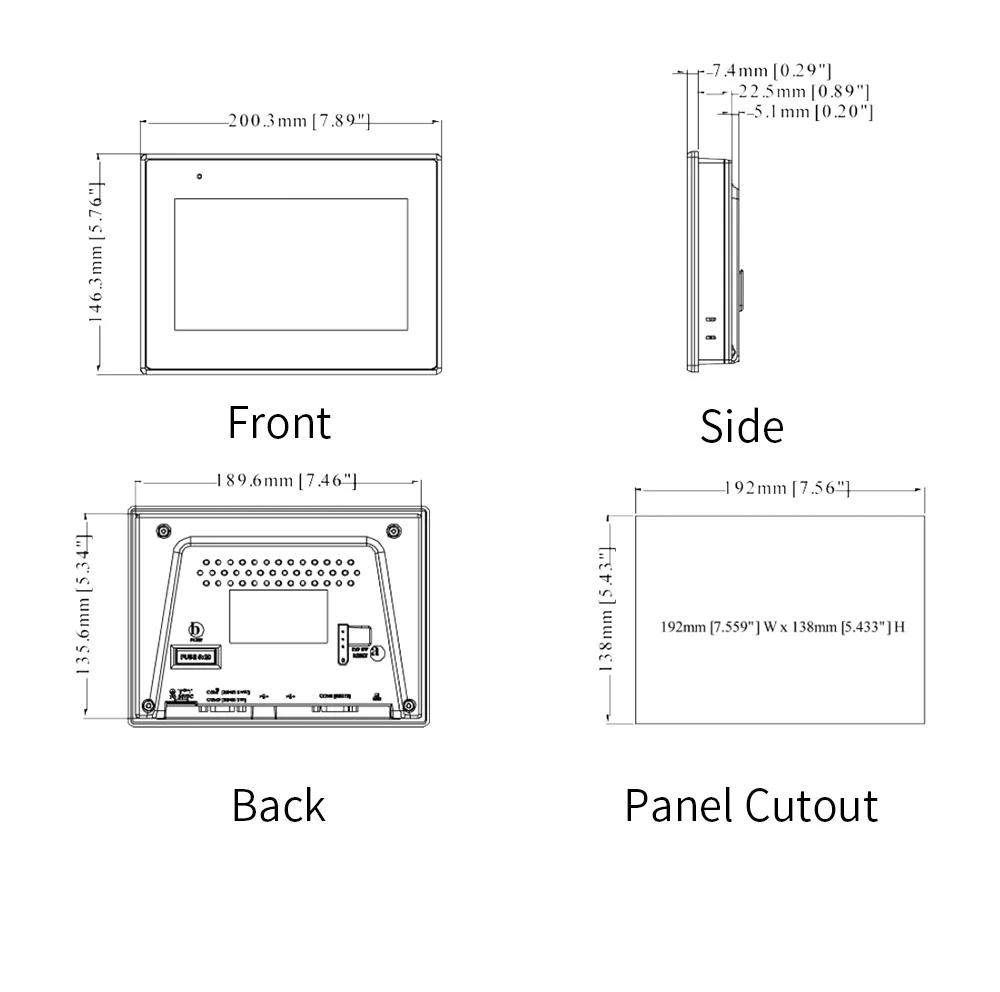

  • Dimensions: 202*165*43mm

  • Hole size: 192*138mm

  • Installation method: Panel installation

  • Mechanical vibration: 10to25Hz (X, Y, Z axis 2G for 30 minutes)

Operating Environment

  • Protection Level Panel: IP65; Back Cover: IP20

  • Operating ambient temperature: 0-50°C (32°-122°F)

  • Ambient humidity: 10%-90% (non-condensing)

  • Storage ambient temperature: -20-60°C (-4°--144°F)

Certification

Comply with CE certification standards


  • Suitable for Delta PLC Haiwell PLC, South Korea LS PLC MODBUS Protocol Communication Mitsubishi PLC Omron PLC Panasonic PLC Schneider PLC Siemens PLC Xinje PLC

  • Protocol compatibility issues: The touch screen without a network port does not support PID instructions, PTO wizards, and Siemens library instructions. The touch screen with network port supports PID instructions and PTO wizards, as well as Siemens library instructions.

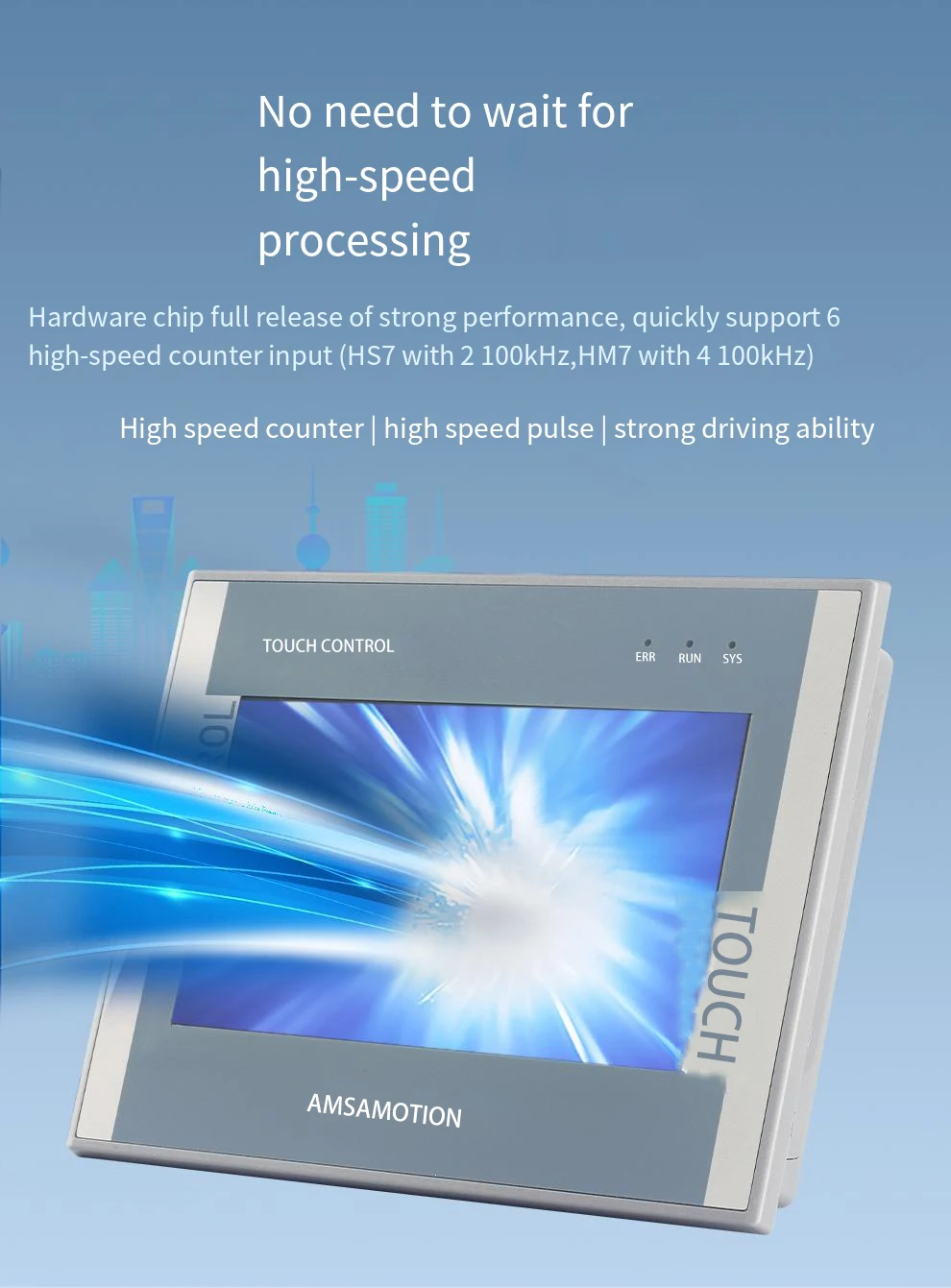

  • The main upgrade content of the network port upgrade version: supports EEPROM write instructions, high-speed counters support 6 channels at the same time, supports rising edge and falling edge interrupts, supports programming in operating mode, adds Ethernet port, pulse output can reach 200K, high-speed counter supports 100K , The processing capacity is stronger, the efficiency of Boolean instructions is 0.28uS, and the efficiency of floating-point instructions is 0.75uS

AMSAMOTION TOUCH SCREEN SUPPORTED DEVICES

Delta PLC

Haiwei PLC,

Korea LS PLC

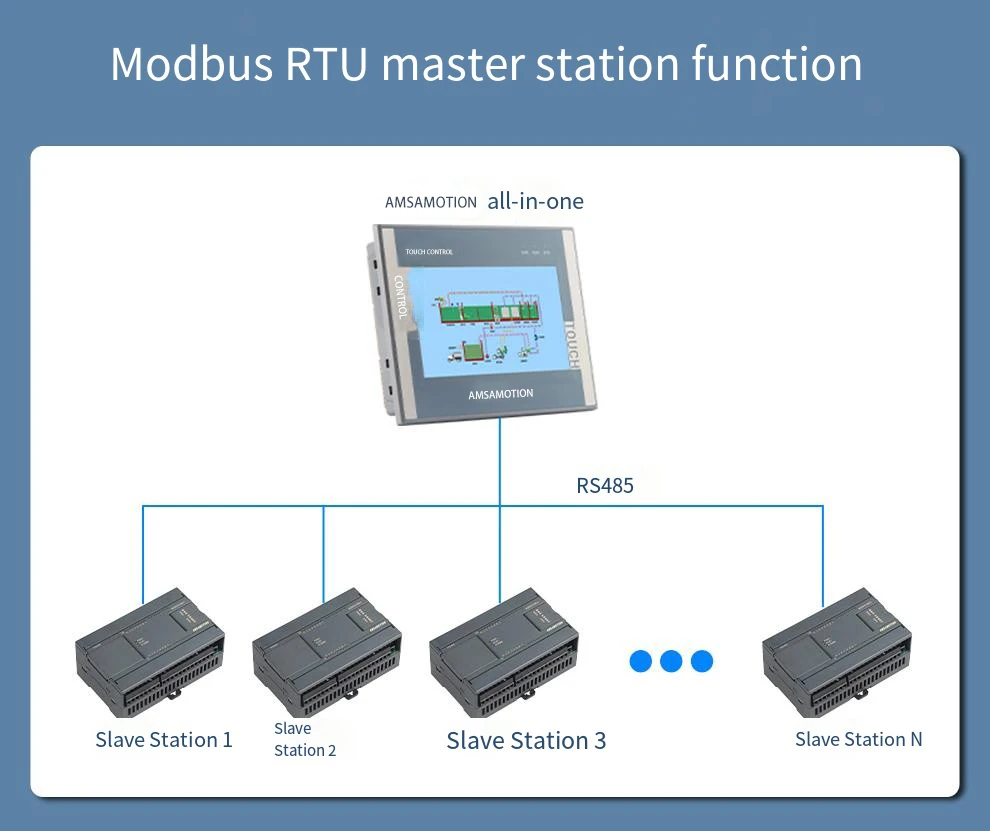

MODBUS Protocol Communication protocol communication

Mitsubishi PLC

Omron PLC

Panasonic PLC

Schneider PLC

Siemens Siemens PLC

Xinjie PLC

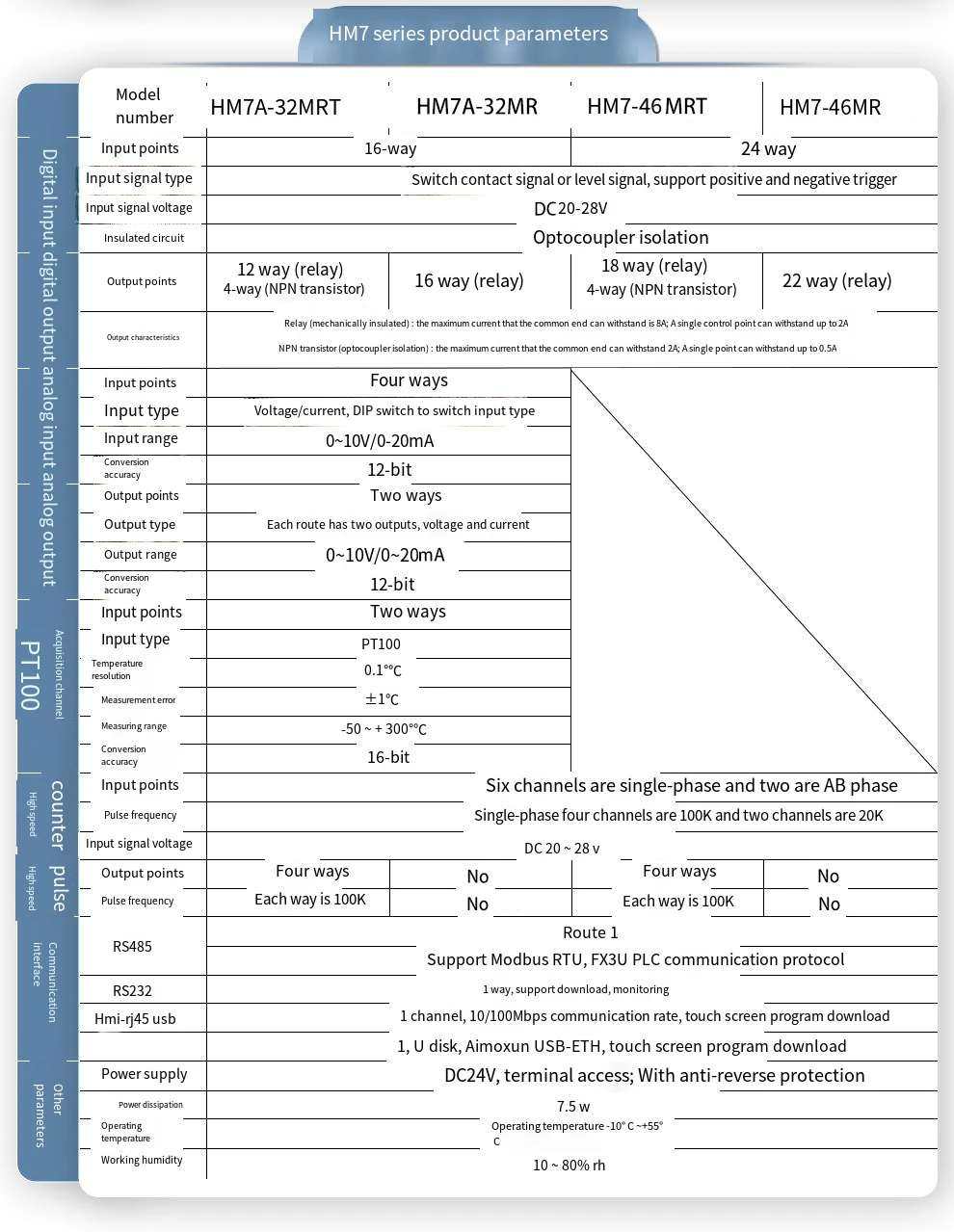

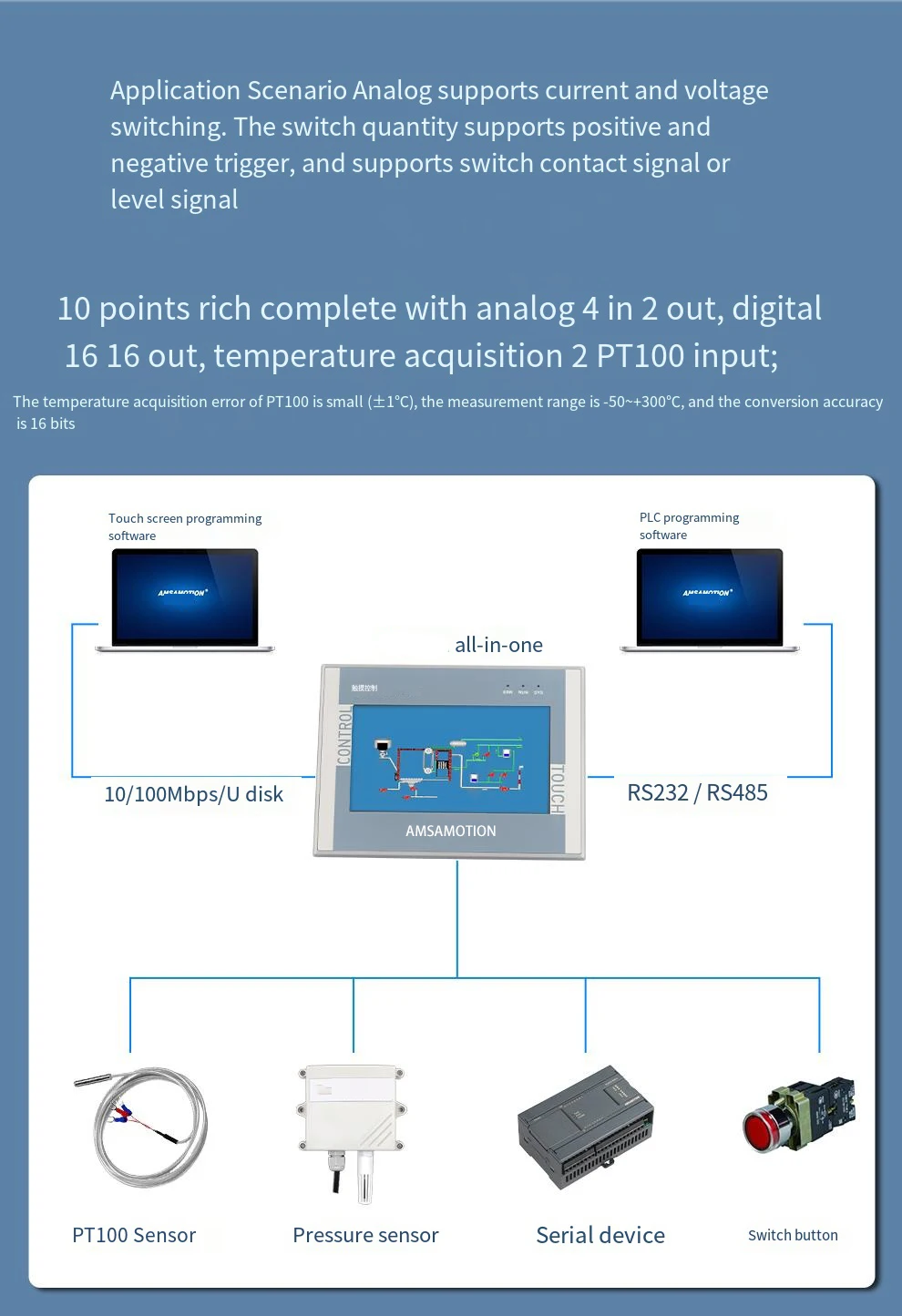

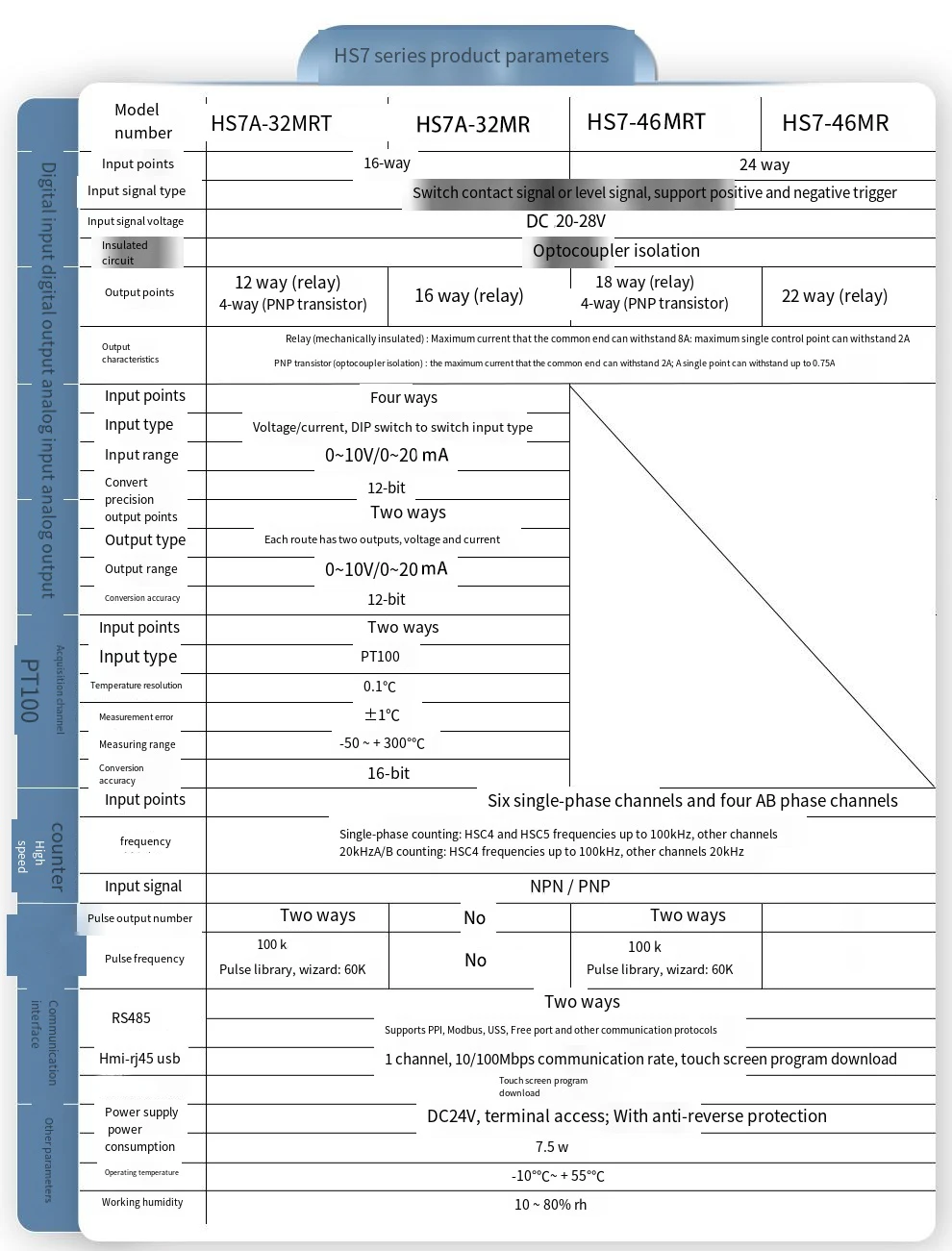

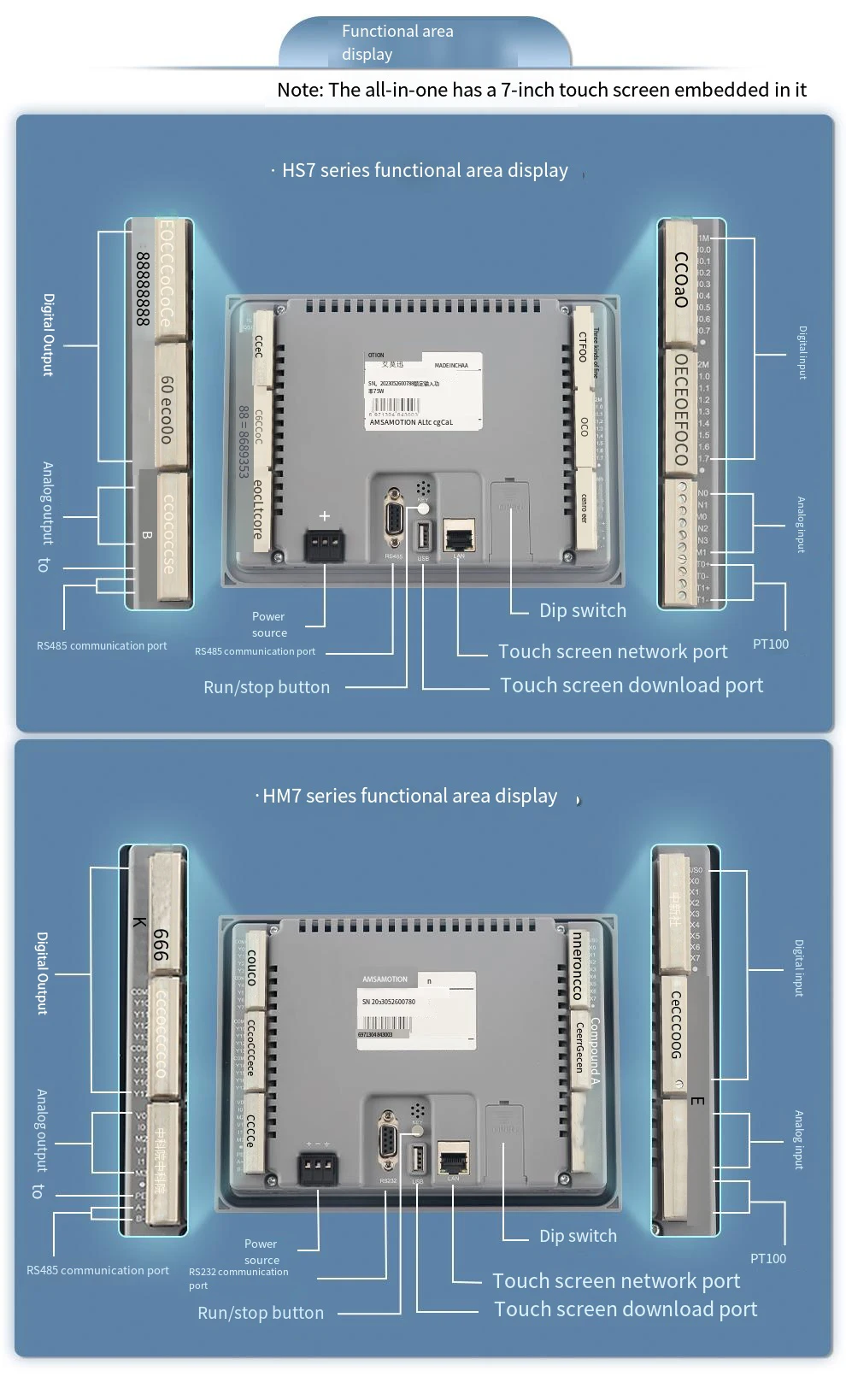

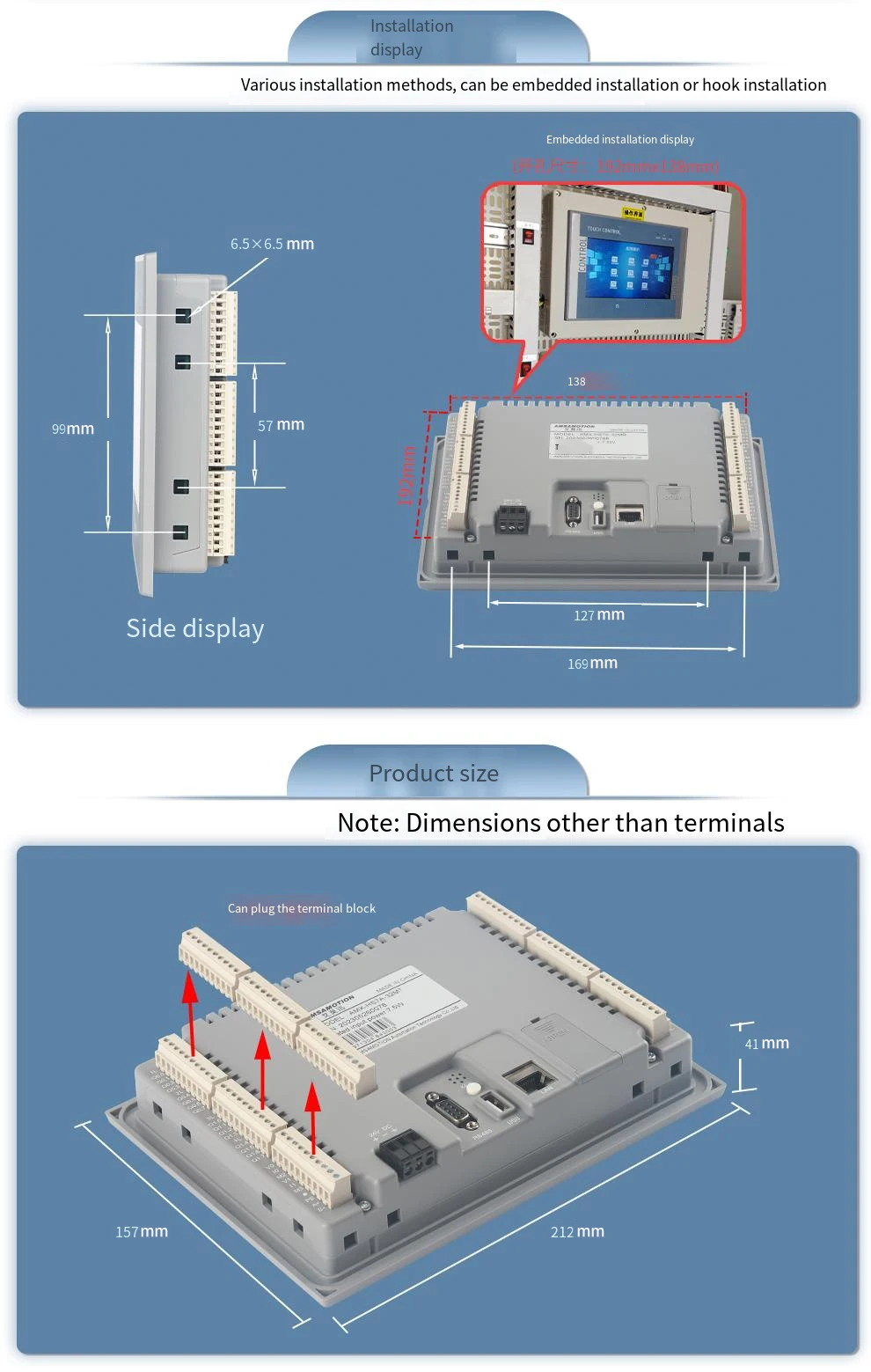

All-in-one PLC+HMI



=AMSAMOTION FX3U PLC+AMSAMOTION HMI


HS7A-32MRT


Digital: 16I, Relay 12O , Transistor 4O

PT100: 2WAT

Analog: 4I 2O

RS485: 2way

HMI Ethernet Port: 1

USB:1



All-in-one PLC+HMI

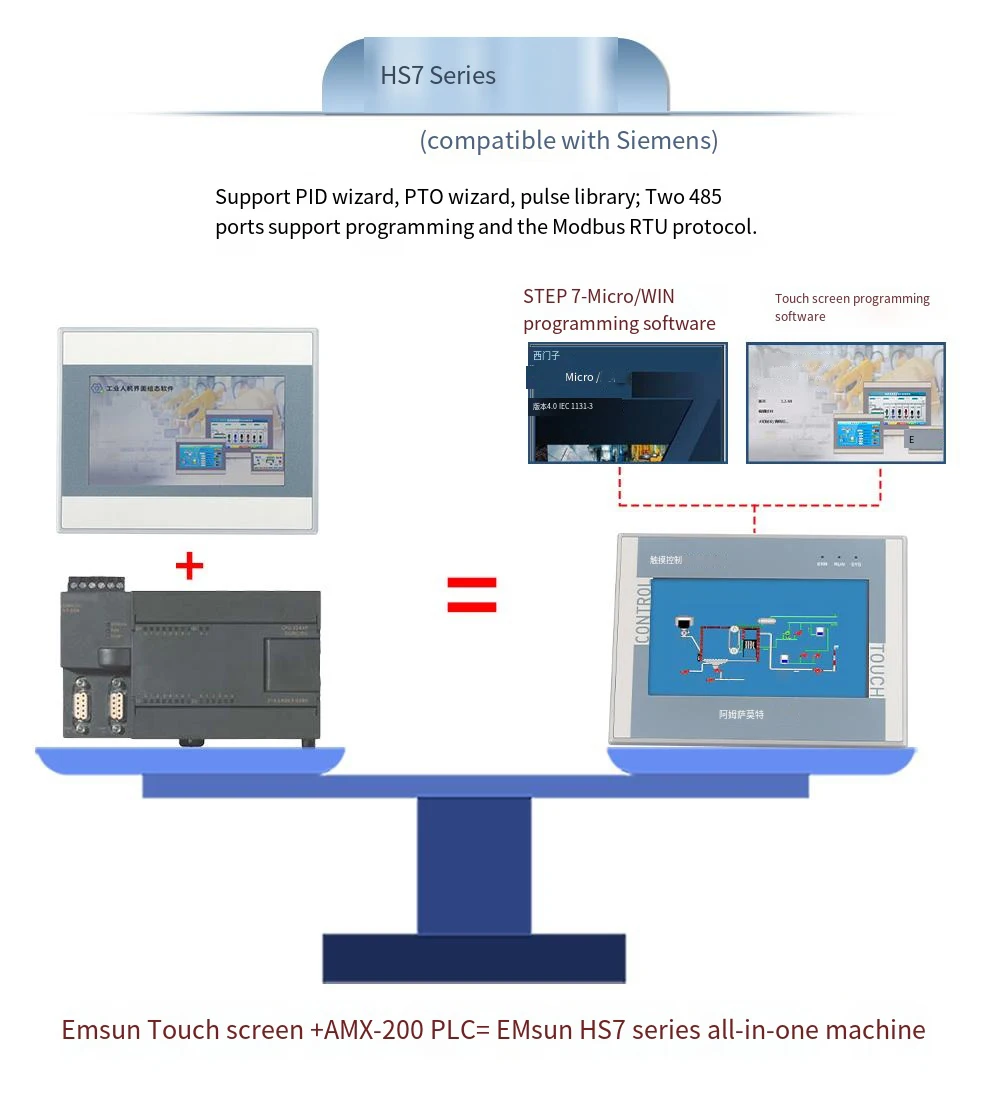

=AMSAMOTION 200 PLC +AMSAMOTION HMI


HS7A-32MR


Digital: 16I, Relay 16O

PT100: 2WAT

Analog: 4I 2O

RS485: 2way

HMI Ethernet Port: 1

USB:1
