Automatic Terminal Crimping Machine 0.5-16mm2 RV Wire Peeling Twisting Servo motor Tubular/insulated Needle Terminals Crimper
Includes all taxes
Meet your Seller
-
$8,936.72Sold by BILLIONS BIRDS
Description

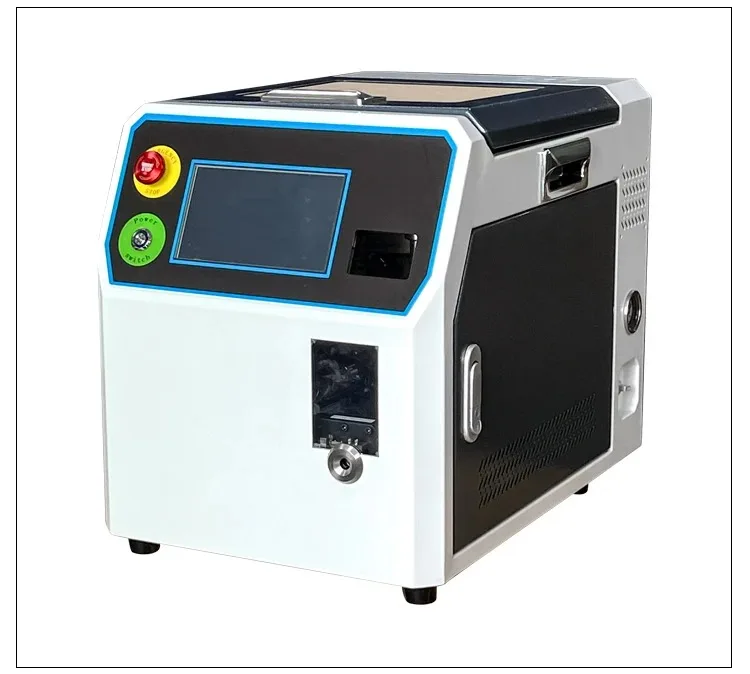

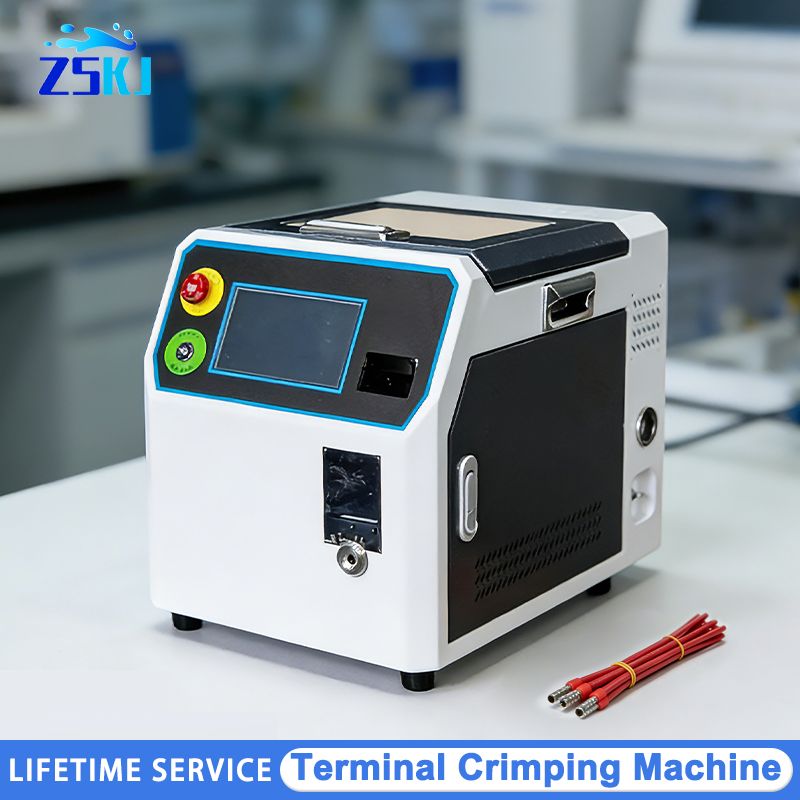

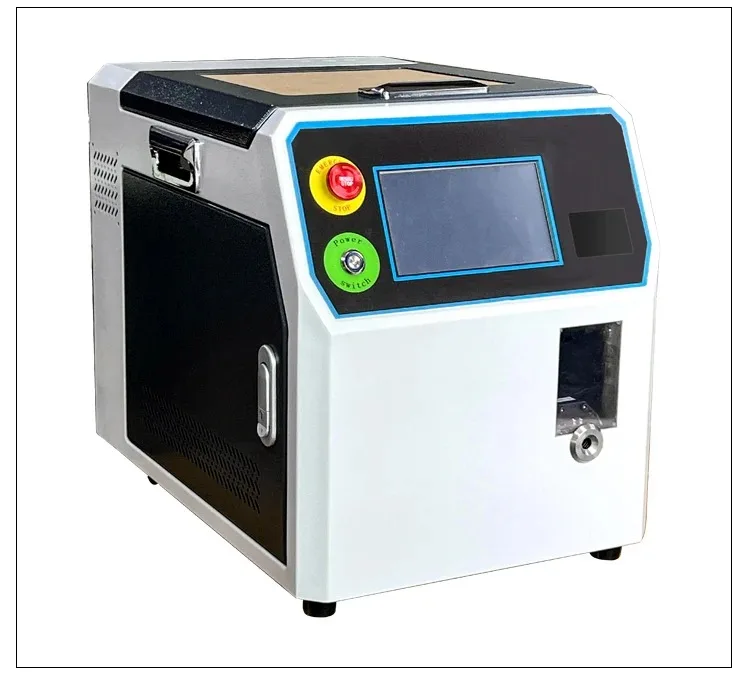

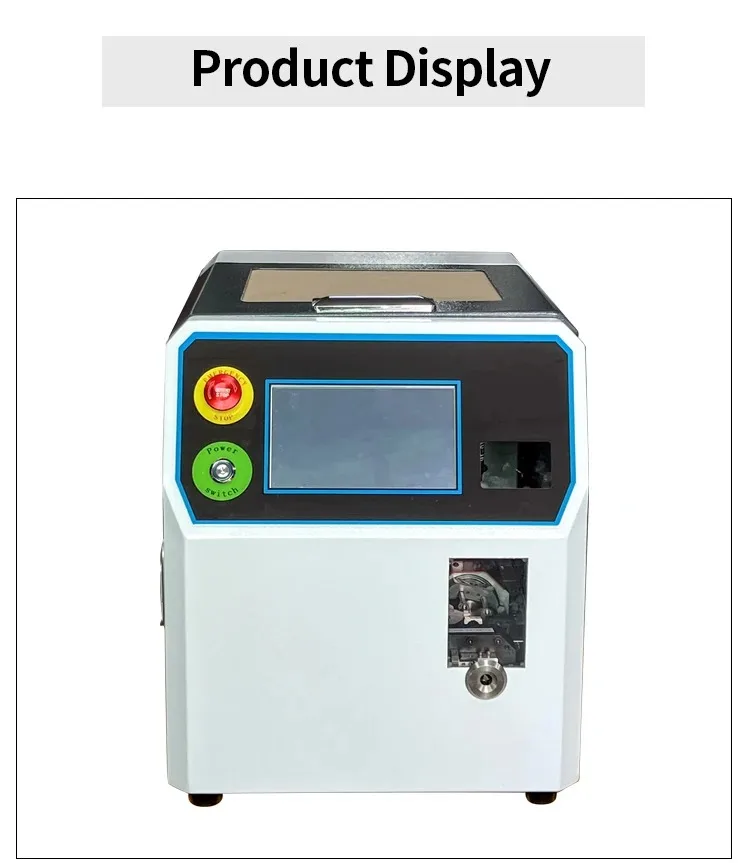

Servo Crimping Machine for Pre-insulated Tubular Terminals
Machine Introduction

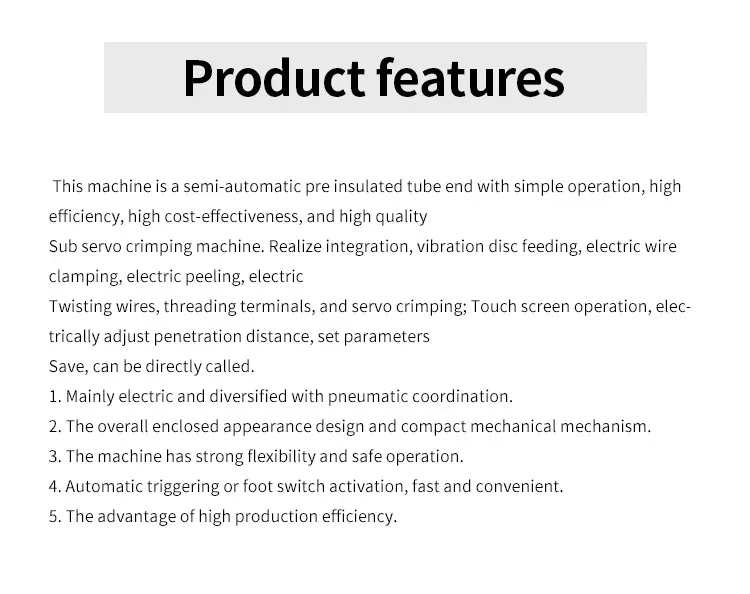

This machine is a semi-automatic pre-insulated tubular terminal servo crimping machine that is easy to operate, highly efficient, cost-effective and of high quality. Achieve integration, including vibrating tray feeding, electric wire clamping, electric stripping, electric wire twisting, terminal threading, and servo crimping. Touch screen operation, electric adjustment of penetration distance, set parameter saving, and can be directly called.
Product features
1. Mainly electric, combined with pneumatic for diversification.
2. The overall closed appearance design enables the front operation position to be visualized for easy viewing and accurate operation.
3. The machine has strong flexibility in movement, a compact mechanical structure, is precise, fine and excellent, and ensures safe operation.

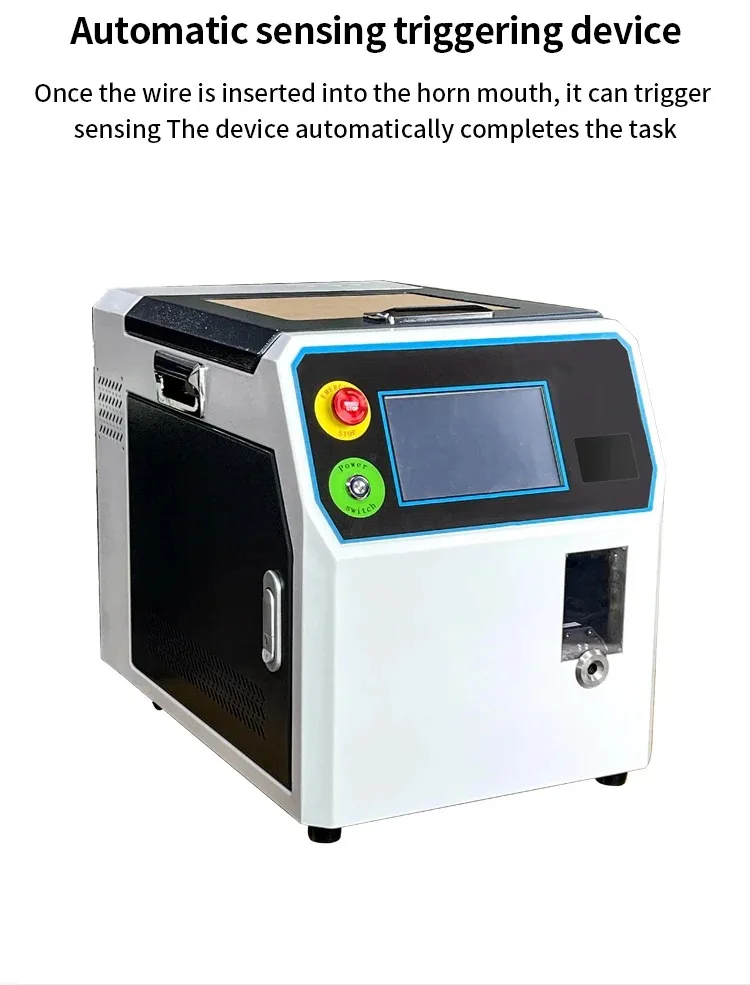

4. It can automatically trigger the start or foot switch, which is quick and convenient.
5. The advantages of high production efficiency and reduced defect rate in production.

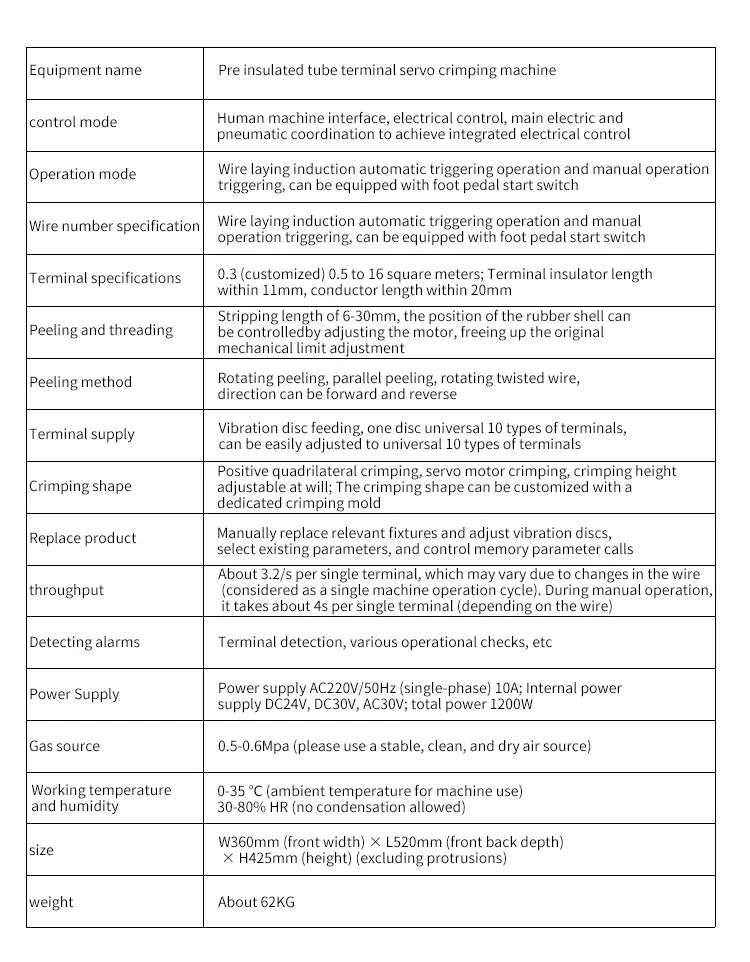

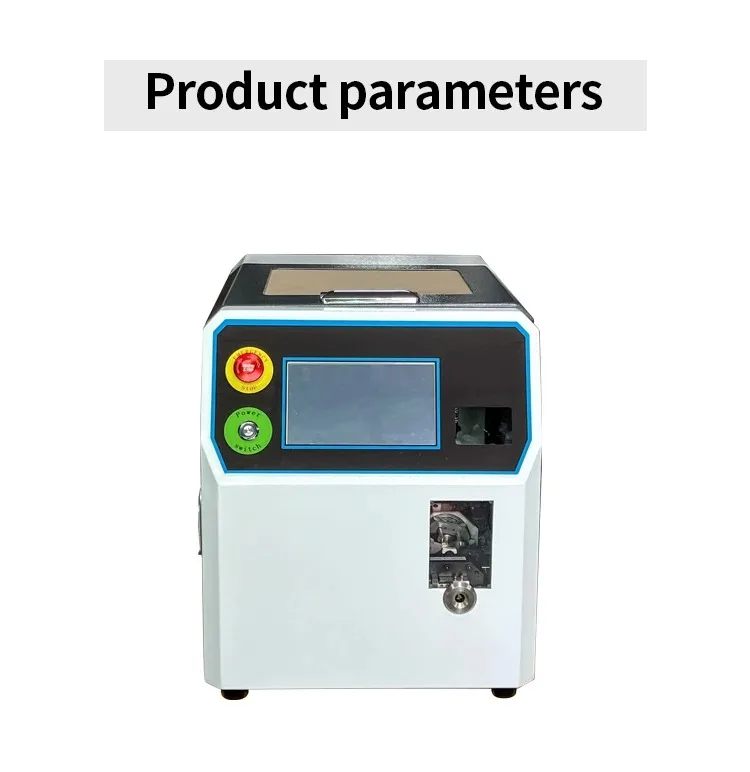

Product parameters
Model: DTC-P16
Control mode: Human-machine interface, electrical control, mainly electric and pneumatic combined to achieve electrical integrated control.
Operation mode: Line-induced white motion trigger operation and manual operation trigger. A foot pedal start switch can be installed.

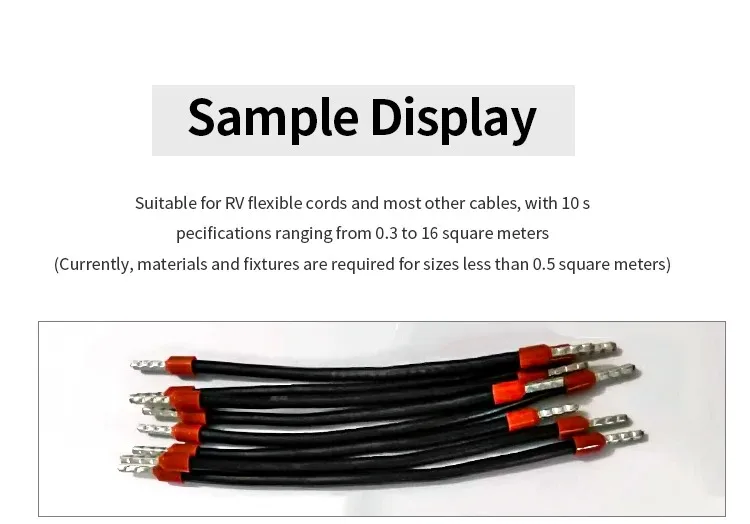

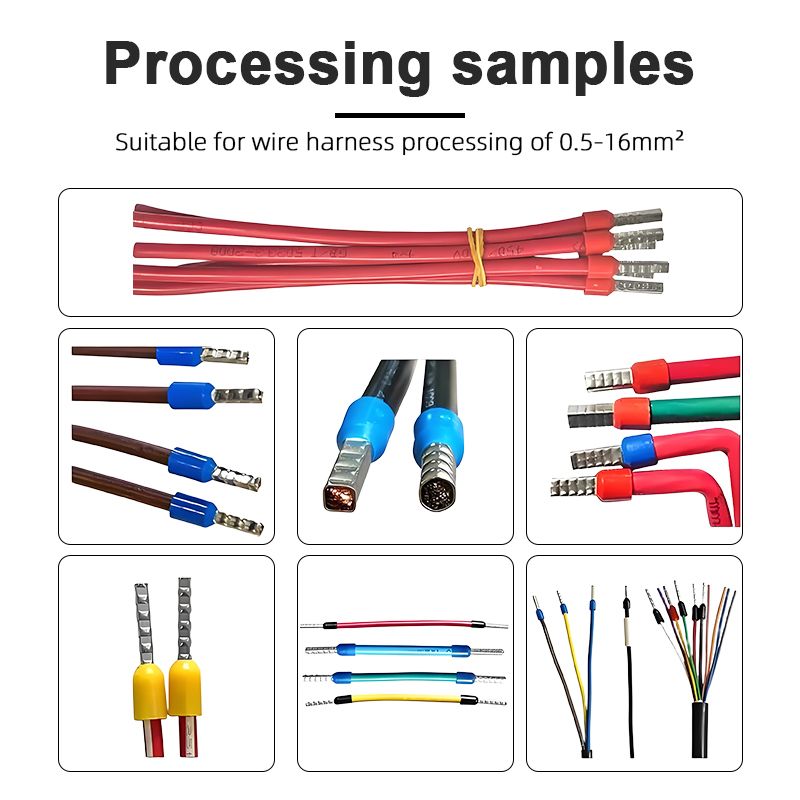

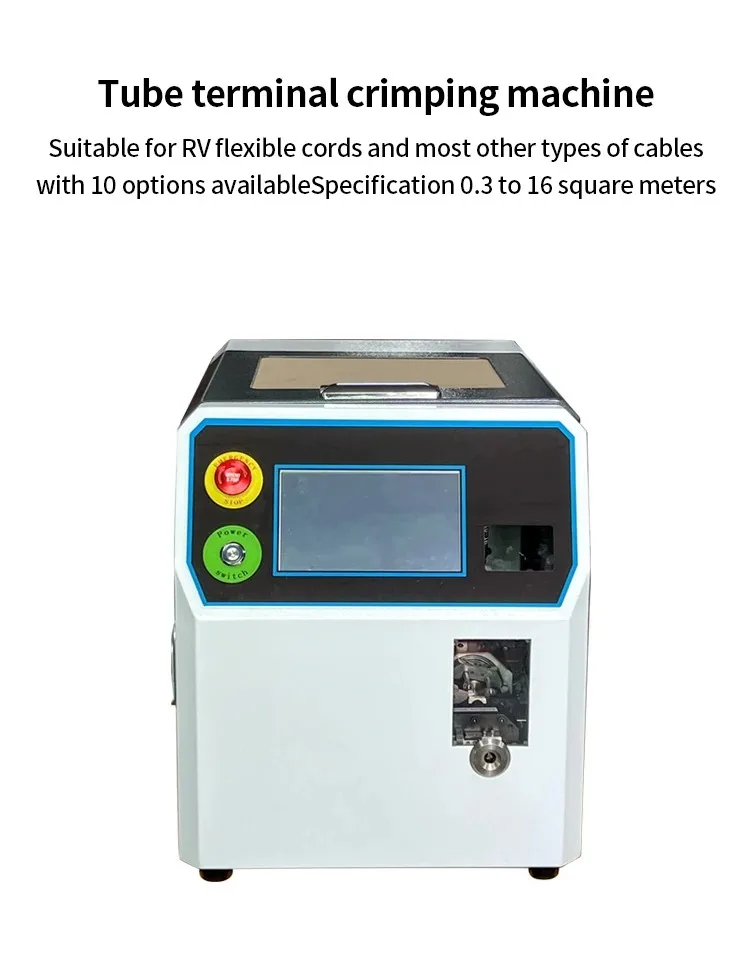

Wire size specification: Applicable to most types of wires such as RV flexible wires, with 10 specifications ranging from 0.3 to 16 square meters (currently, for wires smaller than 0.5 square meters, material matching fixtures need to be provided).

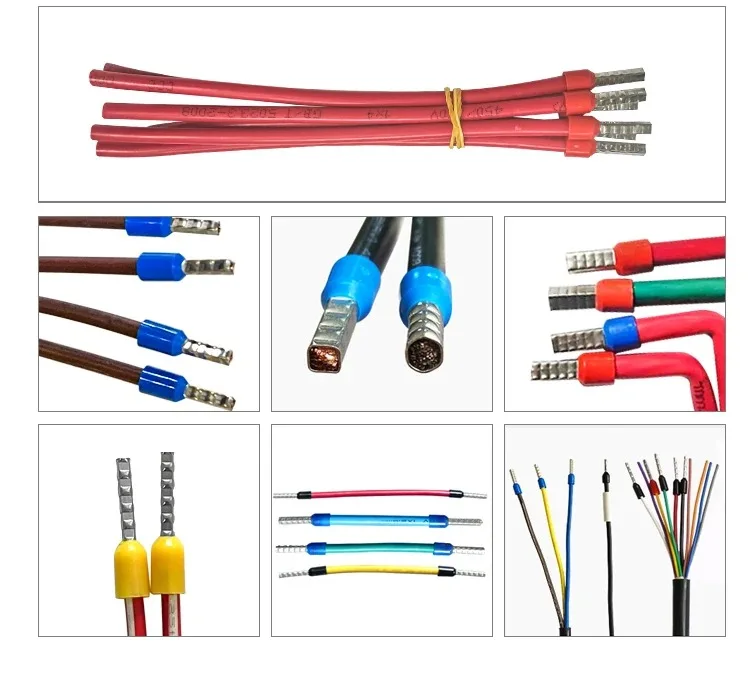

Terminal specifications: 0.3(customized)0.5 to 16 square; The length of the terminal insulator should be within 11mm and the length of the conductor within 20mm.
Peeling and penetration: The peeling length is 6-30mm. The position of penetration into the rubber shell can be controlled by motor adjustment, liberating the original mechanical limit for in and out.

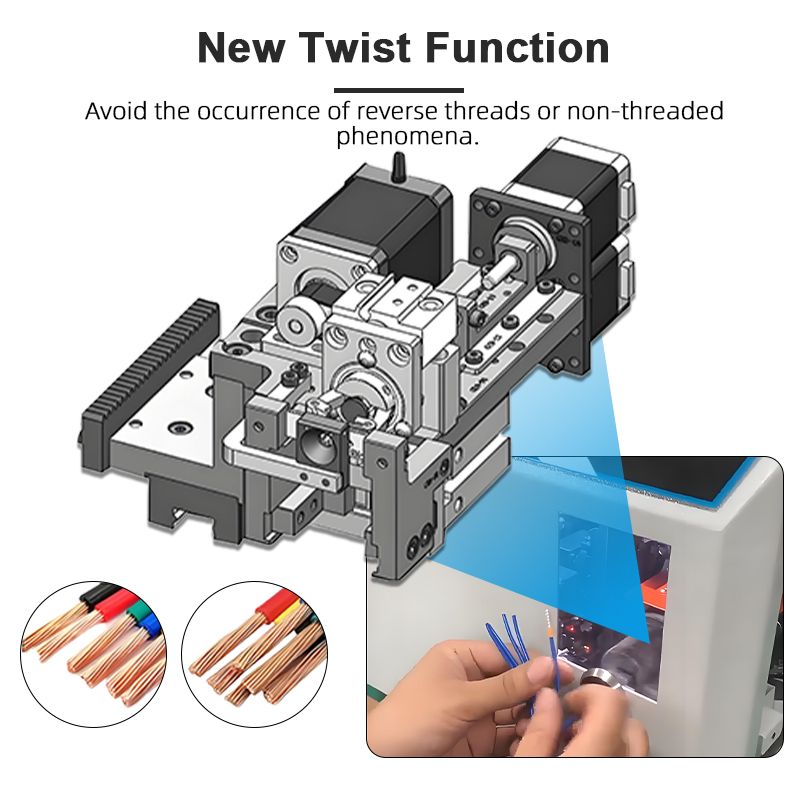

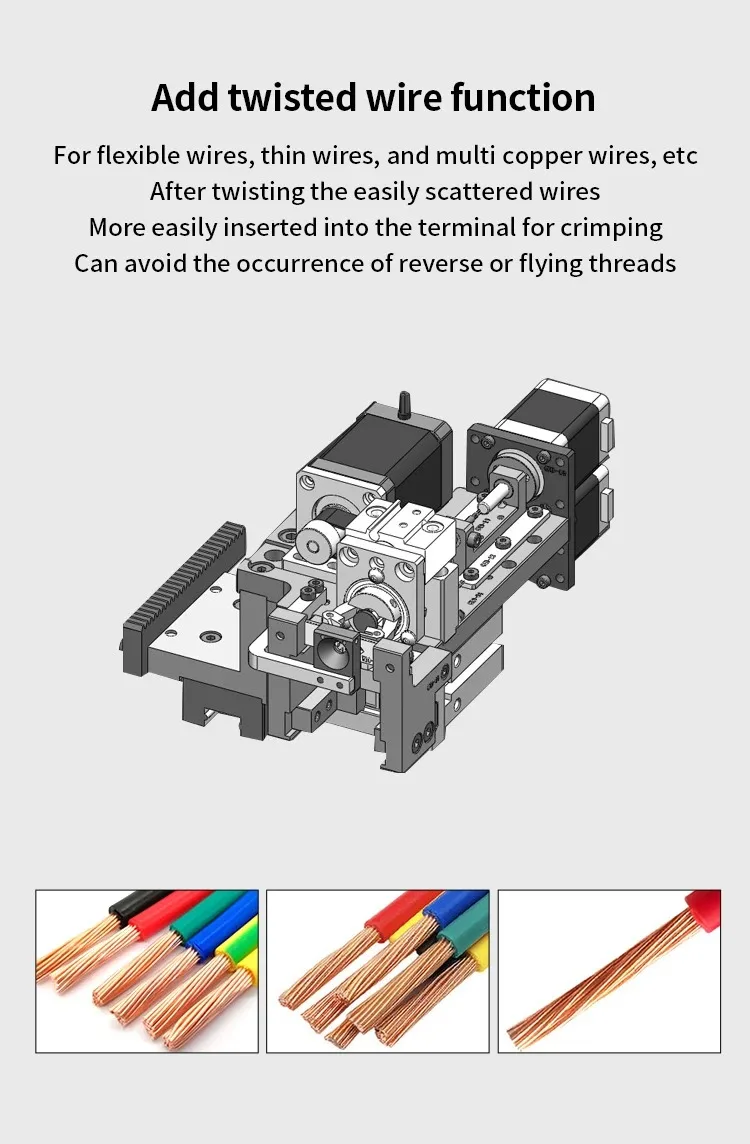

Peeling methods: Rotary peeling, parallel peeling, rotary twisting, and the direction can be forward or reverse.

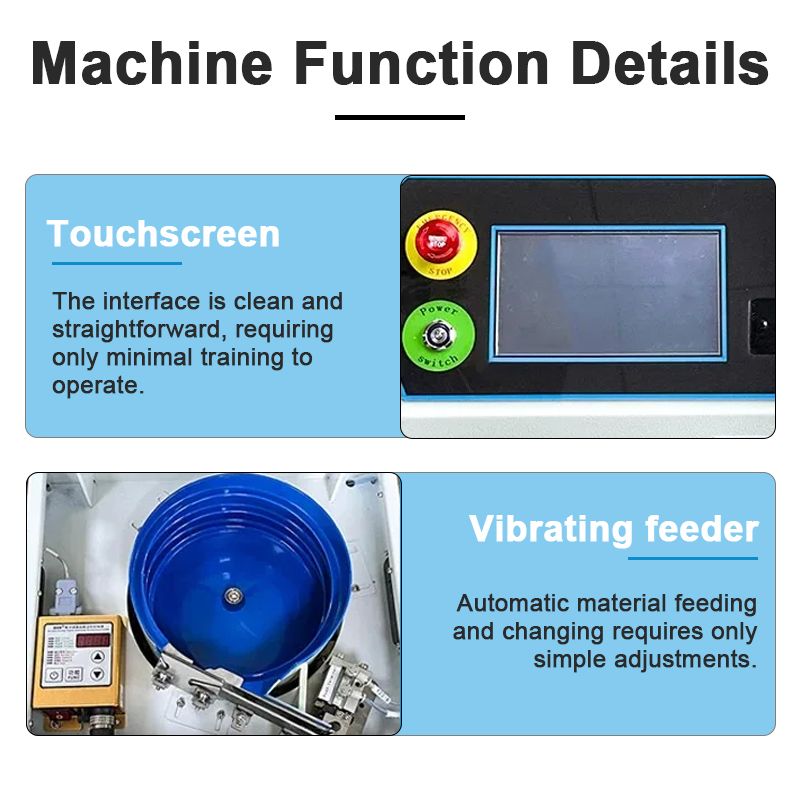

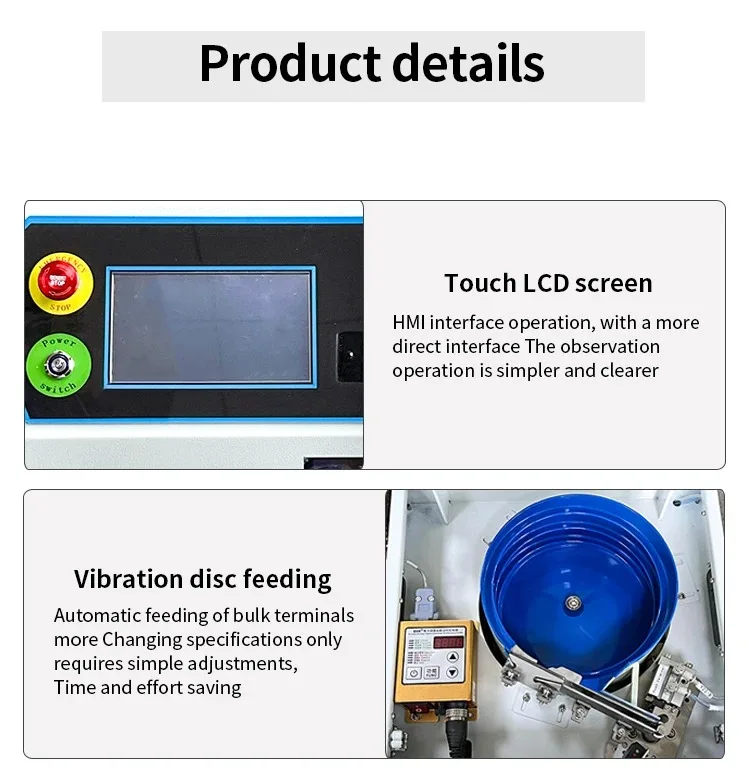

Terminal supply: Vibrating tray feeding, one tray can be used for 10 types of terminals. With simple adjustments, 10 types of terminals can be used universally.

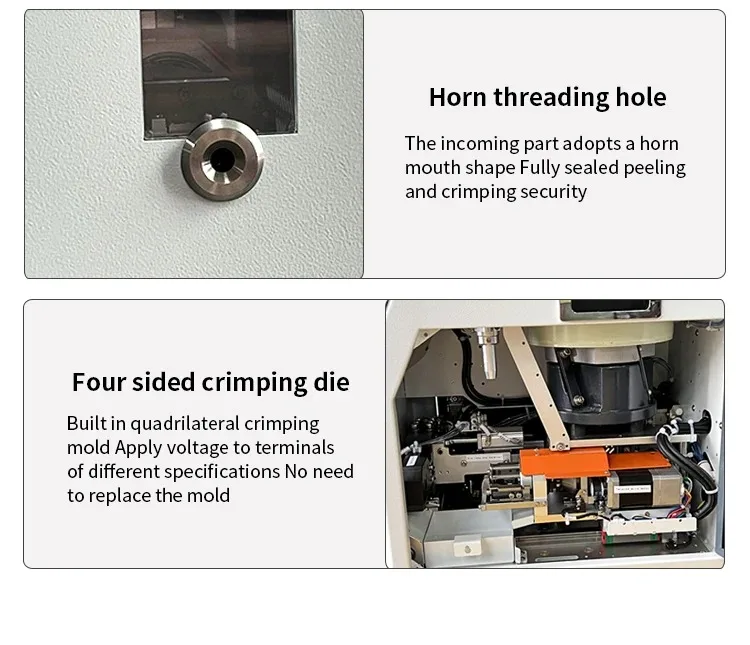

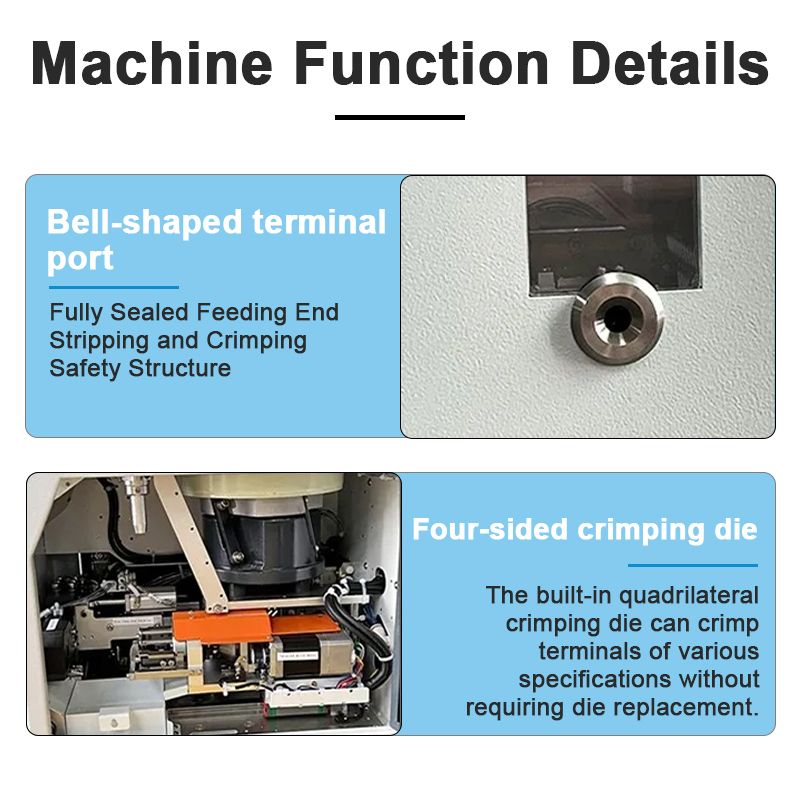

Crimping shape: Regular quadrilateral crimping, servo motor crimping, and the crimping height can be adjusted freely: The crimping shape can be customized with a dedicated crimping die.
Product replacement: Manually replace the relevant fixtures and adjust the vibration disc, select the original parameters, and control the memory parameter invocation.
Production capacity: approximately 3.2 seconds per single terminal, which may vary depending on the wire type (considered as a single machine operation cycle). During manual operation, it is approximately 4 seconds per single terminal (depending on the wire type).

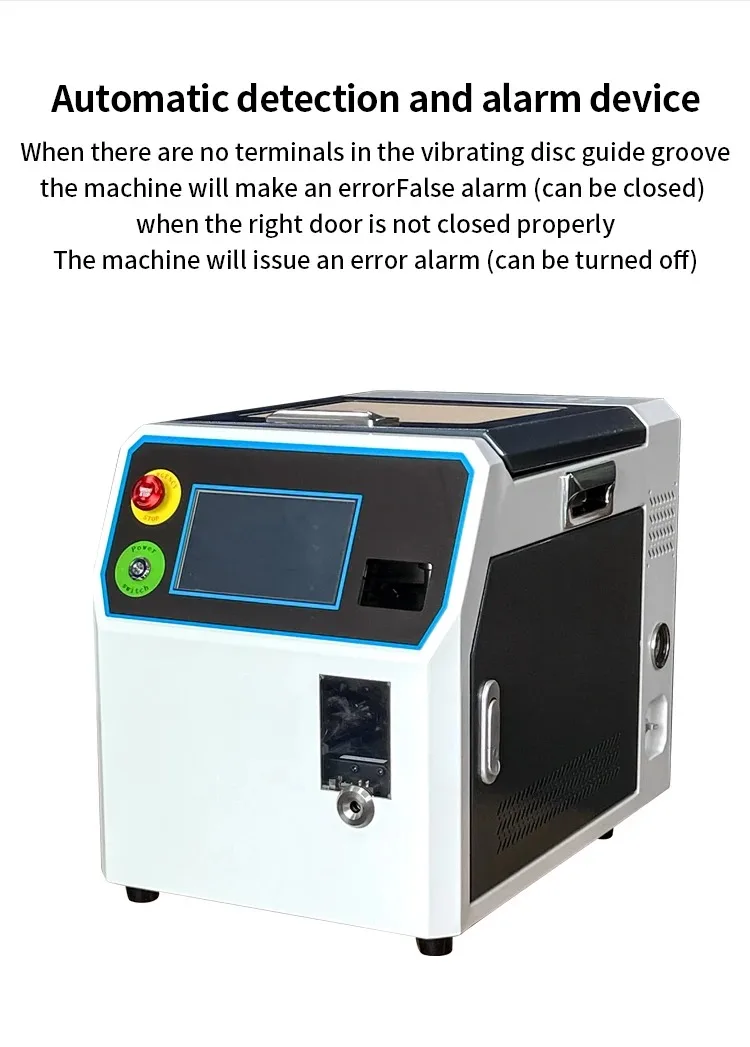

Detection and alarm: Terminal presence detection, and various other operation detection.

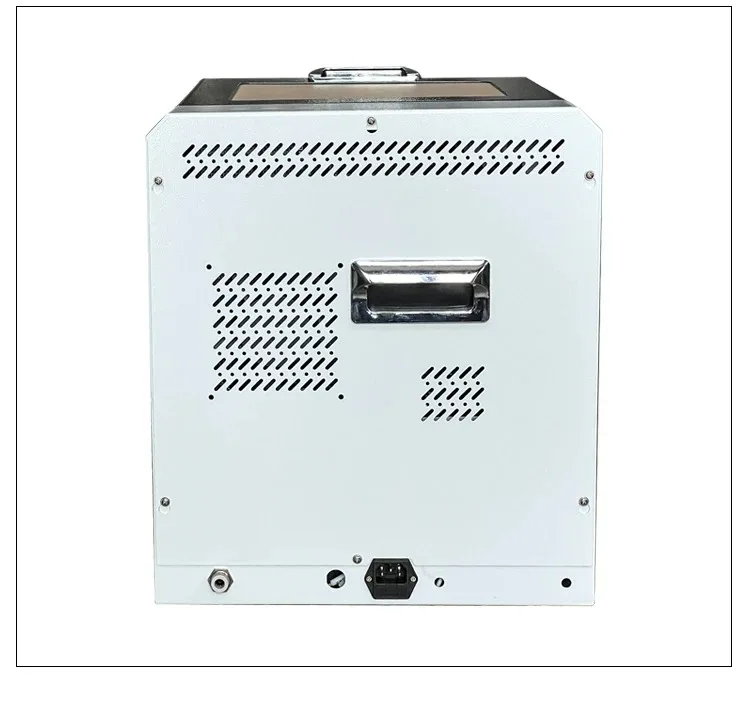

Power supply: AC220V/50Hz(single-phase)10A; Internal power supply: DC24V, DC30V, AC30V; Total power: 1500W.
Air source: 0.5-0.6Mpa(Please use a stable, clean and dry air source).
Working temperature and humidity: 0-35℃(ambient temperature for machine operation), 30-80%HR(no condensation).
Dimensions: W360mmxL535mmxH425mm(excluding protrusions)
Weight: Approximately 62KG
