CCTV IPC Tester IPC-5200C Plus 8MP AHD CVI TVI SDI Camera Tester 32MP IP Camera Tester 5.4" Touch Screen HDMI VGA Cable Tester

$509.79

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description



8K IPC Tester 8MP/AHD/CVI/TV/SDI CCTV Tester with HDMI VGA Input CCTV Monitor for IP Camera Tester CFTV Tester CCTV Testing Tool Kit


Key Features:


● 5.4-inch IPS touch screen, 1920x1080 resolution

● Support up to 8MP CVI/ TVI/ AHD camera test

● Support up to 8MP EX-SDI, HD-SDI, 3G-SDI test

● H.265/H.264, 8K video display via mainstream

● VGA input, support 1920 x 1200P 60FPS

● HDMI Input, support 4K 30FPS

● DC12V 3A, 48V POE power output

● Rapid ONVIF, Create the test report and modify IP address, etc

● Auto HD, auto recognize HD coax camera type

and resolution

● RJ45 TDR cable test, cable quality test

● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

● Multil-Languages Supported: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech


Applications:


The 5. inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

TT-IPC5100 Plus:

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+HDMI IN+VGA IN test

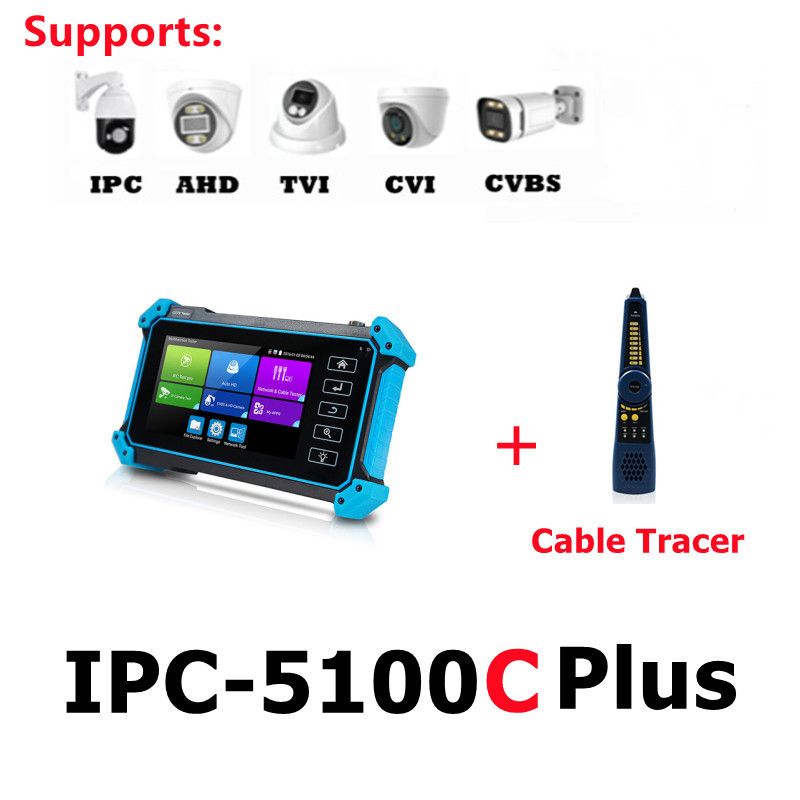

TT-IPC5100C Plus:

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+HDMI IN+VGA IN test + Cable Tracer



TT-IPC5200 Plus:

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test


TT-IPC5200C Plus:

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test + Cable Tracer

Interface of TT-IPC5100 & 5100C Plus:

Interface of TT-IPC5200 & 5200C Plus:






Key Functions:

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.
● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback*
● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback*
● Rapid ONVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.

All in one 4K AHD TVI CVI CVBS IPC Camera tester support VGA input, 5" Touch screen, 30FPS HDMI input
This integrated IP camera tester, Poe and camera test tool function in one app, can view the network information, the power and voltage of POE and DC 12V, also can go to ONVIF function and test tool function
This integrated IP camera tester auto scan whole network segment IP, as well as auto-modify the tester's IP to the same network segment with the scanned camera's ip
4K camera test via mainstream, support 12MP IP camera test OSD menu can modify channel name, can search whole network segment ip camera address
4K CCTV IPC Tester AHD+CVI+TVI+Analog Camera tester can auto recognize HD Coax camera type and resolution, support snapshot, video record and playback, coaxial PTZ and Call OSD menu
Other Functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Customers self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /3350mAh Lithium Ion Polymer Battery, after 3-4 hours charging, working time lasts 5 hours (For IPC-5100 Plus and IPC-5200 Plus)
● 7.4 V /2500mAh Lithium Ion Polymer Battery, after 3-4 hours charging, working time lasts 5 hours (For IPC-5000 Plus)

4K CCTV IPC Tester AHD+CVI+TVI+Analog Camera tester support cable tracer and utp cable test in the same interface, can search network cable, BNC cable and shielded cable, dicisively rejects noise and false signals. Locate cables quickly and easily

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.

4K CCTV IPC Tester AHD+CVI+TVI+Analog Camera tester support power output for POE cameras and detect camera power at the same time
4K CCTV IPC Tester AHD+CVI+TVI+Analog Camera tester support test and debug NVR and DVR, as display screen

Main Features:

● 5.4 inch IPS touch screen, 1920*1080 resolution

● H.265 & H .264 IP, 8K video display via mainstream

● Analog camera test, PTZ controller

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu

● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.

● Rapid ONVIF, Auto log in and display image, create testing report

● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.

● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name.

● IP and analog display image at the same time

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

● DC12V/3A power output, camera can be powered from DC 12 Voltage.

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.

Other Functions:


● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Customers self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
