Functions Optional:
Option 1:
Android 11/13 MT6765 Cortex-A53 Qcta-core 2.5GHz + 5.2'' Screen + 4G RAM+64GROM + Wifi + BT4.0 + 13MP Camera + GPS + 4G + NFC + SDK+Pistol Grip+Zebra SE4710 2D Scanner
Option 2:
Android 11/13 MT6765 Cortex-A53 Qcta-core 2.5GHz + 5.2'' Screen + 4G RAM+64GROM + Wifi + BT4.0 + 13MP Camera + GPS + 4G + NFC + SDK+Pistol Grip+Impinj E710 UHF RFID Reader
UHF RFID Max Read Range:
26m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Option 3:

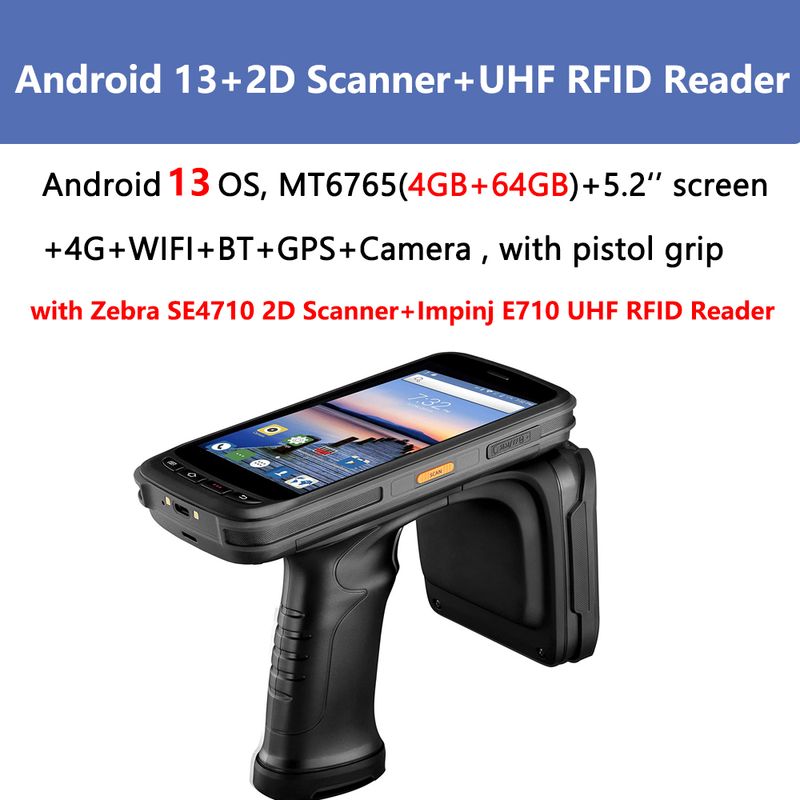

Android 11/13 MT6765 Cortex-A53 Qcta-core 2.5GHz + 5.2'' Screen + 4G RAM+64GROM + Wifi + BT4.0 + 13MP Camera + GPS + 4G + NFC + SDK+Pistol Grip+Zebra SE4710 2D Scanner+Impinj E710 UHF RFID Reader
UHF RFID Max Read Range:
26m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Standard Accessories:
Handheld PDA 1 Pcs, Battery 1pcs, Usb data cable1pcs, AC Adaptor 1pcs
Optional Accessories:
Pistol Grip
Charging Cradle
if you need single charge cradle or 4-cradle charging bar,protect case and so on,please contact with out seller,
Mason Mei +86 18682169806(WhatsApp/Skype/Mobile);Email:mason@msench.com
Products Description















Specification
Physical Characteristics | |
Dimensions | 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in. |
Weight | 654 g / 23.07 oz. |
Display | 5.2'' IPS LTPS 1920 x 1080 |
Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
Power | Main battery: Li-ion, rechargeable, 8000 mAh |
Notification | Sound, LED indicator |
Expansion Slot | 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
Interfaces | USB 2.0 Type-C, OTG, Type-C headphones supported |
Audio | 1 microphone;1 speaker;receiver |
Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
Sensors | Light sensor, proximity sensor, gravity sensor |
Communication | |
WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
WWAN | 2G: GSM850/GSM900/DCS1800/PCS1900 |
WWAN (Others) | Depending on the country's ISP |
Bluetooth | Bluetooth 5.0 |
GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
Note | *C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer. |
Developing Environment | |
Operating System | Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility |
SDK | Chainway Software Development Kit |
Language | Java |
Tool | Eclipse / Android Studio |
Performance | |
CPU | Cortex-A53 2.3 GHz Octa-core |
RAM+ROM | 3GB + 32GB / 4GB + 64GB (optional) |
Expansion | Supports up to 128 GB Micro SD card |
Barcode Scanning | |
1D Linear Scanner | Zebra: SE965; Honeywell: N4313 |
2D Imager Scanner | Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603 |
1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
Note | *This function is optional |
UHF RFID | |
Engine | CM710-1 module based on Impinj E710 |
Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
Protocol | EPC C1 GEN2 / ISO18000-6C |
Antenna | Linear polarization(1.8 dBi); circular polarization (4 dBi) |
Power | 1W (30 dBm, +5 dBm to +30 dBm adjustable) |
Fastest Read Rate | 1200+ tags/sec (circular polarization) |
Max Read Range | Impinj E710 chip: |
Note | *Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. |
Note2 | *This function is optional |
Camera | |
Camera | 13 MP Autofocus with flash |
NFC | |
Frequency | 13.56 MHz |
Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
Range | 2-4 cm |
Note | *This function is optional |
