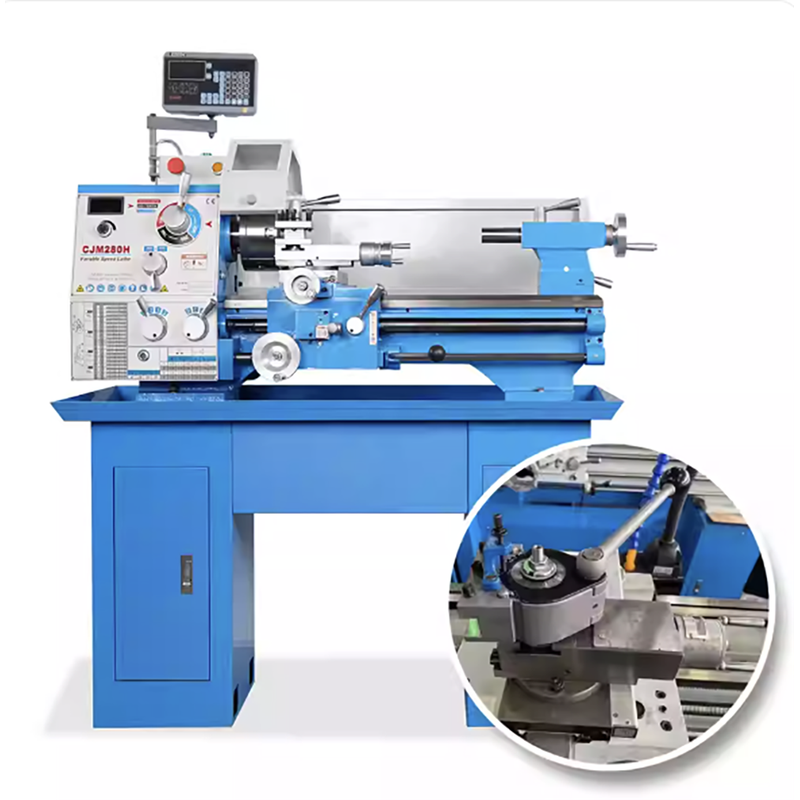

Customized CJM280H Desktop Lathe 500mm High-Precision Multi-Function Automatic Threading Metalworking Craft Machine for Home Use

$4,055.78

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Dear Buyer, This product is custom-made, and the price shown is not the final price . We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode. The most important thing is that you need to communicate with our customer service to confirm the product parameters.Specific pricing varies depending on the country and custom requirements, please contact customer service. Orders not confirmed by customer service will not be shipped.


CJM280, 500MM

Product features

►Full gears driven in theheadstock, with 8 steps ofcyclic speed-changing.Invention patent technology.

►Feeding box with12 steps ofvariable speeds,covering common threading pitches.

►Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

►High frequency hardened Two V-type widened guideway with rigidity.

►Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod


Stadard accessories

Optional accessories

3-jawchuck

Φ160

Chip tray

MachineBase

Belt

Atype762

Steadyrest

Followrest

Dead centers

MT.3#,5#

4-jawchuckΦ160/Φ200

FlangeplateΦ160/Φ200

Chuck spanner

1piece

FacePlateΦ250

Thread dial indicator

Allen wrench

4#,5#,6#

Special optional change gears(9)

Live center

Stud dead

12-14;17-19

Coolant

Worklight

Changing gears

40T

Digital readout

Optionalmotor1.1/1.5KW




Technical parameters

Model


CJM280/500

CJM280/750

Max. swing overbed

280mm

Max. work-piece length

500mm

750mm

Max. swing over carriage

165mm

Main spindle diameter

38mm

Main spindle taper

MT.5#

Max. cross travel of carriage

185mm

Max. travel longitudinal of toolpost

75mm

Metric threads range/No

0.2~3.5mm/18

Imperial threads range/No

41⁄2~48T.P.I/34

Module threads range/No

0.2~1.75M.P/16

Diametrical threading range/No

16~120D.P/24

Toolpost longitudinal feeding per spindlerotation

0.05~0.35mm/r

Toolpost cross feeding per spindlerotation

0.025~0.18mm/r

Max. travel of tailstock sleeve

75mm

Tailstock sleeve taper

MT.3#

Spindle speed steps

8

Main Spindle speedscope

90~1800rpm

Main motorpower

750W

Net weights/Gross weights

260/300kg

270/320kg

Overalldimensions(L*W*H)

117×65×65cm

142×65×65cm

Packingdimensions (L*W*H)

131×77×75cm

153×77×75cm
