Customized New Technical High Capacity Egg Tray Paper Manufacturing Production Line Waste Paper Egg Tray Forming Machine

$31,053.78

Includes all taxes

Color
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

PLEASE NOTE:

1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!

Faye(Sales Manager)
Email: sales13yugong@yg797.com
Whatsapp/Wechat/Mobile: +86 18737172261

Customized High Quality Manufacturing Equipment Automatic Egg Tray Making Machine

Egg Carton Production Forming Machine Molded Pulp Cup making Machine

New Coffee Cup Tray Making Machine

Products Description

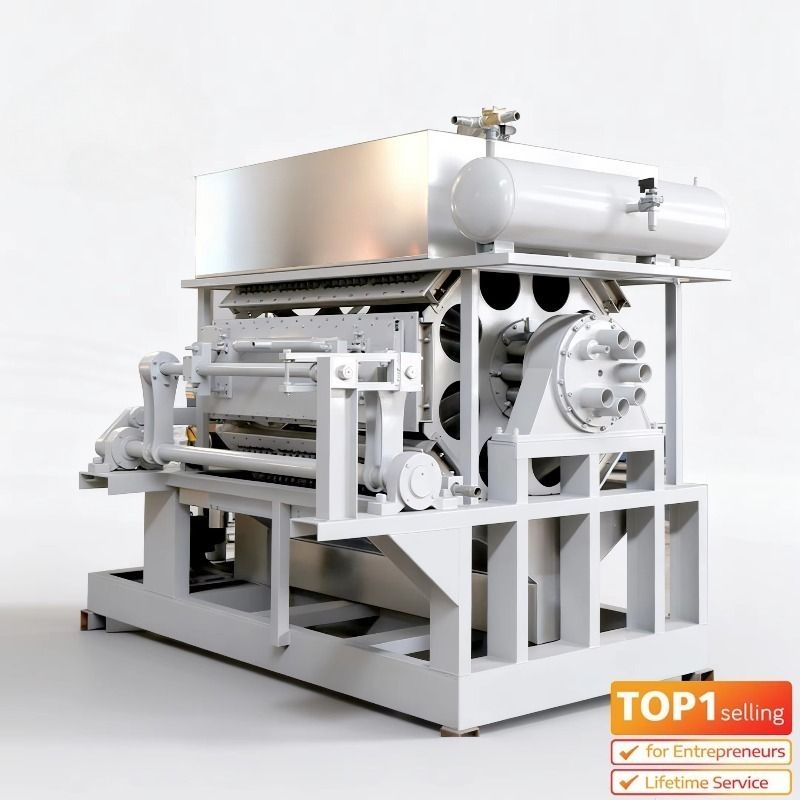

Automatic egg box machine waste pulp paper recycle line egg tray making machine
The pulp molding system can use all kinds of waste paper to produce high quality molded fibre products. Such as, egg trays, egg boxes, apple trays, meat portion trays, vegetable portion trays, fruit portion trays, strawberry punnets, kidney trays, wine packs, can trays, seed pots, seed cubes, etc.

Machine Model
YG-3*1
YG-4*1
YG-3*4
YG-4*4
YG-4*8
YG-5*8
YG-5*12
Production Speed (pcs/h)
1000
1500
2000
2500
3000
5000
6000
Total Power

32KW
45KW
58KW
78KW
80KW
85KW
90KW
Paper Consumption (kg/h)
120
160
200
280
320
400
480
Water Consumption (kg/h)
300
380
450
560
650
750
900
Workshop Area (sq.m.)
45
45
80
80
100
100
120
Note:1.More plates ,more less water use
2.Power means the main parts,not include dryer line
3.All fuel use proportion are calculated by 60%
4.single dryer line length 42-45 meter,double layer 22-25 meter,multi layer can save workshop area



High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
Feature Advantage

The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect. The required operator is 5 people/class: 1 person in the pulping area, 1 person in the molding area, 2 people in the cart, and 1 person in the package.


1.Pulping system

Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.

2. Forming system

After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.

3. Drying system

(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy

4. Finished product auxiliary packaging

(1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor

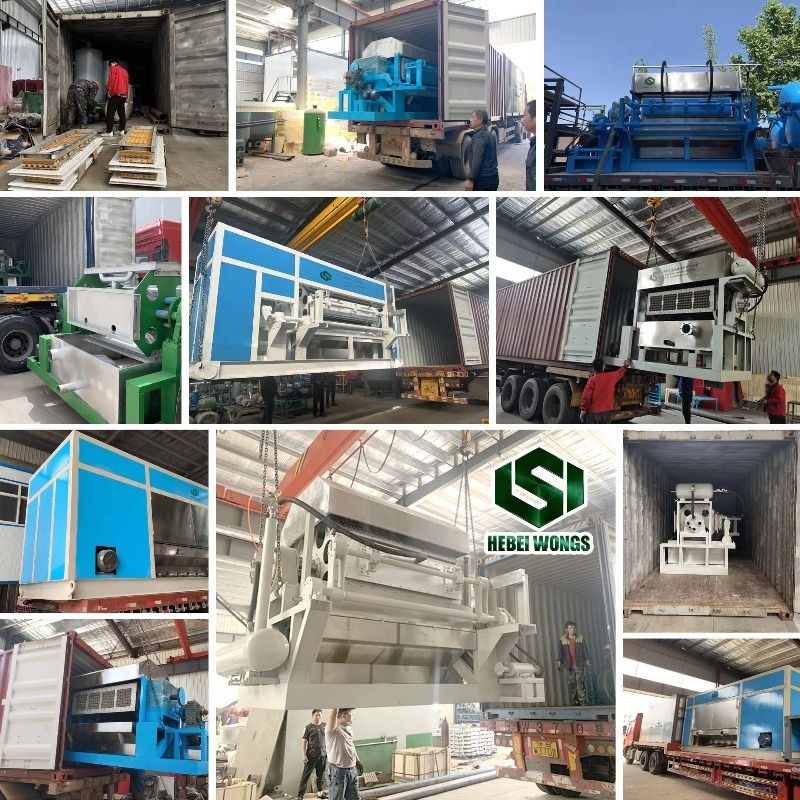

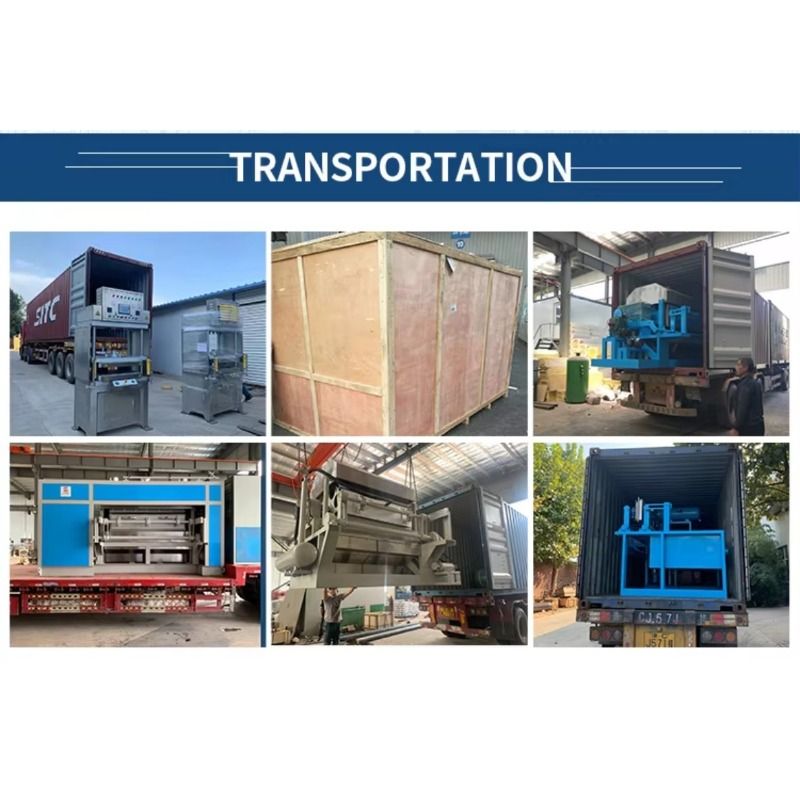

Shipping and Delivery

FAQ
Q:What is your production cycle?
A:Usually the delivery time is about 7 - 15days after the payment confirmed. It is also depend on the machines. If need to customize the machine as your requirement, the producing time is longer.

Q:What kinds of mould do you produce?
A:We produce all kinds of pulping mold, such as egg tray molds,egg box molds,fruit tray molds,coffee cup tray molds,wine tray molds, industrial package mold etc.

Q:How should I choose the model?
A:1. You could tell us your request for select our existing model or newly designed mould. Just 30 holes egg tray pulp mould, wehave more than 100 types.
2. Or you can send us pulping products (such as egg tray/egg box) ,we can design the mould.

Q:How to install the mold?
A:We have professional technician guidance to assist you with installation.

Q: What is your payment term?
A:After confirming the PI, you need pay 30% T/T deposit to start production, 70% balance before shipment.
