Diy Radio Electrical Material Package Assembly Parts 51 Single Chip Microcomputer DIY parts

$11.75

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Introduction

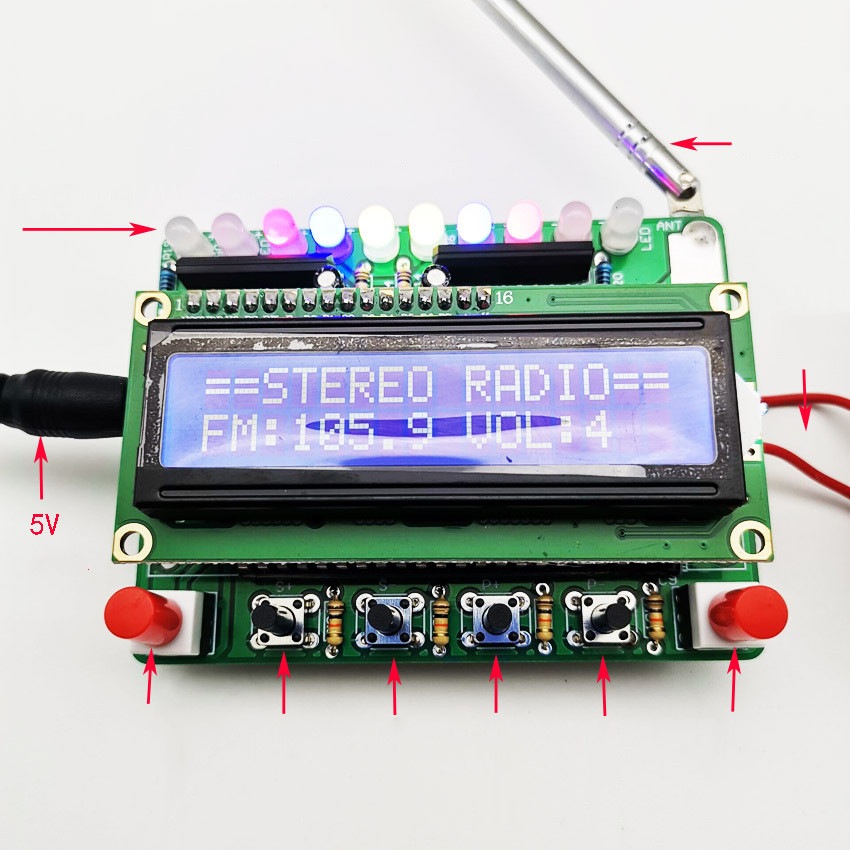

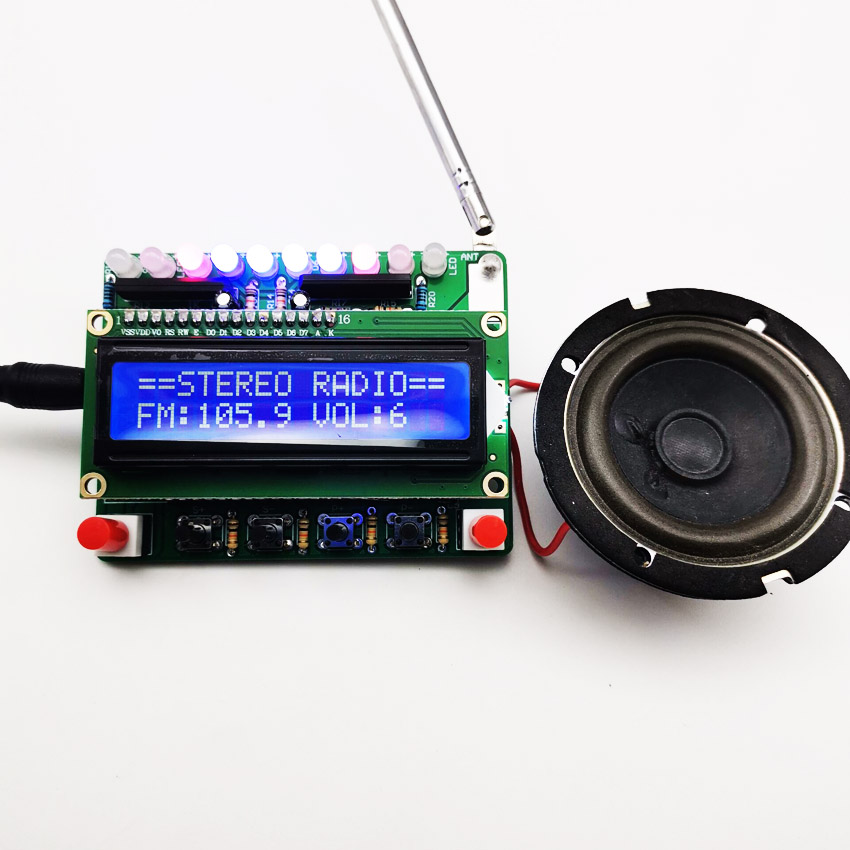

The main control chip is composed of STC89C52 chip + TDA5807 core device. It is connected through the I2C bus between the master and slave devices. The software simulates the bus sequence to drive the TDA5807 chip to work. The program realizes the function of automatically searching for radio stations. The frequency receiving range is 87- 108MHZ, frequency band information is displayed in real time by LCD1602 LCD screen. The output audio signal is amplified by the power amplifier chip LM386 to drive the speaker to work.
The receiving sensitivity and sound quality are very good, and the anti-noise interference ability is strong, which effectively reduces the noise interference when listening to the radio station, and the sound becomes clearer under the action of the power amplifier chip.
Plus level indicators make listening to the radio a complete pleasure.
Product Features:
1. This module adopts DC 5V working voltage, which is convenient for taking electricity and supports computer USB power supply and mobile power bank.
2. This radio adopts digital tuning and volume control. It is more convenient to search for radio stations and adjust the volume.

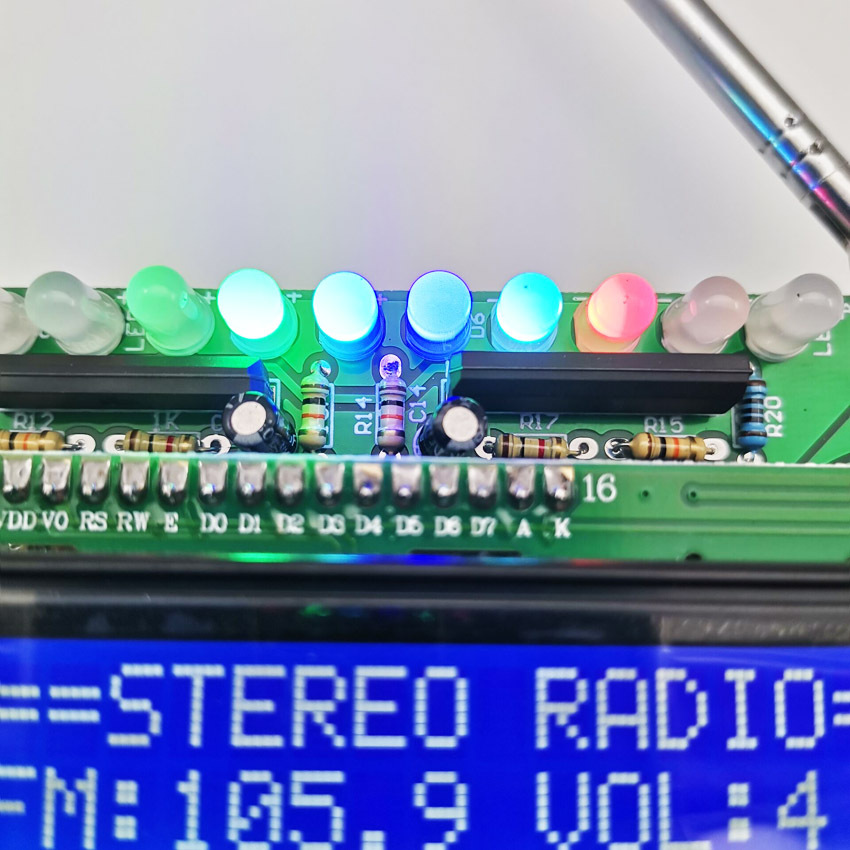

Level indicator introduction:
There are 10 level indicators, using colorful fog light slow flashing LEDs, which light up according to the volume. Dreamy and beautiful.


Parameter:
DC socket power supply 5V, inside positive and outside negative, do not reverse;
Frequency modulation range: 87MHZ-108MHZ;
Board size: CMXCM;

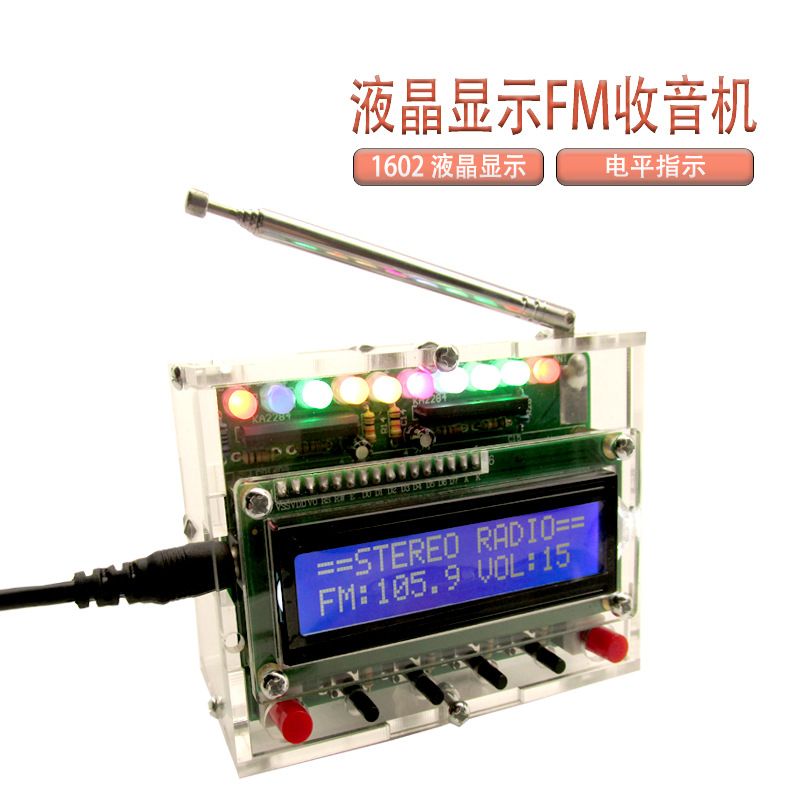

Shell size: 9.5cm*6.4CM*5.0CM
Working voltage: 4.5V-5.5V DC.

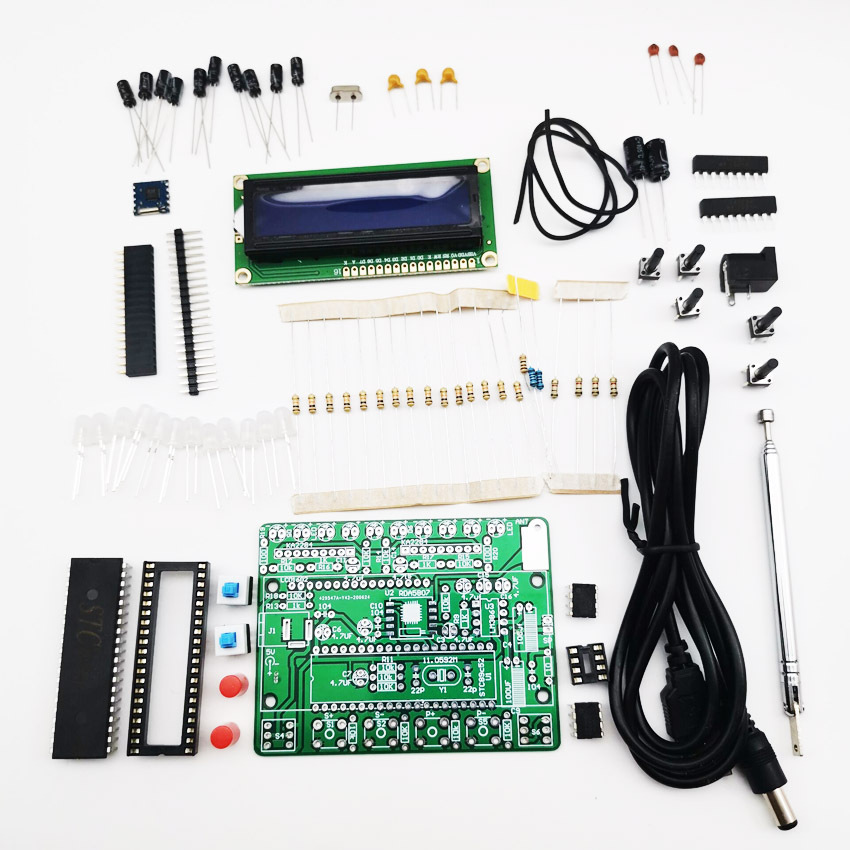

Packing list:

PCB board 1
5MM colorful fog light 12
10 Euro 1
100 Euro 2
1K 4
10K 15 2 more shots
6*6*20 button 5, send 1 more
RDA5807 1
8*8 self-locking switch 2
8*8 button cap 2
DC005 Block 1
USB to DC005 cable 1
4.7UF electrolytic capacitor 10 more than 1
25V 100UF 2
8P IC socket 1
LM386 2
22P Ceramic Capacitor 3

11.0592M crystal oscillator 1
104 Monolithic Capacitor 3
16P female header 1
Pin header half 1
LCD1602 1
40P IC holder 1
STC89C52 1
Antenna 1

KA2284 chip 2
Wire 20CM 1
