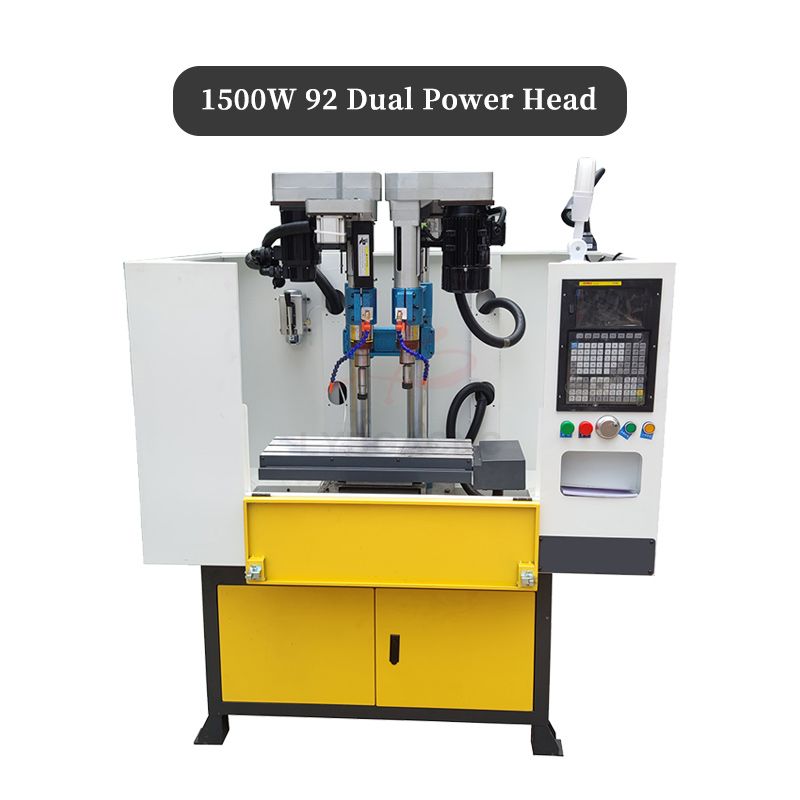

Drilling Tapping Machine 74/92mm Column Diameter 1500W Double-head Full-servo Cross Slide Tapper Driller Including Enclosed Base

$20,587.50

Includes all taxes

Ships From
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Automatic tapping machine 1100W 1500W Water-cooled 5m synchronous belt Automatic drilling 74 92 Dual power head full servo Drilling diameter 1-12mm-16mm


74/92 Dual head
full servo cross slide drilling and tapping machine

Model

74 Dual head
full servo

92 Dual head
full servo

Bench drill
model

Double 74 power
head drilling and tapping

Double 92 power
head drilling and tapping

Spindle 1 servo
power

1800W AC servo

2600W AC servo

Punching spindle
power

1100V
three-phase motor

1500V
three-phase motor

Spindle 2
frequency converter

380V industrial
inverter

380V industrial
inverter

Drilling
diameter

1- 12mm

1- 16mm

Tapping range

M2- HM10
(Tapping spindle: aluminum speed ratio 1, steel speed ratio 2)

M2- HM14
(Tapping spindle: aluminum speed ratio 1, steel speed ratio 2)

Cross slide
travel

400*200 ( 25
linear rail, 20 ball screw) (X travel customized 600)

400*200 ( 25
linear rail, 20 ball screw)

XY axis CNC
motor

750W servo
(traverse speed 20 meters per minute)

750W servo
(traverse speed 20 meters per minute)

Column diameter

74mm

92mm

Column height

1 meter

1 meter

Z-axis maximum
travel

90mm

90mm

Feed mode

16 ball screw

20 ball screw

Feed motor

750W AC servo

750W AC servo

Distance from
spindle center to column

200mm

200mm

Distance from
spindle end to table

350mm

350mm

Spindle taper

JT6

JT6

Spindle speed
range

100-3000 (customized
700, 1500, 3000, 5000)

100-3000
(customized 700, 1500, 3000, 5000)

Belt type

5M synchronous
belt

5M synchronous
belt

Overall
Dimension

1400* 1000*1500

1400* 1000*1500

Weight

700kg

750kg

Power Input

380V three-phase
four-wire (zero wire)

380V three-phase
four-wire (zero wire)

Numerical
Control System

5-axis 709
drilling and tapping system or 7-inch touch screen

5-axis 709
drilling and tapping system or 7-inch touch screen

Electronic
handwheel

Panel standard

Panel standard

Oil Pump

Electric oil
pump

Electric oil
pump

Alarm light

Three colors
(standby, running, alarm)

Three colors
(standby, running, alarm)

One-piece sheet
metal frame

High enclosure
with water tank and cooling accessories
