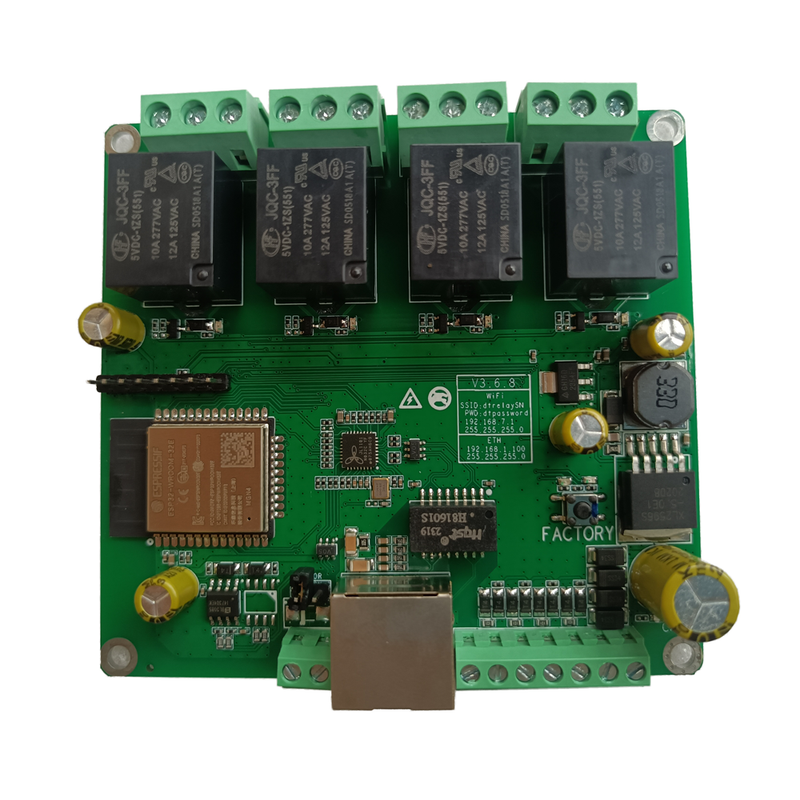

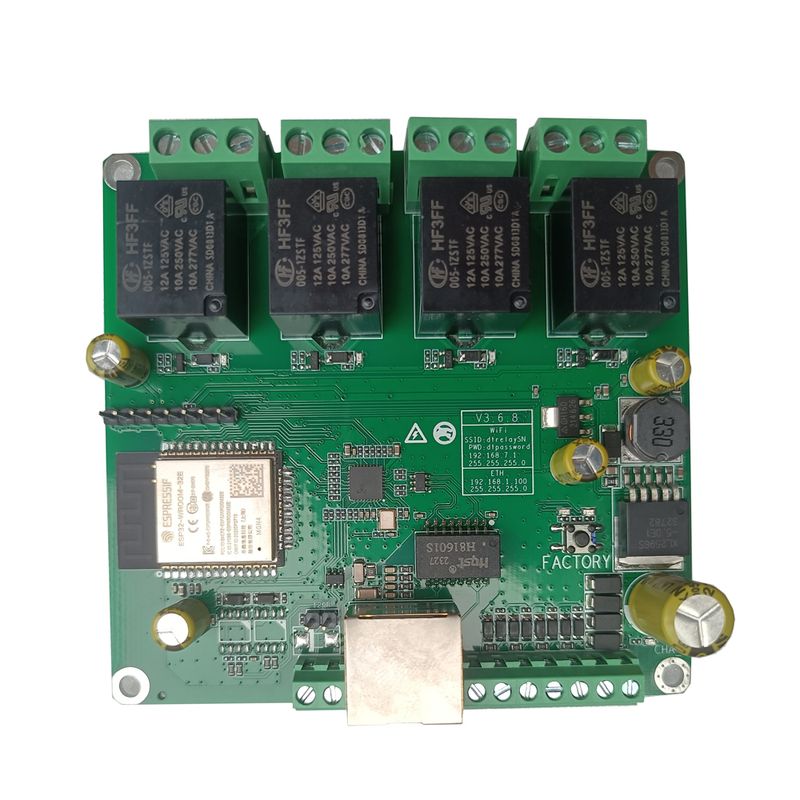

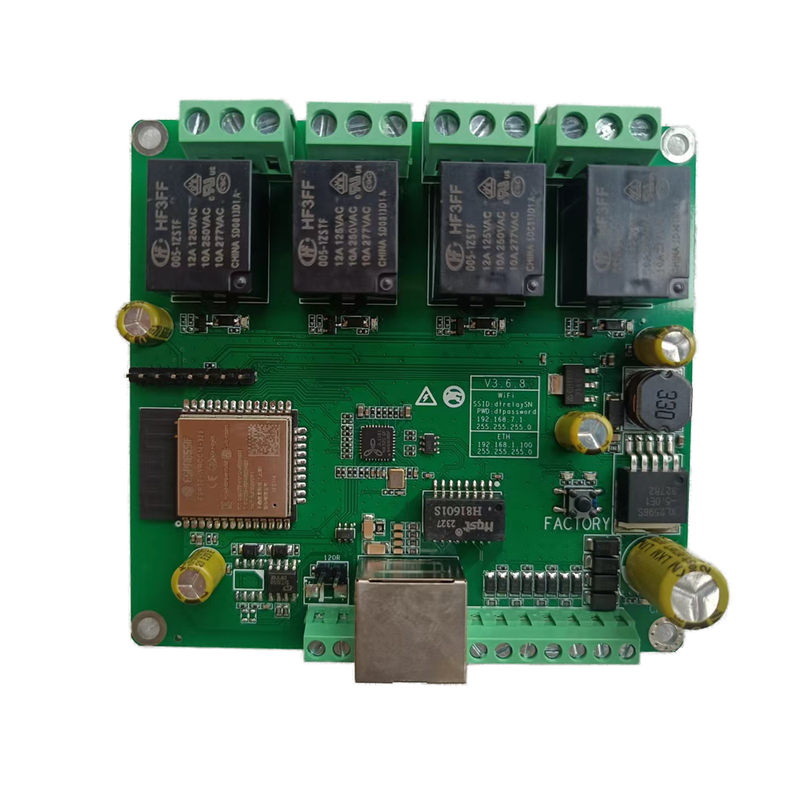

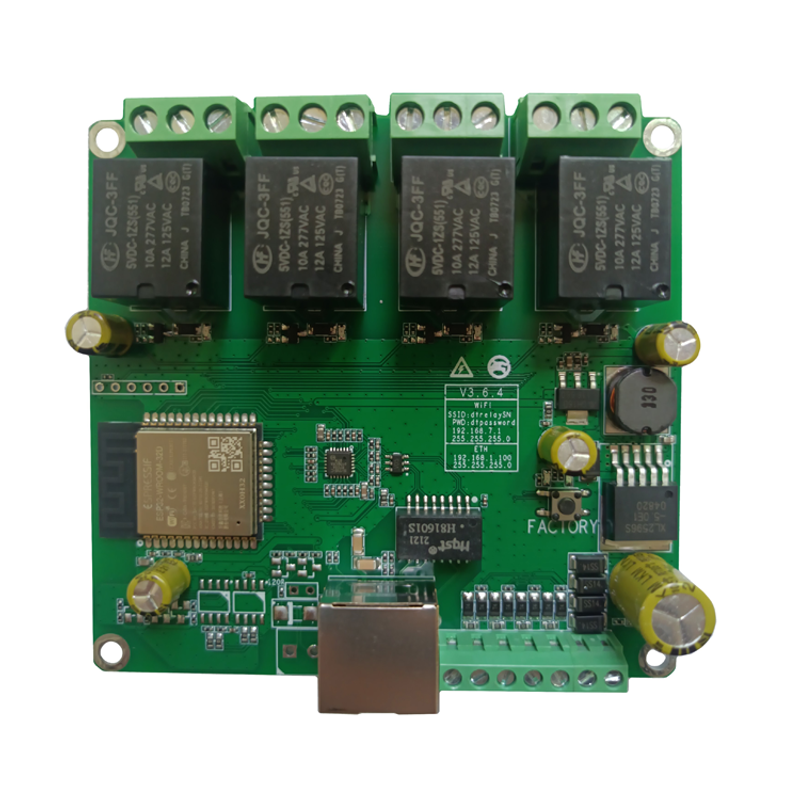

DTWONDER Smart WiFi Switch ESP32 Ethernet Relay Board Domoticz Home Assistant openHAB RS485 TCP UDP 4 Channel Timer IP Watchdog

$41.39

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Relay board function instruction as below, any questions, please contact us

1.ETH WIFI means support Ethernet and WIFI
2.ETH WIFI RS485 means support Ethernet, WIFI and RS485
3.ETH WIFI CAN means support Ethernet, WIFI and CAN bus

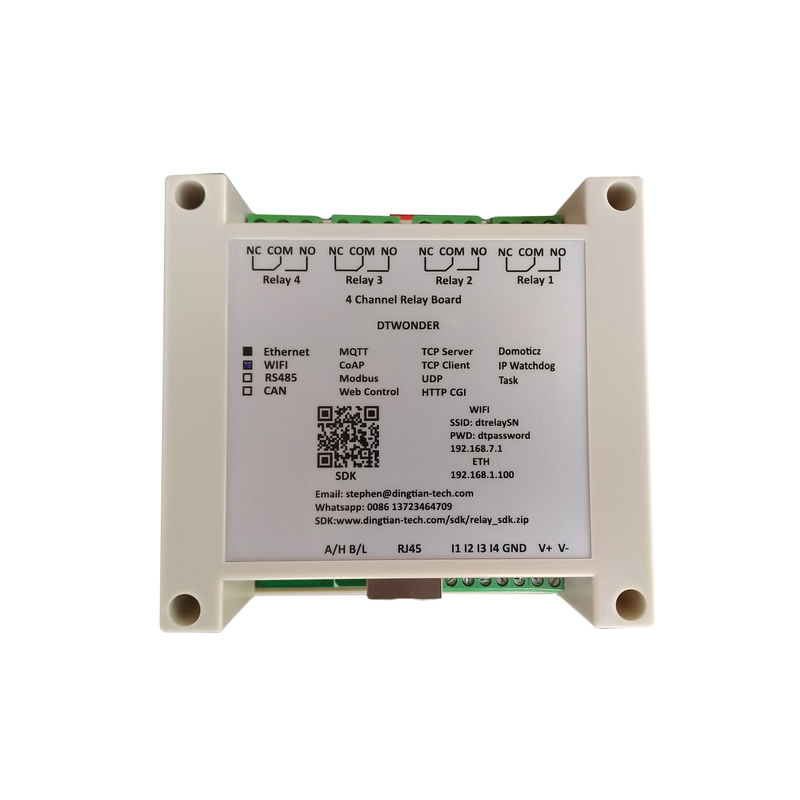

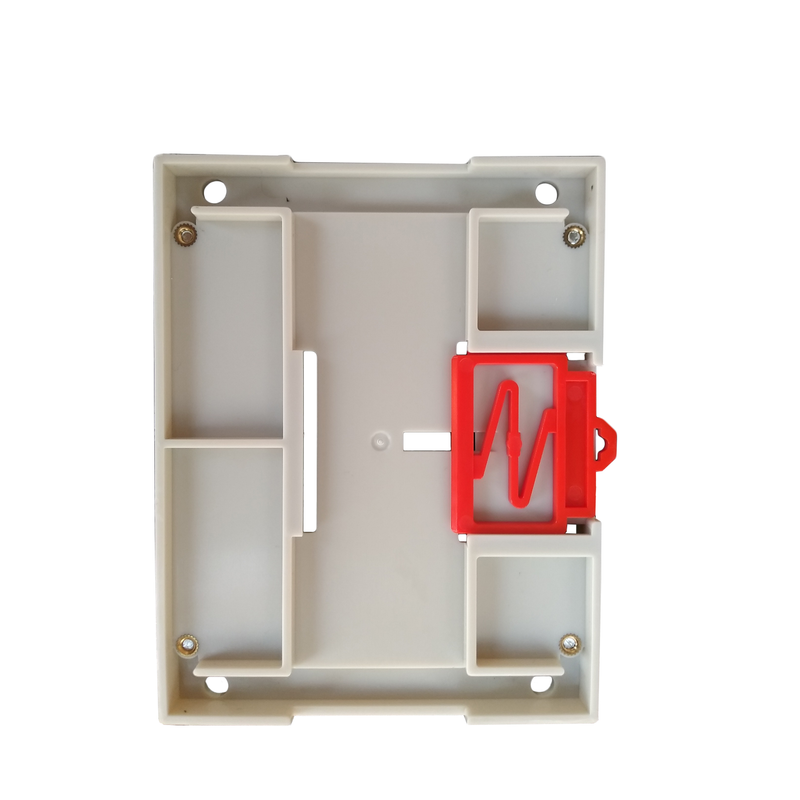

4.CASE means with DIN35 case

Specification

Parameter

DT-R002

DT-R004

DT-R008

DT-R016

DT-R032


Interface

Ethernet, WiFi, RS485(optional), CAN Bus(optional), Wiegand(optional)

Size(Relay Board)

87*68mm

91.6*86.4mm

122*87mm

250*107mm

370*107mm

Size(DIN35 Case)

90*90*40mm

115*90*40mm

145*90*40mm

252*123*43mm

373*123*43mm

Power Supply

12V/24VDC, 5V/24VAC

Power Adapter

12VDC/1.5A

12VDC/1.5A

12VDC/1.5A

12VDC/2A

12VDC/3A

Power Consumption

2W

3W

5W

9W

16W

Working Temperature

-20~75℃

Storage Temperature

-40~80℃

Protocol

MQTT/MQTTS, Modbus-RTU/TCP/ASCII/UDP, TCP, UDP, HTTP GET CGI, CoAP

Quantity Relays

2DO

4DO

8DO

16DO

32DO

Quantity Digital Input

2DI

4DI

8DI

16DI

32DI

Quantity Wiegand

1(optional)

1/2(optional)

0

1

1

RTC

NO

NO

NO

Optional

Optional

Home Automation

Domoticz, Home Assistant, openHAB, Red-Node

Function

Relay Task(Schedule), Input Status, Input Link Relay, Input Link URL, Input/Relay Alias(Name),
IP Watchdog, Transparent Transmission, NTP Client, Input Mutual Control, OTA Upgrade

Ethernet IP

192.168.1.100

Web User/PWD

admin/admin

WiFi AP IP

192.168.7.1

WiFi AP SSID/PWD

dtrelaySN/dtpassword

WiFi STA IP

192.168.1.97

Support Customized and develop by our company

User manual and programming manual SDK:
http://www.dingtian-tech.com/sdk/relay_sdk.zip

This is a finished board, not a study board. Our default version don’t support flash by yourself,
if you want to flash custom firmware, please leave a message ”send relay board with test firmwarewhen order

Note: Please keep your computer ip is the same NETWORK SEGMENT as our default ip 192.168.1.100

Setting



Relay Connect

Support protocol
Dingtian-String
Dingtian-Binary
Modbus-RTU., Modbus-ASCII, Modbus-TCP/UDP
CoAP
HTTP GET CGI(control relay, get input/relay status)
Input Mutual Control
MQTT(input/relay status change, report to your MQTT server auto)


Relay Task

Please sync the time on “setting” webpage firstly, you can config when relay ON and when relay OFF automatically


Input Link Relay

Input status change active relay ON/OFF, DELAY, JOGGING(PULSE),FLASH,TOGGLMOTOR
To config “Motor” to control motor (blind)


Input Link URL

Input status changes will active HTTP URL


Input Relay Alias

Rename input/relay to understand better


IP WatchDog

It can ping and reboot other device when network is OFF


Transparent Transmission

Repost data which is from your device through our relay board to your PC from UDP/TCP to RS485/CAN,vice versa


Upgrade

Upgrade new firmware by webpage


Support Domoticz /Home assistant (HA Discover)/openHAB



IP Finder to search device, support different network segment



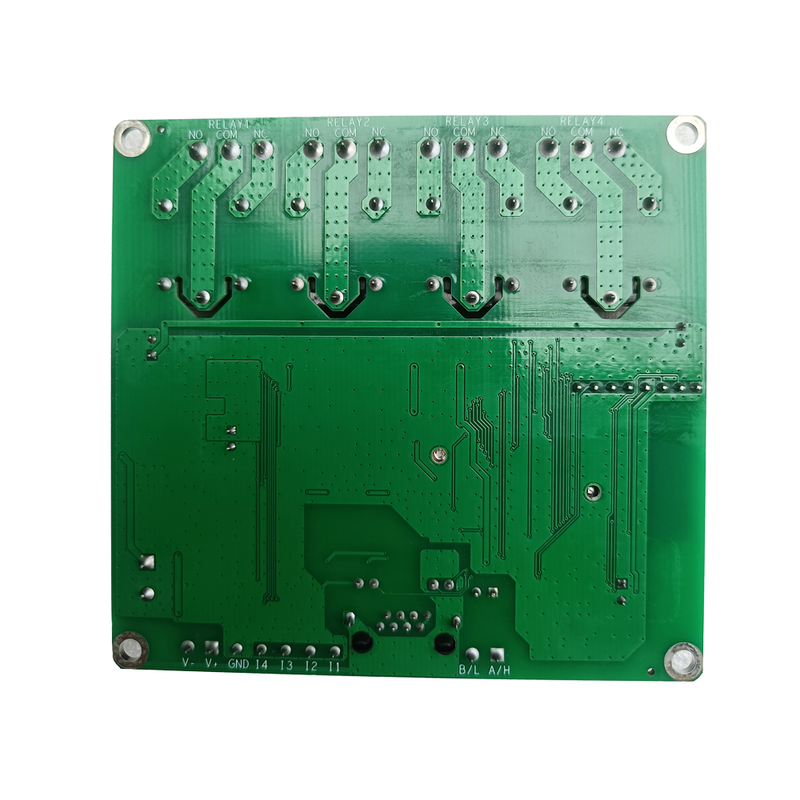

Connection Diagram


Default firmware

Q: what is the ip address?
A: Ethernet ip: 192.168.1.100, user name and password both are admin
WIFI-AP SSID: dtrelaySN, PWD: dtpassword, IP:192.168.7.1

Q: Where can I find sdk and manual?
A: https://www.dingtian-tech.com/sdk/relay_sdk.zip

Q: How can I upgrade to latest firmware?
A: https://www.dingtian-tech.com/sdk/relay_upgrade_tool.zip
Please download and upgrade to latest firmware

Q: Why I cannot access the web through default ip?
A: Please keep your computer ip be the same network segment as our default ip
Default ip: 192.168.1.100, so your compute ip should be 192.168.1.x(x not 100)

Q: What can I do when computer ip is different network segment with your default ip?
A: Option 1: change your computer ip to 192.168.1.x, x means any numbers from 2~254
Option 2: Change our relay ip through our IP Finder tool to keep the same as your computer ip

Q: Can I connect a rfid keypad reader to it via wiegand
A: Our default firmware donot support, you can leave a message"send relay board with wiegand input firmware" when order

Q: Can you have separate input from the relay operation status
A: webpage “input link relay”->”input control relay” to “NO”

Test firmware

Q: Can I flash custom firmware?
A: please leave a message “send relay board with test firmware” when order”

https://github.com/dtlzp/relay_dev_demo
JL1101(compatiable with RTL8201F, only chip id is different)

https://github.com/dtlzp/relay_arduino_demo
