Efficient Electric Concrete Mortar Sprayer Portable Cement Mortar Spraying Machine for Construction Site Easy Operation
Includes all taxes
Meet your Seller
-
$1,315.95Sold by BILLIONS BIRDS
Description
1. Prices are for reference only. Exact costs depend on your needs and destination port. Contact us now for more product details and a quote.

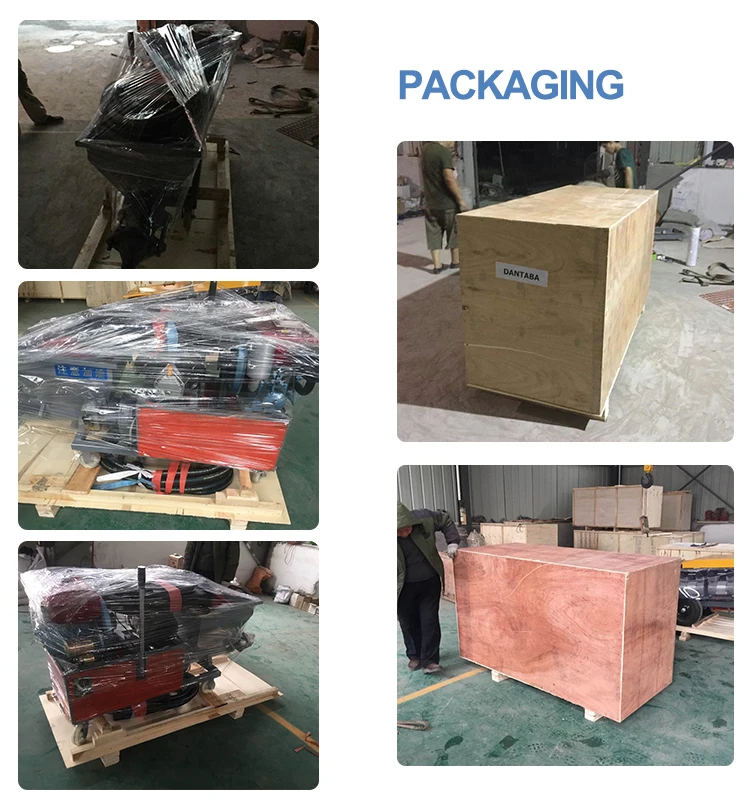

2. We ship by ocean freight!!!
3. A ny questions or interest, please feel free to contact us for a free quote.
Name: Lolita
Email: 3596532178@qq.com
Wechat/Line/Mobile/Whatsapp: +86 15037187716
A mortar sprayer is a new type of construction machinery that integrates mortar mixing, conveying, and spraying. Using a hydraulic or pneumatic power system, it evenly sprays mortar onto construction surfaces, such as walls and floors, replacing traditional manual plastering. Its applications are wide-ranging, including interior and exterior wall plastering for residential and commercial buildings, support and reinforcement for tunnels and bridges, and waterproofing mortar spraying in basements and bathrooms.
Compared to manual labor, it offers significant advantages: First, it is highly efficient, capable of spraying up to 3-5 times the area of a manual sprayer per day, significantly shortening construction time. Second, it offers superior quality, with uniform spray thickness and strong adhesion, minimizing hollowing and cracking. Third, it saves materials and labor, avoiding labor waste and reducing worker intensity, thus contributing to the mechanization and efficiency of construction.

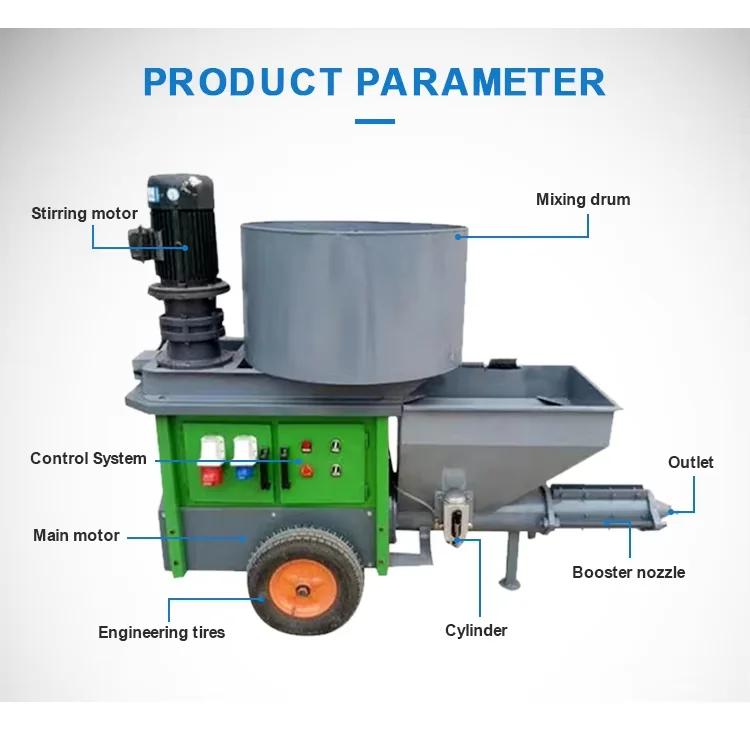

Concrete Mortar Sprayer Specification
Item |
YG-311 |
YG-318 |
Capacity |
3m3/h |
3m3/h |
Working pressure |
3MPa |
3MPa |
Applicable materials ratio (water, ash, sand) |
0.7—1:1:3 |
0.7—1:1:3 |
Voltage level |
Voltage L-L 380V |
Voltage L-L 380V |
main motor power |
4kw |
7.5kw |
Particle size |
≤4mm |
≤8mm |
Transport distance |
Horizantao 30m Vertical 20m |
Horizantao 50m; Vertical 30m |
Hopper volume |
60L |
80L |
Displacement of air compressor |
0.3m3/min |
0.3m3/min |
Inner diameter of feeding pipe |
32mm |
32mm |
Total Weight |
200kg |
320kg |

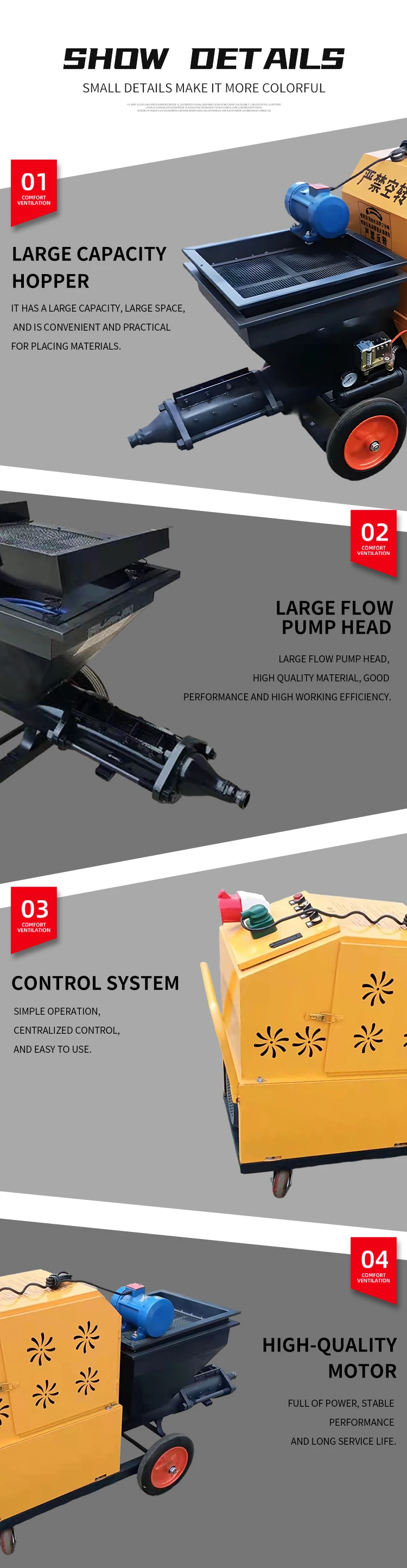

Concrete Mortar Spraying Machine Highlight
1. Efficient Operation: Powered by a hydraulic or pneumatic power system, the spraying speed can reach 10-20 square meters per hour, covering 3-5 times the area of manual plastering per day. This allows for faster construction schedules and is particularly suitable for large-scale projects.
2. Stable Quality: The mortar spray thickness can be precisely controlled (typically within ±1mm), resulting in a uniform coating with strong adhesion. This effectively reduces hollowing, cracking, and uneven thickness that can occur with manual operation, improving construction quality.
3. Versatile Adaptability: Compatible with a variety of materials, including cement mortar, insulation mortar, and waterproof mortar, the spraying pressure and flow rate can be adjusted according to construction needs, making it suitable for various applications, including interior and exterior walls, tunnels, and kitchens and bathrooms.
4. Material and Labor Savings: Mechanical conveying and spraying reduce mortar waste and achieve a 10%-15% higher material utilization rate than manual operation. It also reduces the labor intensity of workers bending over to apply plaster, reducing labor costs.
Mortar Sprayer Machines Application

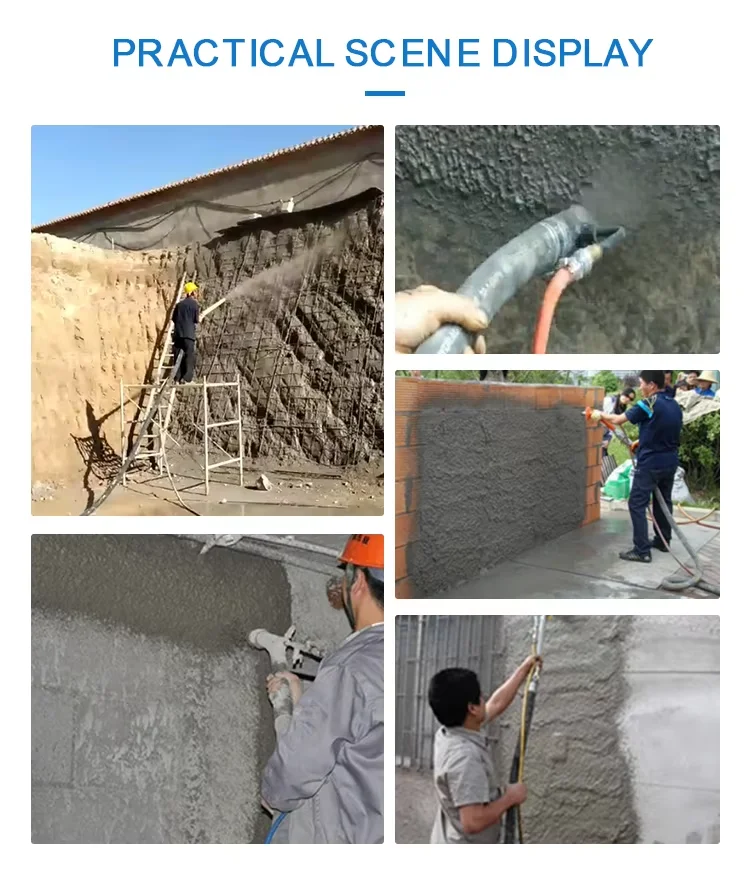

1. Interior and Exterior Wall Construction: Efficiently completes interior and exterior plastering work on residential, office, and hotel walls. Whether using cement mortar, mixed mortar, or thermal insulation mortar, it can be evenly applied, adapting to varying wall materials and significantly improving wall construction efficiency and smoothness.

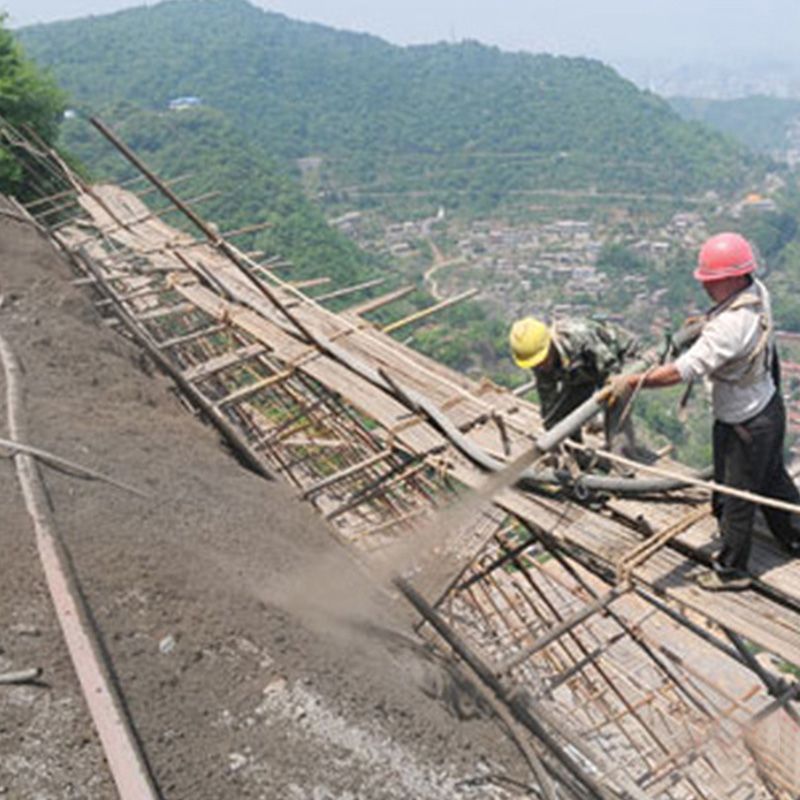

2. Tunnel and Bridge Engineering: Precisely spray shotcrete or reinforcement mortar for initial tunnel support and surface protection of bridge piers and box girders, enhancing structural impermeability and durability. Suitable for work in confined tunnel spaces and at high altitudes on bridges.
3. Kitchen, Bathroom, and Basement Waterproofing: For leak-prone areas like bathrooms, kitchens, and basements, waterproof mortar can be evenly sprayed, creating a continuous, airtight waterproof coating. This prevents leaks caused by uneven application and enhances waterproofing effectiveness.
4. Historic Building Restoration: When repairing the walls of historic buildings, the system can gently apply a matching repair mortar, minimizing damage to the original structure and preserving the integrity and historical character of the repaired walls.
Any questions or interest, please feel free to contact us for a free quote.
Name: Lolita
Email: 3596532178@qq.com
Wechat/Line/Mobile/Whatsapp: +86 15037187716
