Note:Punching machine because of the reason of logistics restriction, when the parcel passes the customs, because of the aviation and port restriction, the hydraulic oil inside the equipment must be poured out, otherwise the product will not be able to receive through the air transportation and the port. Therefore you need to add some hydraulic oil inside the equipment after you receive it, there are special holes for adding hydraulic oil, it will work properly for use.
Punching range
LZ-22 angle steel:3-8mm iron plate/3-6.3# angle steel/6mm stainless steel
LZ-22U steel groove:3-8mm iron plate/maximum 10# channel/6mm stainless steel
MHP-20:3-6mm iron plate/3-6.3# angle steel
LZ-25 Punching Machine3-10mm iron plate/max 12# channel steel
Large punching force: It can produce a large punching pressure, and can punch thicker and higher hardness materials, such as some thick-walled metal pipes and plates.
High punching accuracy: With precision mold, more accurate punching size and position accuracy can be achieved to meet the production needs of high product quality requirements.
High work efficiency: electric drive combined with hydraulic transmission, rapid action, compared with the traditional manual punching tools, greatly improve the punching speed, can complete a large number of punching tasks in a short time.
Easy operation: The punching process can be controlled by a simple operation panel or handle, and the operator can master the use of the method after certain training.
Wide range of application: can be used for punching a variety of metal materials, including stainless steel, carbon steel, aluminum alloy, etc., and can adapt to different shapes of materials, such as sheet, pipe and so on.
LZ-25 Punching Machine
Capacity 20T
Power 2000W
Voltage 220V/50HZ(110v can be customized)
Throat depth 60mm(distance from the center of the mold to the inside)
Factory molds are standardΦ11,Φ13,Φ17,Φ22,Φ25.5mm
Punching range 3-10mm iron plate/max 12# channel steel

LZ-22 PORTABLE ELECTRIC PUNCHING MACHINE
Output:18T
Voltage:220V/50HZ
Power:1800W
Throat depth:40mm
Copper/Aluminum row:3-8mm
lron/steel plate:3-8mm
Stainless steel:6mm
Angle iron:4-6.3#
Standard mold:6.5-9-13-17-20.5mm
LZ-22U PORTABLE ELECTRIC PUNCHING MACHINE
Output:18T
Voltage:220V/50HZ
Power:1800W
Throat depth:50mm
Copper/Aluminum row:3-8mm
lron/steel plate:3-8mm
Stainless steel:6mm
Angle iron:4-6#
Channel steel:6-10#
Standard mold:6.5-9-13-17-20.5mm

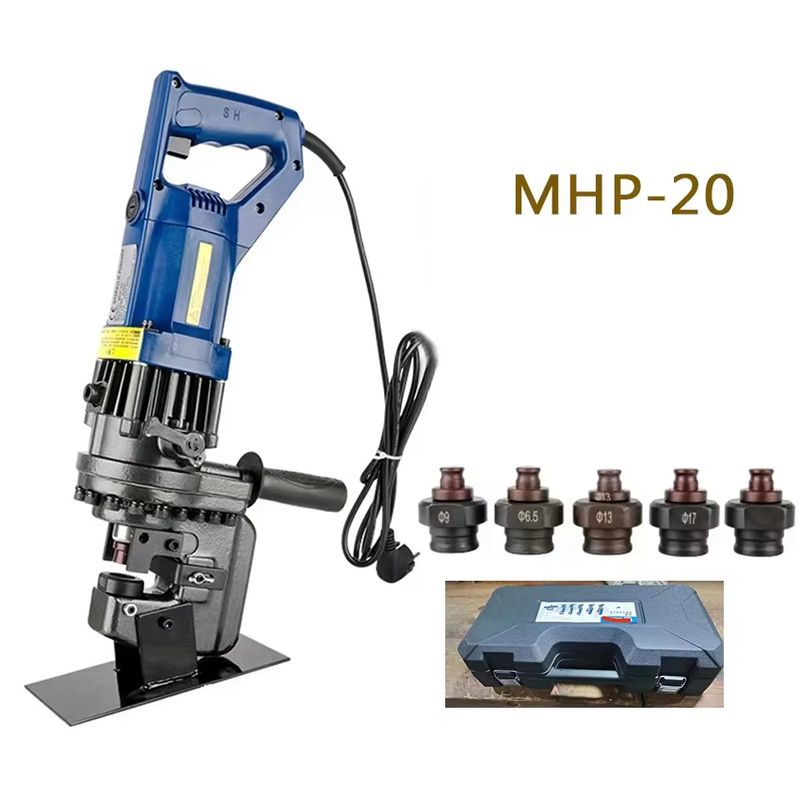

Model: MHP-20
Capacity: 13T
Power :1300W
Voltage :220V/50HZ (110v can be customized)
Throat depth :40mm (distance from the center of the mold to the inside)
Mold configuration :Standard 5 pairs of molds Φ 6.5/9/13/17/20.5
Punching range :3-6mm iron plate/3-6.3# angle steel
















Application Field
Metal processing industry: It is widely used in the manufacturing of metal components for construction (such as steel structure, curtain wall keel, etc.), mechanical parts processing, auto parts production and other fields, for processing various specifications of holes.
Power equipment manufacturing: for example, in the production process of distribution cabinets, distribution boxes and other equipment, it is necessary to punch the metal shell in order to install various electrical components, wiring, etc., and the electro-hydraulic punching machine can efficiently complete such tasks.
Pipe processing industry: All kinds of metal pipes are punched to meet the subsequent connection, assembly and other process needs, such as in the processing of air conditioning refrigeration pipes, water heating pipes, etc.
Electric punching machine instructions:
1. Mainly used for copper plate, iron plate, Angle iron and other metal materials punching tool
2. Easy to carry and suitable for field on site or fixed in the factory for mass production
3. Can produce different shapes of punching die
4. Punching positioning accuracy, speed, no noise, no chip, clean job security
Pre-production photo shoot
