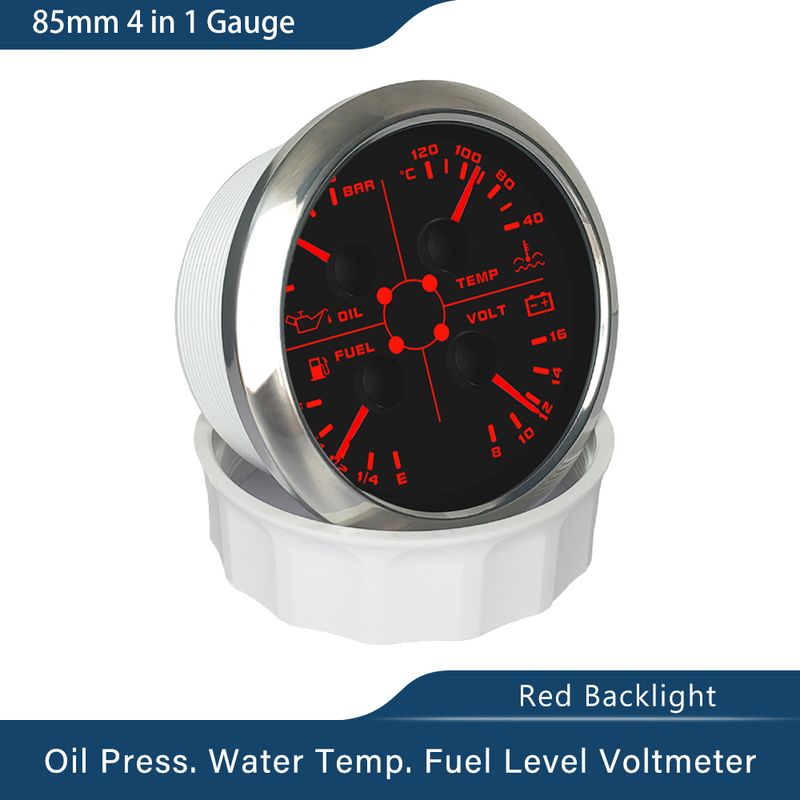

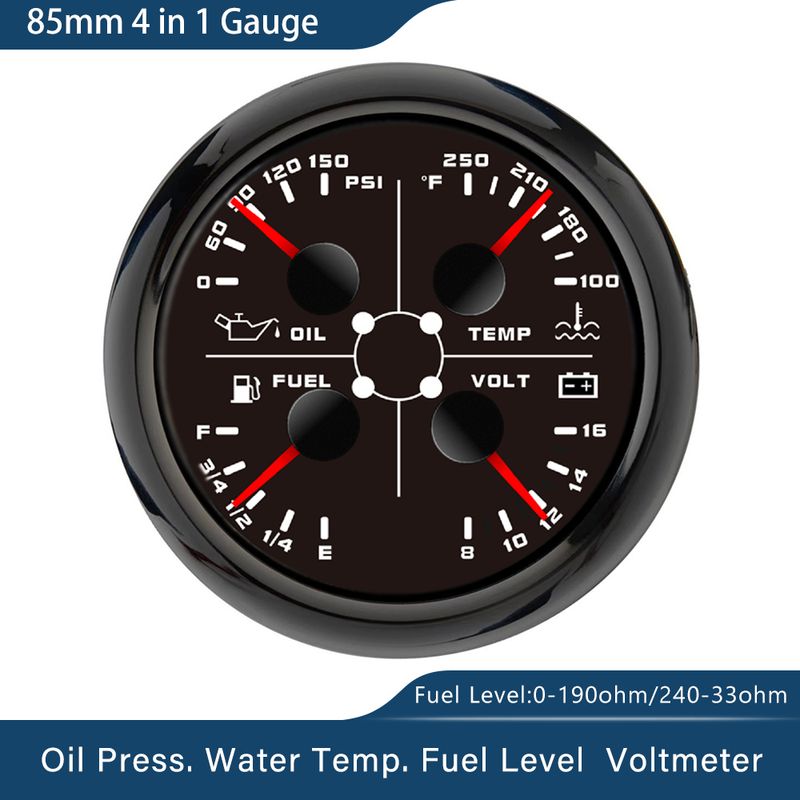

ELING Waterproof 85mm 4 in 1 Gauge Oil Pressure Water Temp Fuel Level Voltmeter with Light Alarm for Car Boat Yacht

$66.37

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Please note:

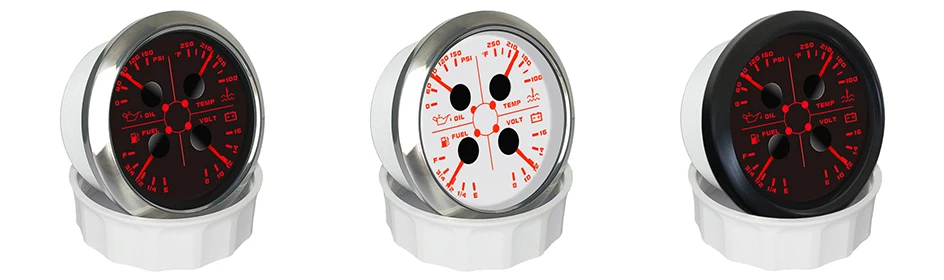

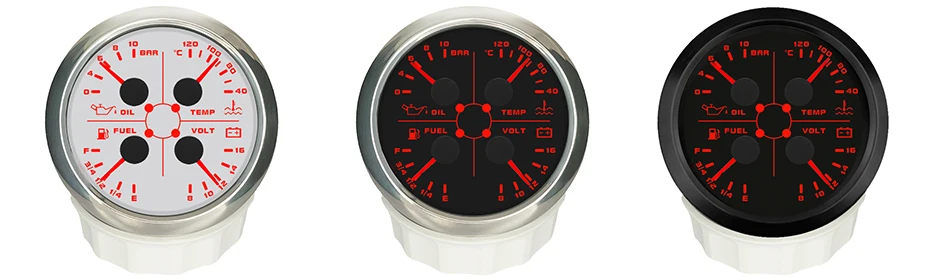

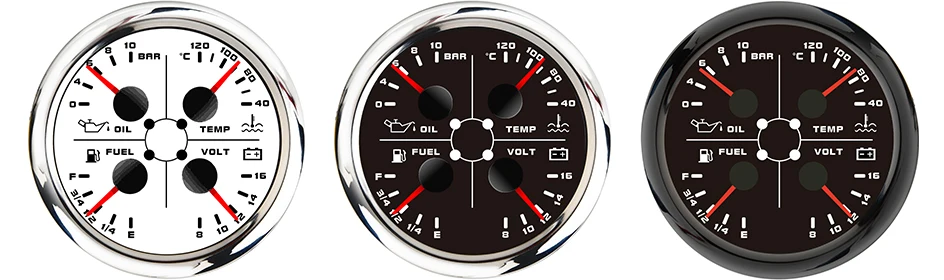

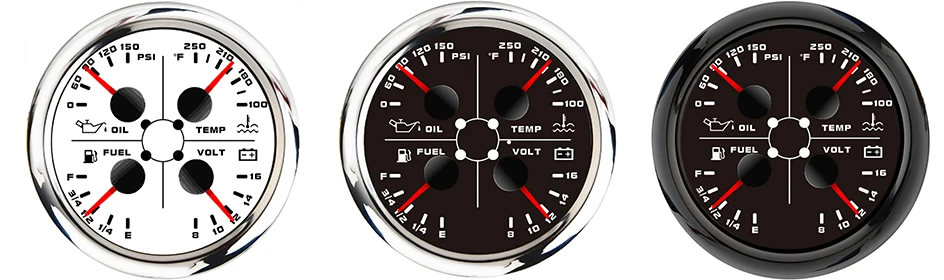

There are different options for sensors and gauges in the link.
Each option is marked with a name and a picture.
Please confirm whether the option you ordered is the product you need.
Thank you.
Suitable for all kinds of cars, boats, motorcycles, with instructions of high precision, repeatability and versatility, reliability
and stability, drive and control is relatively simple and so on. Using a stepper motor drive pointer, accurate display of the
fuel level, water temp., oil pressure, voltage.


-Name: 4 in 1 Multi-function gauge
-Materials: stainless steel+nickel-plated plastic

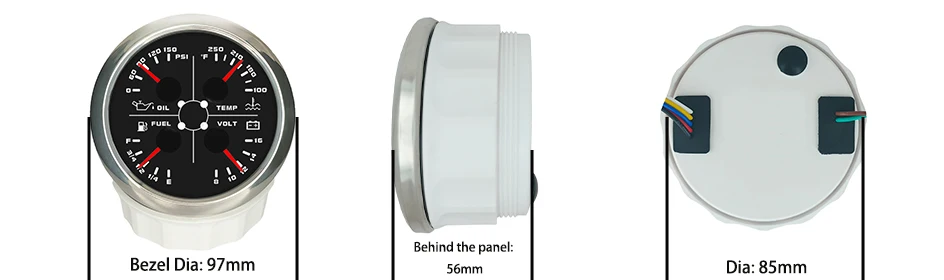

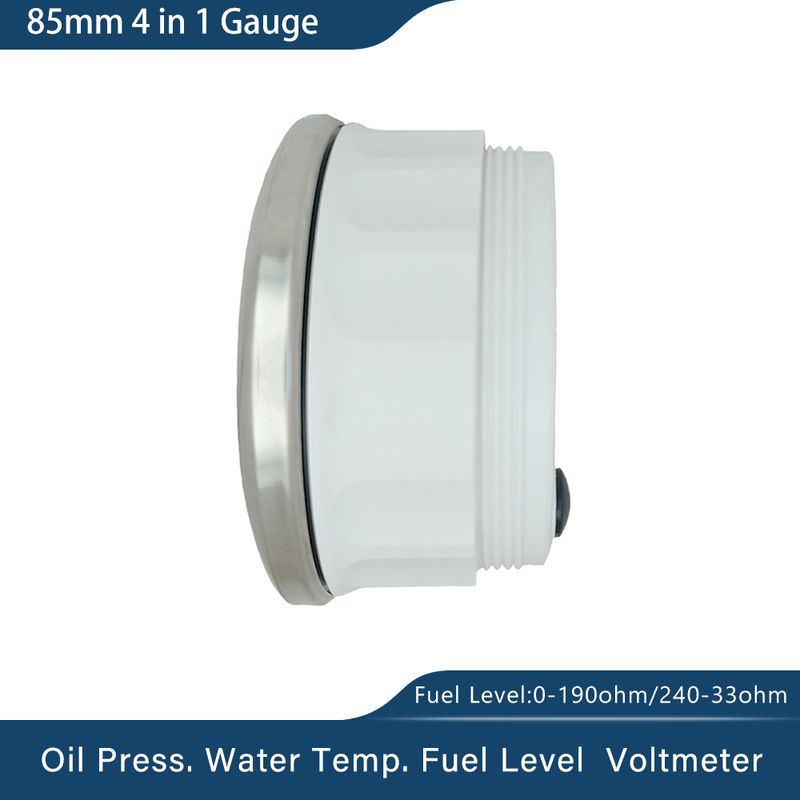

-Installation Dimension: 85mm
-Indicating range:
Oil pressure: 0-150PSI (Signal:10-184ohm)  / 0-10Bar
Water temperature: 100-250℉ (Signal:301-22ohm) / 40-120℃

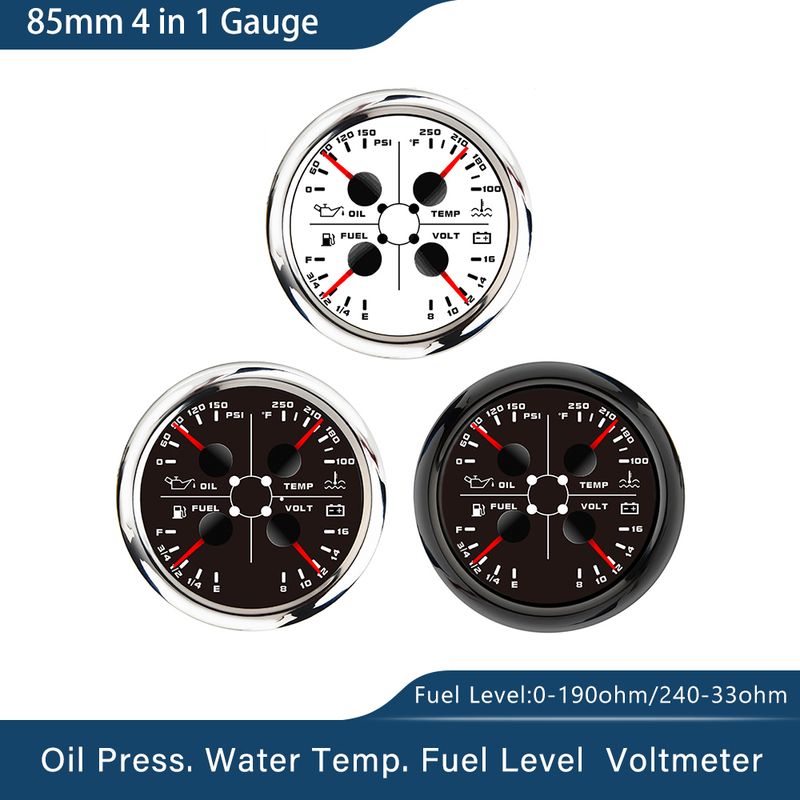

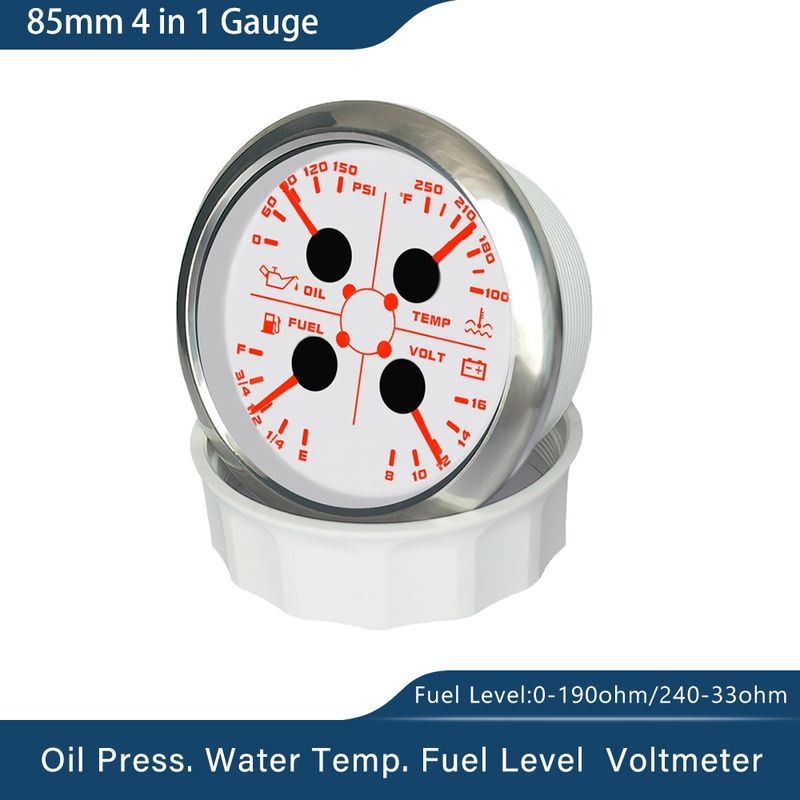

Fuel level: E-1/2-F (Signal:0-190ohm/240-33ohm)
Voltmeter: 8-16V
-Alarm: Oil pressure< 11.6PSI; Water temperature> 203℉; Fuel Level< 1/8; Voltage < 11.5V
-Alarm: Oil pressure< 0.8Bar; Water temperature> 95℃; Fuel Level< 1/8; Voltage < 11.5V
-Degree of Protection: IP67
-Backlight: Red Backlight

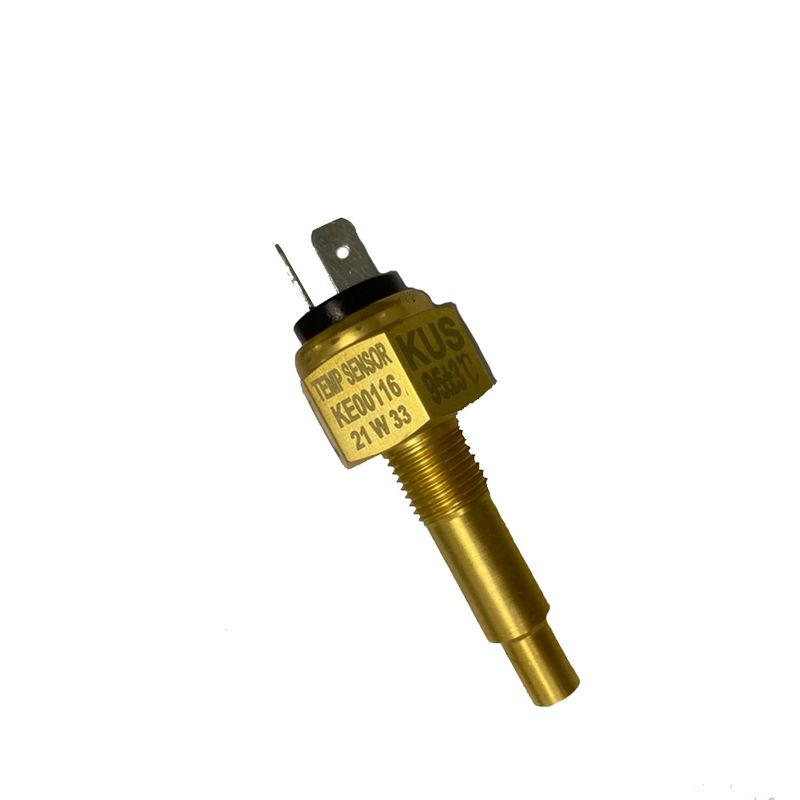

Water Temp Sensor Thread Type:
M12*1.25(95 degree alarm)-L1=41mm, L2=71.5mm
M14*1.5(95 degree alarm)-L1=41mm, L2=71.5mm
M16*1.5(95 degree alarm)-L1=41mm, L2=71.5mm
M18*1.5(98 degree alarm)-L1=41mm, L2=71.5mm
3/8"-18NPT(103 degree alarm)-L1=41mm, L2=71.5mm
-Protection rank: IP67
-The main body is made of brass
-Temperature response time: Minimum 3mins after power supply electrified
-The temperature alarm tolerance: ±3°C
-Rated power for alarm switch: 1.2W-3W
-Rated voltage: 6V-24V
-Protection Class: IP67, can work underwater 1m position
Oil Pressure Sensor:

-Conducting power: < 5W

-Operating temperature: -25 ~120°C (120°C MAX 1H)

-Measuring range: 0-10Bar

-Alarm: 0.8Bar or 1.4Bar

-Output signal: Standard resistance value: 10~184Ω

-Thread Type: 0-10Bar : NPT-1/4(alarm: 0.8Bar), NPT-1/8(alarm: 0.8Bar), M10*1.0(alarm: 1.4Bar)

-It combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range

of operating temperature, etc.

-It is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of

industrial process, hydraulic and pneumatic control project, etc.

-Protection rank: IP67

-Operating voltage: 6~24V

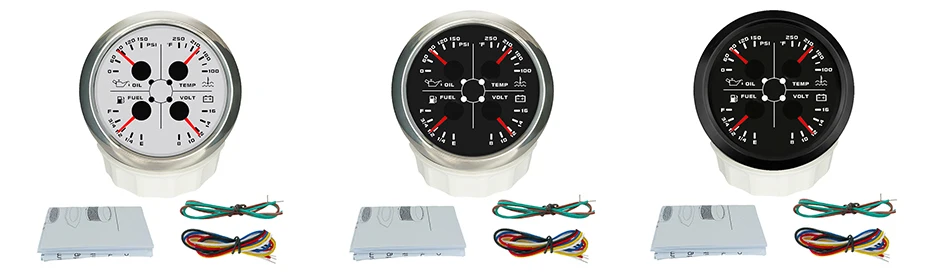

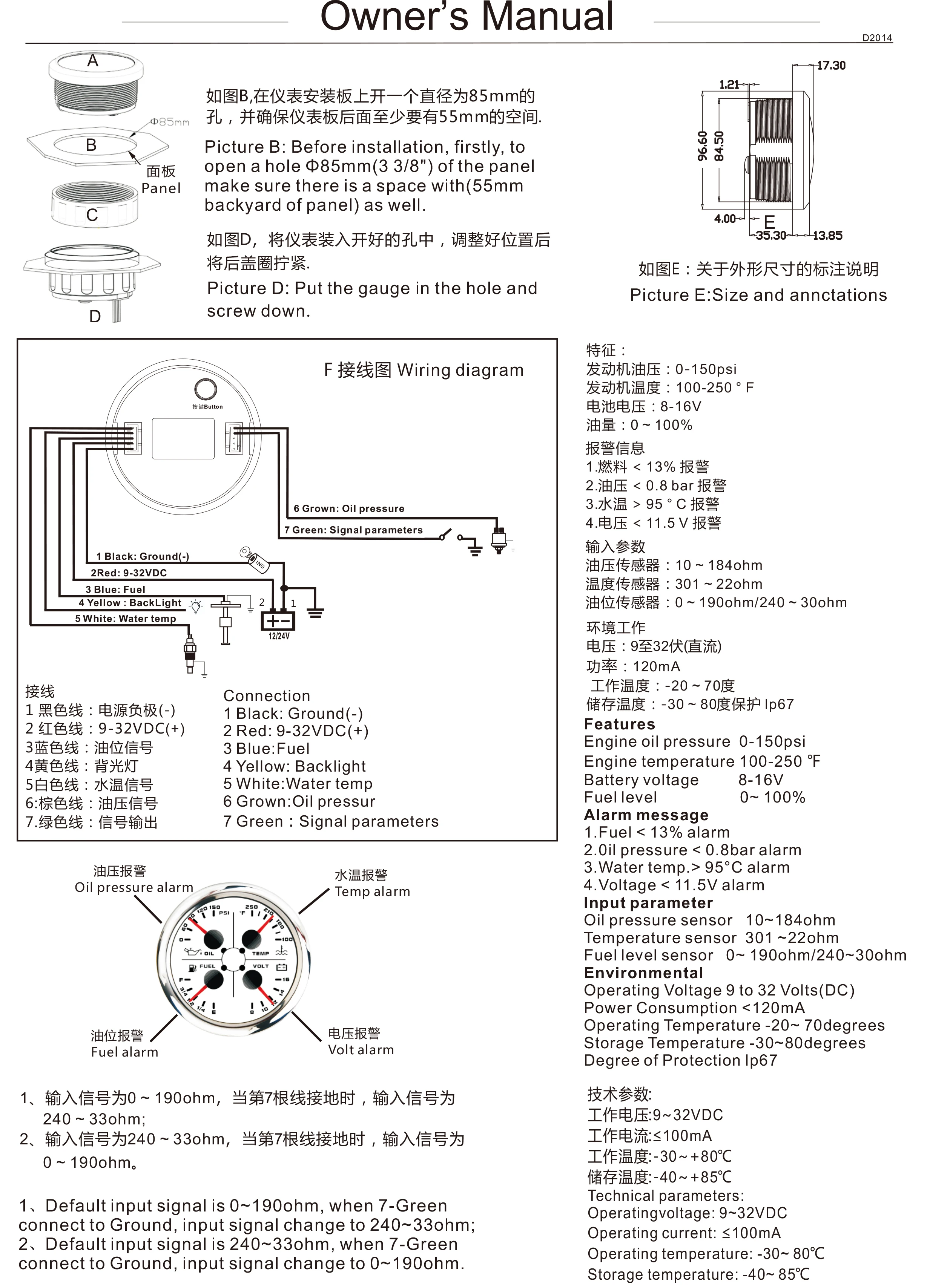

1 x 4 in 1 Multi-function gauge  2 x Cable  1 x Owner's Manual
