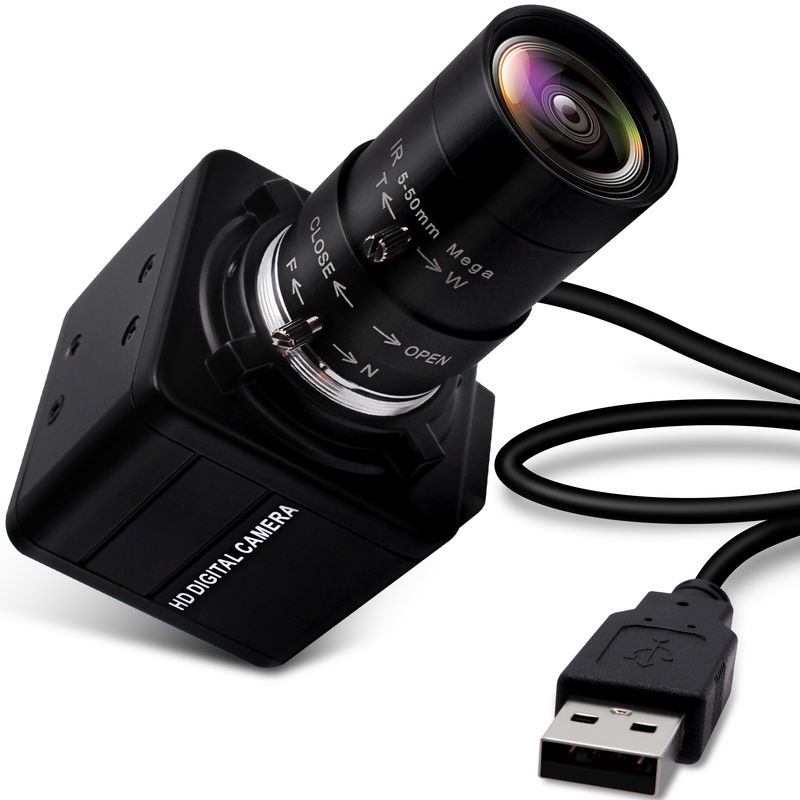

ELP High Speed Camera 260fps 120fps 60fps 1080p 720p Manual Zoom Webcam OV4689 UVC Plug Play PC USB Camera for Motion Video

$148.43

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description



ELP High Speed 260fps 120fps 60fps 1080p 720p CS Varifocal Zoom Webcam OV4689 UVC Plug Play PC USB Camera for Motion Video Capture


Package includes:


1) 1PC 2mp high speed usb camera with CS lens

      (Optional lenses:2.8-12mm/5-50mm/6-60mmvarifocal lens,4mm/6mm/8mm/12mm CS lens)
2) 1PC 3m usb cable

3) 1PC User manual



(Optional extra lens for this camera please point this place)




*2.0Megapixel High speed USB Camera
*High qualityOmniVision OV4689 Color CMOS Sensor
*High frame rate- deliver 640X360MJPEG@ 260fps/1280X720 MJPEG@ 120fps /1920X1080 MJPEG@ 60fps
*UVC compliance for use in OS Windows,Linux, Android
*Operating system request :Win XP/Vista/Win7/Win8 ,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later ,Android 4.0 or above with UVC
*High quality 2.8-12mm/ 5-50mm / 6-60mm manual varifocal lens,4mm/6mm/8mm/12mm CS lens optional

1. ELP 260fps High Frame Rate USB Camera Main Specifications


Models optional

ELP-USBFHD08S-MFV(2.8-12)   (with 2.8-12mm varifocal lens)

ELP-USBFHD08S-MFV(5-50)      (with 5-50mm varifocal lens)

ELP-USBFHD08S-MFV(6-60)      (with 6-60mm varifocal lens)

ELP-USBFHD08S-MF40   (with 4mm CS lens)

ELP-USBFHD08S-MF60   (with 6mm CS lens)

ELP-USBFHD08S-MF80   (with 8mm CS lens)

ELP-USBFHD08S-MF12   (with 12mm CS lens)

ELP-USBFHD08S-MF       (No lens)

(Only lens is different,other parameter is same)

Sensor

OV4689

Lens Size

1/3inch

Pixel Size

2.0µmX2.0µm

image area

5440µm x3072µm

Max. Resolution

1920(H)X1080(V)

Compression format

MJPEG  / YUV2(YUYV)

Resolution & frame

1920X1080MJPEG@60fps

1280X720MJPEG@120fps

640X360MJPEG@260fps

S/N Ratio

38.3dB

Dynamic Range

64.6dB

Sensitivity

1900mV/lux-sec@550nm

Mini illumination

0.1lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free DriveProtocol

USB Video Class(UVC)

AEC

Support

AEB

Support

AGC

Support

Adjustableparameters

Brightness,Contrast,Saturation,Hue,Sharpness,Gamma,
Gain,White balance,BacklightContrast,Exposure

Lens Parameter

4/6/8/12mm CS lens, 2.8-12/5-50/6-60mm varifocal lens optional

Power supply

USB BUS POWER

Operating Voltage

DC5V

Working current

150mA~185mA

Working temperature

0~70℃

Boardsize/Weight

38*38mm

Cable

Standard  3M

Operating system

request

WinXP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC




Used for all kinds of machine as below:


machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display,automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,Medical auxiliary equipment, etc.






If you need windows test software, please leave me message, will send you:




High frame rate 1080P USB Camera,


Real fps shown via windows software:






If you choose the camera without lens, then the camera will come without lens as below picture:



Optional lenses for this high frame rate usb camera:

2.8-12mm/5-50mm/6-60mm manual varifocal CS mount lens








4mm/6mm/8mm CS mount lens optioanl







CS mount Lens is changable:


(IF you need CS to C adapter, please tell


me)






Effect picture:
