Includes all taxes

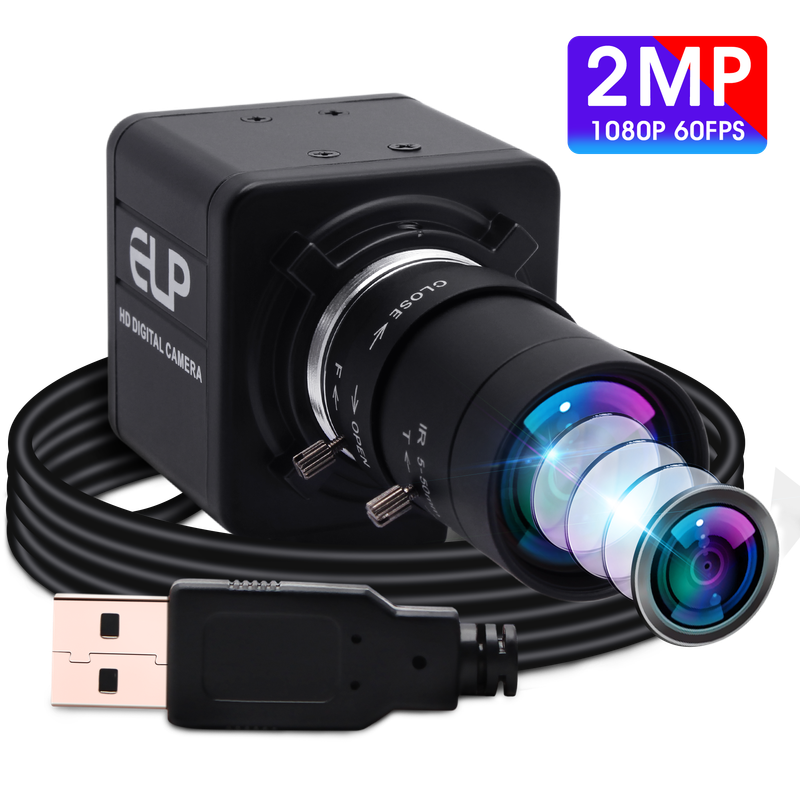

1) 1PC 2mp high speed usb camera with CS lens
(Optional lenses:2.8-12mm/5-50mm/6-60mmvarifocal lens,4mm/6mm/8mm/12mm CS lens)
2) 1PC 3m usb cable
3) 1PC User manual
(Optional extra lens for this camera please point this place)

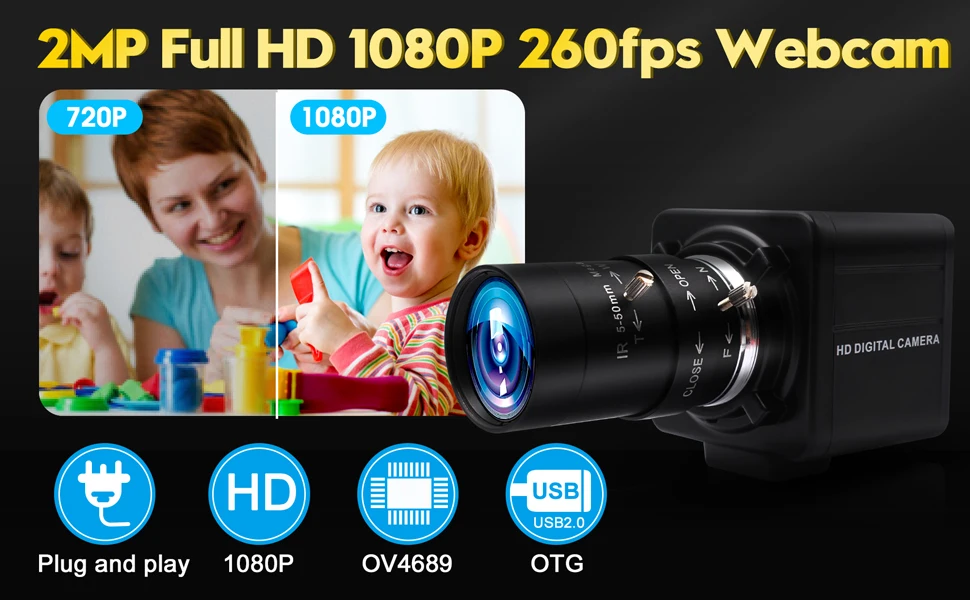

1. ELP 260fps High Frame Rate USB Camera Main Specifications
Models optional | ELP-USBFHD08S-MFV(2.8-12) (with 2.8-12mm varifocal lens) ELP-USBFHD08S-MFV(5-50) (with 5-50mm varifocal lens) ELP-USBFHD08S-MFV(6-60) (with 6-60mm varifocal lens) ELP-USBFHD08S-MF40 (with 4mm CS lens) ELP-USBFHD08S-MF60 (with 6mm CS lens) ELP-USBFHD08S-MF80 (with 8mm CS lens) ELP-USBFHD08S-MF12 (with 12mm CS lens) ELP-USBFHD08S-MF (No lens) (Only lens is different,other parameter is same) |

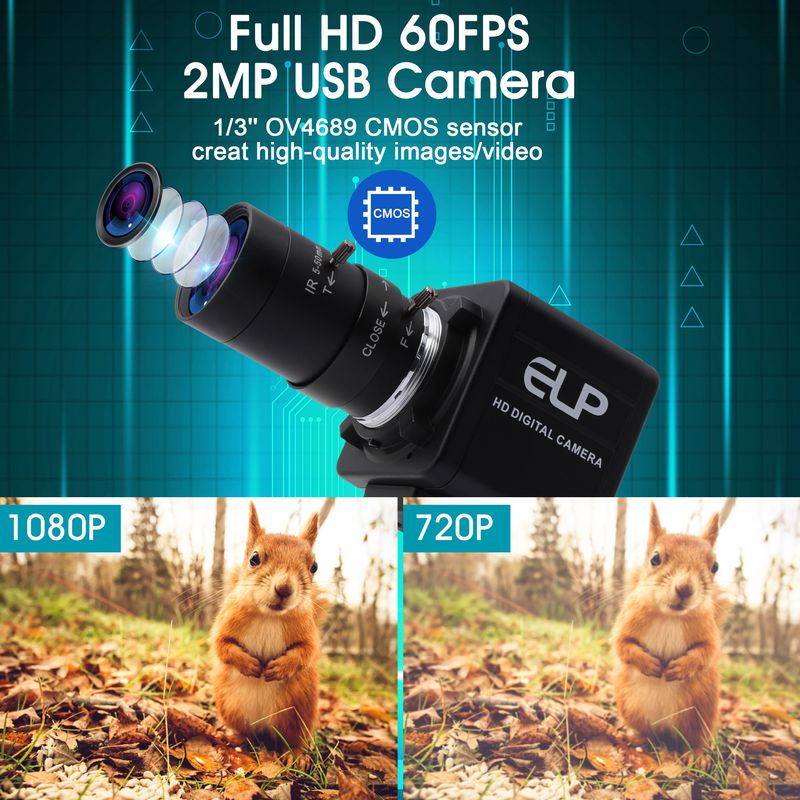

Sensor | OV4689 |
Lens Size | 1/3inch |
Pixel Size | 2.0µmX2.0µm |
image area | 5440µm x3072µm |
Max. Resolution | 1920(H)X1080(V) |
Compression format | MJPEG / YUV2(YUYV) |

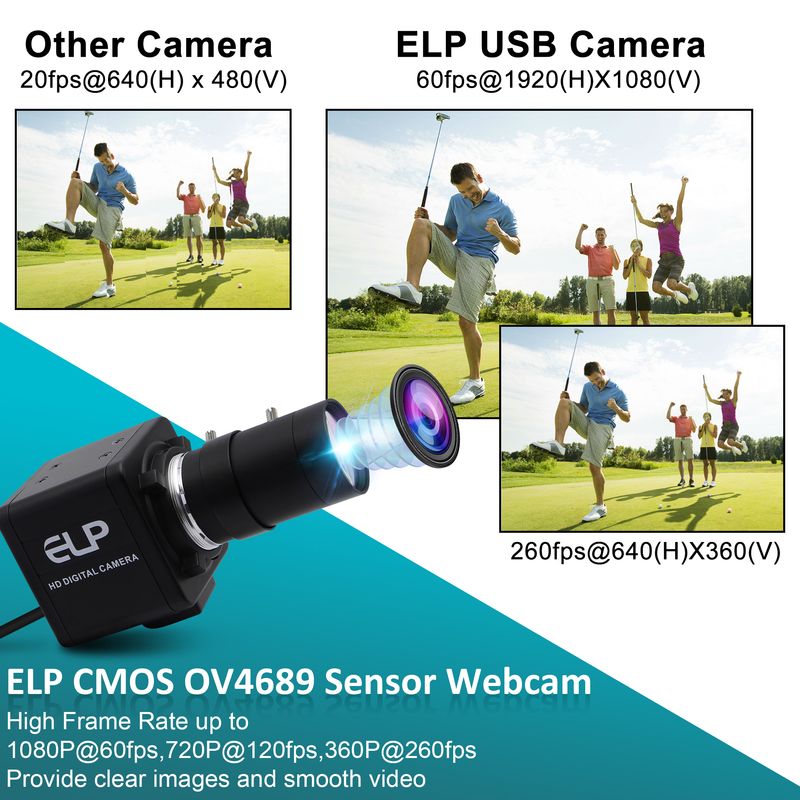

Resolution & frame | 1920X1080MJPEG@60fps 1280X720MJPEG@120fps 640X360MJPEG@260fps |
S/N Ratio | 38.3dB |
Dynamic Range | 64.6dB |
Sensitivity | 1900mV/lux-sec@550nm |
Mini illumination | 0.1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free DriveProtocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustableparameters | Brightness,Contrast,Saturation,Hue,Sharpness,Gamma, |
Lens Parameter | 4/6/8/12mm CS lens, 2.8-12/5-50/6-60mm varifocal lens optional |
Power supply | USB BUS POWER |
Operating Voltage | DC5V |
Working current | 150mA~185mA |
Working temperature | 0~70℃ |

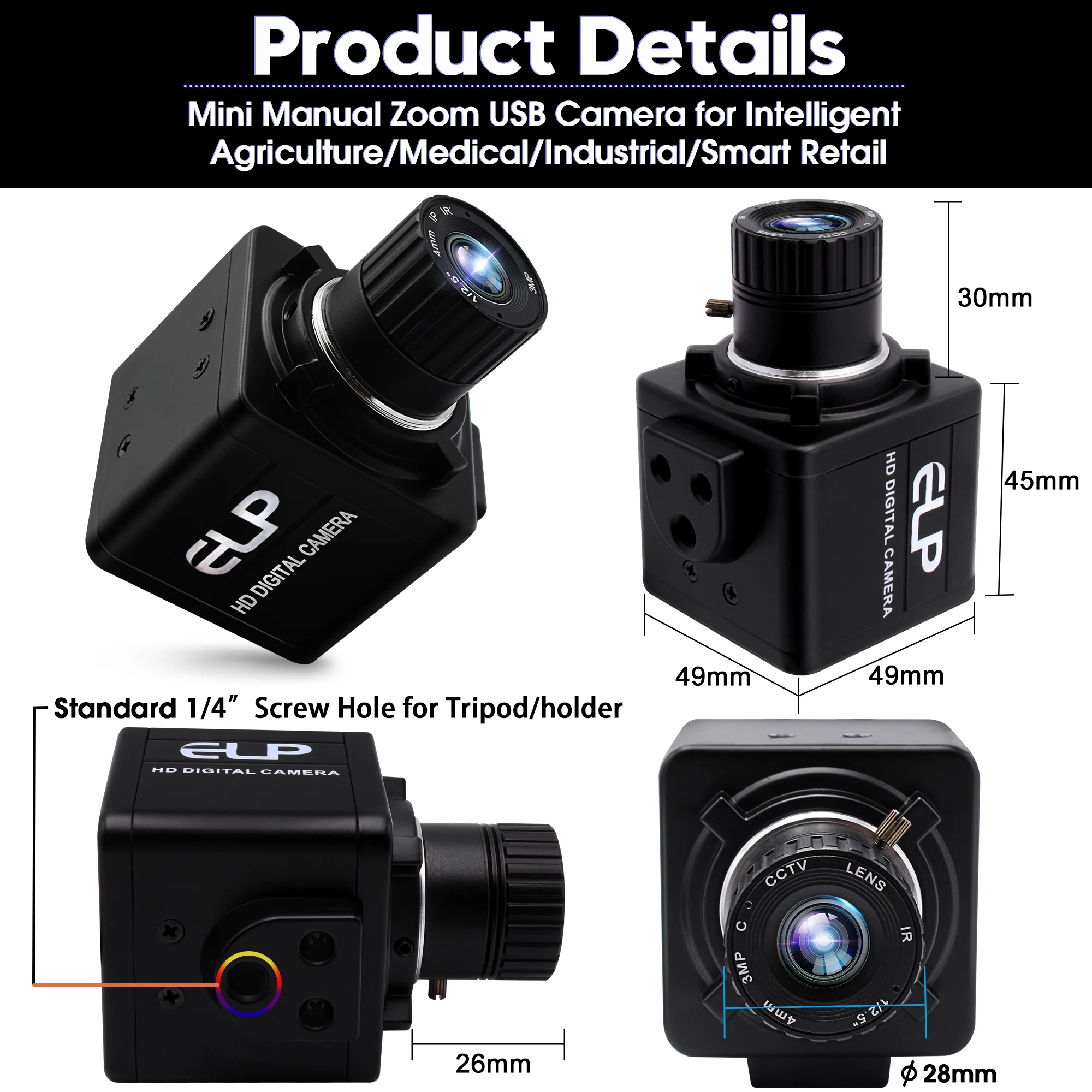

Boardsize/Weight | 38*38mm |
Cable | Standard 3M |
Operating system request | WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |

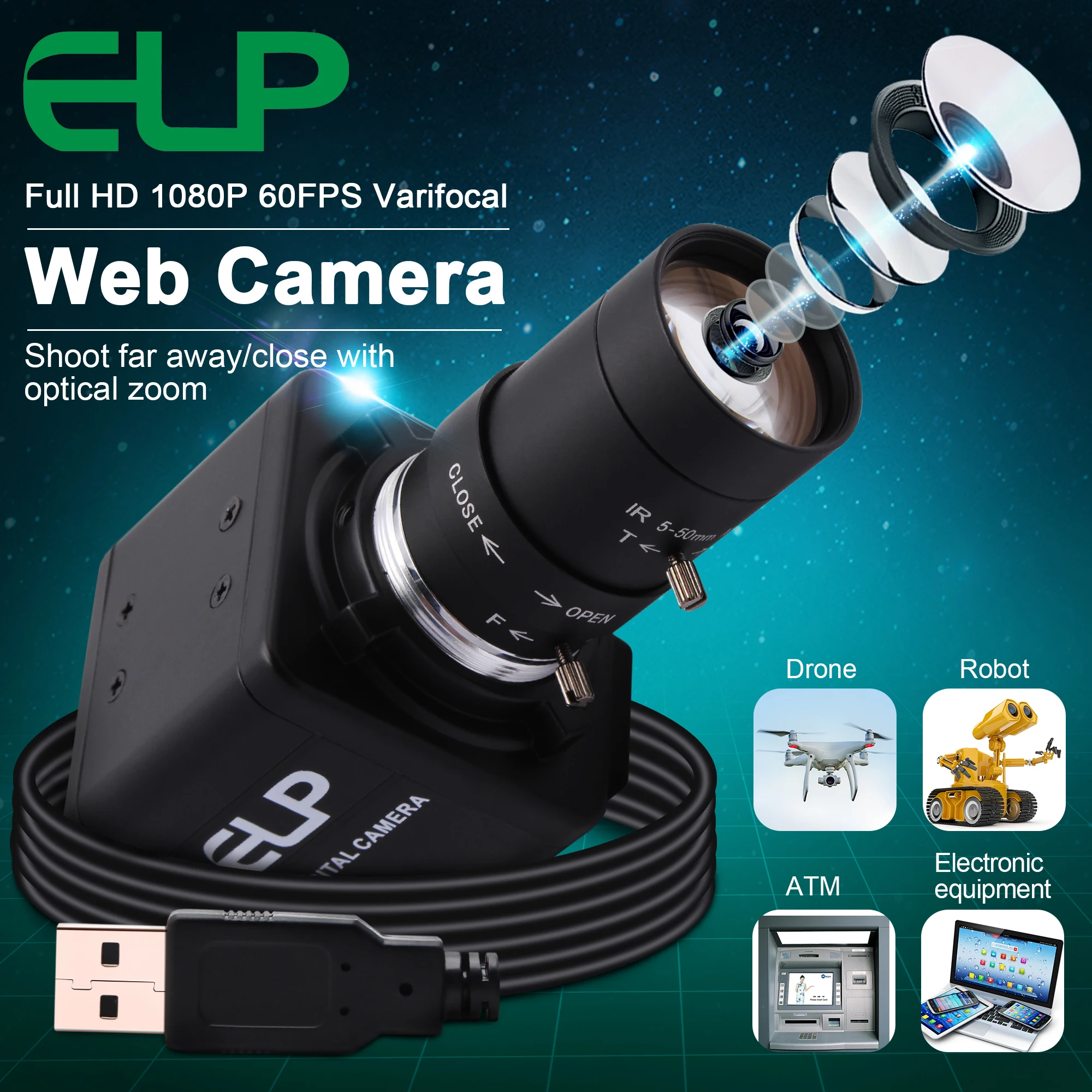

Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,Medical auxiliary equipment, etc.



If you need windows test software, please leave me message, will send you:

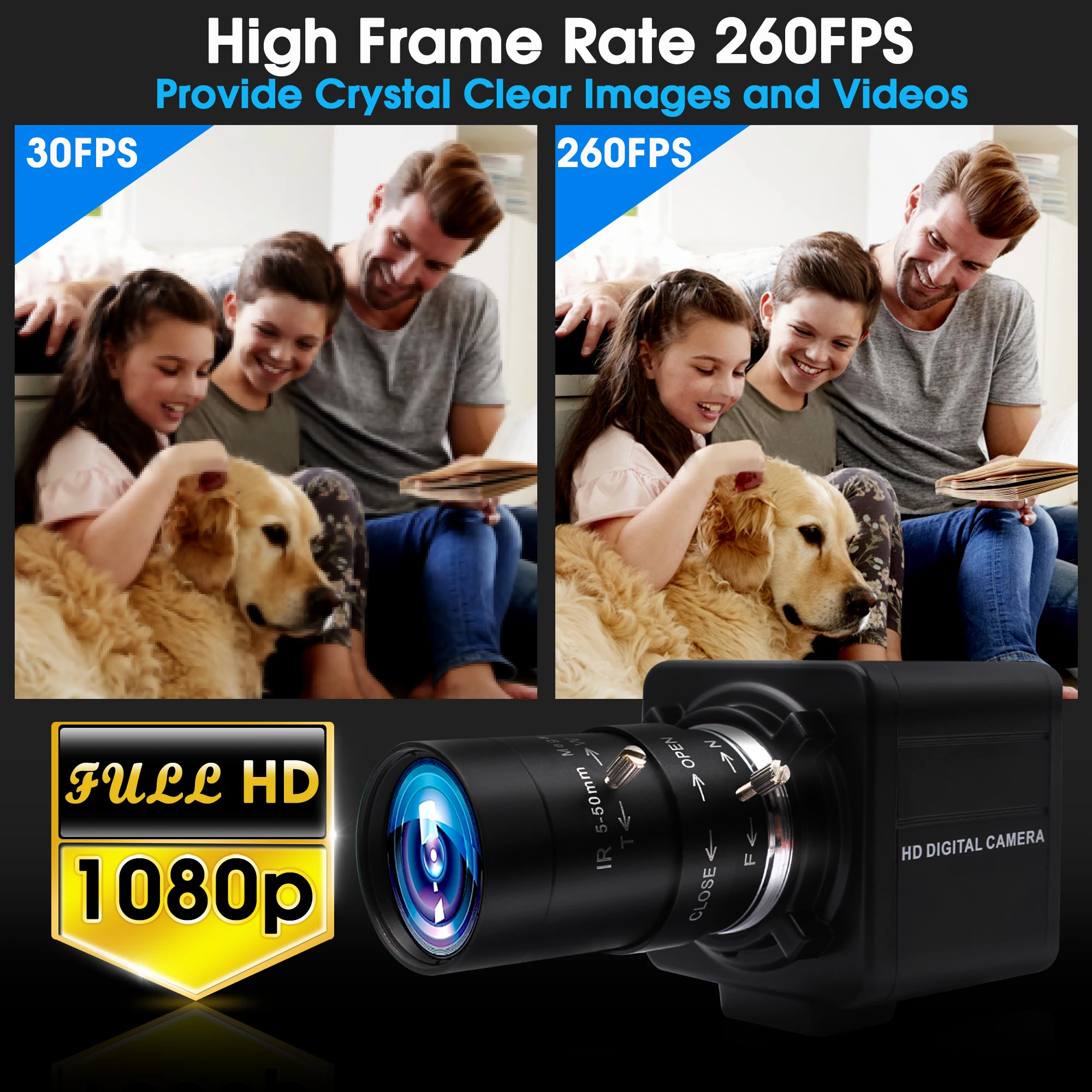

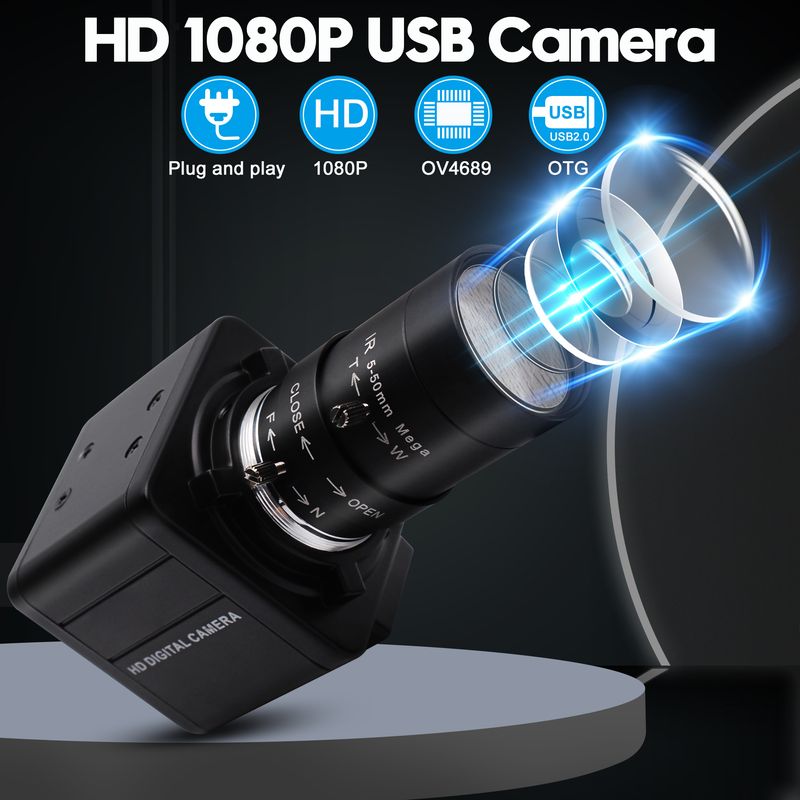

High frame rate 1080P USB Camera,
Real fps shown via windows software:

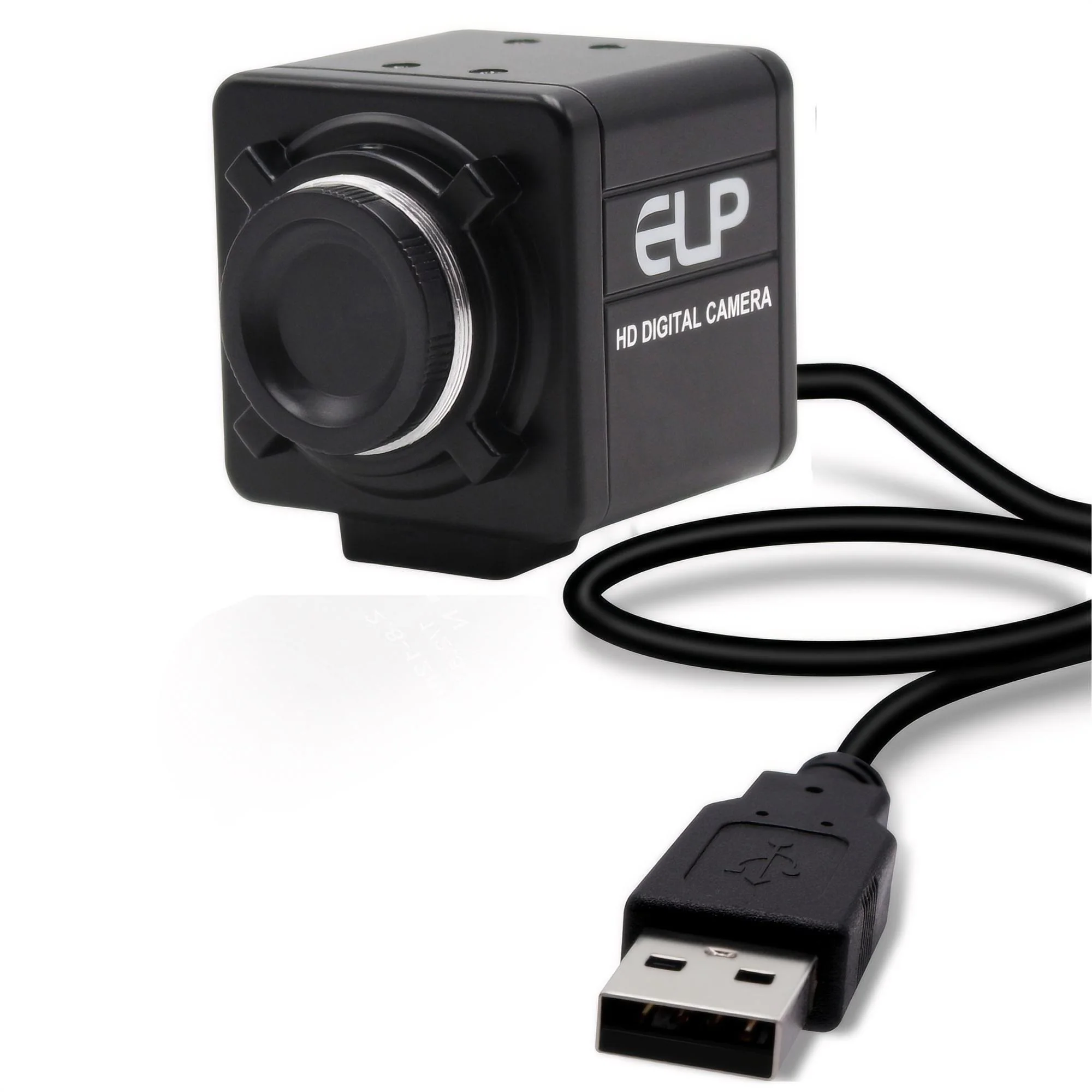

If you choose the camera without lens, then the camera will come without lens as below picture:

Optional lenses for this high frame rate usb camera:

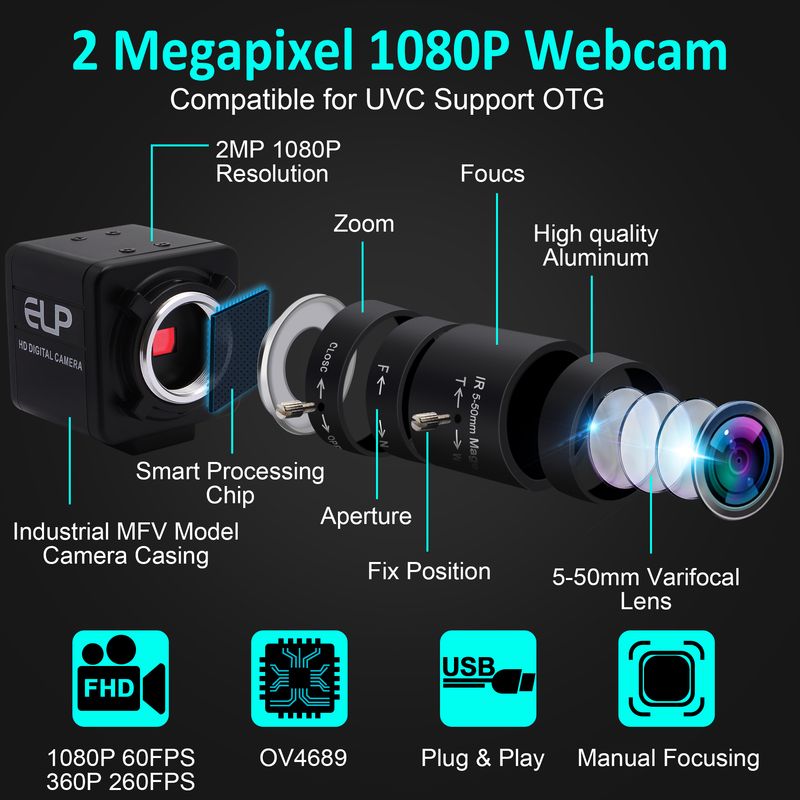

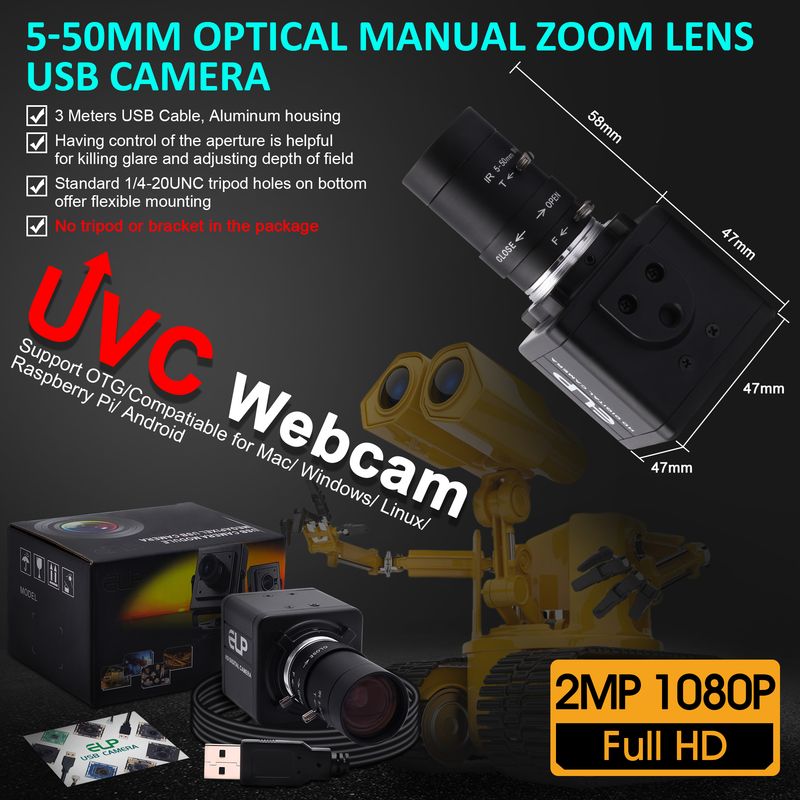

2.8-12mm/5-50mm/6-60mm manual varifocal CS mount lens



4mm/6mm/8mm CS mount lens optioanl


CS mount Lens is changable:
(IF you need CS to C adapter, please tell
me)











-About Our Company-

Shenzhen Ailipu Technology Co.,Ltdfounded in 2005, is a 18 years professional USB Cameras manufacturer. Our own brandELPis well known in USB cameras industry domestic and abroad. We achieve quality certificate like ISO9001, CE, FCC, ROHS, UL.
We produce Multiple USB Cameras for Industrial, Commercial, Medical vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3MP, 1MP, 2MP, 3MP, 5MP, 8MP to 48MP. And recently we launch new ultra HD USB cameras like Super Sharp 48MP 16MP, 4K HDMI cameras.
We also manufacture special function Auto focus cameras, High frame rate cameras, Low light cameras, WDR Cameras, Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras.
OEM or Customization service is also available
