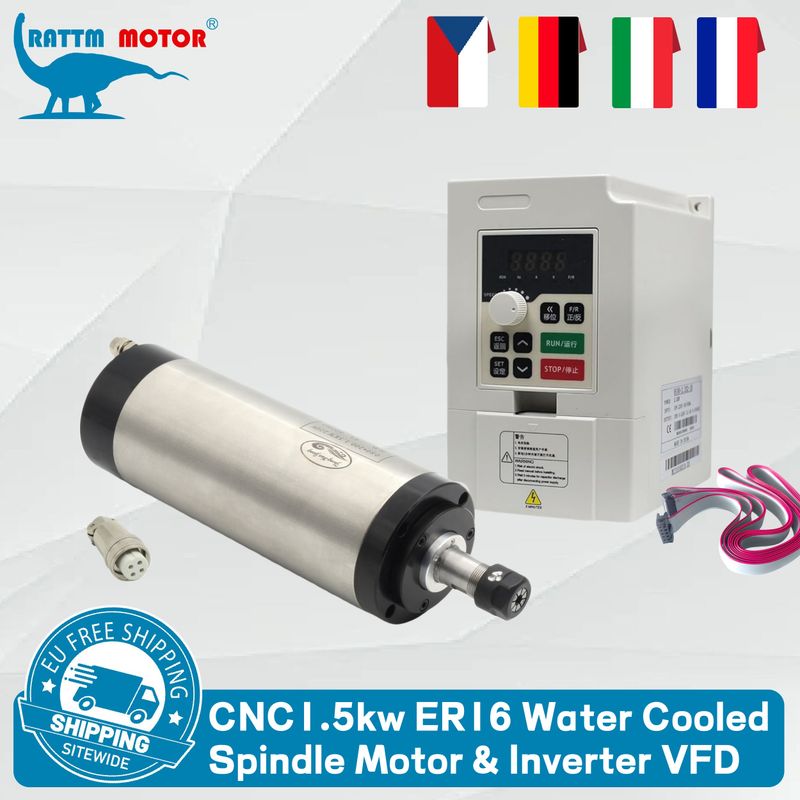

【EU Free VAT】CNC 1.5KW water-cooled spindle motor 5-piece set (spindle motor ER16, inverter, 80mm clamps & 80w pumps & 6m water pipes))

$270.14

Includes all taxes

length
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description



Just Spindle Package include:



1 x 1.5KW ER16 Water-cooled spindle motor (220V,400Hz,24000rpm)


ADD VFD Package include:



1 x 1.5KW ER16 Water-cooled spindle motor (220V,400Hz,24000rpm)

1 x 2.2KW MINI Inverter VFD

English manual of the VFD will send to ur email.


ADD VFD CLMAP Package include:



1 x 1.5KW ER16 Water-cooled spindle motor (220V,400Hz,24000rpm)

1 x 2.2KW MINI Inverter VFD

1 x 80mm cast aluminium bracket clamp

English manual of the VFD will send to ur email.

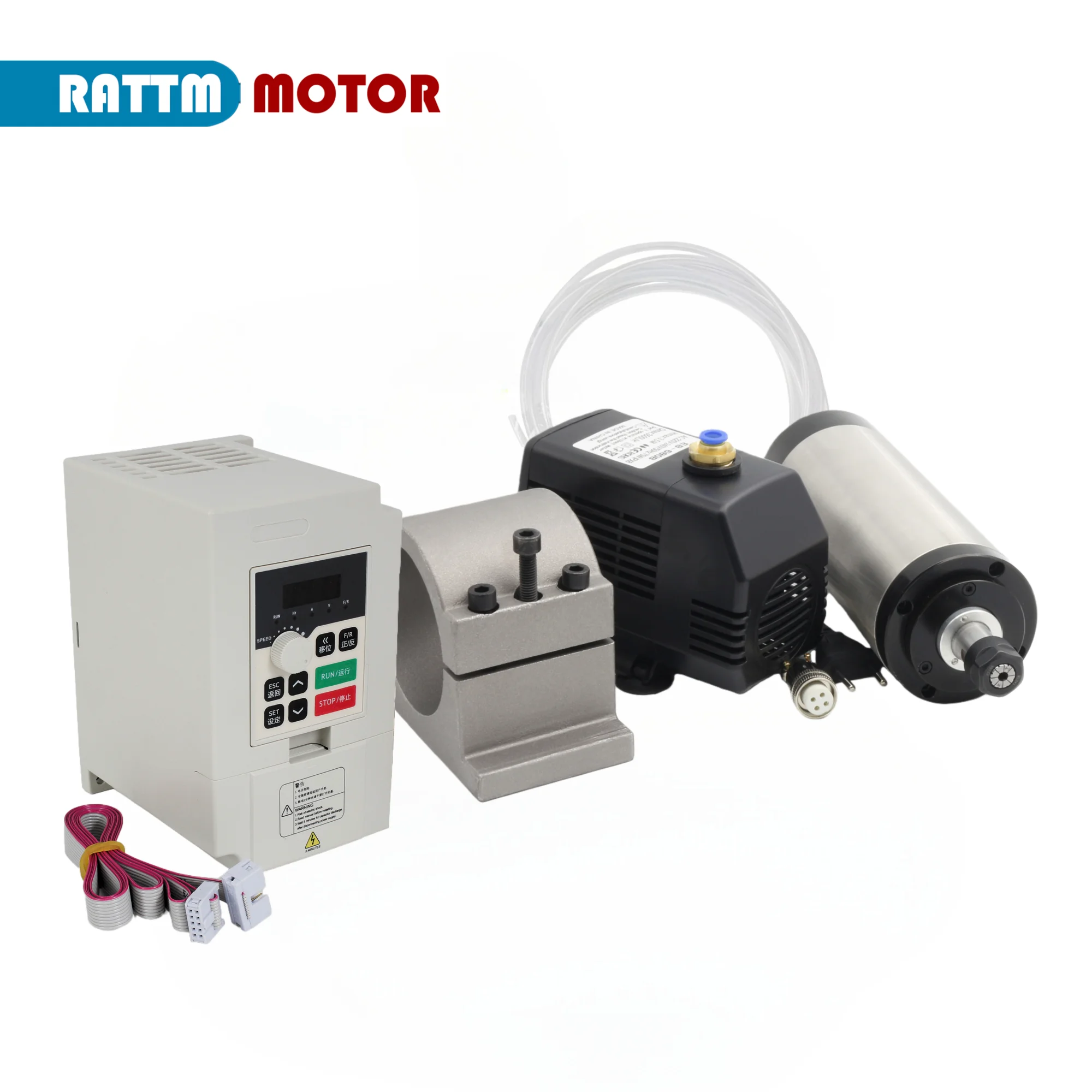

Full kit Package include:



1 x 1.5KW ER16 Water-cooled spindle motor (220V,400Hz,24000rpm)

1 x 2.2KW MINI Inverter VFD

1 x 80mm cast aluminium bracket clamp

1 x 80W Water pump

1 x 6M Water pipes

English manual of the VFD will send to ur email.

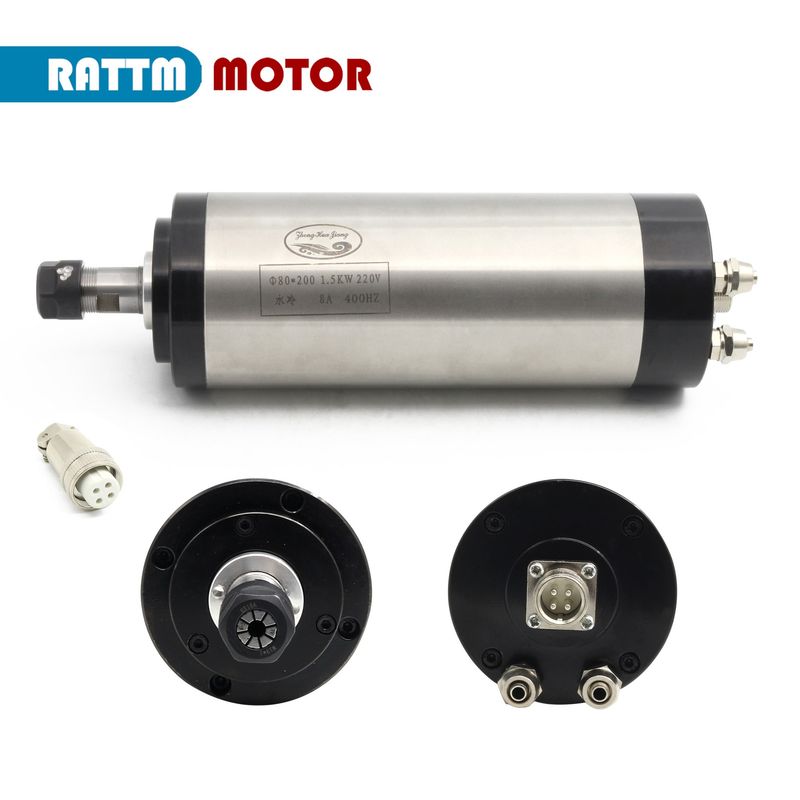

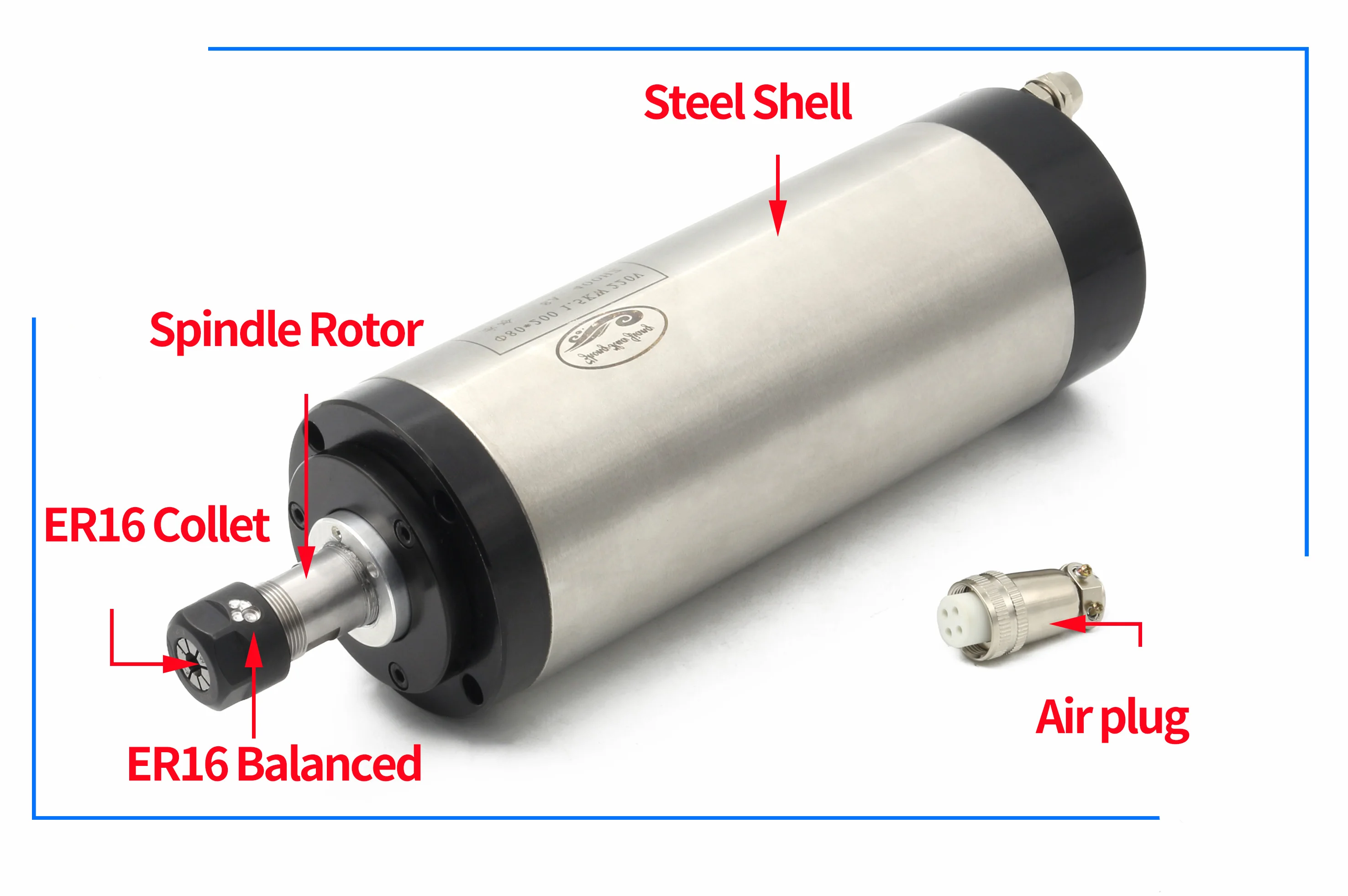

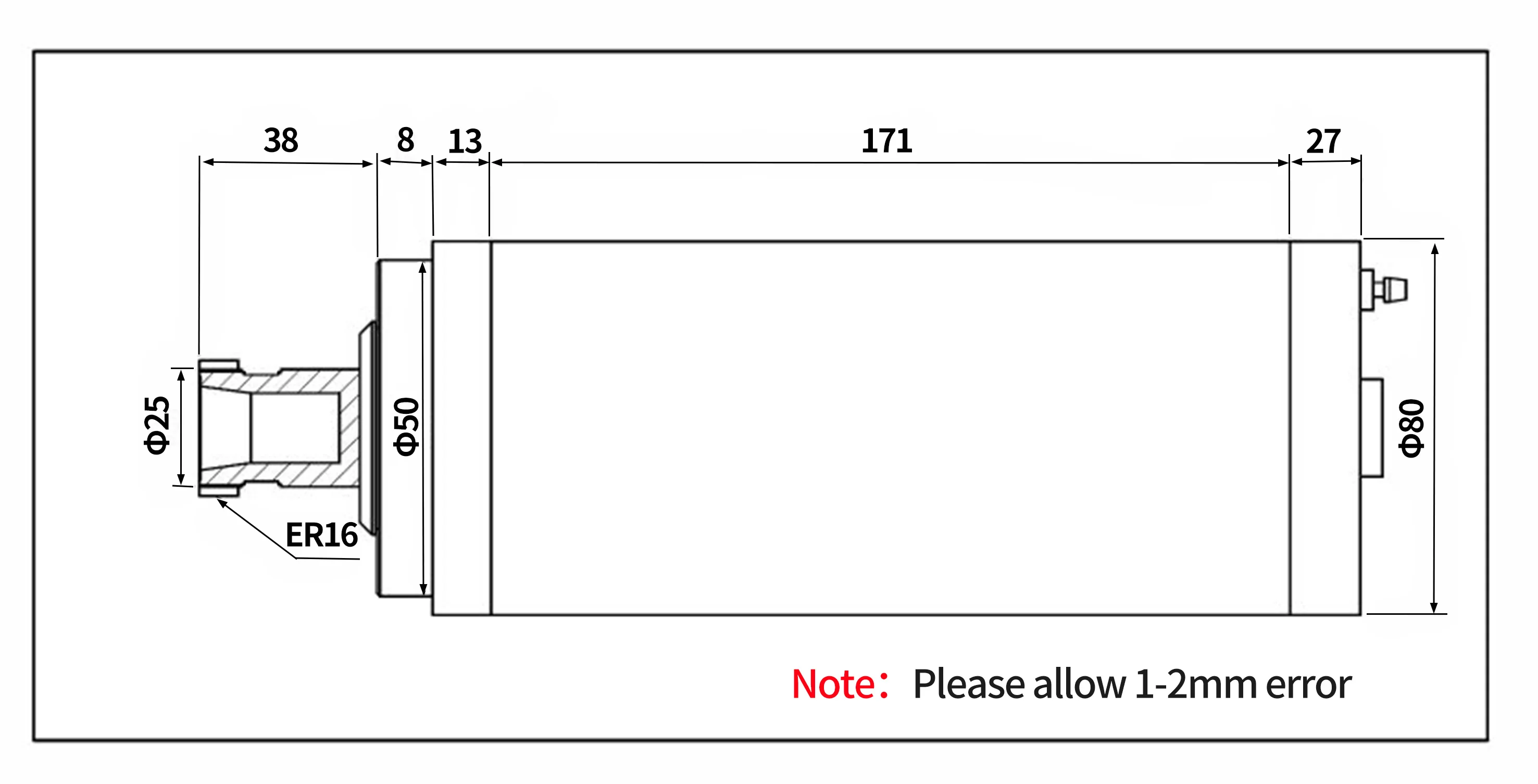

1.  1.5KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND




Specification:


Material:Stainless Steel

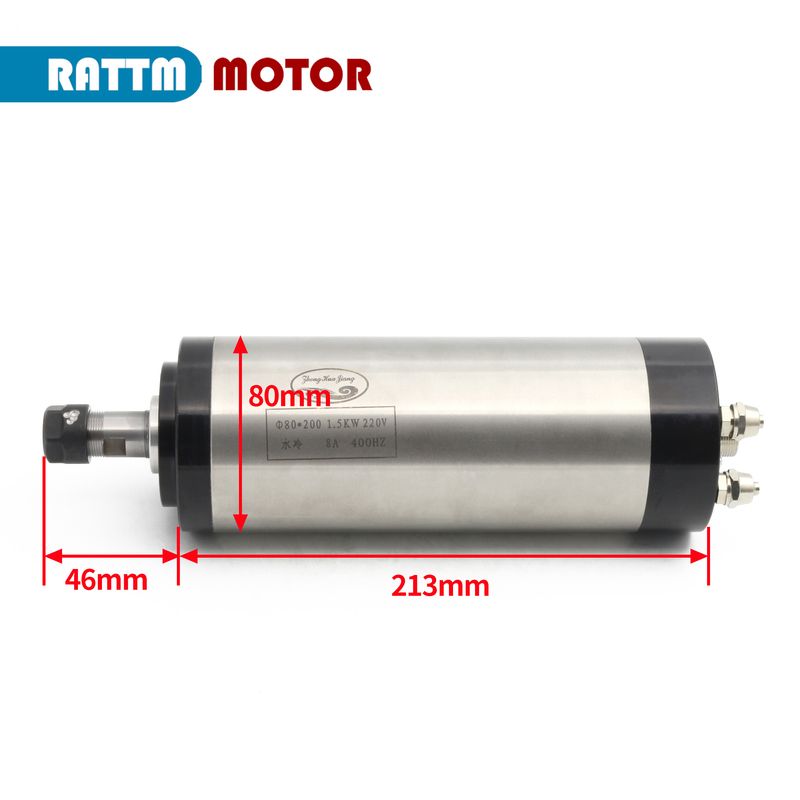

Size:Φ80x200mm


Power:1.5Kw


Voltage:220VAC


Current:8A


Frequency:0-400Hz


Speed:10-24000rpm


Cooling:Water-cooling


Precision tapered bore:0.003--0.005


Runout off:Less than 0.02mm


Bearing Lubrication:Grease


Collet size:ER16


Bearings:4 bearings (C7004x2+C7002x2),P4 class


Net Weight:4.6kg

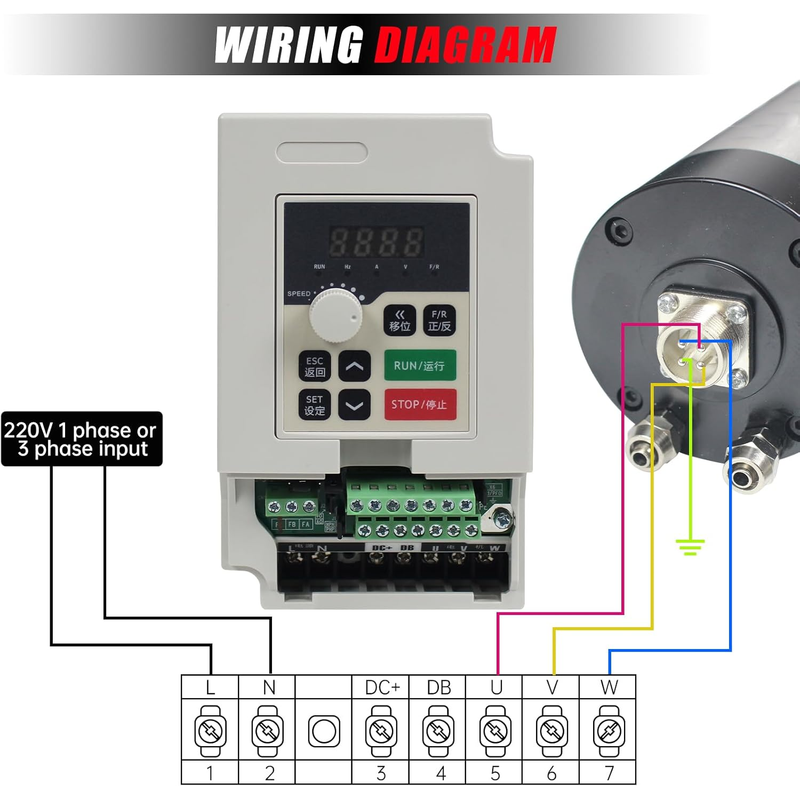

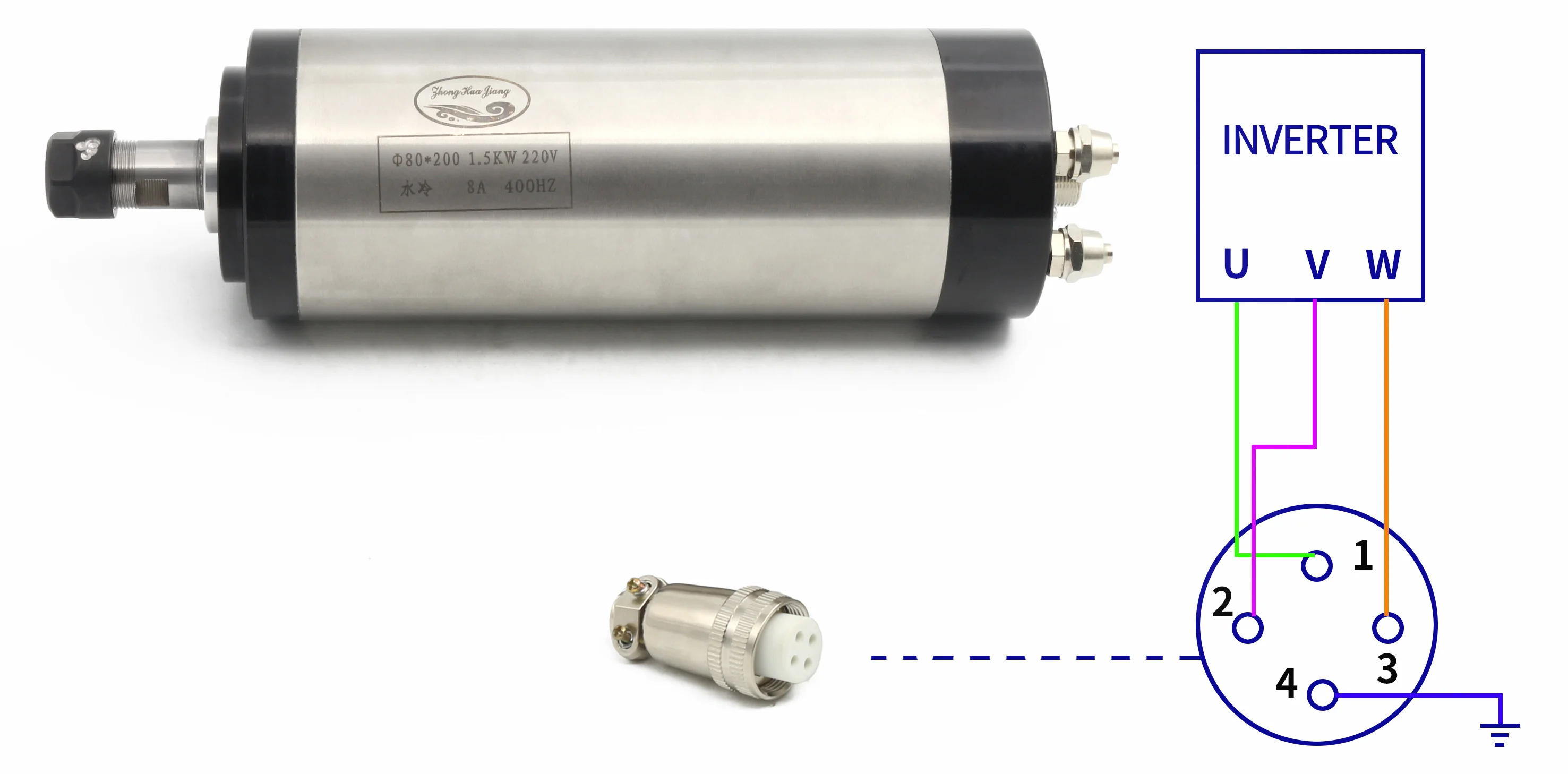

Power supply interface:Professional
aviation Interface, Interface 1234 marked 123 respectively connected to
the inverter output end of the (U, V, W), 4 ground wire this interface
must be safe ground.


Main application:Wood, Aluminum, Stone, metal, glass, PVC industry

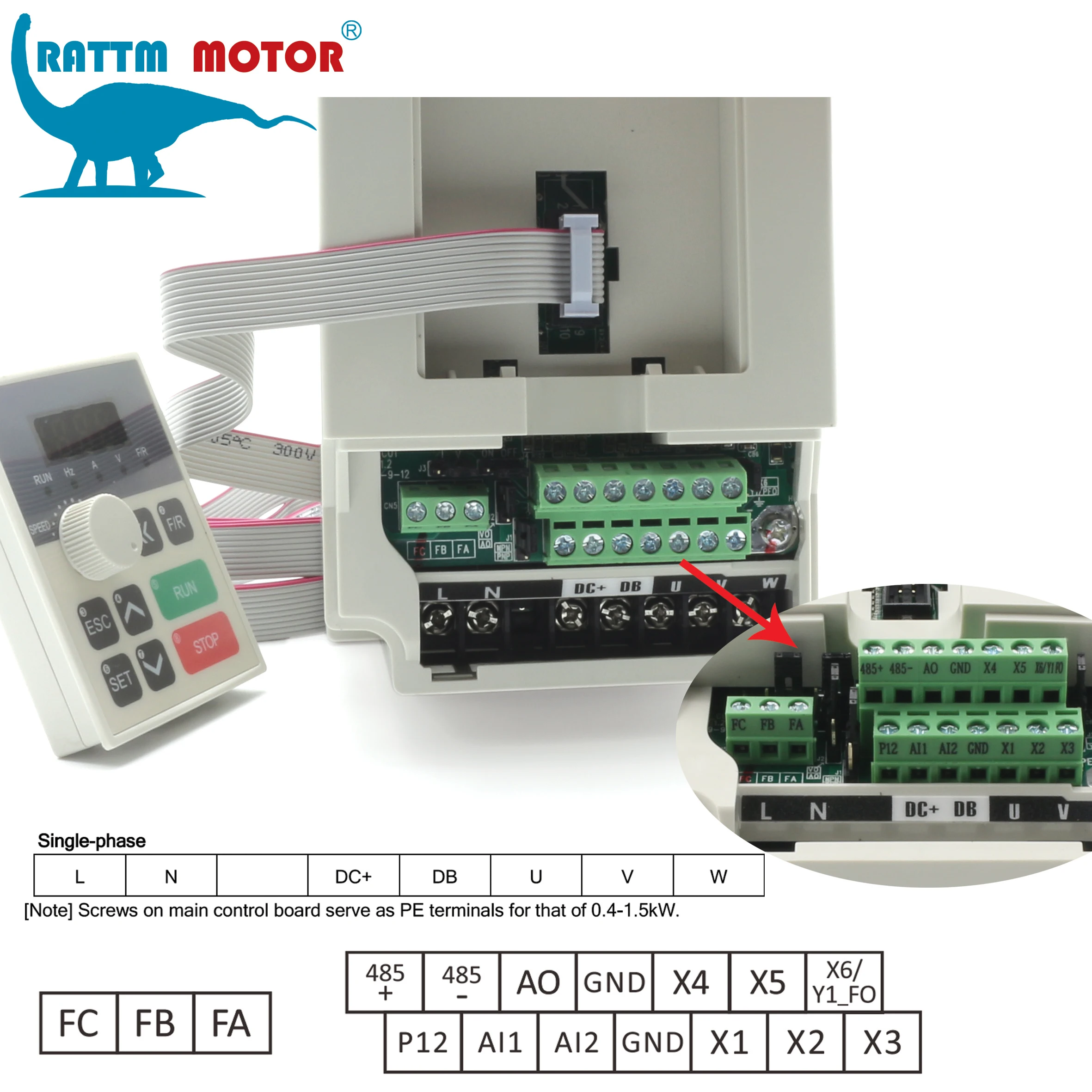

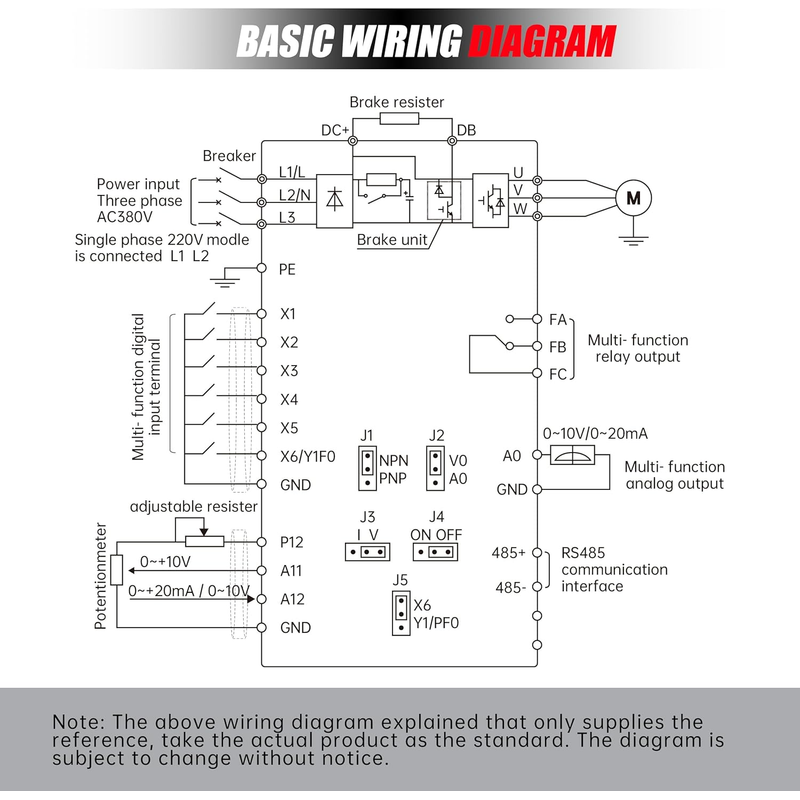

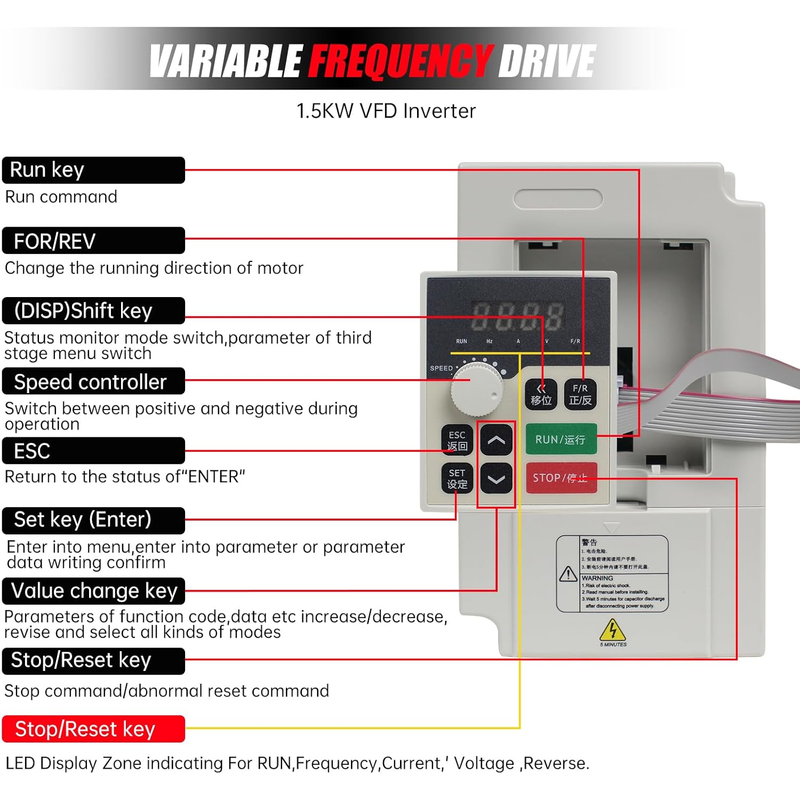

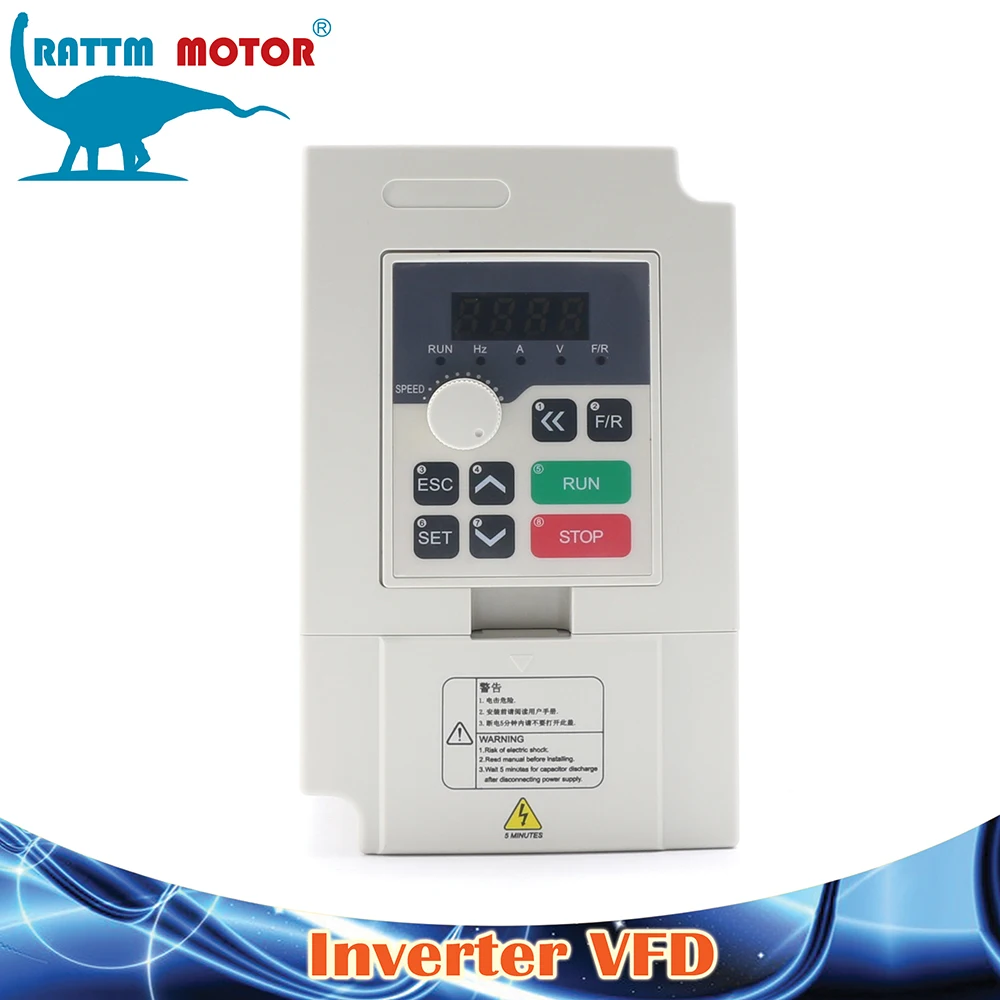

2.  2.2KW 220V Variable Frequency Drive VFD Inverter

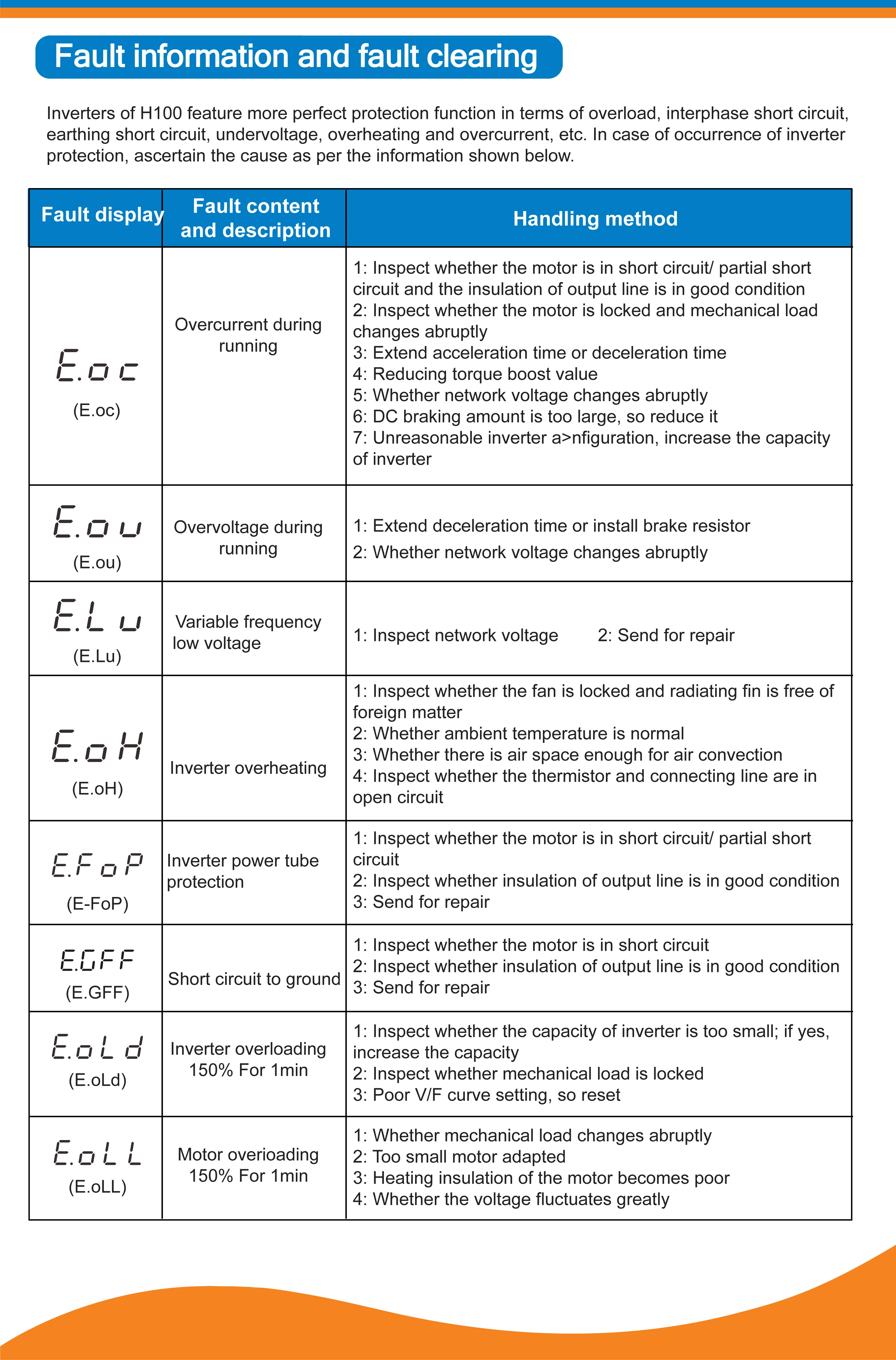

◆Provide
a variety of fault protection functions: over-current, over-voltage,
under-voltage, over-heat, overload, lack of equal real-time monitoring
and protection to ensure safe operation

◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor

◆ With over torque and under torque detection

◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure

◆With jump frequency control function, it can effectively suppress
mechanical resonance and make the system more stable and reliable.

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.

◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

◆ 8-stage simple PLC function, multi-speed control and PID control

◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%

◆Two speed control modes: no PG vector control (SVC), V/F control



  • Input Voltage:220V(+/-15%)

  • Output Voltage:220VAC

  • Input Frequency:50-60 Hz

  • Output Frequency:0-1000 Hz

  • Input Phase:1 phase

  • Output Phase:3 phase

  • Warranty:1 year from the date you purchased

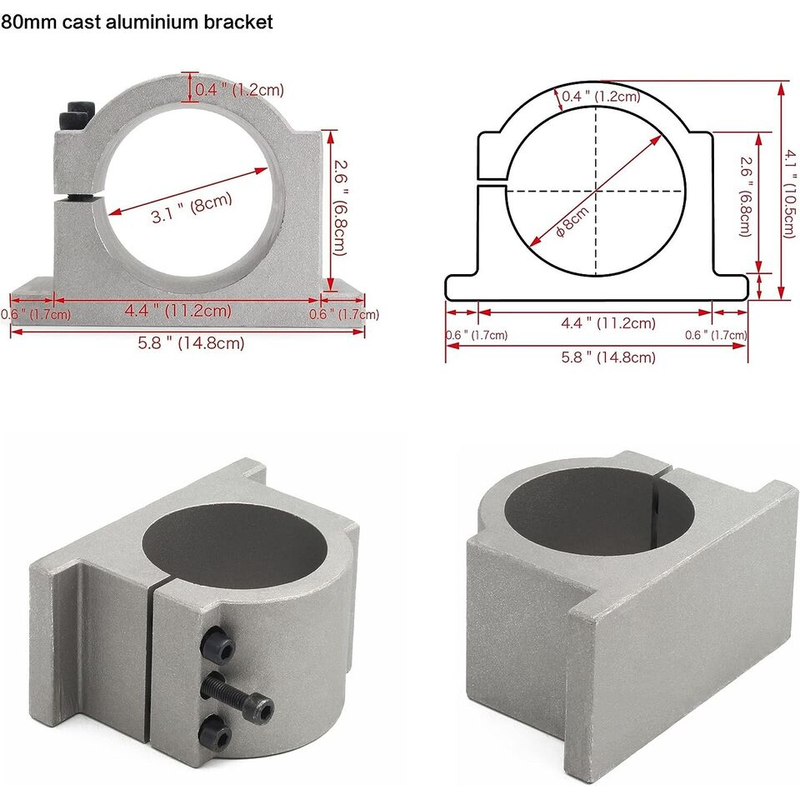

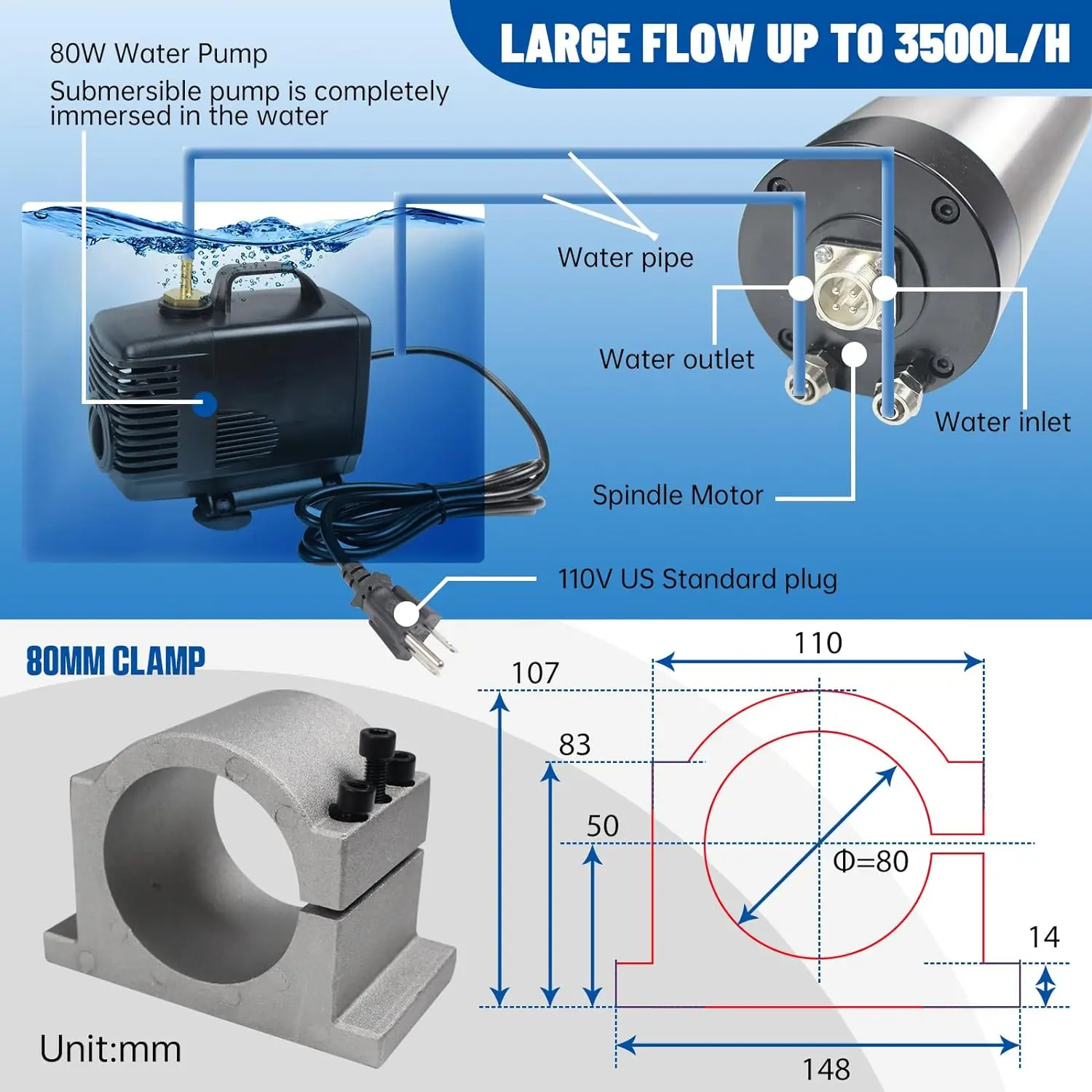

3.80mm cast aluminium bracket

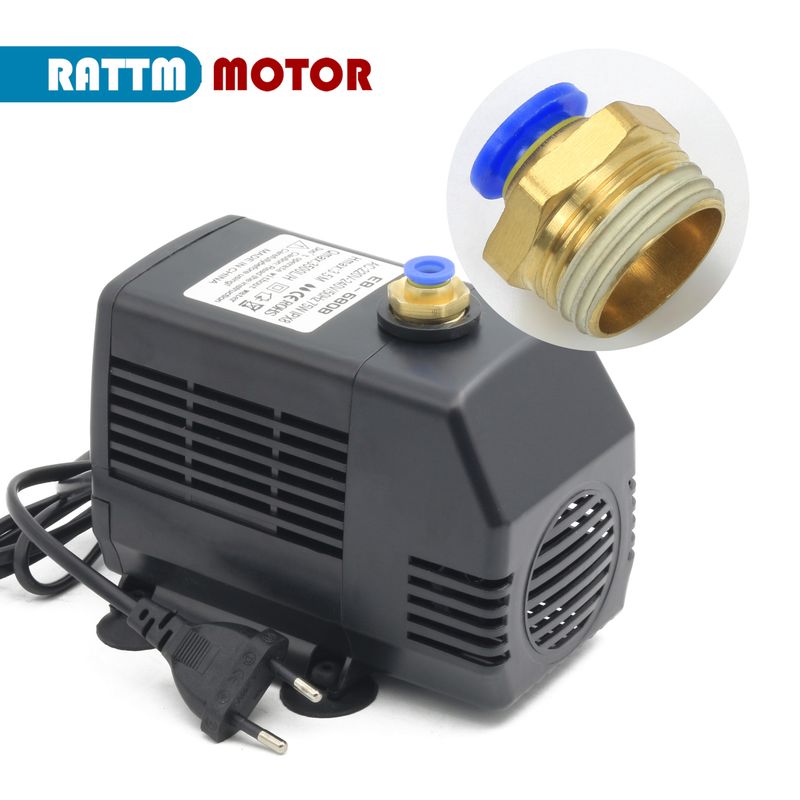

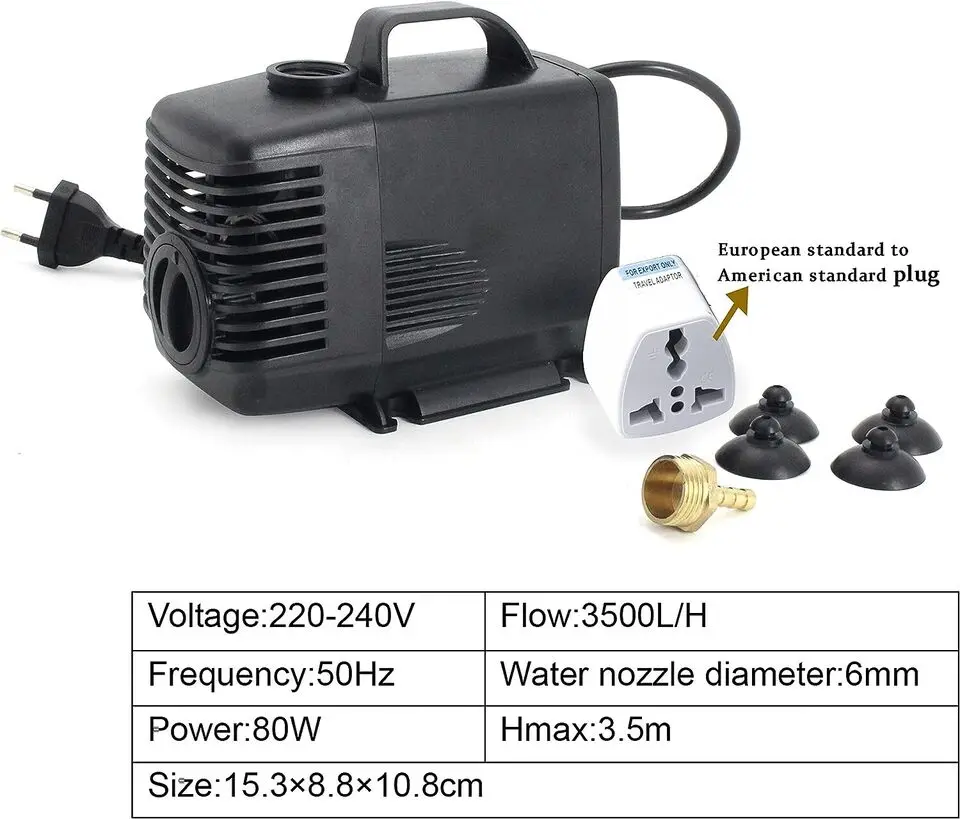

4. 80W CNC spindle motor water pump 3.2m 220VAC

Specification:

Pump length:3.2m

Voltage:220-240VAC

Power:80W

Flow:3000L/H

Size:150x80x140mm

Water nozzlediameter:6mm

Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too
