【EU VAT-Free】2.2KW Water-Cooled Spindle Motor 6-Piece Set (2.2KW Water-Cooled Spindle Motor ER20 + HY VFD + 80mm Fixture + 6m Water Pipe + 1 Set of ER20 Collets + 80W Water Pump)

$291.29

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

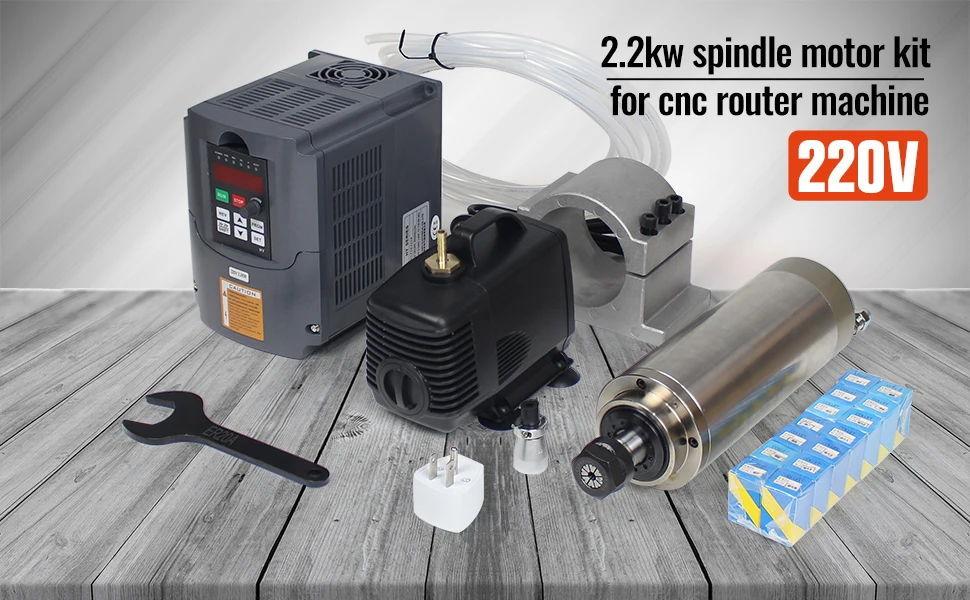

Package include:



Shipments will be sent according to the actually selected package.

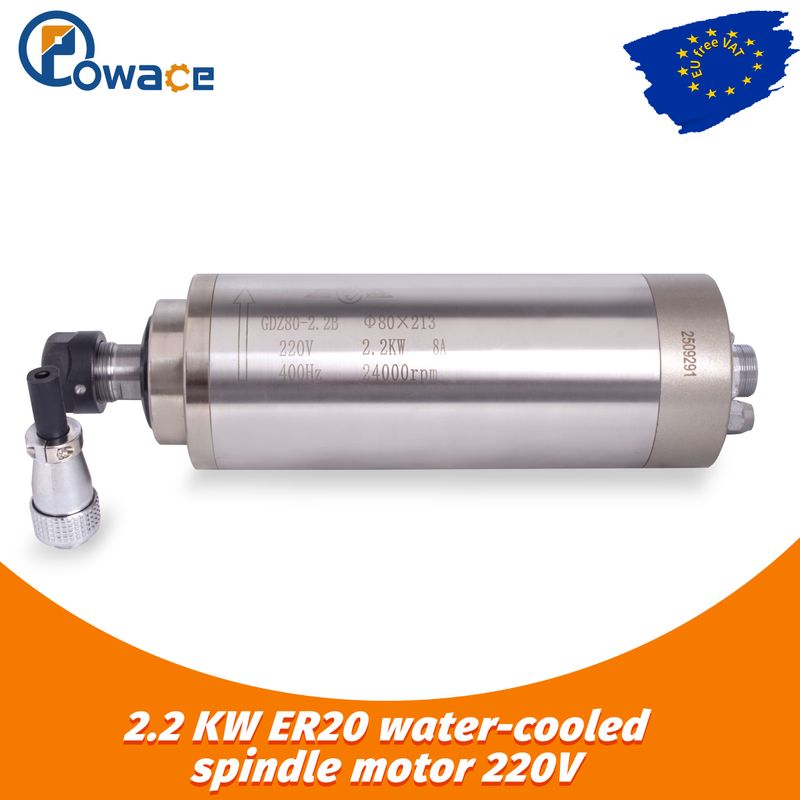

  • 1 x 2.2KW water-cooled spindle motor (ER20, 220V,400Hz,24000rpm,4 bearings)

  • 1 x 2.2KW VFD Inverter  220V/AC input with 220V output  2HP

  • 1 x 80mm cast aluminium bracket

  • 1 x 80 Water pump 220V 3.2m

  • 1 x 1set ER20 spring collet 14pcs(1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm,11mm,12mm,13mm)

  • 5M water pipes as free as gift

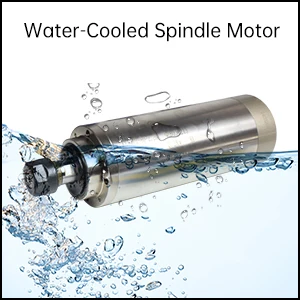

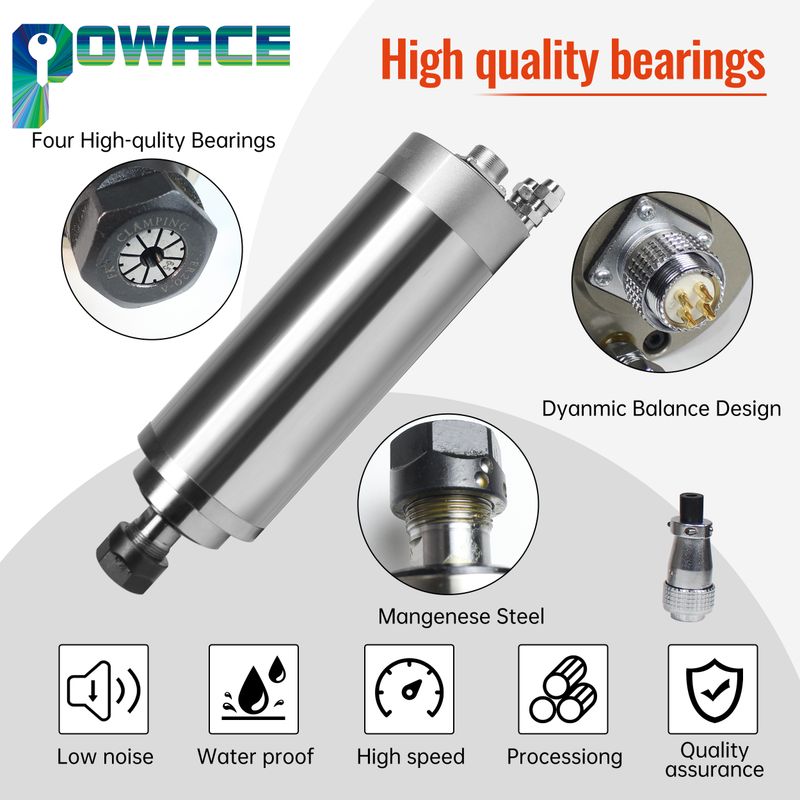

1、2.2KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING


GRIND

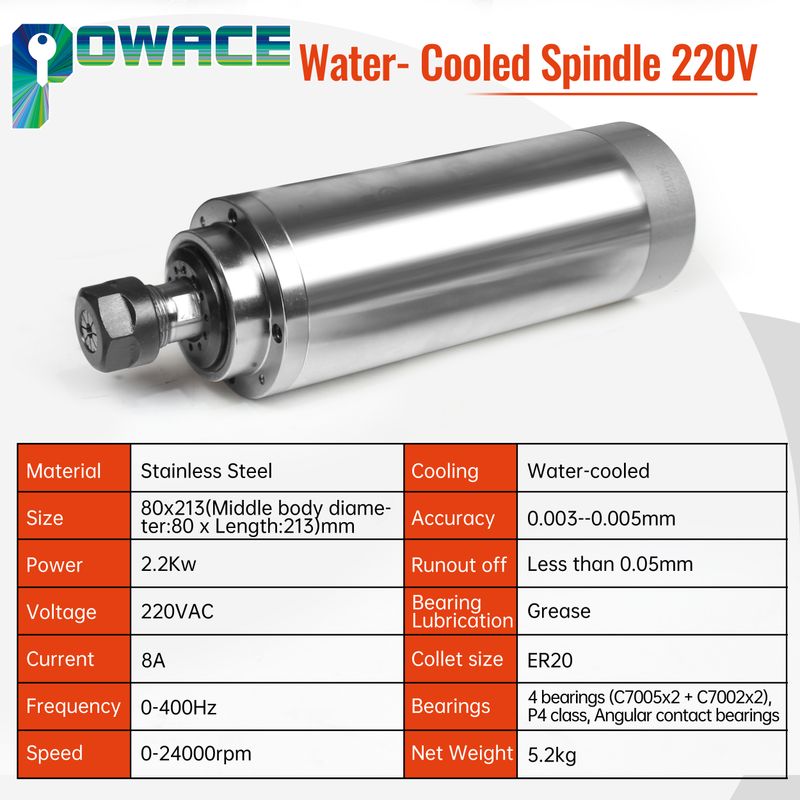

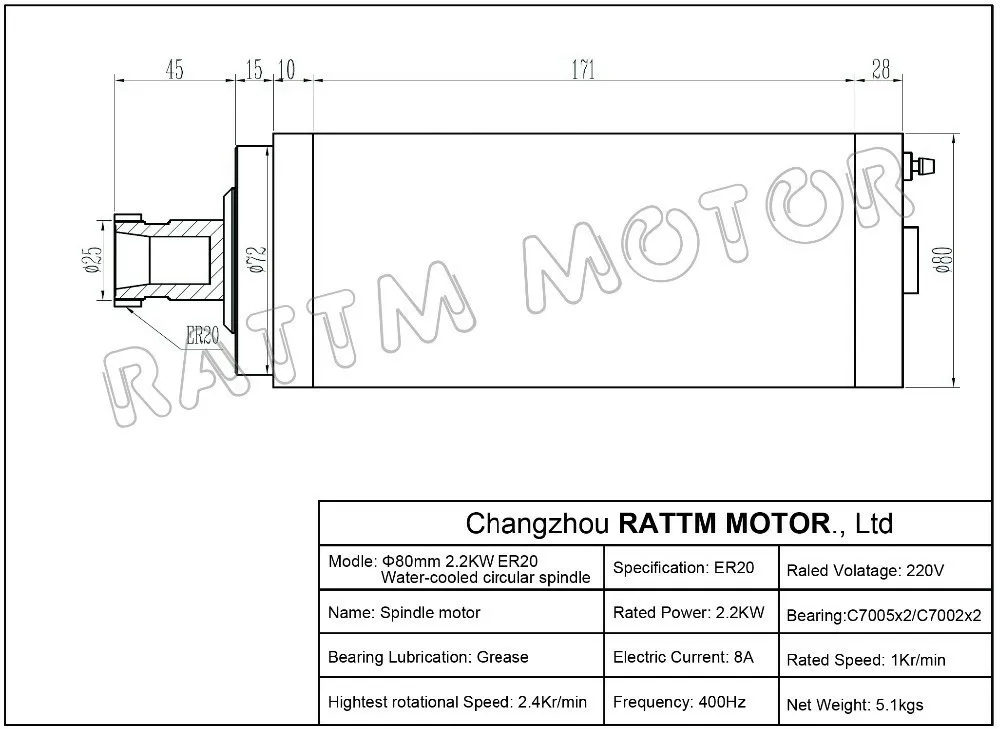

Specification:

  • Material: Stainless Steel

  • Size: Φ 80x213mm(Middle body diameter:80mmxLength:213mm)

  • Power: 2.2Kw

  • Voltage: 220VAC

  • Current: 8A

  • Frequency: 0-400Hz

  • Speed: 10-24000rpm

  • Cooling: Water-cooling

  • Accuracy: 0.003--0.005

  • Runout off: Less than 0.02mm

  • Bearing Lubrication: Grease

  • Collet size:ER20

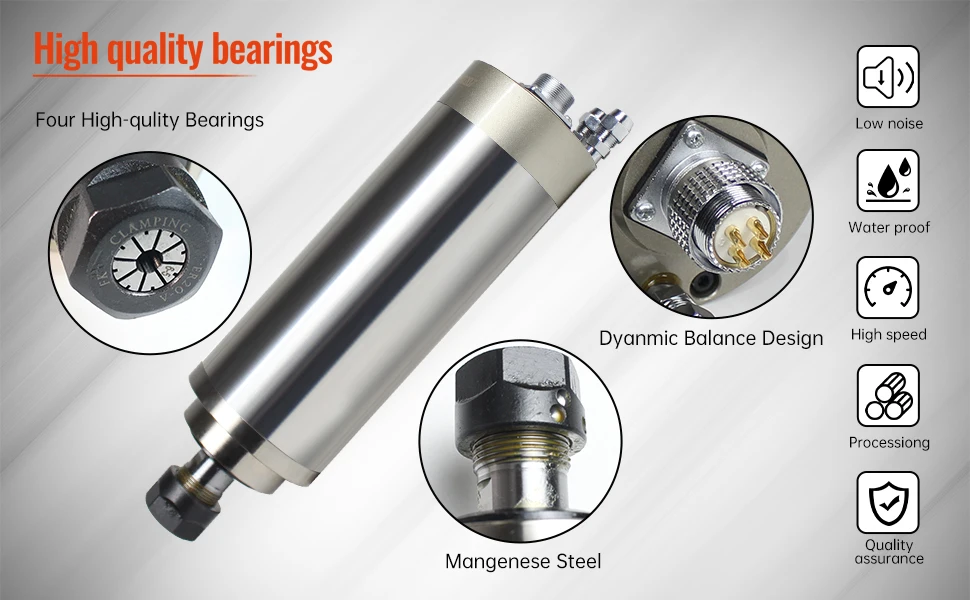

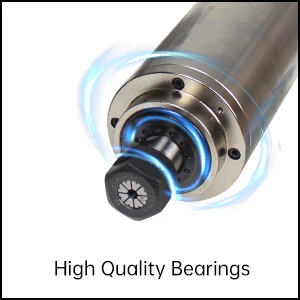

  • Bearings: 4 bearings(C7005x2 + C7002x2),P4 class, Angular contact bearings

  • Net Weight: 5.1kg

  • Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

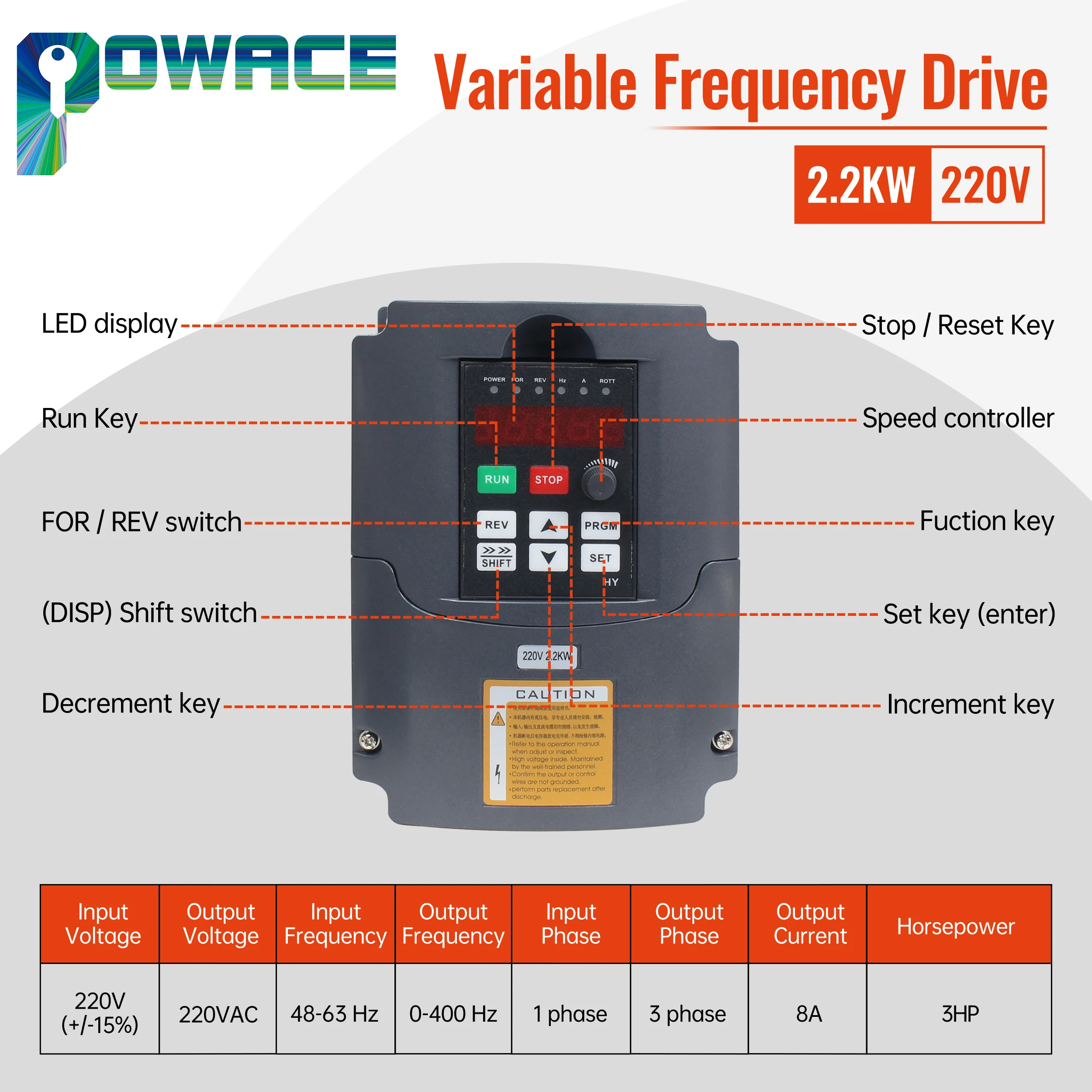

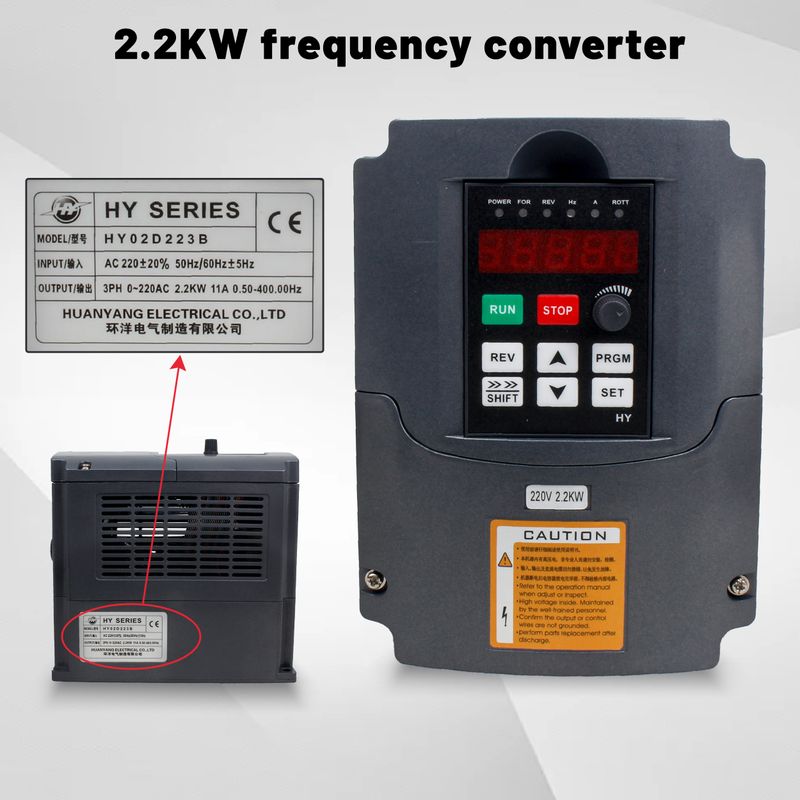

2、 2.2kw Inverter VFD  220V


ProductFeature:

  • 1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

  • 2)Easy PLC function can realize 16 legs of speed and inverter control function;

  • 3)RS485 communication port, adopting standard international MODBUS main circuit control;

  • 4)With extremely strong anti-jamming capability

  • 5)Low output ratting torque0.5HZ-150%, low speed running ability;

  • 6)Carrier adjustable by 16KHZ, completely soundless working environment;

  • 7)Broad voltage working area, normal running in 304V-456V;

  • 8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

  • 9)Various control technique by both synchronization and non-synchronization,
    dynamically realize fast starting without changing brakes;

  • 10)With perfect error protection and short circuit starting protection capability;

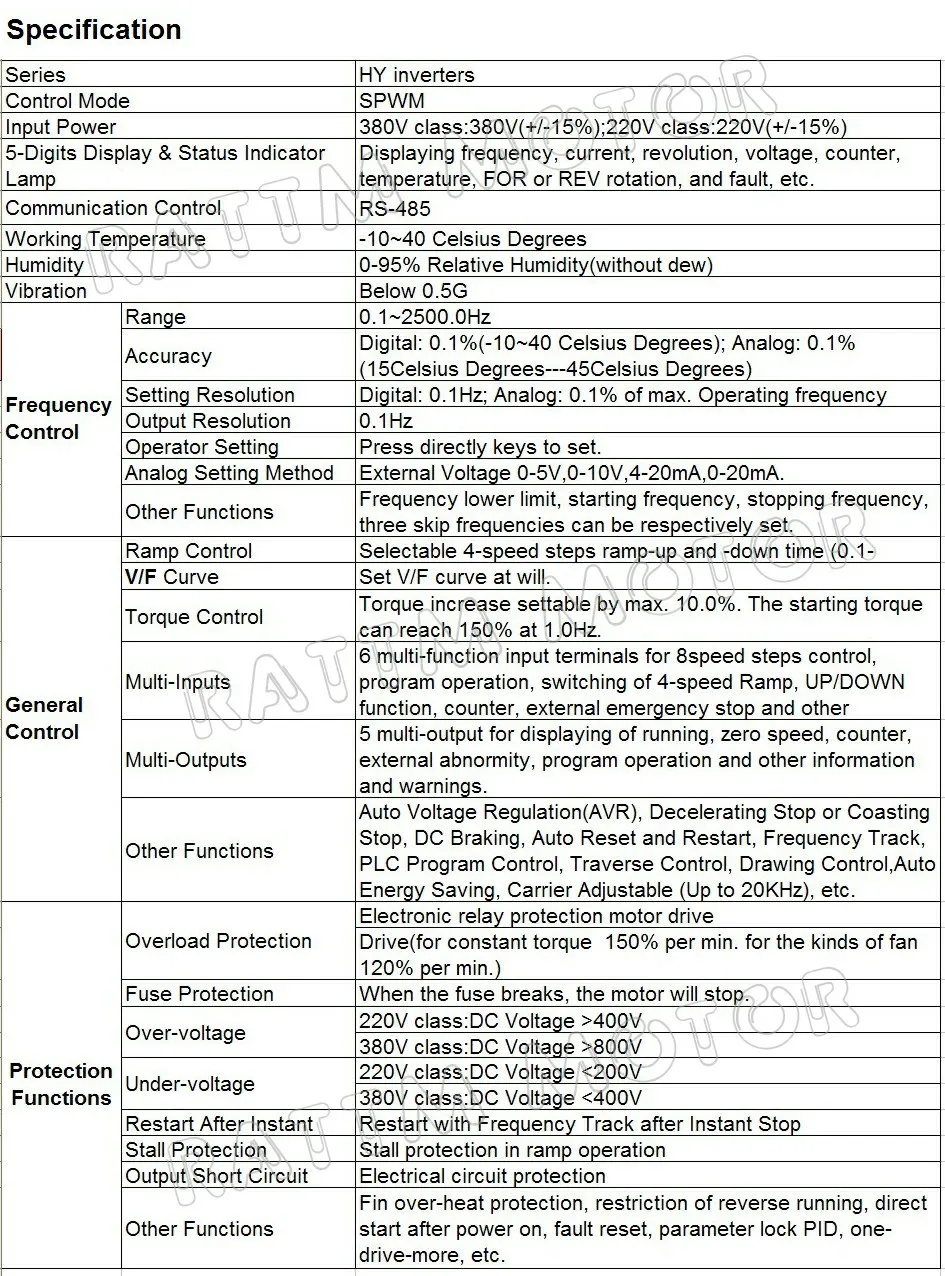

Tech parameters:
1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us

for item stock.
2) Output Voltage 208Vac-240VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase

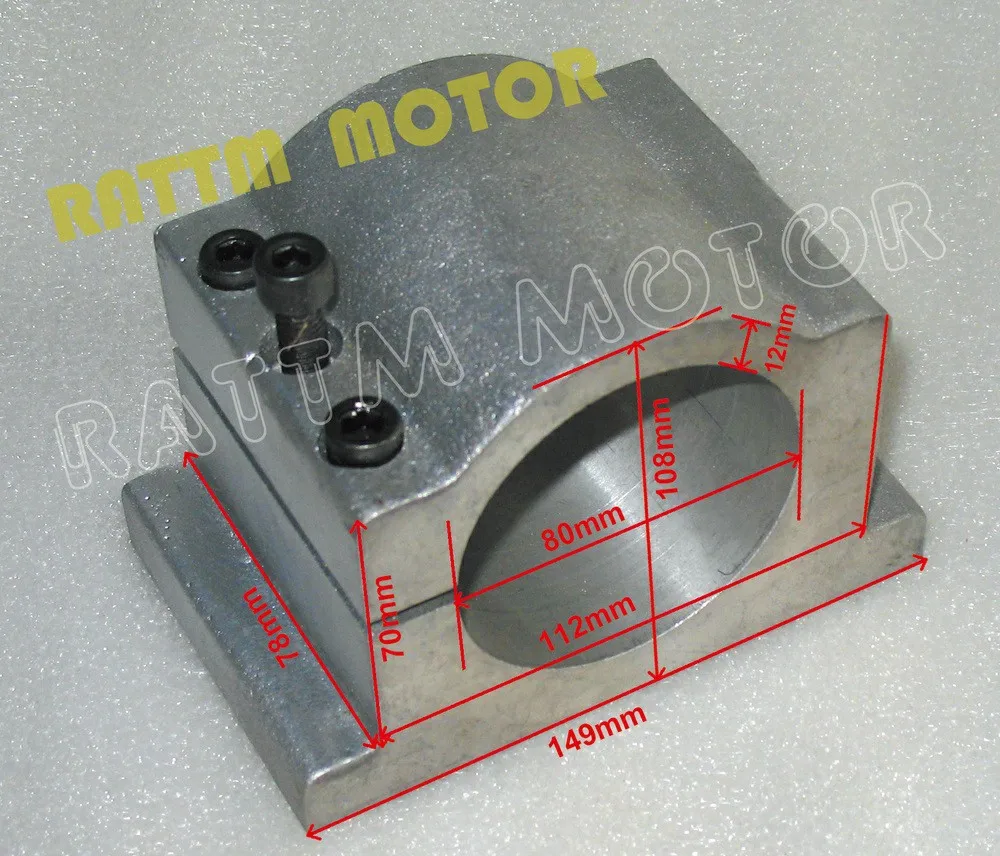

3、80mm cast aluminium bracket

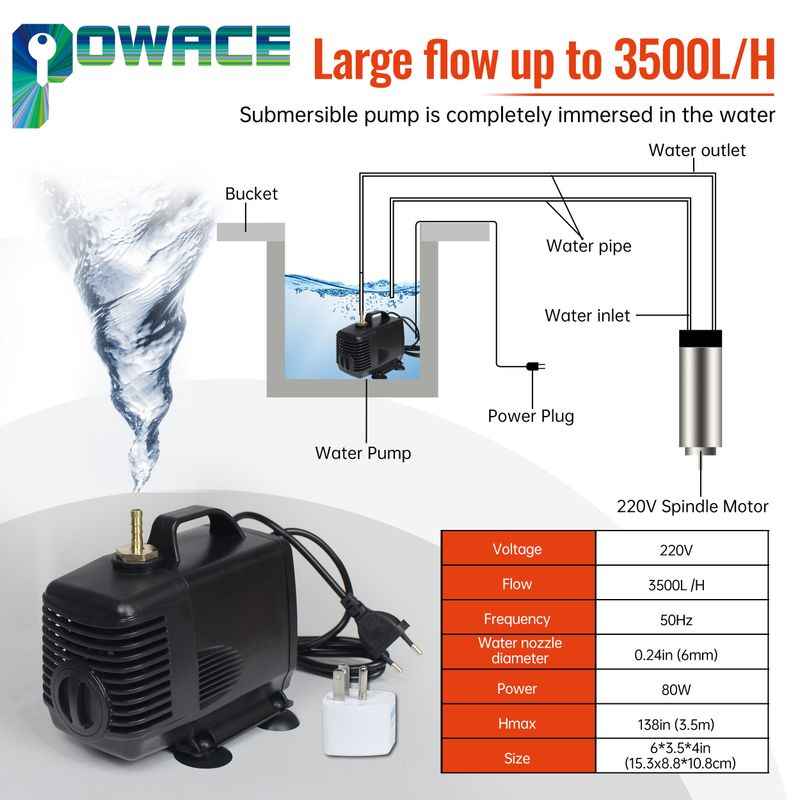

4、 80W CNC spindle motor water pump 3.2m 220VAC


Specification:

  • Pump length:3.2m

  • Voltage:220-240VAC

  • Power:80W

  • Flow:3000L/H

  • Size:150x80x140mm

  • Water nozzle diameter:6mm

  • Application: fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

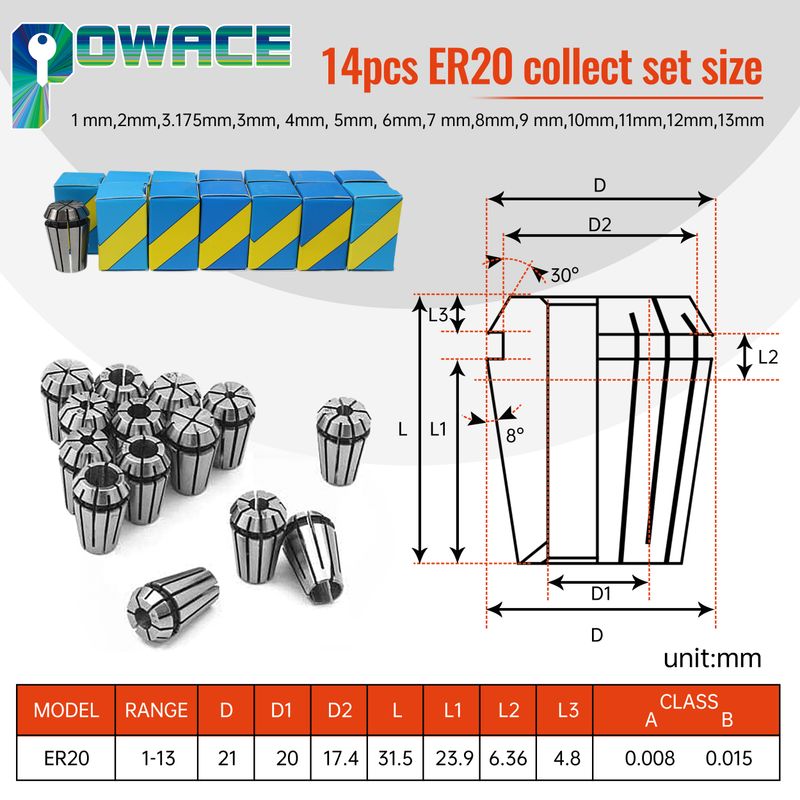

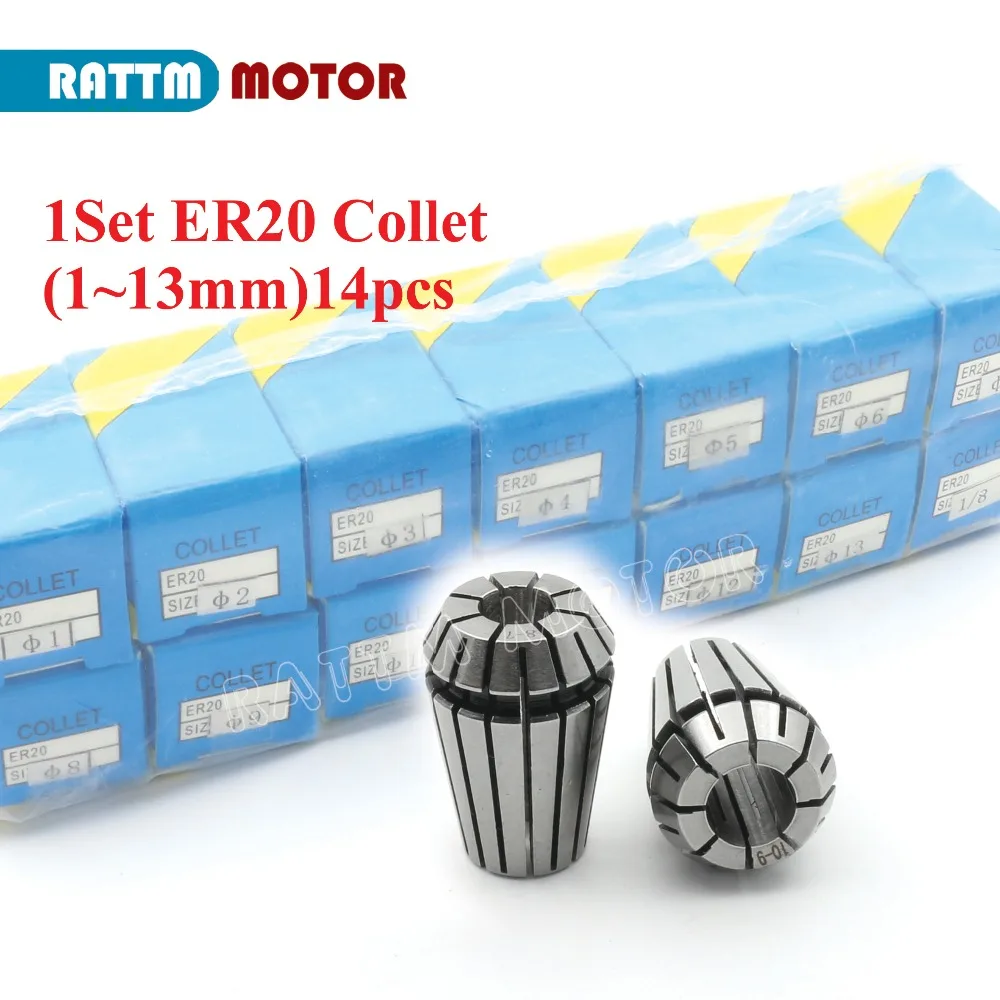

5、ER20 spring collet:

  • Product Description
    Out dia (D1):11.5mm
    Height (H):18mm
    Hole dia (D2):1-13mm
    Run-out tolerance 0.1mm (0.006")
    First class 1065 carbon steel
    Hardened & precision ground
