Fiber Induction Sticker Label Stripping Dispensing Machine FTR-118C 120-320MM With Counting Function Labeling Peeling Photoelectric Device Wide Customized
Equipment parameters
Model | Dimension (L*W*H) | Label Width | Stripping Length | Peeling Speed | Max Outside Diameter | Minimum Inner Diameter | Input Power | Weight |
118C-120 | 235mm*195mm*310mm | 5-120mm | 5-150mm | 130sec | 350mm | 20mm | 6.1kg | |
118C-160 | 275mm*195mm*310mm | 5-160mm | 5-150mm | 130sec | 350mm | 20mm | 220V/50HZ | 6.5kg |
118C-180 | 295mm*195mm*310mm | 5-180mm | 5-150mm | 130sec | 350mm | 20mm | 220V/50HZ | 6.8kg |
118C-200 | 365mm*195mm*310mm | 5-200mm | 5-150mm | 130sec | 350mm | 20mm | 220V/50HZ | 7.0kg |
118C-250 | 400mm*195mm*310mm | 5-250mm | 5-150mm | 130sec | 350mm | 20mm | 220V/50HZ | 7.3kg |
118C-320 | 470mm*195mm*310mm | 5-320mm | 5-150mm | 130sec | 350mm | 20mm | 220V/50HZ | 8.5kg |
Weight Information
Model | Weight per unit | Outer box size | Weight and number of pieces per case | Carton size |
118C-120 | 6kg | 34*28.5*26 | 12kg/2 units | 62*38.5*24 |
118C-160 | 6kg | 40.8*29.5*21.5 | 12kg/2 units | 62*43*24 |
118C-180 | 6kg | 40.8*29.5*21.5 | 12kg/2 units | 62*43*24 |
118C-200 | 6kg | 40.8*29.5*21.5 | 12kg/2 units | 62*43*24 |
Functional difference:

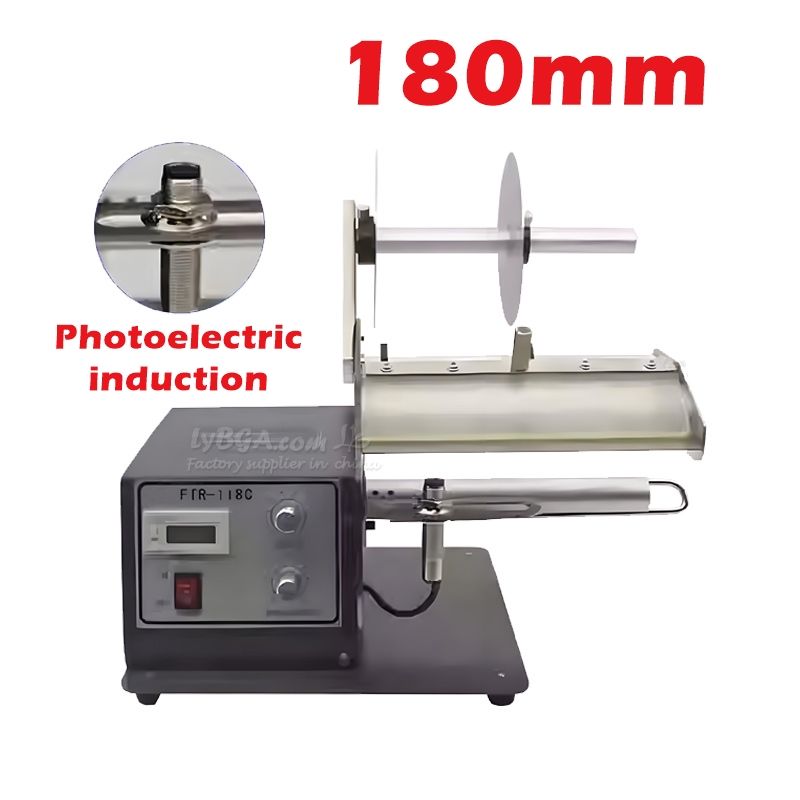

Photoelectric induction: suitable for label size, clean
environment and detection of long distance scenes, such as conventional paper
label peeling.
Fiber optic sensing: more suitable for high-precision
detection needs (such as ultra-thin labels, transparent film) or harsh working
conditions (high temperature production line, oil environment), such as medical
labels, electronic components label peeling
Operation and use
1, the label as shown in the picture,mounted on the waste shaft
2ăU-shaped card will be labeled with the front section of the card into the âwaste shaftâ; 3ăAdjust the âringâ so that the label will not sway from side to side.
3, adjust the âringâ, so that the label will not sway from side to side.
4, the motor speed and delay time to the minimum
5ăTurn on the power switch.
6, according to the length of the label to adjust the motor speed and delay time
7, adjusted to the appropriate speed and time to work normally.
Basic use
Used for the automatic peeling of labels,the peeled label is taken, automatically peeled off the next label after it is removed, improving the efficiency of workers in removing labels. Multiple rows of labels can be peeled off at one time.
Scope of application: electronic manufacturing industry,chemical pharmaceutical industry, food processing industry, logistics and
distribution industry, etc.
Applicable labels: self-adhesive labels, self-adhesive film,electronic monitoring code, bar code, etc.
Applicable products: all products requiring labeling or film
Applicable industries: widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastic, printing, etc.
Examples of application: toy assembly line. Labeling on the line, food packaging box assembly line labeling, electronic products assembly
line, etc
Detail page text
FTR-118C
Label Peeling Machine Automatic peeling transparent sealing sticker
Precise Sensing
Smooth label release
Transparent peeling
Single Row Multi Row Automatic peeling
Single row and multiple rows can be
smoothly peeled off the label, can be used by more than one person. Automatic
label peeling, changing the traditional efficiency
Difference
between photoelectric and fiber optic
Two types of sensing for you to choose from
Applicable paper labels
Self-adhesive label printing pattern, Hot
stamping stickers insulating materials adhesive pads, Laser laser labels
stickers and so on
Universal paper labels /transparent labels
PVC transparent adhesive
Bottom reflective labels etc
Applicable
to a variety of labels
Wide range of applications to meet
different work requirements, applicable to different labels
Anti-counterfeit Barcode Label
Anti-counterfeit labels
Laser Label
Kraft paper labels
Brushed silver self-adhesive labels
PVC transparent labels
Product details show
More than cost-effective but also let you
rest assured that the automatic label peeling machine
Digital
display counting function
You can count at any time, to understand
the work situation to master the work rhythm
Scrap
spool
After the use of the label backing paper
winding complete with a hand wrapped to remove can be
Length
speed control
Adjust the speed and length of the label
according to the work rhythm
Switching
power supply
With a fuse design to prevent burnout safer
Label
baffle
Hang the label paper roll, hang the label
roll on the label hanging plate and fix it with the positioning plate
Intelligent
Sensor Precise labeling
Different sensors, different labels peeled
off
Fiber optic/optical sensors are available
Stainless
steel pawl
Adjustable
looseness and tightness of peel-off labels for smoother label peeling
