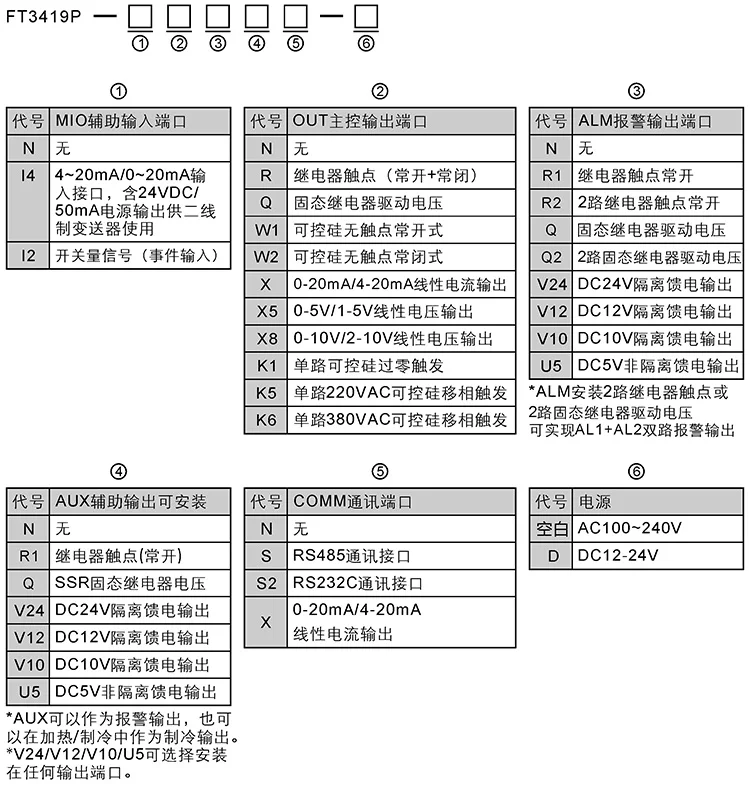

R (relay output)
Q (12V output control solid-state relay)
X (4-20mA output)
X7 (0-5V output)
X8 (0-10V output)
W1 (thyristor zero crossing trigger output)
K5 (thyristor triggered output)
Optional: S (485 communication module)
Up to 50 programs can be freely programmed, with multiple program application functions to meet different process requirements, achieving smooth and even curve control effects. It also has a third window to display the remaining program time or program segment number.
Product Features

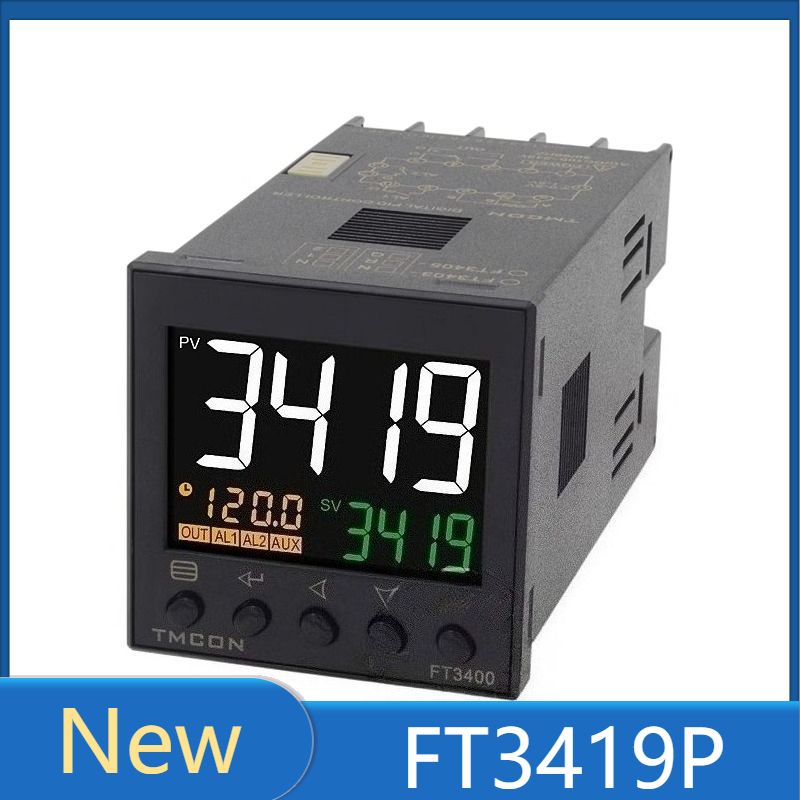

FT3419P has added 50 program control functions on the basis of FT3419, which can achieve temperature rise and fall control of any slope. It has programmable/operable commands such as jump (loop), run, pause, and stop, and allows the program to be modified at any time during control operation; By using AI artificial intelligence adjustment algorithms with curve fitting capabilities, smooth and even curve control effects can be achieved; The event output function can be edited during program execution, in conjunction with controlling external device actions; The SV transmission output function can be used as a program generator; Equipped with measurement value startup function, preparation function, and five options for handling power outage/startup events.
DIN48 × 48mm international standard size, obtained appearance design patent!

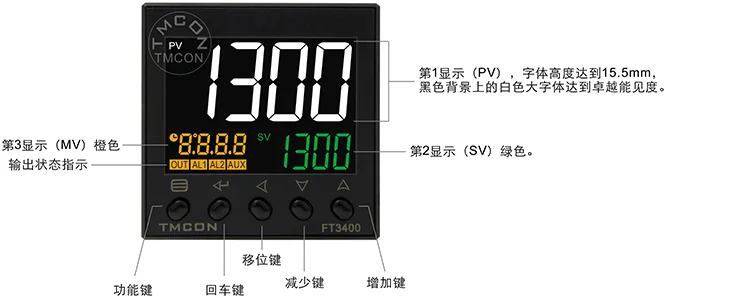

A clear and easy to read large screen, with white light PV characters reaching a height of 15.5mm, improving visibility and providing ultra long viewing distance.
The plastic handle waterproof button has a sturdy and wear-resistant operating surface, clear and smooth feel, and has obtained a utility model patent.
High precision instrument with a measurement accuracy of 0.1 level, using digital calibration and self calibration technology to eliminate measurement errors caused by temperature drift and time drift.
Supports various thermocouples, thermistors, linear voltage, current, resistance, and radiation (infrared) thermometers, and has special specifications for expanding inputs.
● Rich and diversified output specifications: supports SSR voltage, linear current (voltage), relay contact switch, thyristor contactless switch, single-phase thyristor zero crossing trigger, single-phase thyristor phase-shift trigger output, position proportional output (directly drives valve motor forward/reverse rotation), etc.
The high-speed sampling period is 80ms, and the minimum control period is 0.24 seconds, which can adapt to the control accuracy of rapidly changing objects.
Optimize the leading "PID+FUZZY" AI artificial intelligence regulation algorithm, perfectly combining fuzzy FUZZY control and adaptive PID control, with self-tuning and self-learning functions, which can automatically learn and memorize some characteristics of the controlled object during regulation to optimize the effect. It has the control characteristics of no overshoot and no overshoot, and can also achieve excellent control effects on complex and difficult to control objects.
Up to three alarm outputs can be provided, supporting multiple alarm functions such as upper limit, lower limit, deviation upper limit, and deviation lower limit. Three alarm output ports can be freely defined, supporting multiple alarm signals to be output from the same position, and having functions such as alarm delay and alarm self-locking.
● Equipped with LBA control circuit disconnection alarm function.
Supports RS485 or RS232C communication interfaces, using advanced FTBUS and MODBUS communication protocols.
It can achieve one PID control output and one analog 4-20mA transmission output (PID control output+PV value transmission output).
● The MV third display window can be enabled, and the manual/automatic adjustment mode can be displayed independently on the MV third display window without disturbance switching operation. It can also be used to display the current program segment number/remaining time.
● It has the function of event input and external setting (remote control point input).
Widely applicable, suitable for temperature, humidity, pressure, flow rate, liquid level, pH value Accurate measurement and control of.
Global universal 100~240VAC input range switch power supply or 12~24VDC power supply.
Strong anti-interference performance, meeting the requirements of electromagnetic compatibility (EMC) under harsh industrial conditions.
The all-new FT3400 series is a next-generation digital controller with advanced design and easy operation.
Good waterproof performance.
Excellent visual effects, high definition, wide viewing angle, clear visibility from a distance, unaffected by environmental lighting conditions; Three types of color LED backlight, easy to identify and read.

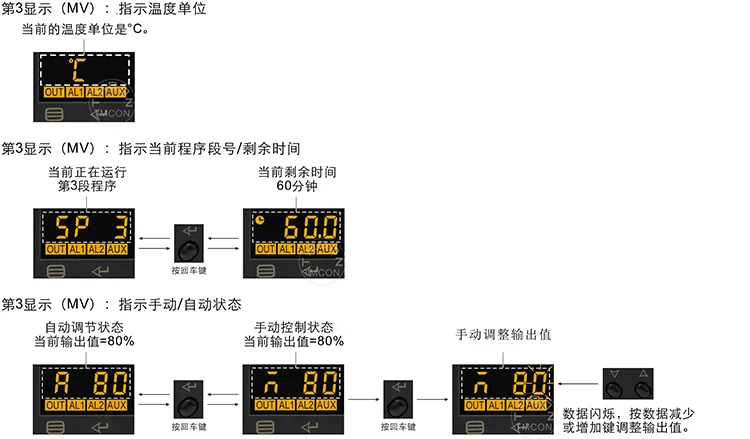

The third display (MV) auxiliary display can indicate the remaining time/current program segment number of the program or serve as a manual/automatic undisturbed switching operation display.
Waterproof structure, suitable for harsh usage environments.

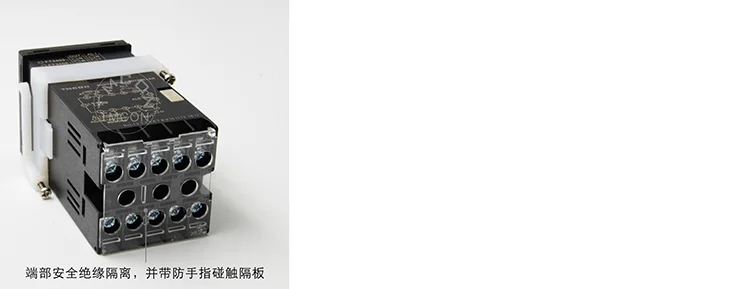

Necessary electrical safety design.

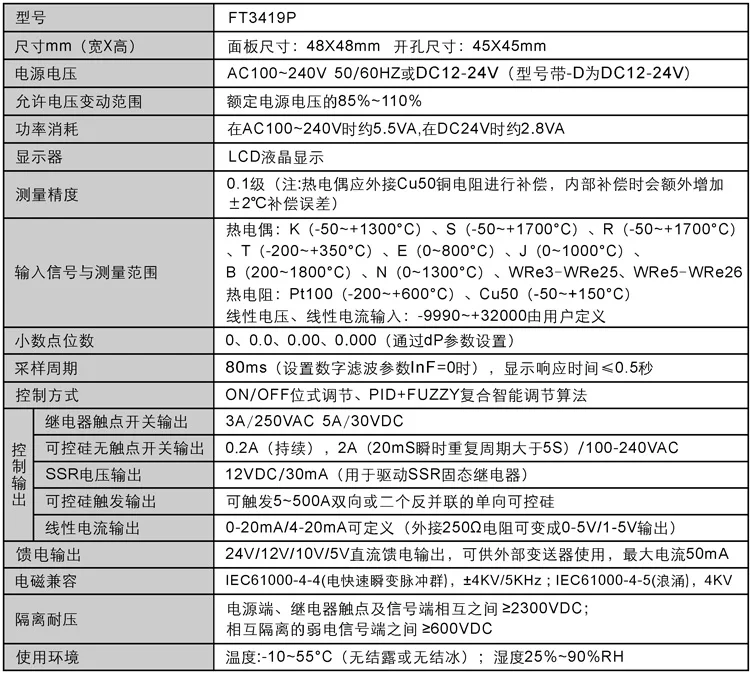

技术规范
