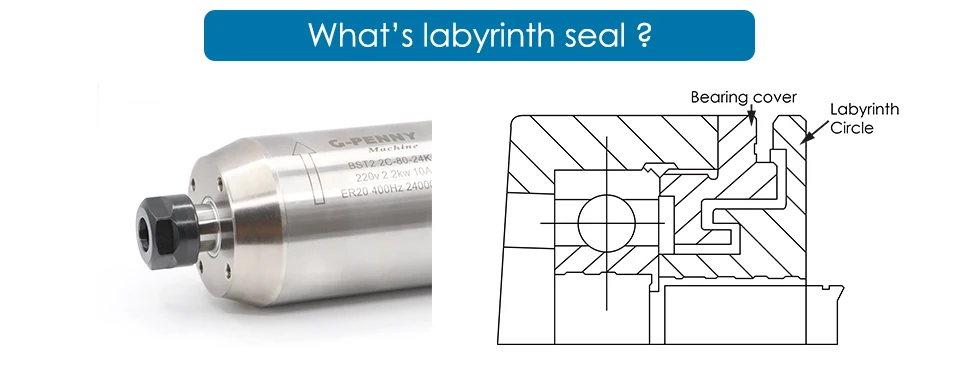

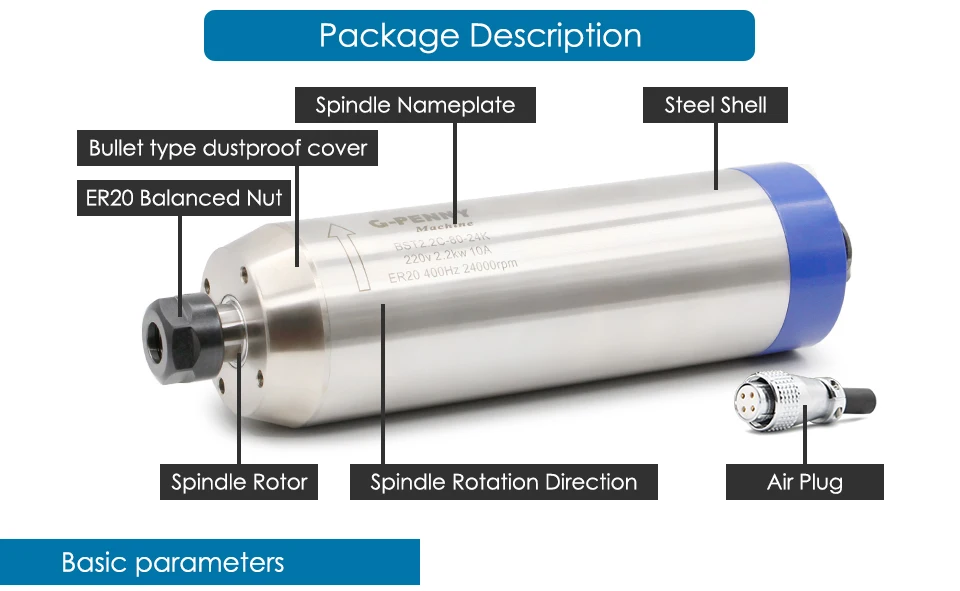

There are 4 labyrinth seal in the front section of the spindle，Prevents lubricant leakage from bearings and intrusion of harmful impurities (dust, moisture, corrosive gases) and bearing seals under high-speed conditions.If you want to use the spindle for engraving and cutting aluminum,stone,wood... You can choose bullet type, the waterproof is better. If you only need used for wood, then you can take normal wood working spindle.

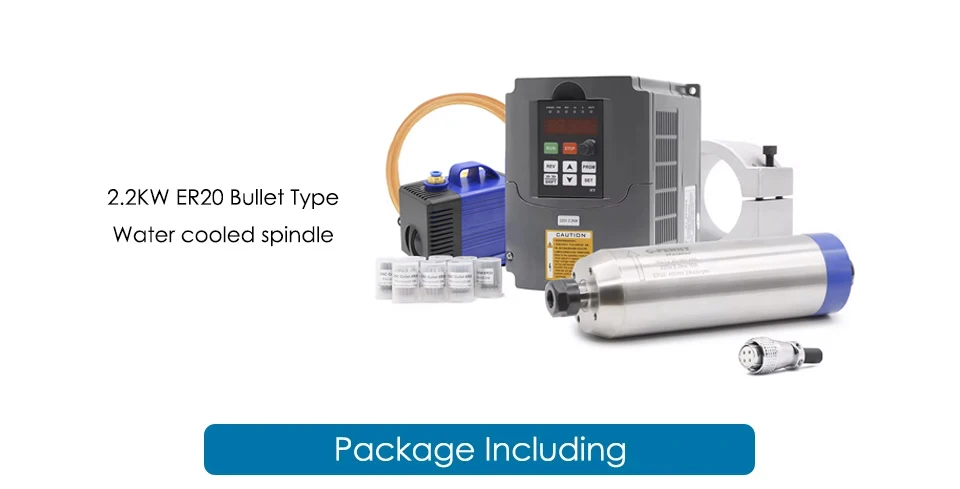

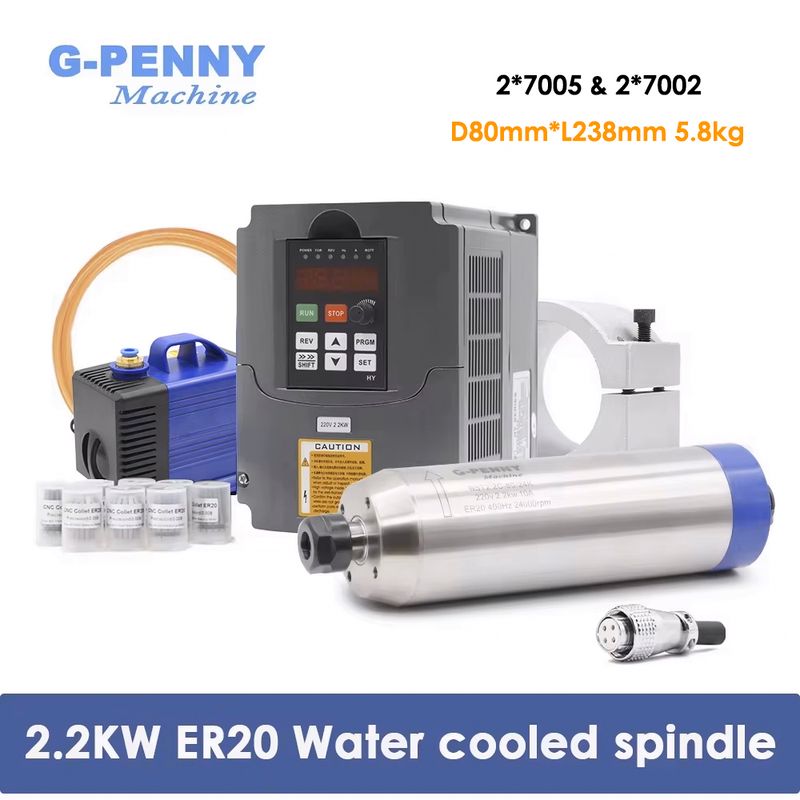

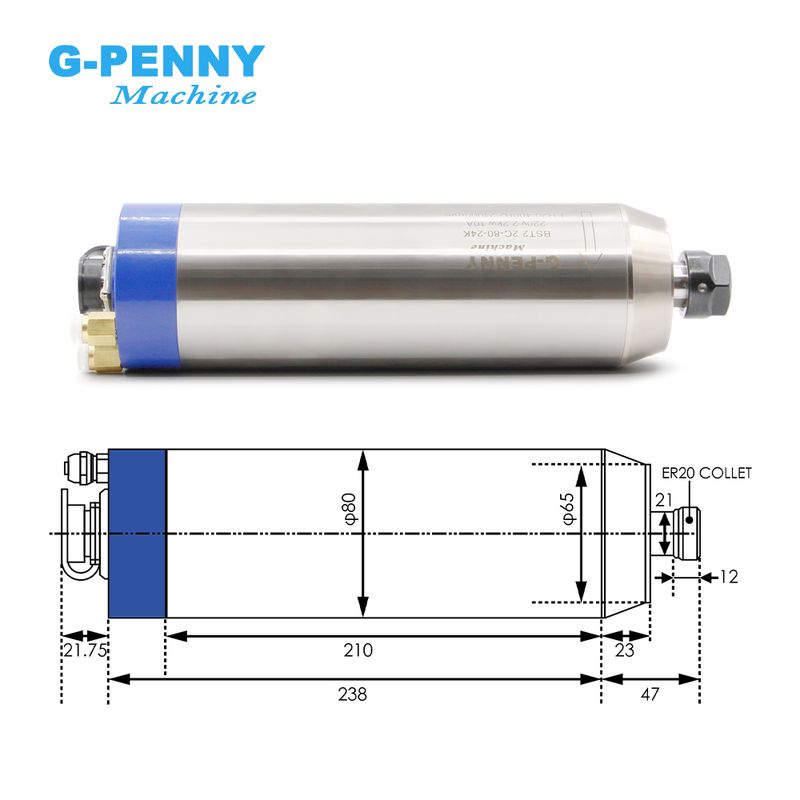

This is the new design spindle motor in 2022 years, the bullet type better waterproof, if you need use the spindle for wood, aluminum, stone ,granite both, then you can take this one.  This type spindle more functions.

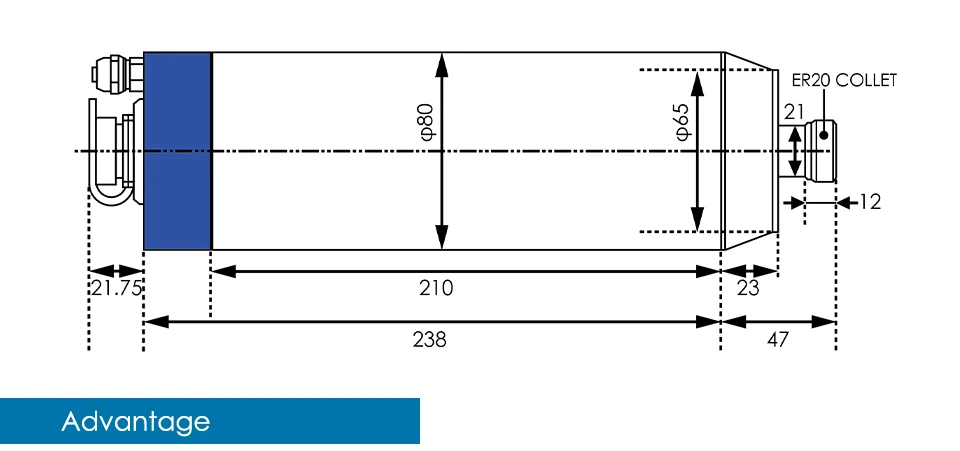

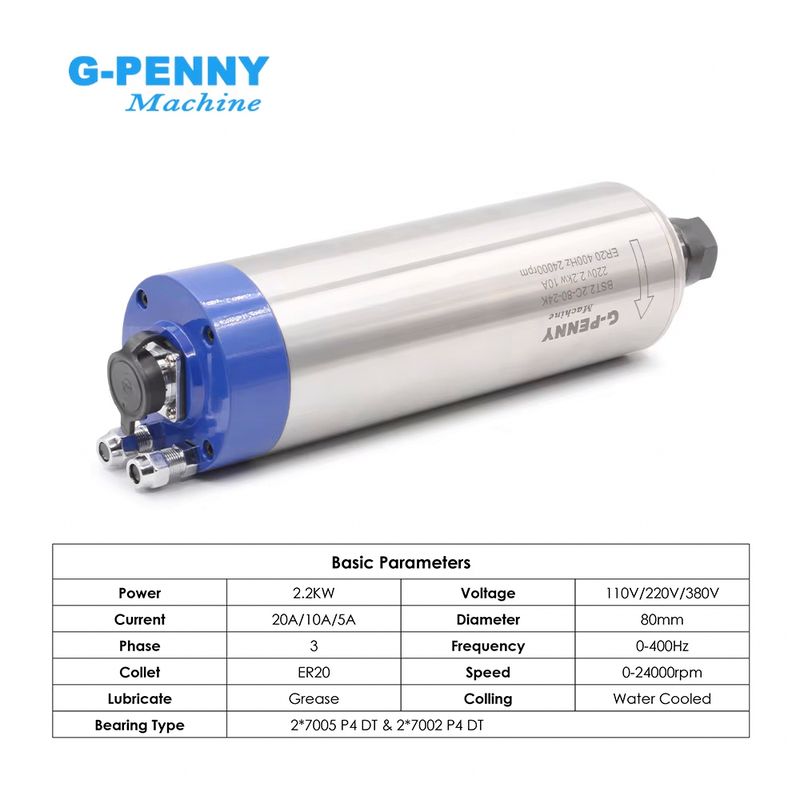

1.P4 fully sealed angular contact bearings ,2 x 7005 P4 DT & 2 x 7002 P4 DT ,increase spindle life .

2.Longer length make the torque bigger,more powerful.

3.Carefull assembly make the spindle more precisional.

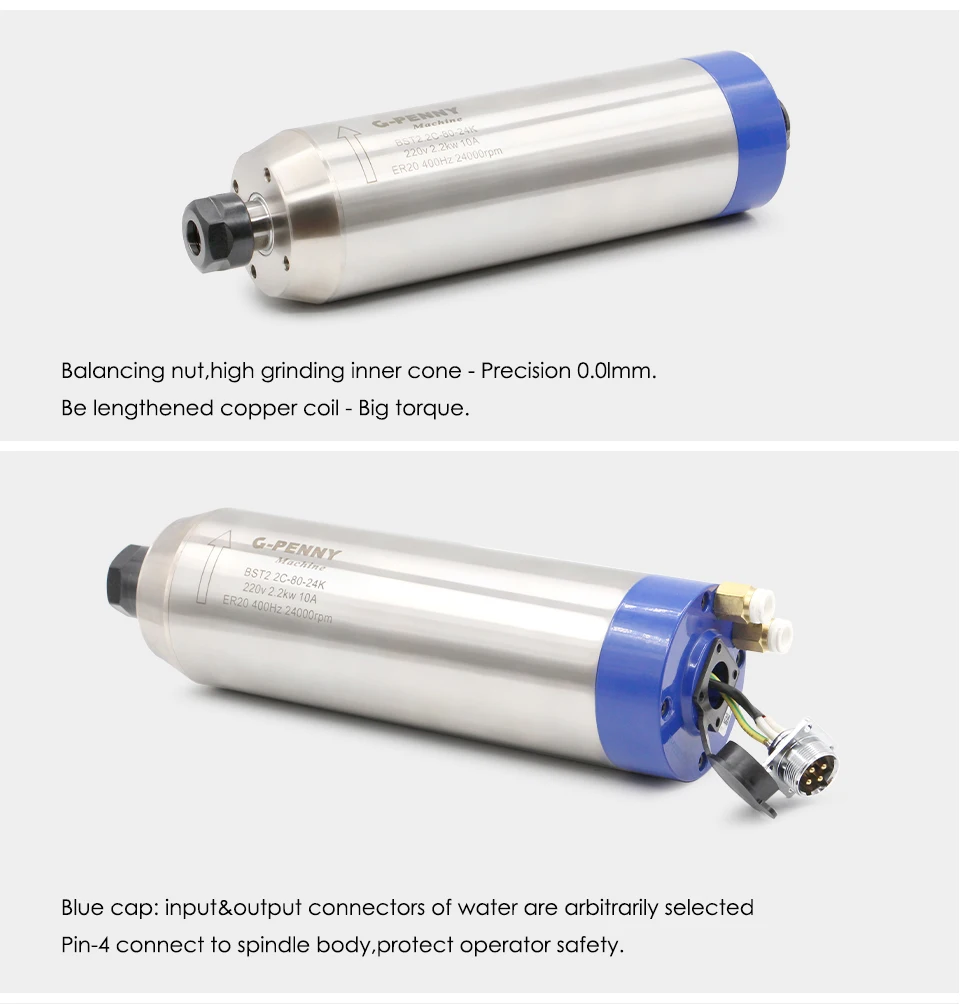

4.Precision 0.01mm.Coaxial degree less than 0.0025mm.

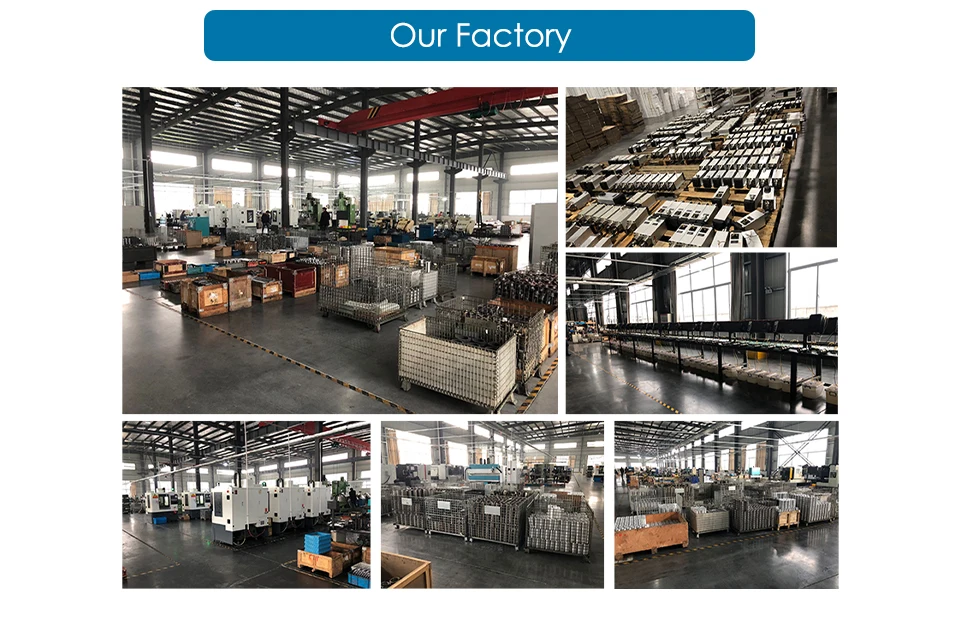

5.We are the spindle manufacturer,we offer only best quality and best price to you.

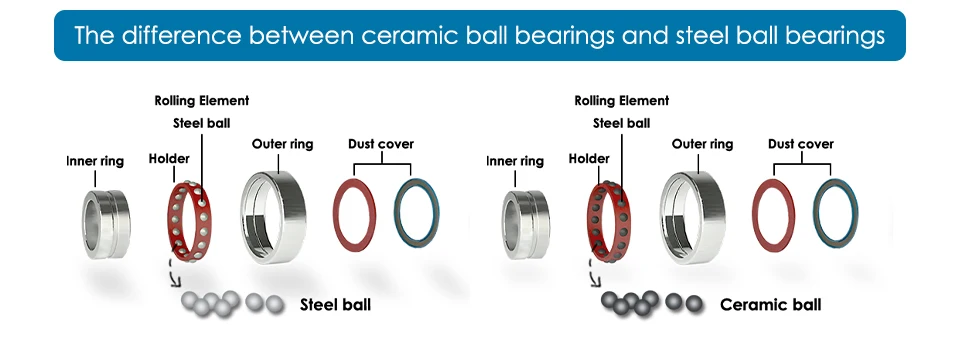

1. Our spindle use 4 pcs Ceramic/Steel ball bearings.

2. Ceramic ball bearings are resistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings during using .

3. Ceramic ball bearings have low friction, low noise and long service life.

4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

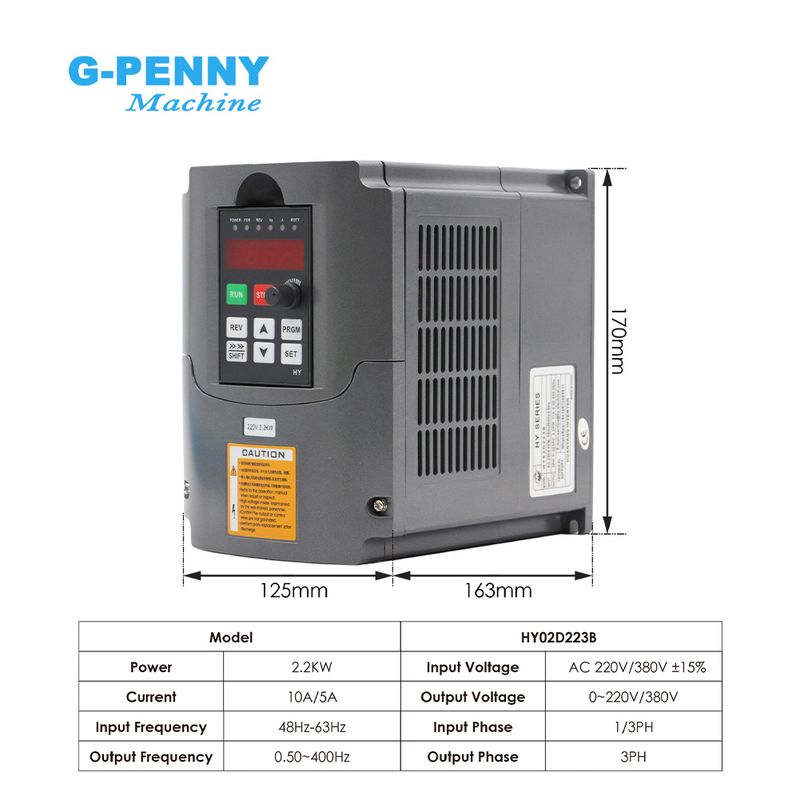

• Input Voltage:220V/380V(+/-15%)

• Output Voltage:220vAC

• Input Frequency:48-63 Hz

• Output Frequency:0-400 Hz

• Input Phase: 1 or 3 phase

• Output Phase: 3 phase

• Warranty: 1 year from the date you purchased

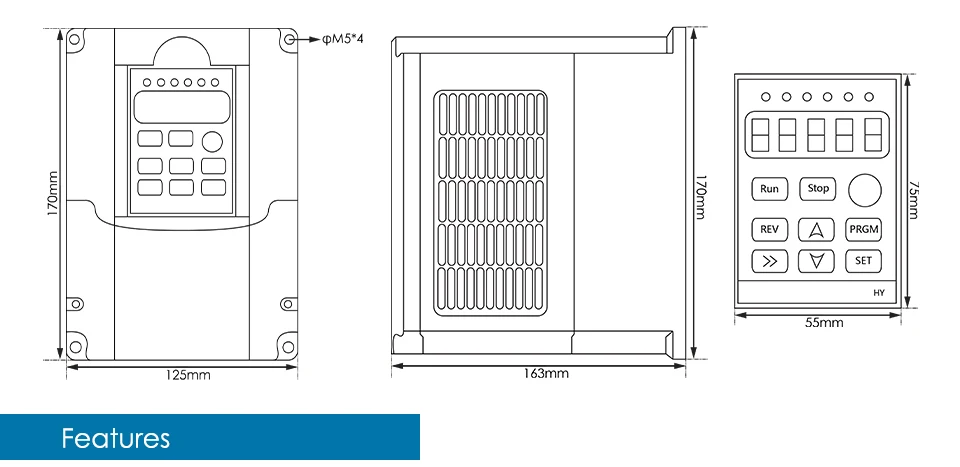

---PID control; advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;

---Easy PLC function can realize 16 legs of speed and inverter control function;

---RS485 communication port, adopting standard international MODBUS main circuit control ---With extremely strong anti-jamming capability;

--- Low output ratting torque 0.5HZ-150%, low speed running ability;

--- Carrier adjustable by 16KHZ, completely soundless working environment;

---Broad voltage working area, normal running in 304V-456V;

--- Auto voltage regulation(AVR) technique, for ensuring the inverter load capability;

--- Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

--- With perfect error protection and short circuit starting protection capability;

--- Dead-time compensation and auto torque slip compensation function, can realize 180% high torque output at low frequency 0.25Hz

--- Unique EMC design, can minimize inverter's pollution to power.

---Overall reinforcement layer to suit all kinds of harsh environment.

Advantage

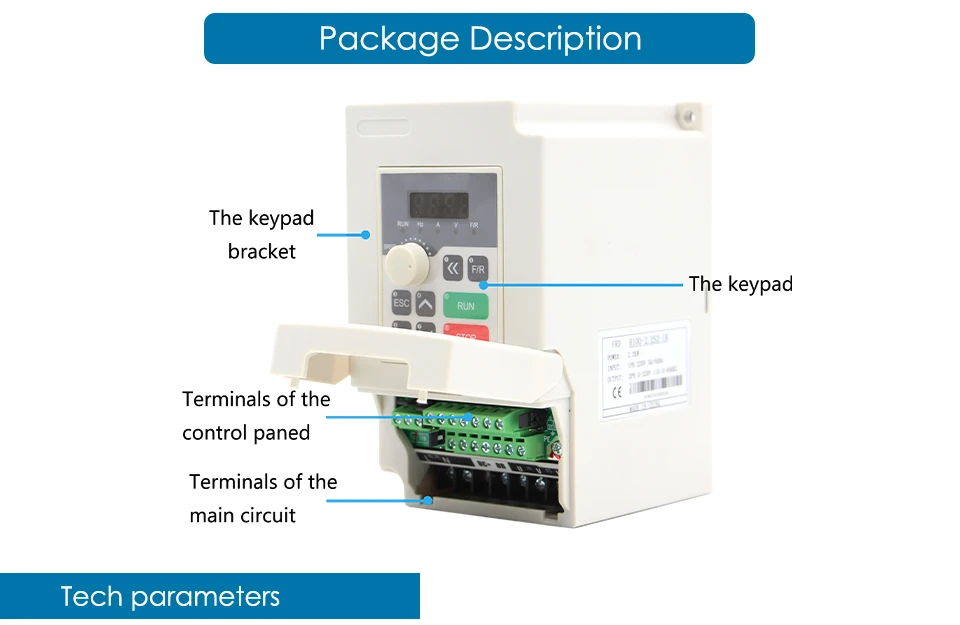

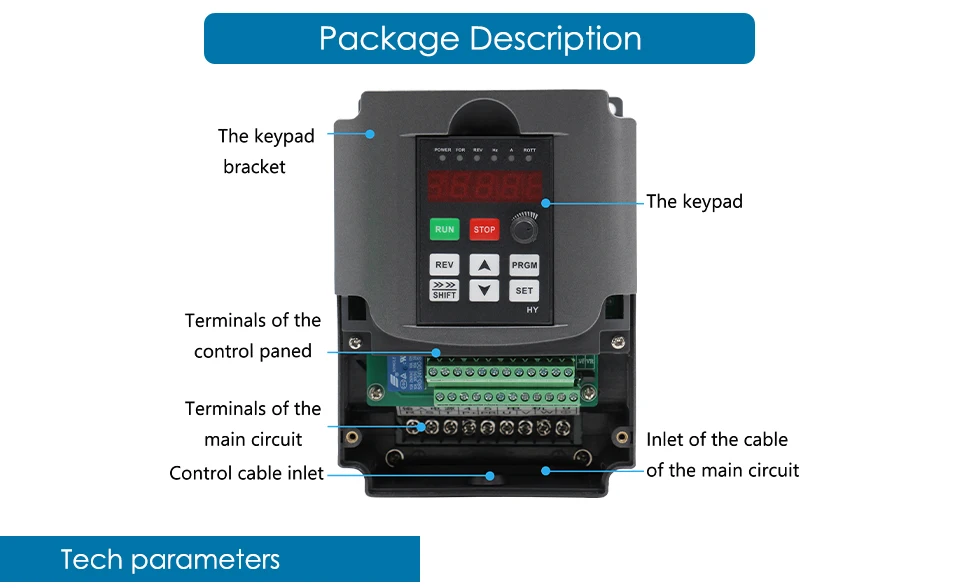

Original HY (Huangyang) brand inverter, stable using.

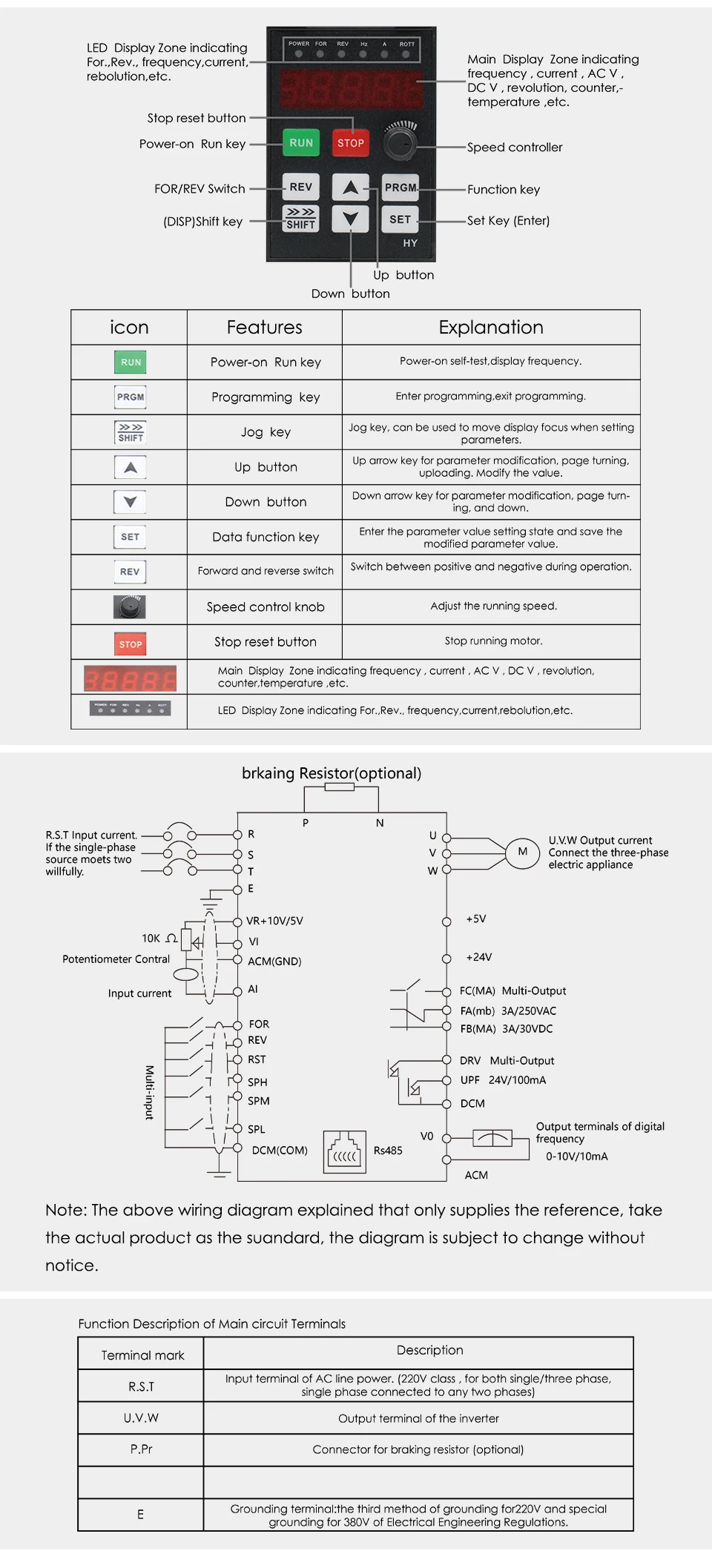

Control Mode is SPWM,it is very easy to use and convenient  Protection functions are very strong,  Fin over-heat protection,  Overload protection,  Fuse protection,  Restart after instant stop,stall protection.  Powful function.

Some questions about inverter

DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.

Please contact us, we have manuals, videos and pictures to help you.

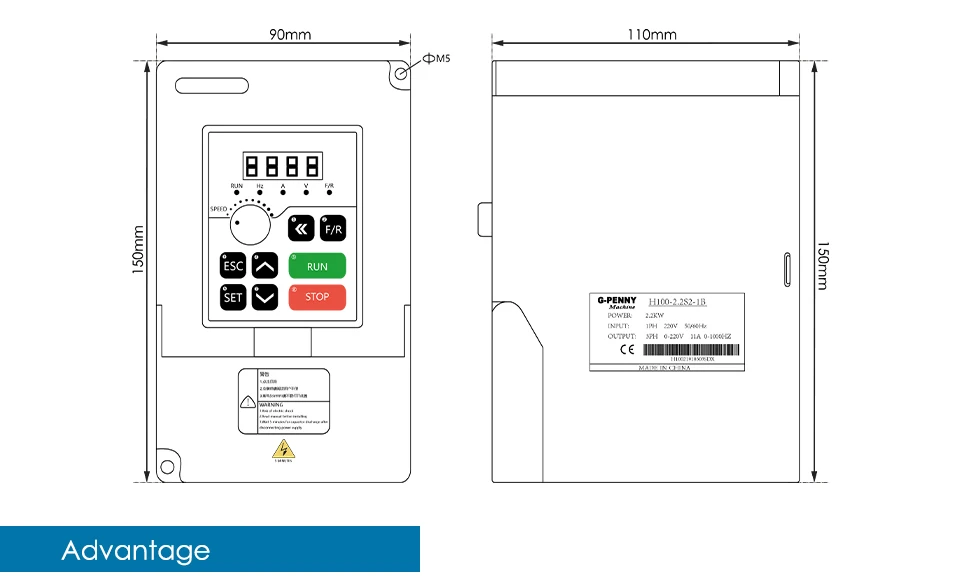

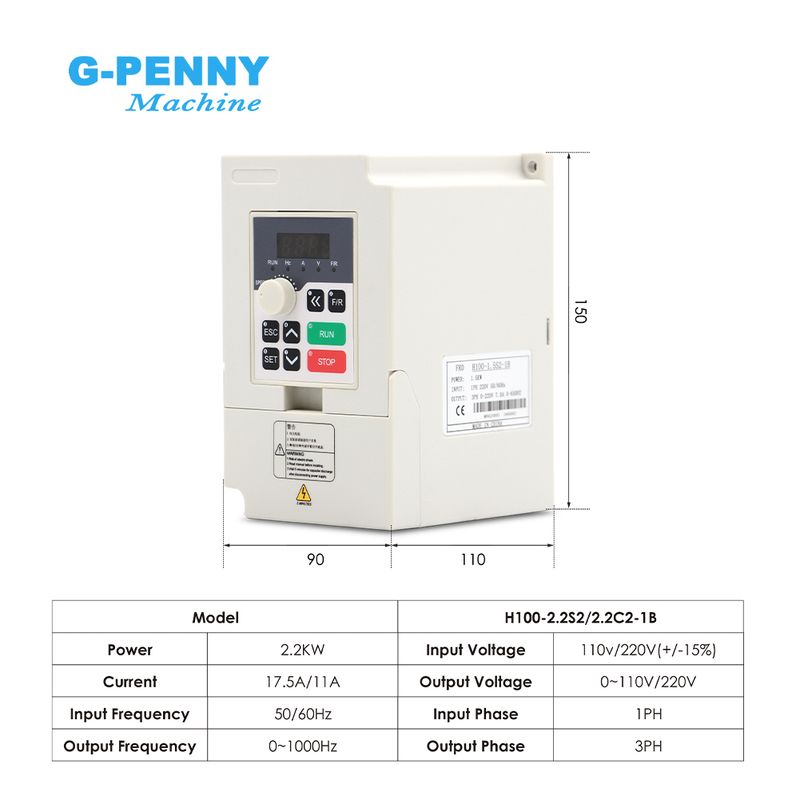

Power: 2.2kw

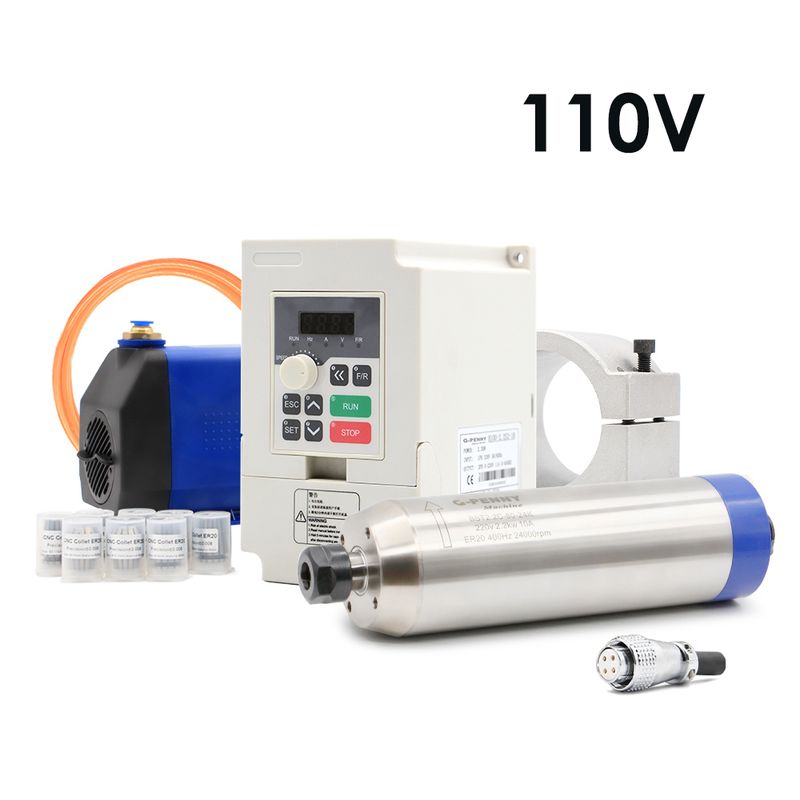

Input Voltage:110V/220v (±20%)

Input Phase: 1 or 3 phase

Input Frequency: 50-60Hz (±5Hz)

Output Voltage: 220v

Output Phase: 3 phase

Output Current:17.5A/11A

Output Frequency: 0-1000Hz

Control Method: V/F control

1. The outer plastic shell of the inverter is made of ABS flame retardant raw material, which is flame retardant and not easy to break.

2. The inverter cooling fan is a domestic first-line brand Huaxia Hengtai, the air volume is more than 20% higher than that of ordinary fans, and the service life is more than 5 years.

3. There is an independent cooling air duct inside the inverter, which can form an independent space and effectively prevent dust, water mist, etc. from entering the circuit board.

4. With MODBUS485 communication function, built-in braking unit.

5. Built-in PID setting, speed tracking, multi-function relay output, multiple fault protection, multiple state feedback torque control, analog setting.

6. The capacitor brand used in the inverter is Taiwan loose control, the temperature resistance is 105 degrees, and the temperature resistance of ordinary capacitors is 80 degrees.

7. The maximum output frequency of the inverter can reach 1000HZ,

8. Currently has CE certificate, CSA certification program has passed, in certification.

9. Heavy load and high torque, 1HZ can reach full torque.

10. Up to 16-stage speed control can be achieved.

Some questions about inverter

DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.

Please contact us, we have manuals, videos and pictures to help you.

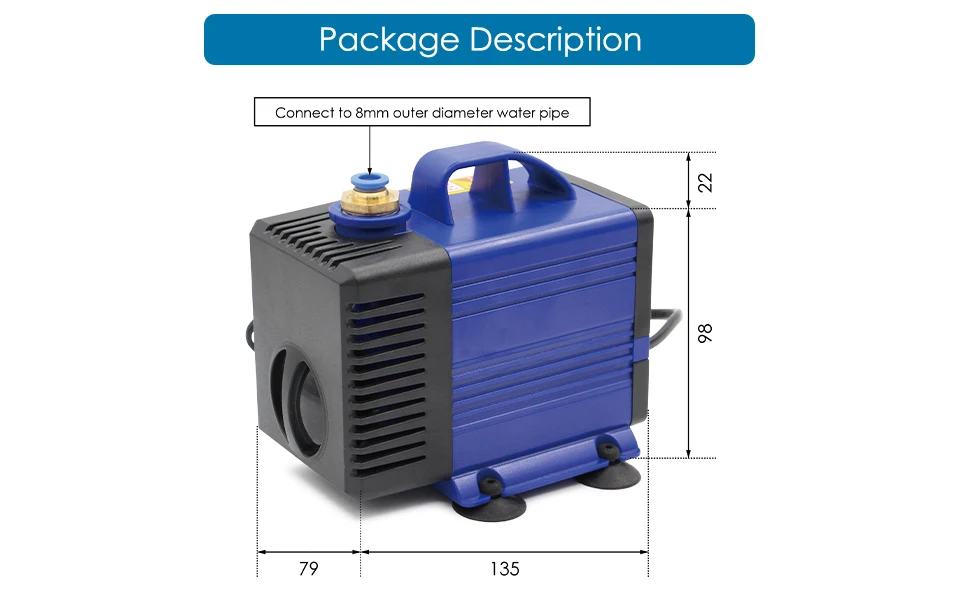

Max Head:3.5 m;

Power:80w;

Maximum flow:3500L / H

Plug Cord Length: 1.5m

Voltage: 220V;

Frequency:50 HZ

Outlet size:8 and 19 mm;

Dimensions:135 * 120 * 79 mm

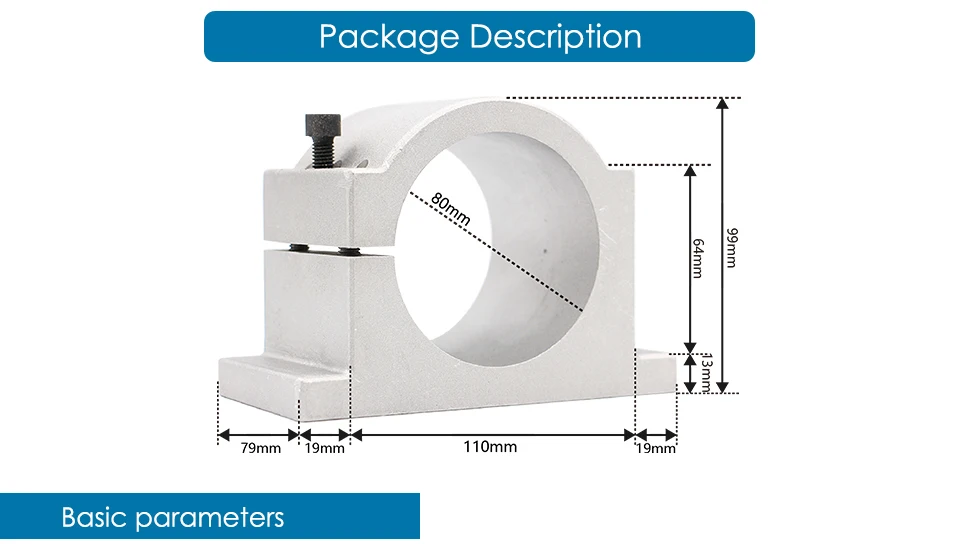

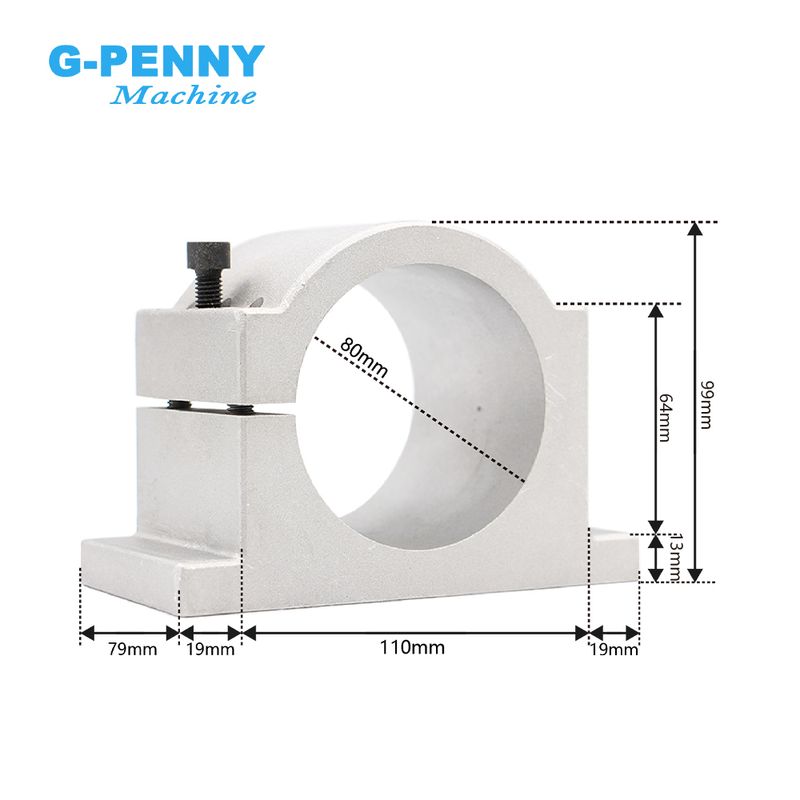

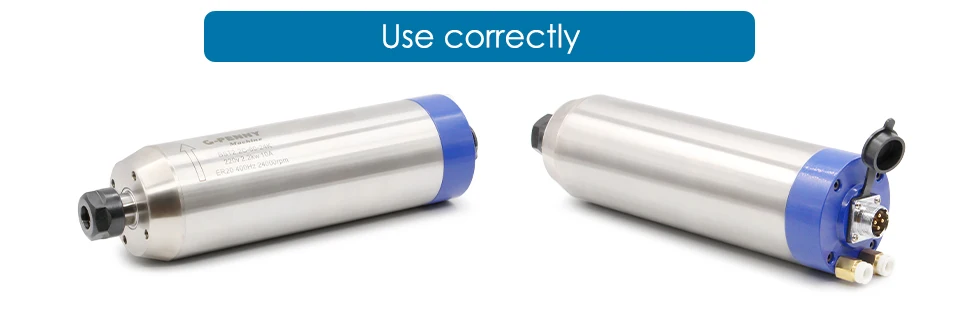

Spindle working environment temperature is usually -10 ~ 40 .

Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.

Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.

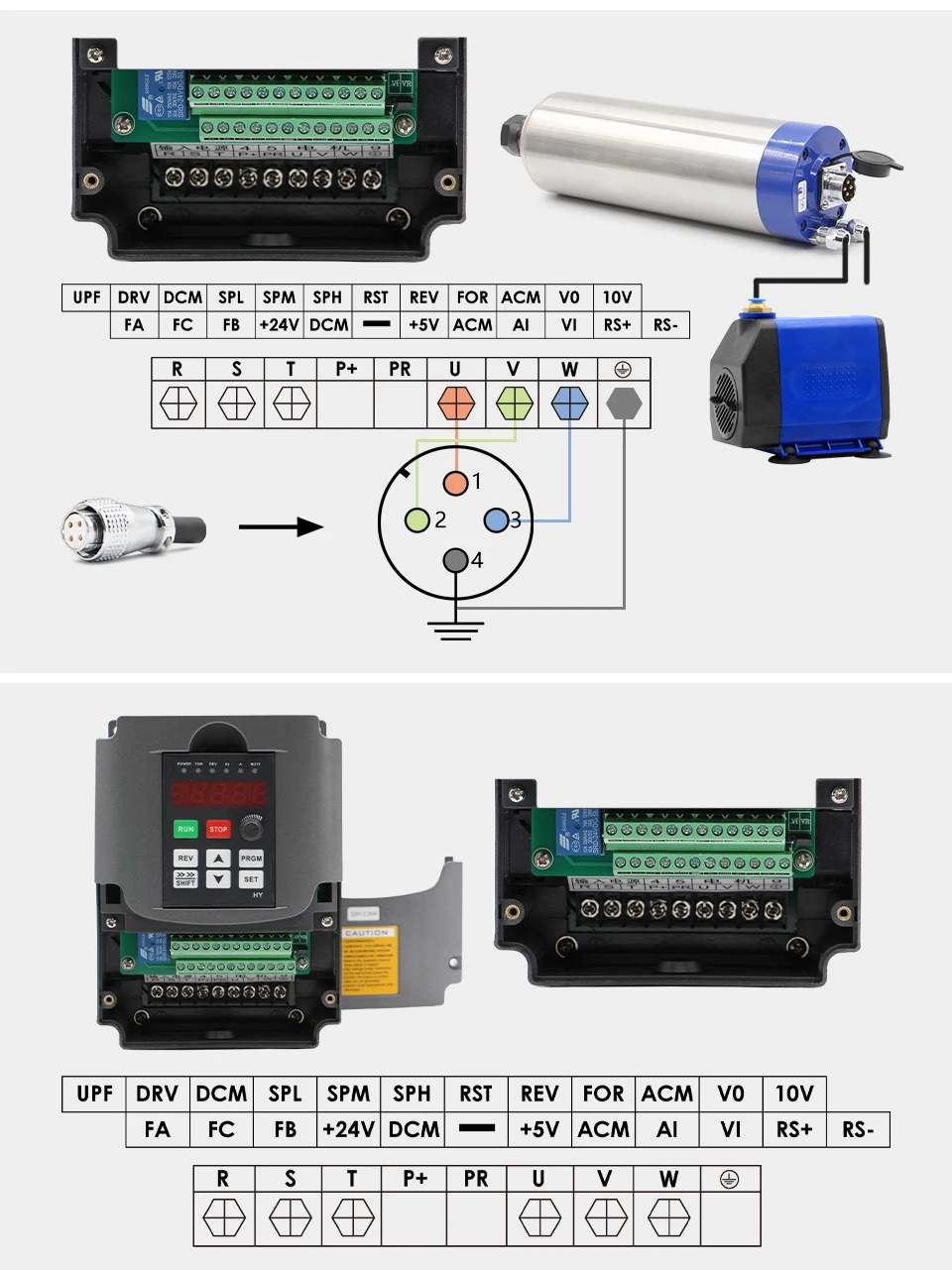

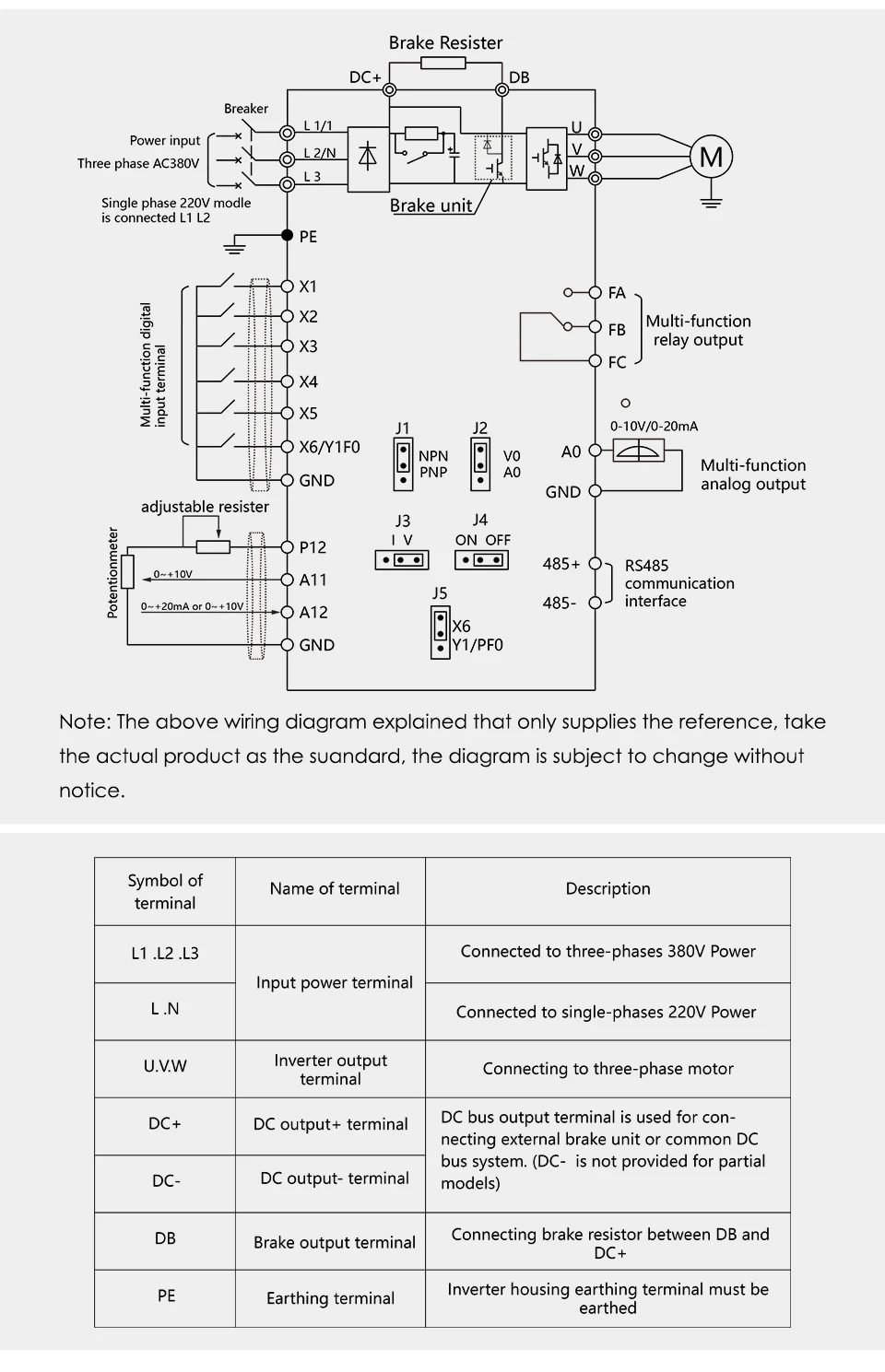

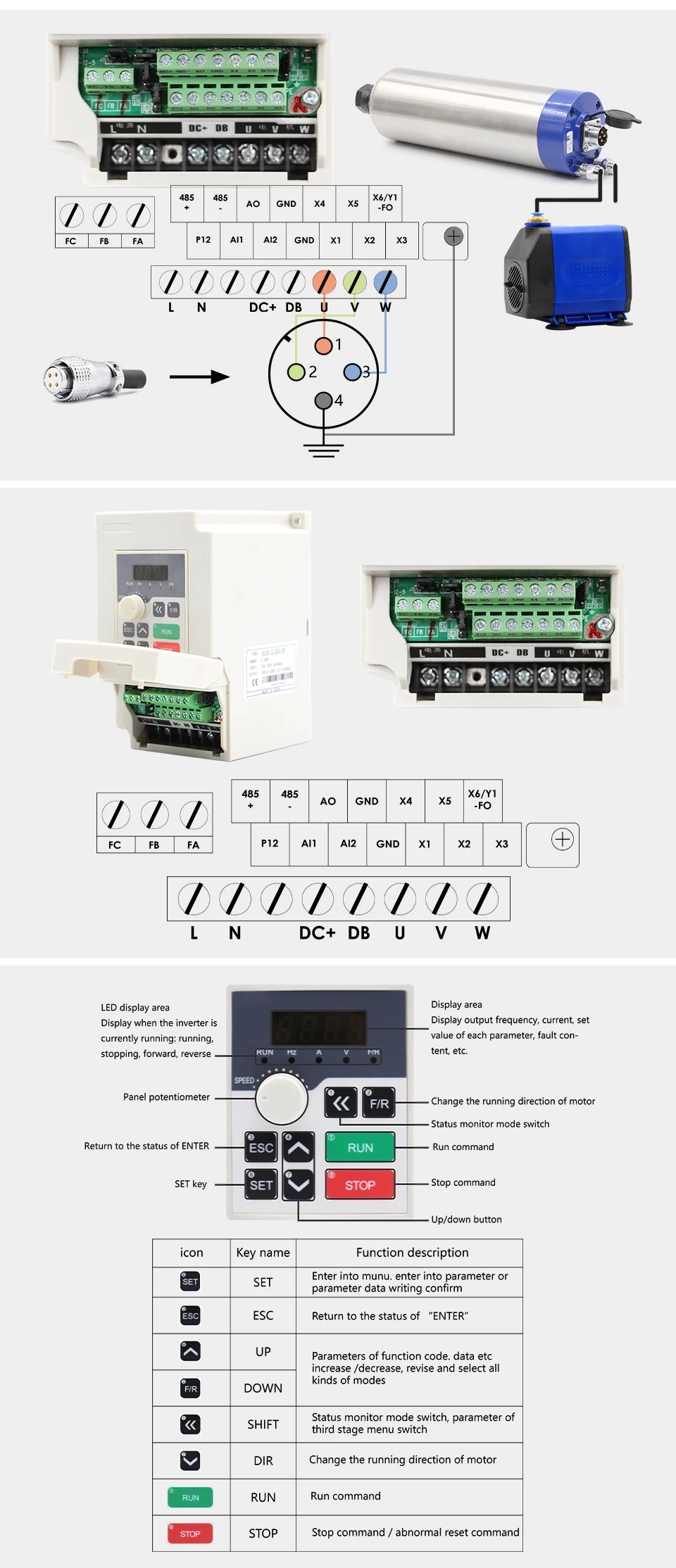

Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.

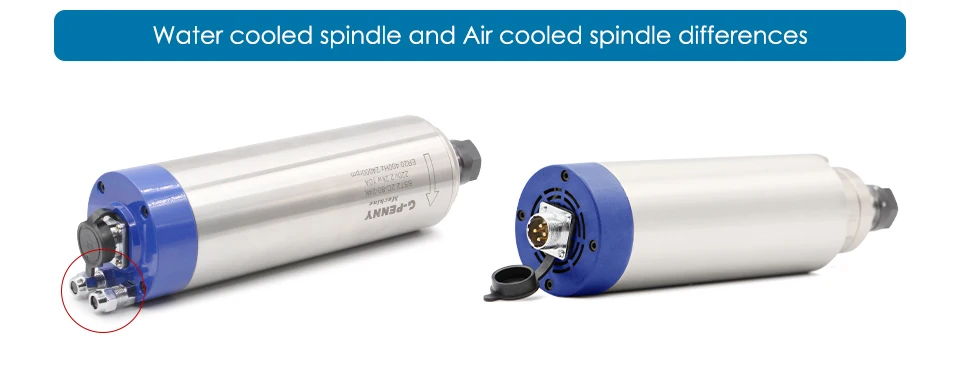

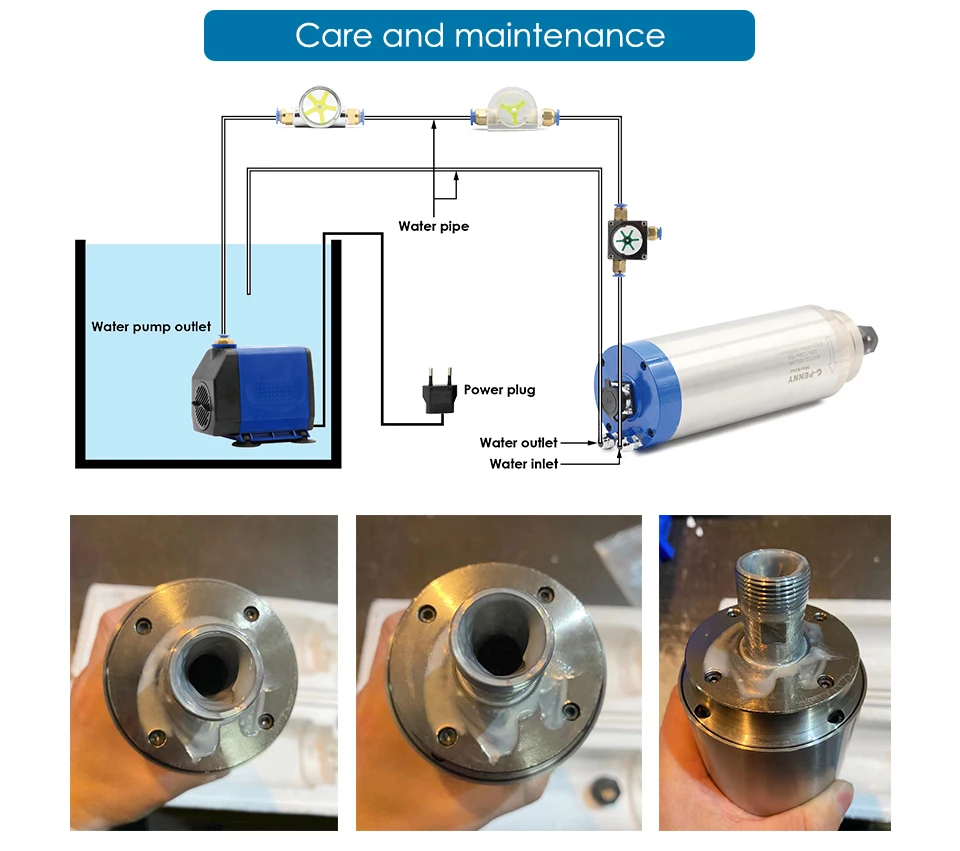

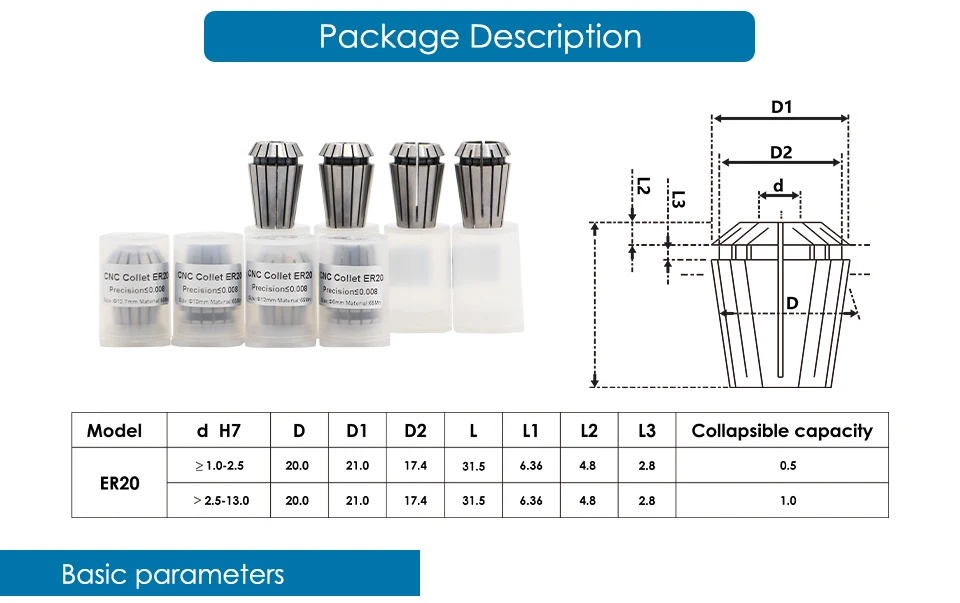

It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
