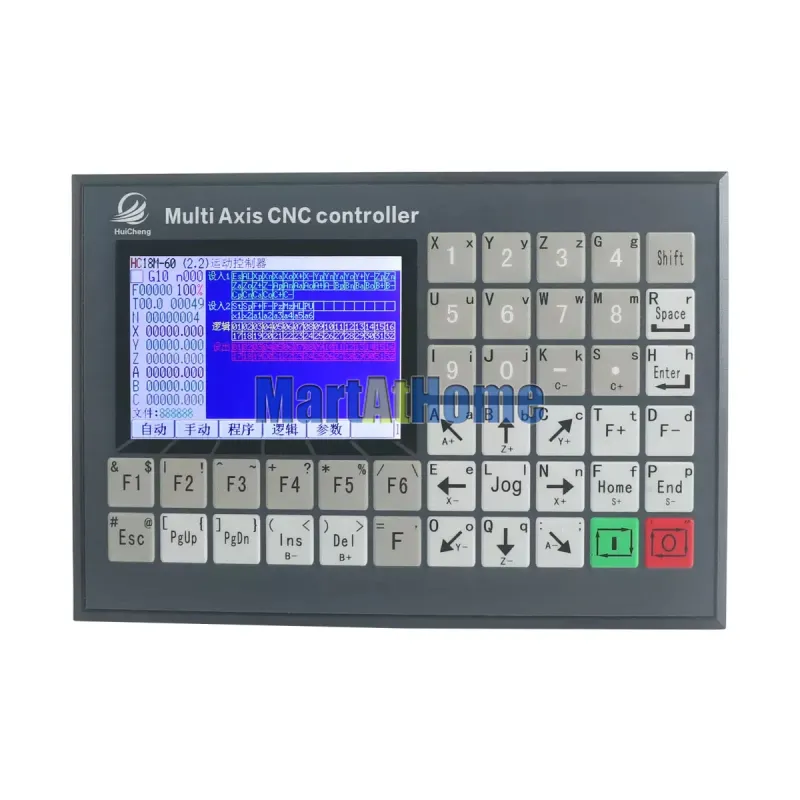

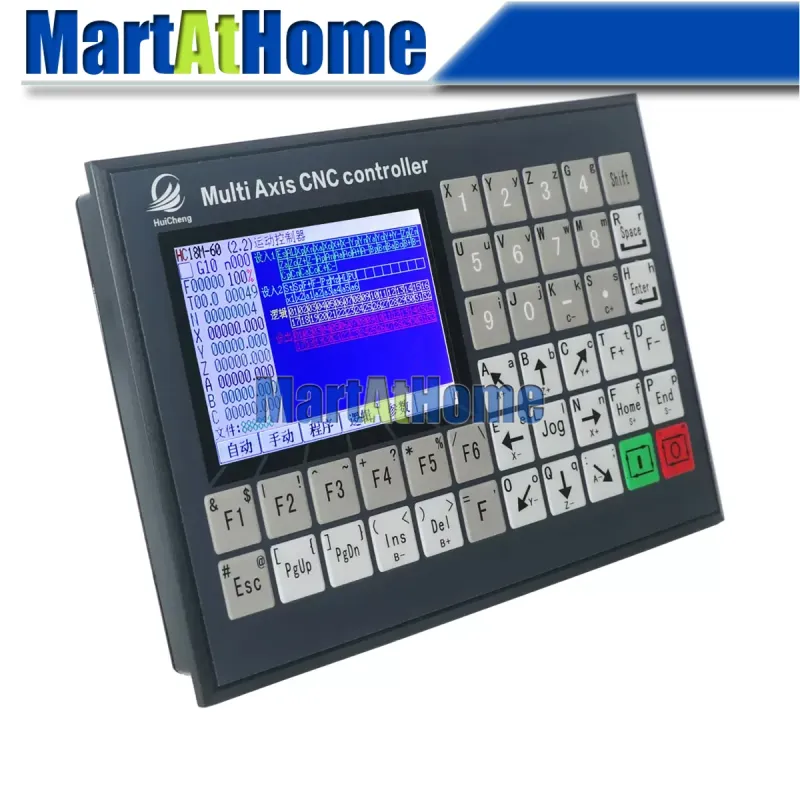

HC18M CNC Programmable 1-6 Axis Control System Controller G-code M-code 3.5 inch Screen Up to 200Khz Support MPG
Includes all taxes
Meet your Seller
-
$136.07Sold by BILLIONS BIRDS
Description
This system is not a PLC, but a control system that focuses on motion control and takes into account logic processing. It is easy to learn and simple; the control programs of multiple products can be written into one program file, and nearly 3,700 lines of control programs can be written in combination with external programs (equivalent to subroutines). Different program paths are executed through different values of data variables or multi-input point jump functions. It is particularly suitable for the control of special equipment.
This system is a multi-axis motion control system that can realize high-speed and low-speed motion operations. It has functions such as multi-axis linear interpolation, circular interpolation, loop, jump, subroutine, interrupt, positioning, counting, drilling, tapping, follow-up, synchronization, etc.
Supports Chinese, English, text instructions, and GM codes.
Supports saving and reading text files.
Powerful logic processing functions provide logic processing functions such as equal, trigger, three-and, three-or, exclusive-or, jump, delay, and 32 logic variables, which bring convenience to your IO processing.
Embedded 99 data variables and support up to 40 operation expressions, which are more suitable for various complex programming operations.
It has a data menu for editing Chinese characters, which can be converted into a special machine mode for data management, which is convenient for end users to modify and operate data.
It supports 16 M compound instructions, which can simplify the writing of control codes.
External program calls (up to 32) can realize sub-module programming and calling, which is convenient for programming and debugging.
This system can realize multi-axis linkage (interpolation). A system with several axes can achieve linkage of several axes. There is no N-axis n linkage (N>n). When programming, one or several axes can be excluded from linkage. For example, a 6-axis system can achieve 6-axis linkage.
Features:
High-performance, high-speed 32-bit CPU
LCD display (resolution: 480×320)

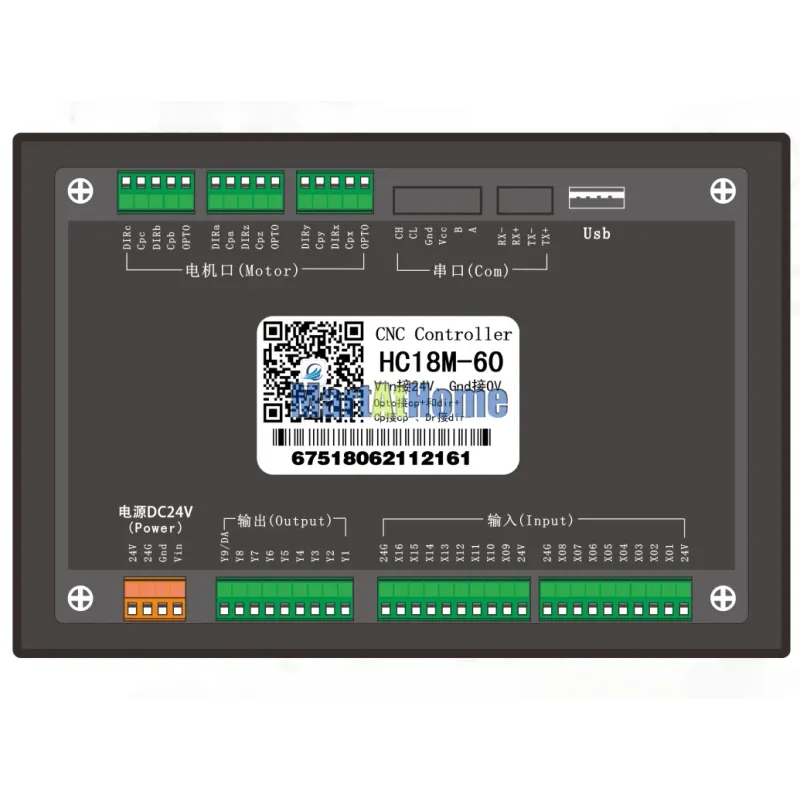

Dedicated multi-axis motion control chip (signal output: 5V TTL)
Input port: 16-channel opto-isolated input
Output port: 8+1 opto-isolated output (100mA/24V, 2.4W)

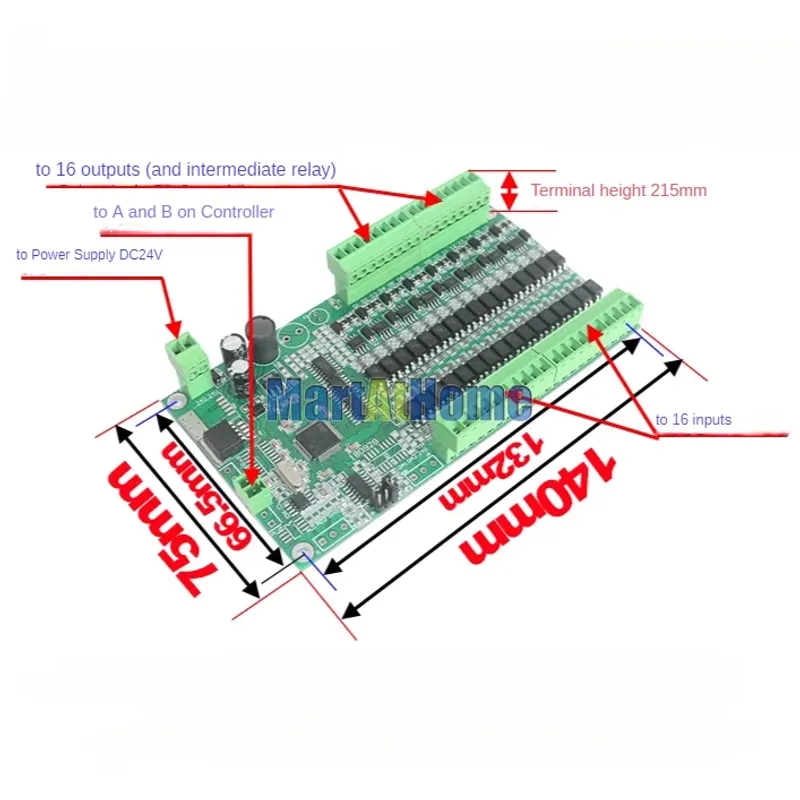

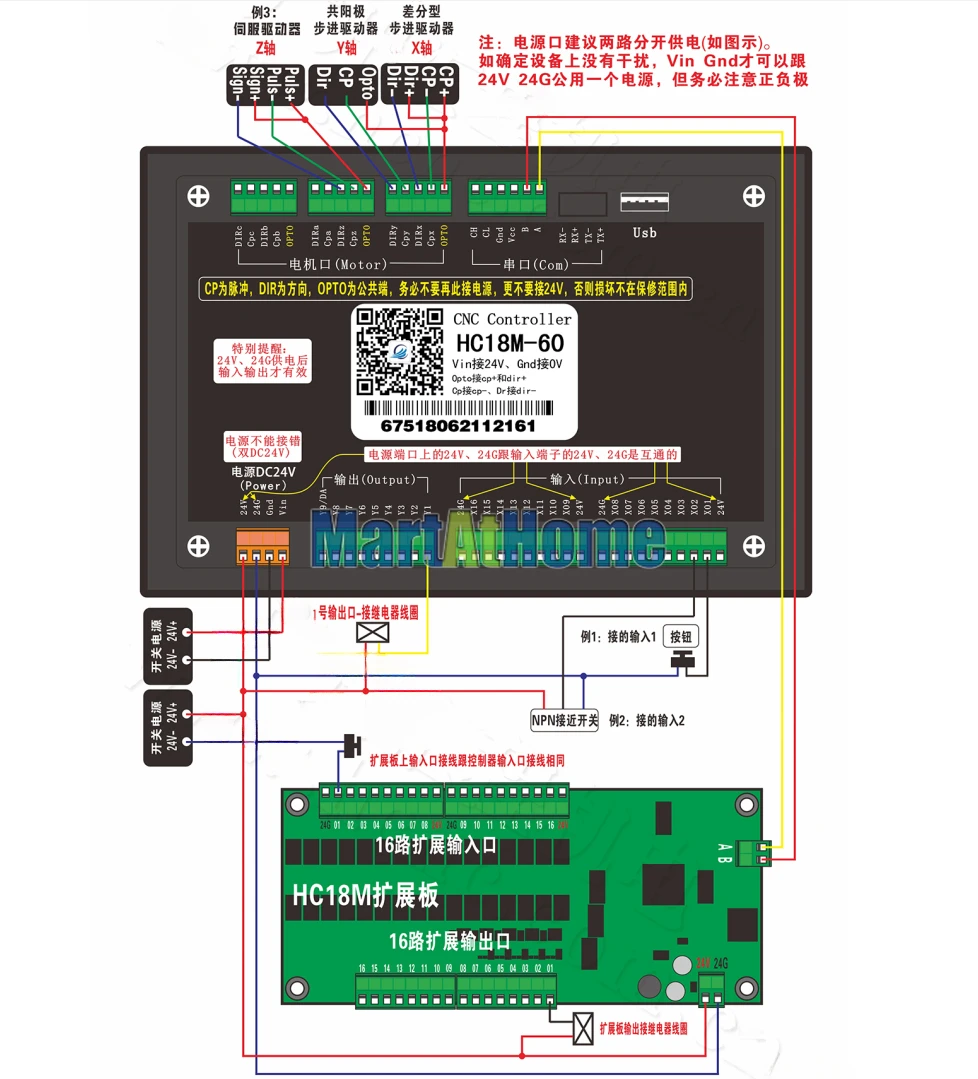

Expanded IO: 16-channel opto-isolated output (100mA/24V, 2.4W) + 16-channel opto-isolated input (non-standard)
Opto-isolated analog (0-10V) output (system with "a", occupies Y9)
Motor signal common positive output, load capacity is 20mA/5V (current limiting resistor should be greater than 270Ω)
Membrane key array (42 keys)
RS232/RS422 serial port (not standard, need to pay the difference to customize)
CAN interface (not standard, need to pay the difference to customize)
U disk interface

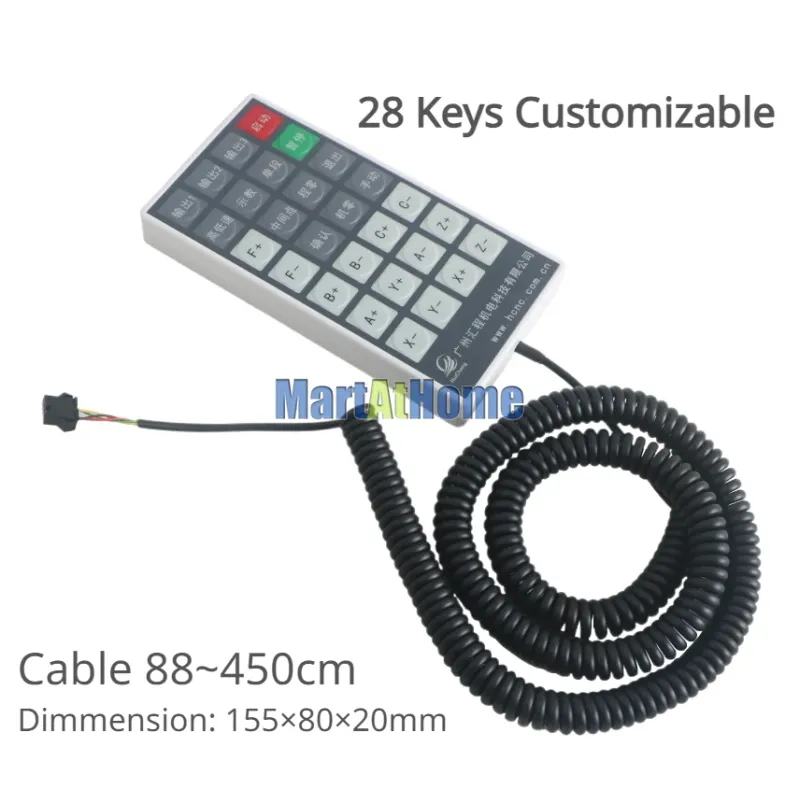

Can be connected to the company's serial port hand control box (non-standard, need to be purchased separately)
Can be connected to 24VDC handwhell or handheld (non-standard, need to be purchased separately)
Technical Parameters:
Minimum data unit: 0.001mm (or 0.001 degree)
Maximum data size: ±99999.999mm
Rapid point movement speed limit: 12000mm/min (when the pulse equivalent is 0.001mm)
Maximum processing speed limit: 12000mm/min (when the pulse equivalent is 0.001mm)
Maximum pulse output frequency: 200KHz (per axis)
Number of controlled axes: the number of axes in the system
Number of linked axes: the number of axes in the system (linear interpolation)
Electronic gear: numerator (n): 1-65535, denominator (m): 1-65535
Main functions of the system: automatic, manual, zero return, editing, self-test, setting, etc.
Applicable drivers and motors:
Stepper driver + stepper motor: Small devices can use stepper motors, but be careful not to produce resonance, step loss, or stall. The control signal should be 5V DC, and it can respond to pulse signals above 200KHz. The current limiting resistor should be greater than 200Ω. Both differential signals and common anodes are acceptable.
AC servo driver + servo motor: The equipment cost may increase, but there will be no resonance, step loss, or stall. The control signal should be 5V DC, and it can respond to pulse signals above 200KHz. The current limiting resistor should be greater than 200Ω.
Applicable power supply:
DC 9-24V/1A power supply and 24V/1-3A power supply. Please choose a high-quality switching power supply to avoid damage to the system.
Isolation transformer, power filter, reduce the interference of other electrical appliances on the system power supply.

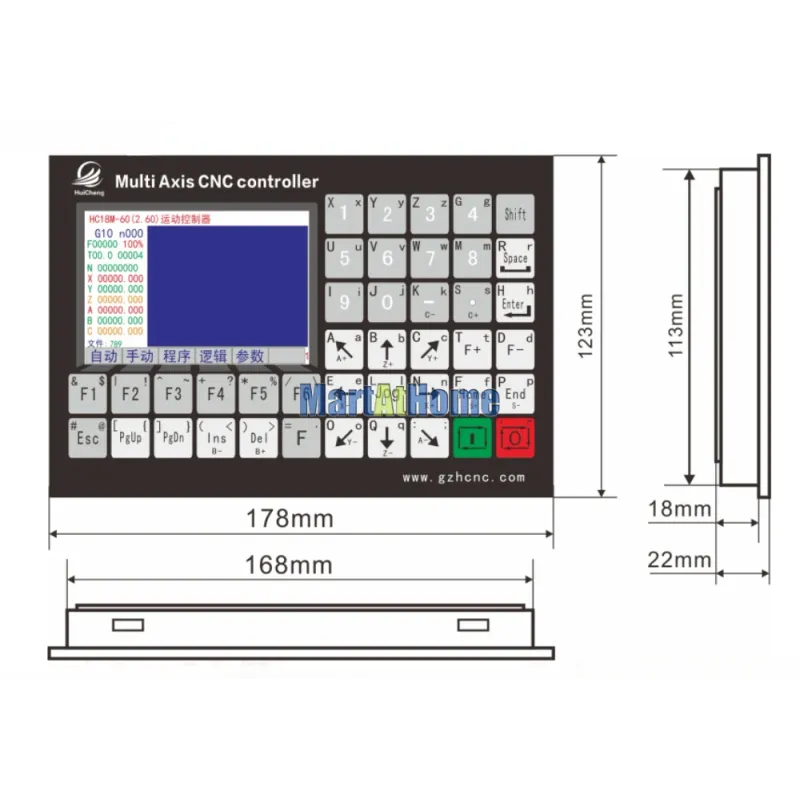

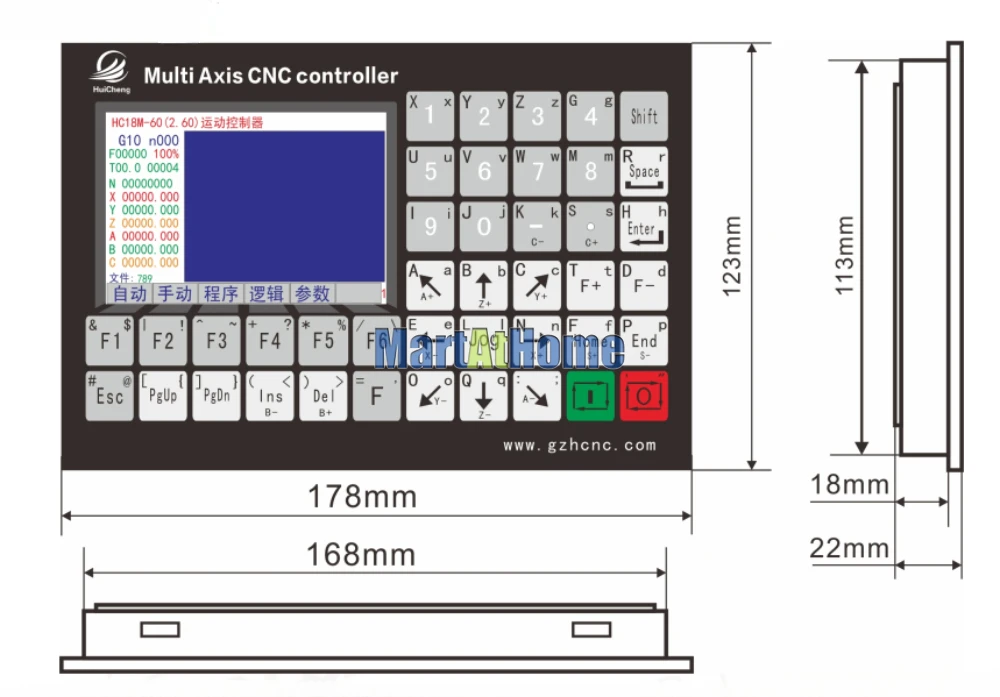

Dimension:
