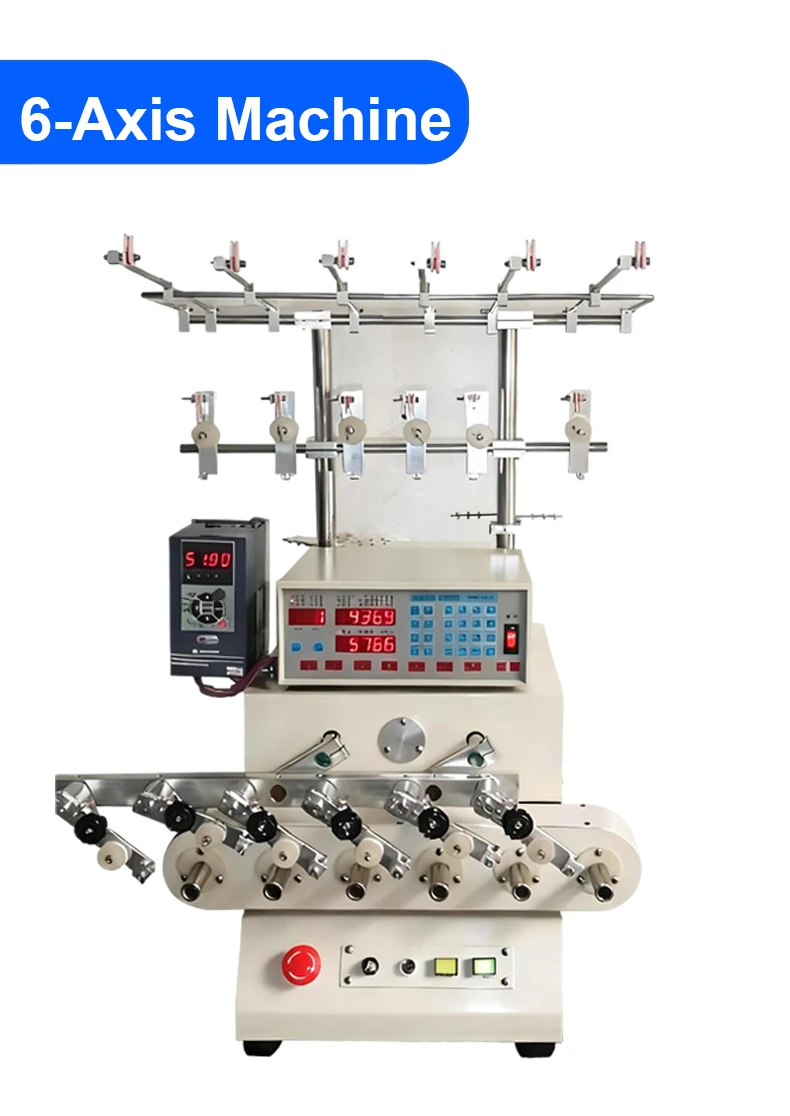

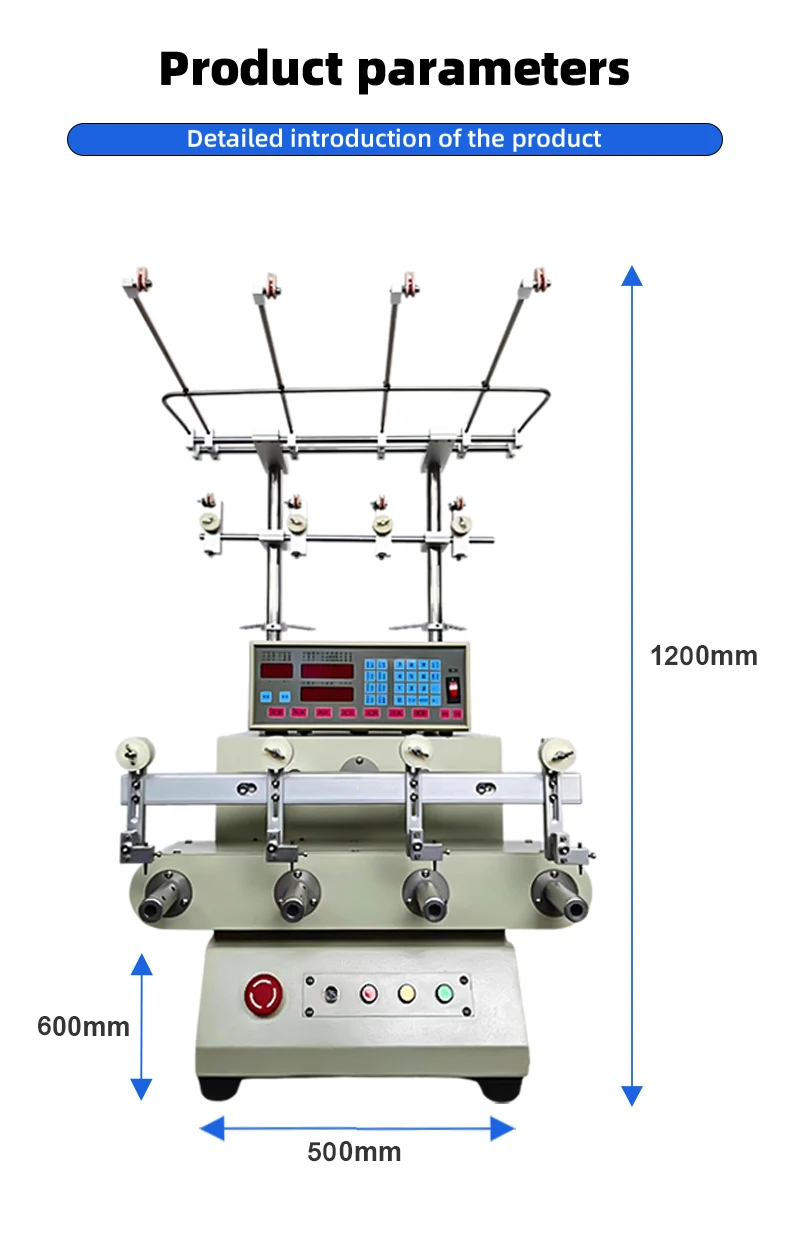

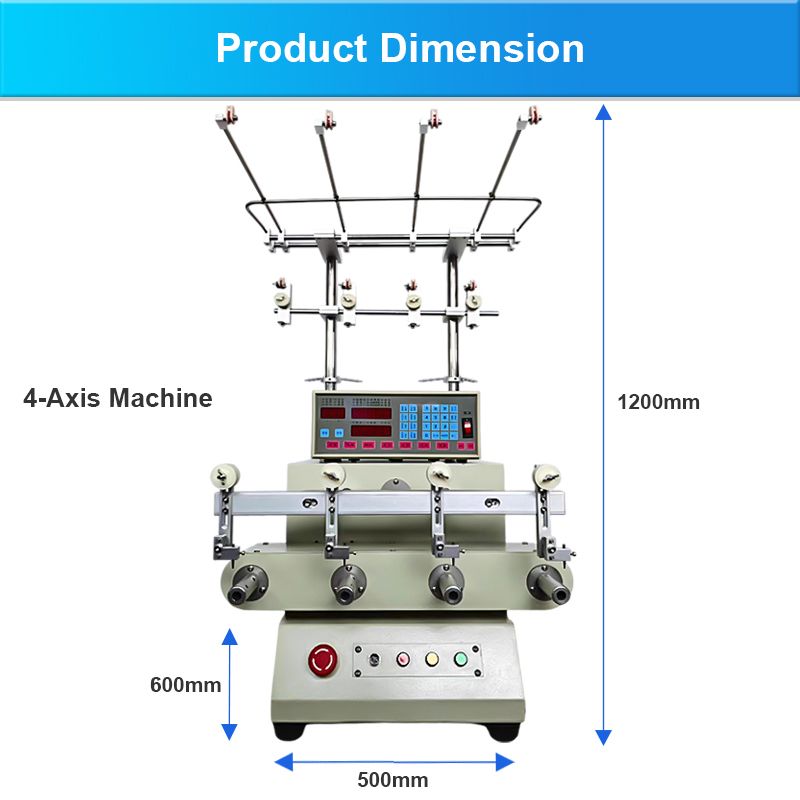

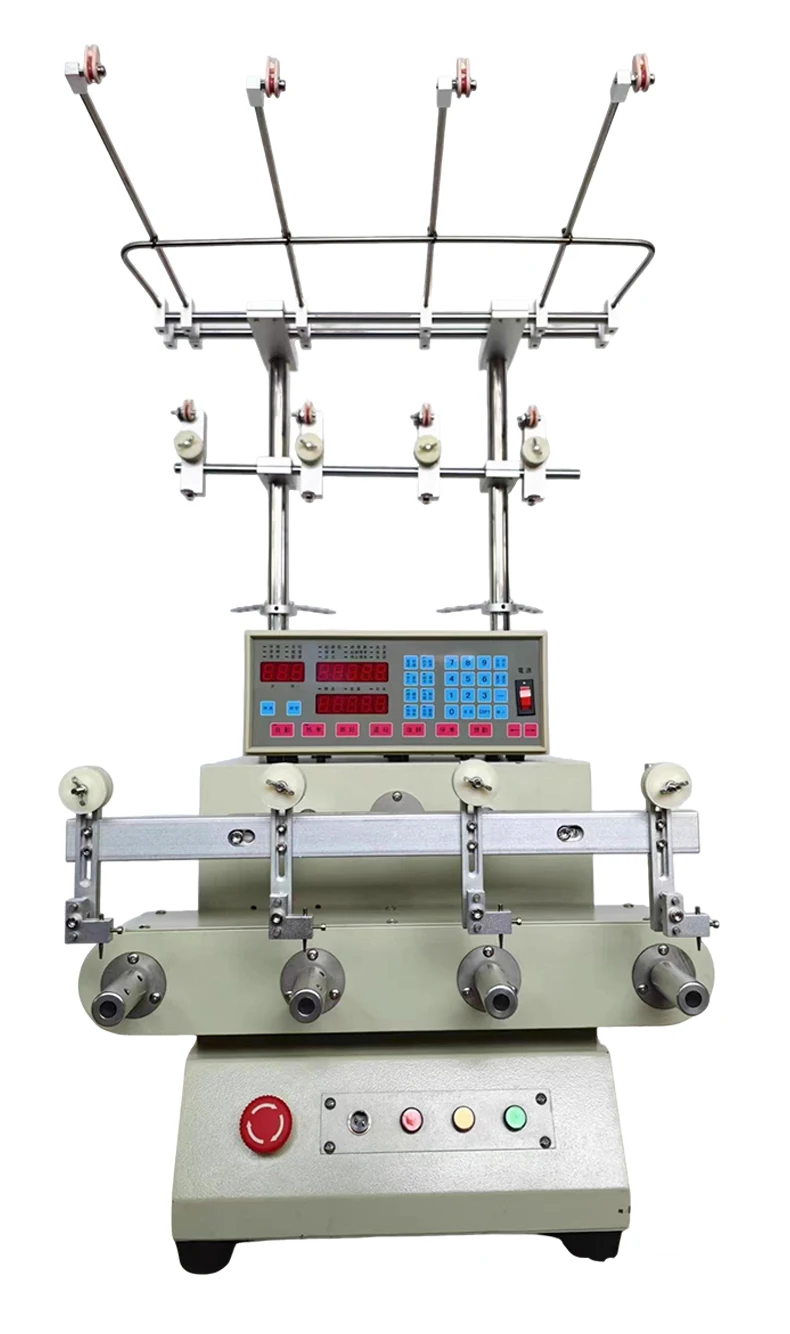

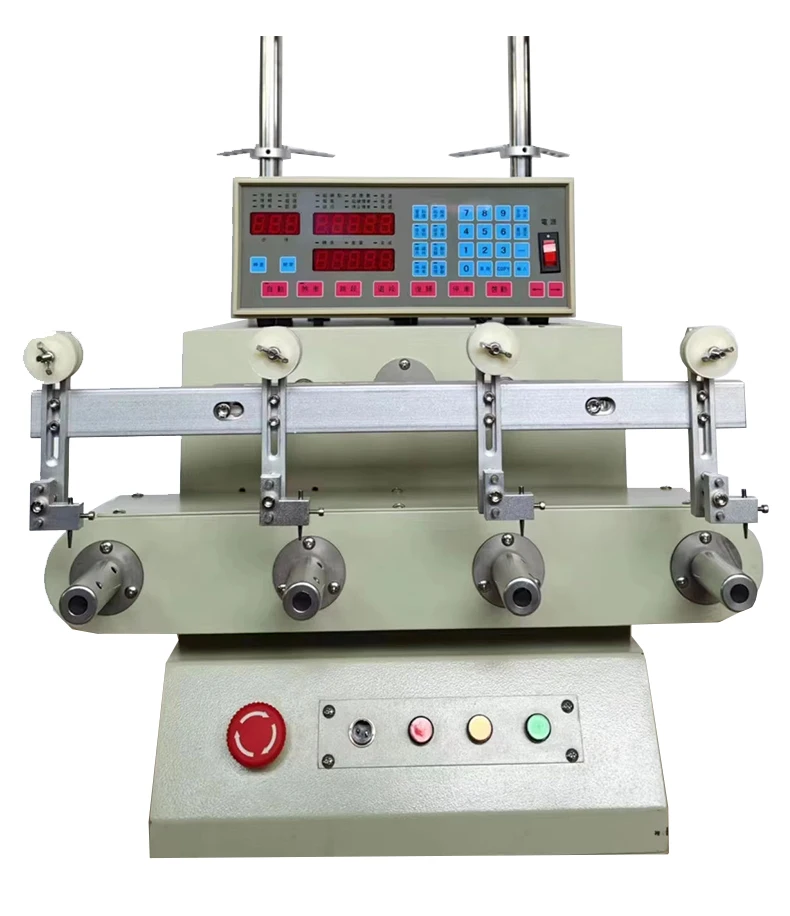

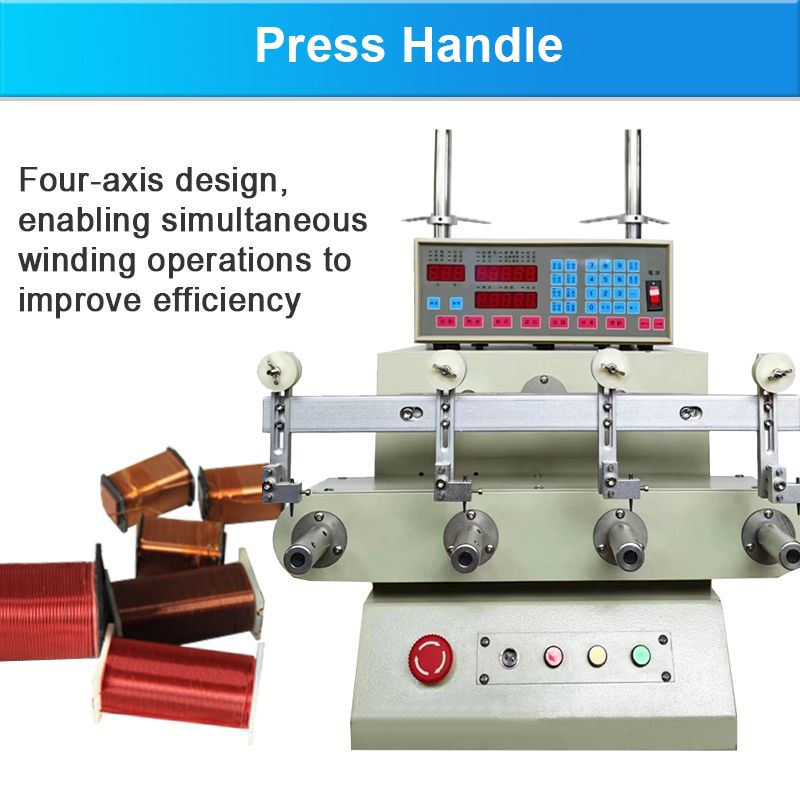

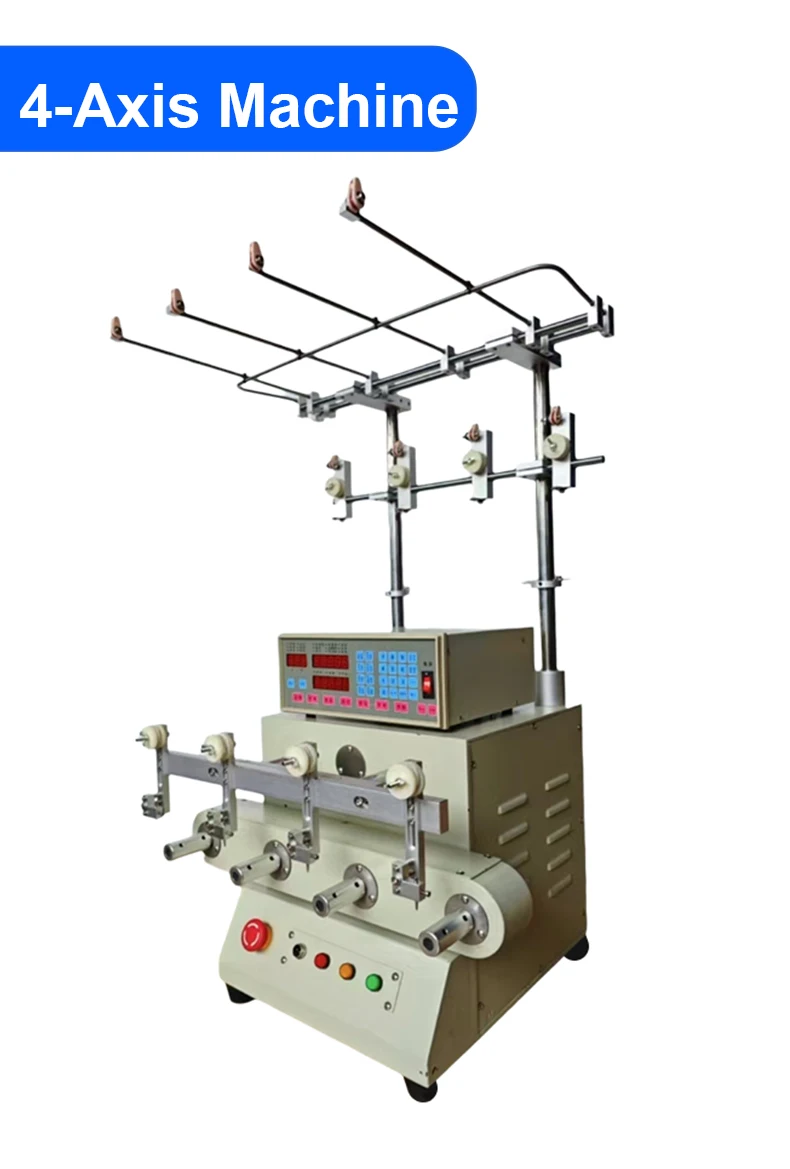

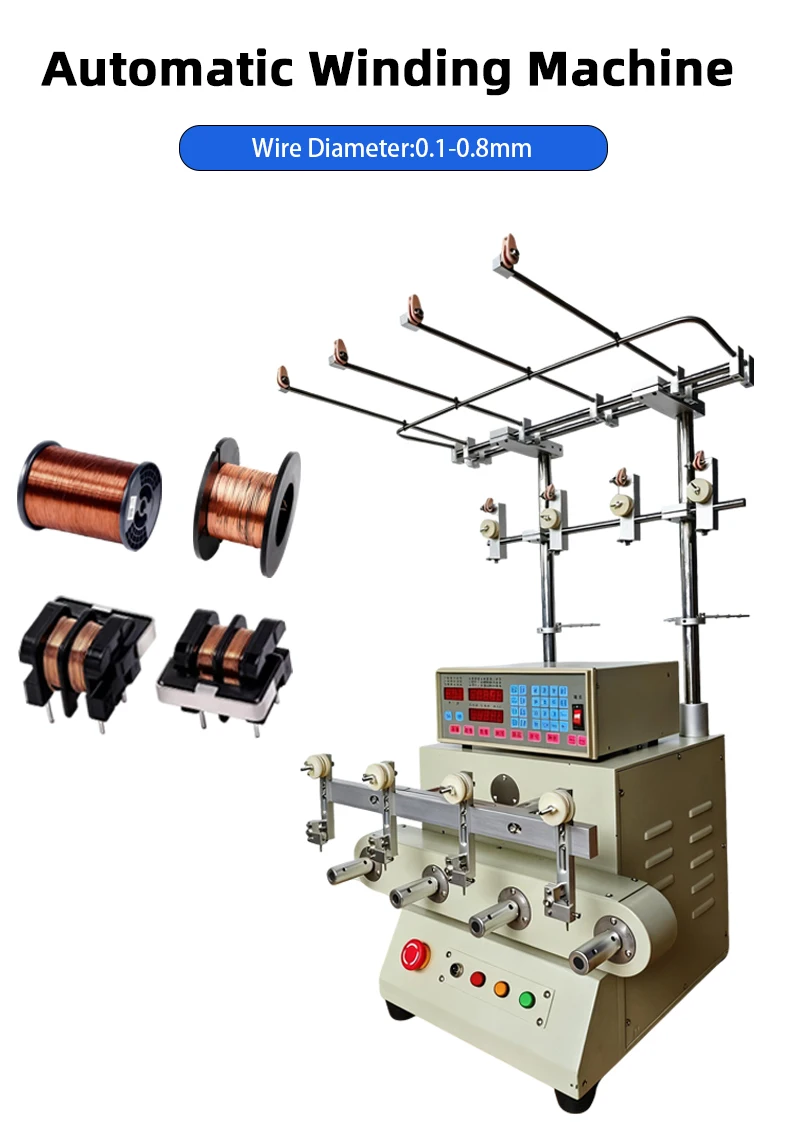

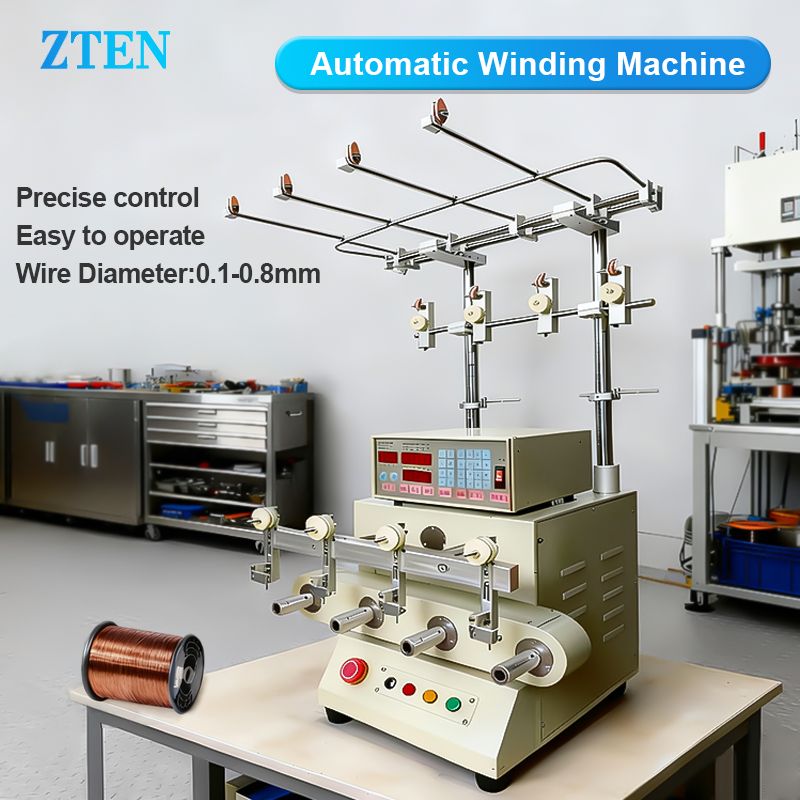

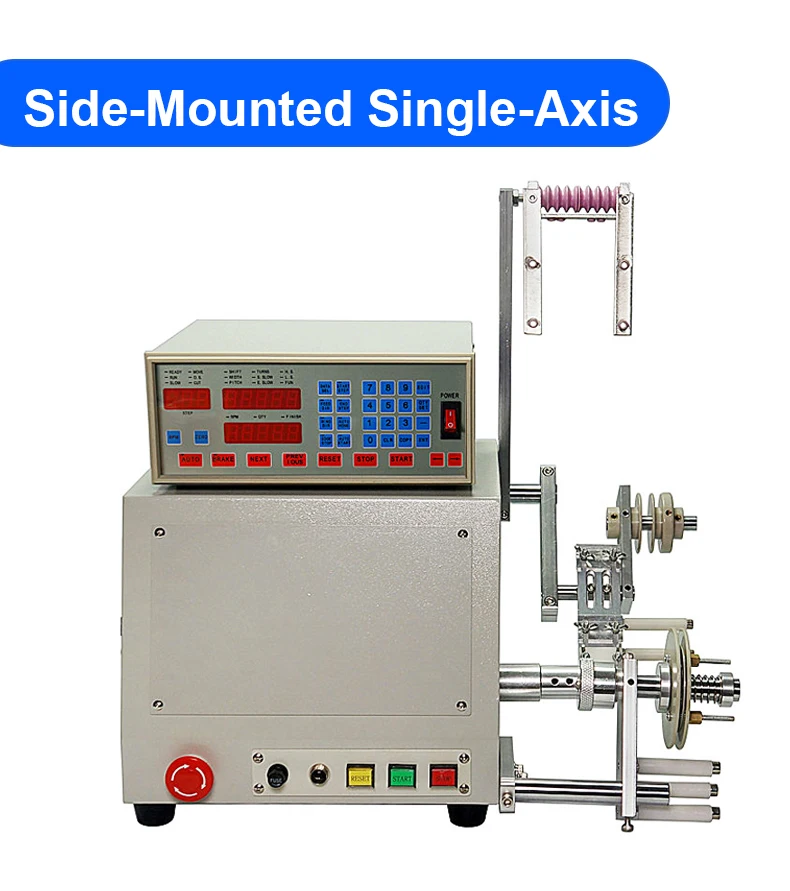

High-quality Winding Machine Automatic Coil Winder Frequency Conversion Drive 4/6 Axis 0.1-0.8mm Cables Wire Winding Machine
Includes all taxes
Meet your Seller
-
$121.89Sold by BILLIONS BIRDS
Description

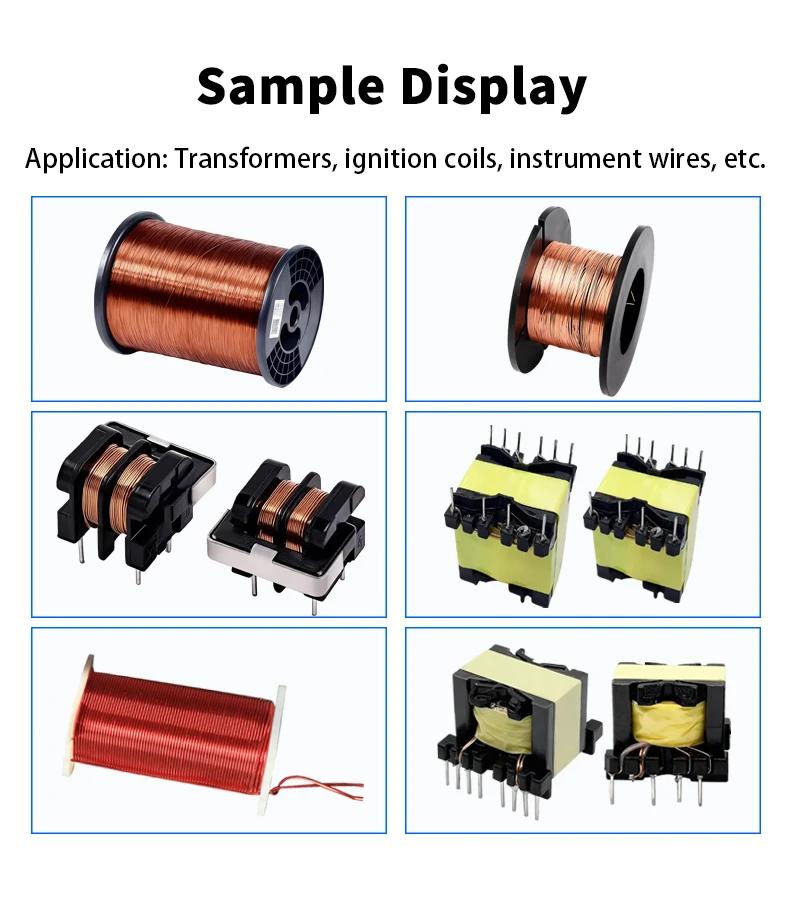

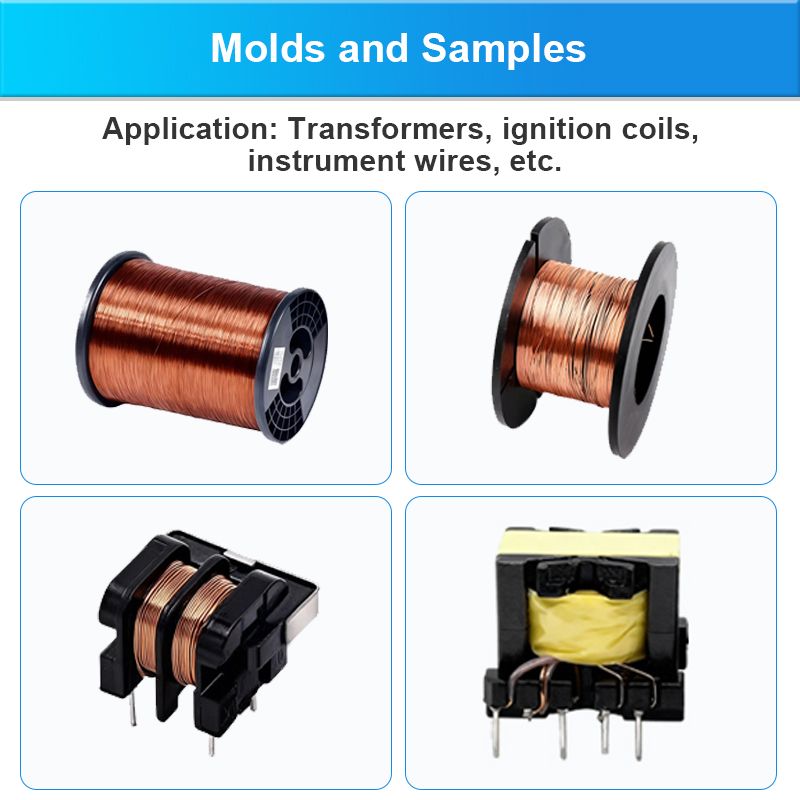

It is applicable to various switching power supply transformers, supplies, T-shaped transformers, inductors and relay coils
1. It adopts Taiwan controller, DC brushless motor and driver, which is environmentally friendly and low-noise.

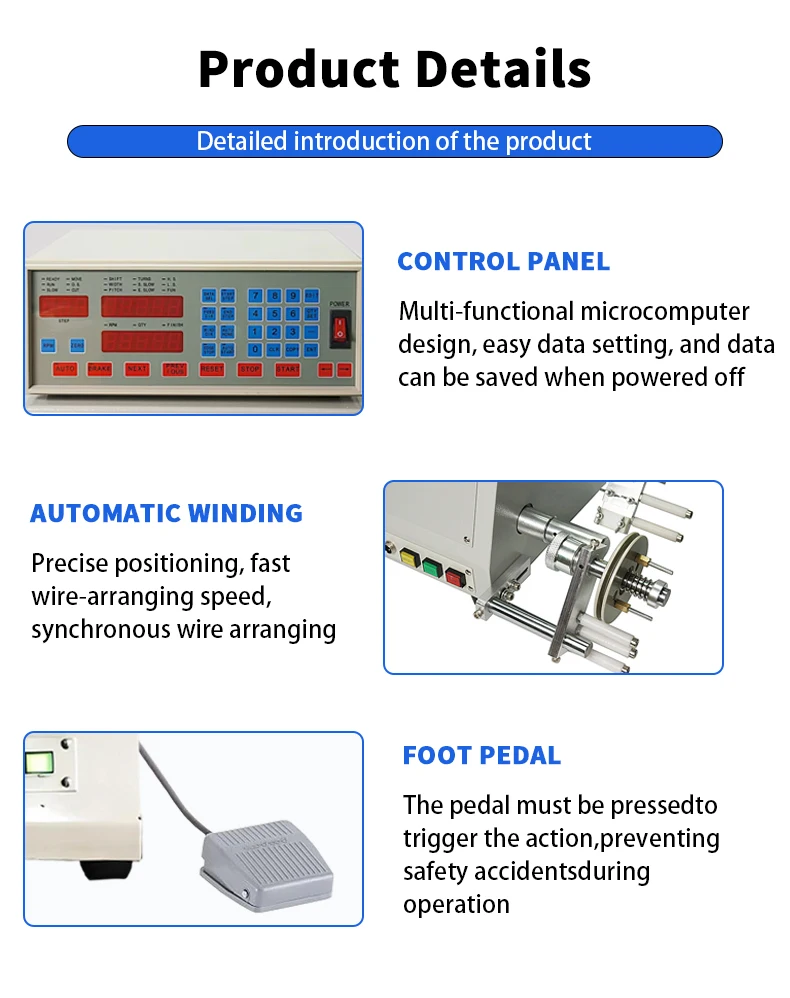

2. Multi-functional microcomputer design, easy data setting, data can be saved when turned off, and it has power failure protection function.
3. Instructional functional design, which can assist in setting the winding point and width position, and edit the winding data while pausing.
4. 0 to 999 sets of step sequence setting capacity, combined with brushless motors and precision stepper motors, can easily set forward, reverse, cross-slot and dense winding operations.

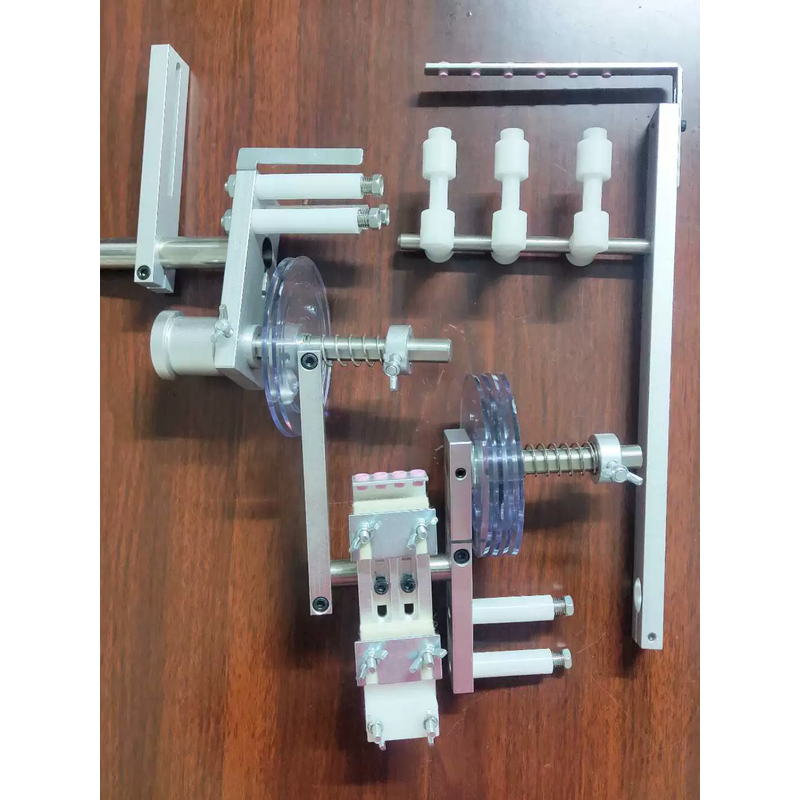

5. Special wire arrangement assembly design allows for the placement of up to 6 different wire diameters. When paired with an insulating tape station, it can complete the winding, tape application, and insulation tape application all at once. It can be replaced with a V-shaped fixture or a flyfork winding assembly for operation.
6. Unique motor design, with the main shaft directly driven by the motor, is clean and environmentally friendly, and extends the service life of the sensor.
7. It features low speed and medium to high torque, low power and high torque. It is suitable for winding switching power supplies, solenoid valves, relays and general coils, and has a wide range of applications.
The performance features of the winding machine have the following advantages:
1. It adopts microcomputer design, with instructional input, making data setting easy.
2. The installation Settings can be changed for different occasions, making its application range wider.
3. The winding data is set by keys, which is convenient and accurate, and can achieve the purpose of multi-segment and multi-speed.
4. The starting point and width can be adjusted through instructional input, making data setting easy and accurate.
5. The power supply circuit adopts an improved anti-interference circuit, which has a stronger anti-interference ability.
6. The winding shaft adopts a CPLD decoding and speed measurement circuit, ensuring more accurate positioning.
7. The wire arrangement shaft stepping motor is driven by constant current chopping, featuring fast wire arrangement speed and high precision.
8. The position of the ribbon axis can be entered using the teaching key, and the current position of the ribbon axis can be displayed
9. Automatic forward and reverse winding, synchronous wire arrangement, and multi-segment turn count.
10. The installation parameters can be adjusted according to different specifications of machines and application scenarios, and it has a wide range of applications.
11. Each winding program independently offers multiple operation and running mode options, making the operation and application more flexible.
12. According to customer requirements: Connect or not connect a DC24V 12W wire-wound shaft brake.
13. The ribbon shaft can be optionally equipped with the built-in two-phase 2A stepper motor driver or an external stepper motor driver.
14. The minimum displacement unit of the ribbon shaft can be set by the key and is applicable to various specifications of screws.
15. Error alarm function, which can display error information and have a prompt tone
16. Power supply: AC220V±10% mains electricity
17. The rubber coating table part of the machine adopts: fine-tuning function, which is easy to adjust
18. The wire frame and the ribbon end are fixed on the ribbon pole, which can achieve the function of synchronous movement
Note
400W motor can wind wires with a diameter of 0.08 or less
600W motor can be wound with a wire diameter of 1.2MM
750W motor can wind 1.6MM wire diameter. Different motors have different prices
