Hilink HLK-5M05B 5M05 5M03B 5M09B 5M12BB 5M24B CE standard 9V 5W AC 220V 110V to DC isolated Power supply module Manufacturer
Includes all taxes
Meet your Seller
-
$2.19Sold by BILLIONS BIRDS
Description
Shenzhen Hi-Link Electronic Co., Ltd.
If you need samples, please place order here, we will ship to you soon.
If you need more quantity, welcome to contact us directly, we will provide you best price and best shipping method to you.

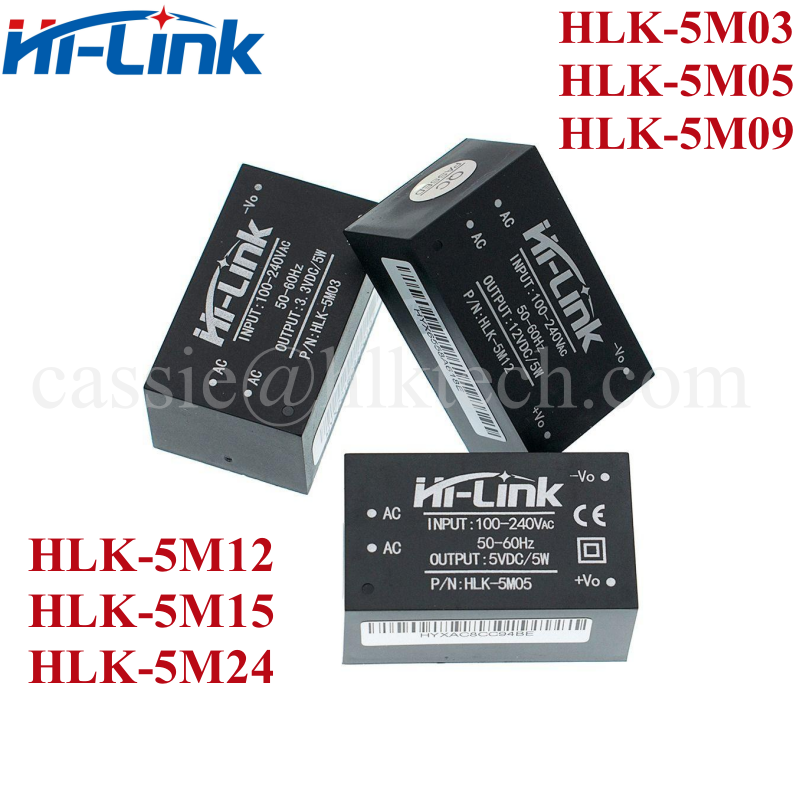

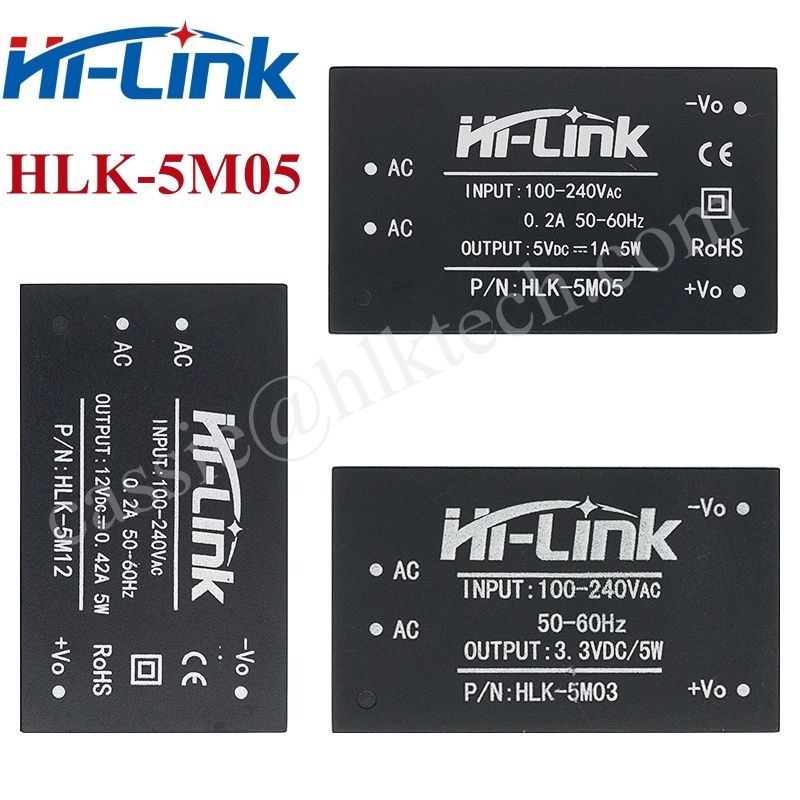

HLK-5M03B/5M05B/5M09B/5M12B/5M15B/5M24B
Product Introduction
The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

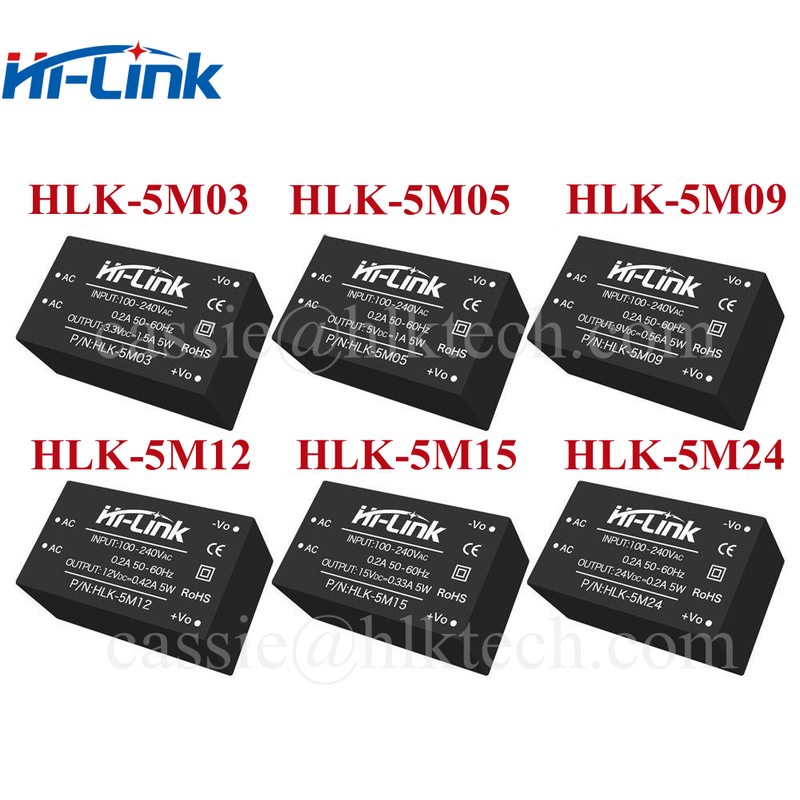

Product Model
MODEL | Size (mm) | Output watt (W) | Output voltage (V) | Output current (mA) | Notes |
HLK-5M03 | 38*23*18 | 5 | 3.3 | 1500 | |
HLK-5M05 | 5 | 1000 | |||
HLK-5M09 | 9 | 560 | |||
HLK-5M12 | 12 | 450 | |||
HLK-5M15 | 15 | 333 | |||
HLK-5M24 | 24 | 208 |
Product features

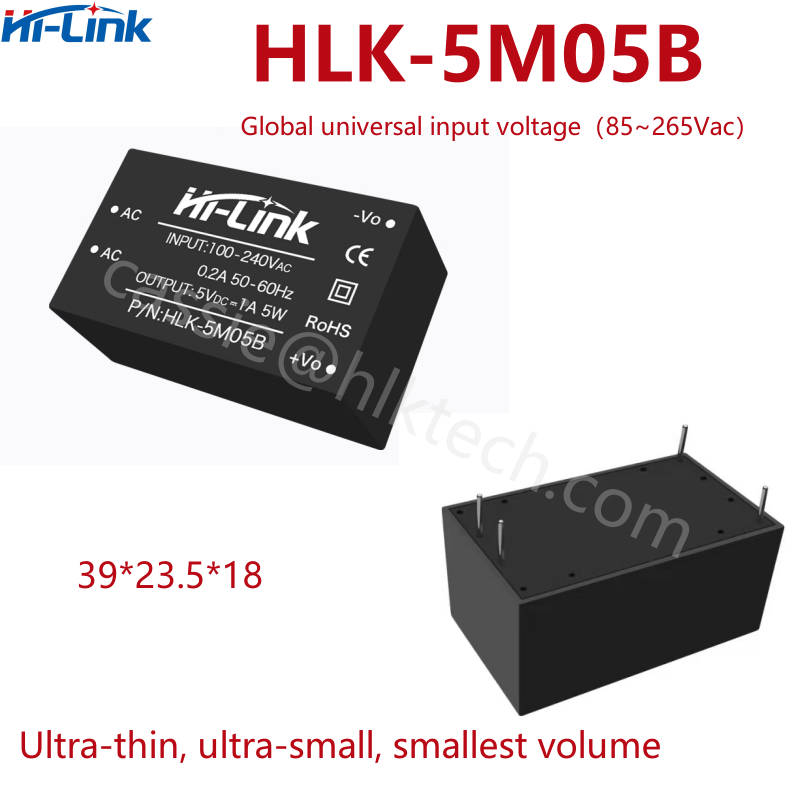

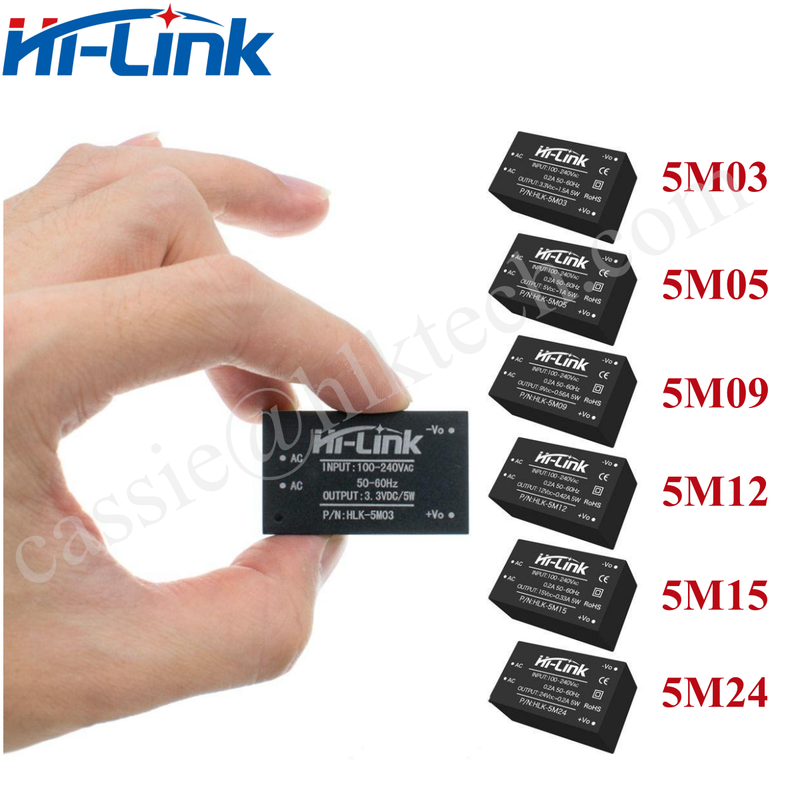

Ultra-thin, ultra-small, smallest volume;
Global universal input voltage（85~265Vac）
Low power consumption, green environmental protection, no-load loss<0.1W
Low ripple, low noise
High output short circuit and over-current protection and self recovery
High efficiency, high power density
Input and output isolation voltage 3000Vac
100% full load aging and testing
High reliability, long life design, continuous working time is greater than 100,000 hours;
Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards
Economic solutions, cost-effective
Work without external circuit
1 year quality guarantee period
Environmental conditions
Items | TechnicalParameters | Units | Notes |
Working temperature | -25—+60 | ℃ | |
Storage temperature | -40—+80 | ℃ | |
Relative humidity | 5—95 | % | |
Thermal methods | Natural cooling | ||
Atmospheric pressure | 80—106 | Kpa | |
Altitude | ≤2000 | m | |
Vibration | Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes | Meets requirements for secondary road transportation |
Output features (15V/333mA)
Items | Technical Parameters | Units | Notes |
No-load rated output voltage | 15.0±0.1 | Vdc | |
Full load rated output voltage | 15.0±0.2 | Vdc | |
Short-time maximum output current | ≥440 | mA | |
Long time maximum output current | 333 | mA | |
Voltage regulation | ±0.2 | % | |
Load regulation | ±0.5 | % | |
Input low voltage efficiency | Vin=115Vac，Output full load≥69 | % | |
Input high voltage efficiency | Vin=230Vac，Output full load≥70 | % | |
Output ripple and noise(mVp-p) | ≤120 Rated input voltage, full output load. Using 20MHz bandwidth oscilloscope, Load side and 10uF and 0.1uF capacitors are tested. | mV | |
Switching on/offovershoot amplitude | （Rated input voltage, output plus 10% load）≤5 | %VO | |
Output over-current protection | Output maximum load110-150% | A | |
Output short circuit protection | Direct short circuit in normal output and automatic return to normal operation after removal of short circuit | No damage to the whole device |

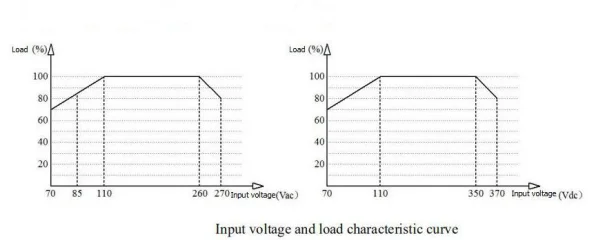

Input voltage and load characteristics
Working environment temperature and load characteristics
Typical application circuit
Safety and electromagnetic compatibility
The input design adopts UL listed 1A / 250Vac slow-blow fuse or 10Ω wire-wound resistor
The PCB board is made of double-sided copper clad foil, and the material fire resistance grade is 94-V0 grade
Safety standard meetsUL1012,EN60950,UL60950
Insulation voltage I/P-O/P:2500Vac
Insulation resistance I/P-O/P>100M Ohms/500Vdc25℃ 70% RH
Conduction and radiationmeet EN55011, EN55022 (CISPR22)
Electrostatic dischargeIEC/EN 61000-4-2 level 4 8kV/15kV
Radio frequency radiation immunity IEC/EN 61000-4-3

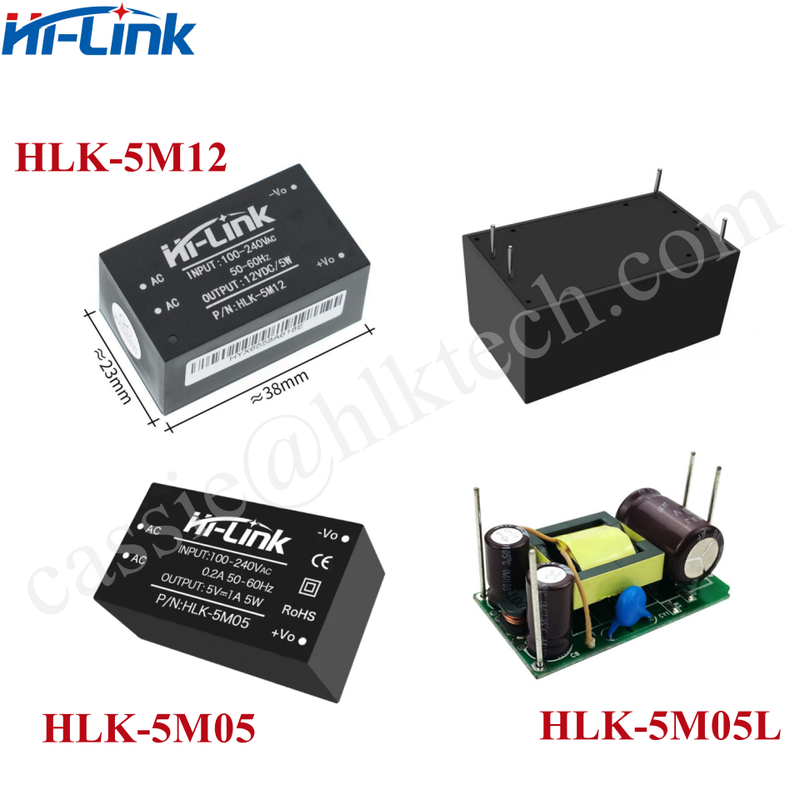

Dimensions and weight
