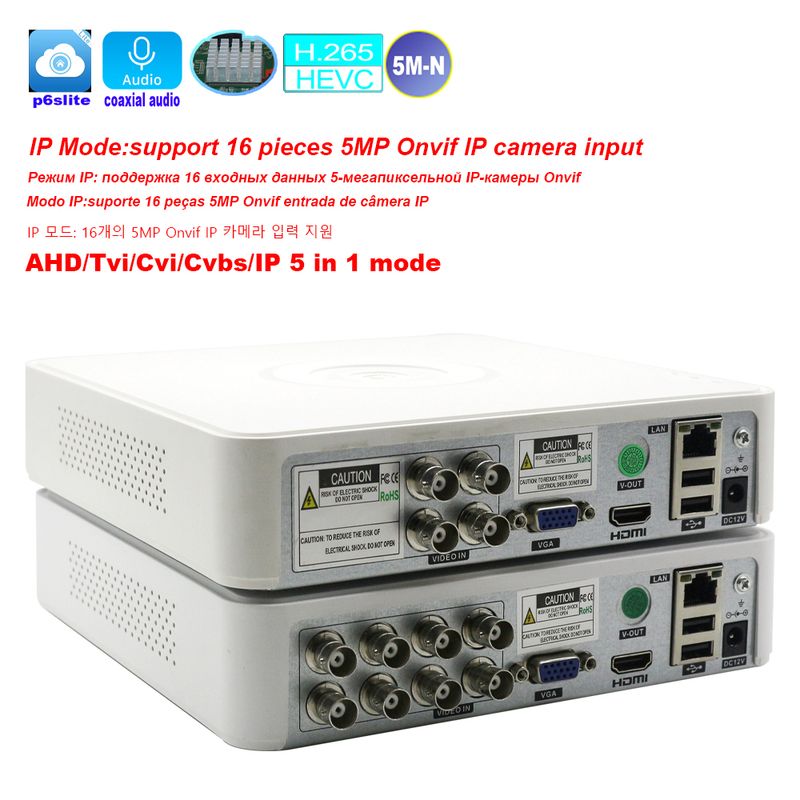

Hybrid DVR CCTV Security 4CH/8 Channels 5M-N Audio Over Coaxial for 5MP 12.5Fps 1080P 720P TVI CVI CVBS Camera 5MP IP Onvif Cam
Includes all taxes
Meet your Seller
-
$87.25Sold by BILLIONS BIRDS
Description
if need software like VMS and manual instructions,you can download here by copy the link https://disk.yandex.lv/d/eC9OqRyZ7xkL7Q
Be Careful:
Display resolution(the board display resolution is default 1024*768.If you use a monitor to connect this device, please make sure it can withstand at least 1024*768 resolution input.
or the monitor will show black screen after it display first time the Boot logo(will show "out of range" or "input not supported" this is very important,for example,if your monitor display resolution is 1920*1080P but you choose the HVR display resolution is 3840X2160(4K) but your monitor not 4K,that will show black screen)
What is coaxial Audio
it is mean camera which support coaxial audio connect to DVR which support coaxial too,can No need other device can hear voice from camera by Smartphone or Computer
How to connect camera to this DVR

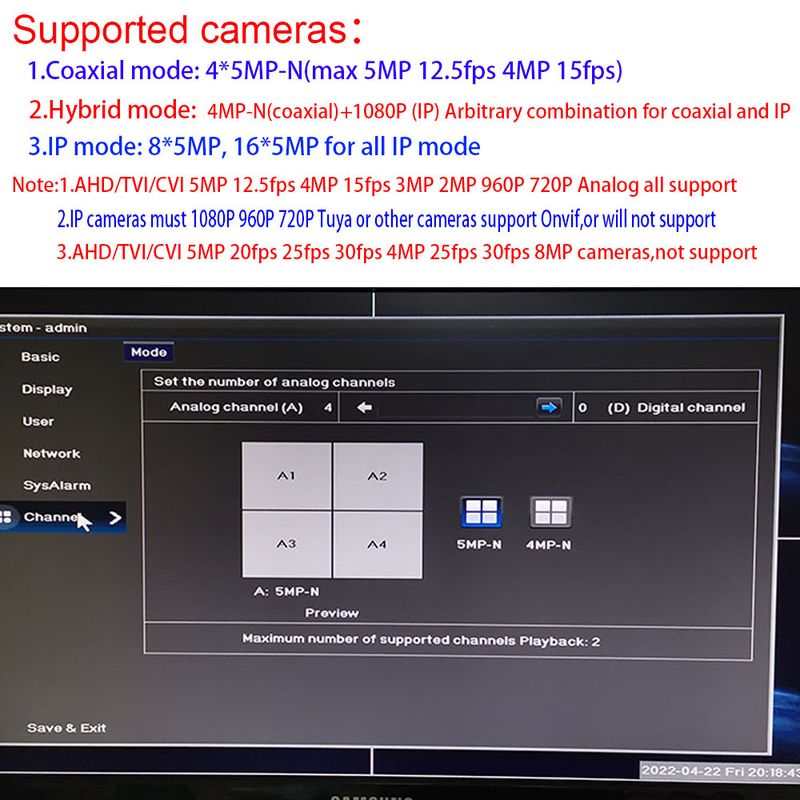

Channel type（you can set the channel type to make the DVR suitable for you)

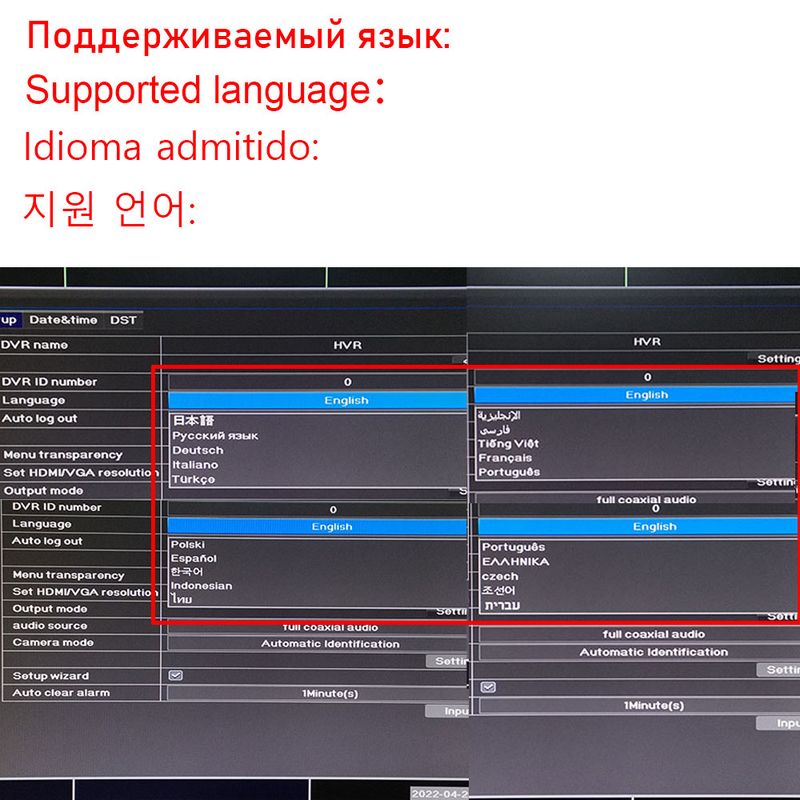

Language
Main display
4CH
8CH
H.265+(can save a lot of Hdd storage than H.264)
Display resolution(the board display resolution is default 1920*1080P.If you use a monitor to connect this device, please make sure it can withstand 1920*1080P resolution input.
or the monitor will show black screen after it display first time the Boot logo(will show "out of range" or "input not supported"you can ask US help to change the display resolution before send goods)
Features:
- 5 in 1 HVR product solution, supports HD analog video coding, HD analog + HD
network video input, and pure HD network video input
Support VGA,HDMI output;
Support a variety of cloud technologies, realize network penetration for camera
and DVR docking, and support the functions of pushing alarm information to
mobile phones
Support remote access, DDNS to realize one-key remote monitoring;
With UTC function, camera menu parameters can be adjusted via UTC function;
Support H.264/H.265(HEVC) IP camera
Support IP camera address modifying in bulk, and camera device added remotely;
Support AHD/TVI/CVI/CVBS/IP 6-in-1 and self-recognition
Can connect with mainstream IP camera brands in the market(private protocol or
Onvif);
Support other third-party products based on ONVIF2.4 (IP mode);
Support VGA,HDMI simultaneous display,Max resolution is up to HDMI 1080P.
Record playback can be shown by time, record type showed by color, to search
and retrieve conveniently and efficiently;
Record backup can be arranged according to the time and duration, accurate to
seconds;
Preview screen can be exchanged randomly. Picture position changed without
physical address changing, it's convenient for construction
Support multiple languages
Provide mating MS SDK service;
Support multiple playback modes: fast forward, slow playback, fast reverse, etc.
Max 16 times fast forward or fast reverse
Product parameters
4 channels
System Main processor MC6630
Operation system Embedded LINUX operation system
System resources Multichannel real time record
Multichannel real time playback
multichannel multi-user on network operation
Interface Operation system graphic menu operation interface, support mouse to operate
Image display 1/4/6/9/16 screen
Video Image coding H.264/H.265
Surveillance quality VGA(Max 1080P)；HDMI(Max 1080P), CVBS optional
Preview 4*5MP-N@20fps/4*4MP-N@25fps/4*1080P@25fps
Code capacity 4*5 MP-N@12fps/4*4MP-N@17fps/4*1080N@15fps
Decode capacity 4*5 MP-N@12fps/4*4MP-N@17fps/4*1080N@15fps
Various mode input Coaxial: 4*5MP-N
Mixed: 4MP-N(coaxial)+1080P (IP) Arbitrary combination for coaxial and IP hybrid mode
IP: 8*5MP, 16*5MP for all IP mode
Recognize method Automatic Identification 、All AHD、All TVI 、All CVI 、Customized
Motion detection 192 （16*12） testing areas can be set for each image；
can set multi-sensitivity (only for local channel and P6S IP camera)
Audio Audio compression G.711A
Audio output HDMI, support extended audio output.
Audio Input Can extend to 4ch audio In.
intercom Support extend audio in and out intercom
coaxial audio Support 4ch coaxial audio
Record &
Playback Video mode manual>alarm>dynamic testing>timing
Local playback 1CH (5MP-N coaxial)
1CH (Coaxial or Hybrid mode);
1ch IP mode
Record retrieval Time retrieval, event retrieval, Timeline retrieval, channel retrieval 、Face playback, Intelligent
playback(Motion detection playback)
Storage& Occupation 1080P 10-15G/day*channel; 720P 10G/day*channel; 960H 6-10G/day*channel;
Backup Audio:691.2M/day*channel
Record storage Local hard disk; network
Backup mode Network backup 、USB , SATA record
VMS Type obile/VMS

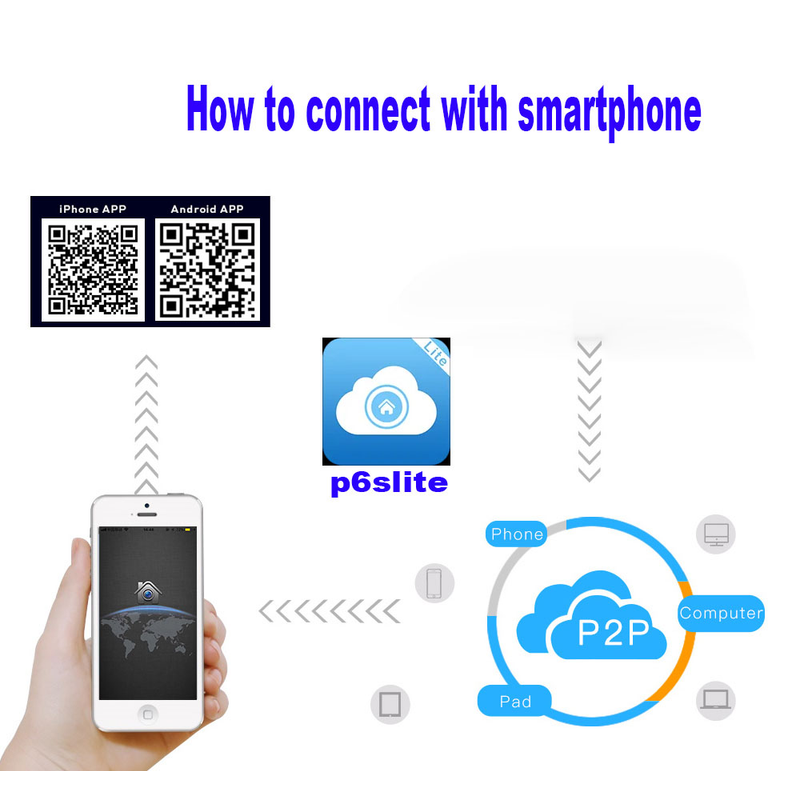

P2P Support(IOS, Android, PC)
APP Multi-screen surveillance; audio surveillance; mobile record; snap; pan-tile control; remote record playback
UTC Camera OSD control Support
Pan-tilt control Don’t support
3D-NR Support auto/manual setting for noise reduction parameters
Port Video input 4ch BNC; support coaxial audio in
Video output 1ch VGA，1ch HDMI; 1ch TV output(Optional)
Audio output HDMI output
Network port RJ45 10M/100M Self-adapt to Ethernet interface
USB port 2 USB 2.0 port
8 channels
System Main processor MC6630
Operation system Embedded LINUX operation system
System resources Multichannel real time record
Multichannel real time playback
multichannel multi-user on network operation
Interface Operation system graphic menu operation interface, support mouse to operate
Image display 1/4/6/9/16 screen
Language English, traditional Chinese, simplified Chinese, Japanese, Russian, German, Italian, Turkish, polish, Spanish, Korean, Indonesian, Thai, Arabic, Persian, Vietnamese, French, Portuguese, Greek, Czech
Video Image coding H.264/H.265
Surveillance quality VGA(Max 1080P)；HDMI(Max 1080P), CVBS optional
Preview 8*5MP-N@12fps/8*4MP-N@15fps/8*1080P@30fps
Code capacity 8*5 MP-N@5fps/8*4MP-N@8fps/8*1080N@15fps
Decode capacity 8*5 MP-N@5fps/8*4MP-N@8fps/8*1080N@15fps
Various mode input Coaxial: 8*5MP-N
Mixed: 4MP-N(coaxial)+1080P (IP) Arbitrary combination for coaxial and IP hybrid mode
IP: 8*5MP, 16*5MP for all IP mode
Recognize method Automatic Identification、All AHD、All TVI、All CVI、Customized
Motion detection 192（16*12） testing areas can be set for each image；
can set multi-sensitivity (only for local channel and P6S IP camera)
Audio Audio compression G.711U
Audio output HDMI, support extended audio output.
Audio Input Can extend to 4ch audio In.
intercom Support extend audio in and out intercom
coaxial audio Support 8ch coaxial audio
Record & Playback Video mode manual>alarm>dynamic testing>timing
Local playback 8CH (5MP-N coaxial input)
8CH (Coaxial or Hybrid mode);
8ch IP mode
Playback mode Fast playback, Playback by Time, Smart playback
Record retrieval Time retrieval, event retrieval, Timeline retrieval, channel retrieval、Intelligent playback(Motion detection playback)
Storage& Backup Occupation 1080P 10-15G/day*channel; 720P 10G/day*channel; 960H 6-10G/day*channel; Audio:691.2M/day*channel
Record storage Local hard disk; network
Backup mode Network backup、USB , SATA record
VMS Type obile/VMS
P2P Support(IOS, Android, PC)
APP Multi-screen surveillance; audio surveillance; mobile record; snap; pan-tile control; remote record playback
UTC Camera OSD control Support
Pan-tilt control Don’t support
3D-NR Support auto/manual setting for noise reduction parameters
Port Video input 8ch BNC; support coaxial audio in
Video output 1ch VGA，1ch HDMI; 1ch TV output(Optional)
Audio output HDMI output/Extended 1ch RCA audio output
Network port RJ45 10M/100M Self-adapt to Ethernet interface
USB port 2 USB 2.0 port
HDD port 1 SATA Port（Can support 8T HDD）
Wifi port NO
Battery: Contains a built-in coin cell battery
Remote control Optional
Others Power 12V/2A（Sufficient amperes）
Consumption < 15W（exclusive hard disk）
Temperature -5 °C~ +55 °C
Working humidity 10%~90%
HDD port 1 SATA Port （Can support 8T HDD）
Wifi port NO
Remote control Optional
Others Power 12V/2A （Sufficient amperes）
Consumption < 15W （exclusive hard disk）
Temperature -5 °C~ +55 °C
Working humidity 10%~90%
