Hybrid Solar Inverter 1KW 3KW 4.2KW 6.2KW 10.2KW Build-in Mppt Controller 500VDC PV Input 230VAC 12V 24V 48V Pure Sine Wave

$276.25

Includes all taxes

Output Voltage
Input Voltage
Meet your Seller
Delivery options
  • Ship Only

Description

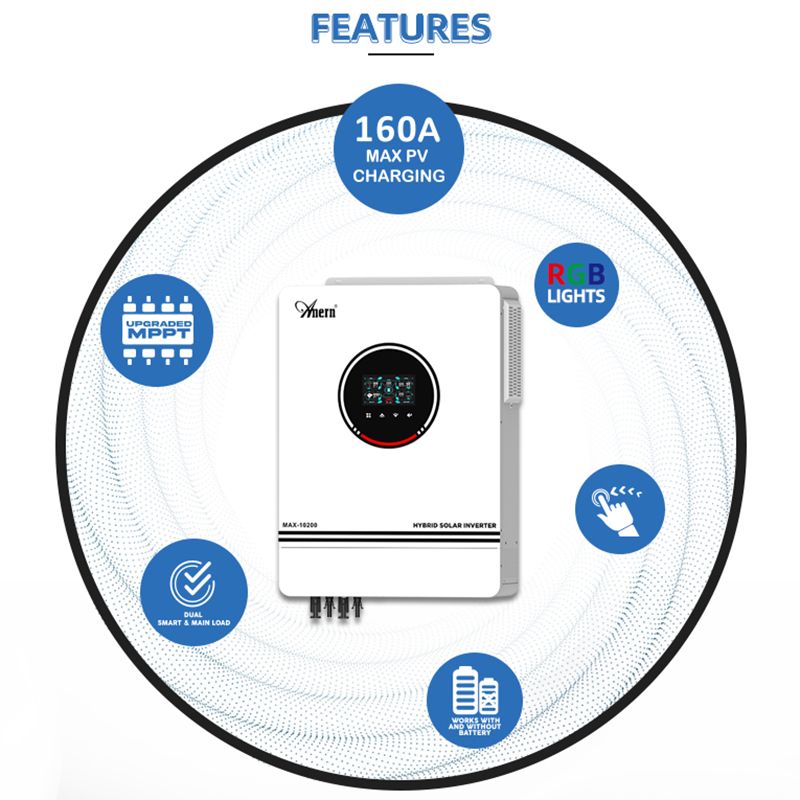

Features:

Connectable battery type: Lead-acid/Lithium iron phosphate(LiFePO4)/colloid/lithium battery

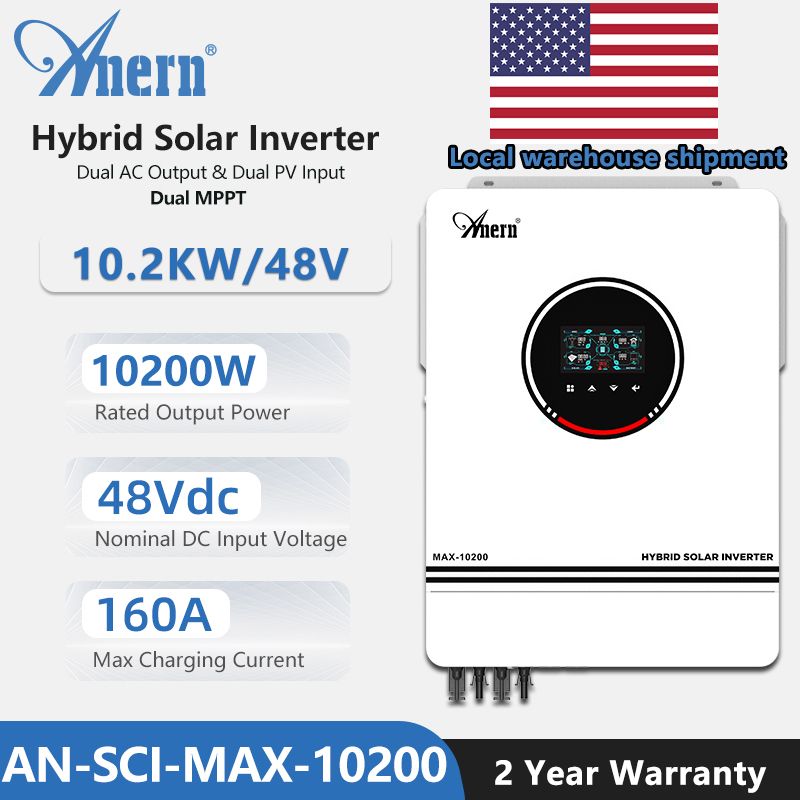

Model

SCI-MAX-10200

RATED POWER

10200W

Maximum PV Input Power

10800W

GRID-TIED OPERATION

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

90VDC/120VDC

MPPT DC Voltage Range

90-450VDC

Number of MPPT Trackers/Maximum
Input Current
2/18A

GRID OUTPUT (AC)

Nominal AC Output Voltage

220/230/240VAC

AC Output Voltage Range

195.5-253VAC

Power Factor

>0.99

Feed-in Grid Frequency Range

49-51±1Hz / 59-61±1Hz

Nominal Output Current
44.3A

EFFICIENCY

Maximum Conversion Efficiency (Solar to AC)

98%

TWO LOADS OUTPUT POWER

Full Load

10200W

Maximum Main Load

10200W

Maximum Second Load (battery mode)(Only if the battery voltage is below 44V)

3400W

Main Load Cut Off Voltage

44VDC

Main Load Return Voltage

48VDC

OFF-GRID OPERATION

AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC or 170-280VAC
Maximum AC Input Current
50A
Nominal Operating Frequency
50/60Hz
Surge Power
20400W

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

220/230/240VAC

Output Waveform

Pure sine wave

Efficiency (DC to AC)

94%

BATTERY & CHARGER

Nominal DC Voltage

48VDC

Maximum Charging Current(Solar to AC)

160A

Maximum AC Charging Current

160A

GENERAL

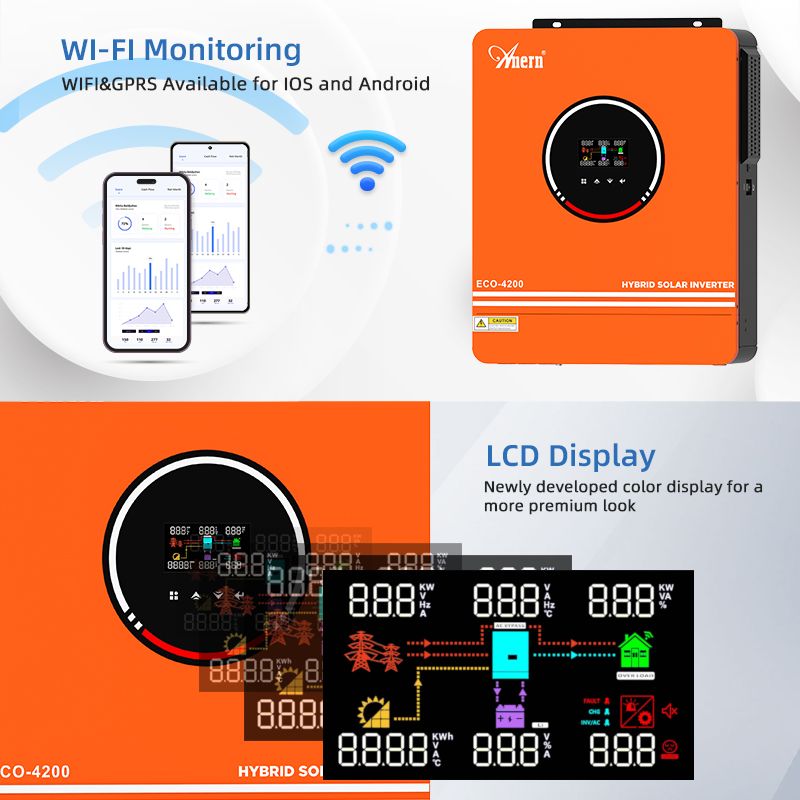

Communication interface

WIFI

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

–10°C - 50°C

Storage Temperature

–15°C - 60°C





Model

SCI-ECO-4200

SCI-ECO-6200

RATED POWER

4200W

6200W

Maximum PV Input Power

6200W

6500W

GRID-TIED OPERATION

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

90VDC/120VDC

Maximum DC Voltage

60-450VDC

Number of MPPT Trackers/Maximum Input Current

18A

22A

GRID OUTPUT (AC)

Nominal AC Output Voltage

220/230/240VAC

AC Output Voltage Range

195.5-253VAC

Nominal Output Current

18.2A

27.0A

Power Factor

>0.99

Feed-in Grid Frequency Range

49-51±1Hz / 59-61±1Hz

EFFICIENCY

Maximum Conversion Efficiency (Solar to AC)

98%

TWO LOADS OUTPUT POWER

Full Load

4200W

6200W

Maximum Main Load

4200W

6200W

Maximum Second Load (battery mode)

1400W

2067W

Main Load Cut Off Voltage

22VDC

44VDC

Main Load Return Voltage

26VDC

52VDC

OFF-GRID OPERATION

AC Start-up Voltage/Auto Restart Voltage

120-140VAC/180VAC

Acceptable AC Input Voltage Range

90-280VAC or 170-280VAC

Maximum AC Input Current

30A

40A

Nominal Operating Frequency

50/60Hz

Surge Power

8400W

12400W

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

220/230/240VAC

Output Waveform

Pure sine wave

Efficiency (DC to AC)

94%

BATTERY & CHARGER

Nominal DC Voltage

24VDC

48VDC

Maximum Charging Current(Solar to AC)

120A

Maximum AC Charging Current

100A

GENERAL

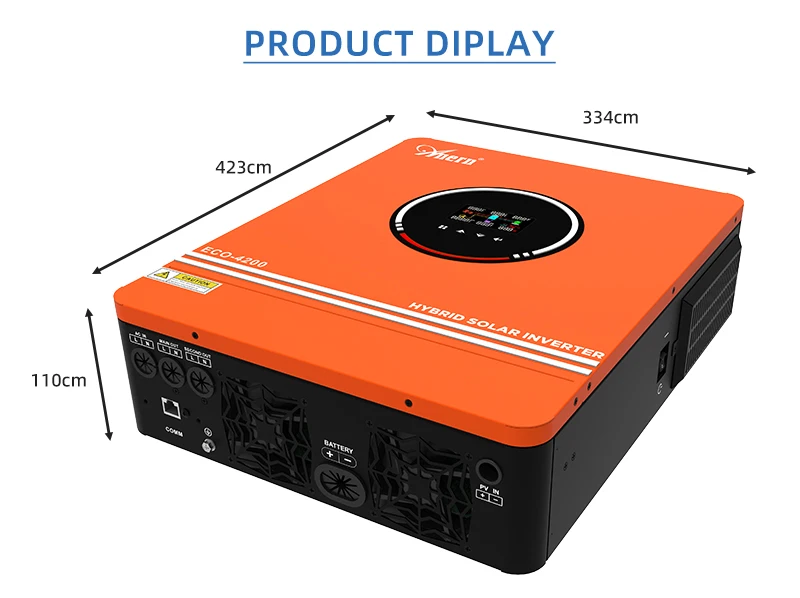

Dimension, D x W x H (mm)

420*350*110mm

450*350*110mm

Communication interface

WIFI

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

–10°C - 50°C

Storage Temperature

–15°C - 60°C














Model

SCI-ECO-2000

SCI-ECO-3200

RATED POWER

2000VA/1600W

3200VA/3000W

AC INPUT

AC Input Voltage

230VAC

Selectable Voltage Range

 170-280 VAC (For Personal Computers)

Selectable Voltage Range

90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

AC OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

4000VA

6400VA

Efficiency (Peak) PV to Inverter

98%

Efficiency (Peak) Battery to Inverter

94%

Transfer Time

10 ms (For Personal Computers);  20 ms (For Home Appliances)

Waveform

Pure sine wave

BATTERY & AC CHARGER

Battery Voltage

12VDC

24VDC

Floating Charge Voltage

13.5VDC

27VDC

Overcharge Protection

16VDC

33VDC

Maximum AC Charge Current

60A

SOLAR CHARGER

Maximum PV Array Power

2000W

3000W

MPPT Range @ Operating Voltage

30-400VDC

Maximum PV Array Open Circuit Voltage

400VDC

Maximum Charging Current

80A

PHYSICAL

Dimension, D x W x H (mm)

360*270*100mm

390*270*100mm

INTERFACE

Communication interface

WIFI

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

–10°C - 50°C

Storage Temperature

–15°C - 60°C

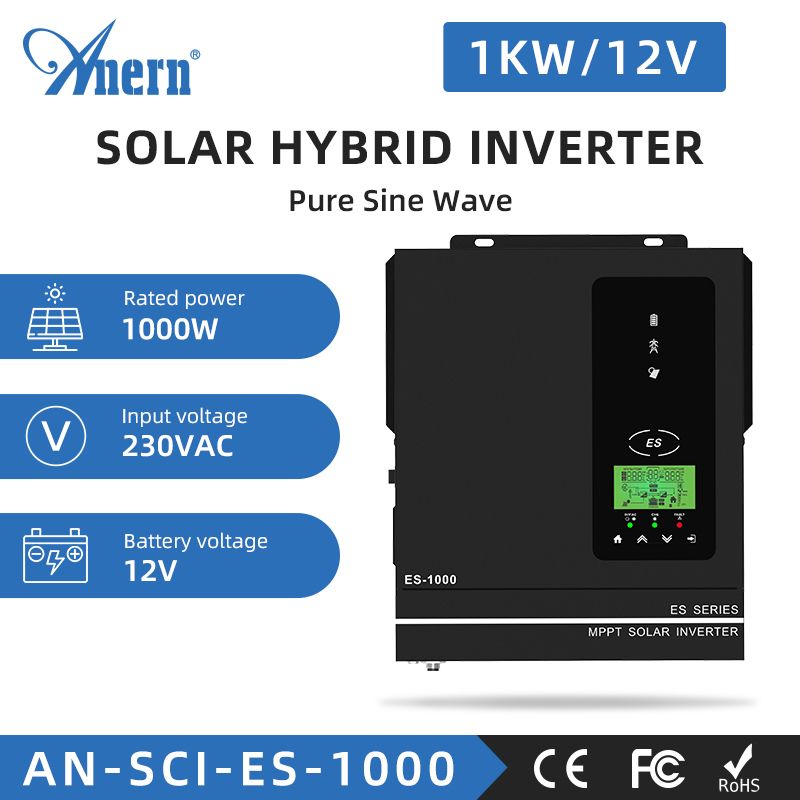

Model

SCI-ES-1000

RATED POWER

1000VA/1000W

AC INPUT

AC Input Voltage

230VAC

Selectable Voltage Range

 170-280 VAC (For Personal Computers)

Selectable Voltage Range

90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

AC OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

2000VA

Efficiency (Peak) PV to Inverter

98%

Efficiency (Peak) Battery to Inverter

94%

Transfer Time

10 ms (For Personal Computers);  20 ms (For Home Appliances)

Waveform

Pure sine wave

BATTERY & AC CHARGER

Battery Voltage

12VDC

Floating Charge Voltage

13.5VDC

Overcharge Protection

16VDC

Maximum AC Charge Current

40A

SOLAR CHARGER

Maximum PV Array Power

600W

MPPT Range @ Operating Voltage

20-150VDC

Maximum PV Array Open Circuit Voltage

150VDC

Maximum Solar Charging Current

40

Maximum (AC+Solar)Charging Current

80A

PHYSICAL

Dimension, D x W x H (mm)

286*240*91mm

INTERFACE

Communication interface

WIFI

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

–10°C - 50°C

Storage Temperature

–15°C - 60°C







Inverter Use Notice
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.


Please connect the circuit correctly according to the instructions, and install circuit breaker switches for each circuit.

FAQ:

Q:Whether it can be connected to the grid?

A:PV gives priority to power supply to the load, and extra to charge the battery, and more can be integrated into the grid (need to be based on local government policies)

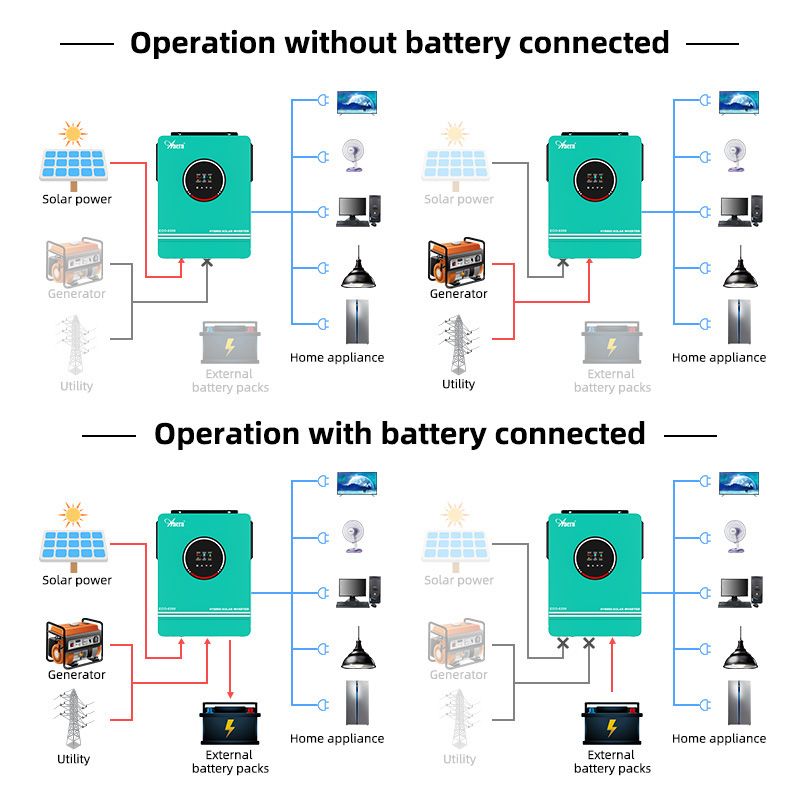

Q: Is it possible to use PV, battery, grid supply at the same time?

A: YES. The default PV priority mode, when the PV input is insufficient, the battery and utility will be used.

Q: Can inverters be connected in series or parallel?

A: NO.

Q: Can the utility be used to power the inverter when there is no sun?

A: YES.

Q: How to choose the power of the inverter according to the household appliances?

A: If household appliances contain inductive load appliances, such as refrigerators, washing machines, air conditioners, etc., the power of the inverter is at least three times the total power of the inductive load appliances, otherwise the appliances may not be able to start.

Q: How many solar panels need to be connected?

A: In order to start the inverter normally, the voltage of the solar panel is recommended to be 300V-400V, The maximum does not exceed 500V.
