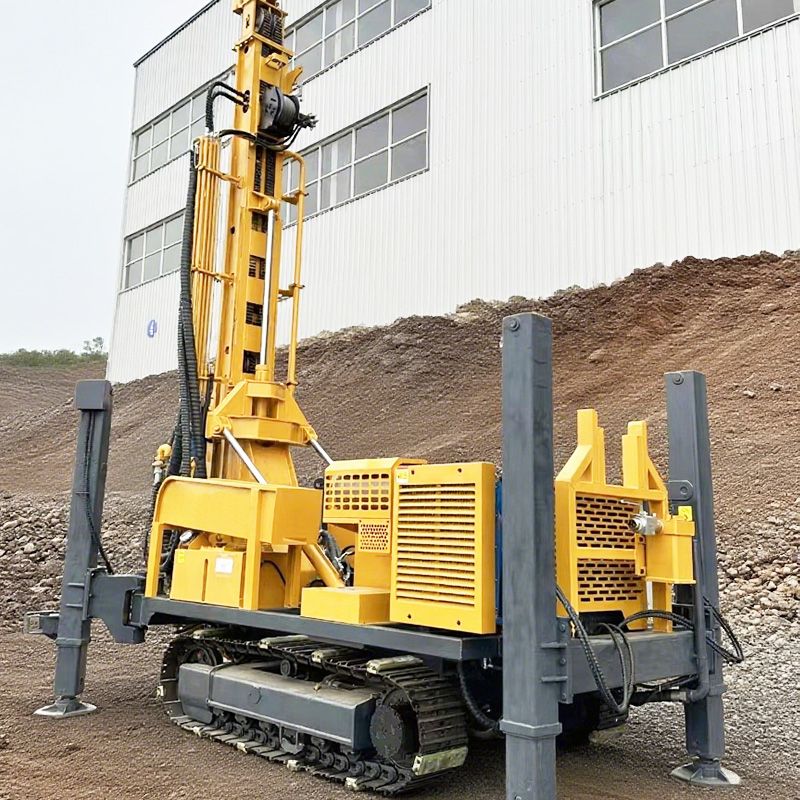

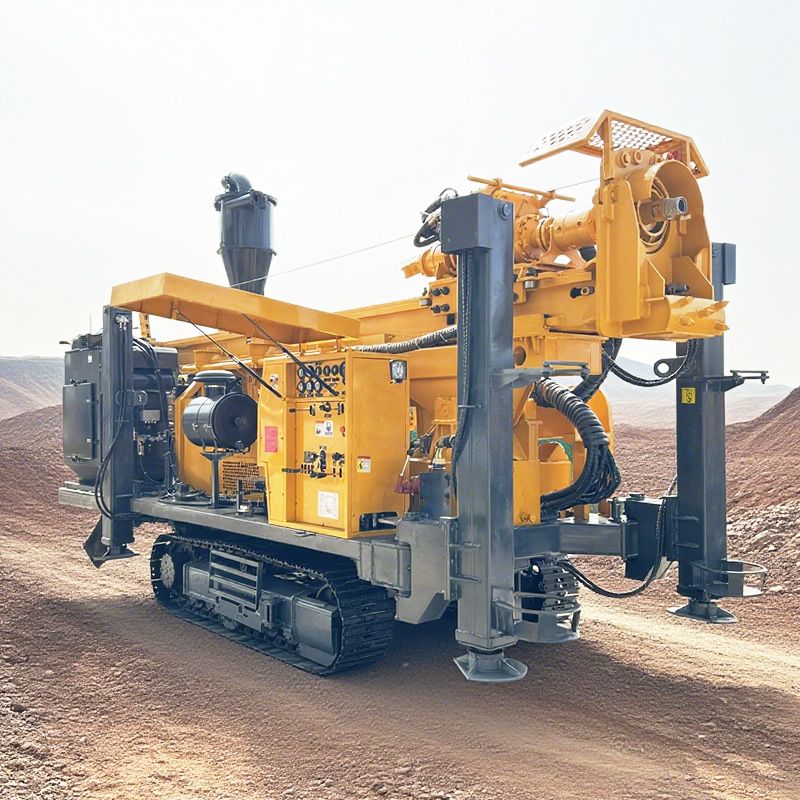

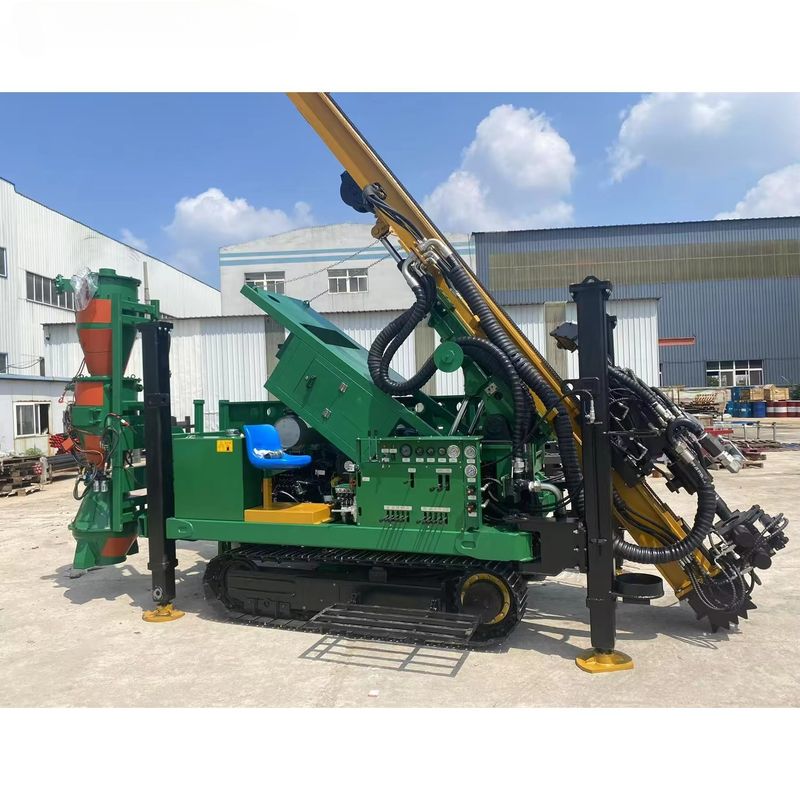

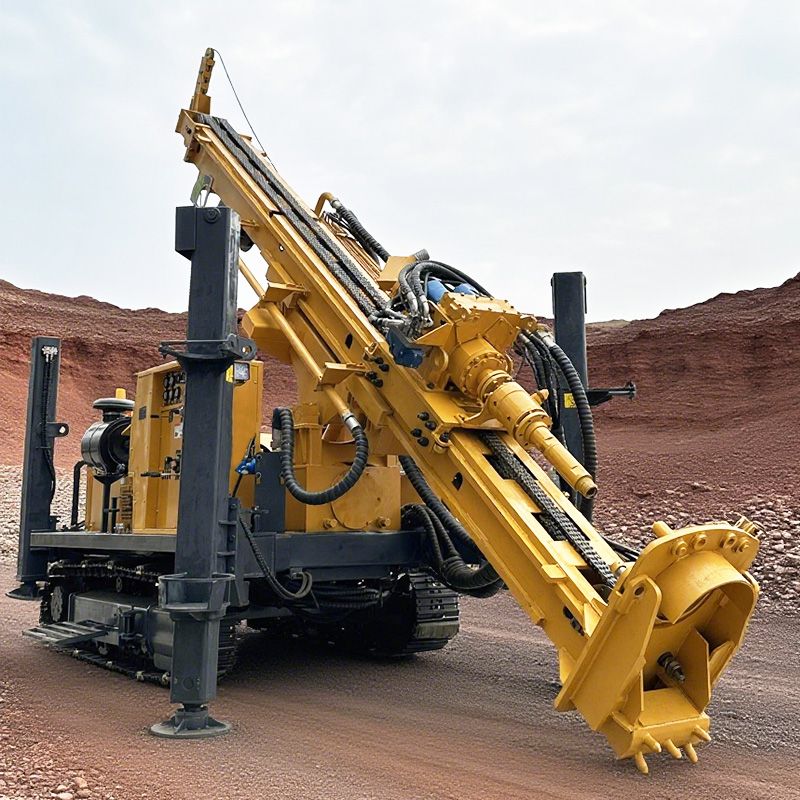

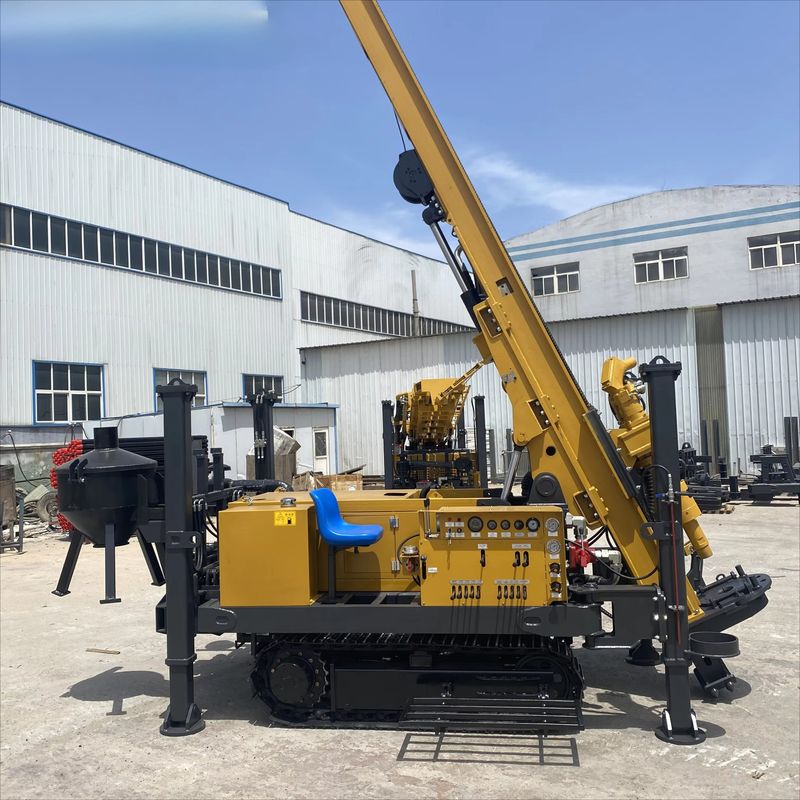

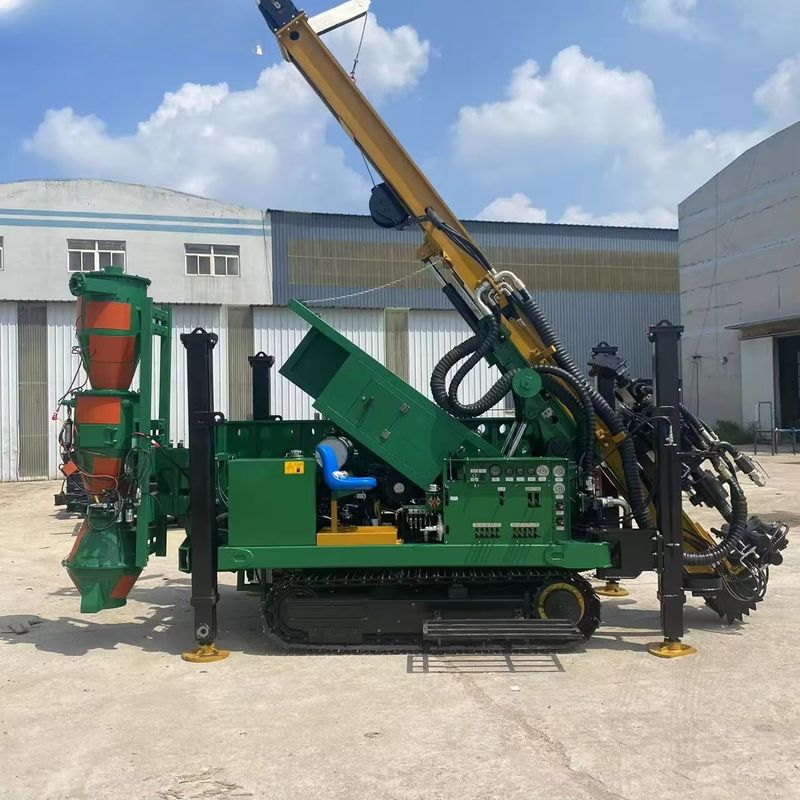

Hydraulic Crawler 400m Max Drilling Depth Mounted Mineral Exploration Mining Industry RC Drill Rig

$65,229.71

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Please Note :

1. The price is for reference only. The specific cost depends on your requirements and the destination port. Please contact us for more product details and quotations

2. We will ship you by sea!!!

3. If you have any questions or interests, please feel free to contact us for a free quote. We look forward to working with you
4.Door to door please leave message or whatsapp or email for price !!!

Jane(SalesManager)
Whatsapp/Wechat/Mobile :+86 13837137368
Email:
yugongmachinery12@foxmail.com

Product Name
200 Reverse circulation drilling rig
Max dr illing depth
200m
Max dr illing diameter
Φ300mm
Engine brand
yunnei
Rated power
85kw
Lifting force
10t
Speed of fast lifting
30m/min
Feeding force
5.5T
Speed of fast putting down
60m/min
Max feeding stroke
3600mm
Rotary torque
6000/3000Nm
Rotary speed
70/140r/m in
Travel speed
2.5Km/h
Grade ability
21°
Lifting force
1.5T
Dr illing rods diameter
89/102mm
Length x Width x Height
5420x1800x2400
Machine weight
5.5T

Main Advantages:
The drilling rig is compact, structurally sound, and has small transport dimensions. Its aesthetically pleasing design offers
superior cost-effectiveness compared to other brands. Only through focus can one achieve professionalism and long-term success.
1. High Structural Strength: Utilizing high-grade plates and profiles, and featuring a specially designed swivel base for the outriggers, ensuring overall stability.
2. Superior Outrigger Performance: Employing cold-drawn seamless tubing with a reasonable
gap between the inner and outer tubes; a top cover plate + pin structure prevents mud and sand ingress; universal feet adapt to complex terrain and facilitate maintenance.
3. Precise Slide Fit: An integrated inner slide with a conical compensation structure and wear-resistant plate design ensures smooth extension and retraction, minimal sway, and low wear.

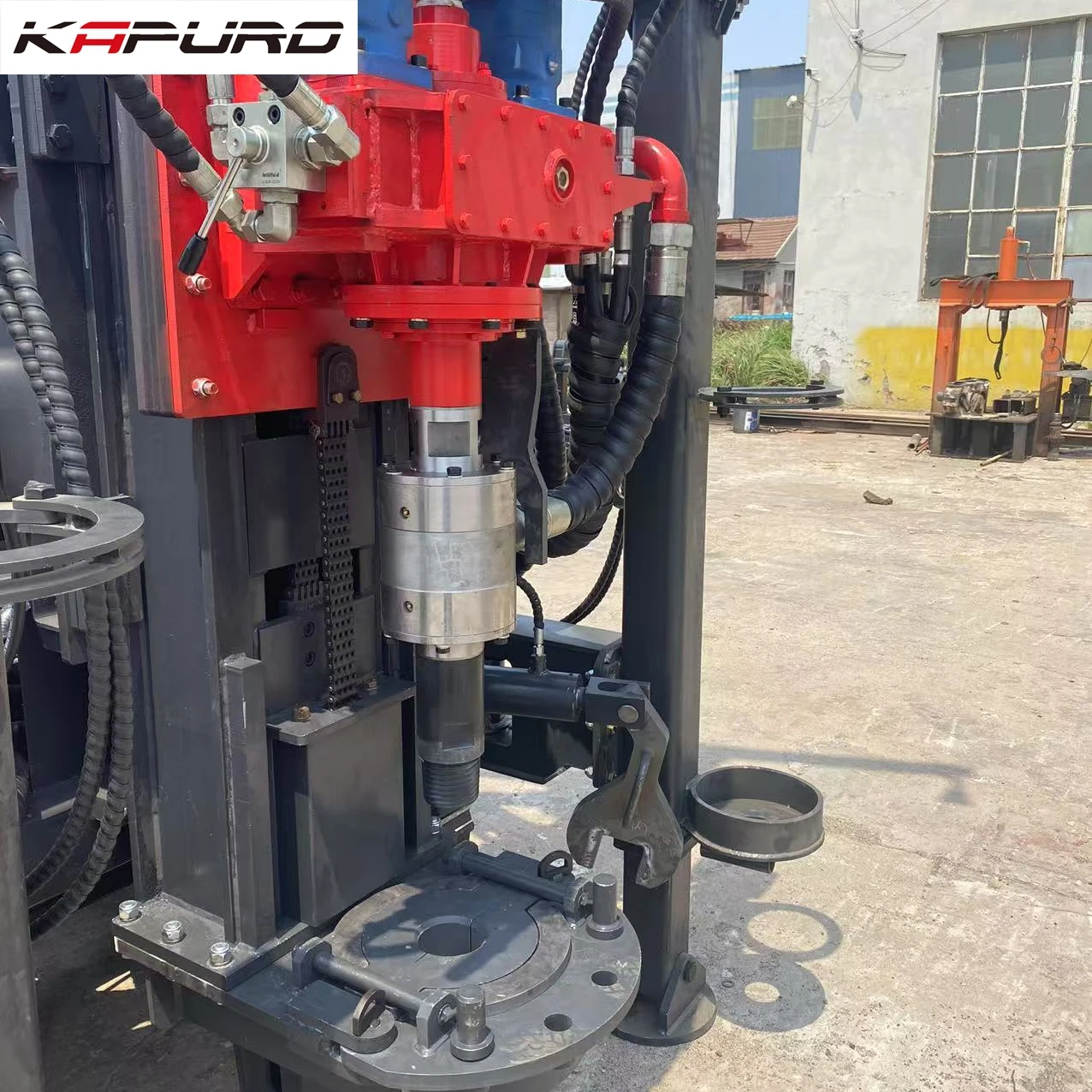

4. High Power Head Precision: The housing is machined in a horizontal machining center, ensuring good concentricity and enhanced strength after quenching.
5. Convenient Maintenance: The engine compartment covers rise and fall with the slide, facilitating the inspection and maintenance of engine components.
6. Comfortable and Safe Operation: The control handle is integrated into the control panel, with clear markings, a wide field of vision, and smooth operation.
7. Reliable Hydraulic System: The pipeline layout is optimized, using high-quality connectors and protective sleeves to prevent oil leaks and cracking, and ensuring wear resistance.
8. Low Maintenance Costs: Sprockets are equipped with bearings and oil seals, reducing maintenance needs.


9. Excellent Heat Dissipation: A large radiator ensures stable oil and water temperatures. 10. Optimized Oil Filtration: The
hydraulic oil tank has a built-in oil suction device, improving filtration efficiency.
11. Durable and Aesthetically Pleasing
Coating: Structural components undergo sandblasting/shot blasting treatment, enhancing paint adhesion and overall appearance.
