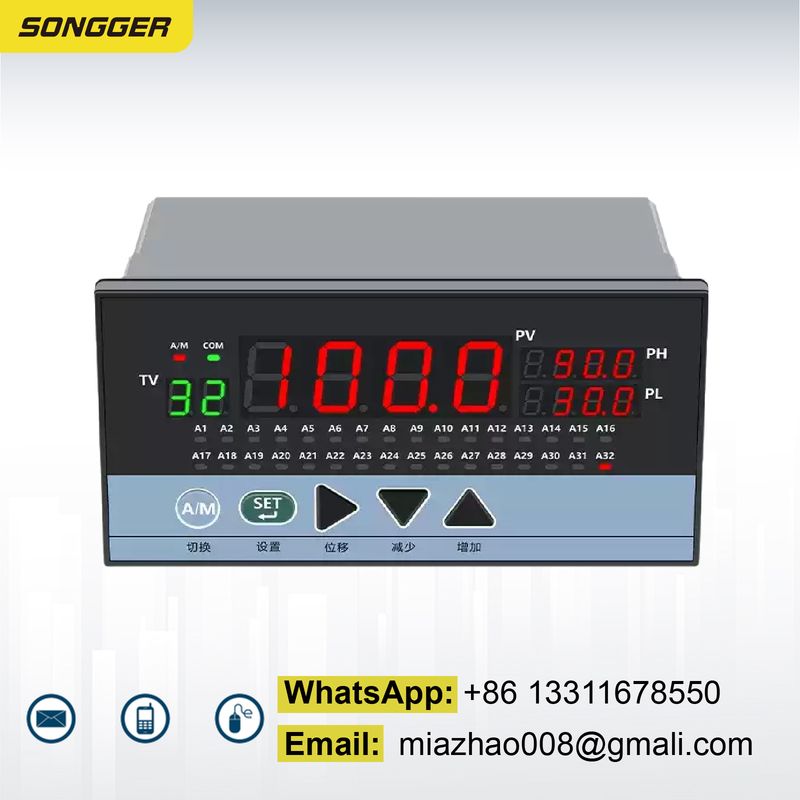

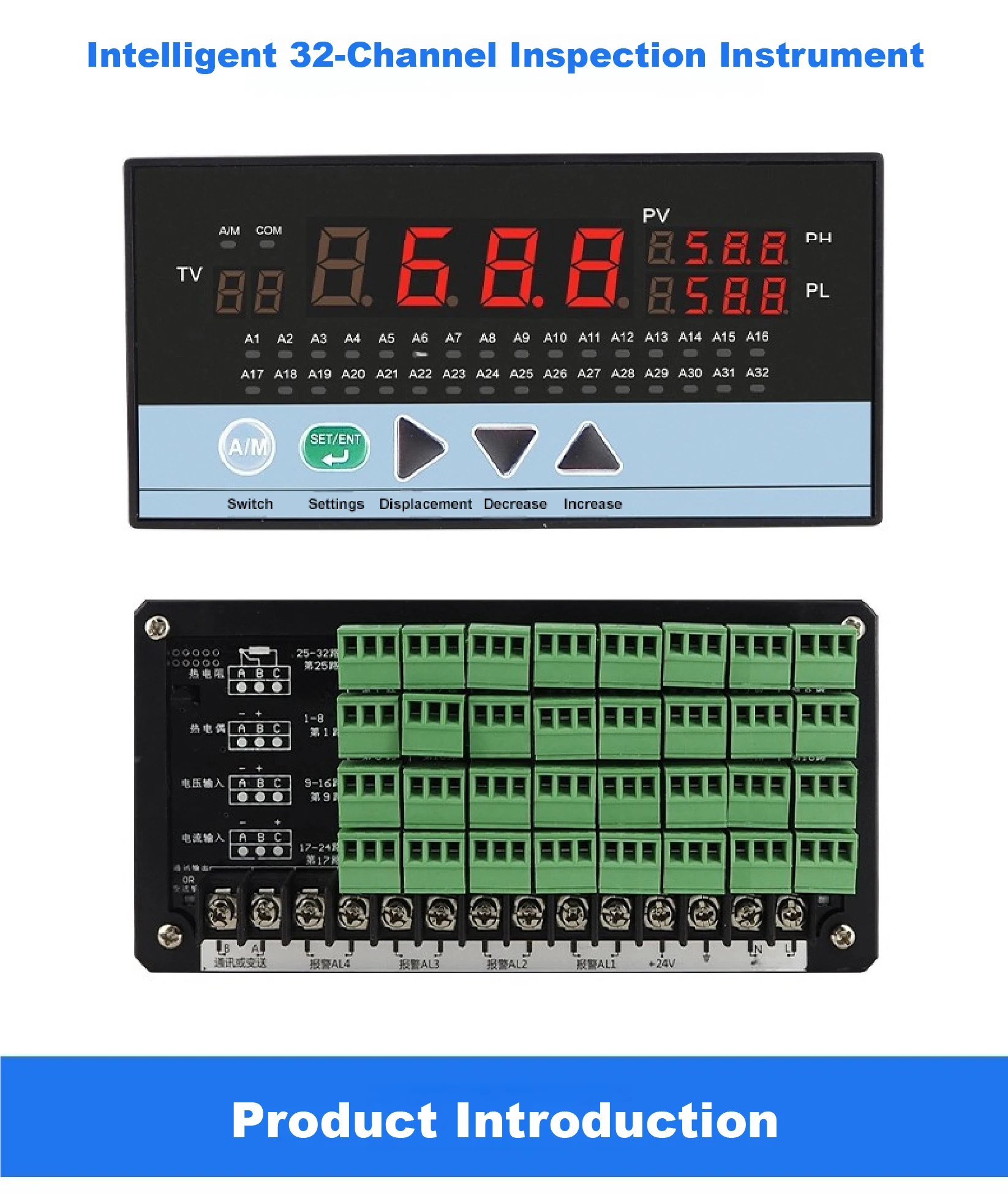

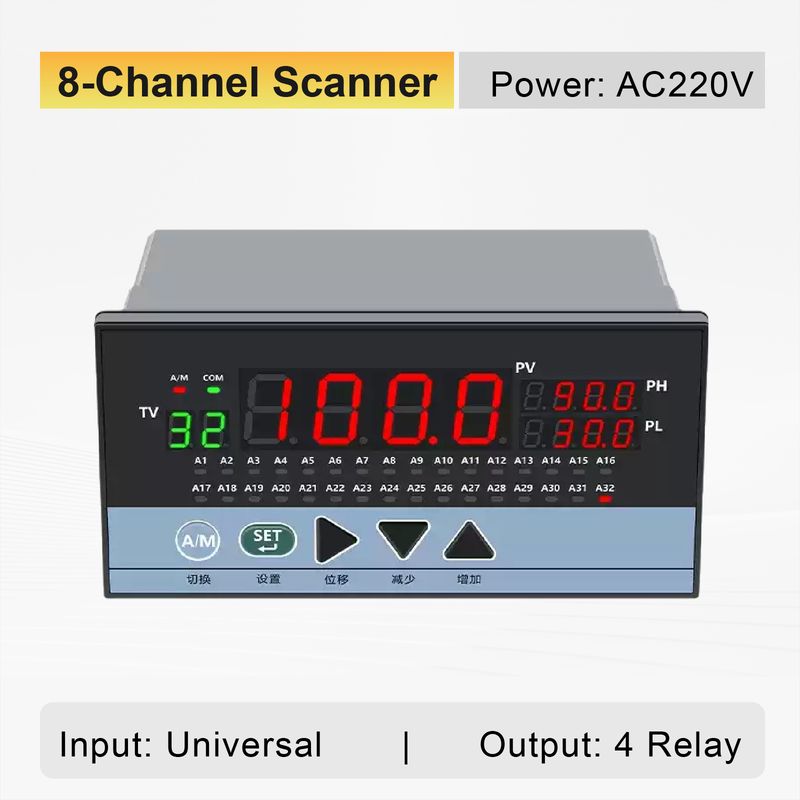

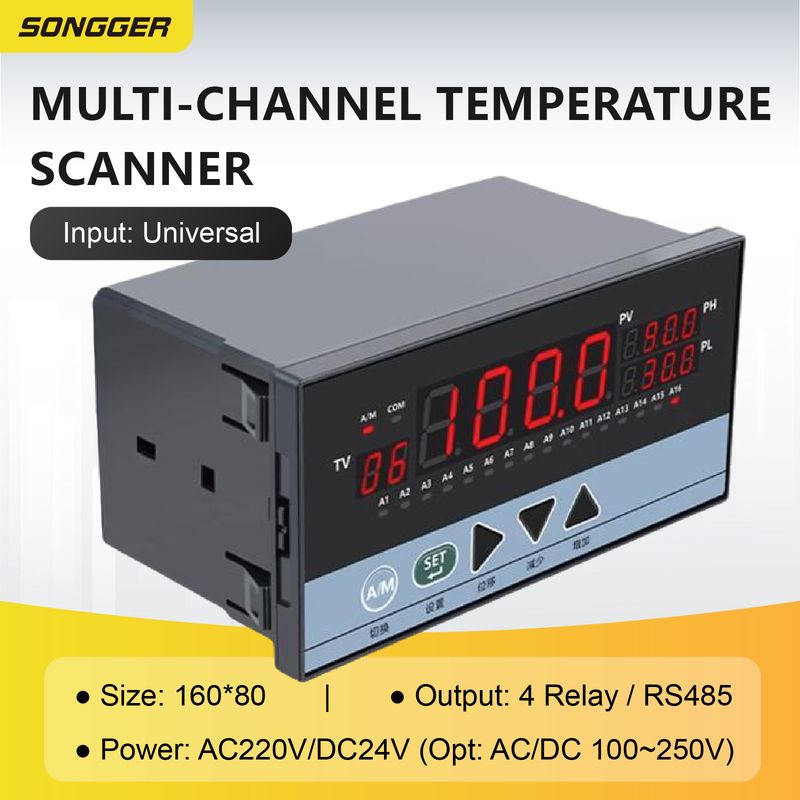

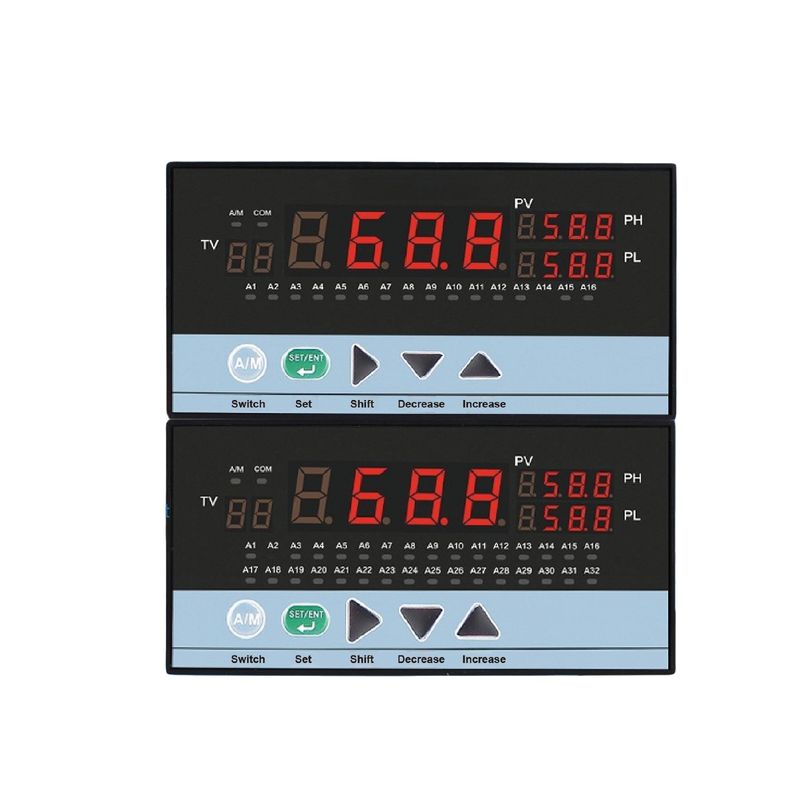

Industrial Multi-channel Temperature Scanner Thermocouple RTD Input 8 16 24 32CH RS485 Modbus Panel Controller AC220V DC24V

$232.96

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description


Note: Default Configuration
Power Supply: AC220V or DC24V
Signal Output: Four relay outputs, RS485
Display Range: -1999 to 9999
Communication Protocol: Standard MODBUS
RS485 Communication Distance: Up to 1 km
Accuracy: ±0.5% FS ±1 digit
Structure: Standard card-in design

Customizable Options
Power Supply: AC/DC 100~250V (switching power)
Output Signal: AC220V/3A or DC24V/3A

For custom configurations, please contact us directly.

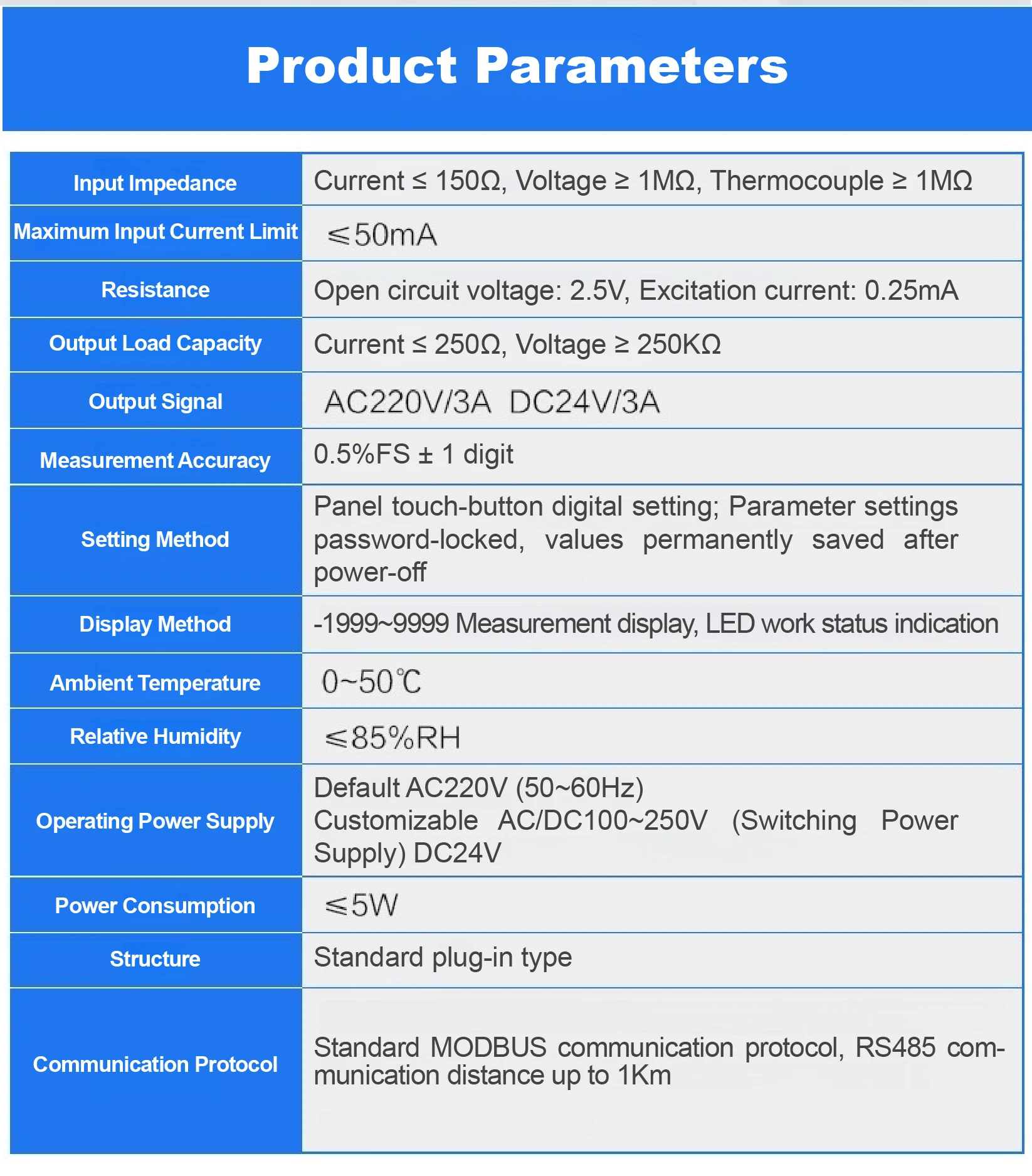

2.Parameters

Parameter

Specification

Input Impedance

Current ≤150Ω, Voltage ≥1MΩ

Maximum Input Current

≤50mA

Open Circuit Voltage

2.5V

Excitation Current

0.25mA

Output Load Capacity

Current ≤250Ω, Voltage ≥250KΩ

Output Signal

AC220V/3A, DC24V/3A

Measurement Accuracy

0.5%FS±1 digit

Setting Method

Digital panel touch buttons

Display Method

-1999~9999 LED Display

Operating Temperature

0~50℃

Relative Humidity

≤85%RH

Power Supply

AC220V (50-60Hz), Customizable

Power Consumption

≤5W

Structure

Standard snap-in design

Communication Protocol

MODBUS, RS485 (up to 1 km)


Features

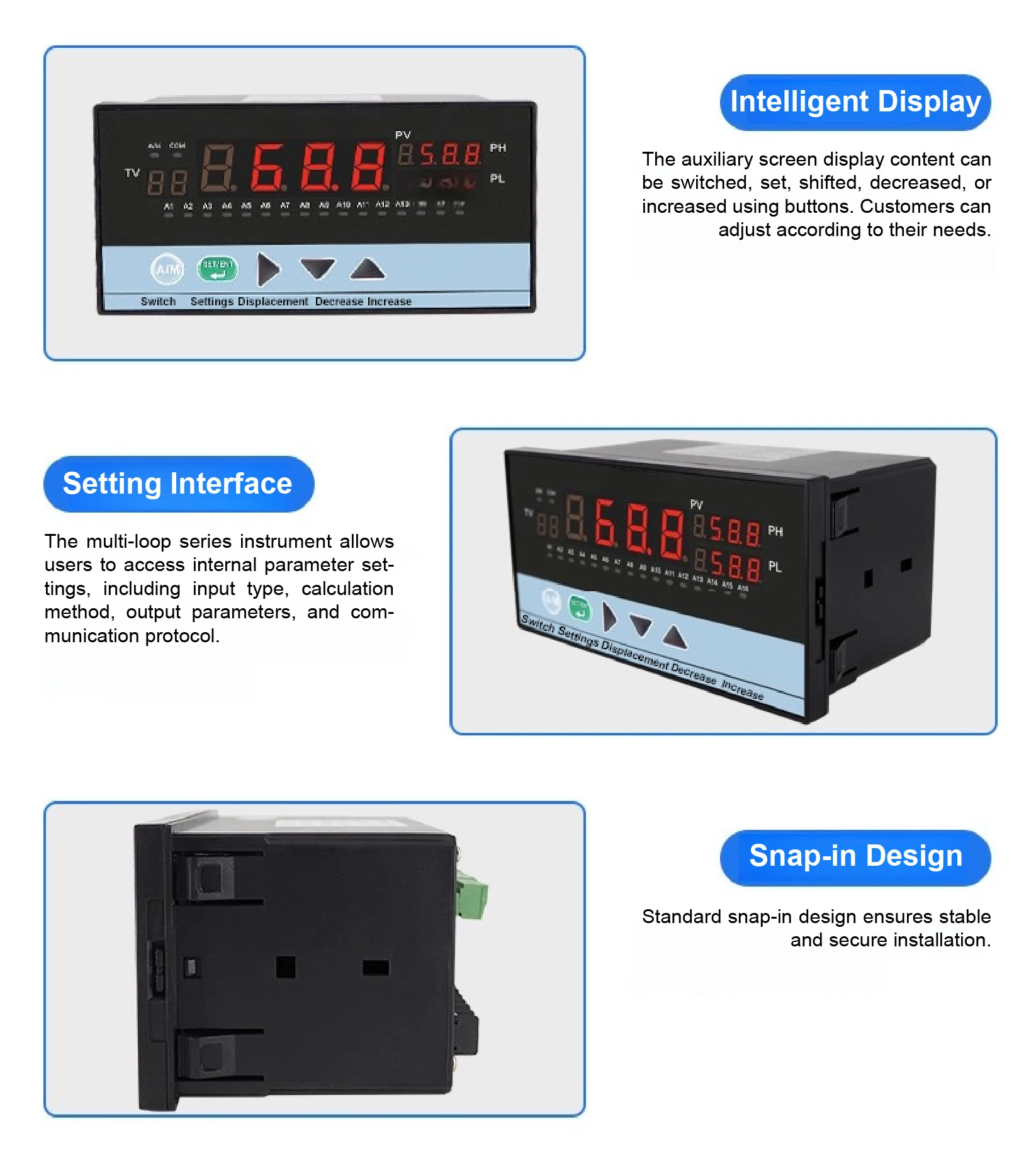

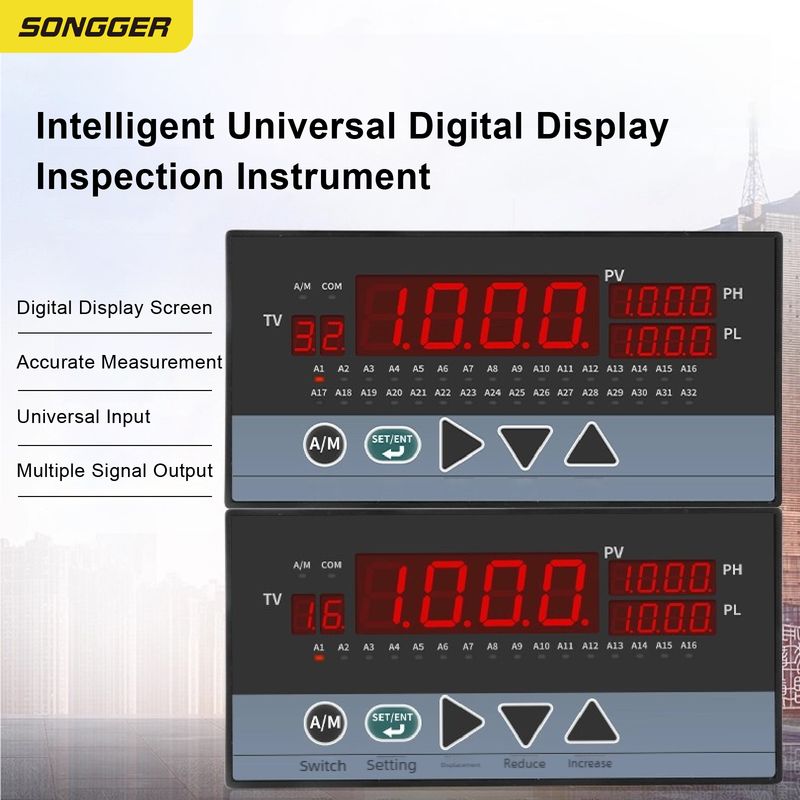

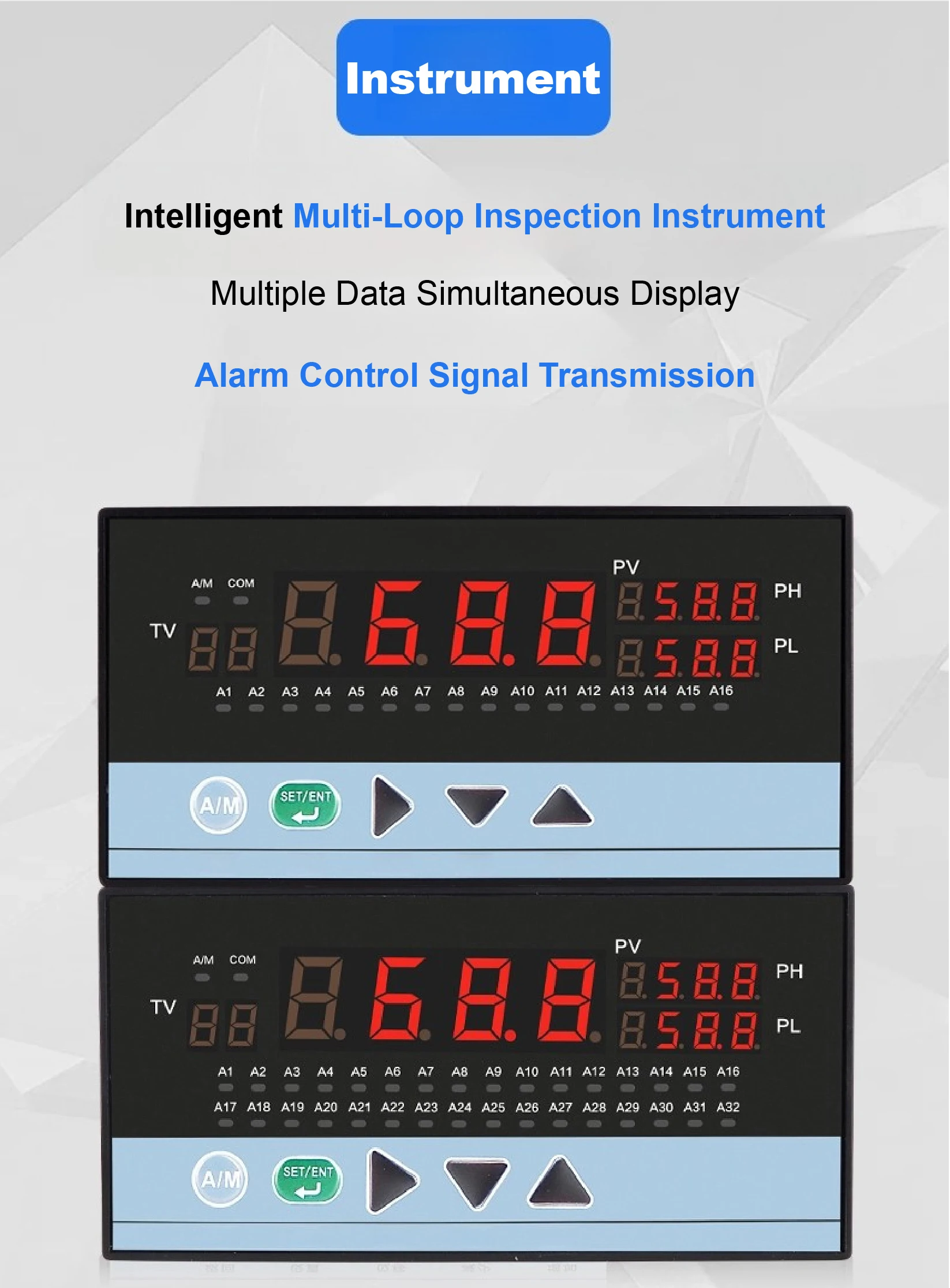

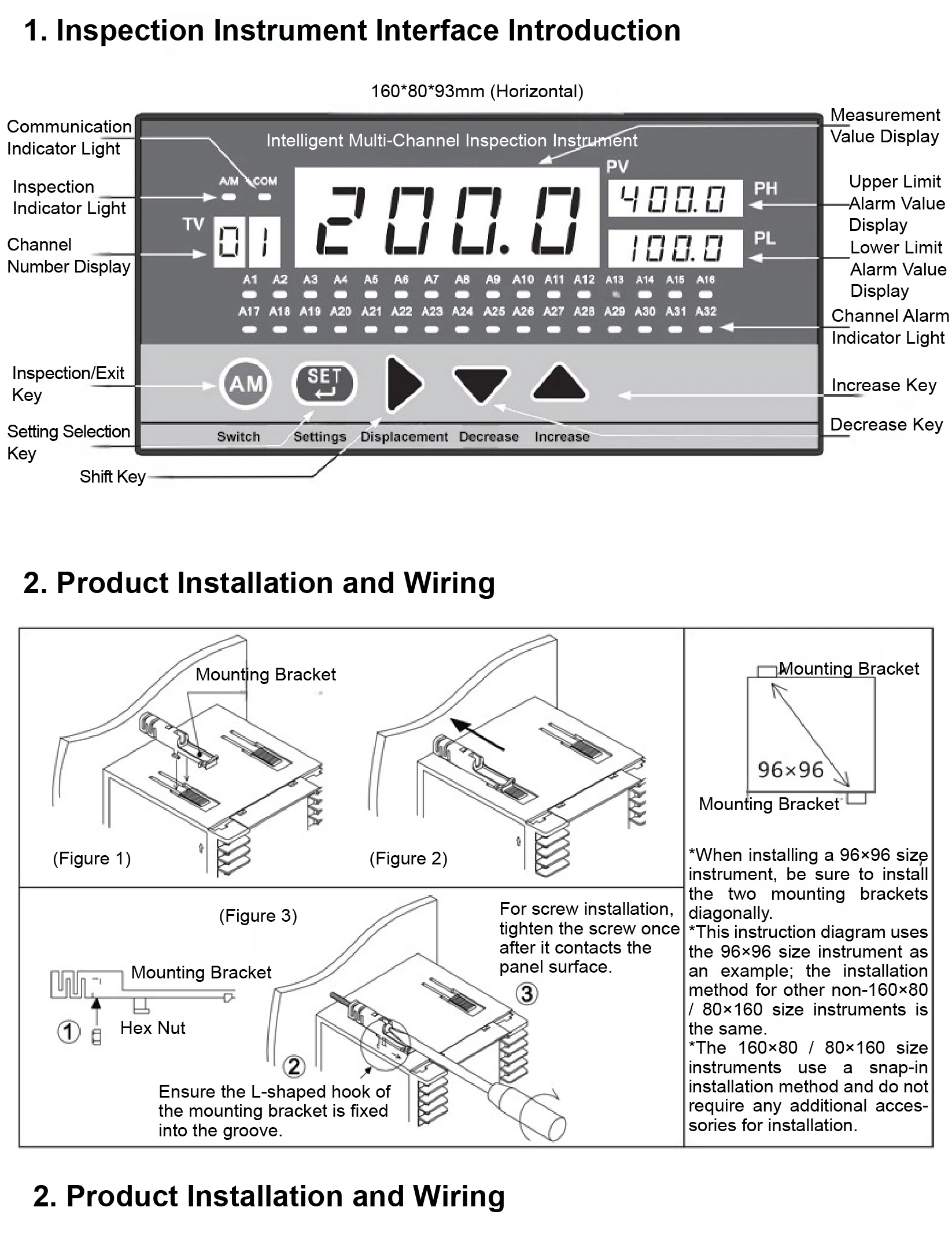

Intelligent Display
Multi-screen display with adjustable options. Users can effortlessly switch between settings, displacement, increase, and decrease modes.

Customizable Settings Interface
Multi-loop instruments come with built-in parameter configuration. Users can define input types, calculation methods, output parameters, and communication protocols as needed.

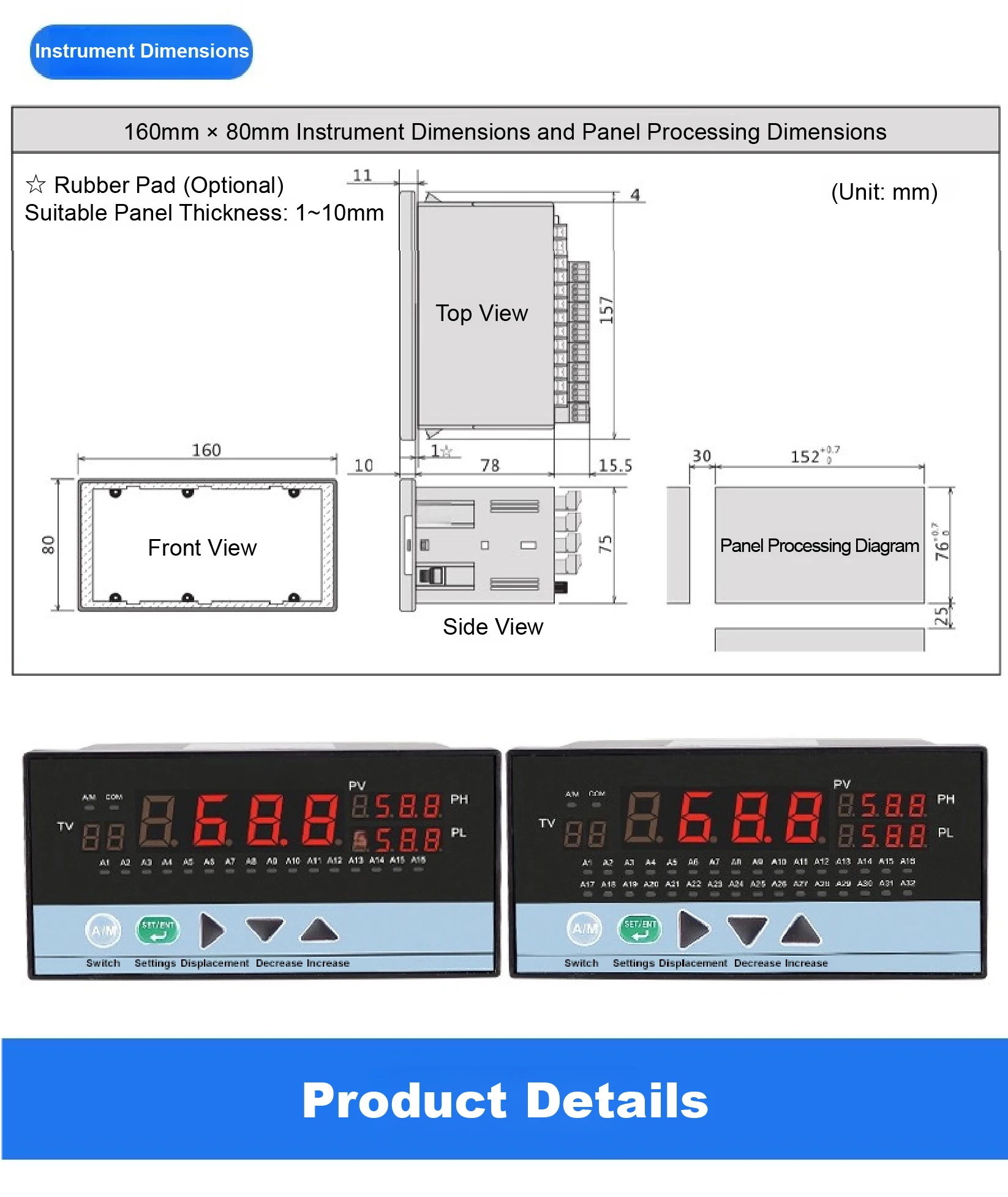

Snap-In Design
Standard snap-in structure ensures secure installation and easy setup.

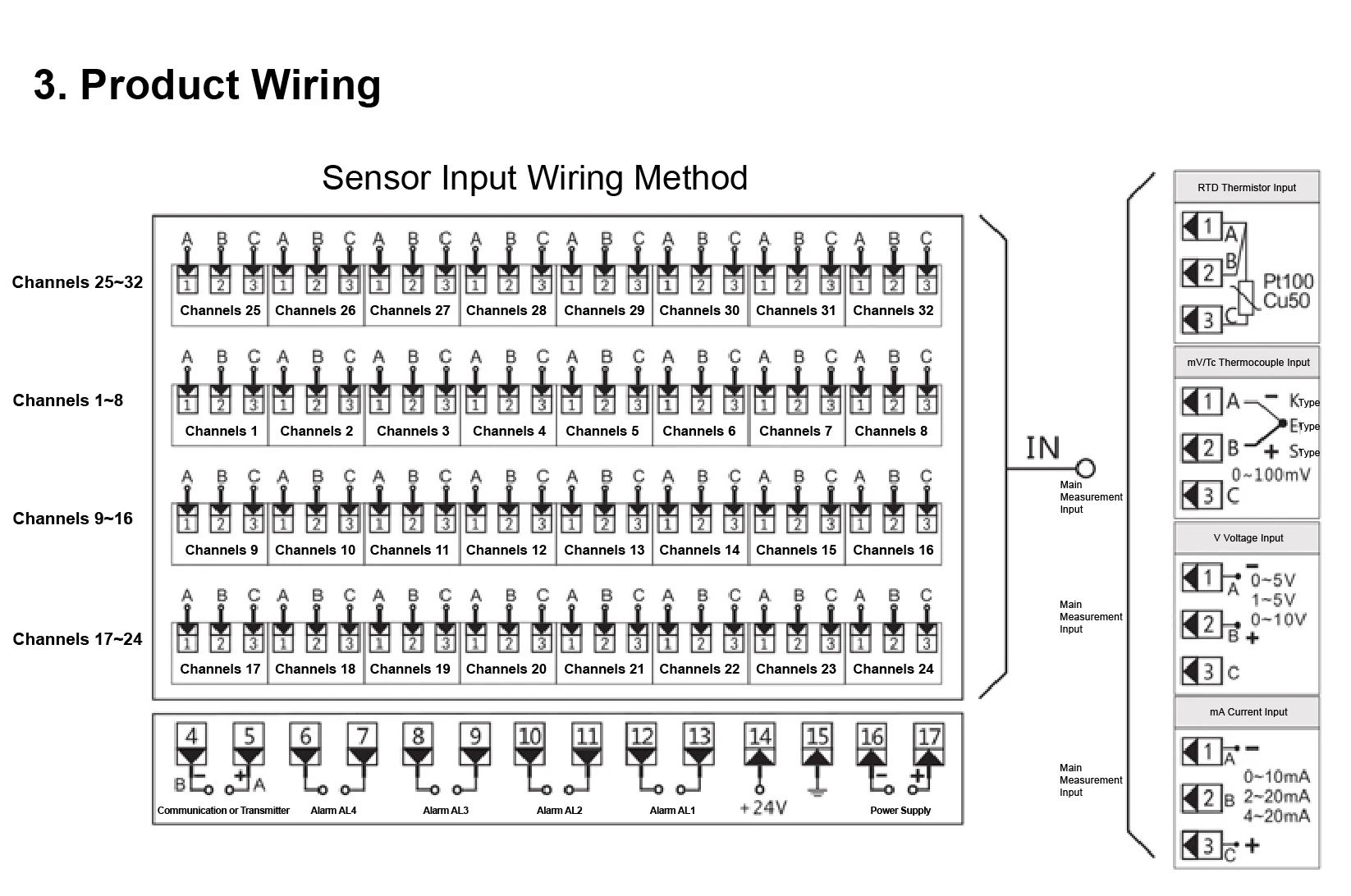

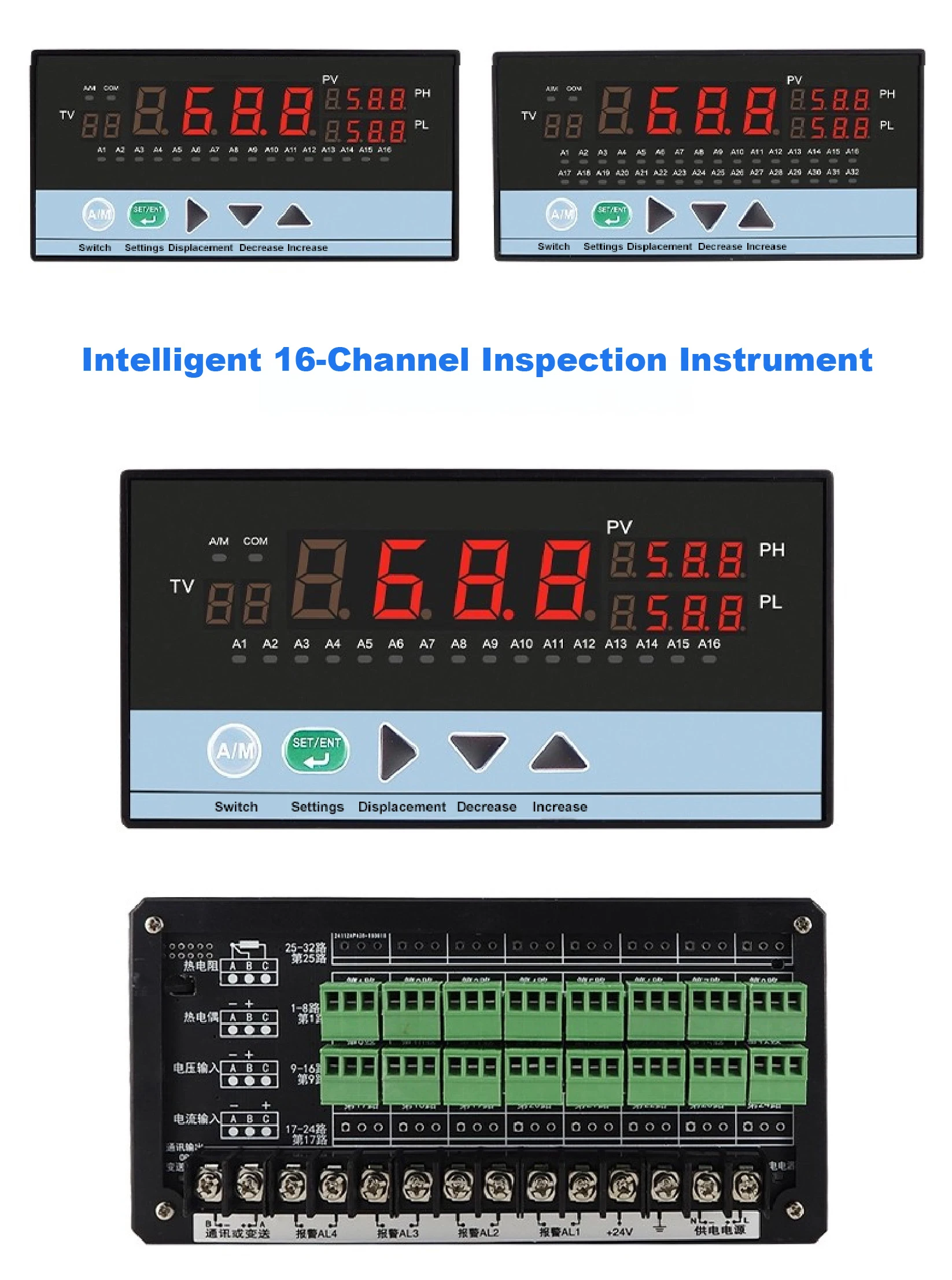

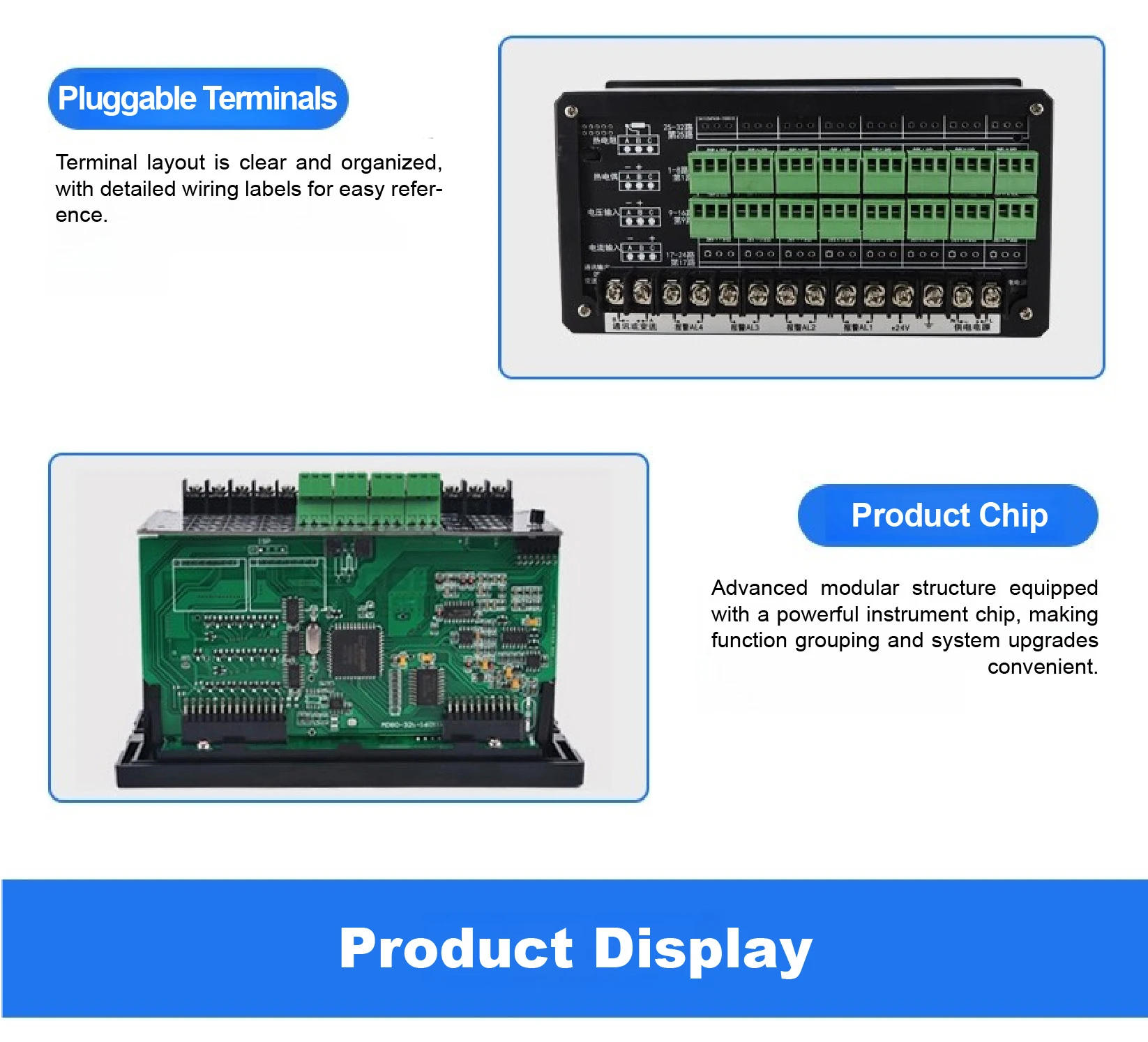

Plug-In Terminals

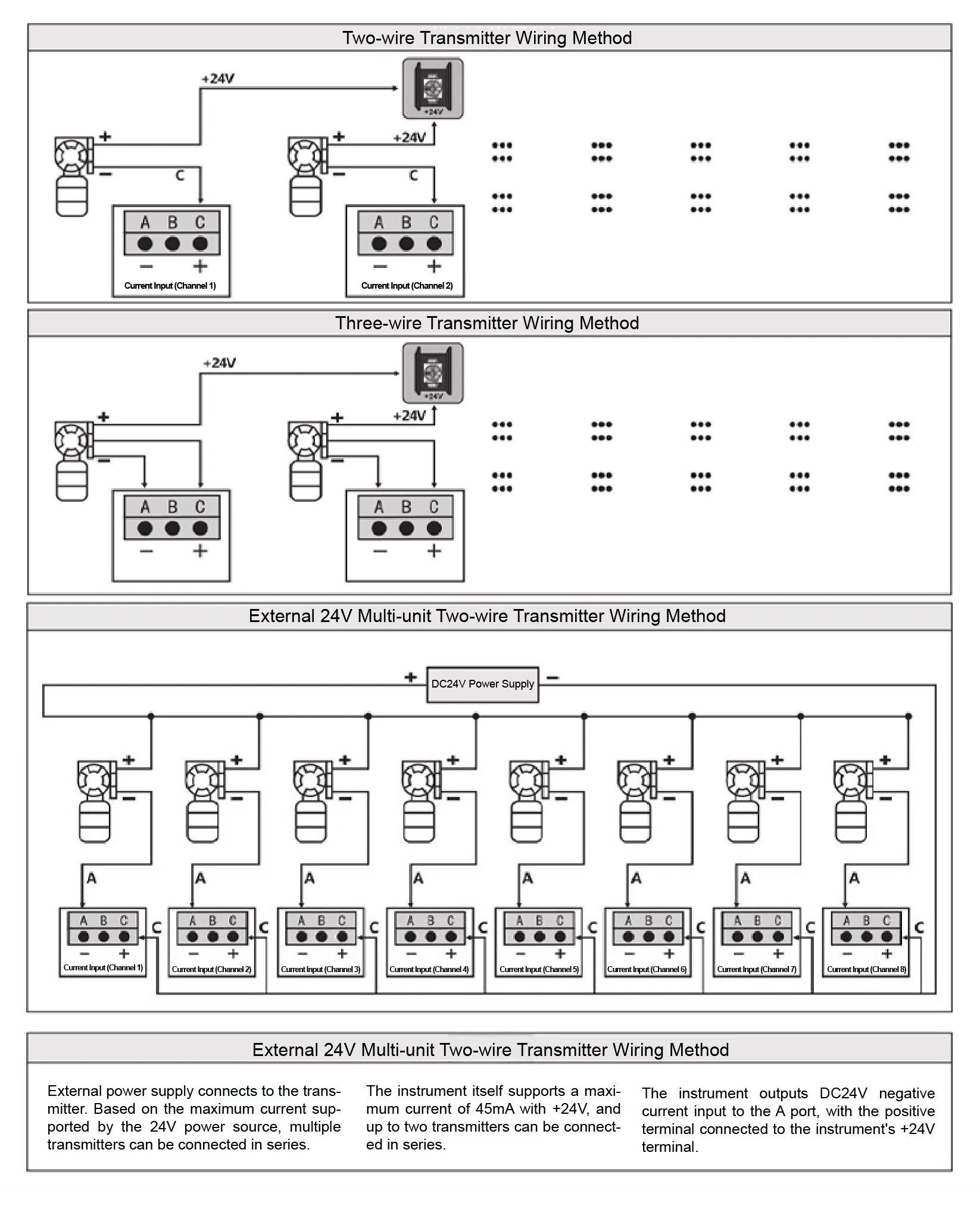

Clearly marked terminals with detailed wiring instructions for straightforward and accurate connections.

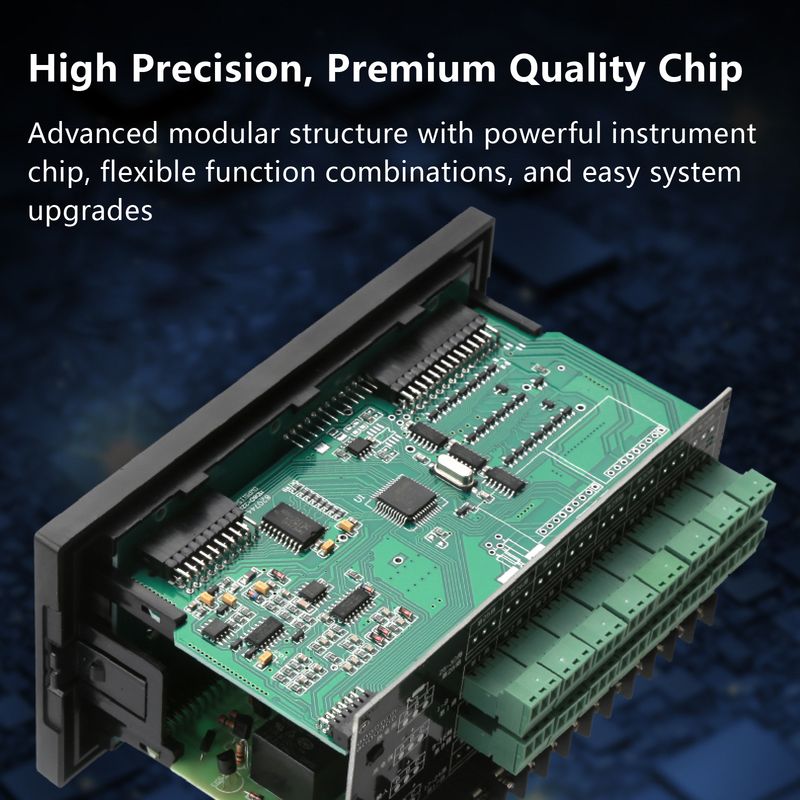

Advanced Chipset
Modular design integrated with high-performance chips. Supports easy system upgrades and future function expansion.


Applications

Industrial temperature monitoring and control

Multi-point inspection in manufacturing processes

Environmental temperature tracking in storage and warehousing facilities


FAQs

Can this instrument be customized for different power supplies?
Yes. Although AC220V is the default, it can be customized to support AC/DC 100~250V or DC24V.

What is the maximum communication distance for RS485?
The RS485 interface supports communication distances of up to 1 km when using the standard MODBUS protocol.

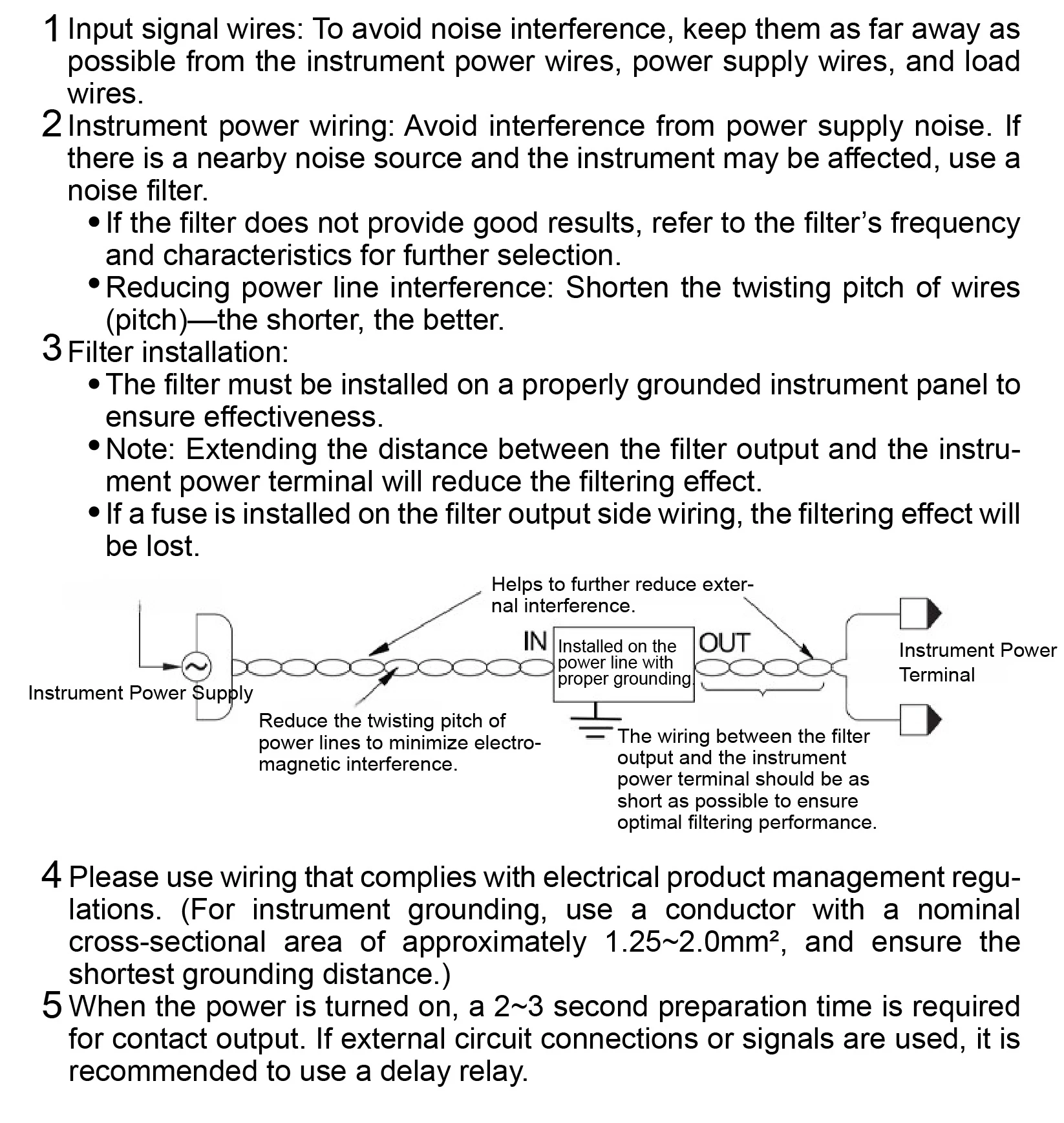

How can I minimize interference during wiring?
To minimize interference, keep input signal lines away from power lines and use noise filters if needed.
