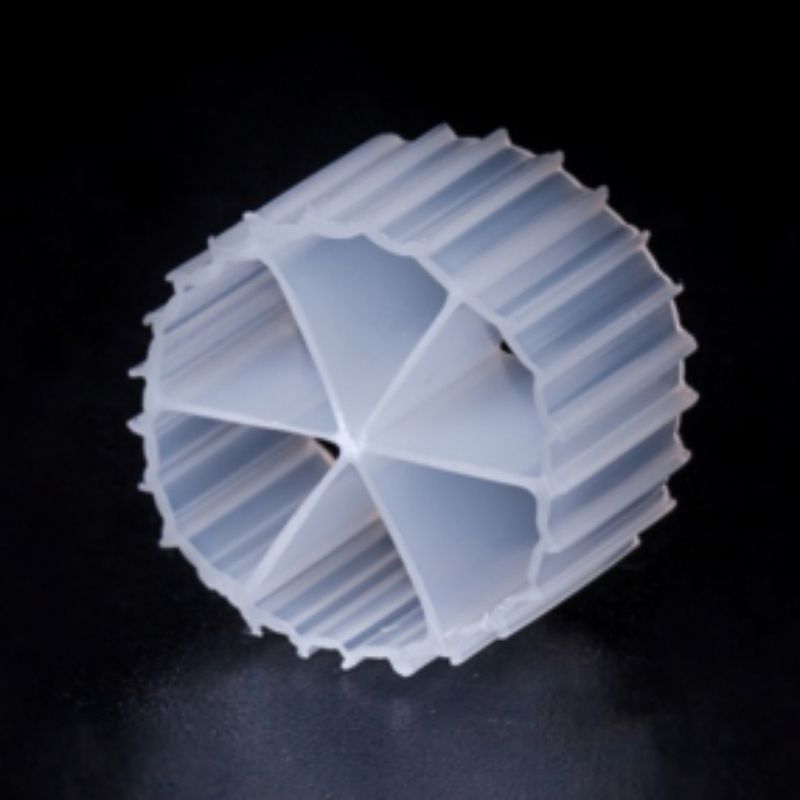

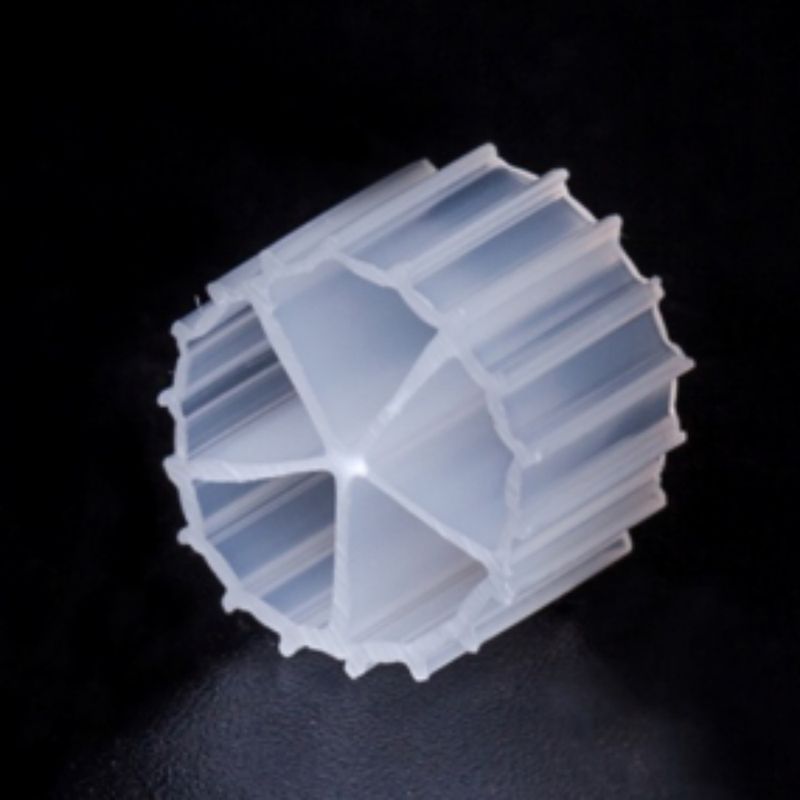

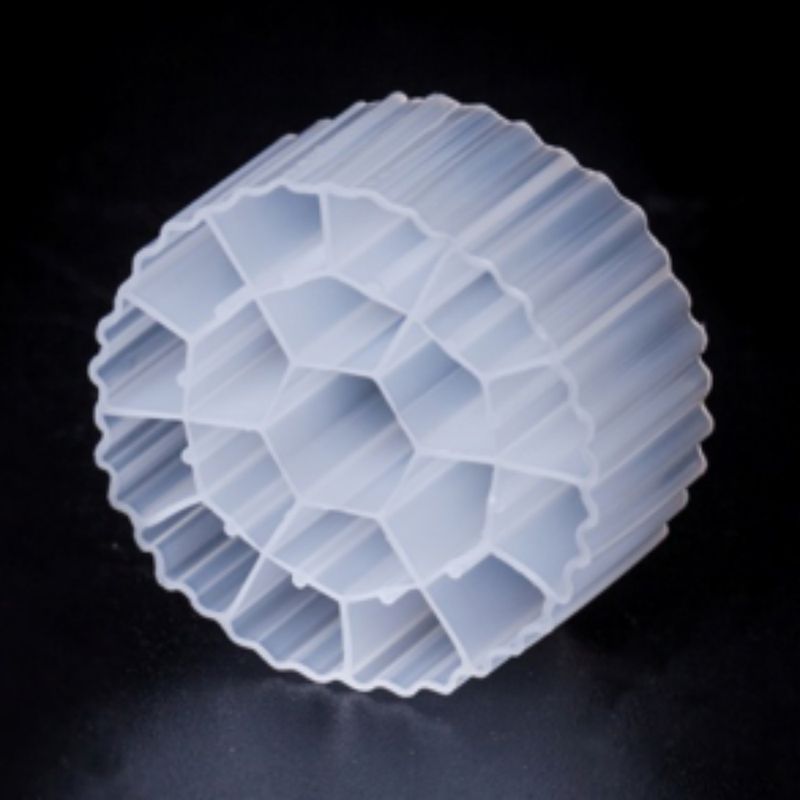

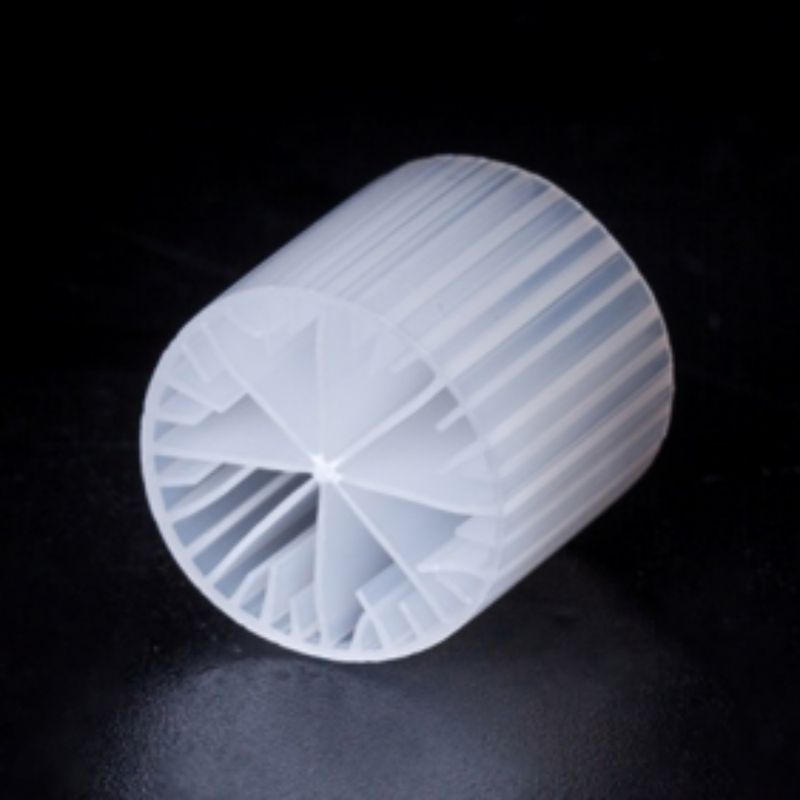

Changier Virgin HDPE MBBR Filter Media
MBBR Technology and Biofilm Carries

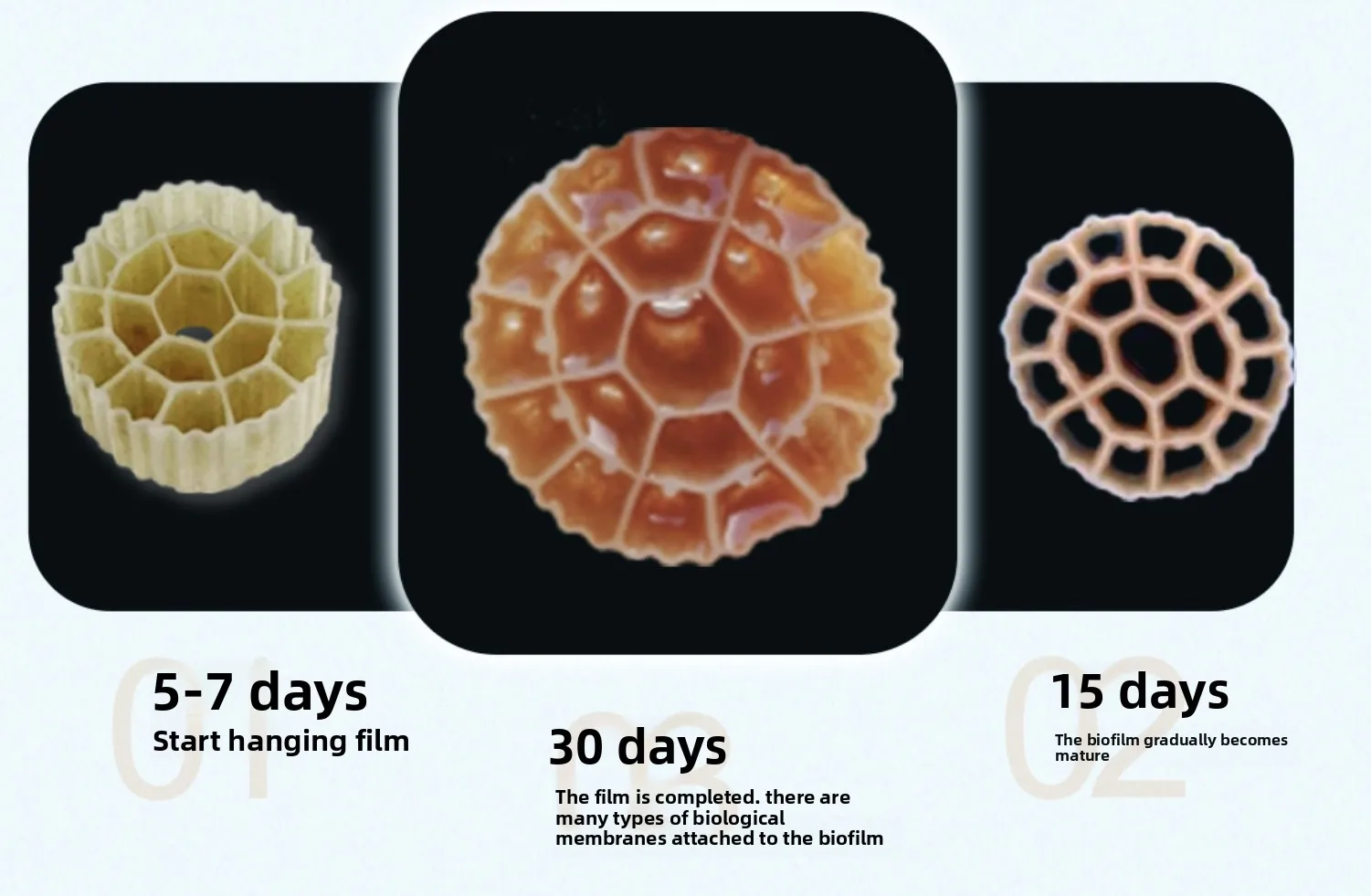

MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following applications:
+ For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal
+ As a high loading system in front of existing biological treatment - roughing reactor
+ To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits
+ To implement post-treatment to existing plants for process improvements
MBBR Technology
Technical Details

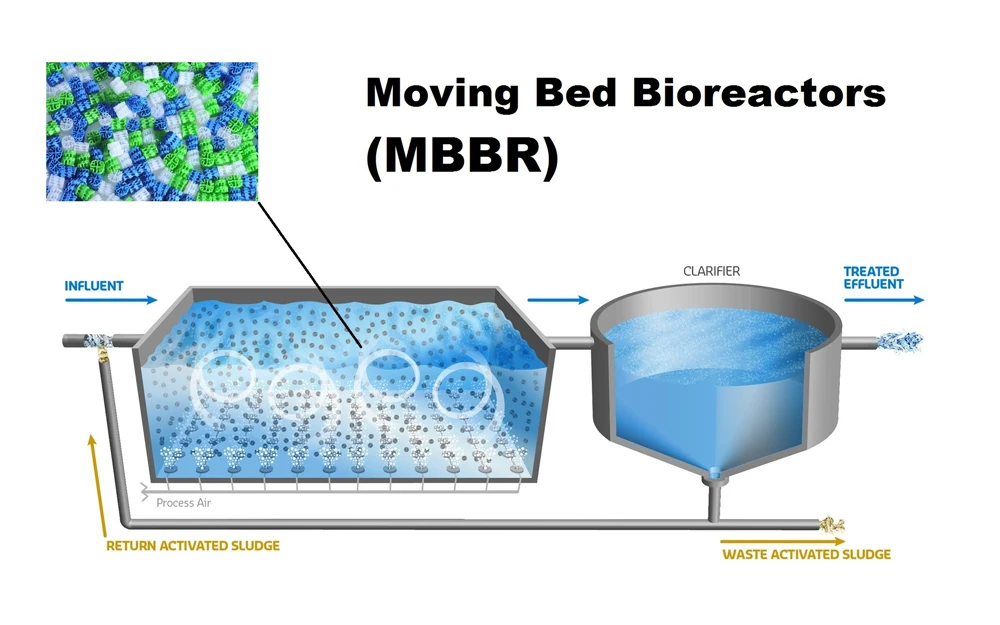

The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below

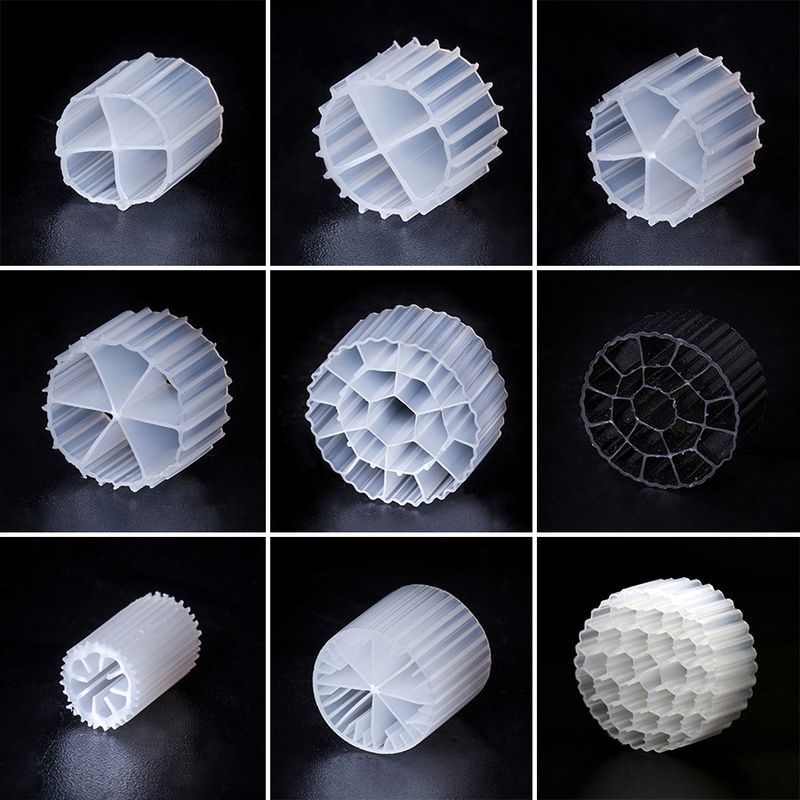

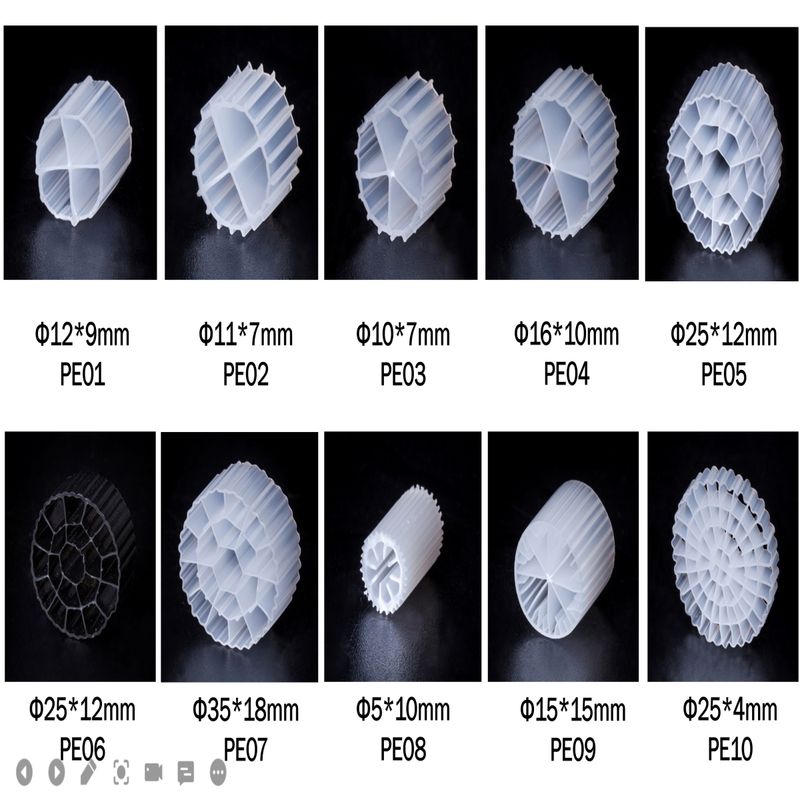

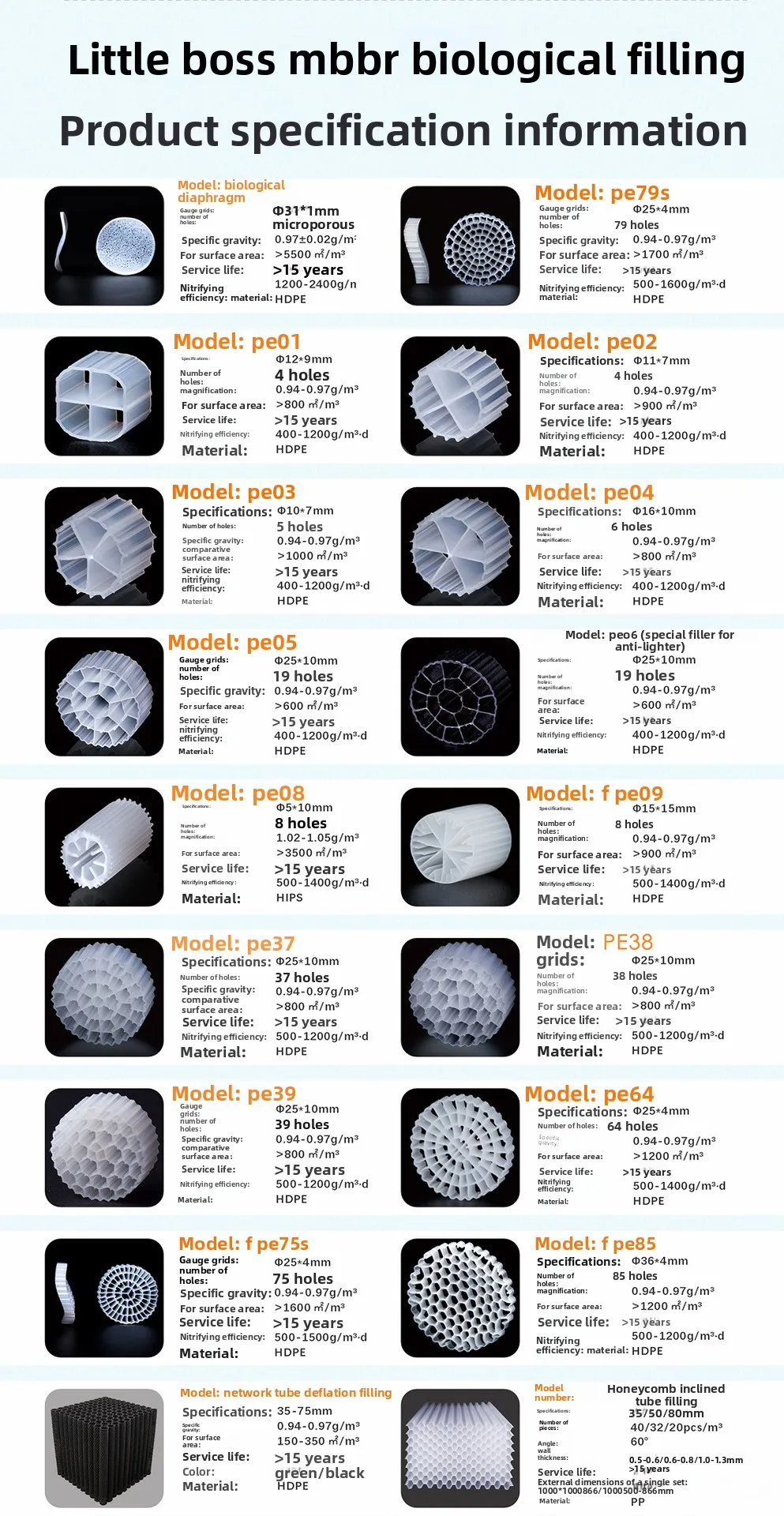

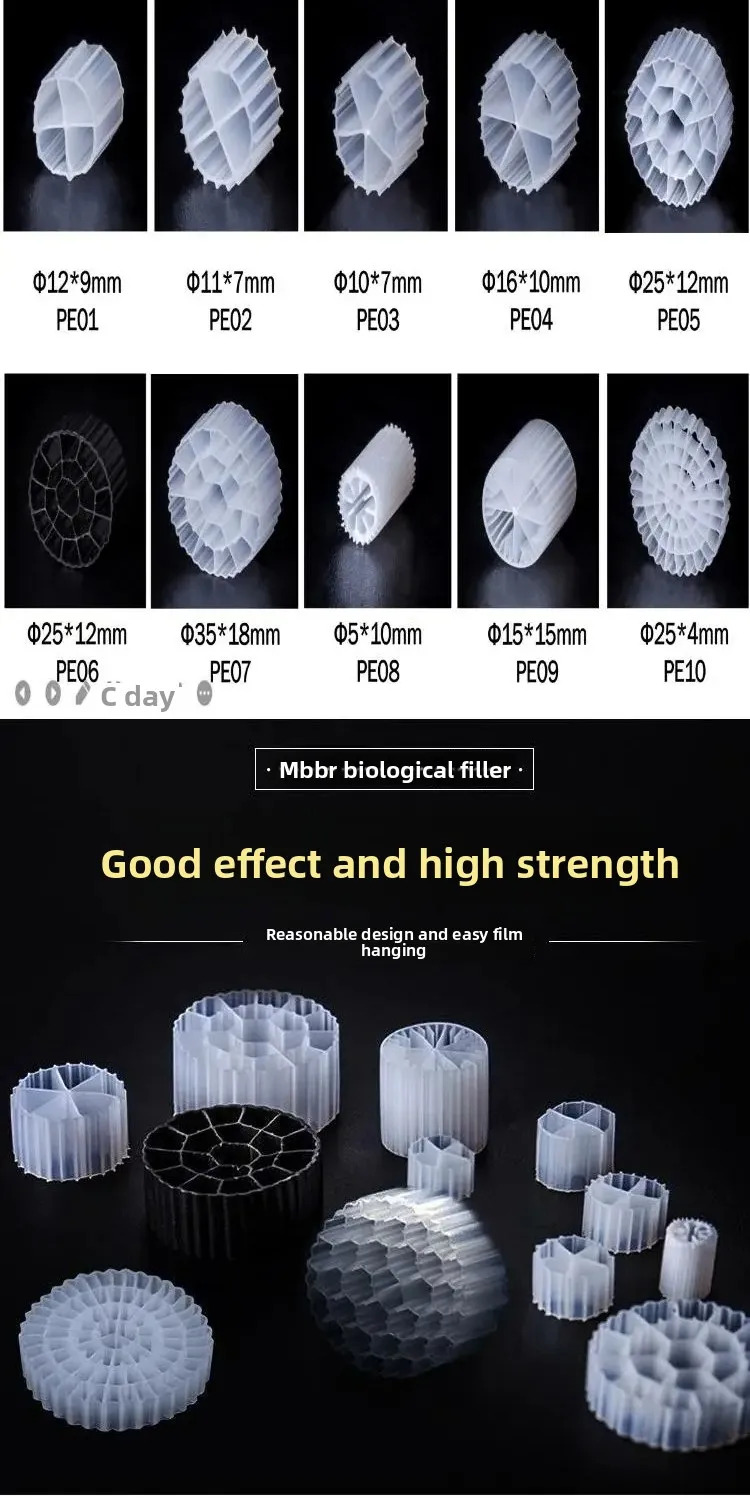

Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration | Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |

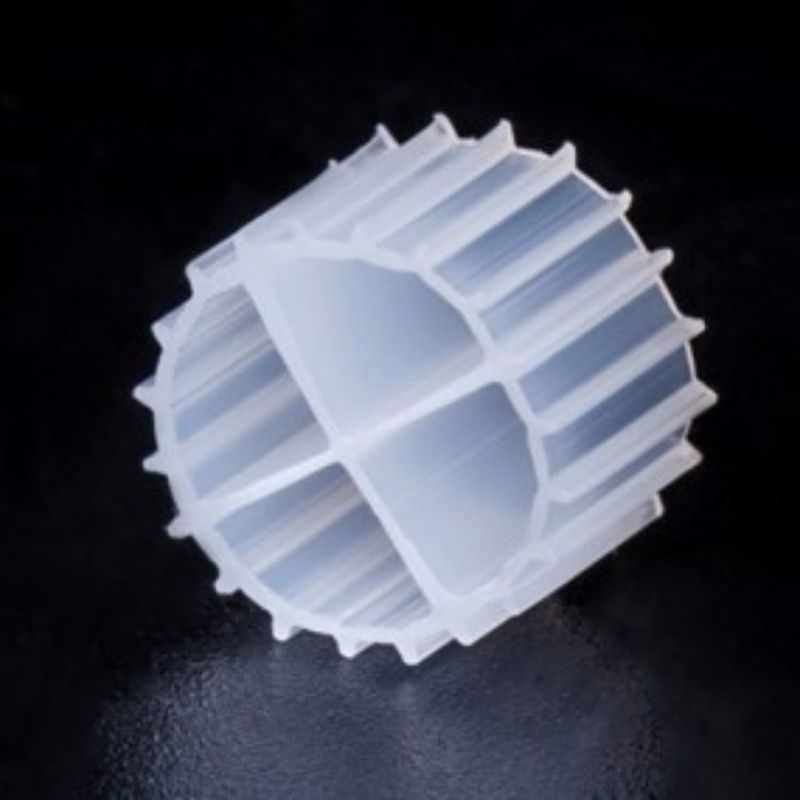

PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |

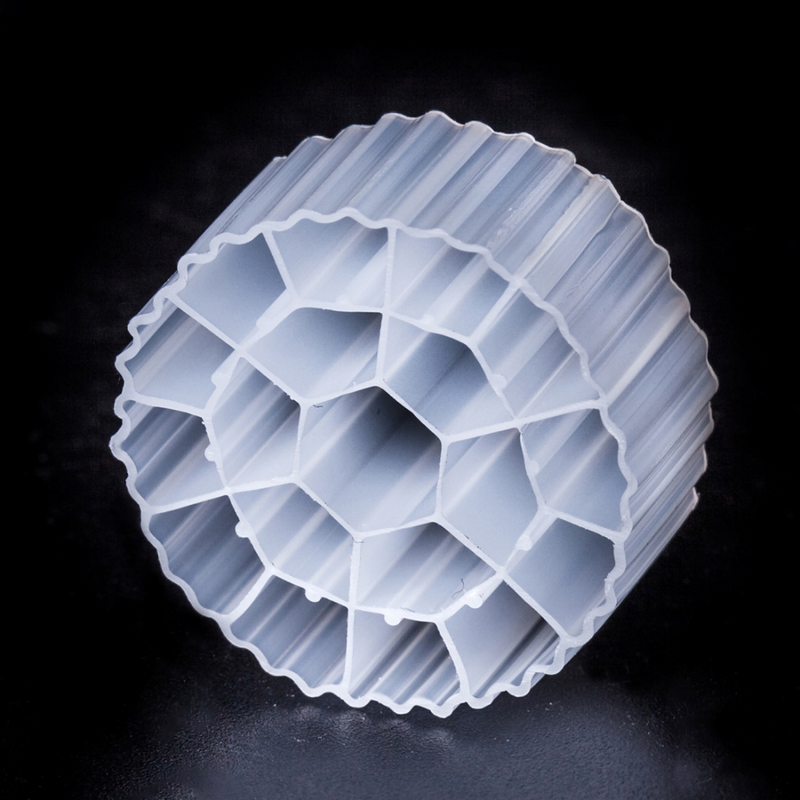

PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |

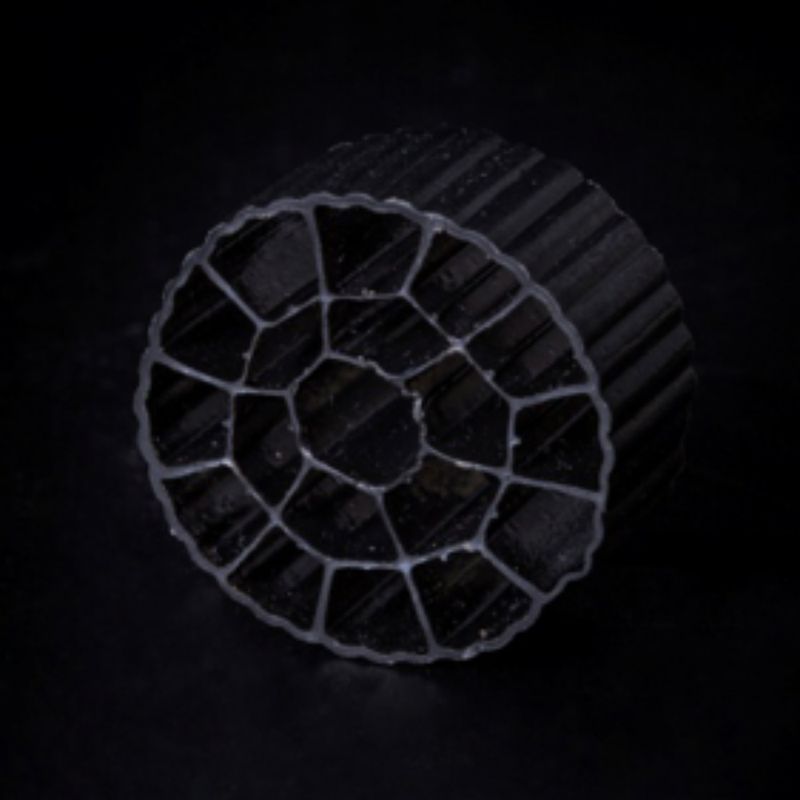

PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
1. Industry Leadership
With over two decades of experience, we have positioned ourselves as a leader in the biofilm media market. Our extensive expertise allows us to deliver innovative solutions tailored to meet the evolving needs of our clients.
2. Superior Quality Products
We are committed to providing high-quality biofilm media that meet rigorous industry standards. Our products are designed for optimal performance, ensuring efficient pollutant removal and superior water quality.
3. Customized Solutions
We understand that each client has unique requirements. Our team of experts works closely with you to develop customized solutions that align with your specific operational goals and environmental standards.
4. Sustainable Practices
Sustainability is at the core of our operations. We prioritize eco-friendly materials and processes, contributing to a greener future while helping our clients achieve their environmental objectives.
5. Advanced Technology
By leveraging cutting-edge technology and research, we continuously enhance our product offerings. Our innovative approach ensures that we stay ahead of industry trends and provide state-of-the-art solutions.
6. Dedicated Support
Our commitment to customer satisfaction extends beyond product delivery. We offer comprehensive support, including technical assistance and training, to ensure that you maximize the benefits of our solutions.
7. Global Reach
Our services extend beyond China, with a growing presence in international markets. We are equipped to support clients worldwide, providing reliable and effective solutions for diverse applications.
