Includes all taxes


Please note order optional
Option1 ATOM Echo
Option2 Atomic Echo Base
Option3 ASR Unit
Option4Atom EchoS3R

M5Stack ATOM Echo Programmable Smart Speaker ESP32 Development Board
Light and small
Support STT services
Based on ESP32, Support A2DP
2.4G Wi-Fi IEEE 802.11b/g/n
Built-in microphone and speaker
RGB LED status display indication
GROVE extension interface
Record and playback
Programmable key
Programming platform: Arduino, ESP-IDF/ADF
BT Speaker
Voice control
IoT
Resources Parameter
SoC: ESP32-PICO-D4,240MHz,Dual Core,Wi-Fi
Flash: 4MB
Interface: 1x IR-TX,1x Function Button,1x Reset Button
PinOut: G21/G25/5V/GND, 3V3/G22/G19/G23/G33
RGB LED: SK6812
Speaker: 0.8W/NS4168 I2S
Microphone: SPM1423 PDM
Net weight: 5g
Gross weight: 10g
Product Size: 24*24*17mm
Package Size: 85*65*17mm
Case Material: Plastic (PC)





Real Photos




Kindly Remind
1, The Factory Test firmware is BT speaker, which uses A2DP protocol to transmit audio data(call reception is not supported). After power on, the red LED will be displayed. When the connection with BT device is established, the LED will turn green. At this time, the sound can be output through atom echo. The LED turns red when disconnected. The firmware is compiled on the esp-idf platform. If senior users need to develop other functions by themselves, they can build the environment according to the official documents of Espressif. See the following links for the source code of factory firmware and bin file, where the BIN file burning address is 0x0000.
2, Echo already supports HomeAssistant! The latest shipped devices with the sticker ESPHome FW Pre-installed for HomeAssistant have pre-burned ESPHome firmware, users can refer to the following link .Detailed tutorial reference Tutorials for setting up the M5Stack Atom Echo as a voice assistant for Home Assistant.
For those who are not using Home Assistant, you can flash the device with EasyLoader firmware, to resume the device to Factory Test status.
3, G19 / G22 / G23 / G33 has been defined, please do not reuse the above pins, otherwise ATOM ECHO will be damaged.
Note: please avoid such conditions with M5Stack Atom Echo.
DC output from I2S channel
Playing white noise for a long time
Playing full square-wave audio
EasyLoader
Tutorials for setting up the M5Stack Atom Echo as a voice assistant for Home Assistant


PinMap

Compatible with the M5 Atom series
Voice recognition
Mono audio codec
MEMS microphone
Class-D amplifier
Speaker
Development platform
UIFlow 1.0
UIFlow 2.0
Arduino IDE
AI voice recognition interactive systems
Smart home control

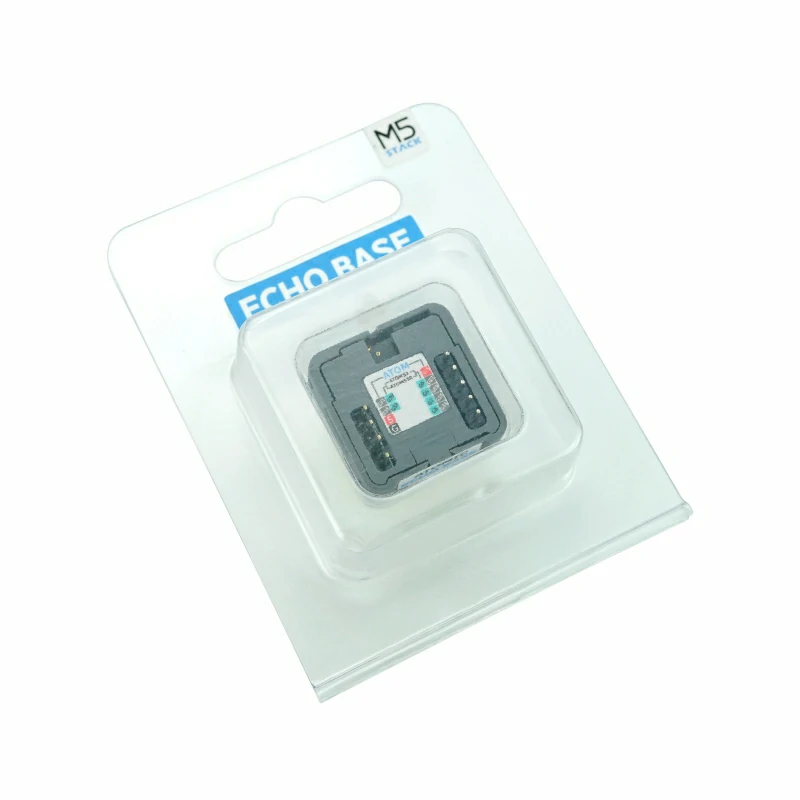

Specification Parameter
Audio Codec: ES8311: 24-bit resolution, I2S protocol
MEMS Microphone: MSM381A3729H9BPC, SNR ≥ 65 dB
Power Amplifier: NS4150B: Class-D power amplifier
Speaker: 2014-type cavity speaker: 1W@8Ω
Standby Current: DC3.3V/3.36mA
Operating Current: DC3.3V/14.84mA
Operating Temperature: 0-40°C
Product Size: 24.0 * 24.0 * 14.14mm; Packaging Size: 85.0 * 65.5 * 15.0mm
Packaging Weight: 12.5g; Product Weight: 6.3g
Please note:
MIC Sampling Rate
The Atomic Echo Base microphone supports a sampling rate range of 16KHz-64KHz.













CI-03T AI intelligent offline voice module
Noise reduction processing
42 pre-installed commands
Supports up to 300 command words
UART serial communication
Supports custom wake-up word
Microphone and speaker
Development platforms:
UIFlow 1.0
UIFlow 2.0
Arduino IDE
AI Assistant
Smart Home
Security Monitoring
Automotive Systems
Robotics and Smart Hardware
Healthcare
Specification Parameter
AI Module: CI-03T AI Intelligent Offline Voice Module
Command Words: Supports up to 300 command words, Factory default 42 built-in commands
Wake-up Method: UART serial communication or voice keyword wake-up
Microphone: Analog microphone
Speaker: 8Ω@0.8W speaker (used for output device wake-up feedback)
Communication: UART serial communication, default baud rate: 115200@8N1
Noise Reduction: AEC (Acoustic Echo Cancellation)
Power Consumption: Standby Current: DC5V / 47.73mA; Operating Current: DC5V / 250.12mA
Operating Temperature: 0-40°C
Product Size: 48.0 x 24.0 x 16.0mm; Product Weight: 10.5g
Packaging Size: 136.0 × 92.0 × 13.0mm; Packaging Weight: 15.8g









PinMap
HY2.0-4P | Black | Red | Yellow | White |
Port.C | GND | 5V | TX | RX |
