Mini Hi-Link New 3.3V 15mA ZW0922 Semiconductor Circular Fingerprint Processing Intelligent Module Smart House Storage 50pcs

$6.06

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Welcome to my store!


Hi-Link is the manufacturer of ac dc&dc dc power module,radar sensor module and wifi router module for many years.We are committed to making each intelligent product more convenient, faster and more reliable and providing customers with safe, high-quality and reliable products is our eternal pursuit.


If you need samples, please feel free to contact us.

If you need more, please let us know. we will give you our best price.


Any questions please contact:

Carissa

WhataApp/Skype/Wechat: +86 15118768379

Email: Carissa@hlktech.com






ZW0922


1. Product Introduction
     Consumers use fingerprint recognition modules for user identity determination. When the user touches the fingerprint recognition module with his finger, the fingerprint recognition module will scan the user's fingerprint, and the algorithm chip can obtain the fingerprint image data for registration and comparison.

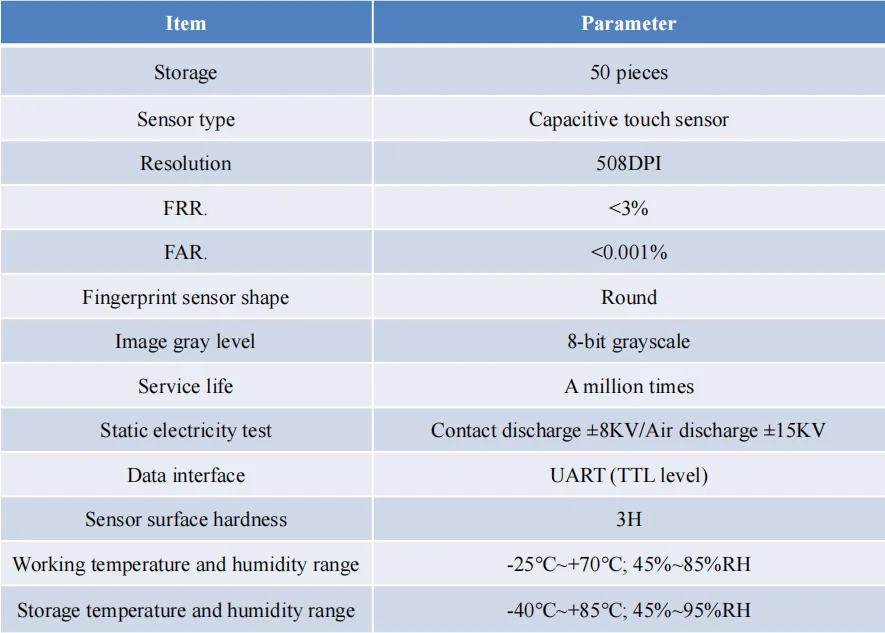

2. Technical Indicators

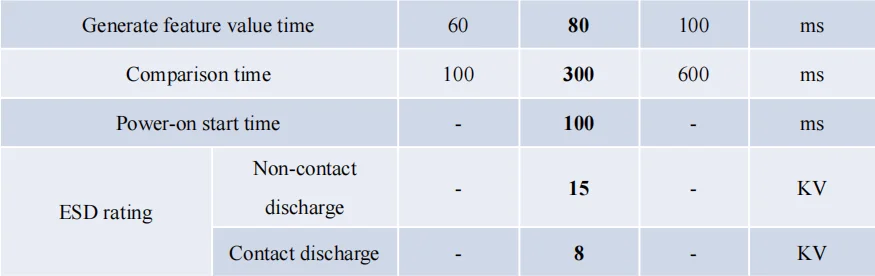

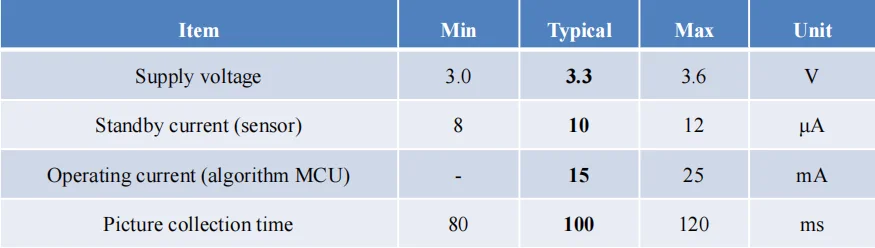

3. Electrical parameters




4. Mechanical characteristics

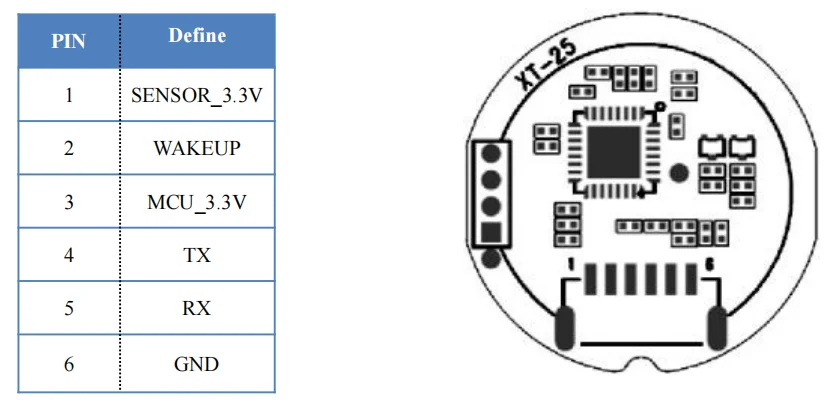

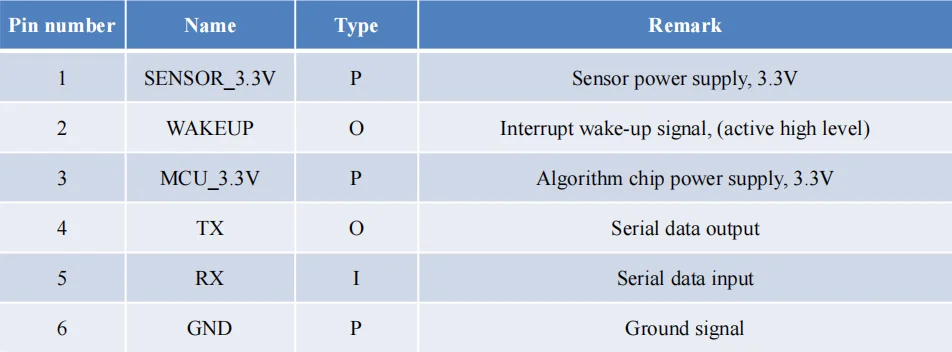

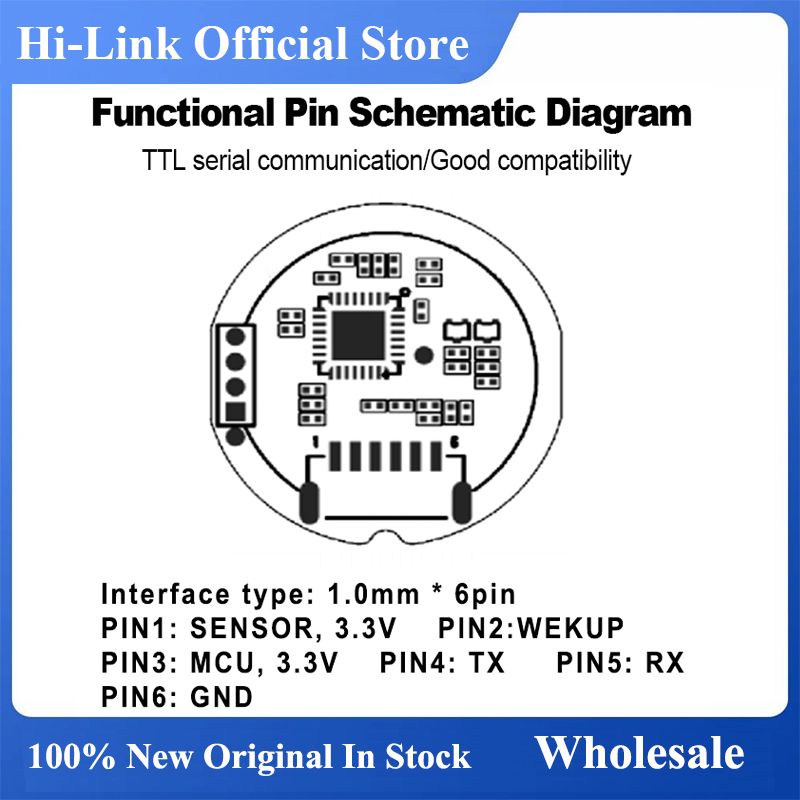

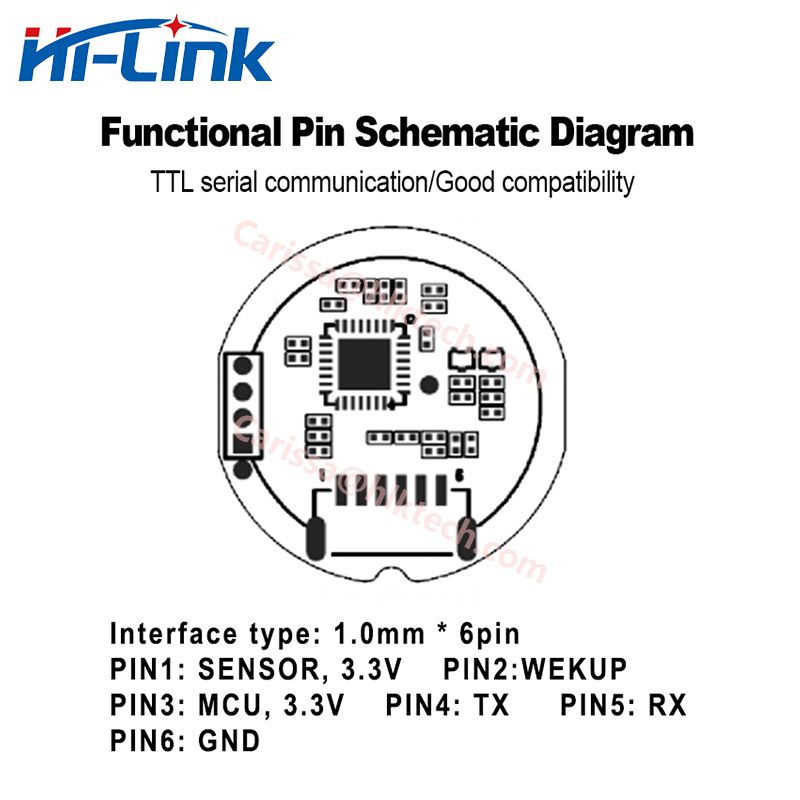

5. Pin description

Illustration:

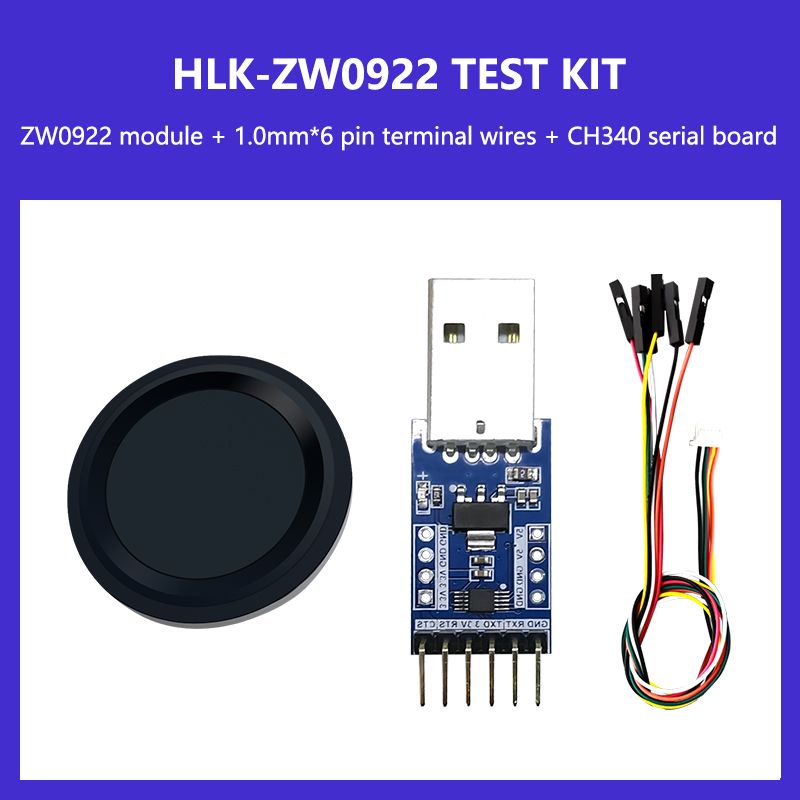

 The serial port is a TTL level of 3.3V. If you need to connect to the serial port of PC, you need to connect the TTL-USB adapter board before communication.
 The sensor module circuit power supply needs to be powered at all times. Please ensure that the power supply has small ripple and is not interfered by other power supplies.
 If the lock board side performs a power-on and power-off operation for the fingerprint module; it is recommended that the power-off time interval be at least greater than 150ms.
 The master controller should follow the following sequence when controlling the fingerprint module MCU_3.3V to power on; Configure the serial port working mode after MCU_3.3V is powered on. It is not recommended to open the serial port first and then control MCU_3.3V to power on.
 After the main control goes to sleep, RX and TX should be pulled down to avoid excessive power consumption caused by leakage between IO ports.

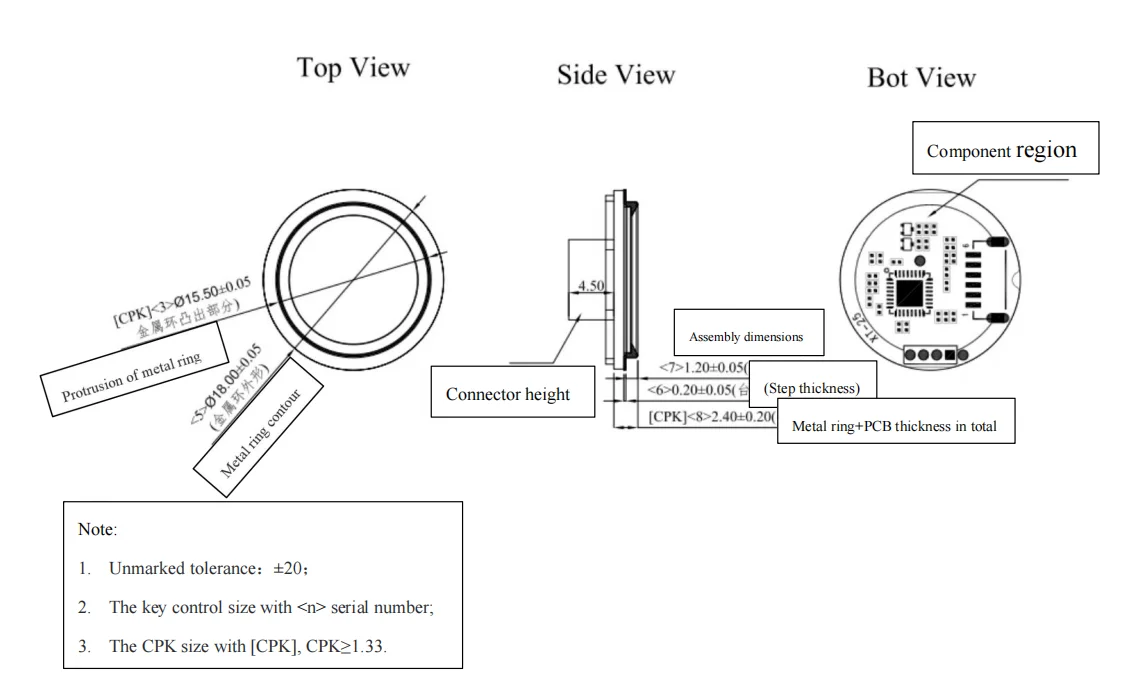

6. Dimension


7. Our company
