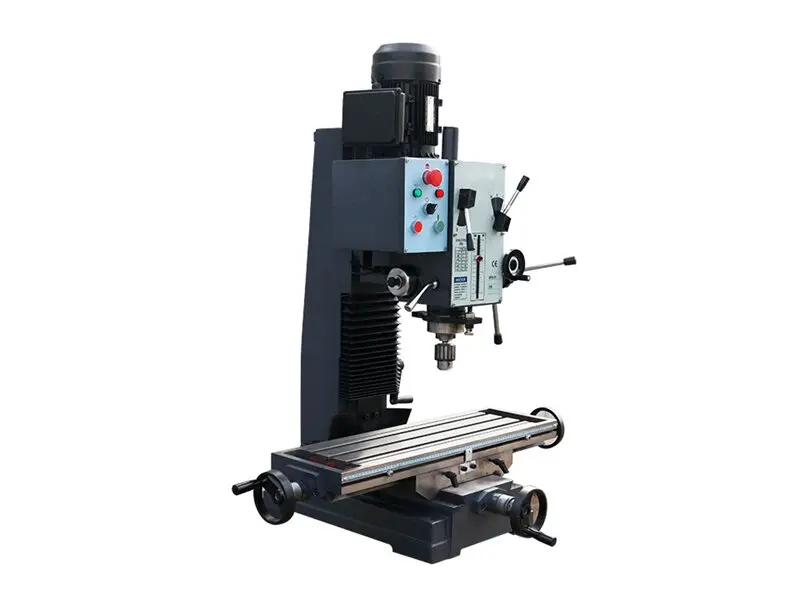

Multi-purpose Milling Lathe and Drilling Machine Combo

$1,780.65

Includes all taxes

Ships From
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Product Overview
FEATURES AT A GLANCE

Features of Milling Machine

Vertical mill head spindle automatic feeding
With tapping function
Vertical mill head can swivel ±90 degree
Spindle quill with fine feed by manually
X Y axis with auto power feed
Z axis motorized lifting
Both vertical and horizontal mill head

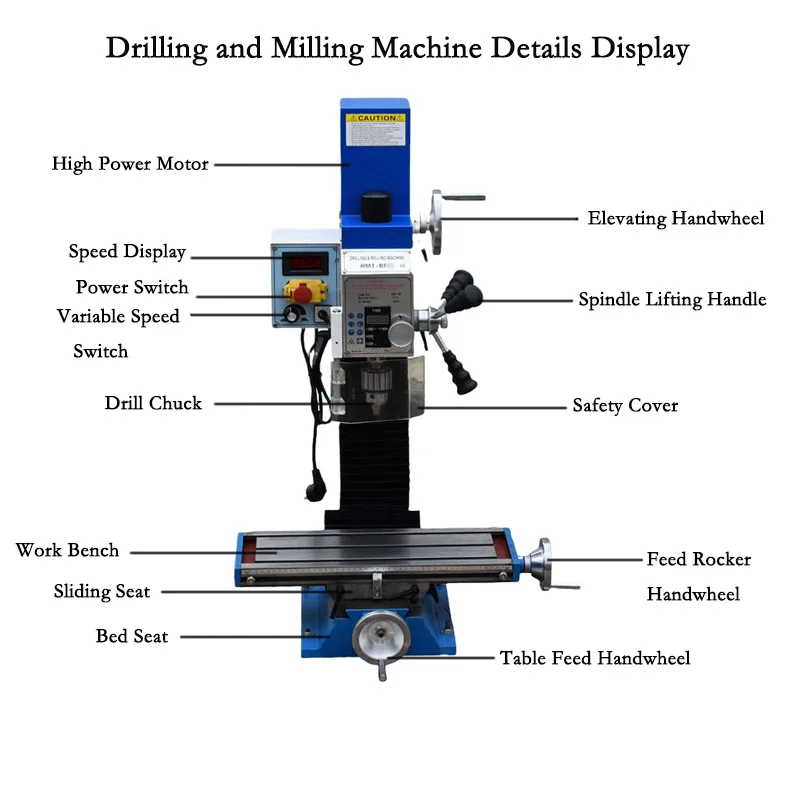

Products Description
High precision dril chuck and spindle
First class spindle grinding calculation
With high precision drill chuck
Improve overall machining accuracy
lron dial
Iron dial machine engraving scale
Improve machining accuracy and durability
Weighted design base
Cast iron material shall be increased and thickened Increase the design of
workbench and base to enhance the stability
Bracket fixing knob
The tightness of the support can be adjusted at will Easy to operate
PRODUCT SPECIFICATIONS
Model
BF-16V
BF-20V
BF-25V
BF-28V
BF-36V
8046
Voltage
220V
220V
220V
220V
220V
220V/380v
Max Drilling Capacity
16mm
20mm
25mm
25mm
30mm
46mm
Max Tapping Capacity
16mm
20mm
25mm
28mm
32mm
32mm
Max Face Milling Capacity
52mm
65mm
65mm
65mm
75mm
83mm
Distance Between Chuck and Table
210mm
350mm
350mm
350mm
470mm
480mm
Table size
500*120mm
500*180mm
500*180mm
700*180mm
700*180mm
800*240mm
Spindle Taper
MT2
MT2
MT3
MT3
MT3
MT4
X-axis Travel
290mm
290mm
290mm
480mm
480mm
580mm
Y-axis Travel
160mm
180mm
180mm
180mm
180mm
200mm
Z-axis Travel
220mm
380mm
380mm
380mm
480mm
480mm
T-slot size
3*12mm
3*12mm
3*12mm
3*12mm
3*12mm
3*12mm
Spindle Speed Range
50-2250rmp
50-2250rmp
50-2250rmp
50-2250rmp
50-2250rmp
80-1250rmp
Max. Distance from Spindle Center to Column
160mm
185mm
185mm
185mm
185mm
260mm
Headstock Tilt Left and Right
90 degree
90 degree
90 degree
90 degree
90 degree
90 degree
Motor Power
600W
700w
1000W
1250W
2200W
1500W
N.W/G.W
65/80Kg
100/115kg
100/115Kg
105/130Kg
110/135Kg
290/305Kg
Overall Dimension
480*450*860mm
540*590*910mm
540*590*910mm
720*610*910mm
730*630*1000mm
610*560*900mm
Price(USD)
$800
$880
$950
$1030
$1200
$1700

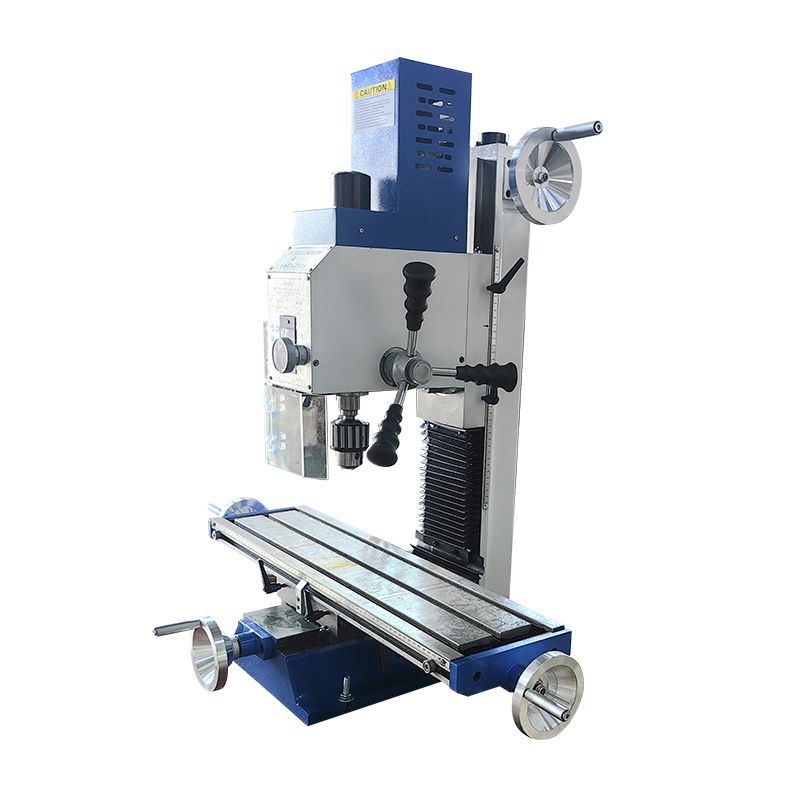

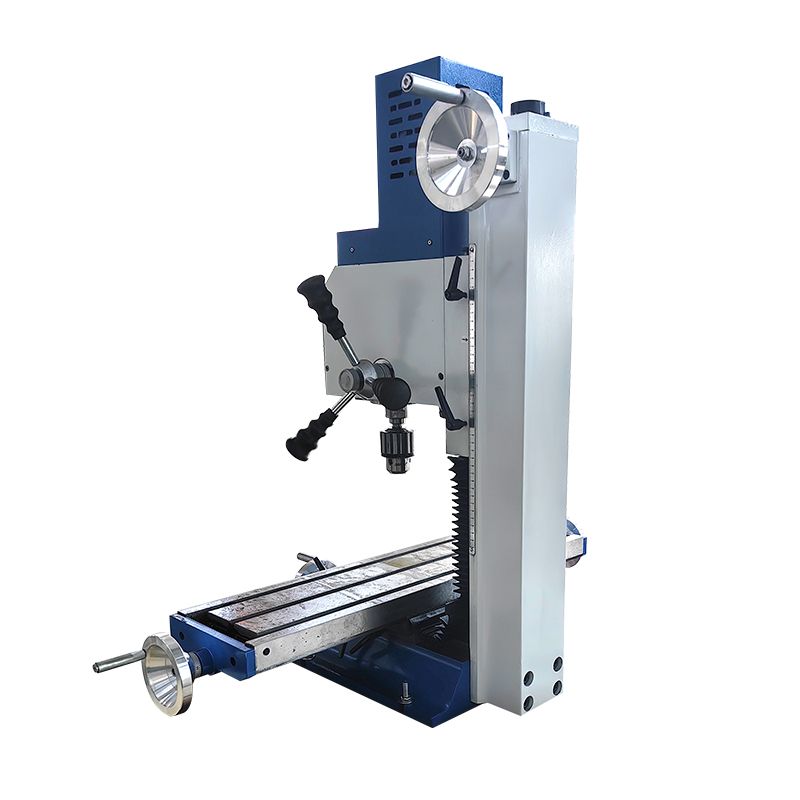

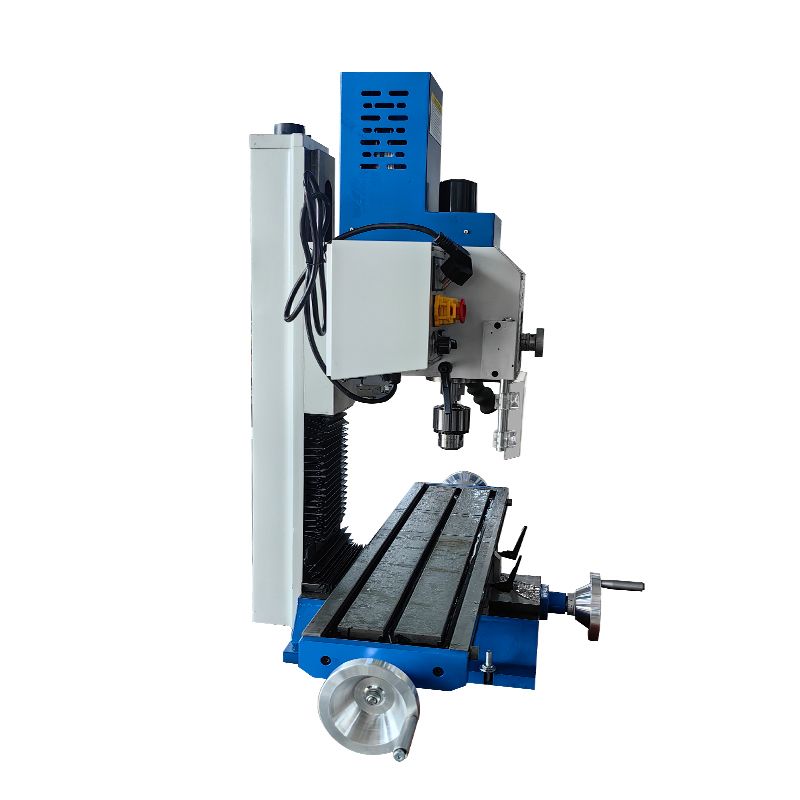

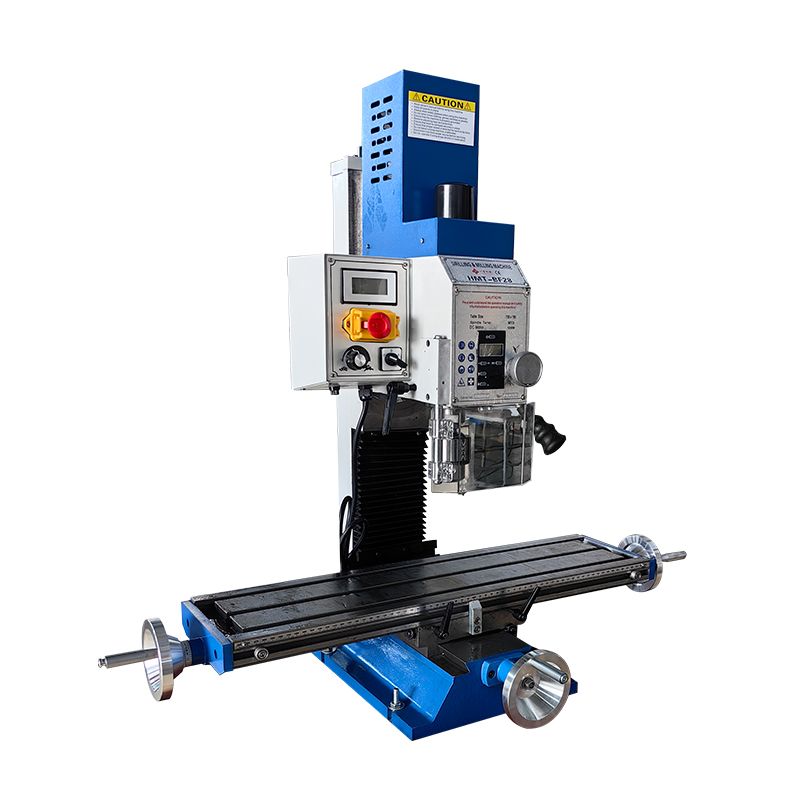

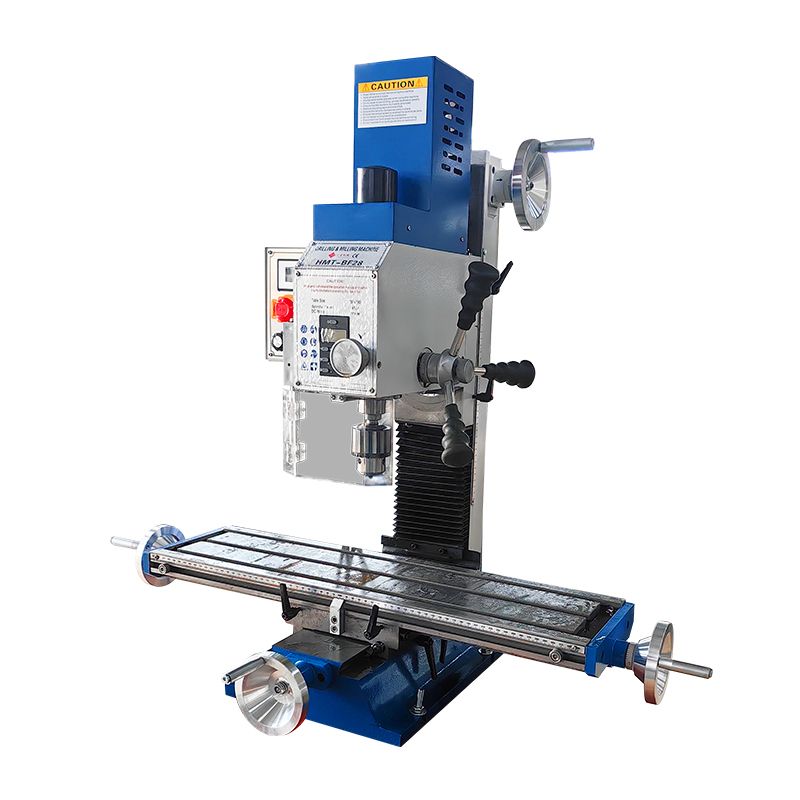

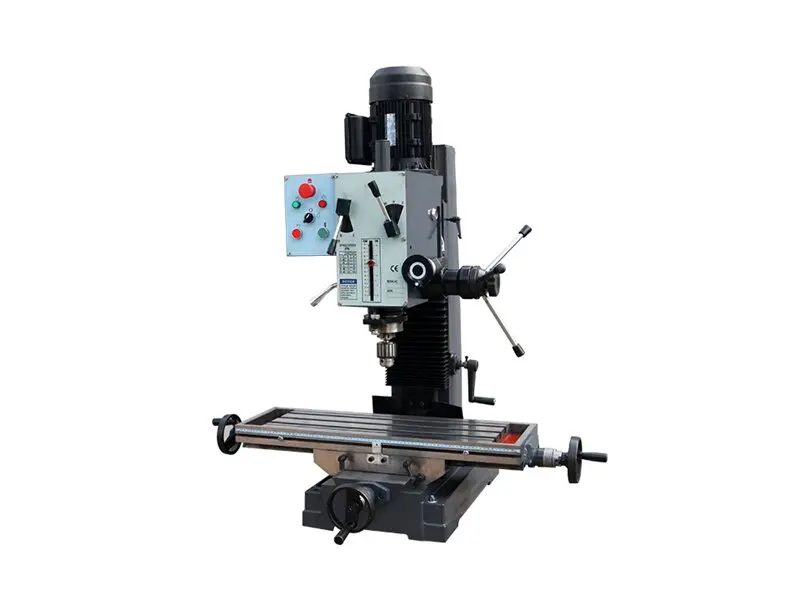

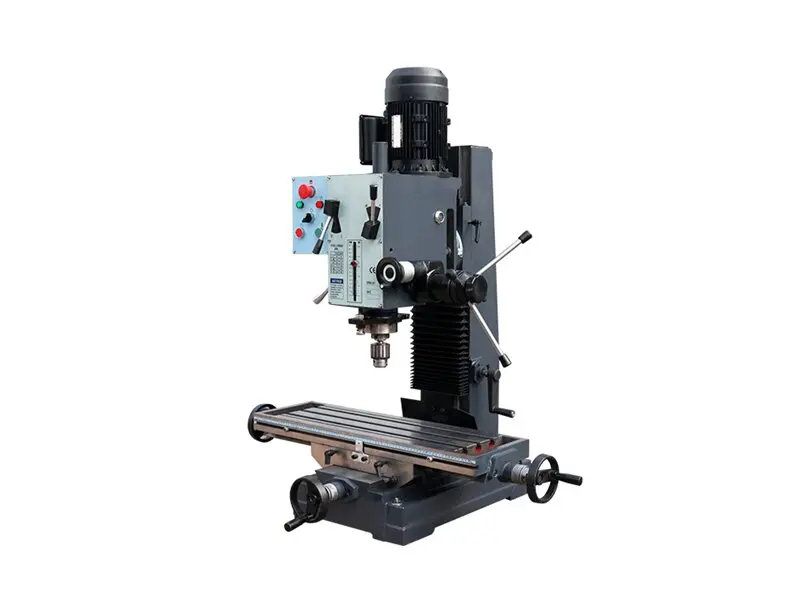

Product Display

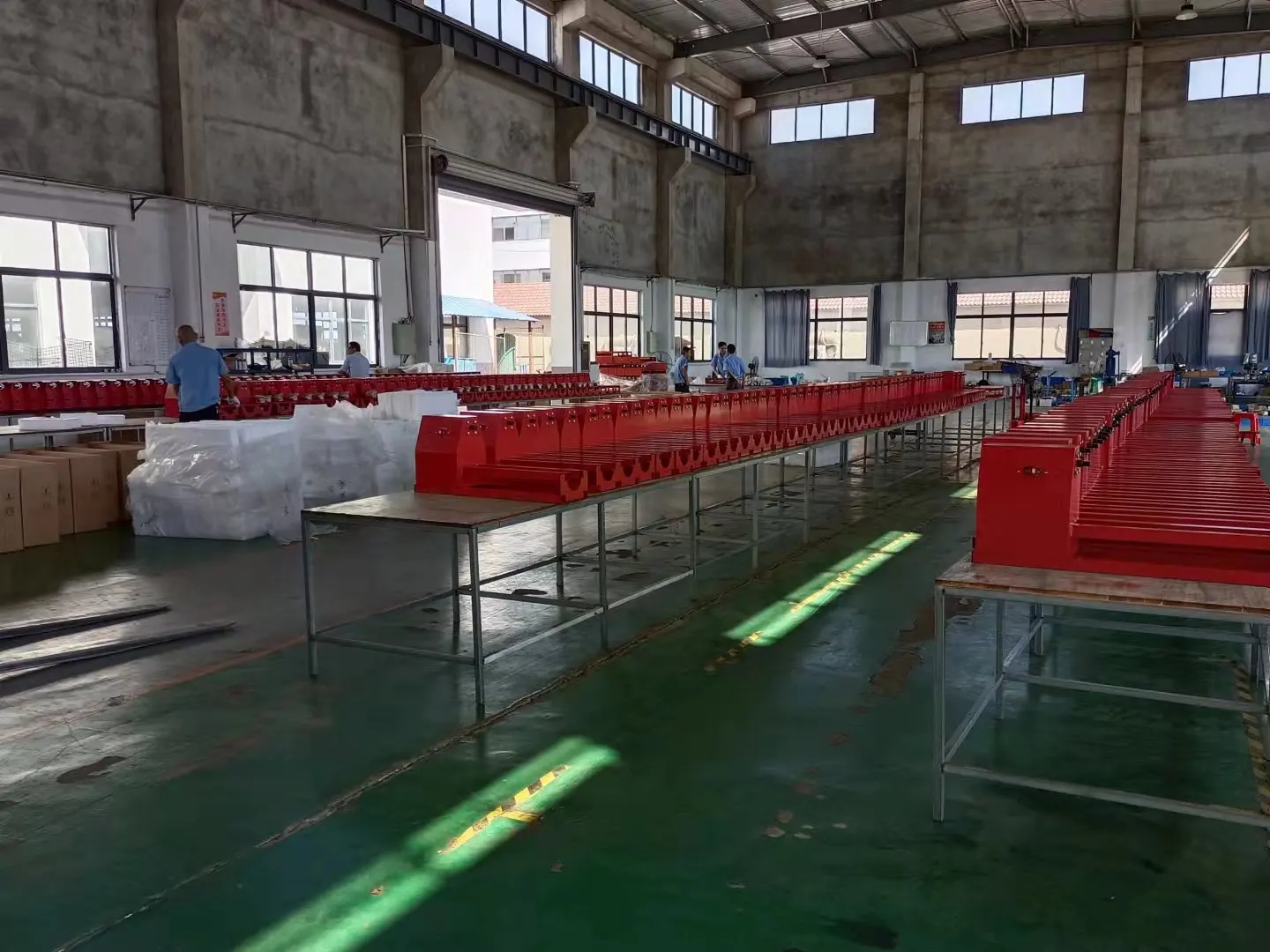

Company Profile
Product packaging
Wooden case is used to ensure the safety of the machine.

FAQ
Q1. Are you a factory or trading Company?
A1.We are a factory, factory direct sales, the price will be more favorable.

Q2.What kind of package do you offer? A2.Normally in wood case to make sure all goods in good condition Q3.What is the MOQ for
your production? A3.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the
MOQ is 1 set. Q4.Do you have CE certification? A4.Yes, we have CE certification, machine quality is one year guaranteed. Q5.What
are the terms of payments you offer?
A5.We accept payment of T/T.
