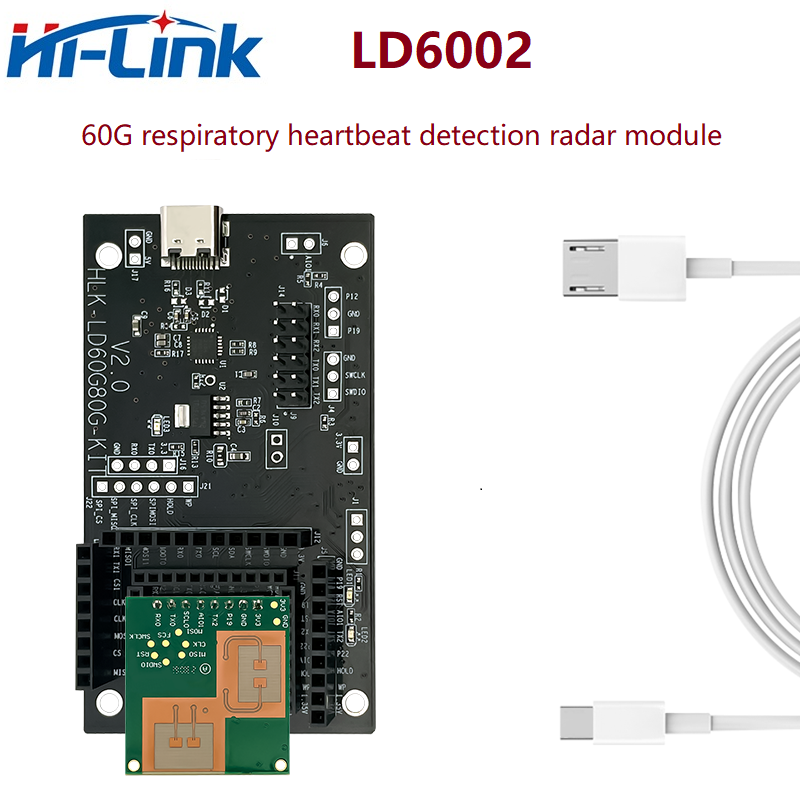

New 1MB flash Respiratory Real-time sign monitoring 2T2R PCB Human respiratory heart rate detection radar module LD6002

$10.13

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Welcome to our store.
   We are Shenzhen Hi-Link Electronic co.,ltd, manufacturer of WIFI module, Sensor module, BT module and AC DC and DC DC power module for ten years in China.
If you need samples, please place order here, we will ship to you soon.
If you need more quantity, welcome to contact us directly, we will provide you best price and best shipping method to you.
Choose us with high quality and favourable prices.

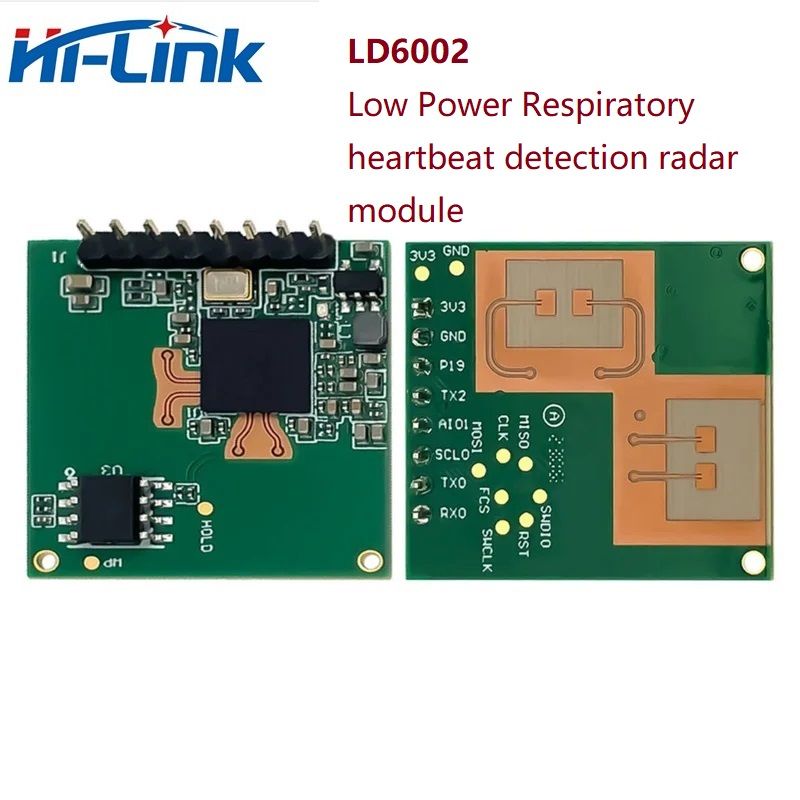

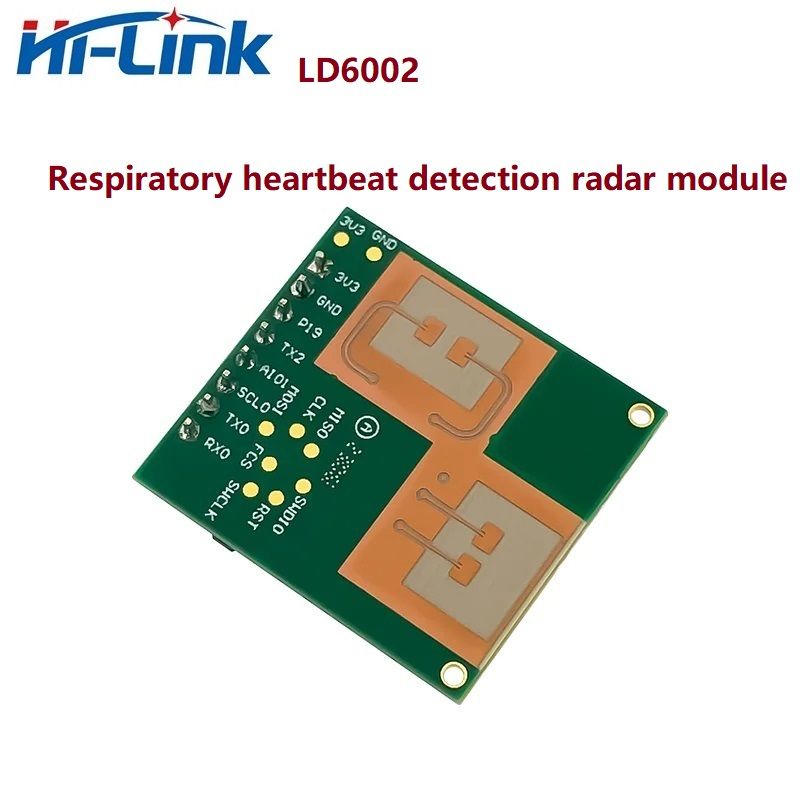

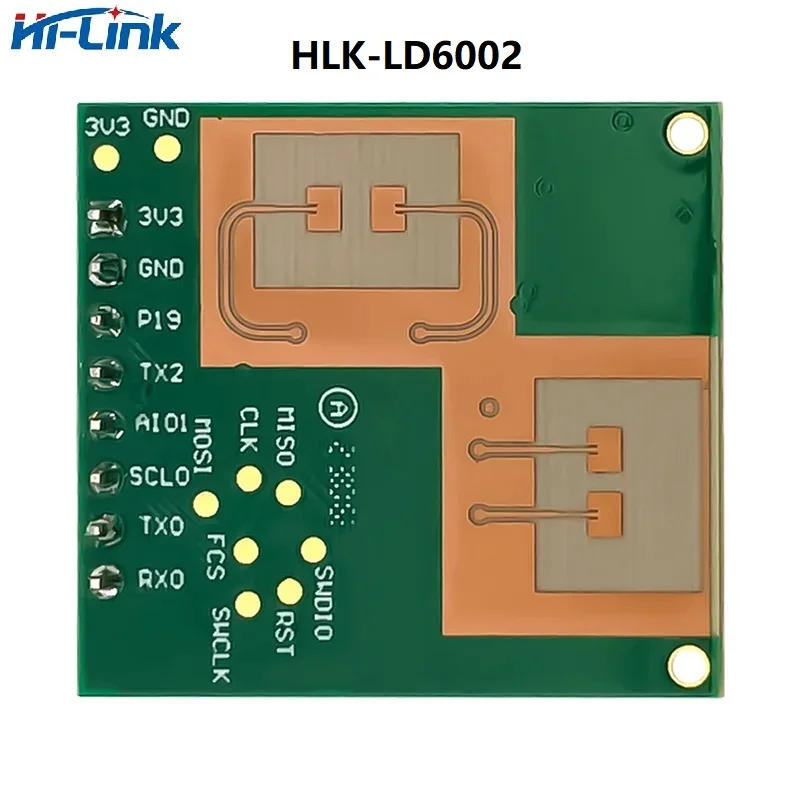

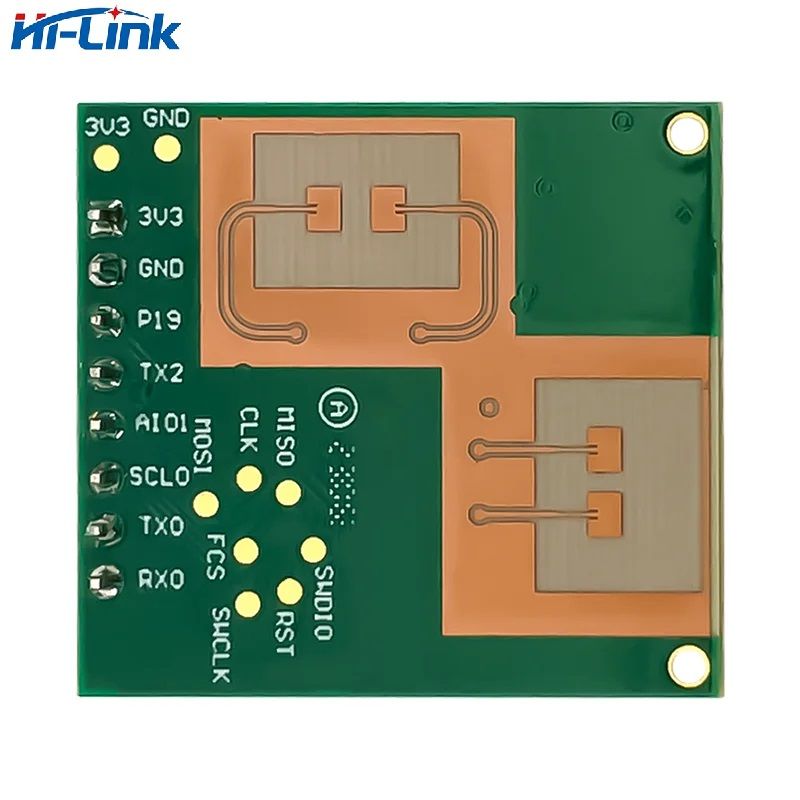

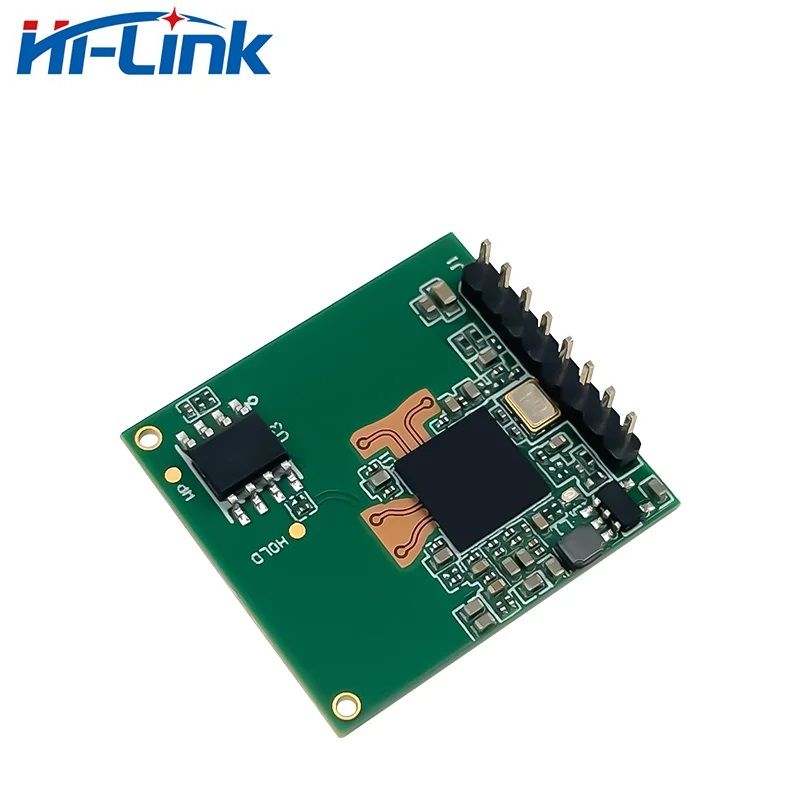

HLK-LD6002

HLK-LD6002 is a radar sensor module developed based on ADT6101P chip, single chip integrated 57~64GHz radio frequency transceiver system, 2T2R PCB microstrip antenna, 1MB flash, radar signal processing unit, ARM® Cortex® -M3 kernel. This module is based on the FMCW radar mechanism, to detect the surface reflection radar echo of the human body, combined with the radar signal processing algorithm, to realize the single real-time respiratory heart rate frequency measurement.


1.Product characteristics

  • Radar detection based on FMCW FM continuous wave signal

  • Realize non-contact perception of human respiration and heart rate.

  • The maximum detection distance of human respiratory heart rate is 1.5m

  • Universal UART interface, providing communication protocol.

  • Multiple groups of IO ports and multiple communication interfaces are reserved, which supports customers' secondary development and is suitable for multiple scene applications.

  • Small size, only 25*31.5mm, supports two ways: pin arrangement and patch connection.

  • Not affected by temperature, humidity, noise, airflow, dust, light and other environments.


2.Application occasion


Smart home

According to the measurement of respiratory heart rate, home empowerment is realized.


Health management

Real-time monitoring of respiratory heart rate data.


Smart health

Monitoring the respiratory heart rate of the elderly, and report to the police immediately if there is any abnormality.

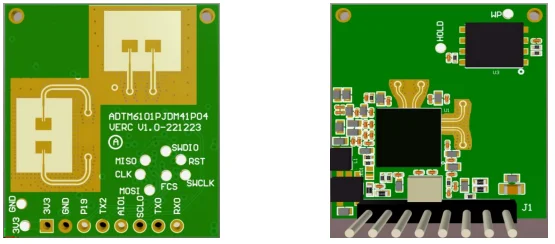

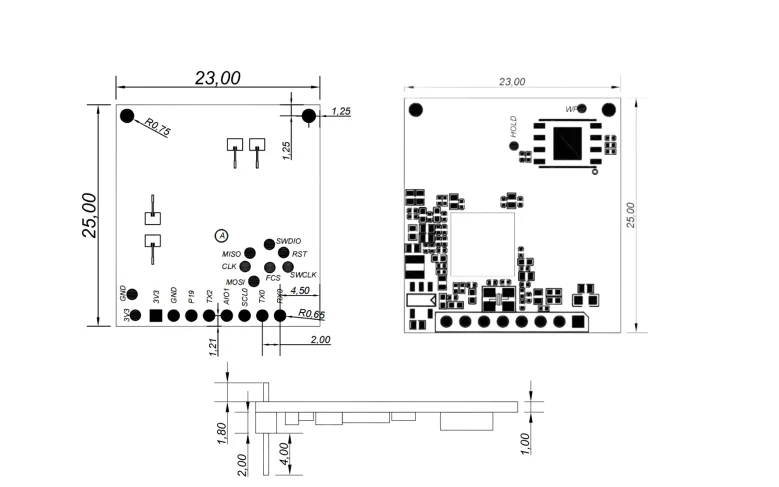

3.Hardware description

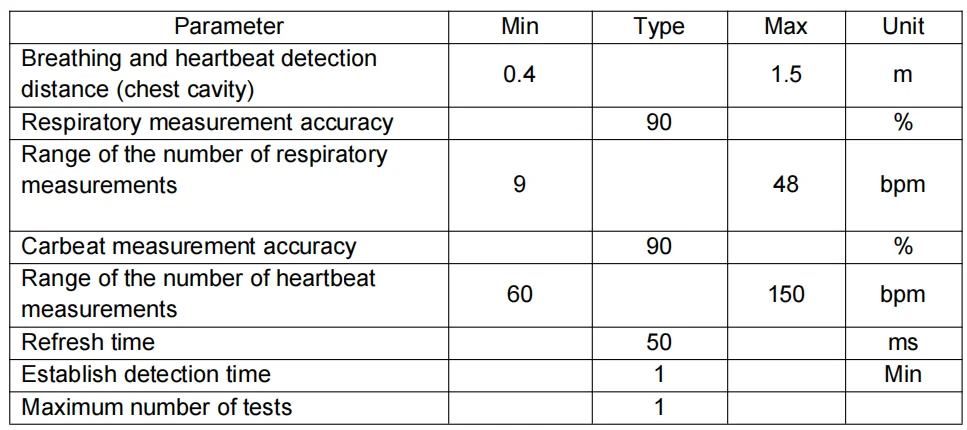

4.Functional parameters
