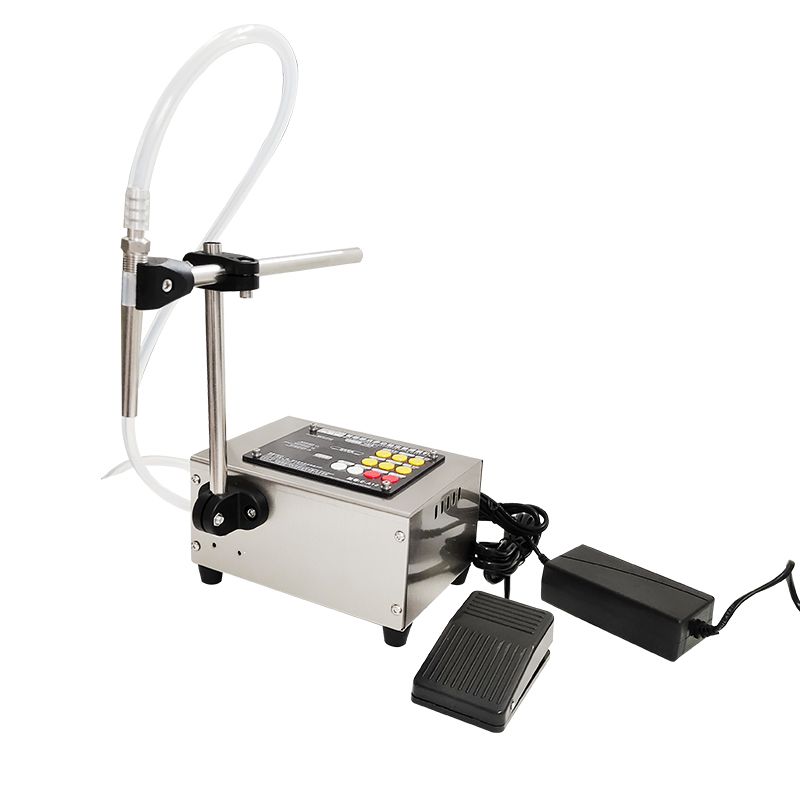

New multi-functional single-head CNC liquid filling machine Pedal diaphragm pump compatible with conveyor belt for wine, essence

$145.80

Includes all taxes

Plug Type
Filling Capacity
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

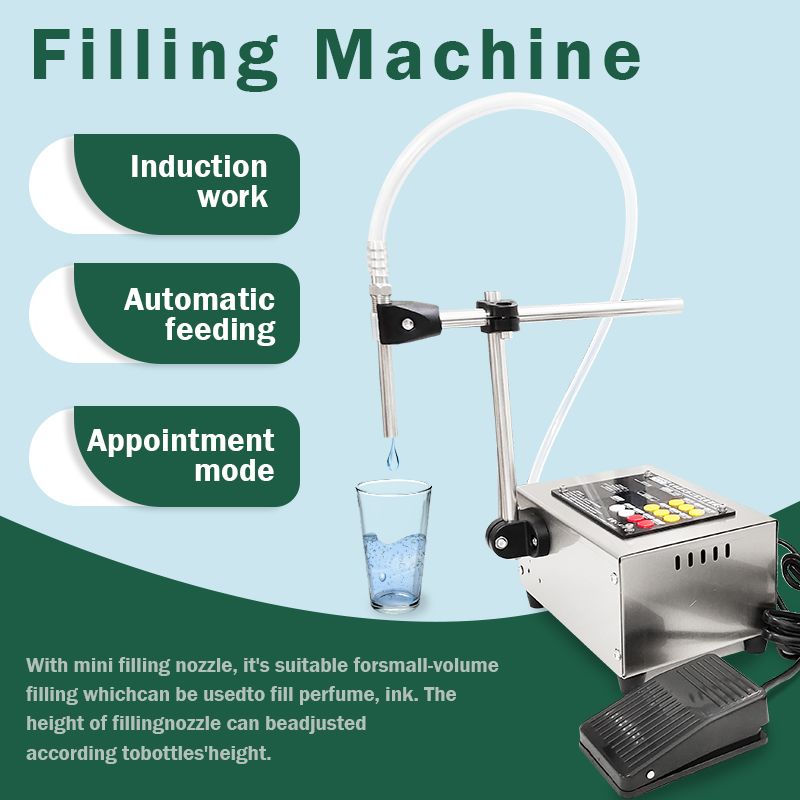

Multi-functional CNC intelligent liquid filling machine combines a variety of filling methods, point mode, manual mode, automatic mode, foot mode, sensor automatic production mode, convenient and fast, buyers can freely match other small conveyor real automatic production line, (conveyor is sold in my shop)

The main machine is equipped with 1.5L large flow diaphragm pump, suitable for non-corrosive, no particulate matter, good flow liquid at room temperature recommended filling range 10-500ml, such as: beverage, liquor, vinegar, soy sauce, juice...... It can be filled with liquid or alcohol below 150 degrees It can only be loaded with water-based liquid like water, and can not be loaded viscous or non-flowing liquid, and the filling speed is 1.5ml per minute (according to the proportion of water).

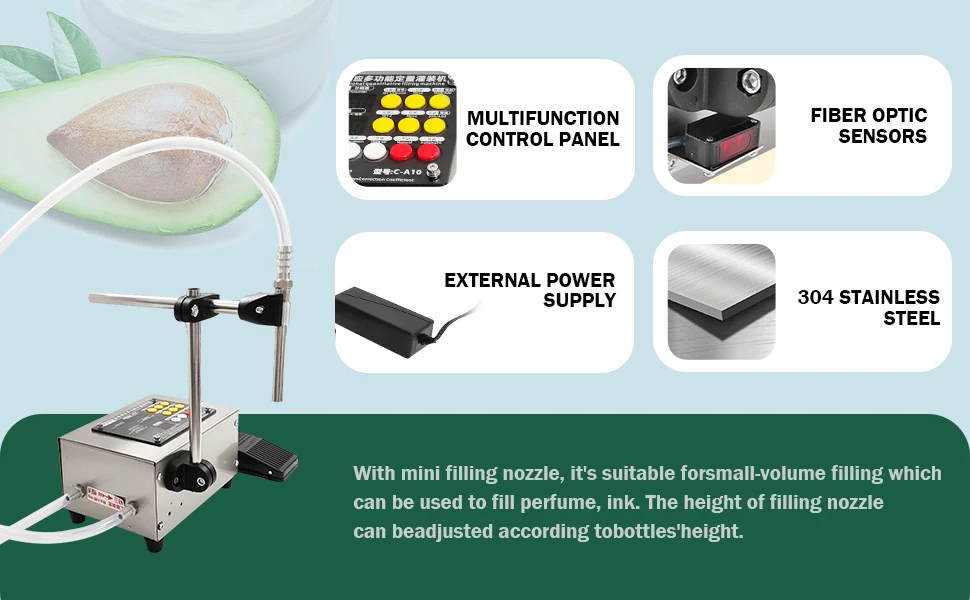

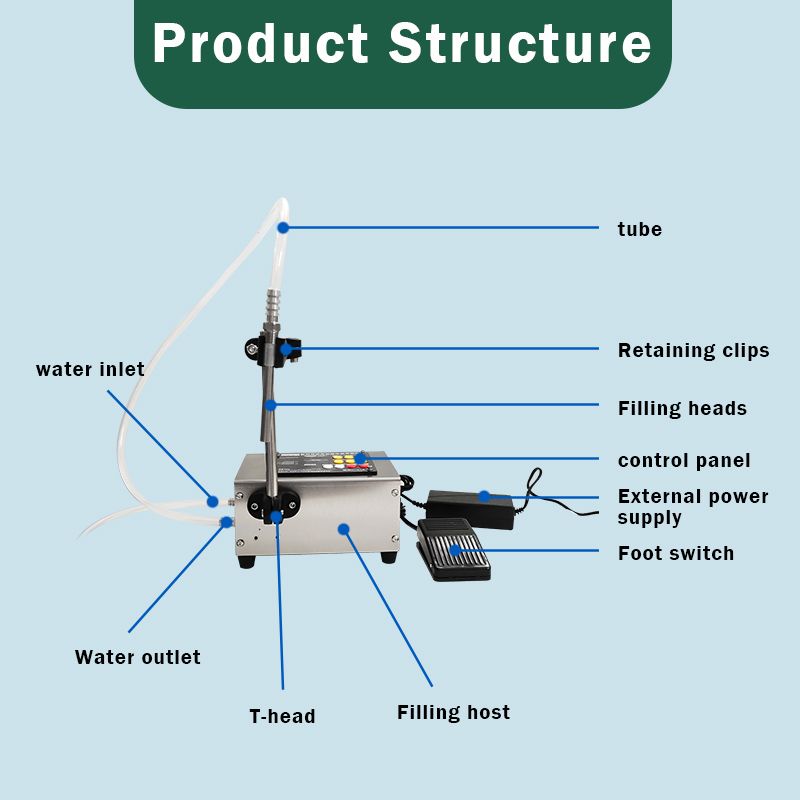

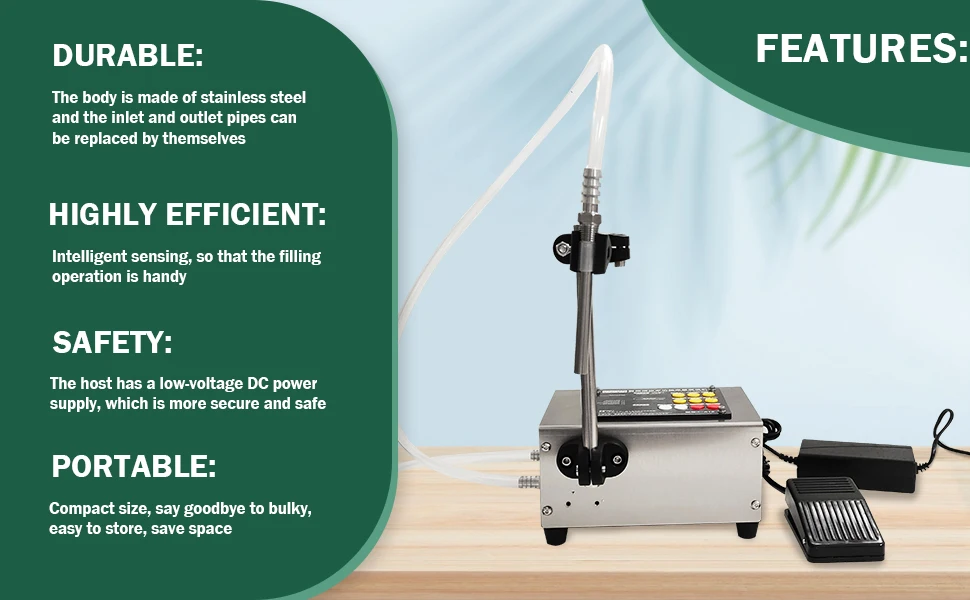

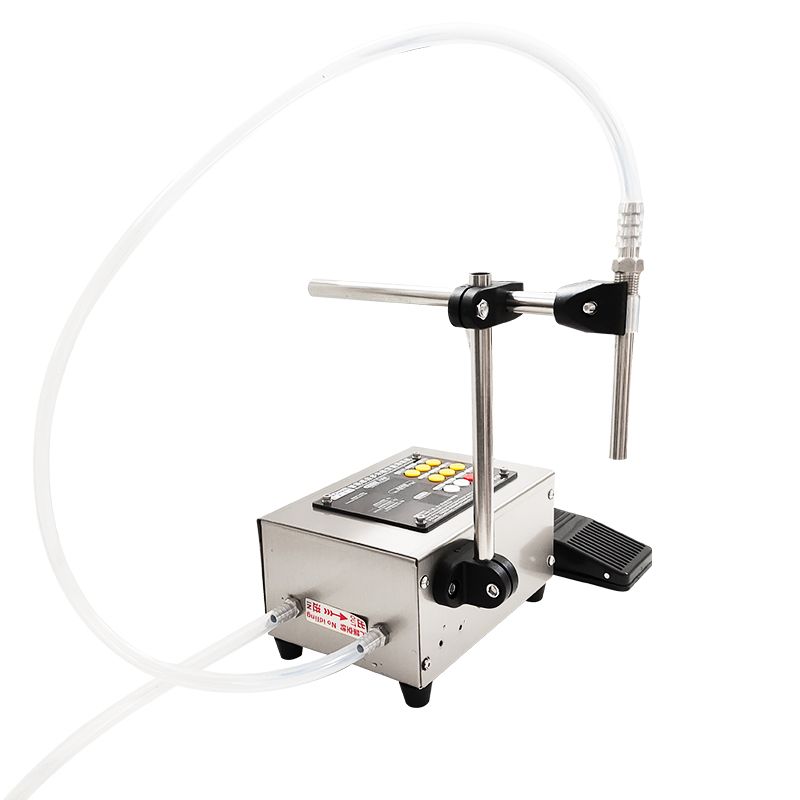

The host material is stainless steel, durable, easy to clean, filling machine support height 20cm can be adjusted according to the needs of different bottles, 6*9mm food grade silicone feed pipe and discharge hose safe and easy to replace

Specification: Input voltage: 100-240v Power: 24W The maximum flow rate: 1.6L / min Filling accuracy: 1ml Maximum suction: 2 meters Maximum lift: 3 meters Pump service life: 2000-3000 hours

Feature 1. Automatic counting function, effective control of filling volume 2. Import MCU control, high efficiency, low power consumption 3. LCD display, very easy to operate 4. High filling precision and accurate volume 5. DC power supply, not afraid of leakage, more secure 6. The work performance is stable and can be used for a long time 7. Self-priming function, no need to fall 8. Anti-drip design 9. Speed parameter range: 01-99, filling time range: 0.01-999.9s, interval time range: 0.01-999.9s


Product prameters

voltage110V/220V

Power supply device input voltage100V-240V

machine input voltage12V 5A DC power supply
Filling time0.1S-999min

max flow rate1.5L per min

Filling range volume 1-5000ml

Filling error+/-1%

Anti-drip functionyes
control methodManual, automatic, intelligent sensing
Intelligent sensing distance0-5mm
Stand heightAdjustable up to 255 mm

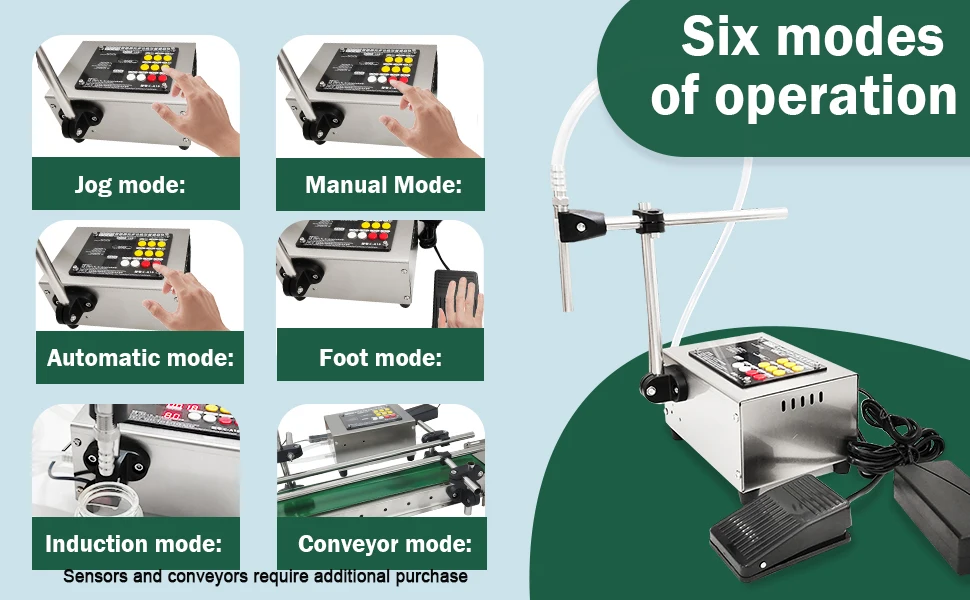

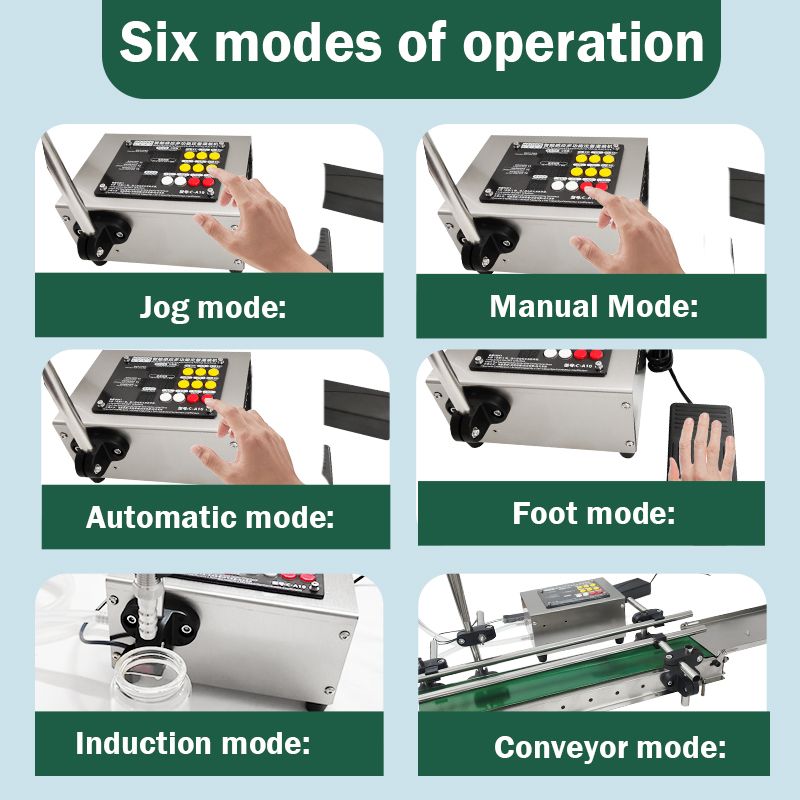

Working mode
1.When the red light is on, it means that the smart sensor function and foot switch function are available. You can connect the smart sensor switch line or foot switch line at the control port.
2.When the green light is on, it indicates that the pump is working, and the green light is off, it indicates that the pump has stopped working. It is also a jog function button. Press once for filling
3.Yellow light: It is a manual switch, which can set the filling time and volume, and then press the yellow button to continuously filling,

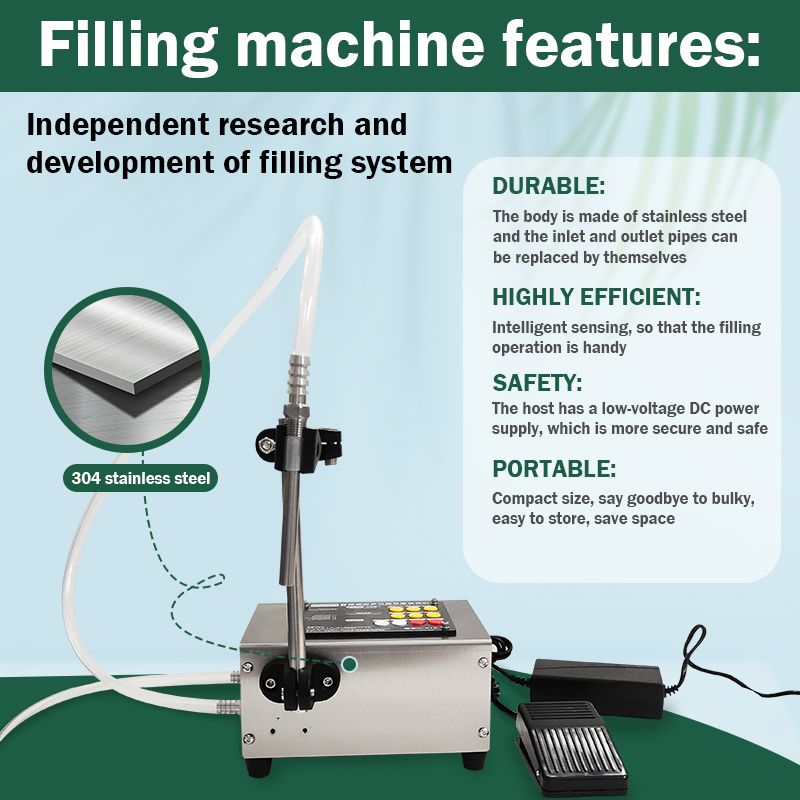

Product features:
1.Suitable for liquid like beverages, liquor, soy sauce, juice, milk, water etc.

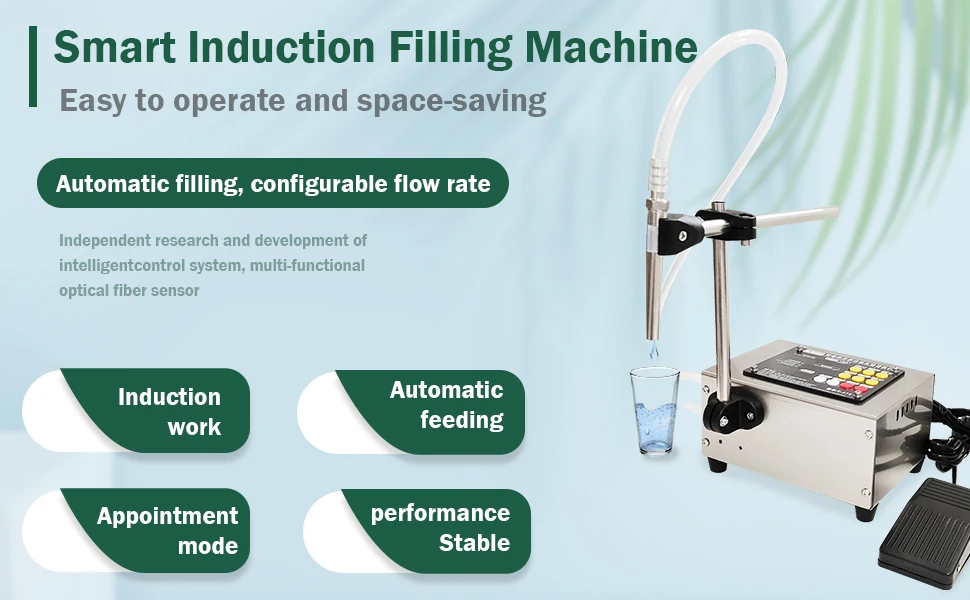

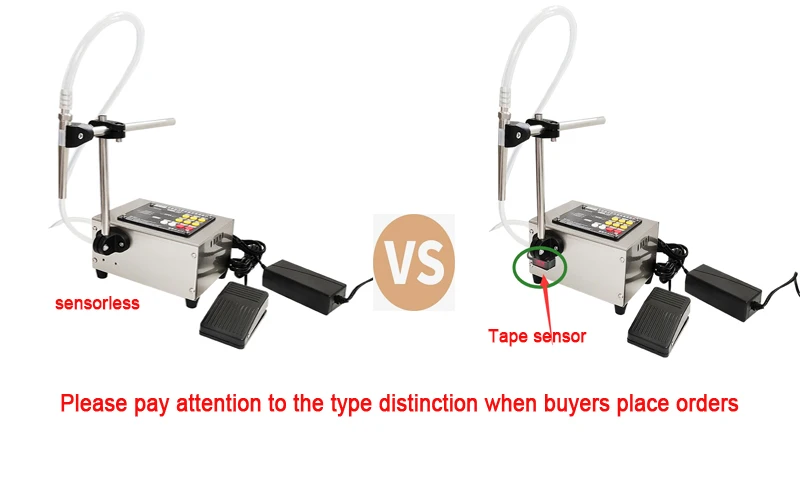

2.Automatic electric eye induction, intelligent filling is more efficient, optional
3.Microcomputer control system, the highest timing accuracy reaches 0.1 second
4.User-friendly design, detachable water pipe, front and rear brackets can be installed
5.the inlet and outlet can be removed and replaced
