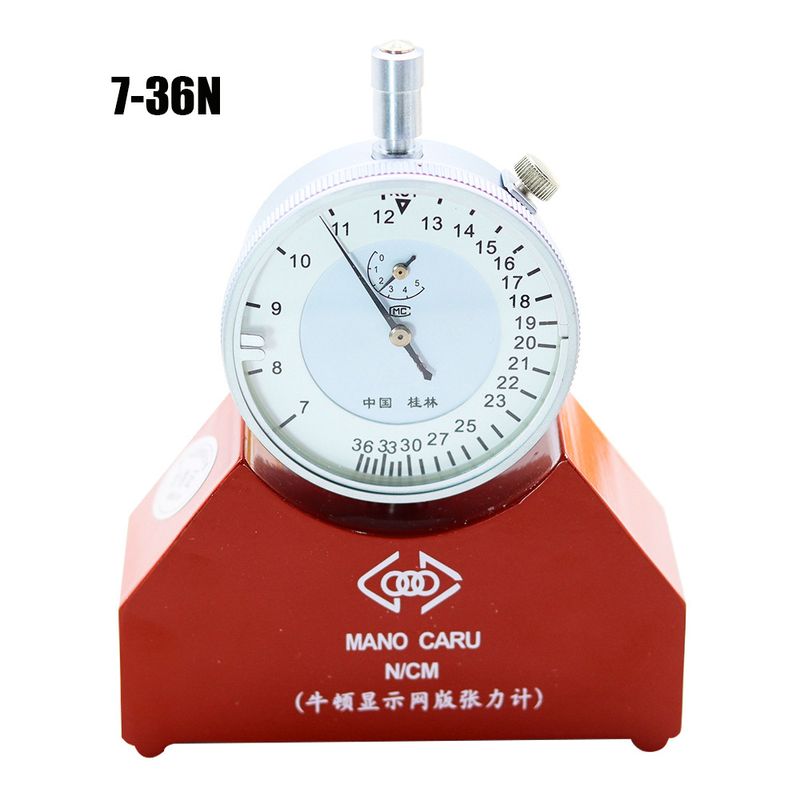

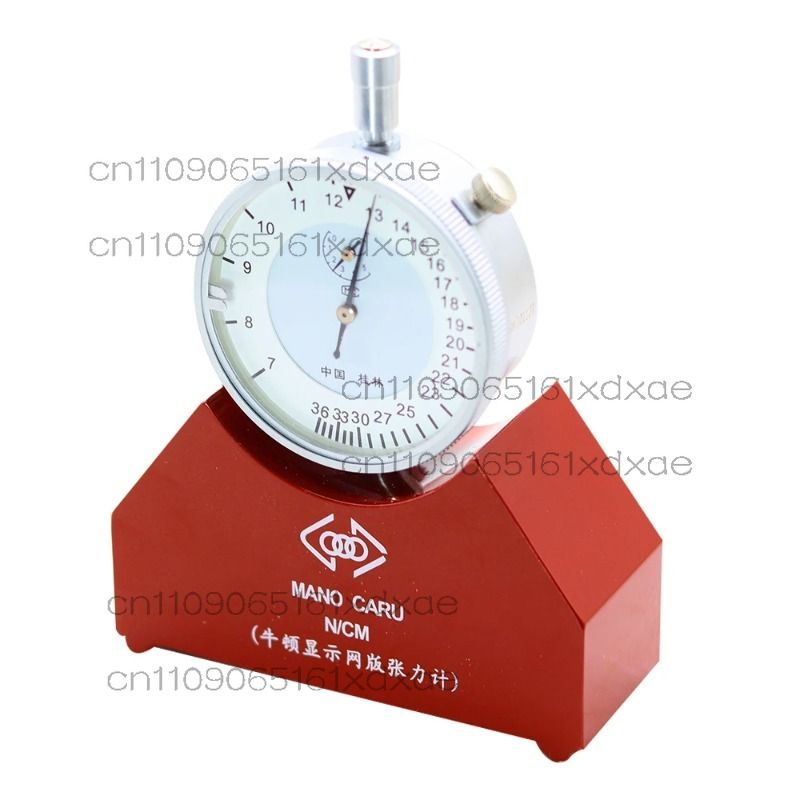

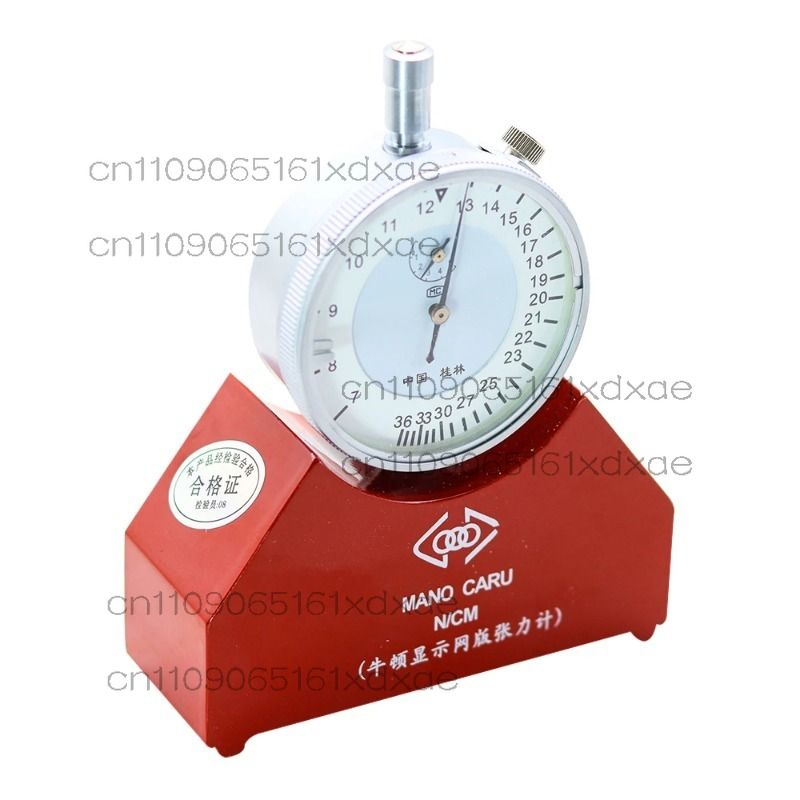

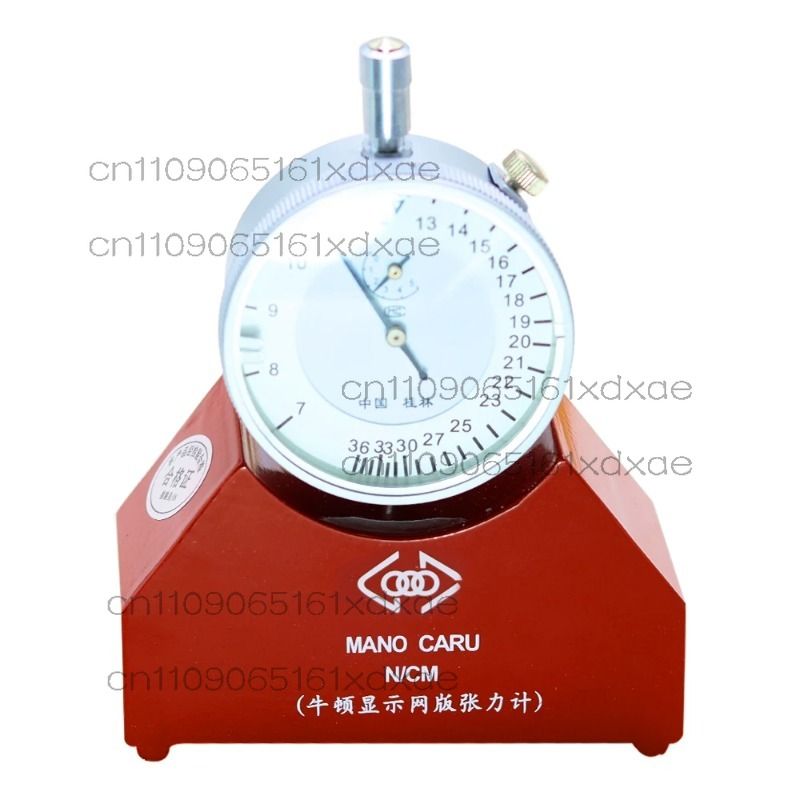

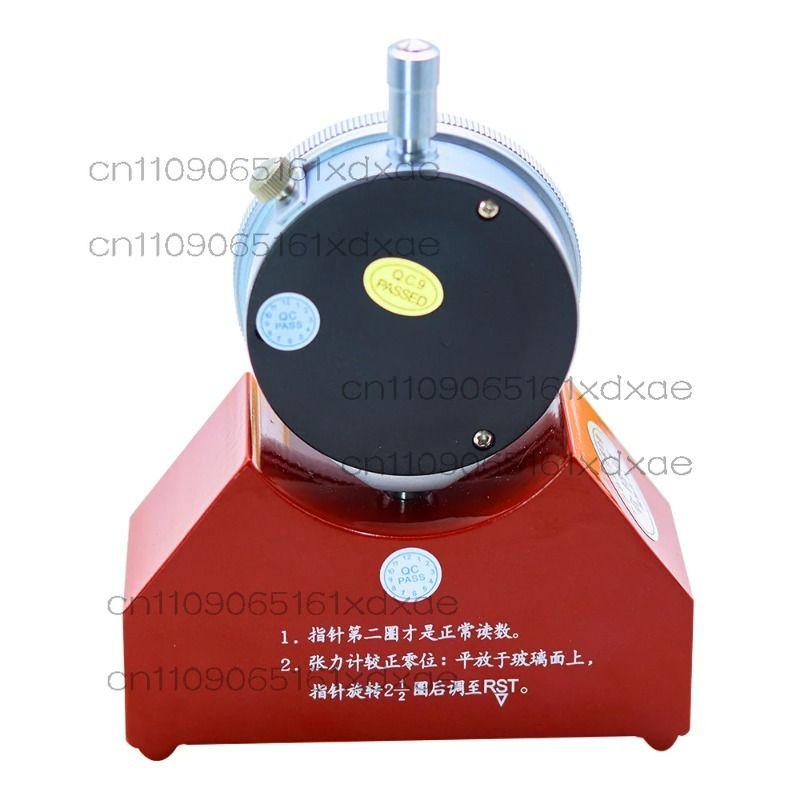

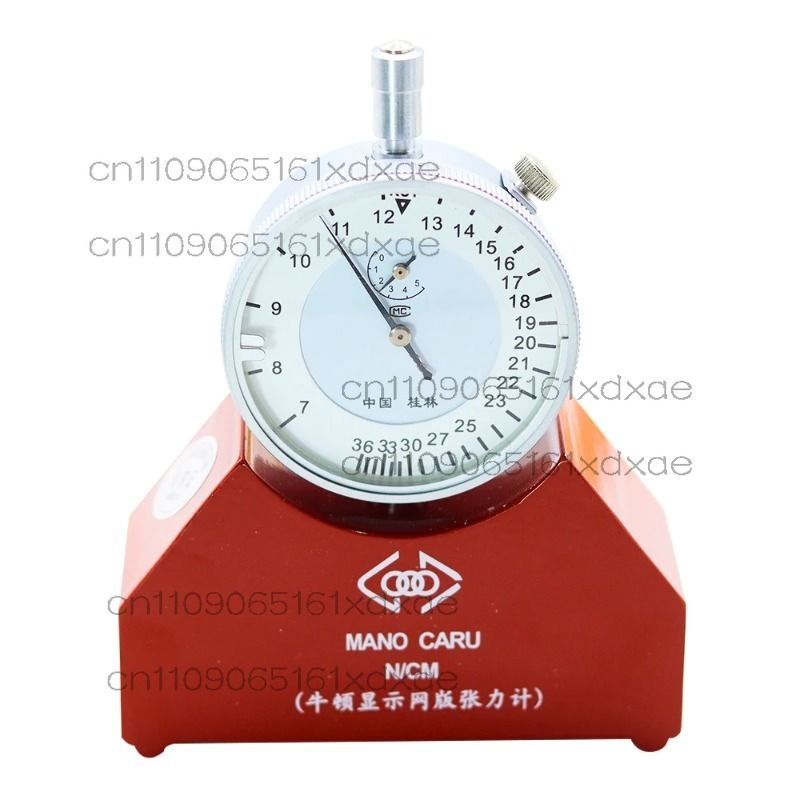

New Silk Screen Steel Mesh Tension Meter Measuring Gauge High Precision Tensiometer for Silk Steel Screen Printing Measurement
Includes all taxes
Meet your Seller
-
$90.65Sold by BILLIONS BIRDS
Description
Measurement principle: an instrument for measuring tension on the screen with precision mechanical methods
The tension meter is suitable for testing the tension of various types of screen plates, and the pointer indicates tension (unit: Newton) without any power supply. The tension on the tension of the tension mesh can be detected at any position at will. The tension meter generally tests the radial and weft tension of the screen version to make the mesh plate consistent in the direction of the diameter and weft line. Whether it is a new online version or a reused old online version, it can provide reliable tension test data.
TECHNICAL PARAMETER
1. This tension meter has been corrected to zero before leaving the factory, and users can adjust it by themselves.
Two. Reading display method: The reading of this tension meter reading pointer is accurate at the beginning of the first lap, (and gently lick the steel mesh or wire mesh of the tension meter, and then wait for the pointer to not jump, the value can be recorded and counted)
Note: The tension of the pull net is N/cm, which means the maximum tensile force of the steel mesh or mesh per cm width (usually expressed by N-N and kg-kg, 1 kg = 9.8N, so Newton shows that the tension is a practical number of tension.
Product name: online tension meter
Model: 1051
Measurement principle: an instrument that measures the tension on the online version by precision mechanical methods
Display error: full scale accuracy error is ±5%
Unit: Newton/cm (N/cm)
Measure gear:
7-80N (wire mesh or steel mesh): 7/10/15/20/30/40/50/60/80N/cm
7-80N (wire mesh): 7/10/15/20/30/40/50/60/80N/cm
7-50N (wire mesh or steel mesh): 7/10/15/20/30/40/50N/cm
7-50N (wire mesh): 7/10/15/20/30/40/50N/cm
7-36N (wire mesh): 7/8/9... 35/36N/cm
7-50N (wire mesh): 7/8/9... 29/30/40/50N/cm
Measuring range: 7-80N/cm
Ambient temperature: 22°C±2
Net weight: 750g
Net size: 95*115*38mm
Degree point: 15N/cm
Spare parts: standard calibrated glass
Gross weight: about 1kg
Box size: 175*125*75mm
Application scenario: Test of all wire mesh/steel mesh tension
Product packaging: exquisite log packaging box + high-density mold sponge
Note: shockproof, put on the side after use
Reference for printing tasks and screen or steel mesh tension
Type of screen:
1. Ultra-high tension screen
2. High-strength screen
3. High-precision ultra-fine screen
4. High-precision polyester mesh (standard monofilament)
5. Ordinary polyester mesh (standard monofilament)
6. Nylon screen
7. Steel mesh
Type of printing task:
1. Circuit board and measuring ruler
2. Multi-color four-color overprinter printing
3. High-precision multi-layer circuit printing
4. Multi-color and four-color overprint
5. Flattening objects
6. Curved or heterogeneous rough objects
7. PCB circuit board
Tension N/CM:
1.16-20
2.16-20
3.25-30
4.8-12
5.8-12
6.8-12
7.30-50
Common wire mesh can withstand the highest tension.
77T
90T
100T
120T
140T
160T
Tension N/CM:
30N/cm
25N/cm
23N/cm
21N/cm
20N/cm
18N/cm
Tension N/CM:
7.5kg/cm
6.5kg/cm
6kg/cm
5.7kg/cm
5.3kg/cm
5kg/cm
MEASUREMENT METHODS AND STEPS
Step 1: Zero adjustment
Correct the tension meter before measuring with the tension meter, place the tension meter on the front of the glass calibration block (don't be too strong), and twist the scale lock counterclockwise with your hand until the dial can rotate. Rotate the dial until the dot is facing the pointer, and then twist the scale lock clockwise to lock the scale rotation disk.
Warm tips:
1. When the scale is zero, the long needle may not be 90° to the horizontal line, and it is normal to turn left to the right. 2. If the glass calibration block is large or broken in daily use, it should be replaced in time.)
Step 2: Zero adjustment
Place the steel mesh plate or screen plate unprinted up on the surface of the water platform. Place the whole tension meter smoothly on the mesh 15-20cm from the edge of the bezel, and tap the surface of the steel mesh or screen with your fingers a few times. At this time, the reading pointer is the actual tension of the current steel mesh or wire mesh (Newtonian reading). Flip the steel mesh plate or screen plate horizontally (PCB contact surface or screen printing surface facing up), place the tension meter in the four corners and center of the steel mesh plate or screen plate respectively, check the tension value of each point, and fill in the minimum value in the resume of the steel mesh or screen). DETECT WHETHER THE Tension MEASUREMENT VALUE OF THE STEEL MESH OR WIRE MESH IS WITHIN THE PERmissIBLE RANGE (STEEL MESH: 30~50N/CM WIRE MESH: 10~30N/CM). IF THE MEASUREMENT VALUE DOES NOT MEET THE STANDARD, FEEDBACK TO THE ENGINEER TO DEAL WITH IT.
MATTERS NEEDING ATTENTION
1. To take the tension timer, you must hold the seat tightly. It is strictly forbidden to hold other parts, and you should hold it gently.
Two. During the test, you must first correct the tension meter.
3. The hexagonal screw in the correction position is usually not allowed to twist. Please put the tension meter back into the special instrument box when not in use.
Four. When measuring the tension of the steel mesh plate or the screen plate, five points (up, down, left, right and middle) must be detected. 5. The craftsman determines that the steel mesh or wire mesh whose tension does not meet the standard, replaces or remakes the steel mesh or wire mesh, and confirms that the scrapped steel mesh or wire mesh is uniformly labeled and put into the steel mesh or wire mesh scrapping place.
Picture showing
Notify the Buyer: The store quotes in real time, the product price is the reference price, and the actual transaction price is determined by both parties through negotiation The price shall prevail. Please contact customer service before auction to confirm the price and delivery date. The price has not been settled yet The shop has the right not to deliver goods! At the same time, all the goods we sell are authentic, Entity company guarantee, please purchase at any time. Because the actual price or actual cost of the product fluctuates. If you want to purchase, please send the specific model and shipping country of the required product to the customer service department, After confirmation, the customer service will give you the actual price. If you place an order without consulting customer service, we have the right to ask you to make up the difference. Please consult customer service before placing an order.
