New STM32 TGAM Module Development Kit Brainwave Headband EEG Sensor Outputting Mindwave Data Arduino Python Matlab Unity

$278.72

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Description

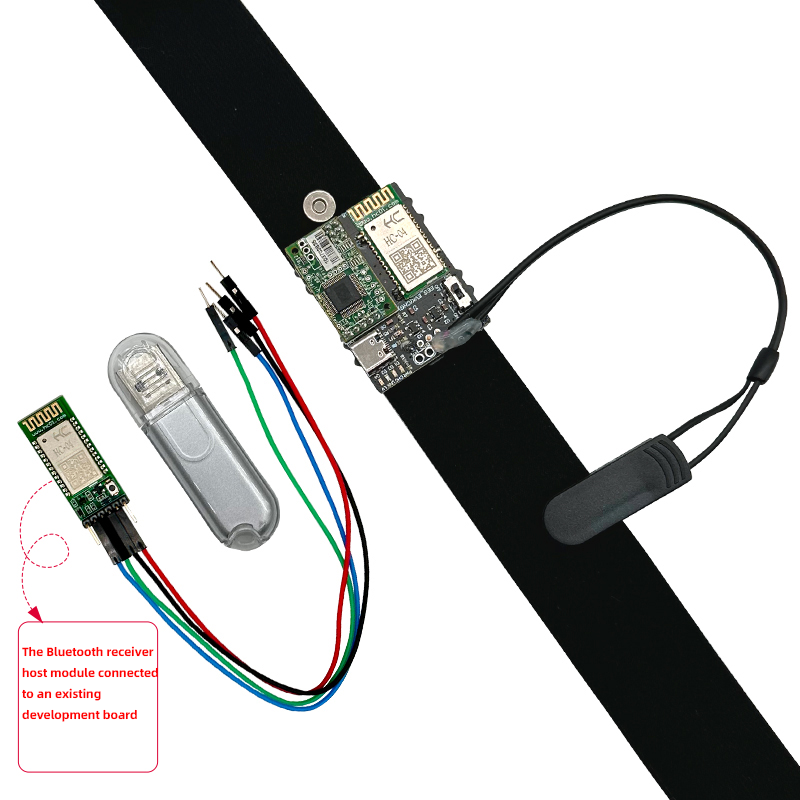

TGAM is the core of our EEG sensing technology, which uses dry electrodes to read signals from the human brain, filtering out surrounding noise and electrical interference, and transferring them to the sensor. It filters out ambient noise and electrical interference and converts the detected brain signals into digital signals. The TGAM module consists of the TGAM module and the TGAM module. The TGAM module consists of the TGAT chip, which is a highly integrated single-chip EEG sensor. The TGAM module consists of the TGAT chip, which is a highly integrated single chip EEG sensor that can output three Neurosky's eSense parameters, which can be converted to analogue and digital, detects abnormal contact conditions, filters out electrical eye noise and 50/60hz AC interference.

Feature

  • Direct connection to dry electrode

  • Single EEG EEG channel + reference electrode + ground

  • Very weak EEG signals can be detected

  • Noise filtering/anti-interference possible

  • 512Hz raw EEG signal

Upgrade change

Dry battery version

Lithium battery version

Parameters

Dimensions: 27.9X15.2X2.5(mm)

Weight: 130mg

eSense brainwave output: raw EEG signal/concentration/relaxation/blink/brainwave (delta/theta/low alpha/low beta/gamma)

Sampling rate:512Hz

Hardware filtering: 3Hz- 100Hz

Electrostatic protection: 4KV contact discharge; 8KV isolated discharge

Power consumption:15mA/3.3V

Operating voltage:2.97-3.63V

UART serial port

Baud rate:1200/9600/57600/8-bits/No Parity/1 stop bit
