On Off Switch Car accessories Light Switches Car LED Switch Panel Light Senstive 12V Control Panel Combination Switch 6 Gangs

$206.59

Includes all taxes

Meet your Seller
Delivery options
  • Ship Only

Description

Description:
  • Multi-position installation and wide application. with different brackets, it can be installed in any position you like.
  • Universal 6 switch panel relay system. power up to 6 lights & accessories from one convenient place.
  • Customize your own panel, with 50 universal switch stickers, you can customize your unique personal switch panel according to certain needs.
  • All in one design for your ultimate convenience. This kit has everything you need for installation and use. No need to buy extra parts.
  • Attomatic Dimmable Back light for Driving Safer.
  • On the road or other bright places, the switch panel will be brighter, so you can see it clearly.
  • In the tunnel or other dark places, the switch panel will be dim, reduce the impact on the driver's vision


Features:
  • Input voltage: 9-30V DC

  • Maximum output power: 720W

  • Maximum input current: 60A

  • Control box size: 91 * 66 * 15.5mm

  • Control box material: aluminum alloy

  • Relay box size: 160 * 89 * 83mm

  • Relay box material: ABS

  • Backlight with automatic adjustment function

  • Operating temperature: -40~105 ℃

  • Equipped with overvoltage and overcurrent protection, anti reverse connection protection


Operation setting instructions


  • 1. The button control board is connected to the receiving board on the relay box using a cable. The receiving board is powered on by a DC power supply with a power range of 9-30V. After the power is turned on, the back light of the button control box lights up, and the default background light at the factory is blue;

  • 2. Background light color: blue/green/red/yellow/magenta/cyan/white. Click the OFF/ON button to freely switch the background light color;

  • 3. Select the buttons from 1 # -6 # to turn on or off the corresponding relay. The red light indicates the on state, while the opposite indicates the off state. The button positions 1 # -6 # correspond to the output positions 1 # -6 #;

  • 4. Button mode settings

  • (1) Press the middle setting button (OFF/ON button) for about 3 seconds in standby mode, and the background light will flash once to indicate that the button setting mode has been entered. The default mode is button mode 1 (self reset mode) setting. Select any one of the buttons 1 # -6 #, and the corresponding red LED indicator will light up. Then press and hold the OFF/ON button, and the background light will flash to confirm the exit. The setting is successful;

  • (2) Press the middle setting button (OFF/ON button) for about 3 seconds in standby mode, and the background light will flash once to indicate that the button setting mode has been entered. The default mode is button mode 1 (self reset mode) setting. Press the OFF/ON button again, and the background light will flash continuously twice to indicate that the mode 2 (double flash mode) setting has been entered. Select any one of the buttons 1 # -6 #, and the corresponding red LED indicator light will light up. Then press and hold the OFF/ON button, and the background light will flash to confirm the exit. The setting is successful;

  • (3) Machine default mode 3 (switch mode), switch mode is the default mode and does not need to be set separately;

  • 5. Restore factory settings: Press and hold the OFF/ON button for about 15 seconds, and the background light will turn blue to restore the factory settings;

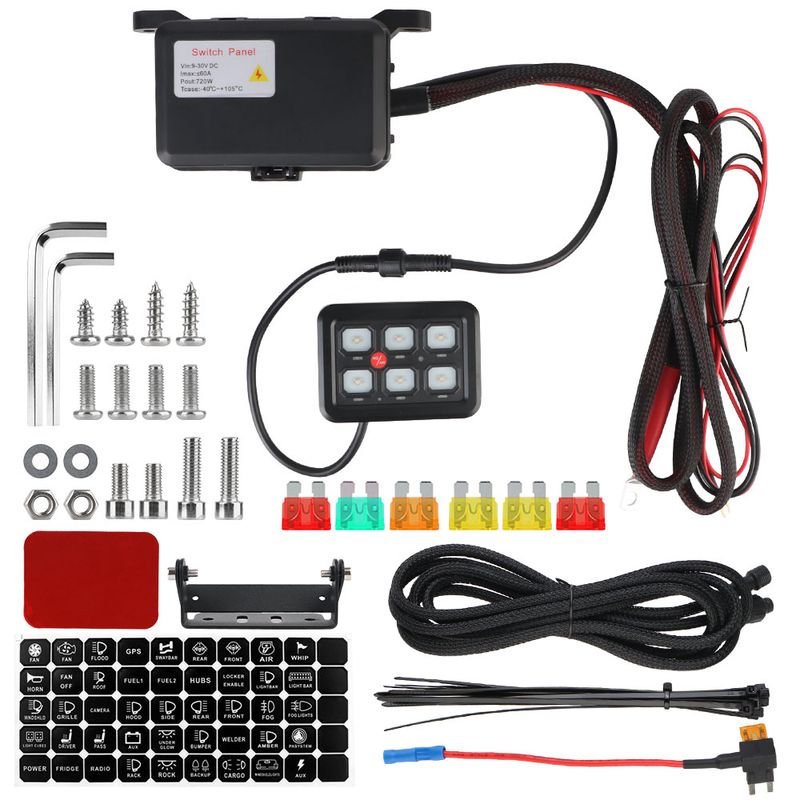

Package included :
  • 1*Car LED Switch Panel

  • 1 * Fixed bracket

  • 1 * Double sided EVA tape

  • 1 Set fuse

  • 1 Set fixing screw

  • 1 Set installation wrench

  • 1 * Light window small label

  • 1 Set zip ties

  • 1 * Electrical appliances

  • 1 * Extension cable
