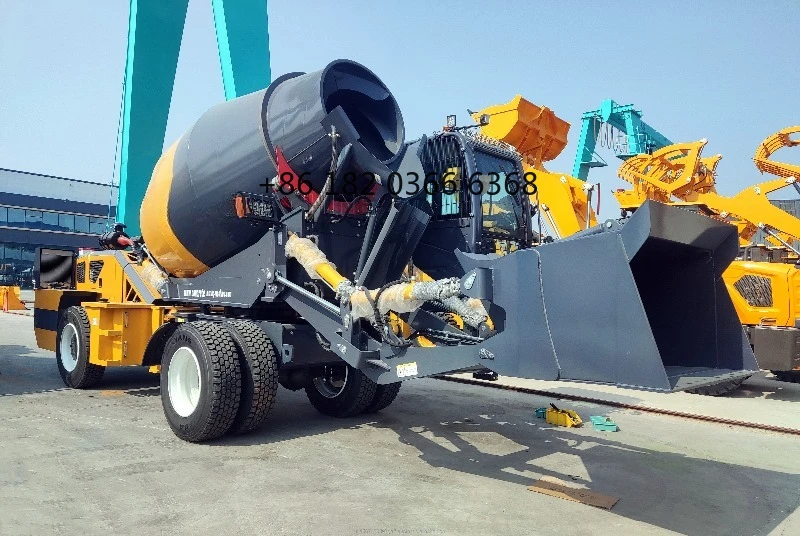

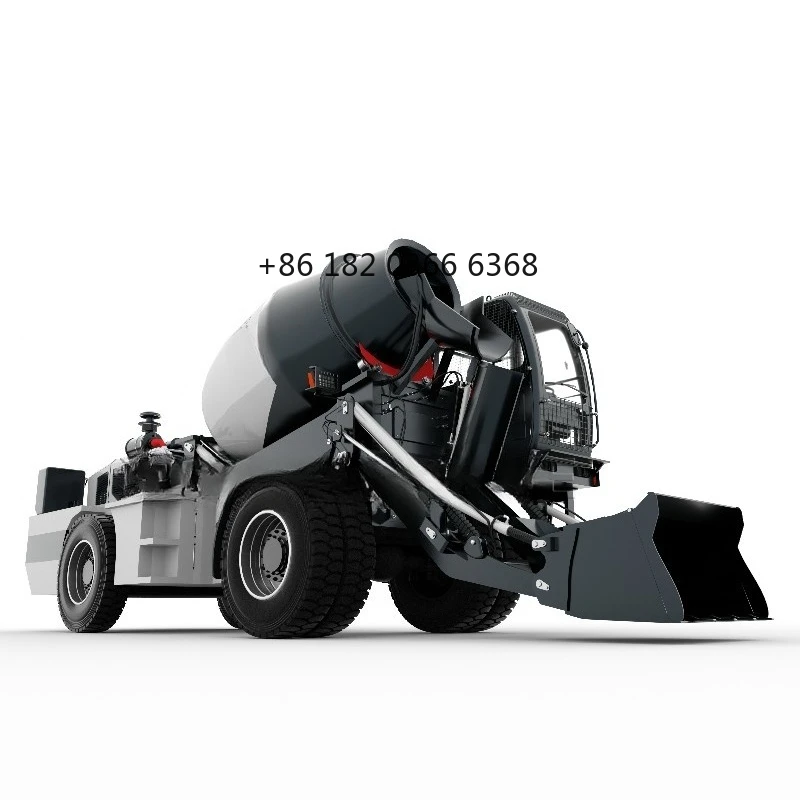

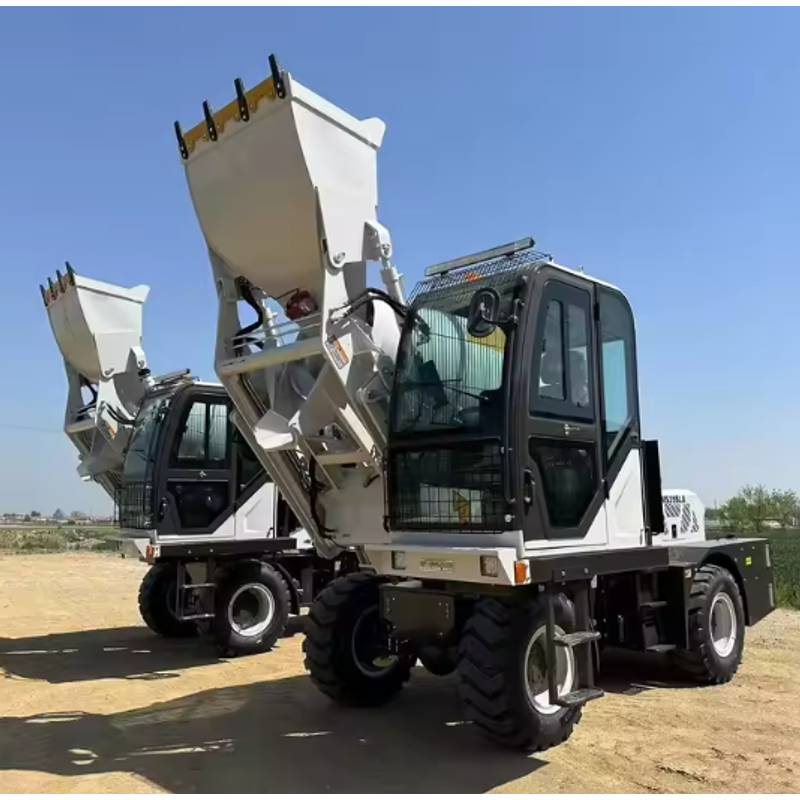

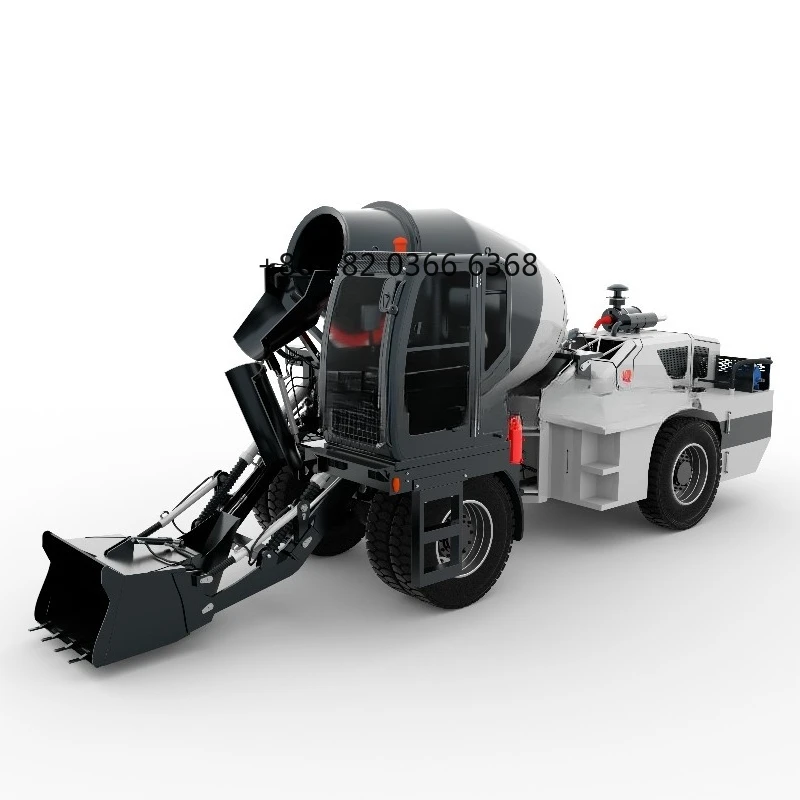

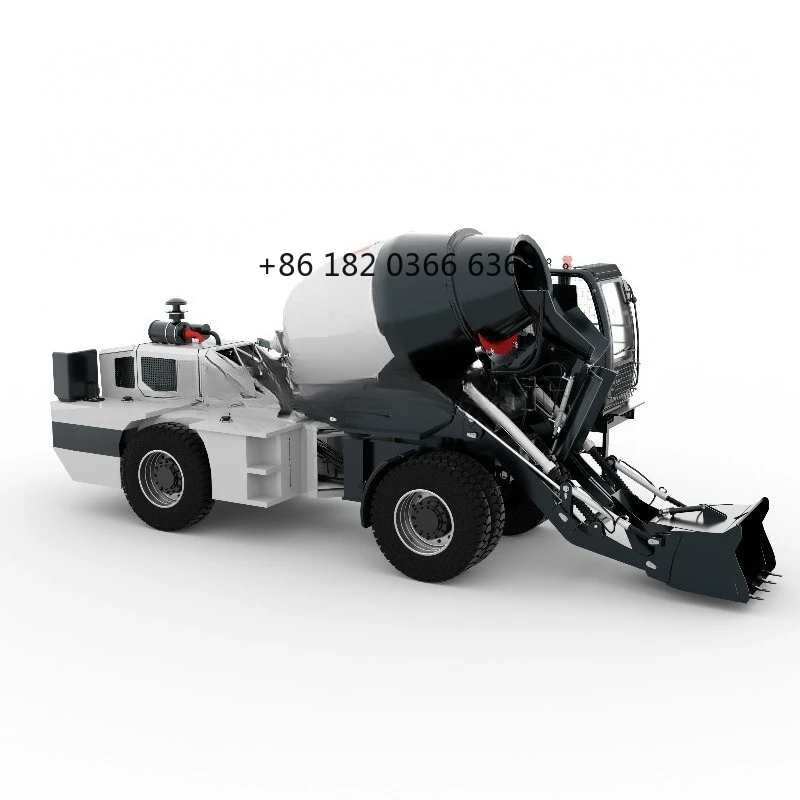

Popular Self Loading Cement Mixer Truck with 3 Cubic Meter Drum and Diesel Engine Drive

$2,843.49

Includes all taxes

Plug Type
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and
quotations

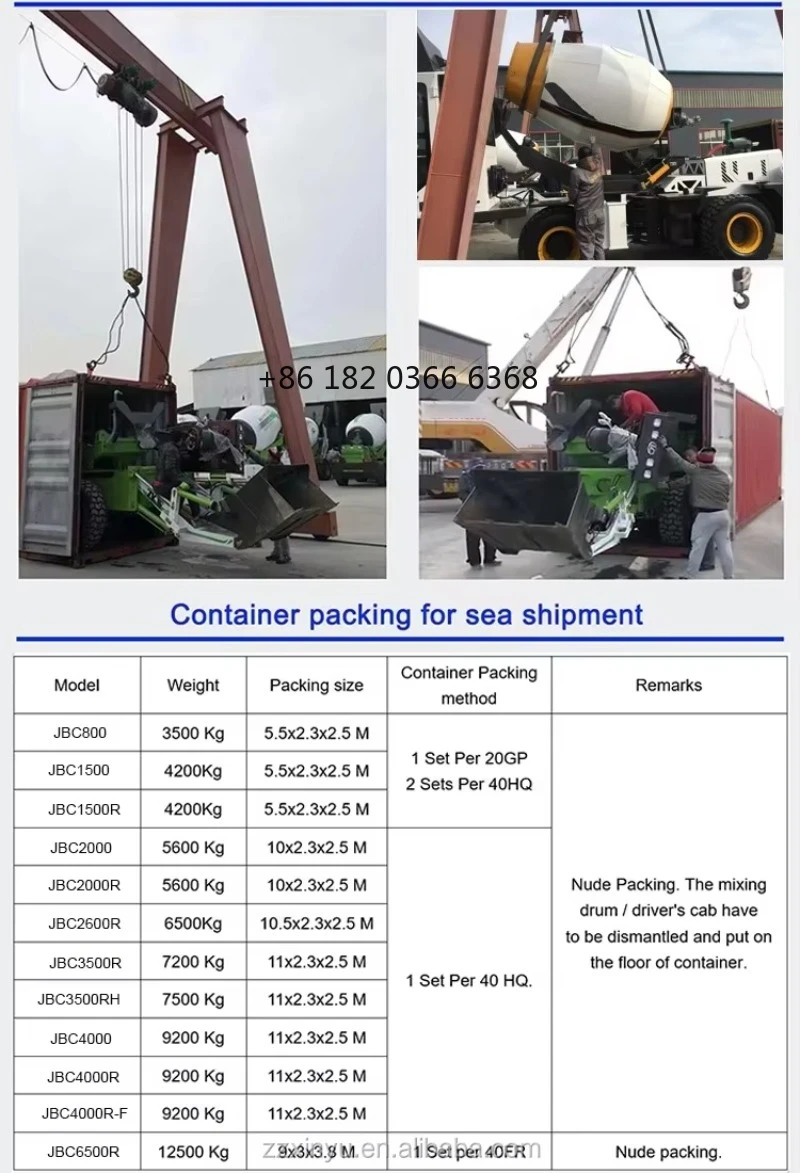

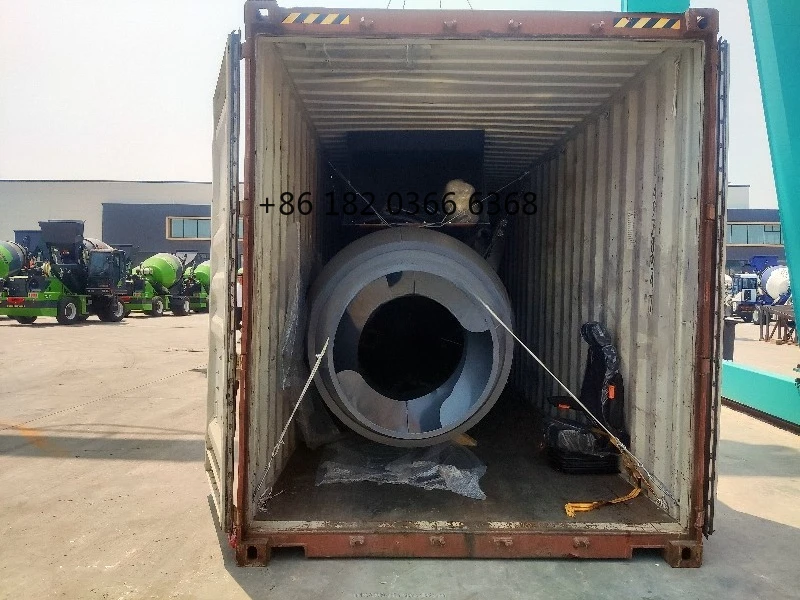

2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!

5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com

CONTACT US:

Advantages of self dumping mixer:

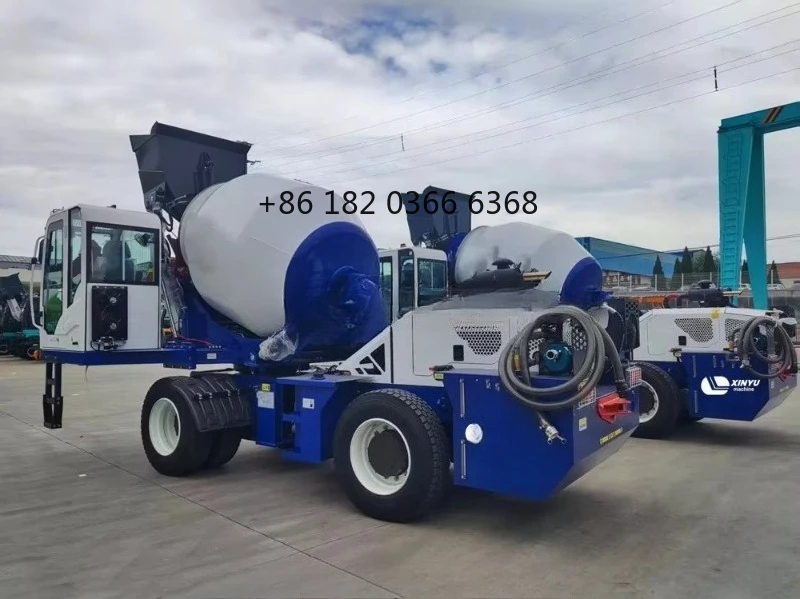

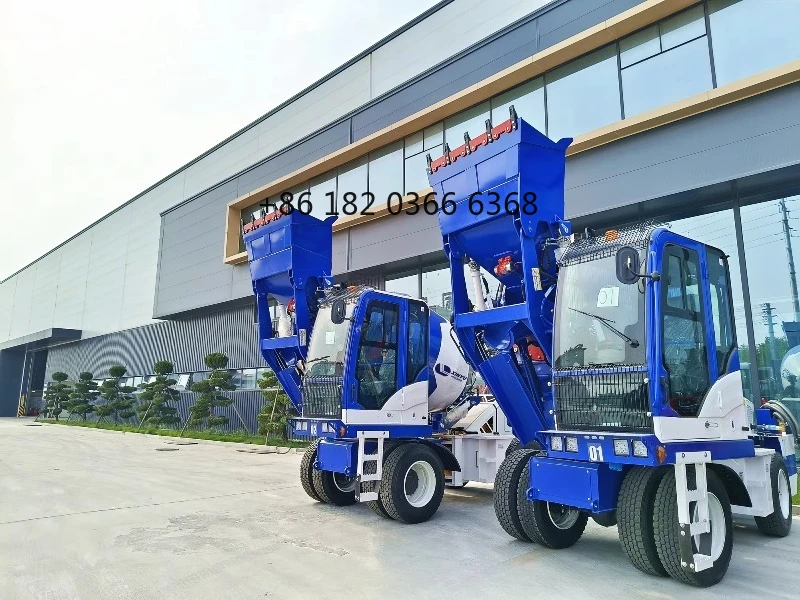

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture.
Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

Main Features:

1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
What is the capacity of self loading concrete mixer?
Model / Parameters

YG18
YG20
YG26
YG35
YG40
YG55
YG65
Mixing unit
Geometrical drum volume
2.7m³
3.5m³
3.6m³
5.3m³
6.1m³
7.8m³
9.2m³

Concrete output
1.8m³/batch, 7.2m³/h
2.0m³/batch, 8.0m³/h
2.6m³/batch, 10.4m³/h
3.5m³/batch, 14.0m³/h
4.0m³/batch, 16.0m³/h
5.5m³/batch, 22m³/h
6.5m³/batch, 26m³/h

Drum rotation speed
13rpm
13rpm
13rpm
17rpm
17rpm
20rpm
17rpm
Power system
Engine model
YUCHAI 4102 Supercharge
YUCHAI 4102 Supercharge
YUCHAI 4102 Supercharge
YUCHAI 4105 Supercharge
YUCHAI 4108 Supercharge
YUCHAI 6105 Supercharge
YUCHAI 6105 Supercharge

Rated power
78kW/106HP
75kW/102HP
78kW/106HP
85kW/116HP
91kW/124HP
92kW/125HP
92kW/125HP

Mounting position
Engine is mounted transversally on the rear







Emission standard
Euro II






Cabin
Features
Fixed cab
Synchronous rotation, bidirectional driving




Fixed cab
Loading shovel
Volumetric capacity
600L
600L
600L
600L
700L
700L
700L
Transmission
Gear
Automatic, 4F+ 4R shift






Water system
Features
Self-priming hydraulic driven water pump with quick-suction







Max. capacity
250L/min
250L/min
250L/min
550 L/min
550L/min
550L/min
550L/min

Water tank
2×200L
2×250L
2×250L
2 × 460 L
2 × 375 L
2 × 430 L
2 × 650 L
Service refill capacities
Fuel tank
63L
75L
120L
120L
120L
160L
342L

Total hydraulic system capacity
63L
75L
120L
120L
120L
160L
254L

Engine oil
16L
16L
16L
16L
16L
20L
22L
Hydrualic system
Reducer
HJ80-43
HJ80-43
HJ80-43
HJ80-43
HJ80-43
HJ80-43
KY07-5-J

Dual gear pump
CBFC 50/40
50/32
CBG9 2050/2032
CBG9 2050/2032
CBGQ 2040/2080
Rexroth 90
Rexroth

Hydraulic motor
BM5-160
Cycloid 125
HYTEK
HYTEK
HYTEK
Sunny,USA 56
Sunny,USA 63
Overall machine
Overall size
7300×2650×3750mm
6950×2720×3850mm
7100×2750×4100mm
7600×2800×4180mm
8450×3000×4500mm
8450×3100×4580mm
8450×3050×4830mm

Wheelbase
2600mm
2520mm
2650mm
2640mm
3300mm
3350mm
2850mm

Curb weight
6000kg
6300kg
7800kg
8300kg
9700kg
11200kg
12520kg

Max.speed
30km/h
35km/h
30km/h
30km/h
35km/h
42km/h
40km/h

Min. turning radius
5270mm
5300mm
5300mm
5300mm
5300mm
6200mm
4800mm

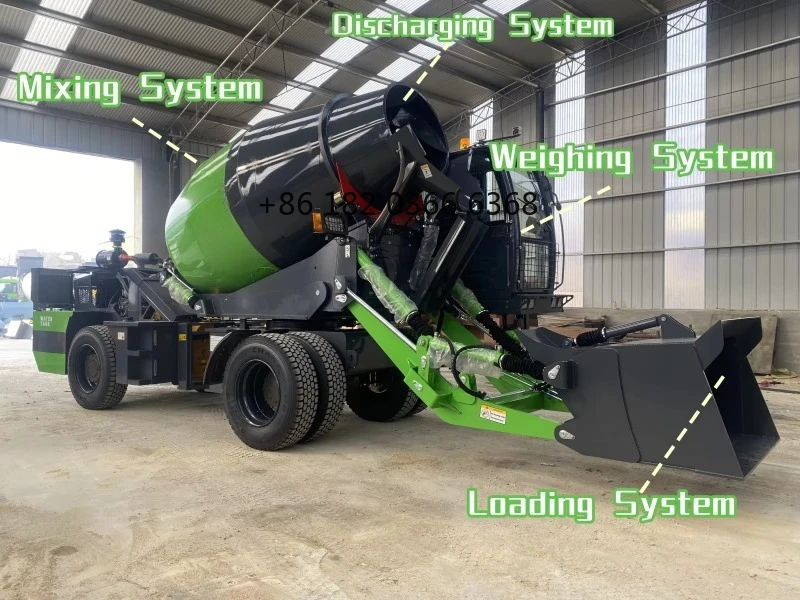

How Do Upgraded Systems of Self Loading Mixture Maximize Project Profits?
Maximizing profits on your job site starts with choosing the right machine. YG’s upgraded self loading concrete mixer machine integrates smart systems designed to boost efficiency, reduce waste, and cut labor costs, delivering more output with less hassle. Let’s explore how each core system drives up your project profitability:

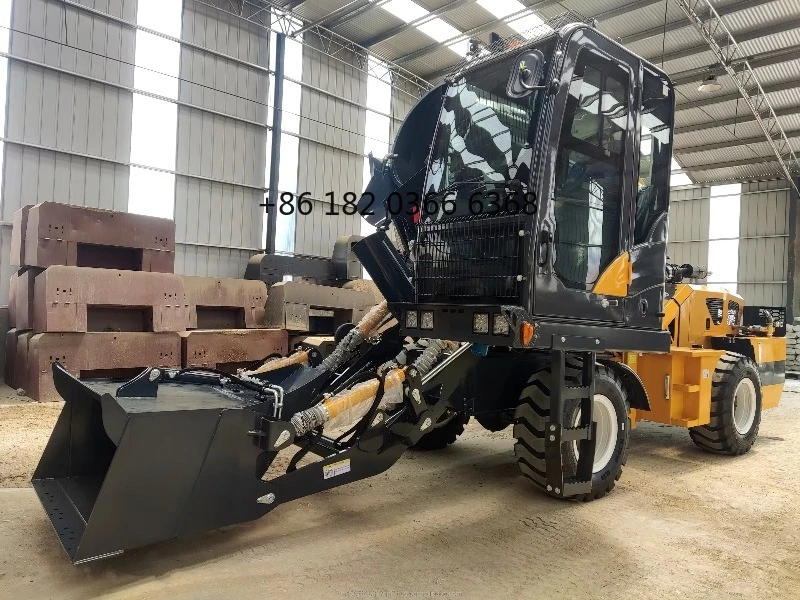

Loading System– Fast, Precise, and Labor-Saving

* Arc design of the bucket: enables smoother and faster feeding, reducing cycle times and increasing hourly output.
* Blades in the bucket: cut cement bags automatically, cutting down labor costs and improving on-site productivity.
* Bucket control: hydraulic control by a lever, minimizing operator fatigue and enhancing control accuracy.

Mixing System – Consistent Quality, Less Rework

* Customized tank body: 6 spirals and 8 blades, ensuring thorough and homogenous mixing for superior concrete quality.
* Mix Drum Tugs: 4 tugs, 2 support wheels, 2 auxiliary wheels to ensure smooth drum rotation and enhanced durability.
* Protection cover of the mixing tank: protect the hydraulic components, cutting maintenance costs and extending service life.

Weighing System – Accuracy That Reduces Material Waste

* Control Panel: 13.3-inch industrial-grade touchscreen offers real-time weight tracking and operation control with ease.
* Weighing errors: aggregate within 1% and water within 2%, ensuring precise mix ratios.
* Multiple formula management modes: counted by time or concrete number to meet the needs of multiple modes of proportioning.

Discharging System – Flexible Placement, Faster Turnover

* Wide unloading range:270 or 290 degrees rotating for unloading, at 2 meters high, ideal for varied job site needs.
* Easy Control: operating a handle shank in the cab, speeding up cycle times and lower the difficulty of operation
* Ensure Safety: the cab is equipped with ROPS-FOPS system, keeping operators safe and minimizing costly downtime due to
accidents.

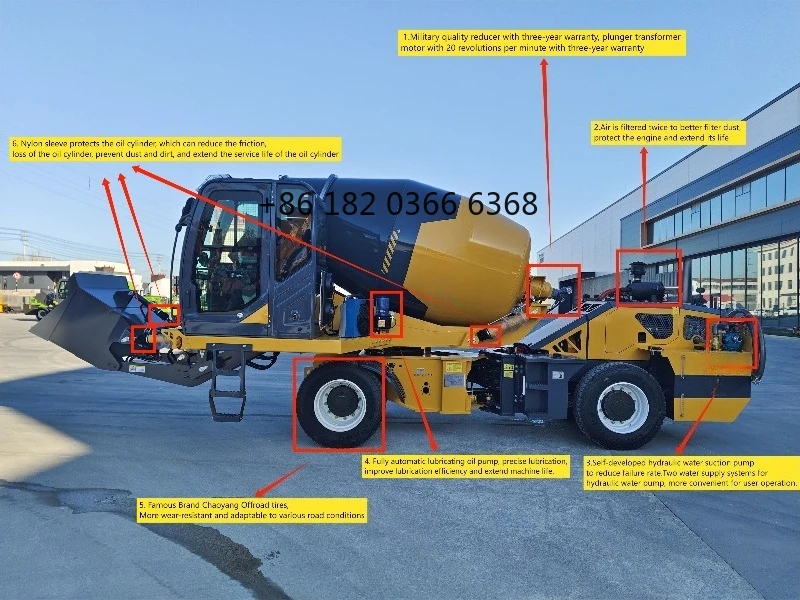

Why Choose YGSelf Loading Concrete Mixer Models?
1.Military quality reducer with three-year warranty, plunger transformer motor with 20 revolutions per minute with three-year warranty
2.Air is filtered twice to better filter dust, protect the engine and extend its life
3.Self-developed hydraulic water suction pump to reduce failure rate.Two water supply systems for hydraulic water pump, more convenient for user operation.
4. Fully automatic lubricating oil pump, precise lubrication, improve lubrication efficiency and extend machine life.
5.Famous Brand Chaoyang Offroad tires, More wear-resistant and adaptable to various road conditions.
6.Nylon sleeve protects the oil cylinder, which can reduce the friction, loss of the oil cylinder, prevent dust and dirt, and extend the service life of the oil cylinder.

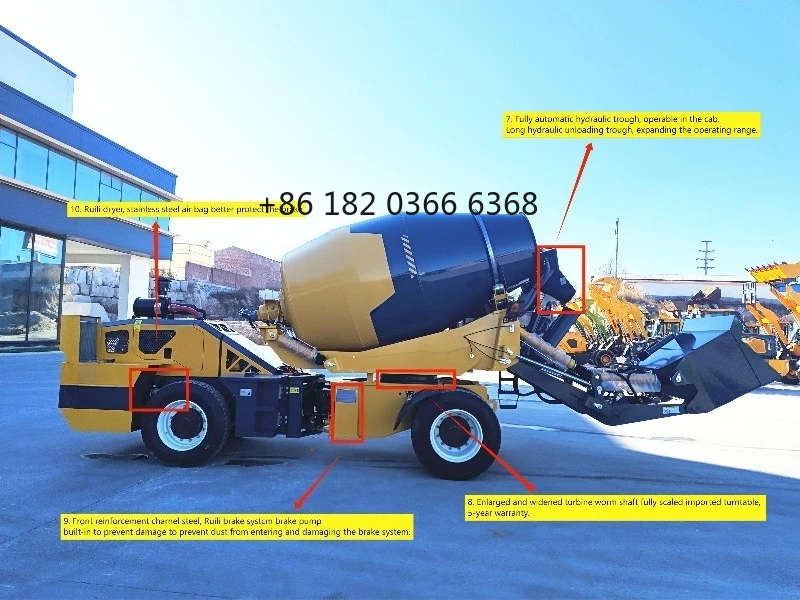

7.Fully automatic hydraulic trough, operable in the cab. Long hydraulic unloading trough, expanding the operating range.
8.Enlarged and widened turbine worm shaft fully scaled imported turntable,5-year warranty.
9. Front reinforcement charnel steel, Ruili brake systembrake pump built-in to prevent damage to prevent dust from entering and damaging the brake system.
10.Ruili dryer, stainless steel air bag better protect the brake

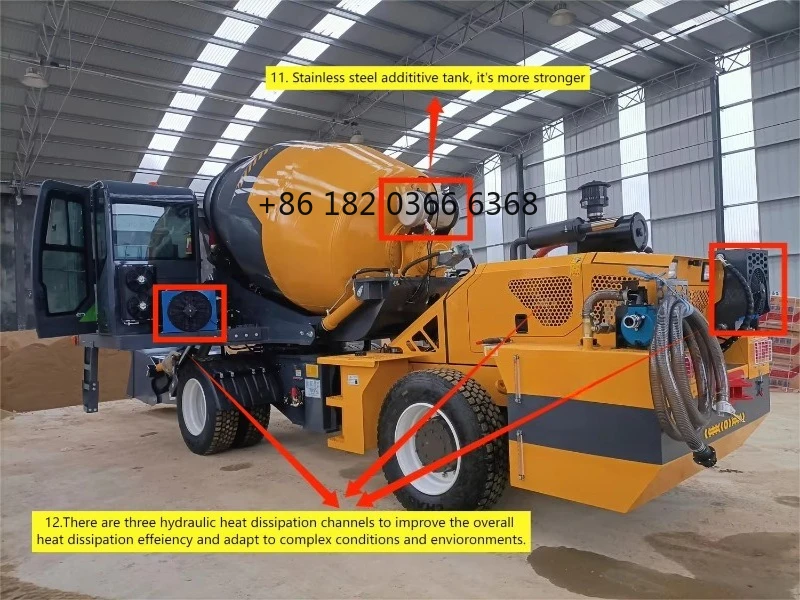

11.Stainless steel additive tank, it's more stronger
12.There are three hydraulic heat dissipation channels to improve the overall heat dissipation efficiency and adapt to complex conditions and environments.

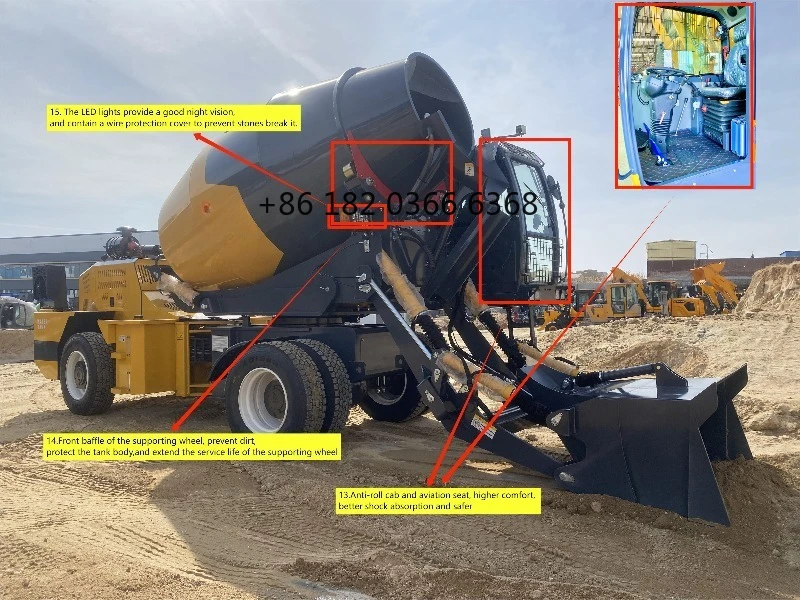

13.Anti-roll cab and aviation seat, higher comfort,better shock absorption and safer
14.Front baffle of the supporting wheel, prevent dirt,protect the tank body,and extend the service life of the supporting wheel
15. The LED lights provide a good night vision,and contain a wire protection cover to prevent stones break it.

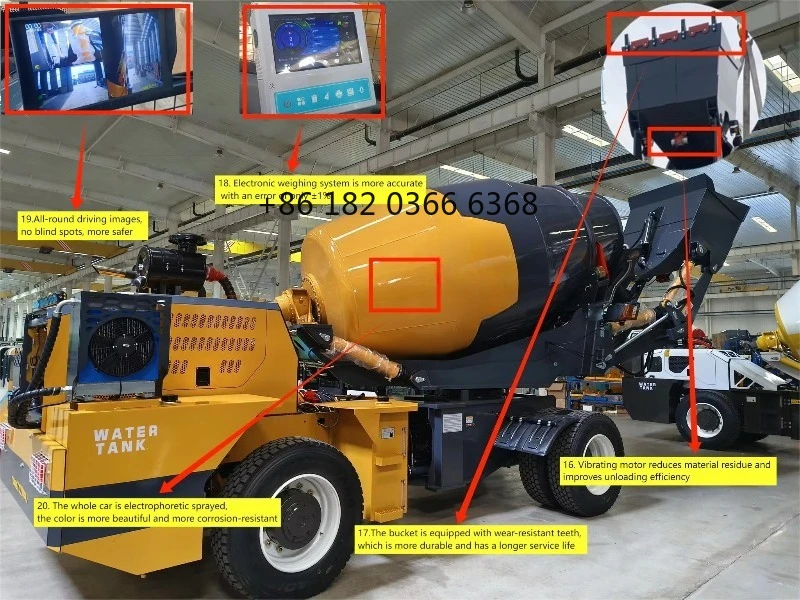

16. Vibrating motor reduces material residue andimproves unloading efficiency
17.The bucket is equipped with wear-resistant teeth,which is more durable and has a longer service life
18. Electronic weighing system is more accuratewith an error of only ±1%
19.All-round driving images,no blind spots, more safer
20. The whole car is electrophoretic sprayed, the color is more beautiful and more corrosion-resistant
Maintenance Tips for Self Loading Mixer Machine

Regular Inspections

Conduct routine checks to identify any wear and tear or potential issues early. Focus on critical components like the drum,
hydraulic system, and drive mechanisms.

Clean After Each Use

Thoroughly clean the mixer drum of self loader concrete mixer after every use to prevent the buildup of concrete residue. This helps avoid clogs and ensures smooth operation.

Check Fluid Levels

Regularly monitor and top up hydraulic fluid, engine oil, and other essential fluids to maintain optimal performance and prevent damage.

Lubricate Moving Parts

Ensure that lubricate all moving parts, such as joints and bearings, according to the AIMIX self laoding concrete mixer
manufacturer’s recommendations to reduce friction and wear.

Inspect and Replace Worn Parts

Regularly inspect parts such as blades, bearings, and seals for signs of wear. Replace any damaged or worn components promptly to avoid further damage.

Calibrate the Weighing System

Periodically calibrate the weighing system to ensure accurate measurement of materials, which is crucial for producing
high-quality concrete.
Grommy Factory
We specialized corporation which produces large and medium construction equipment products. We specialize in the production of concrete mixing plant, asphalt mixing station, JS series twin shaft concrete mixer, concrete trailer Pump, concrete block making machine amd tower crane, Self loading Concrete Mixer etc.
Use the technical strength, advanced technology, continuous product upgrades to make the quality of the products more perfect, more applicable. We not only have good sales in the domestic market, but also exported to Russia, Kazakhstan, Mongolia, and Vietnam and other countries.
Application Fields
FAQ
Q1: What is your accept payment method?
A1: Trade Assurance, T/T, L/C, Credit card, Pay pal, etc.

Q2: How long about the delivery time?
A2: Within 7 days after received deposit.

Q3: How long is your warranty terms?
A3: Our Warranty terms is 1 years guarantee.

Q4: What’s the capacity of concrete trailer do you have?
A4: have Stationary type 20-80 m3, per hour etc.


Q5: How to clean self loading concrete mixer?
A5: It can be equipped with a high-pressure washing pump,the tank needs to be cleaned each day before get off work. You can also add two buckets of small stones to mix for 3-5 minutes to make sure the mixing tank clearly.

Q6: How to install the self loading concrete mixer?
A6: We provide the installation videos and drawings. And Engineers will provide service online or site to ensure the installation work goers well.
