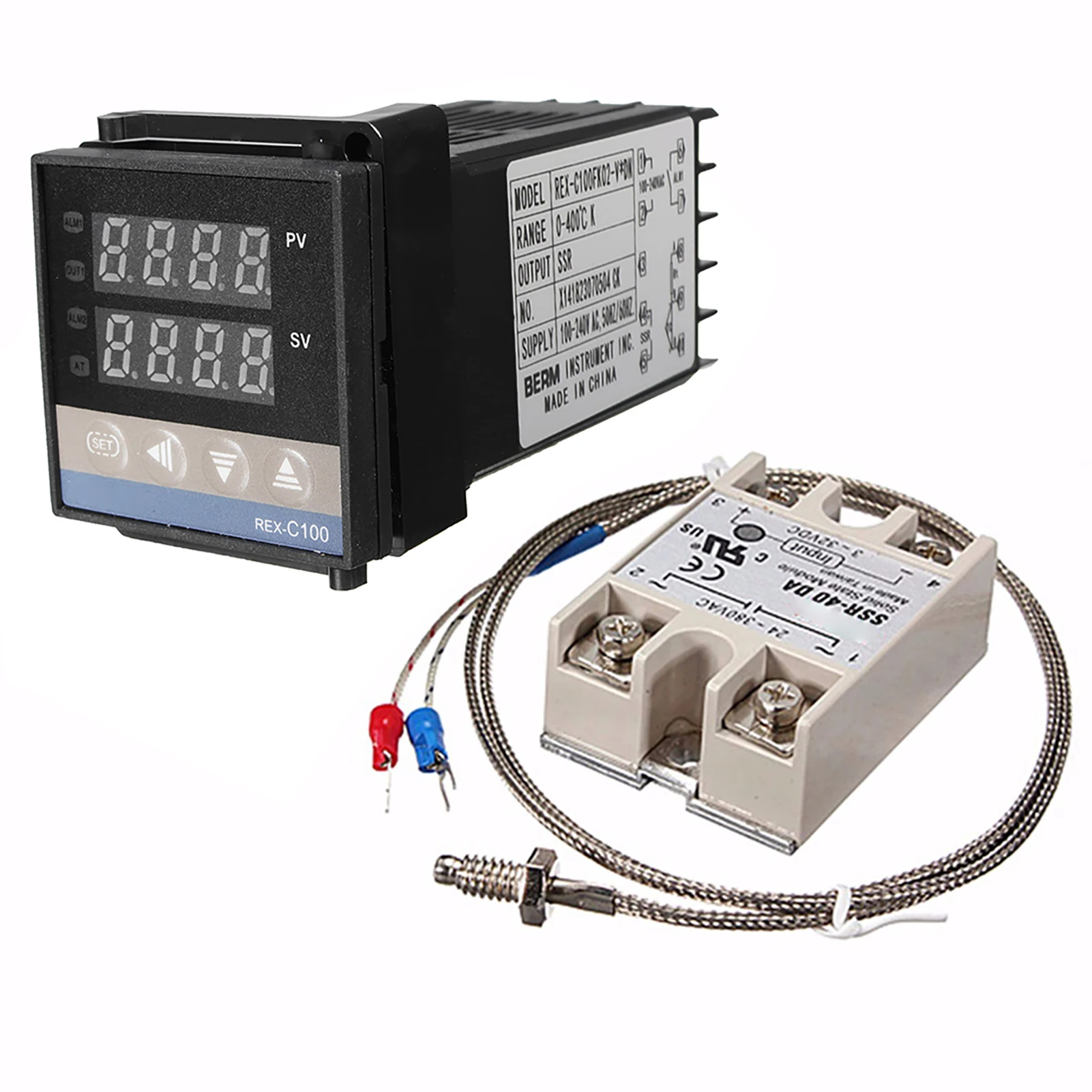

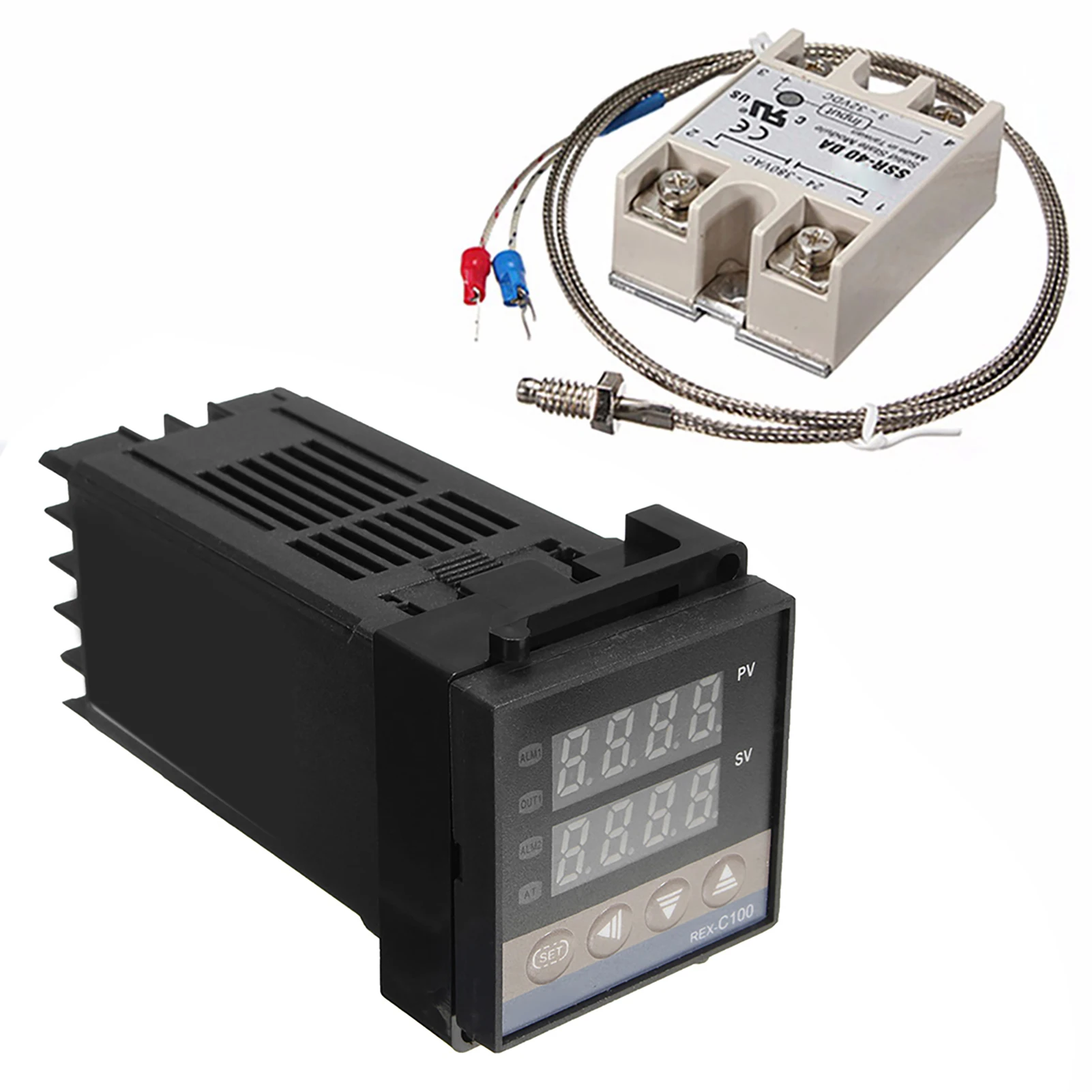

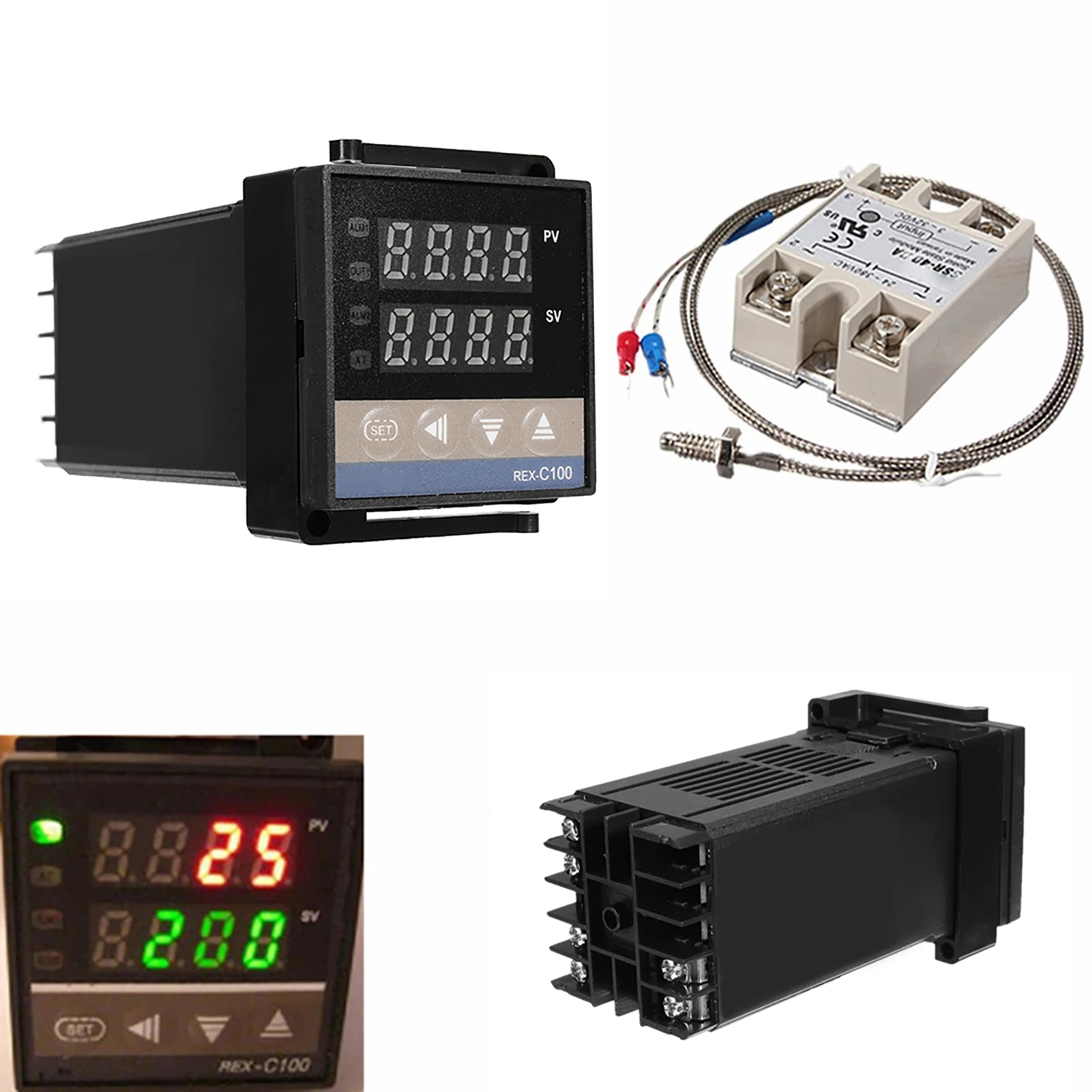

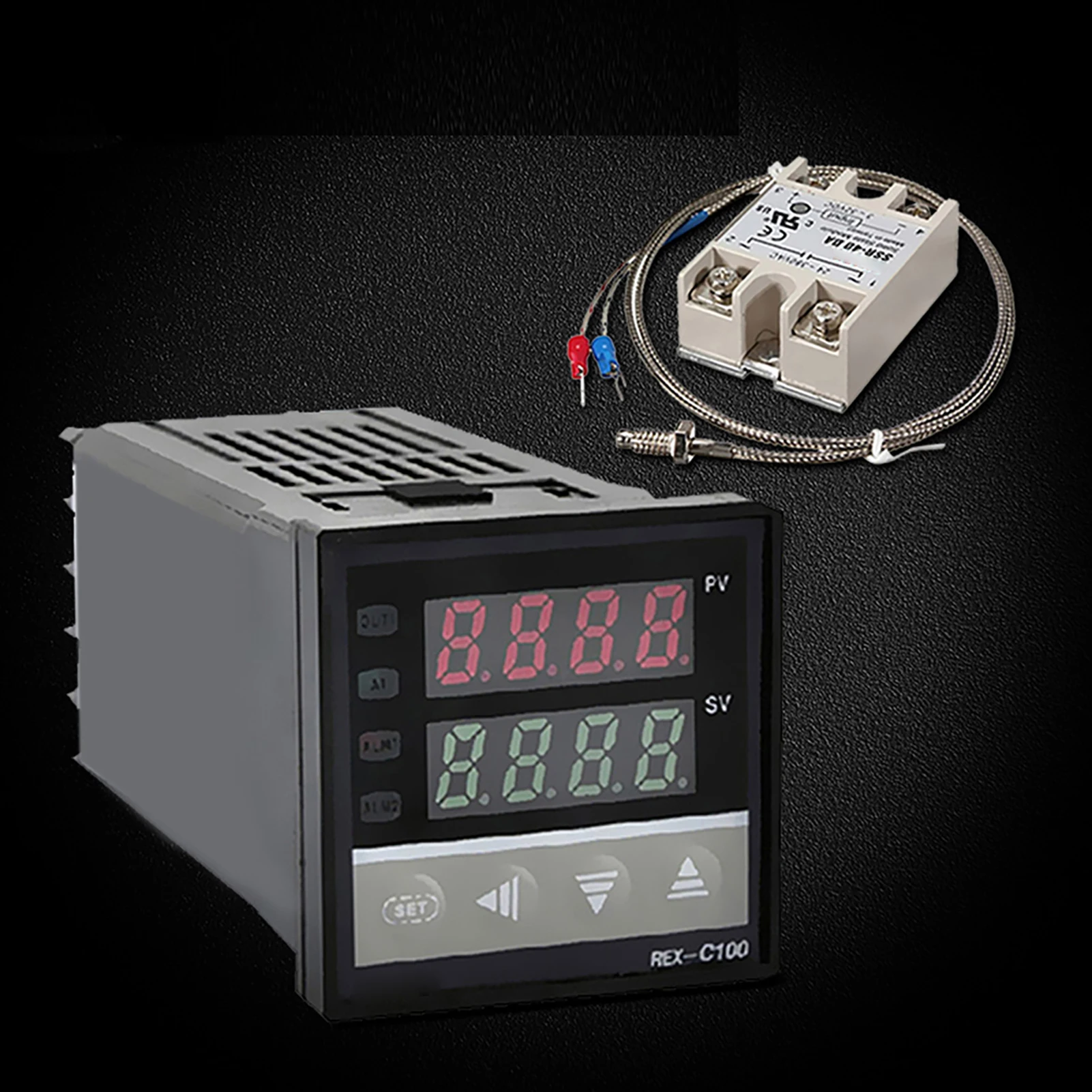

REX C100 Digital PID Temperature Controller Set with 40A SSD 1m K Thermocouple Probe Sensor Cable

$46.47

Includes all taxes

Color
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

                                                    REX C100 Digital PID Temperature Controller Set with 40A SSD 1m K Thermocouple Probe Cable



Feature:

1. PID controller set comes with digital PID REX-C100 temperature controller + max.40A SSR + K Thermocouple for your use.
2. This PID temp control is specially designed for one phase solid state relay.
3. Proportional Band (P): 0~full range (ON/OFF control when set to 0).
4. Integral time (I): 0~3600 sec (no integral action when set to 0), derivative time (D): 0~3600 sec (no derivative action when set to 0).
5. Setting value (SV) is identical to measuring range (PV).


Specification:

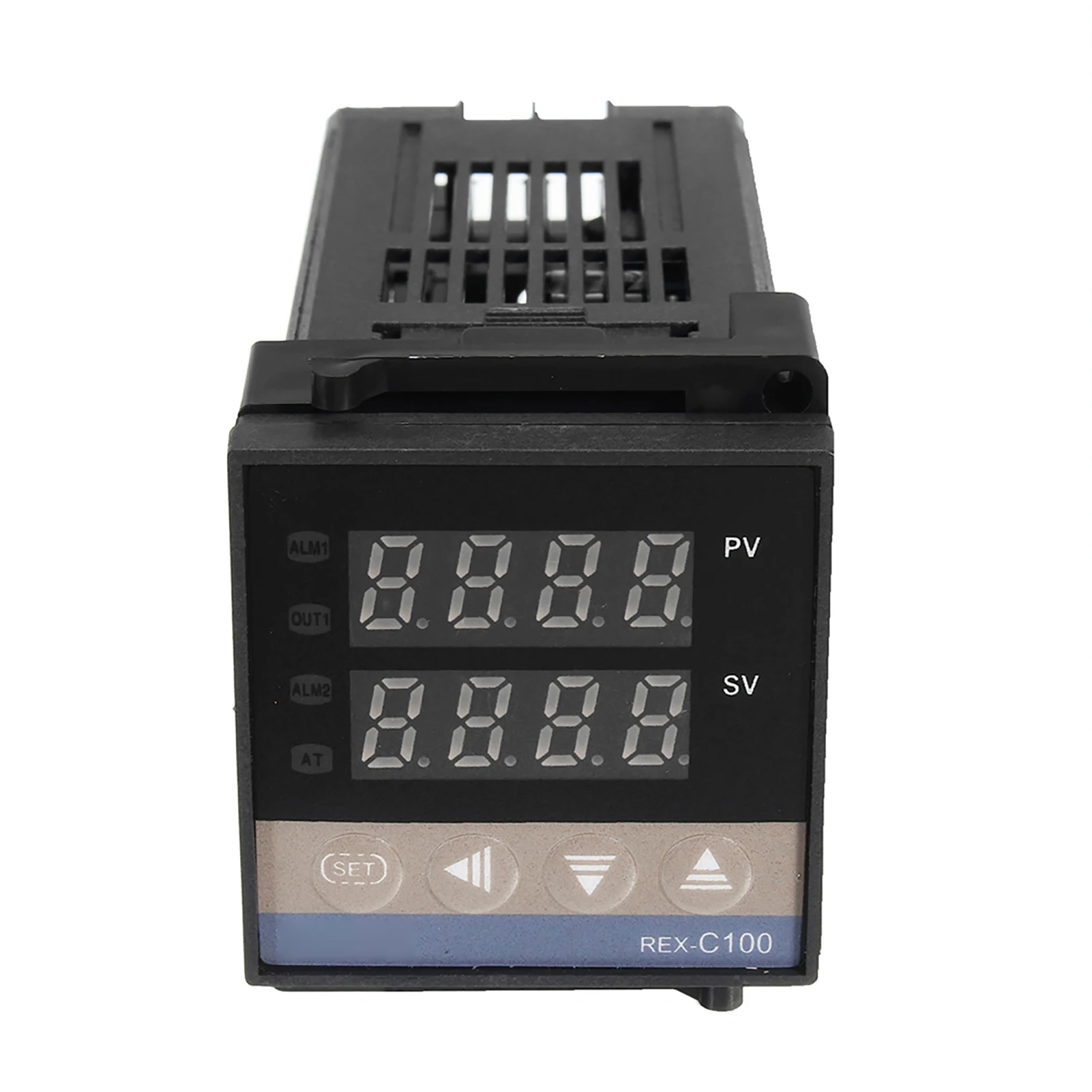

REX C100 Temperature Controller:
1.3 Digit setup values
2.Measuring accuracy: ±0.5%
3.Cold end compensation tolerance: ±2℃(can be modified by software in 0-50℃)
4.Resolution: 14 bit
5.Sampling cycle: 0.5 Sec
6.Power: AC 100-240V 50/60HZ
7.Process value (PV), Setting value (SV)
8.Output, and self-tuning can be indicated by: LED
9.PIN control (including ON OFF, step type PID and continuous PID)
10.Self tuning control
11.Relay output: contact capacity 250V AC 3A (resistive load)
12.Proportional band (P): 0-full range (ON OFF control when set to 0)
13.Detective temperature range: 0 to 400℃
14.Insulation resistant: >50M ohm(500V D-C)
15.Insulation resistant: 1500V AC/min
16.Insulation resistant: Power Consumption < 10 VA
17.Service environment: 0-50℃
18.Environment with no corrosive g-as 30-85% RH
K Thermocouple Probe Cable:
1.Length: 1M
2.Sensor diameter: 4.5mm
3.Temperature range: 0-400℃
4.Internal Insulation: Fiberglass
5.External Shielding: Insulated Shielding
Maximum 40A SSR:
1.Output Current: 40A
2.Input Voltage: DC 3-32V
3.Output Voltage: 24-380V AC
4.Output Voltage Range: Standard Type

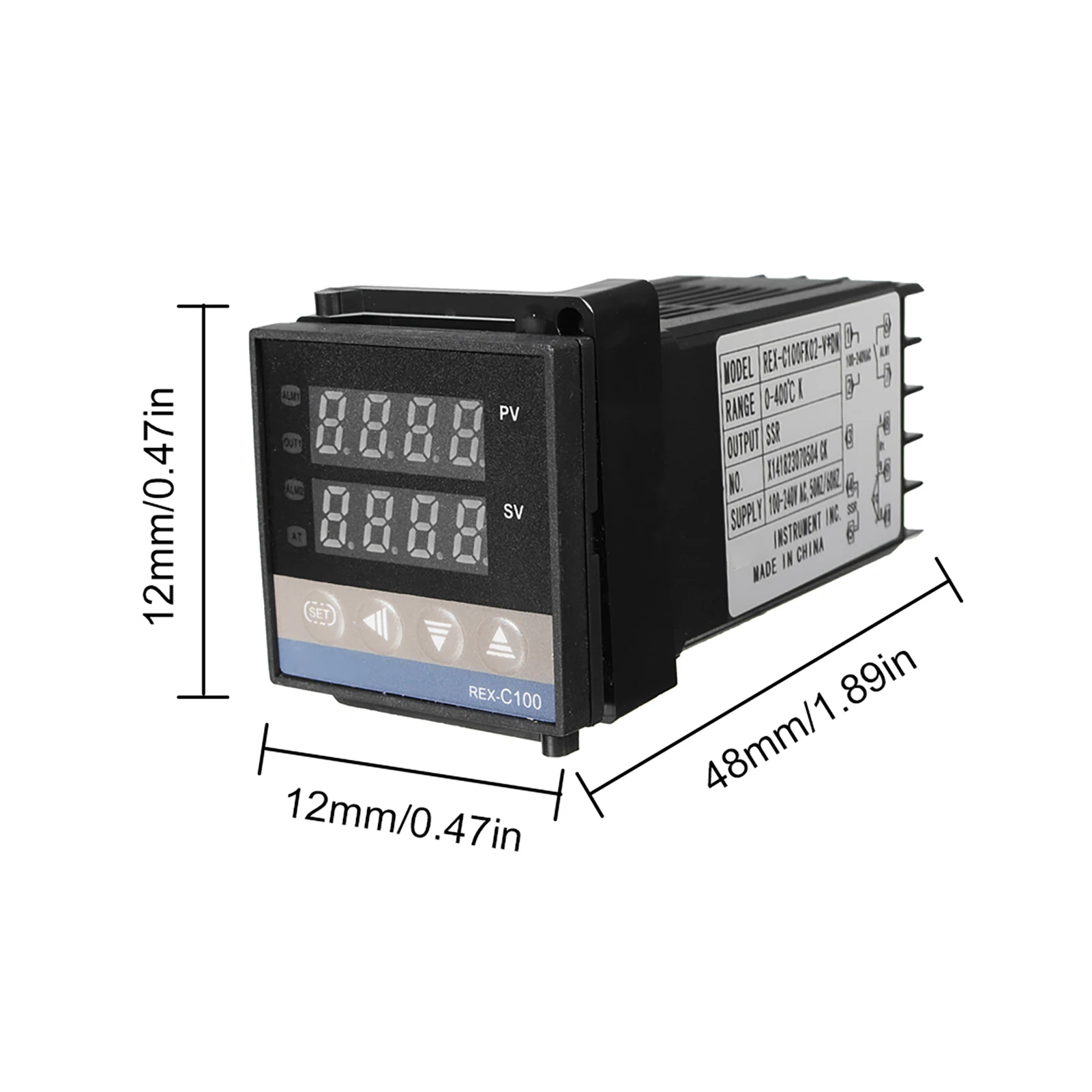

Item Size: 48 x 12 x 12mm / 1.89 x 0.47 x 0.47in

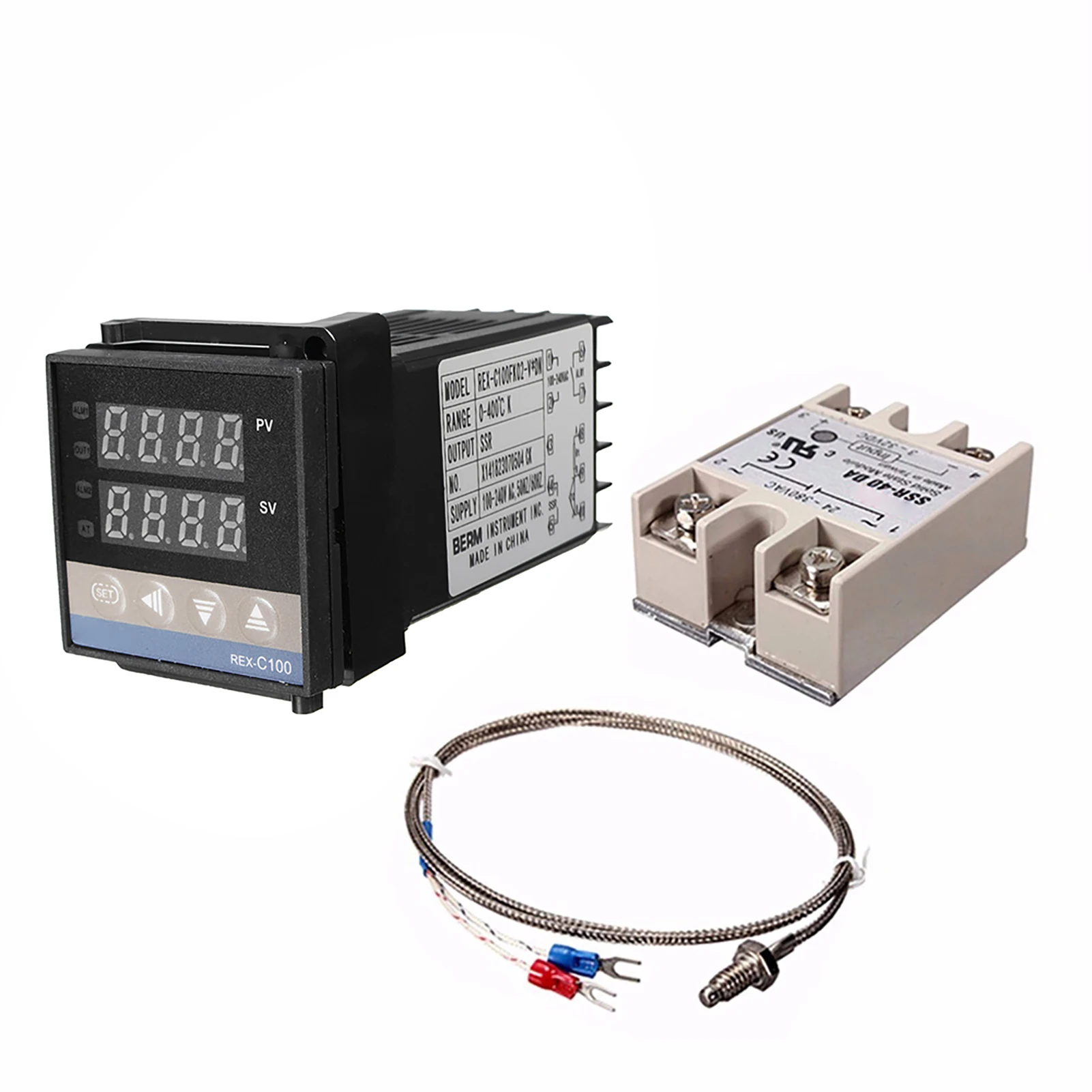

Package List:

1 x PID Temperature Controller
1 x K Type Probe Sensor
1 x Maximum 40A SSR
