Hybrid Energy Controller can be used for microgrid energy management system composed of solar energy, storage battery and genset, with data monitoring through RS485 interface. It can control the starting and stopping of the genset in the system according to the load size or the SOC of the storage battery, and it can control the output power of the unit by setting the genset voltage, frequency center point and sag percentage. It has two operation modes: economy and power preservation.
HMU8-9570 hybrid energy controller adopts 8-inch 800*600 resolution capacitive touch display with Chinese and English display, easy to operate and reliable operation.
HMU8-9570 Hybrid Energy Controller is used for monitoring and controlling the data of inverter, converter and genset. It is suitable for microgrid hybrid energy system composed of photovoltaic, energy storage and genset, and can also be used for hybrid energy system composed of energy storage and genset.
The main features are as follows:
Display module adopts 8-inch LCD screen with 800*600 resolution, human-machine interface display, capacitive touch screen operation. Chinese and English optional interface operation, and can be selected on-site, convenient for factory commissioning personnel to test the machine;
With power indicator, communication indicator, alarm indicator;
Module has 10 levels of dimming, can be adjusted for different environments for brightness;

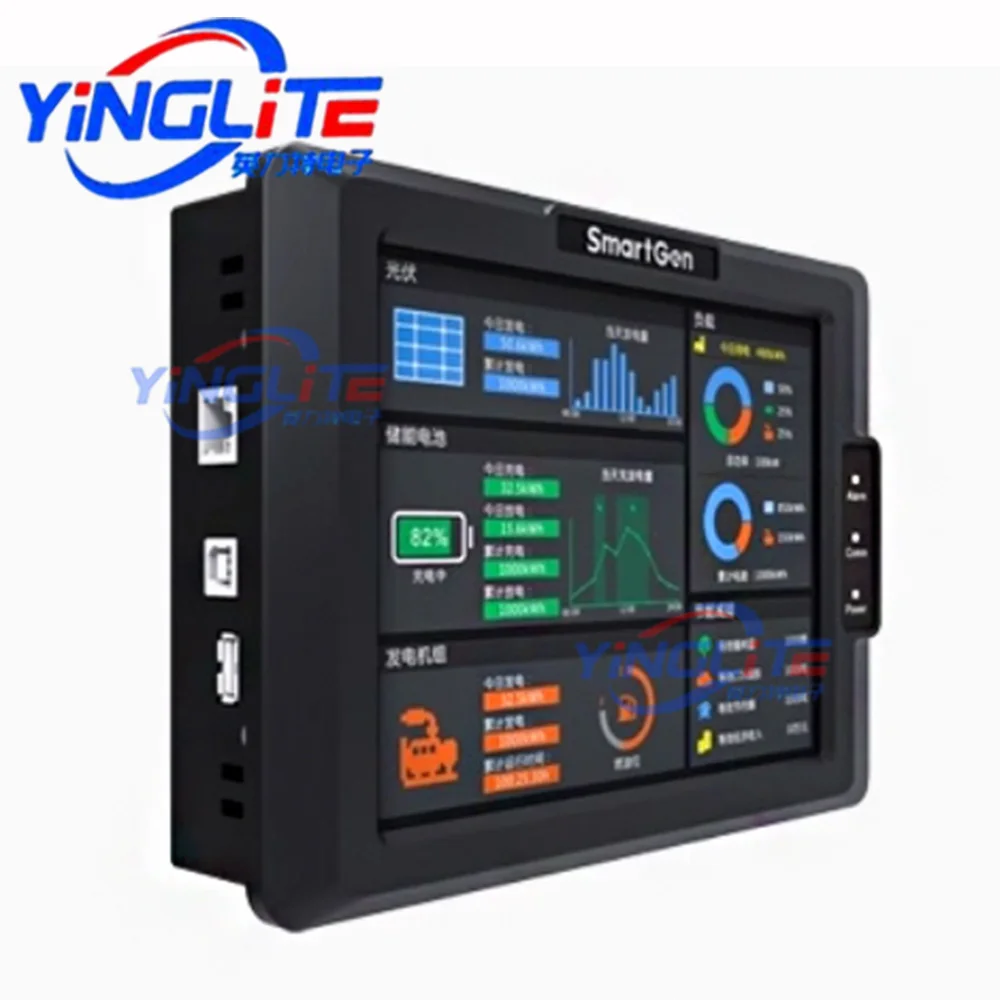

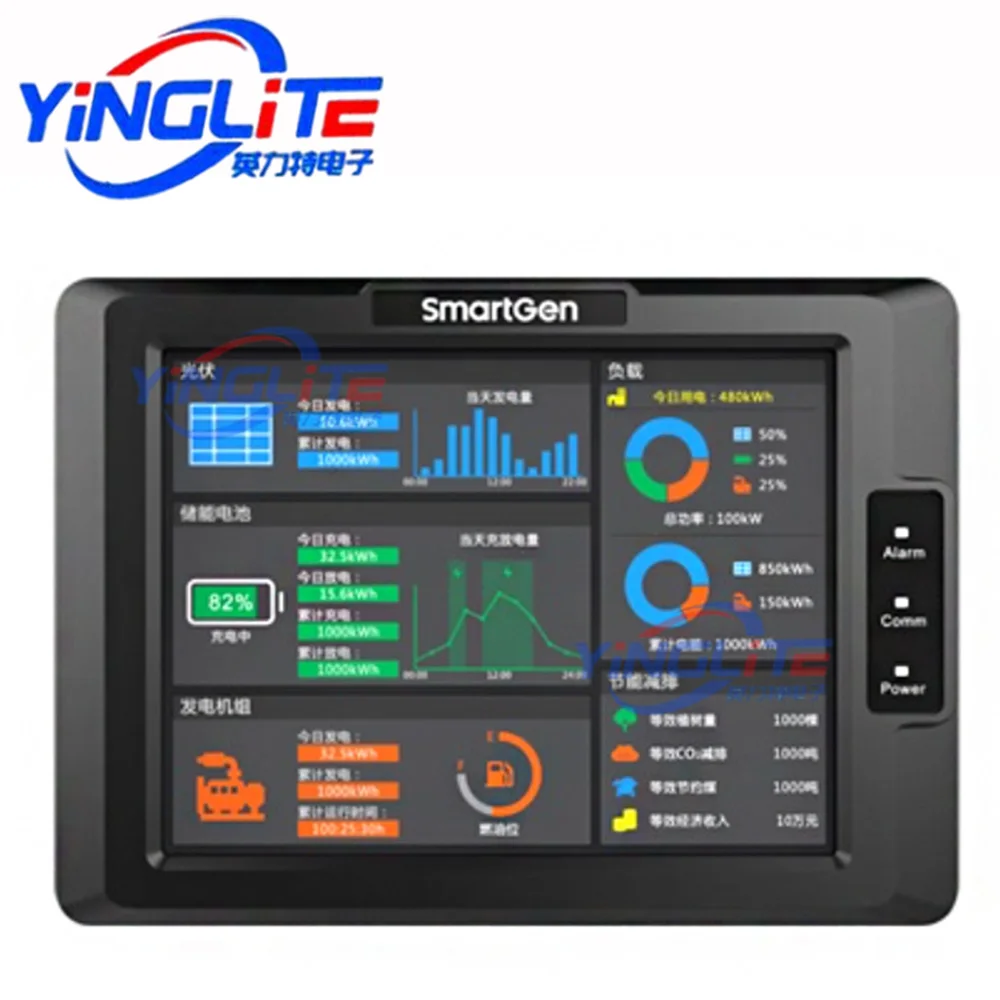

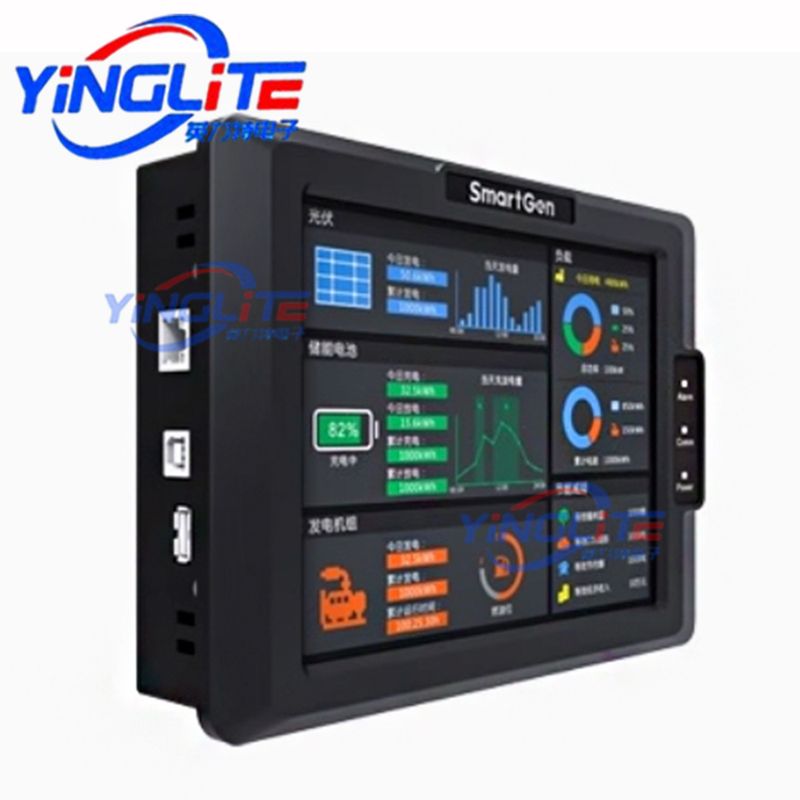

The home page interface of the display module can display the bar chart of PV power generation on the same day, the charging and discharging curve of the storage battery on the same day, and the pie chart of load power and accumulated power;
Energy saving and emission reduction parameters can be displayed;
Genset frequency, voltage center point and sag percentage can be set;
RS485 communication port parameters can be set on the module, which will not be lost when the system is powered down, and all module parameters can be adjusted on the PC through the upper computer software;
With two operation modes of economy and power preservation;

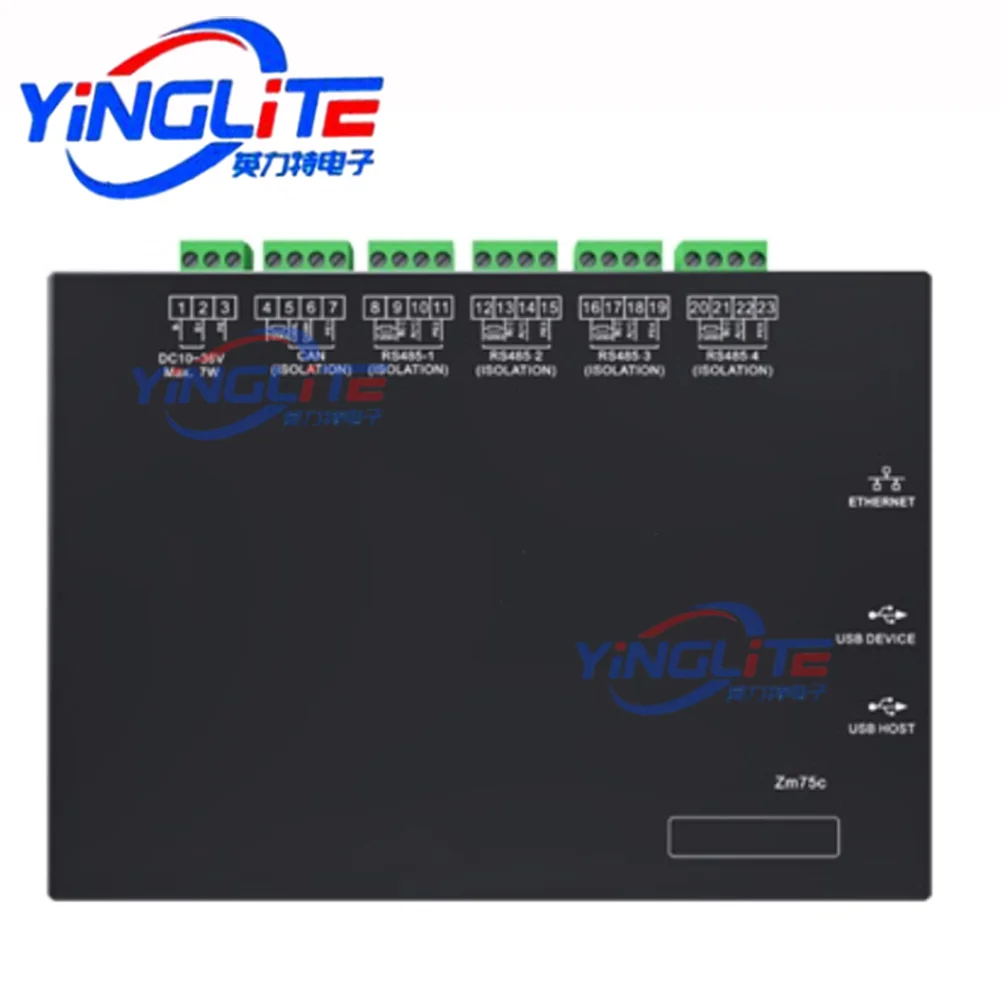

With 4 RS485 interfaces, 1 CANBUS interface, 1 ETHERNET interface;
Wide power supply range DC(10~35)V, which can adapt to different power supply environments;

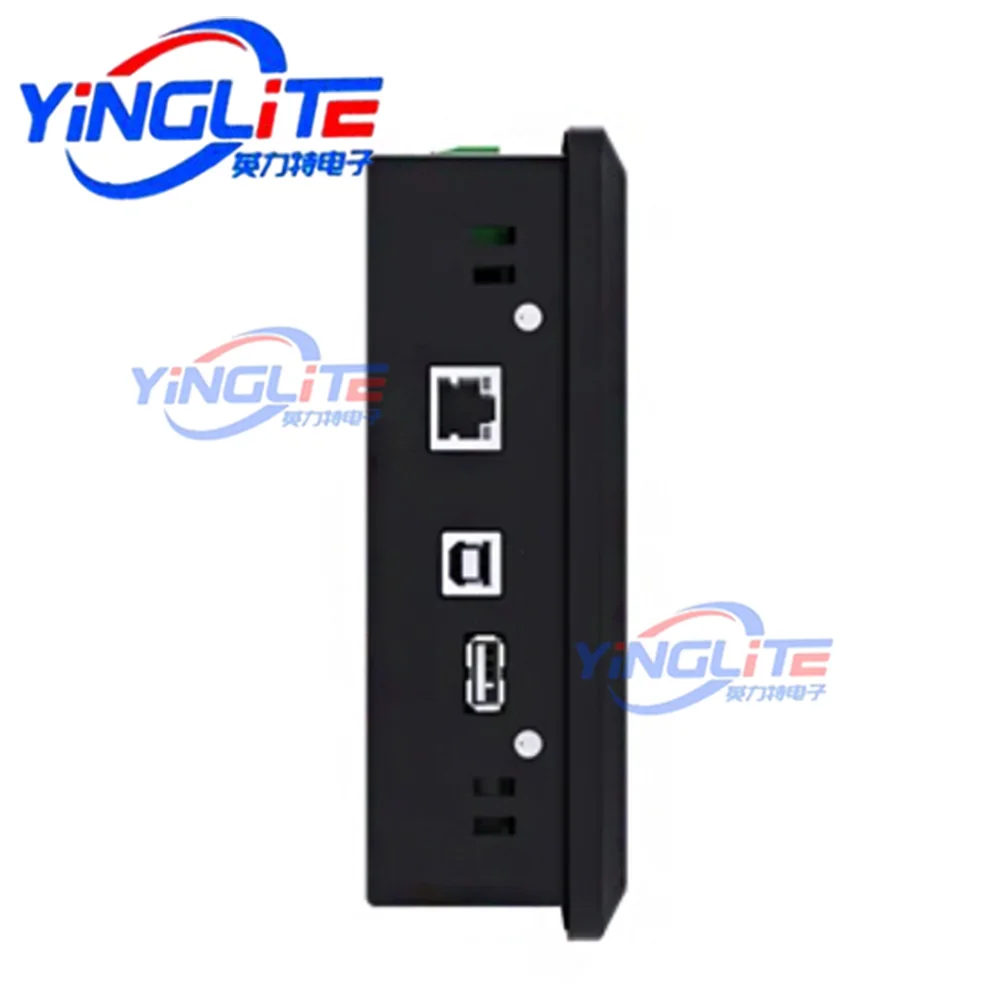

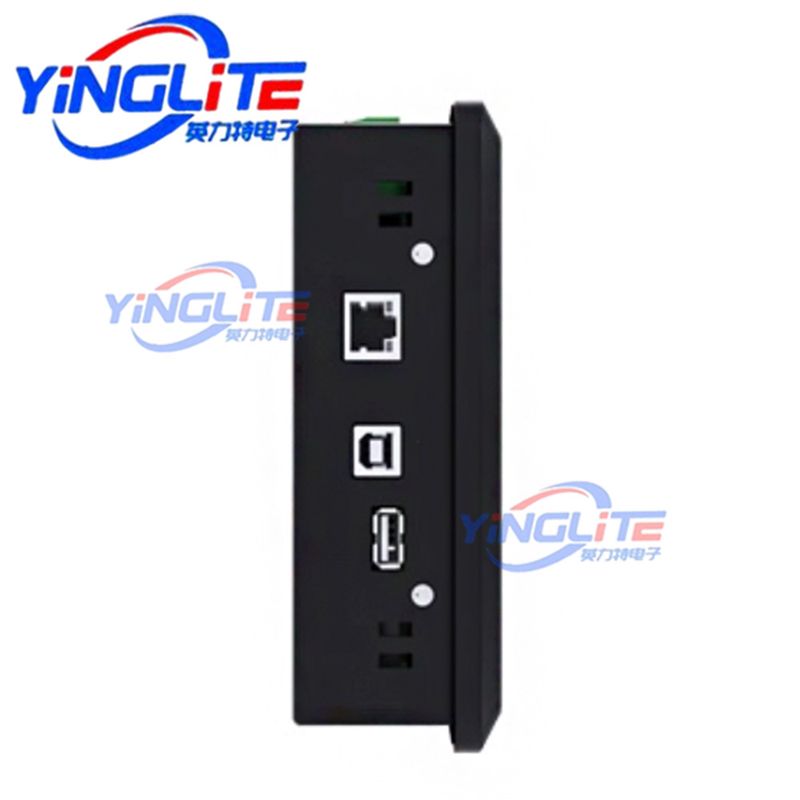

Has a USB device interface for upgrading the display module firmware;
With USB host interface, for upgrading the interface picture and font of the display module;
Rubber sealing area is designed between the shell and the control panel, and the protection performance of the front panel can reach IP65;
The controller is fixed by metal clips;
Modular structure design, pluggable terminals, embedded installation, compact structure, easy installation.
