South G3 GPS Land Surveying Instrument, Rover and Base, Language Switchable, Integrated Transceiver Farlink Radio Protocol

$723.75

Includes all taxes

Ships From
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

South G3 GPS RTK GNSS,Rover and Base, Land Surveying Instrument, Language Switchable, Integrated Transceiver Farlink Radio Protocol

If you purchase the Rover+Base combo. l will give you fivegifts, which includes: tripod+bipod+tripod base+2 antennas


Specification

Model
G3
GNSS performance
Channels
1598
GPS
L1, L1C, L2C, L2P, L5
GLONASS
L1 C/A, L1P, L2C/A, L2P, L3
BDS
BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b
GALILEO
E1, E5A, E5B, E6C, AltBOC
SBAS
L1
WAAS/MSAS/EGNOS/GAGAN
IRNSS
L5
QZSS
L1, L2C, L5
MSS L-Band
BDS-PPP
Positioning output rate
1Hz~20Hz
Initialization time
<10s
Initialization reliability
>99.99%
Positioning precision
Code differential GNSS
Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS
Static(long observations)
Horizontal: 2.5 mm + 0.1 ppm RMS Vertical: 3 mm + 0.4 ppm RMS
Rapid static
Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS
PPK
Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS
RTK(UHF)
Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS
RTK(NTRIP)
Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS
RTK initialization time
2-8s
SBAS positioning
Typically < 5m 3DRMS
SBAS positioning
Typically<1m 3DRMS
BANDA-L
Horizontal: 5-10cm (5-30min) Vertical: 10-30cm (5-30min)
IMU
Less than 10mm + 0.7 mm/° tilt to 30°
IMU tilt angle
0° ~ 60°
User interaction
Operaing system
Linux
Buttons
Single button operation
Indicators
5 LED indicatorss (Satellite , Charging , Power, Datalink , Bluetooth)
Web interaction
With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status
and change the configurations freely
Voice guide
It provides status and operation voice guidance, and supports Chinese/English/ Korean/Spanish/Portuguese/Russian/Turkish
Secondary development
Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition
Data cloud service
The powerful cloud platform provides online services like remote manage, firmware update, online register and etc.
Hardware performance
Dimension
130mm (W) ×130mm (L) × 80mm (H)
Weight
790g (battery included)
Material
Magnesium aluminum alloy shell
Operating temperature
-45°C ~ +75°C
Storag temperature
-55°C ~ +85°C
Humidity
100% Non-condensing
Waterproof/Dustproof
IP68 standard, protected from long time immersion to depth of 1m, and fully protected against blowing dust
Shock and vibration
Withstand 2 meters drop onto the cement ground naturally MIL-STD 810G
Power Supply
6-28V DC, overvoltage protection
Battery
Inbuilt 7.2V 6800mAh rechargeable, Li-ion battery
Battery life
Single battery: 15h (Rover Bluetooth mode)
Communications
I/O port
5PIN LEMO external power port + Rs232 Type-C interface (charge , OTG to USB disk, data transfer with PC or phone , Ethernet )1 UHF antenna interface
Internal UHF
2W radio, receive and transmit, radio router and radio repeater
Frequency Range
410 - 470MHz
Communication Protocol
Farlink, Trimtalk450s, SOUTH, HUACE, Hi-target, Satel
Communication range
Typically 8km with Farlink protocol
Bluetooth
Bluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDR
NFC Communication
Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless
communication module else)
WIFI
Modem
802.11 b/g standard
WIFI Hotspot
AP mode, Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
WIFI data link
Client mode, Receiver can transmit and receive correction data stream via WiFi datalink
Data storage/ Transmission
Data Storage
4GB SSD
Automatic cycle storage e(The earliest data files will be removed automatically while the memory is not enough) Support external
USB storage
Data Transmission
Plug and play mode of USB data transmission Supports FTP/HTTP data download
Data Format
Static data format: STH, Rinex2.01, Rinex3.02 and etc. Differential data format: RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
GPS output data format: NMEA-0813, PJK plane coordinate , SOUTH Binary code
Network model support: VRS, FKP, MAC, fully support NTRIP protocol
Sensors
Electronic bubble
Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
IMU
Built-in IMU module, calibration-free and immue to magnetic interference
Thermometer
Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver
temperature

Product Description
Product Advantages

Actual Images

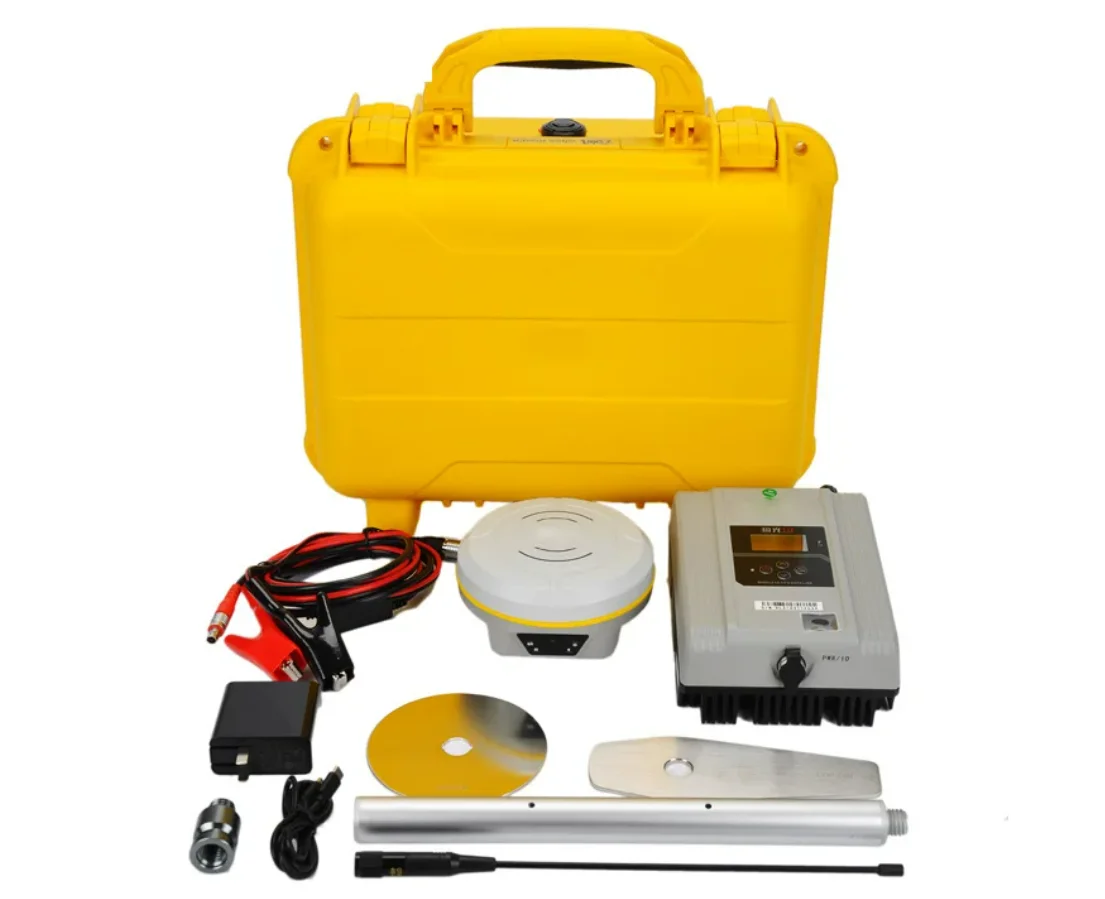

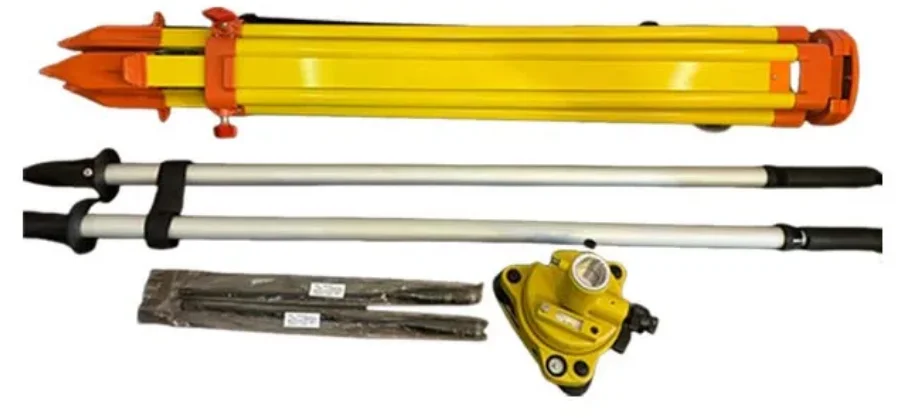

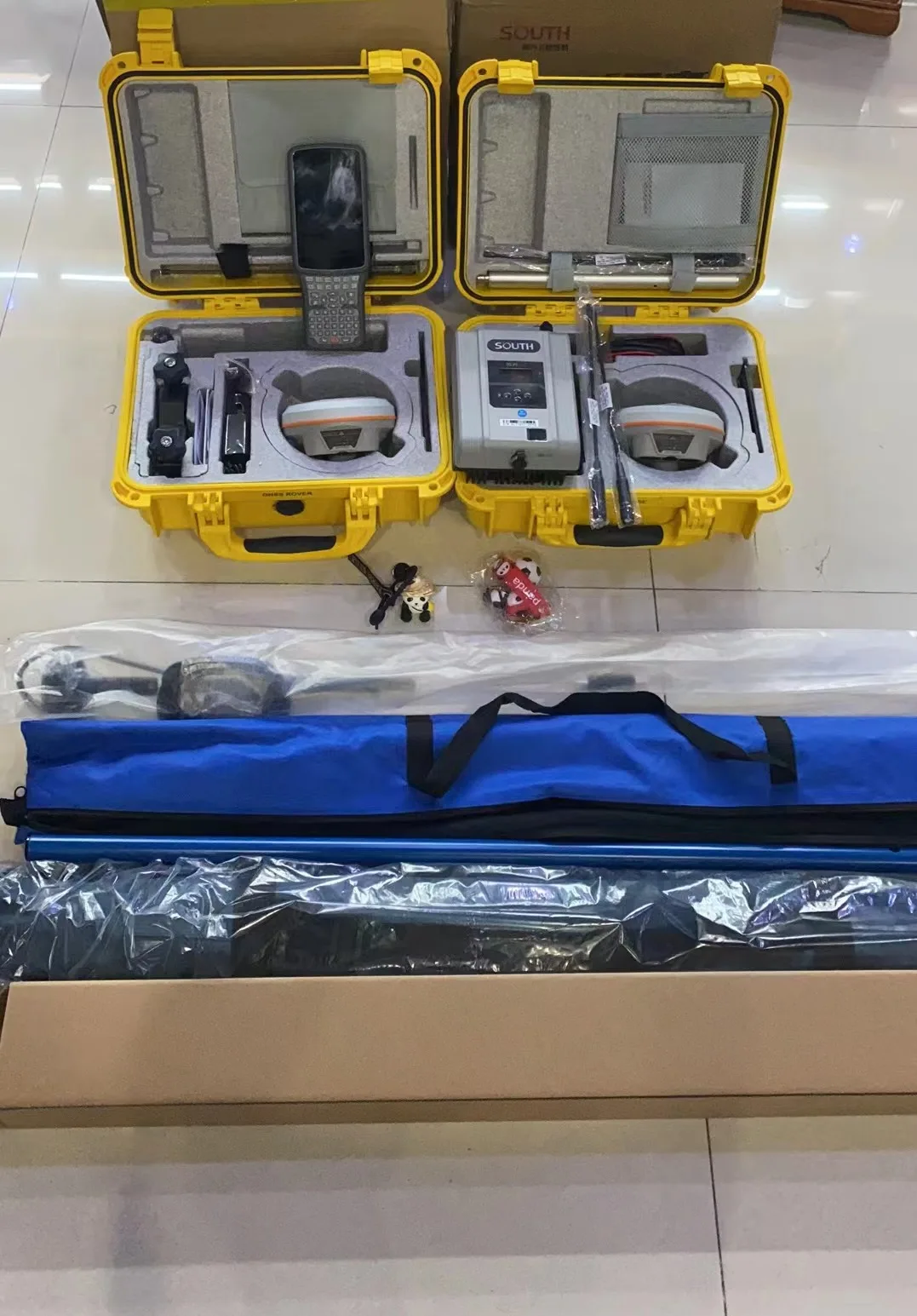

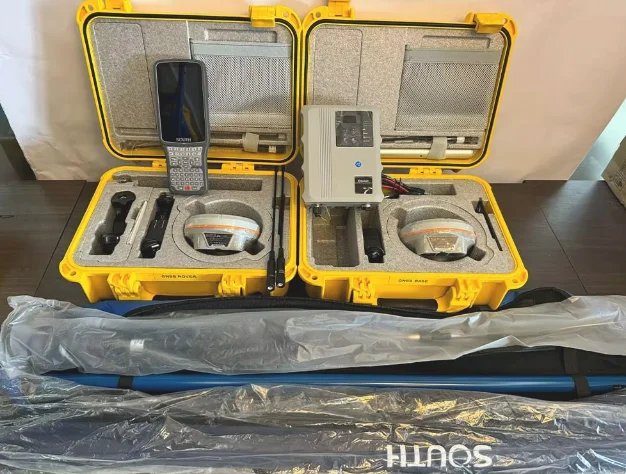

Base Station+Mobile Station+Carbon Fiber Pole+Antenna Package

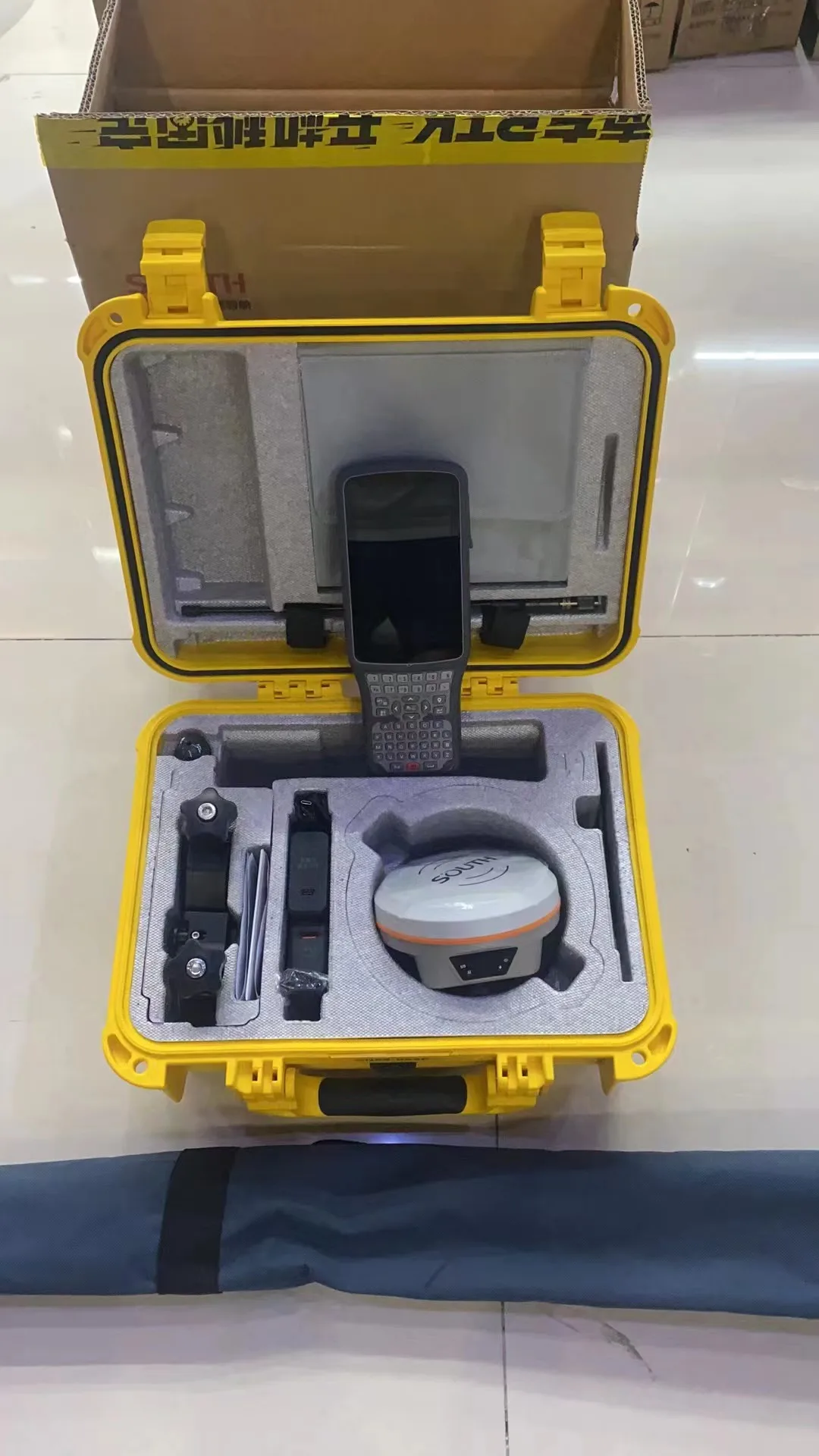

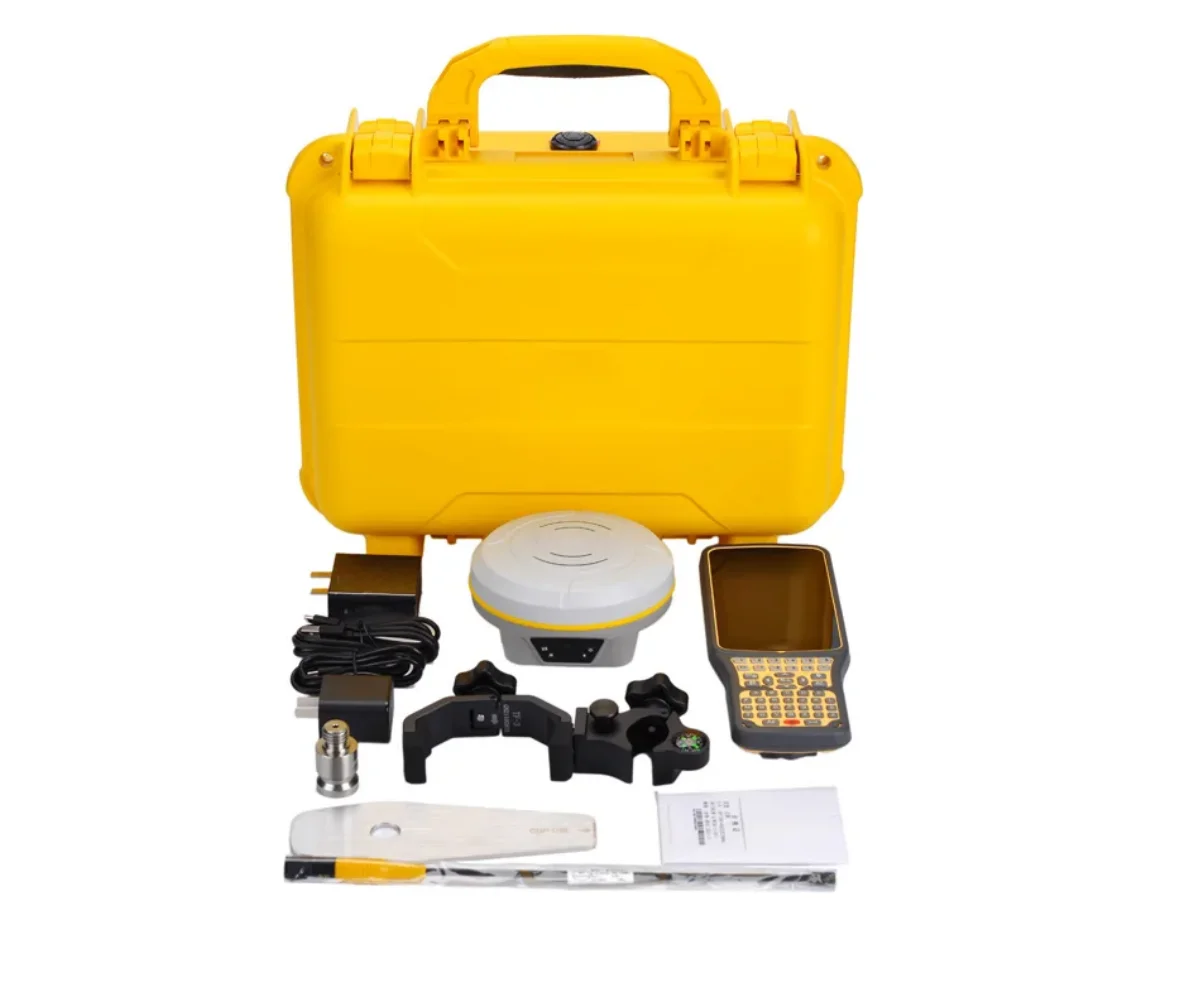

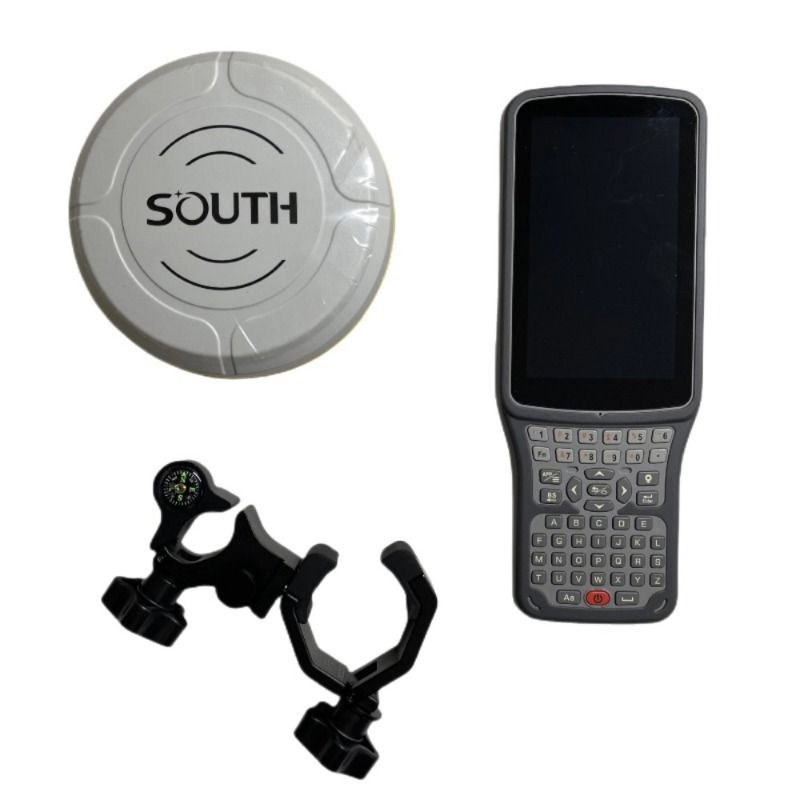

Mobile Station+Carbon Fiber Pole

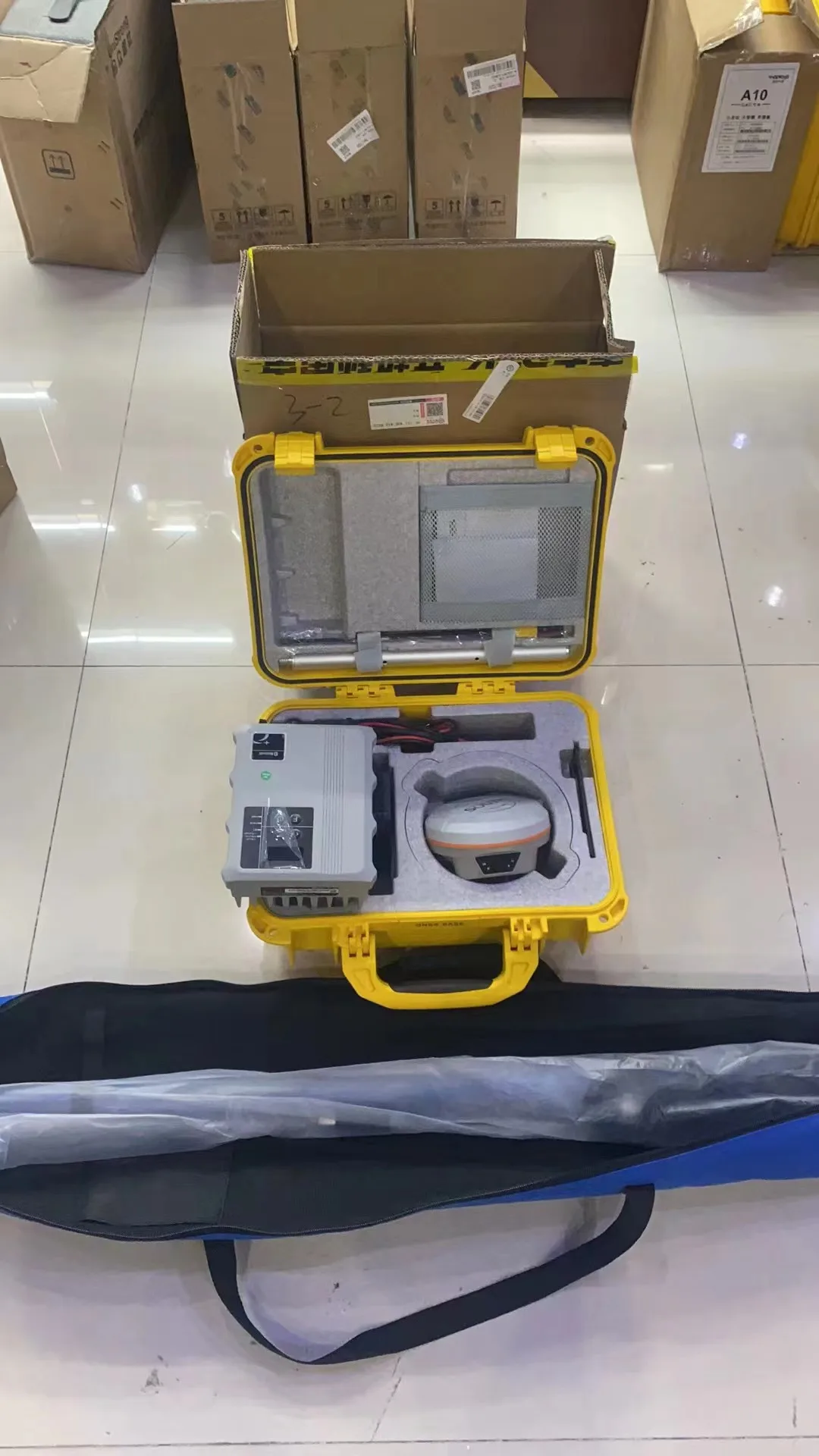

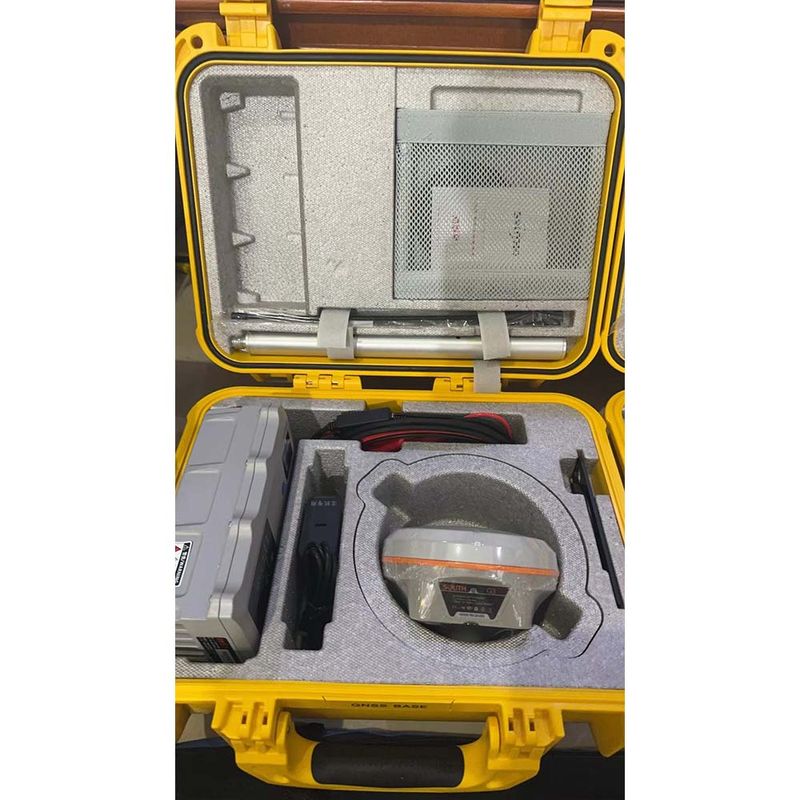

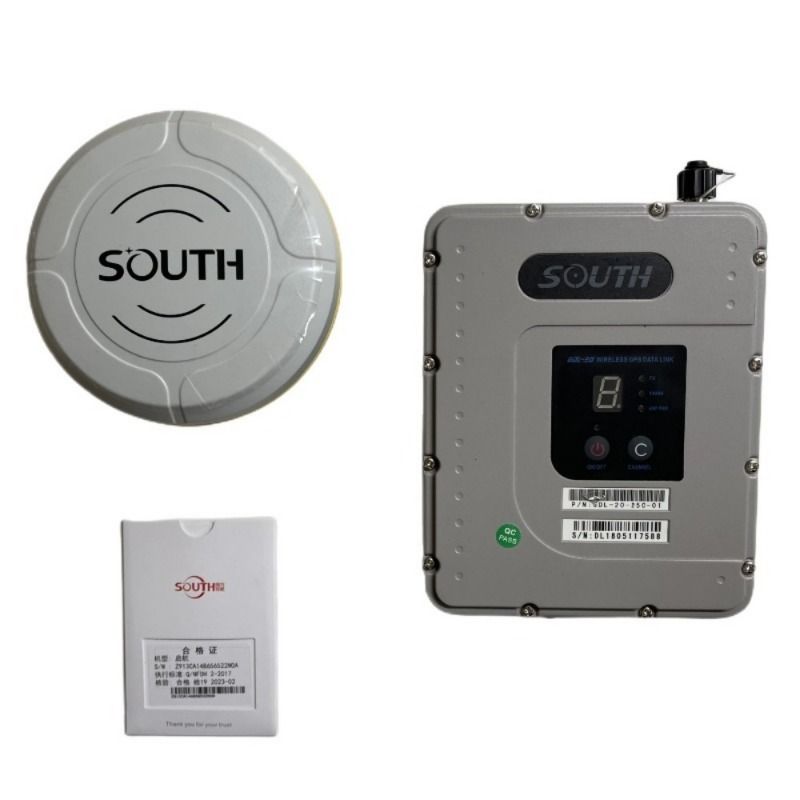

Base Station+Antenna PackagePacking & Delivery
