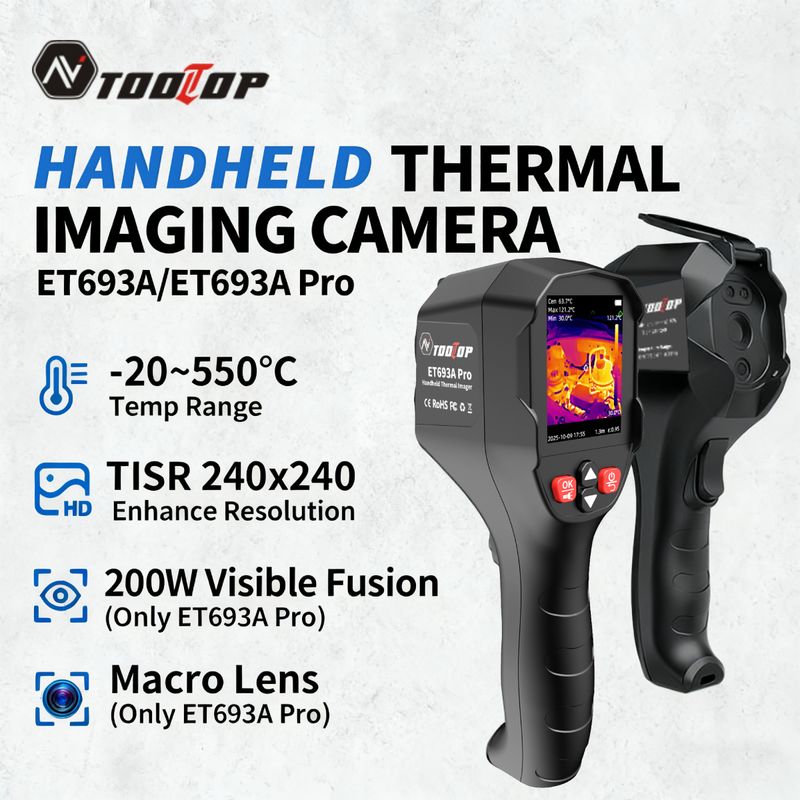

TOOLTOP Handheld TISR 240x240 Infrared Thermal Camera 200W Visible Light Fusion Photo & Video Taking Automotive Thermal Imager

$242.46

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

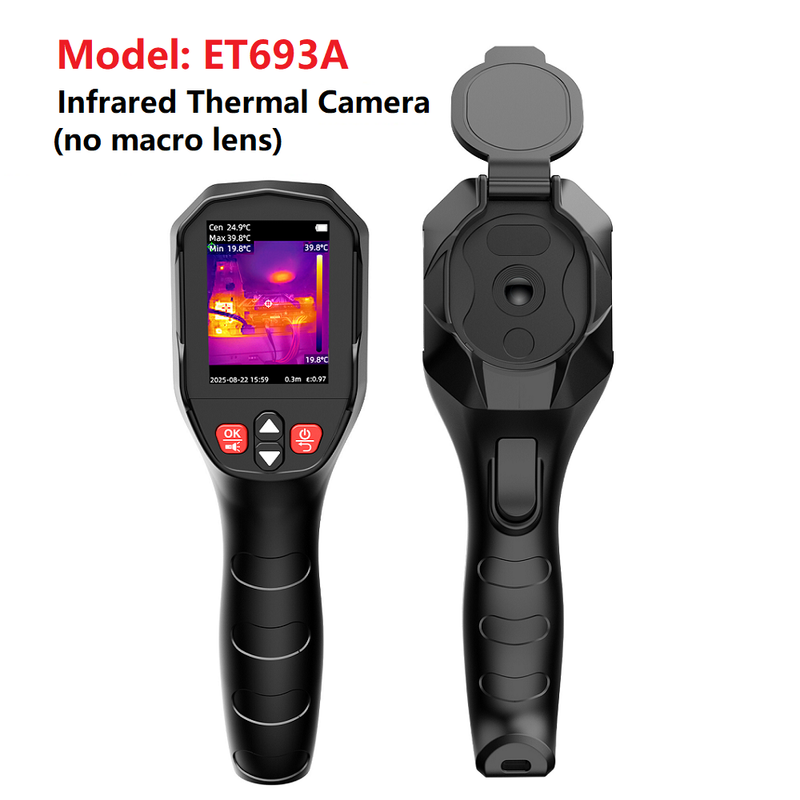

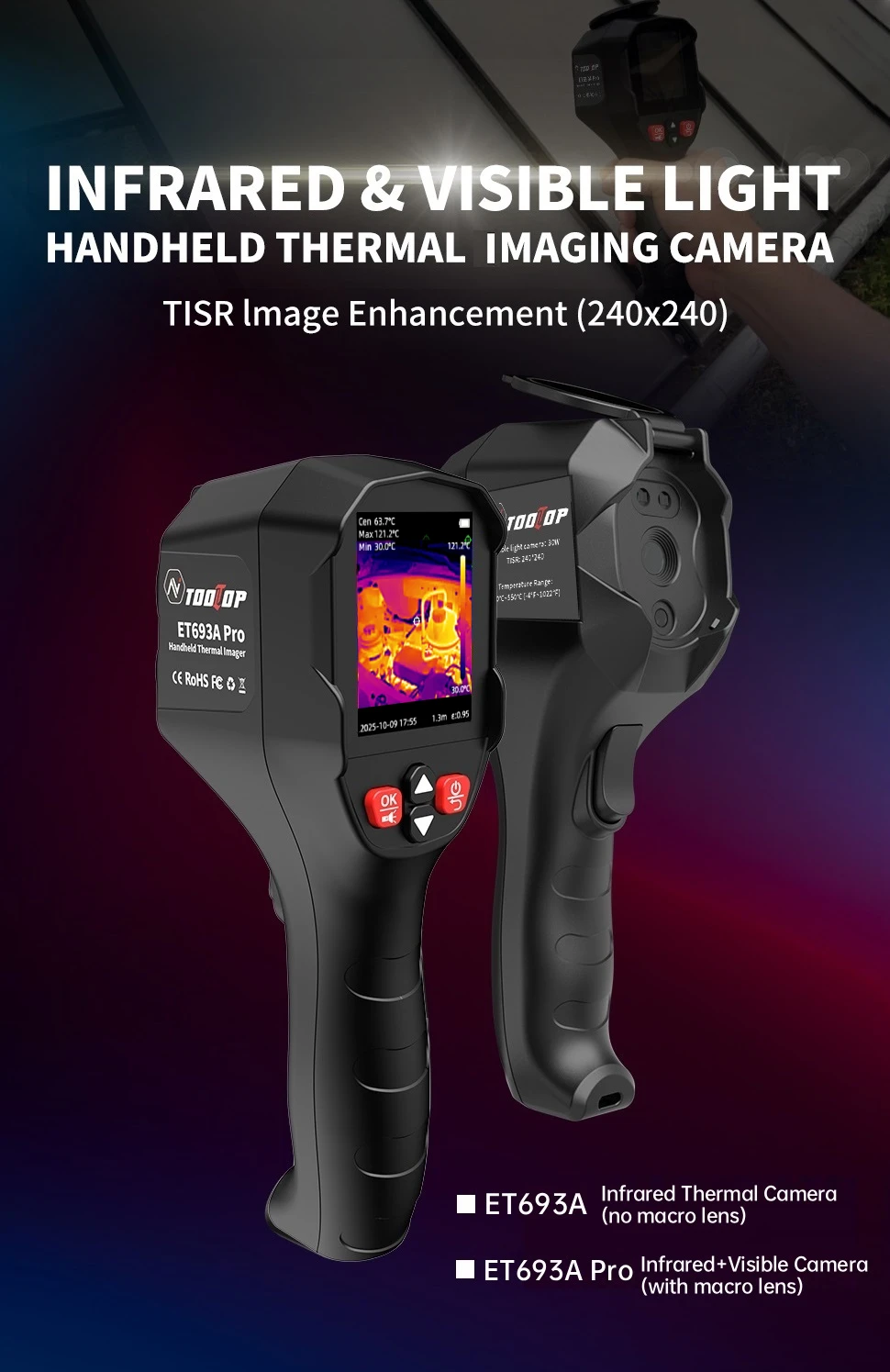

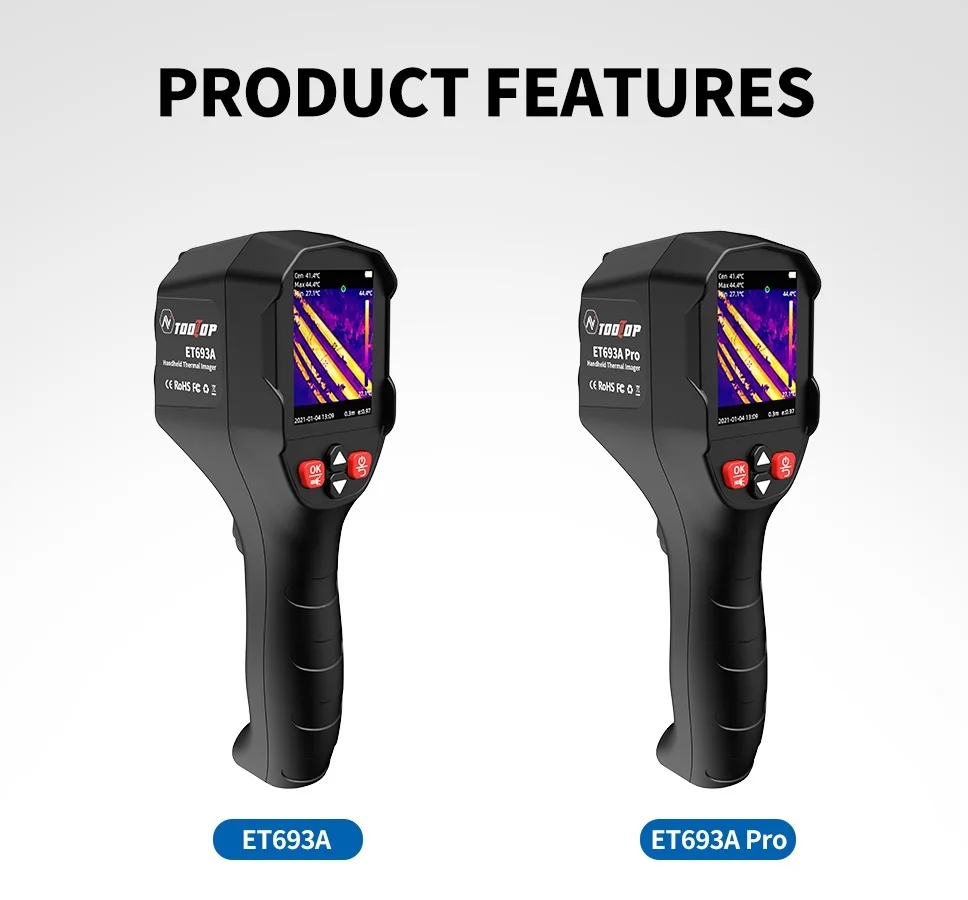

ET693A:Infrared Thermal Camera (no macro lens)

ET693A PRO:Infrared + Visible Camera (with macro lens)


Features:

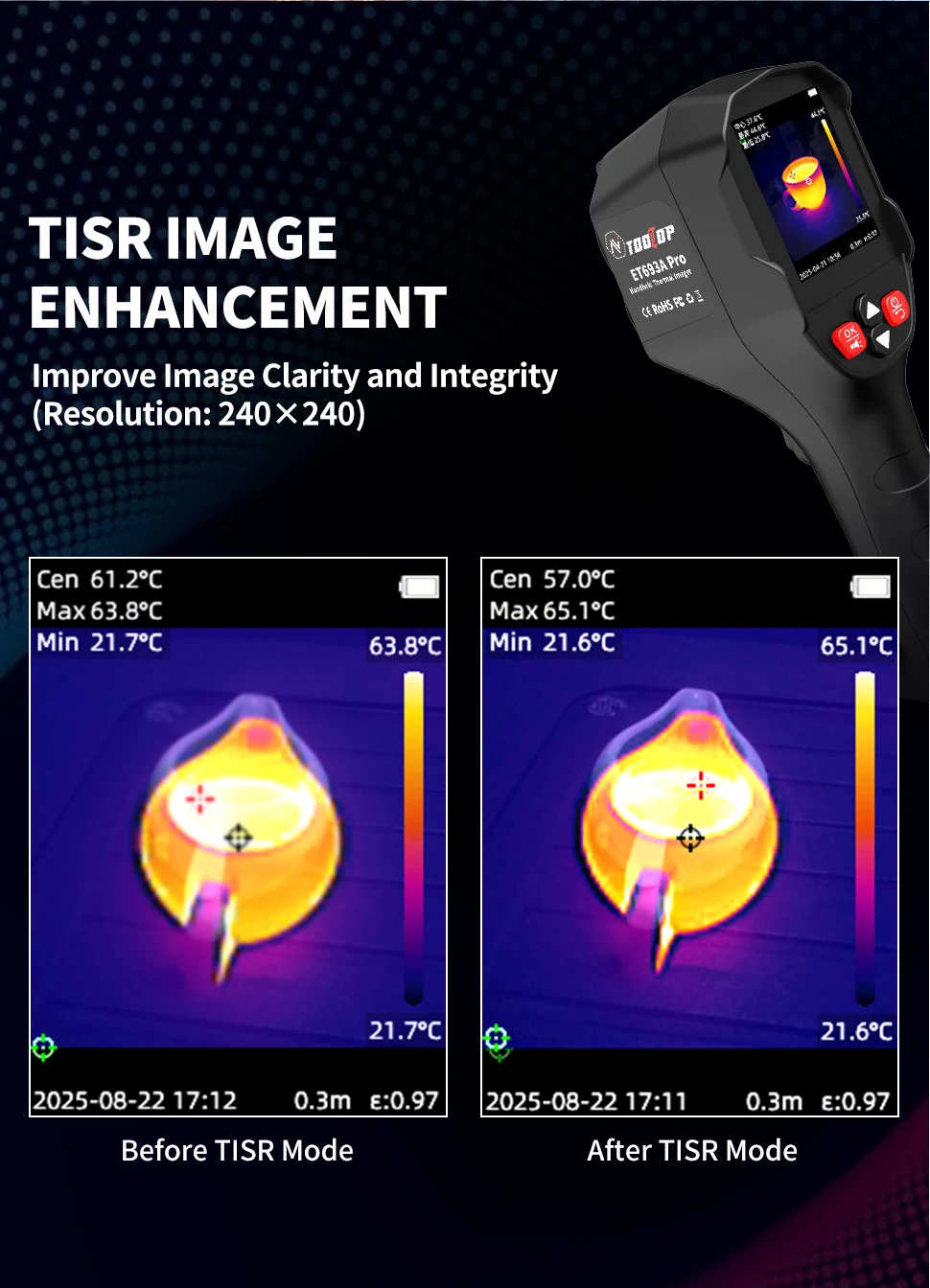

Using 96×96 thermal imaging sensor, image enhancement to 240×240 via TISR technology significantly improves clarity.

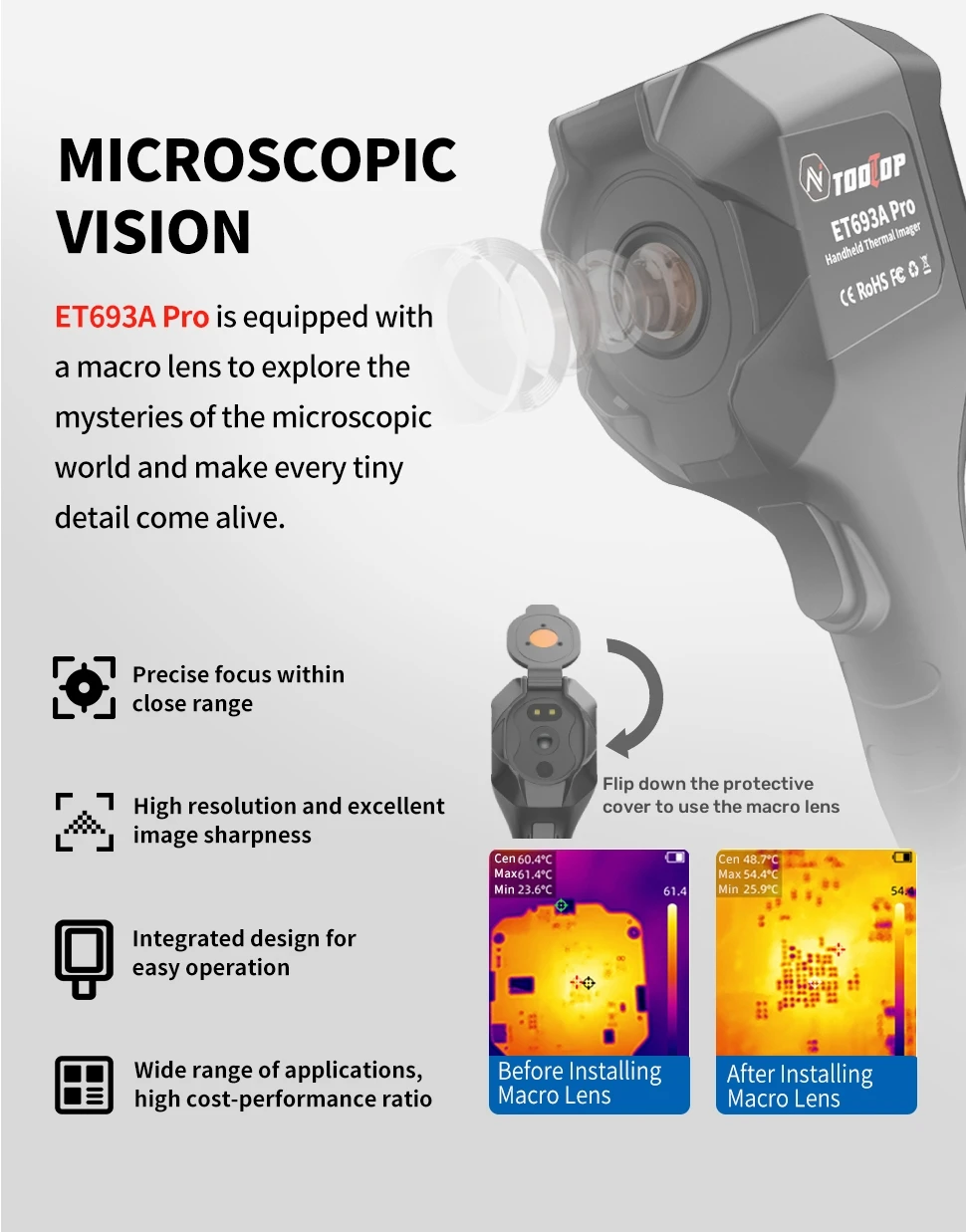

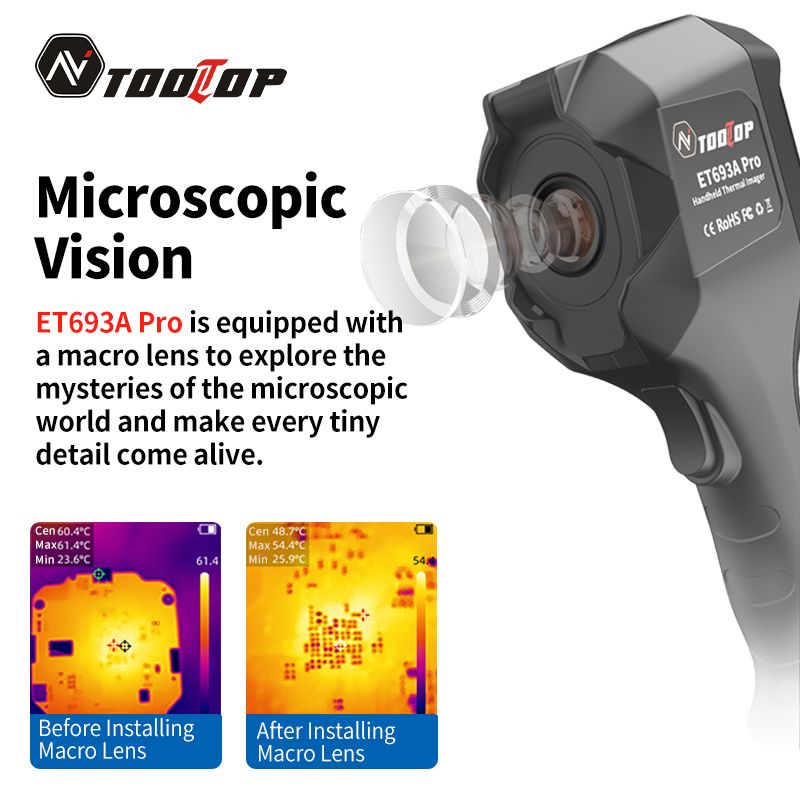

The ET693A Pro model come with a macro lens, enabling observation of heat emission from tiny components.

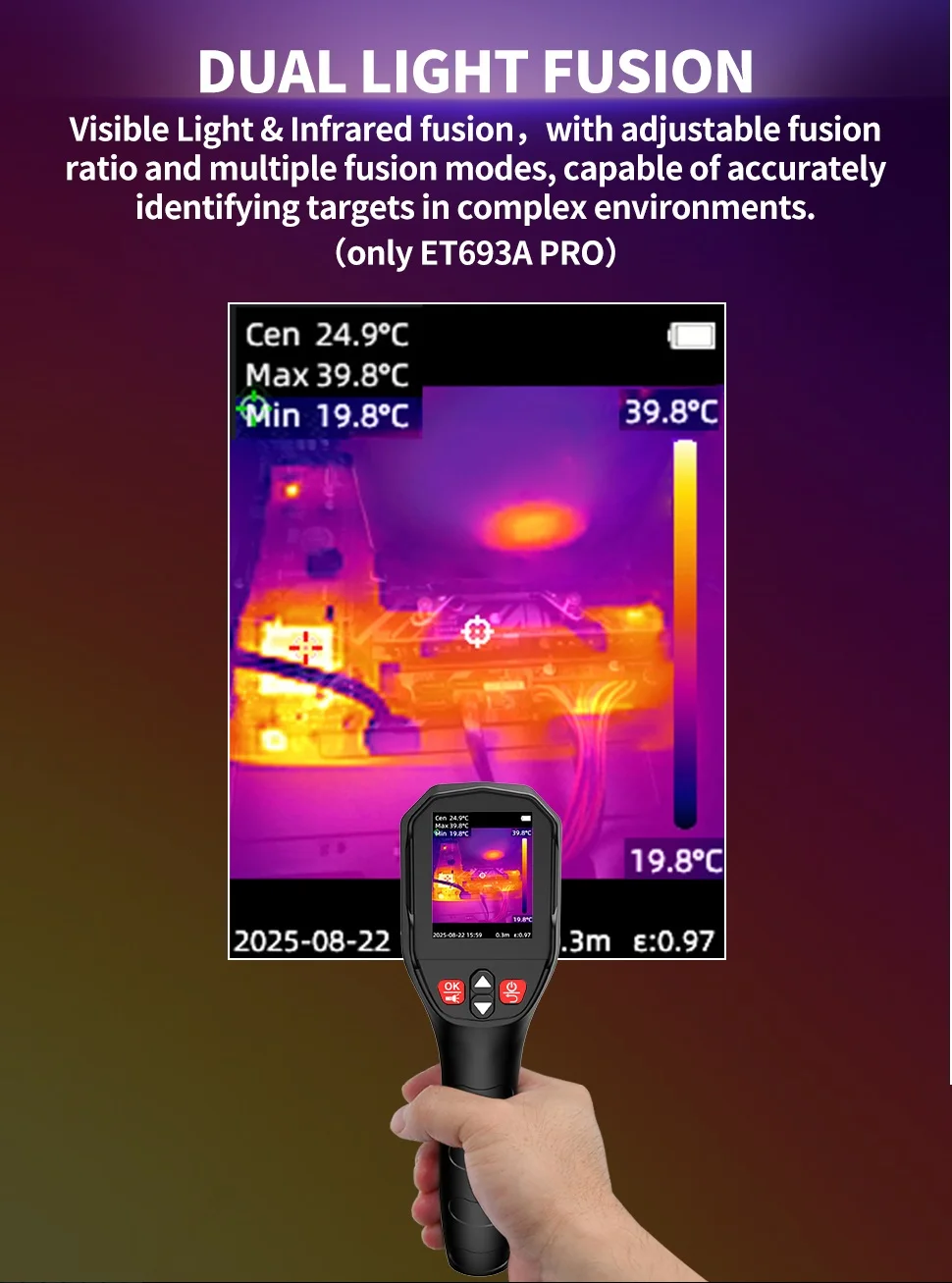

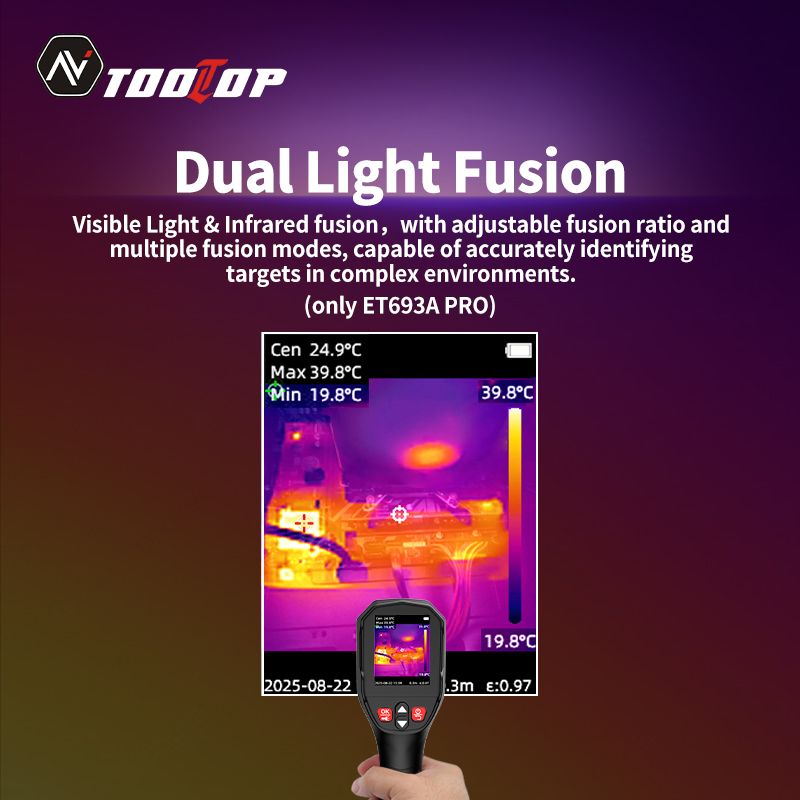

Infrared + visible light fusion, equipped with 200W visible-light camera, adjustable fusion ratio, offering multiple imaging modes, for precise target identification in complex environments.( only for ET693A Pro )


Photo and video capture supported, comes with a standard 8GB SD card (expandable).


Temperature range from -20 to 550°C, with high/low temperature alarms, units switchable among °C, °F, and K.

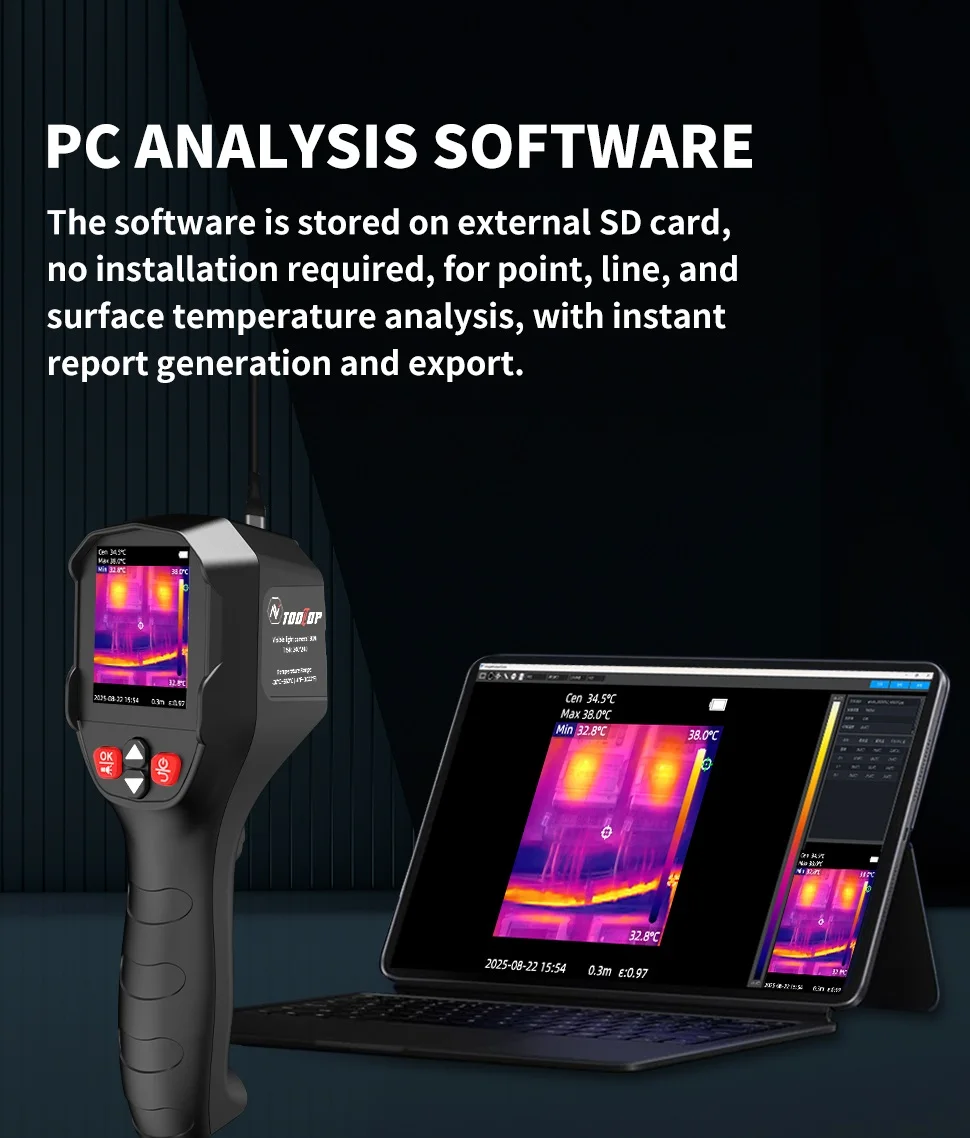

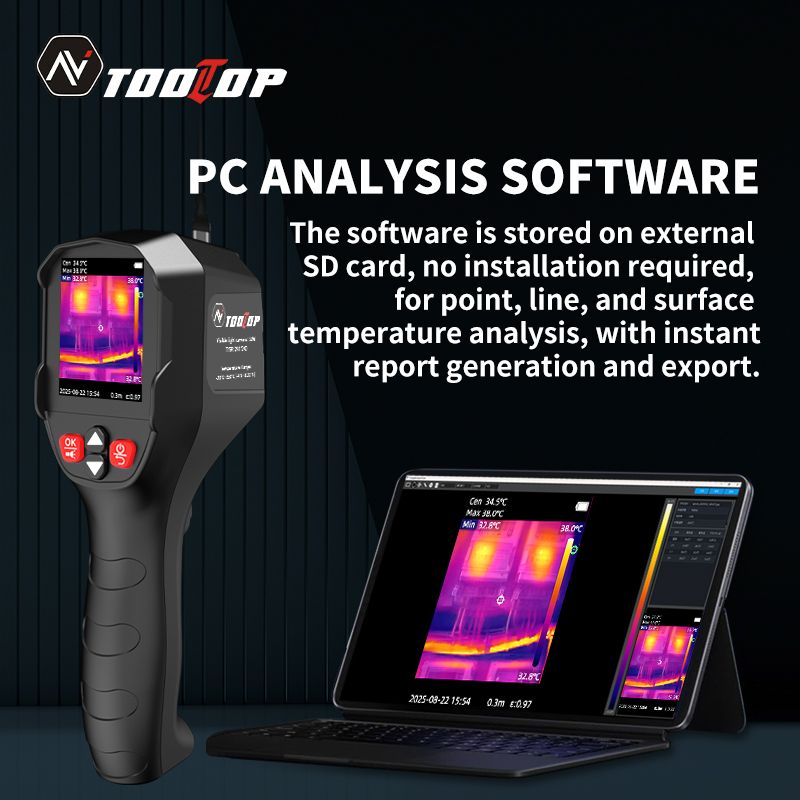

PC software is stored on the external SD card; no installation required, for point, line, and area temperature analysis, with report generation and export.


Built-in 3200mAh high-capacity rechargeable battery, over 7 hours of continuous use for extended work sessions.

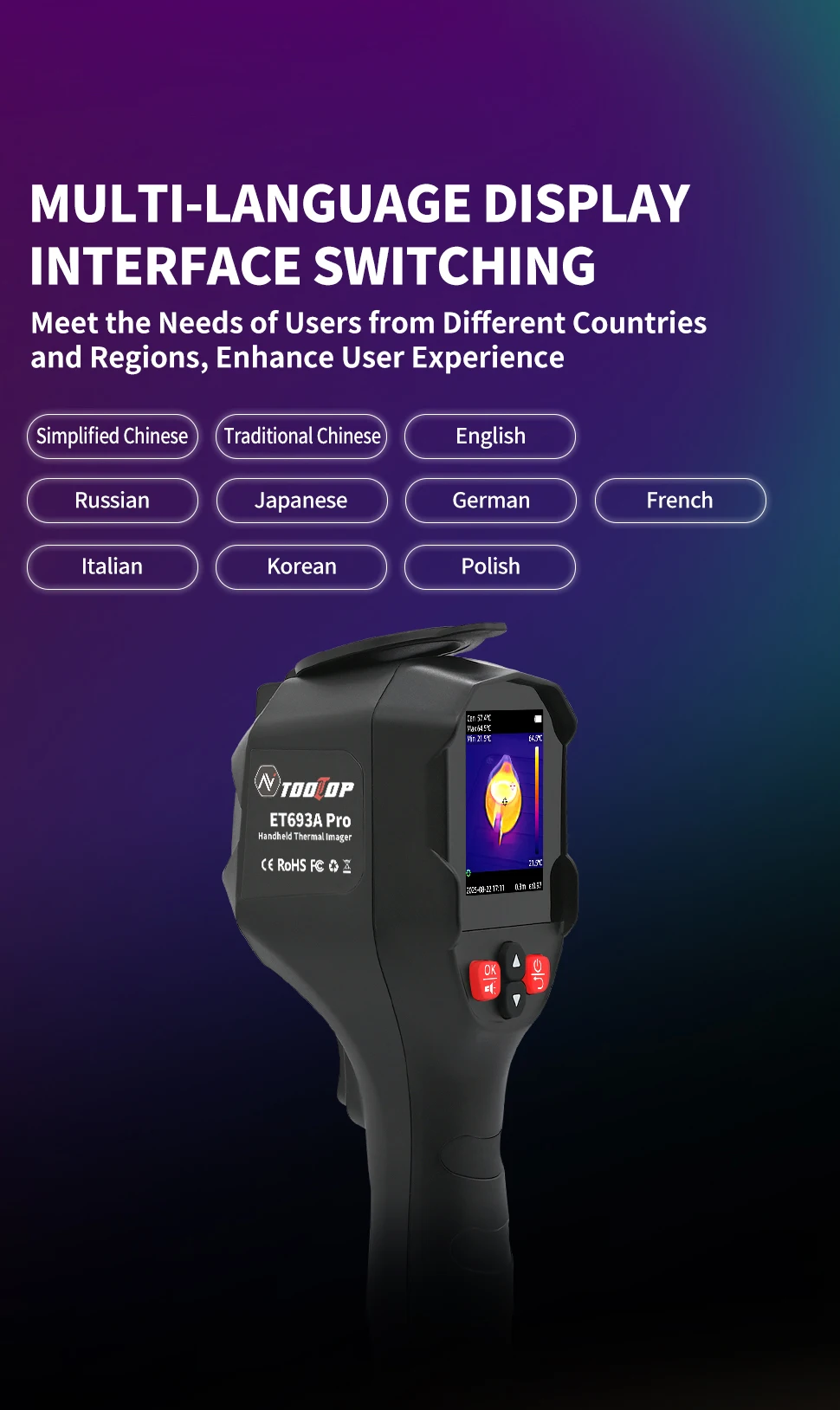

Multi-Language includes Chinese,Russian,Italian,Japanese,Korean,English,German,Polish,French

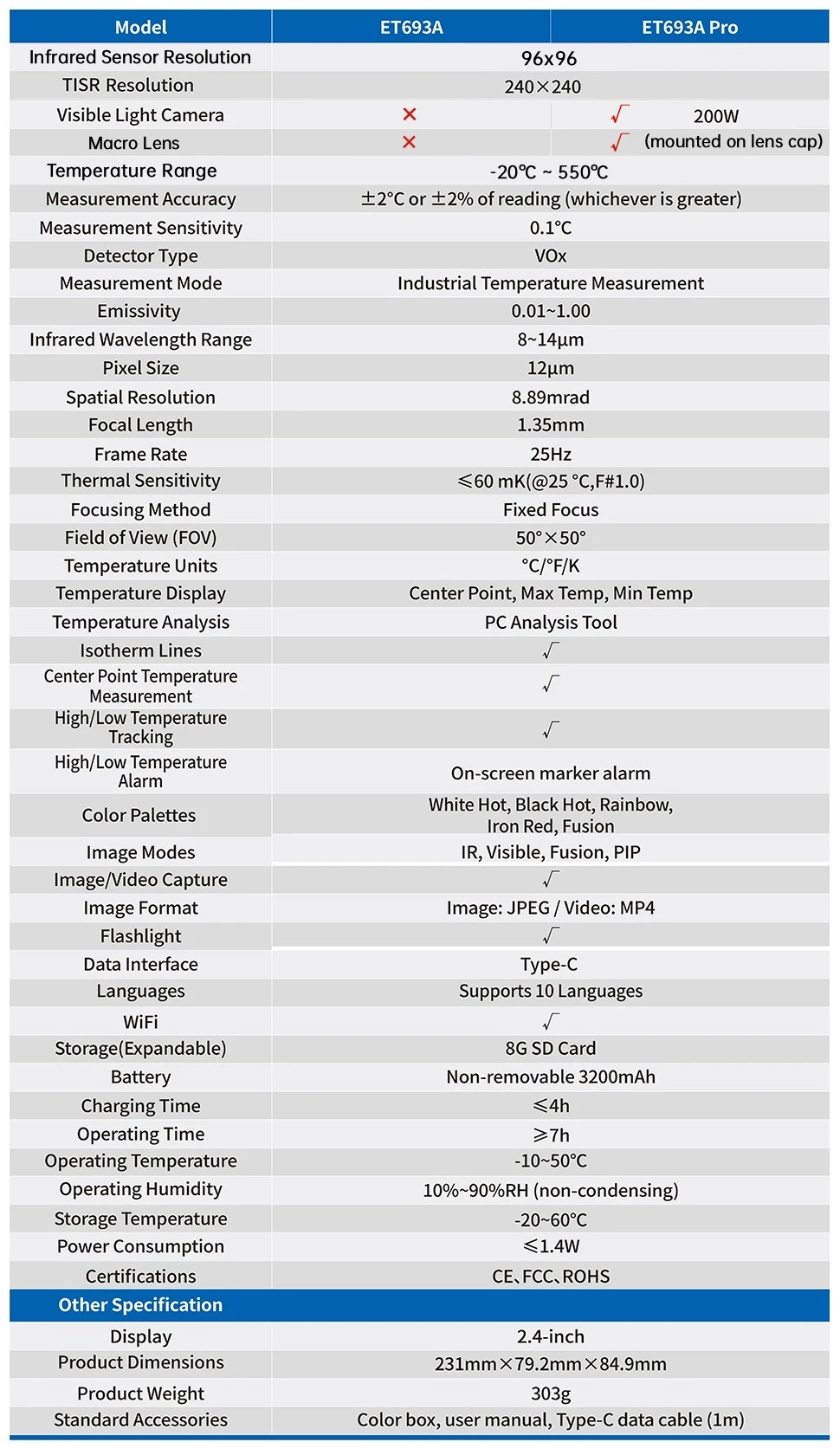

Specifications:

Infrared Sensor Resolution: 96x96

TISR: 240x240 resolution

Frame Rate : 25Hz

Visible Light Camera: 200W ( only for ET693A Pro)

Macro lens:mounted on lens cap( only for ET693A Pro)

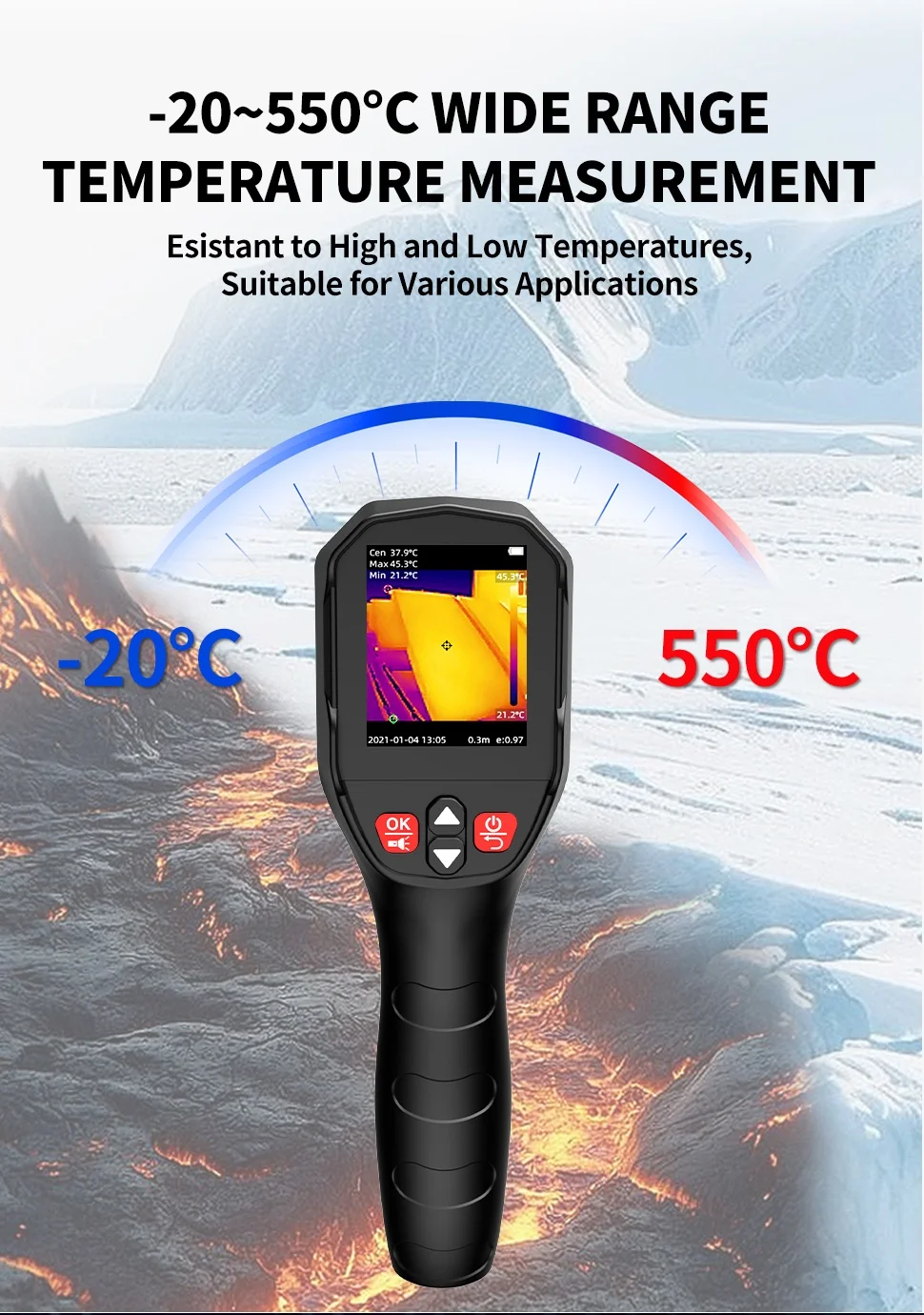

Temperature Range: -20°C~550°C

Measurement Accuracy : ±2°C or ±2% of reading (whichever is greater)

Measurement Sensitivity: 0.1°C

Emissivity 0.01~1.00

Thermal Sensitivity : ≤60 mK(@25 °C,F#1.0)

Field of View (FOV): 50°x50°

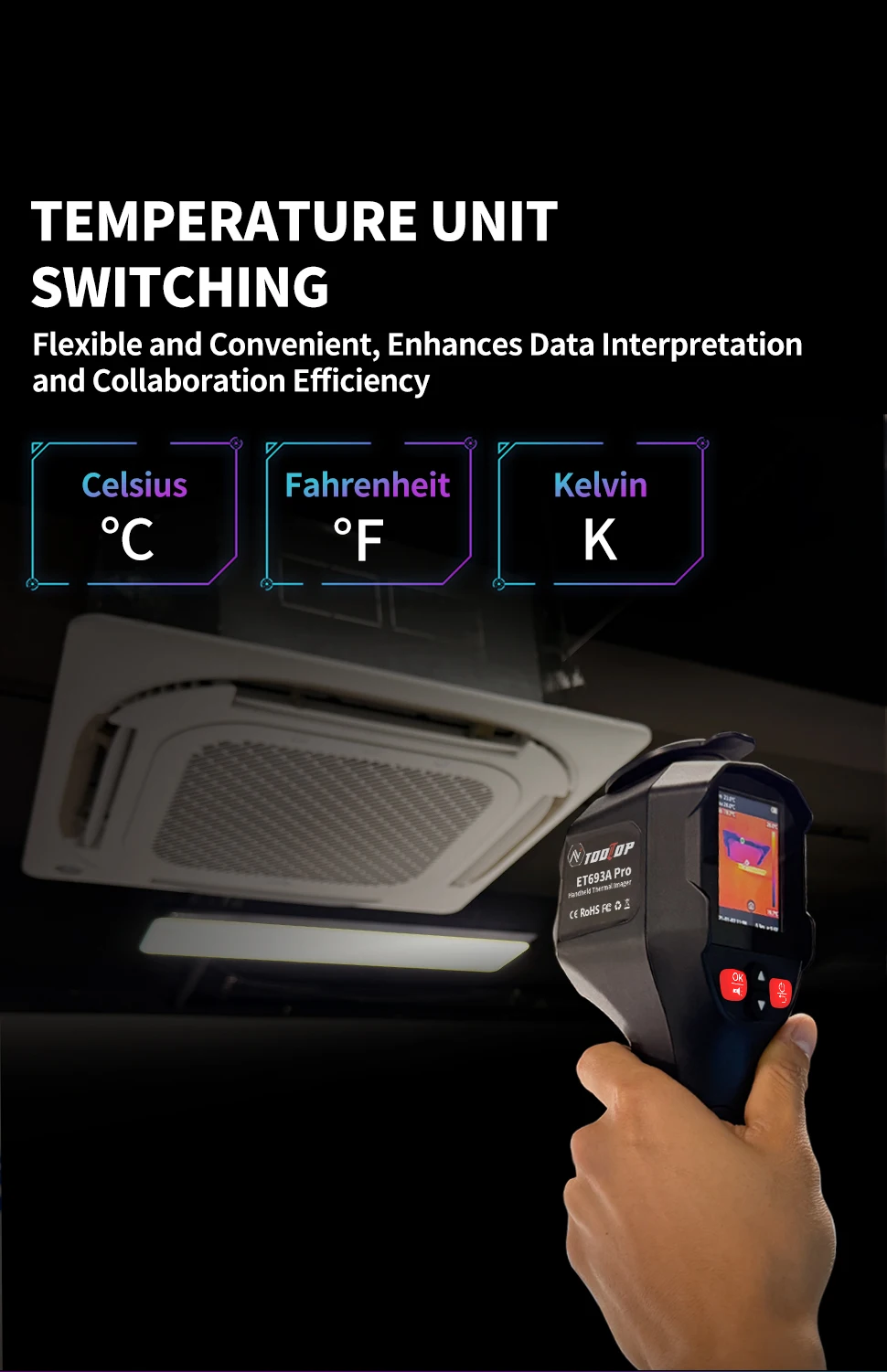

Temperature Units: °C/°F/K

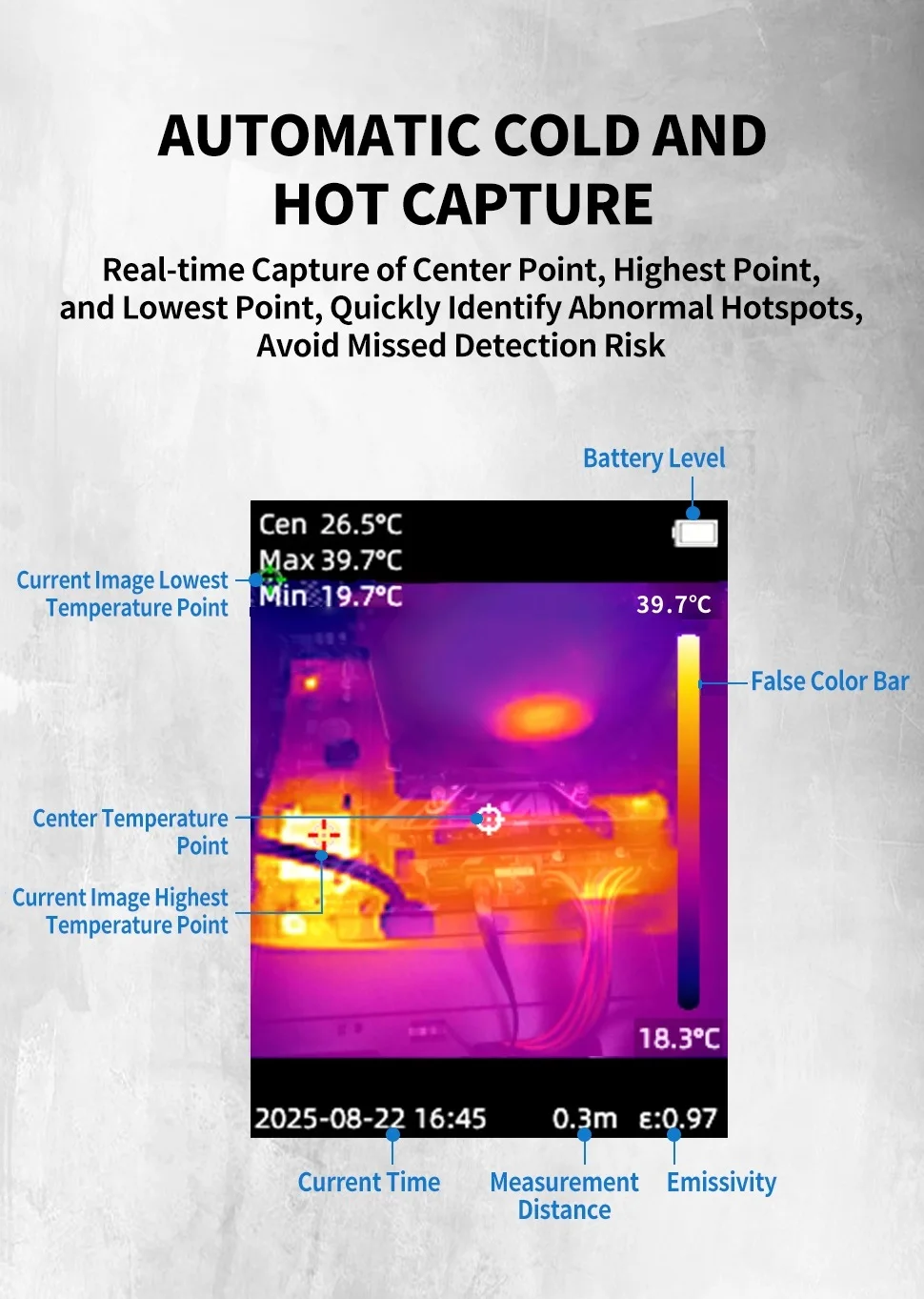

Temperature Display: Center Point, Max Temp, Min Temp

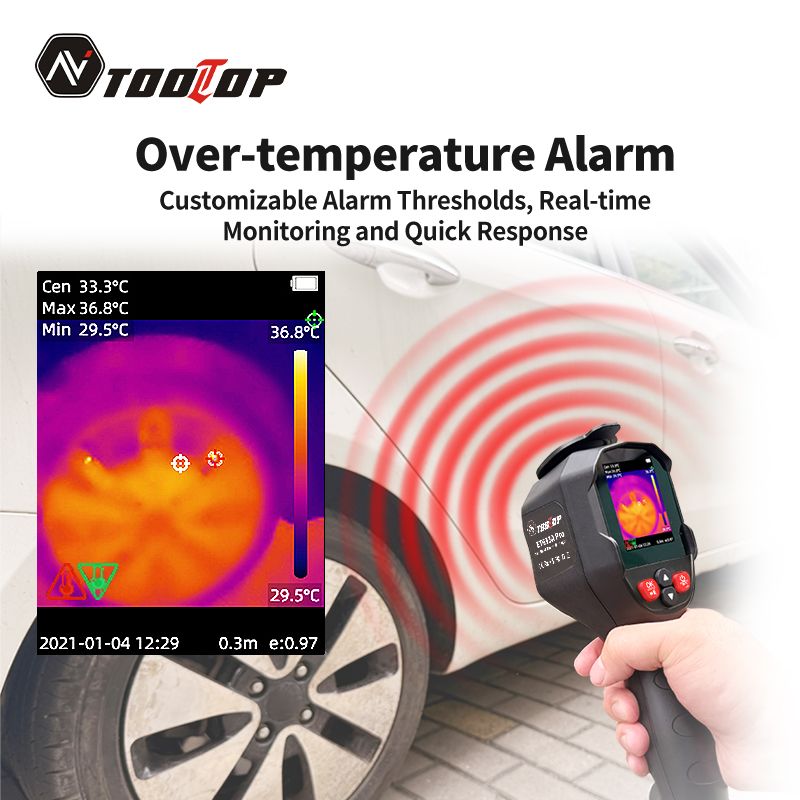

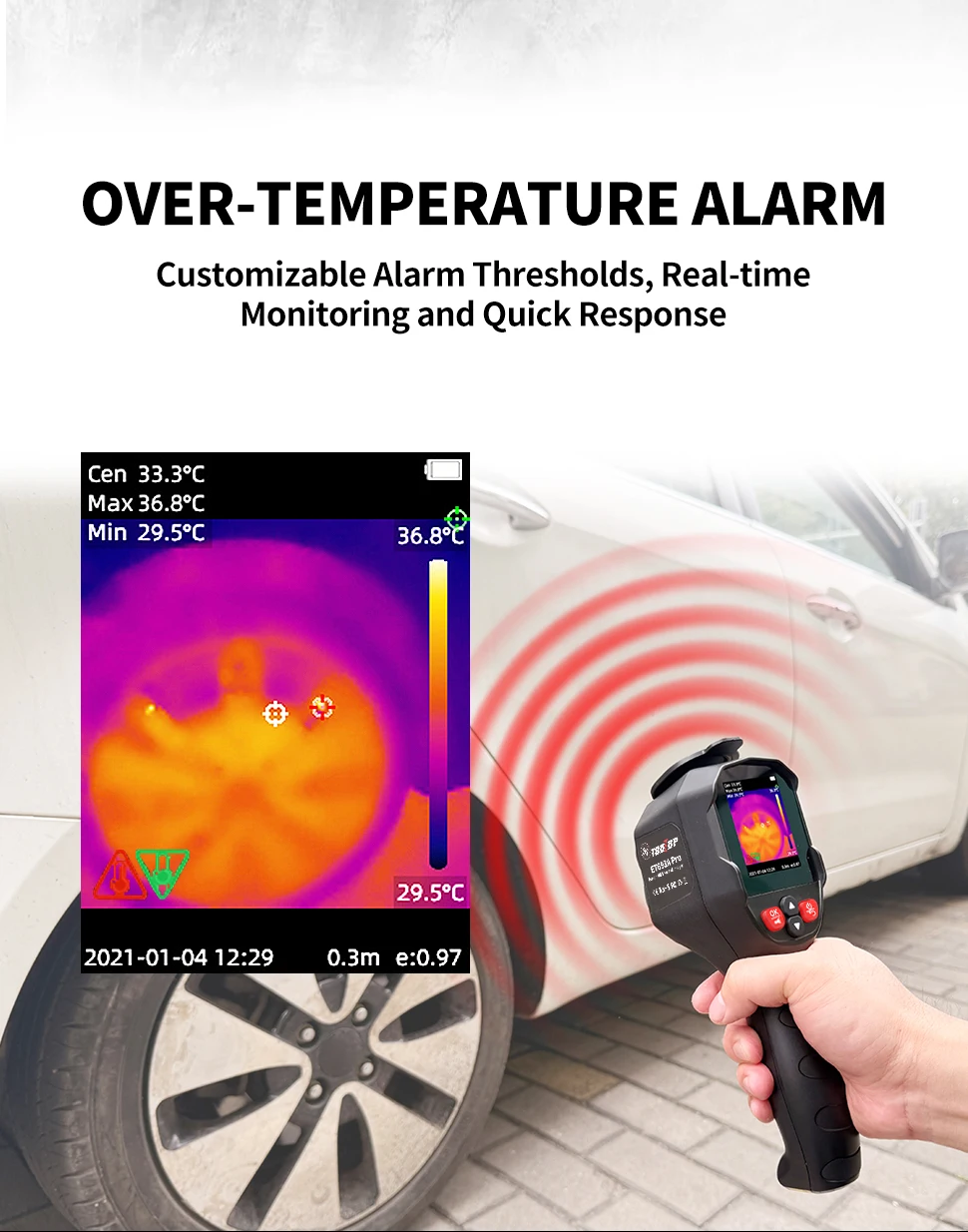

Temperature Alarm : On-screen marker alarm

Temperature Analysis: PC Analysis Tool

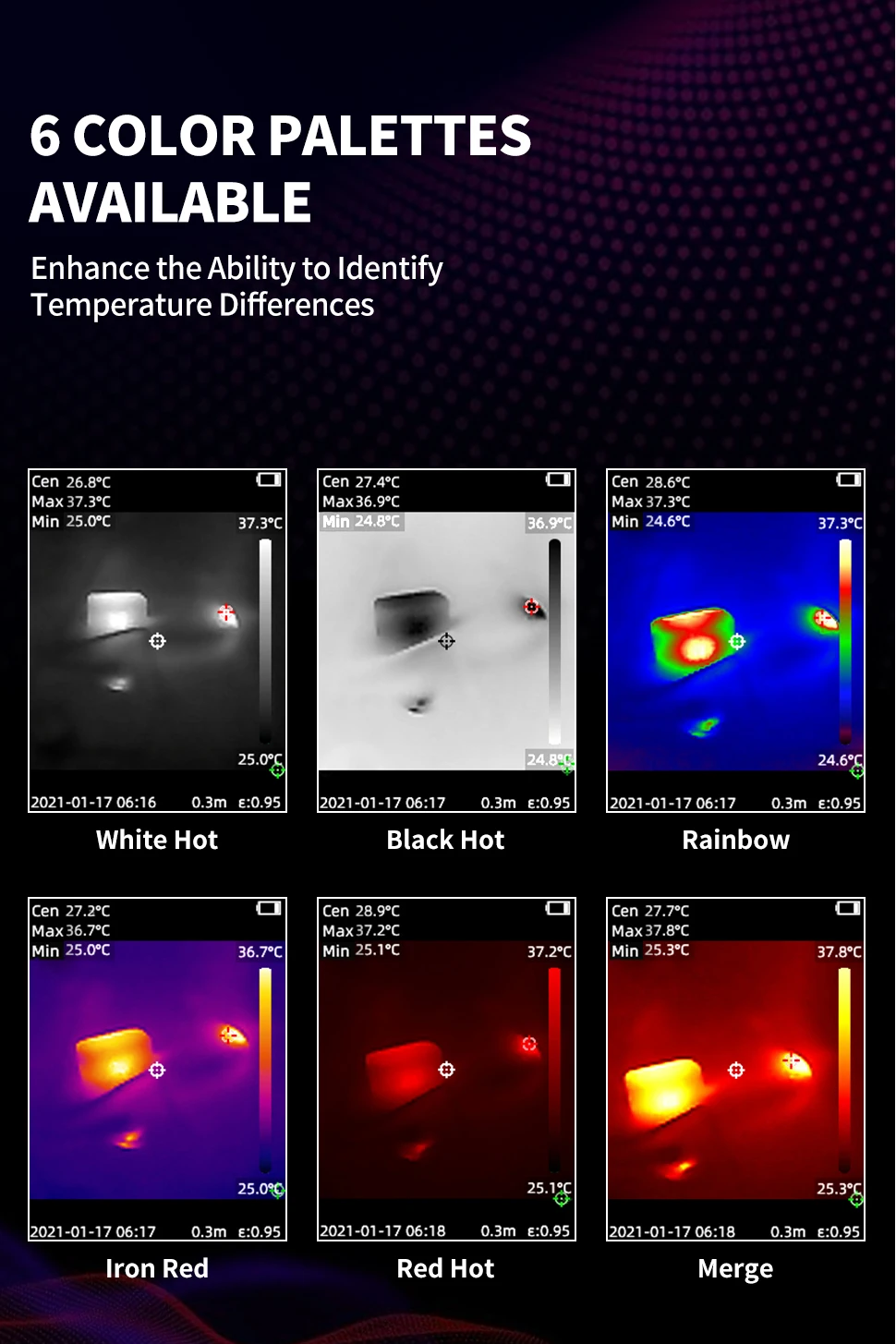

Color Palettes: White Hot, Black Hot, Rainbow,lron Red,Fusion

lmage Modes: IR, Visible, Fusion, PlP

lmage Format: lmage: JPEG / Video: MP4

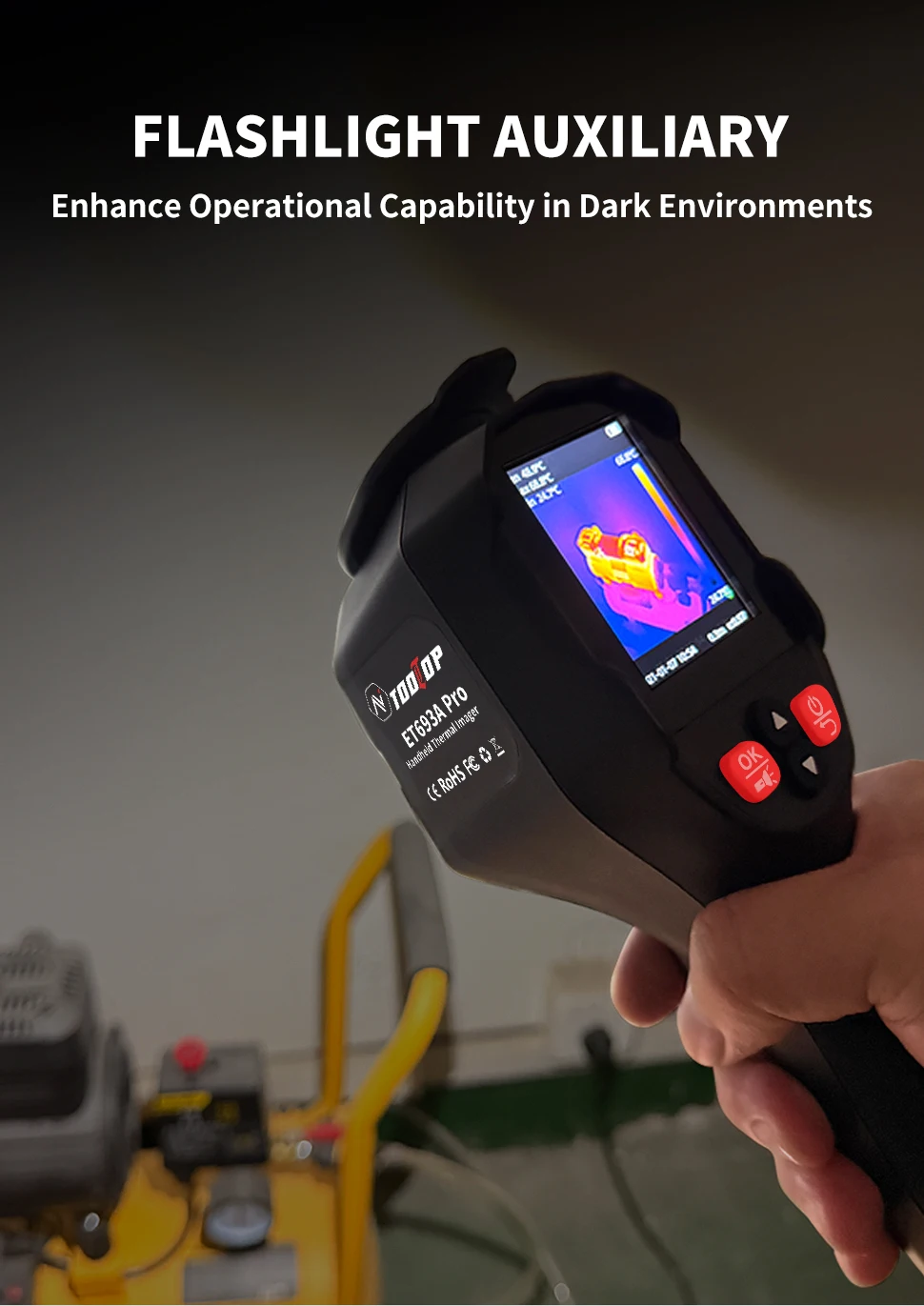

Flashlight: support

Data Interface: Type-C

Languages: Supports 10 Languages

WiFi: support

Storage : 8G SD Card (Expandable)

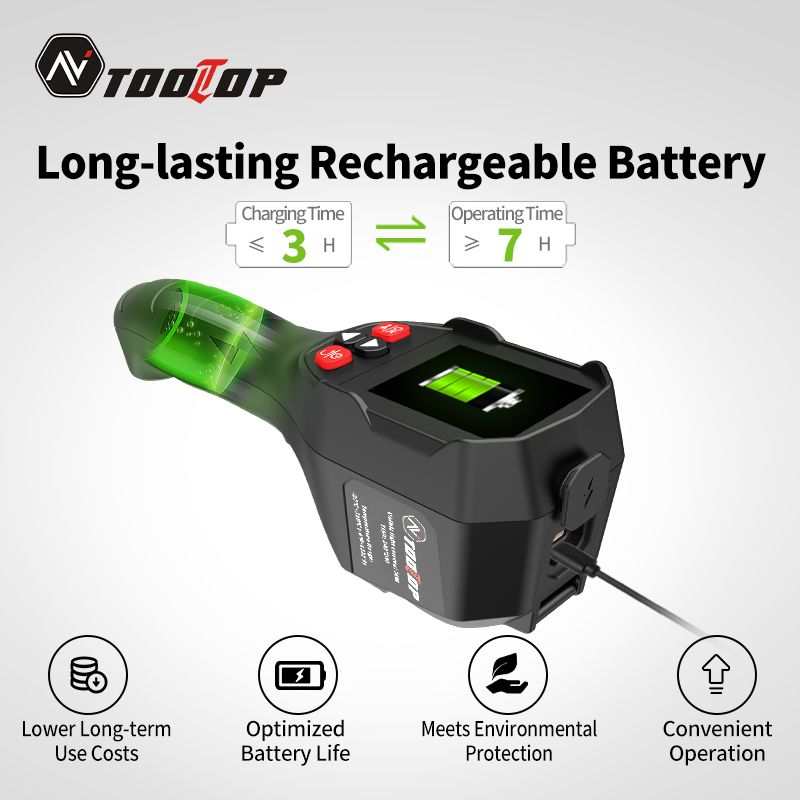

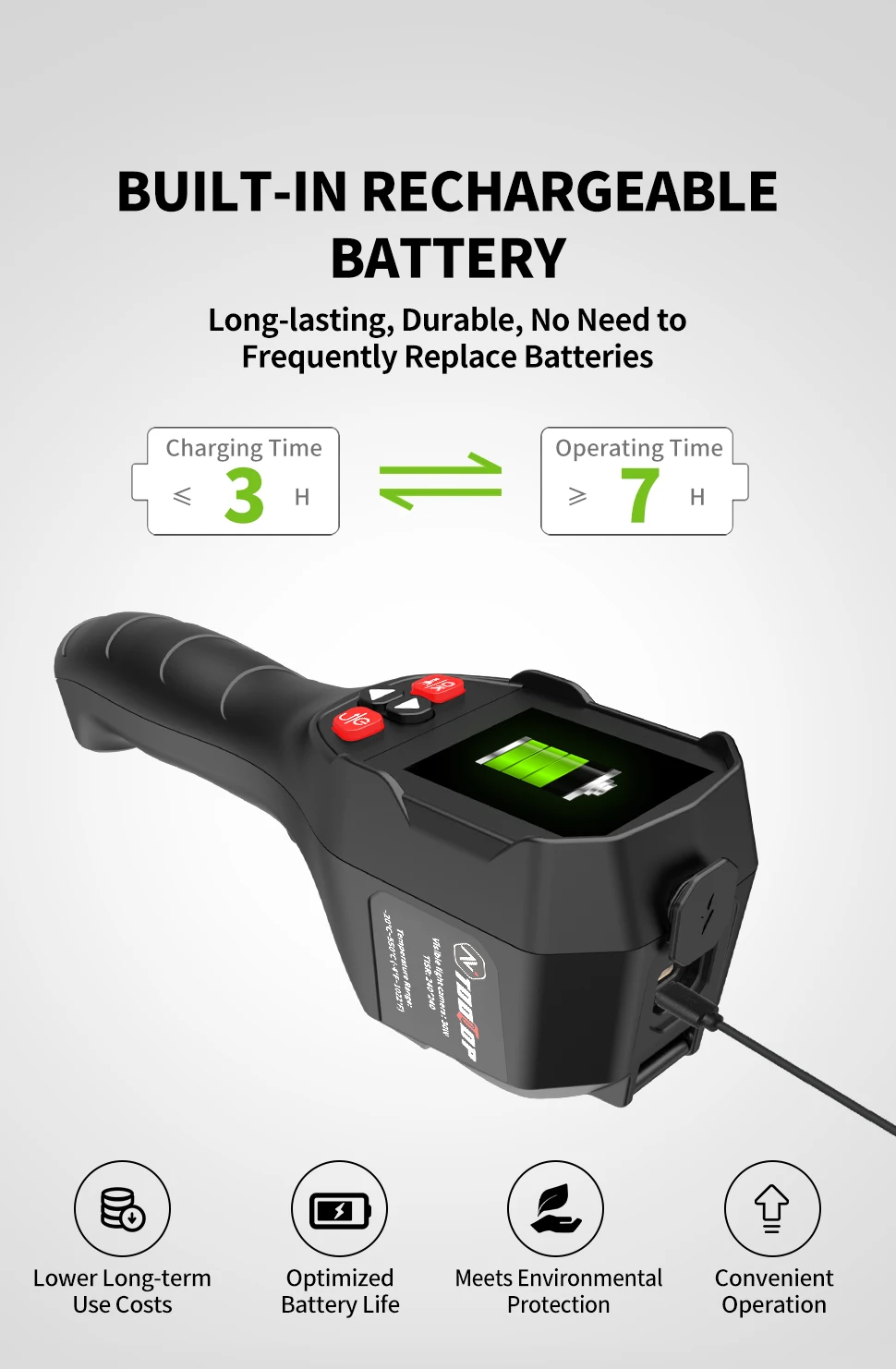

Battery: Non-removable 3200mAh, Operating Time: ≥7h

Operating Temperature: -10~50°C

Operating Humidity: 10%~90%RH (non-condensing)

Storage Temperature: -20~60°C

Power Consumption:≤1.4W

Certifications:CE、FCC、ROHS

Display: 2.4-inch

Product Dimensions: 231mmx79.2mmx84.9mm

Product weight: 303g



Package List of ET693A

1x Thermal Imager

1x English User Manual

1x Type-C Data Cable

1x Color box


Package List of ET693A Pro

1x Thermal Imager

1x English User Manual

1x Type-C Data Cable

1x Color box

1x Macro Lens(mounted on lens cap)
