Includes all taxes

1.NOTE:

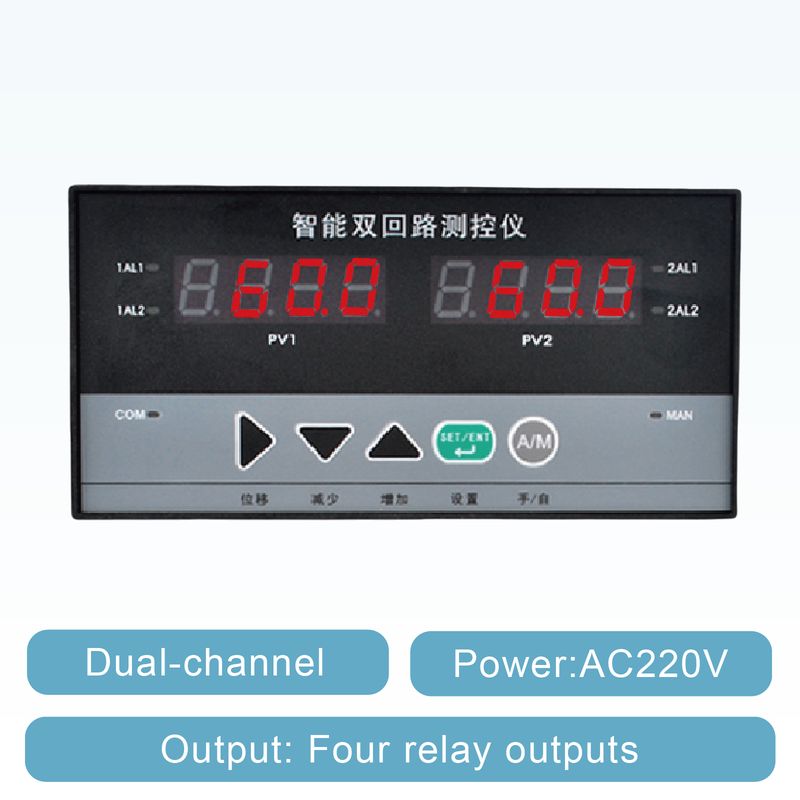

Default Configuration

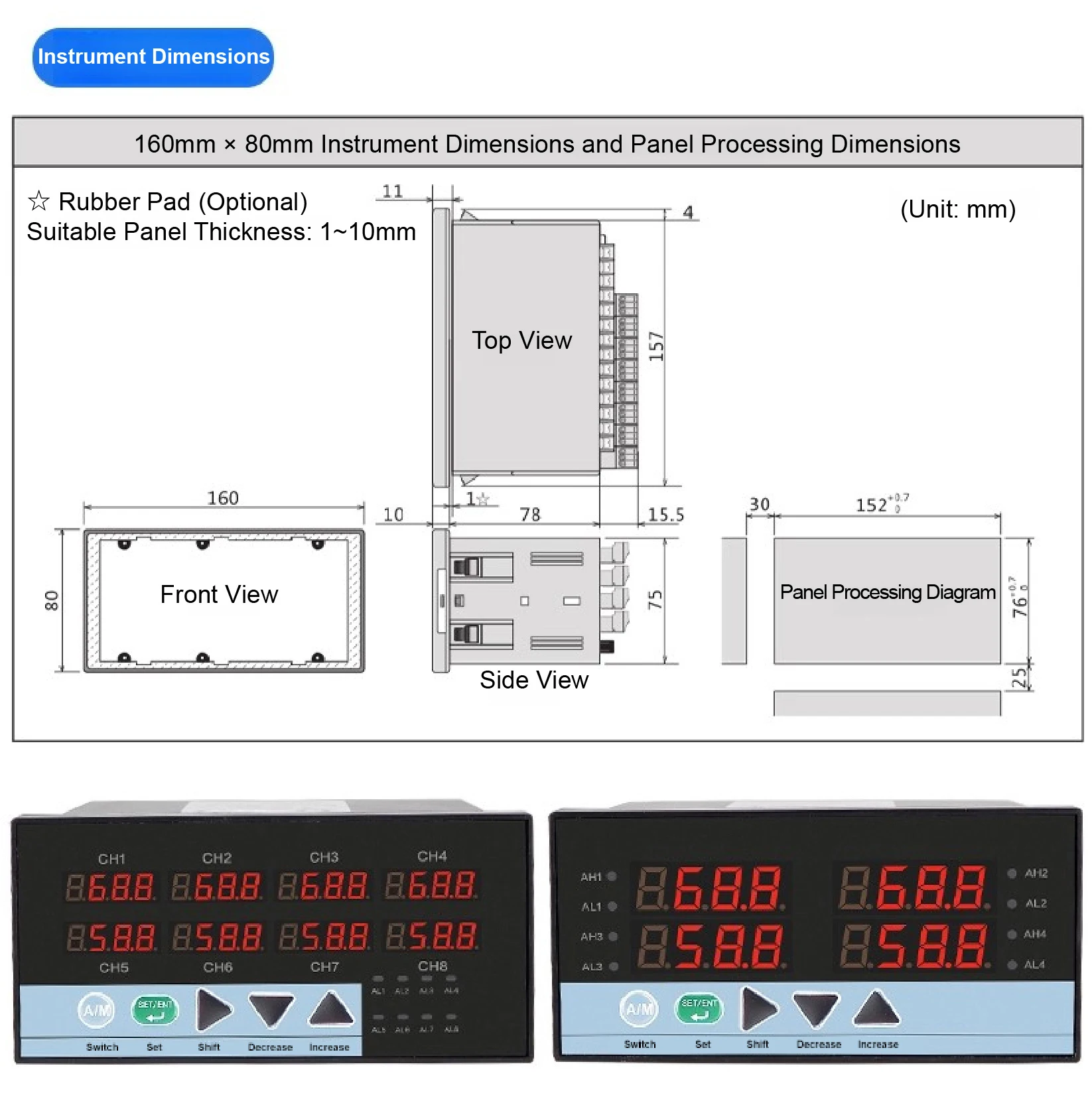

Size: 160×80mm
Power Supply: AC220V
Input: Dual-channel input (dual display, simultaneously shows two temperatures)
Output: Four relay outputs
Customizable Options
Input: Four-channel or eight-channel input
Power Supply: AC/DC 100~250V, DC24V, or DC12V
Output: RS485 communication output, first-channel transmission output, peak transmission output
For special requirements, please contact us directly.

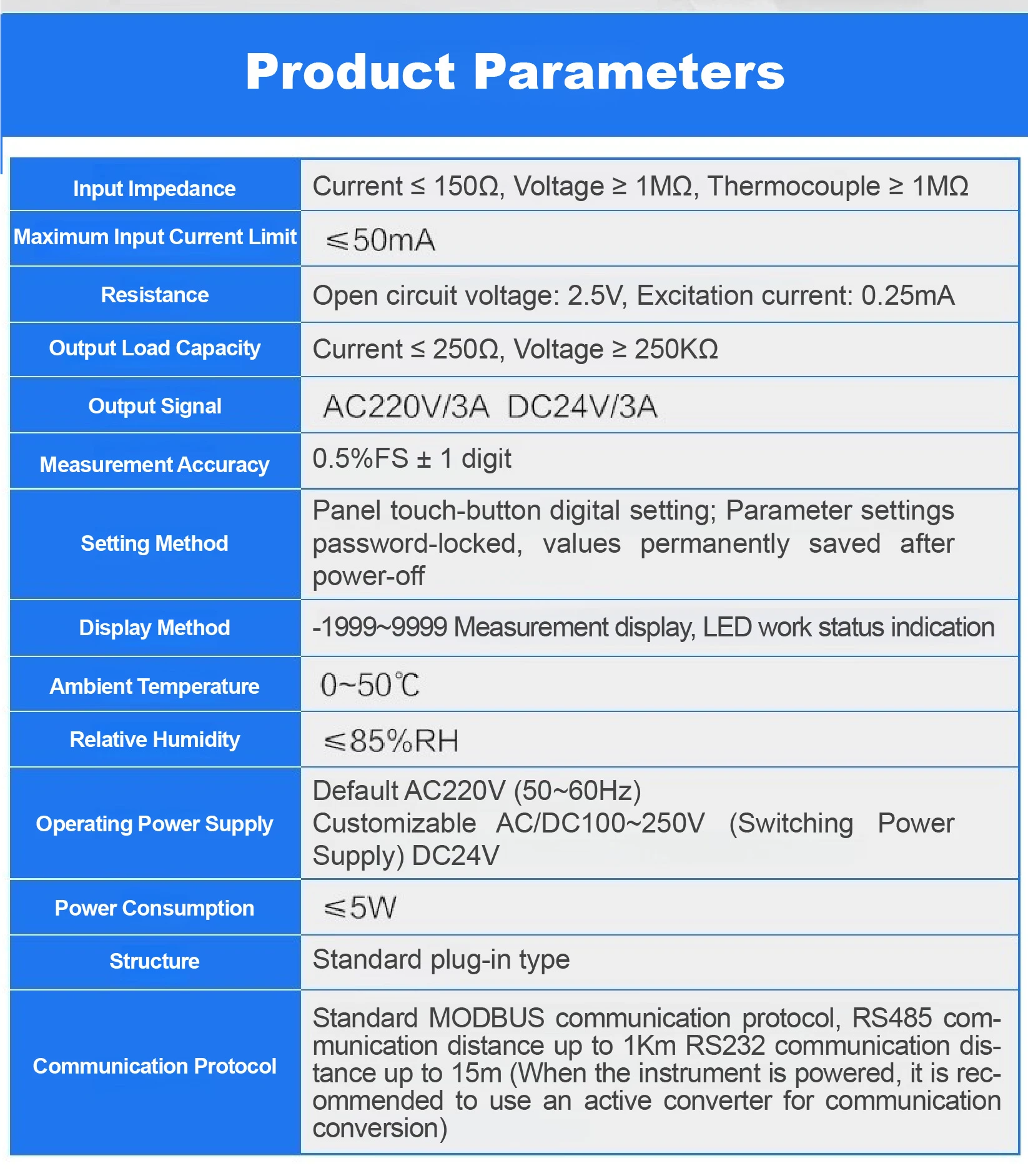

2.Parameters
Specification | Default |
Size | 160×80mm |
Power Supply | AC220V(Def)AC/DC100-250V, DC24V, DC12V |
Input | 2 channels (dual display) 4 channels, 8 channels inputs |
Output | 4 relay outputs RS485, The first transmission output peak transmission output |
Input Impedance | Current ≤150Ω, Voltage ≥1MΩ, Thermocouple ≥1MΩ |
Max Input Current | ≤50mA |
Excitation Current | 0.25mA |
Output Load Capacity | Current ≤250Ω, Voltage ≥250KΩ |
Output Signal | AC220V/3A, DC24V/3A |
Accuracy | 0.5%FS ±1 digit |
Display Range | -1999~9999 |
Operating Temperature | 0~50℃ |
Humidity | ≤85%RH |
Power Consumption | ≤5W |
Communication | MODBUS, RS485 (1km), RS232 (15m) |
Mounting | Standard card-in design |
3. Features

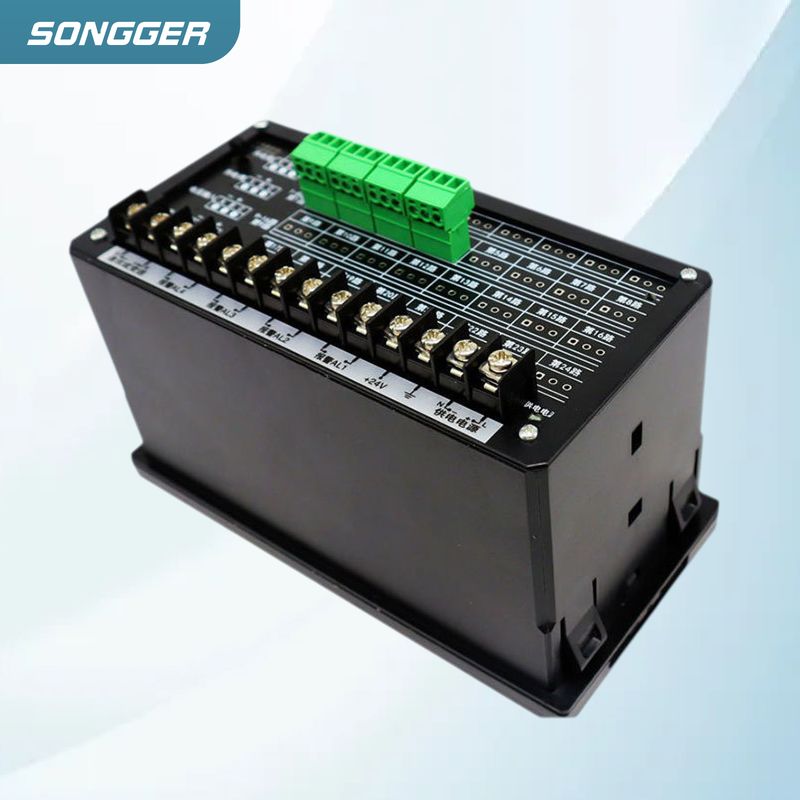

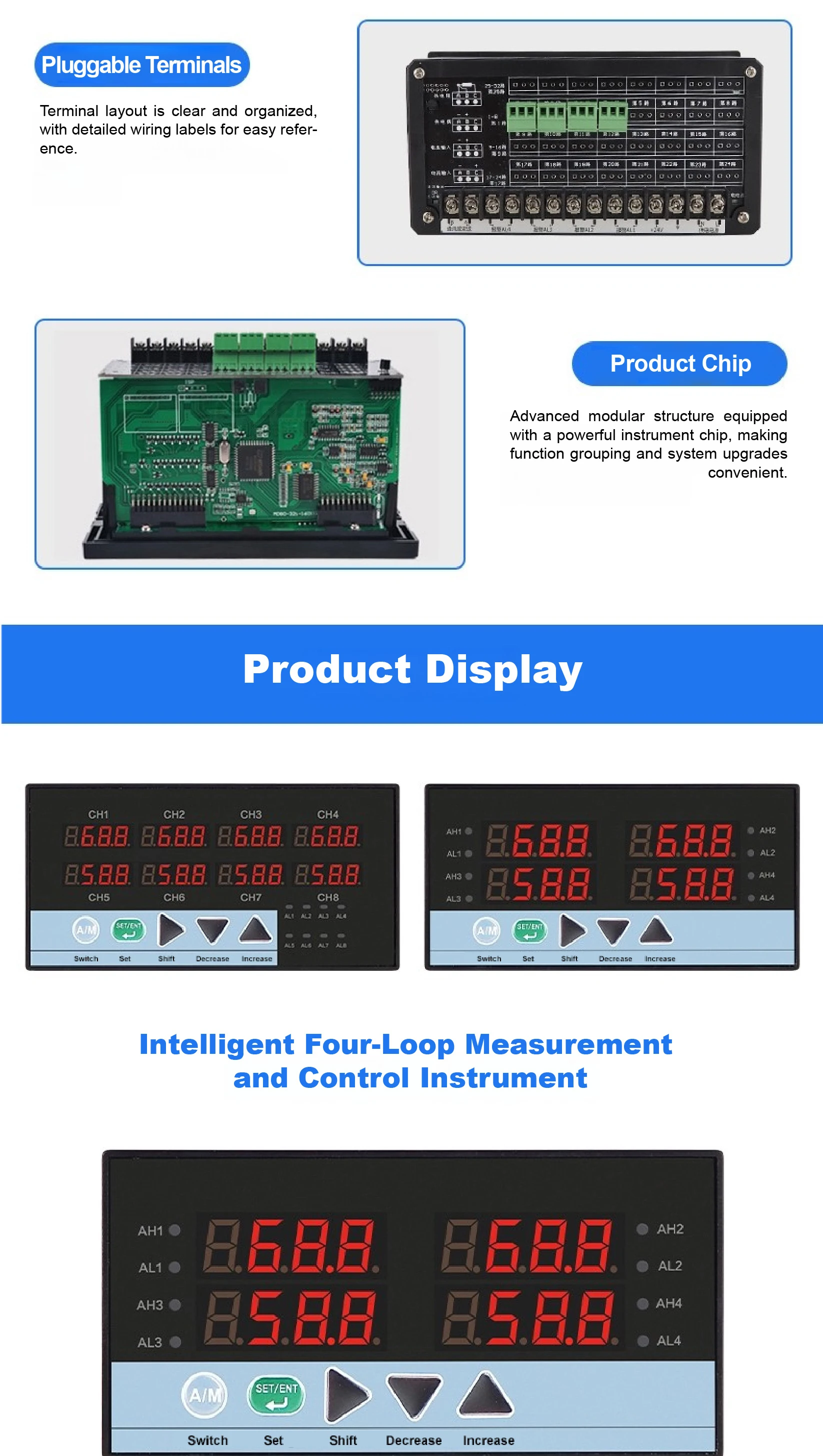

Pluggable Terminals: Clearly labeled terminal layout ensures easy wiring, quick installation, and convenient maintenance.

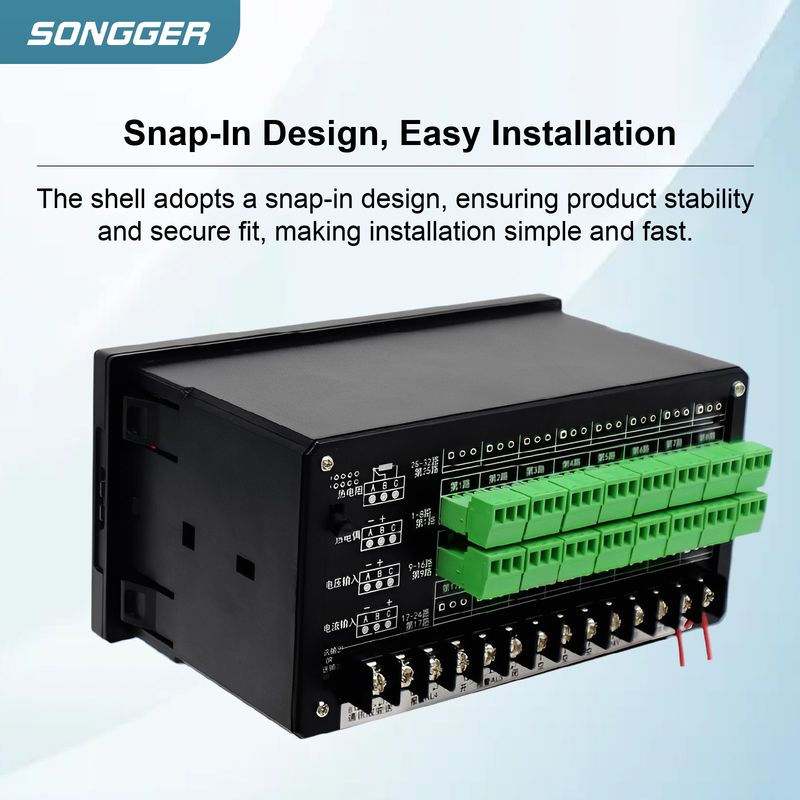

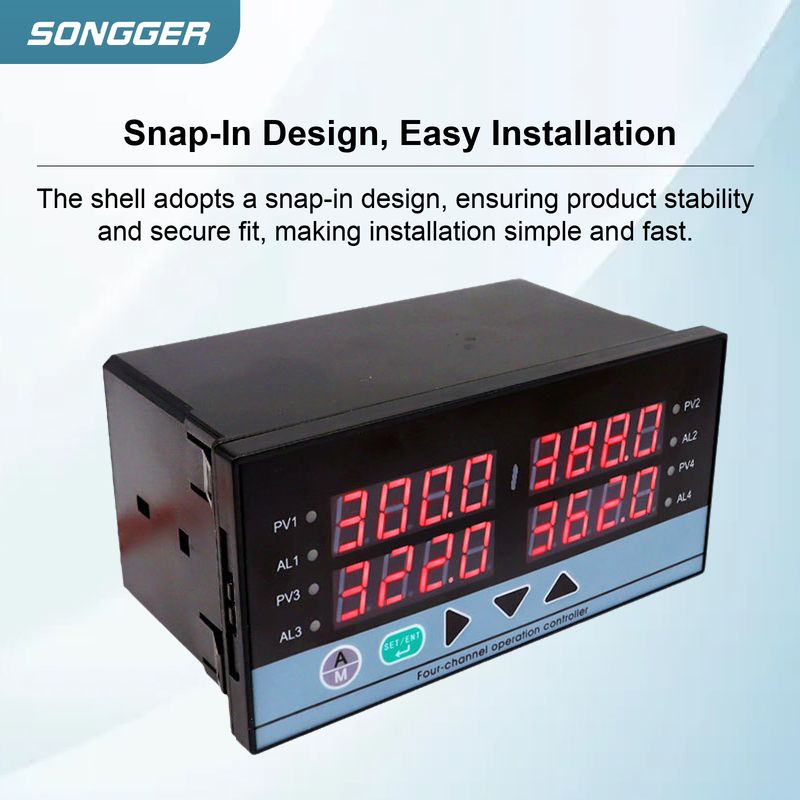

Standard Card-In Design: Provides secure, stable installation and long-term durability.
User-Friendly Settings: Supports flexible configuration of input types, calculation methods, output parameters, and communication protocols to meet various application needs.

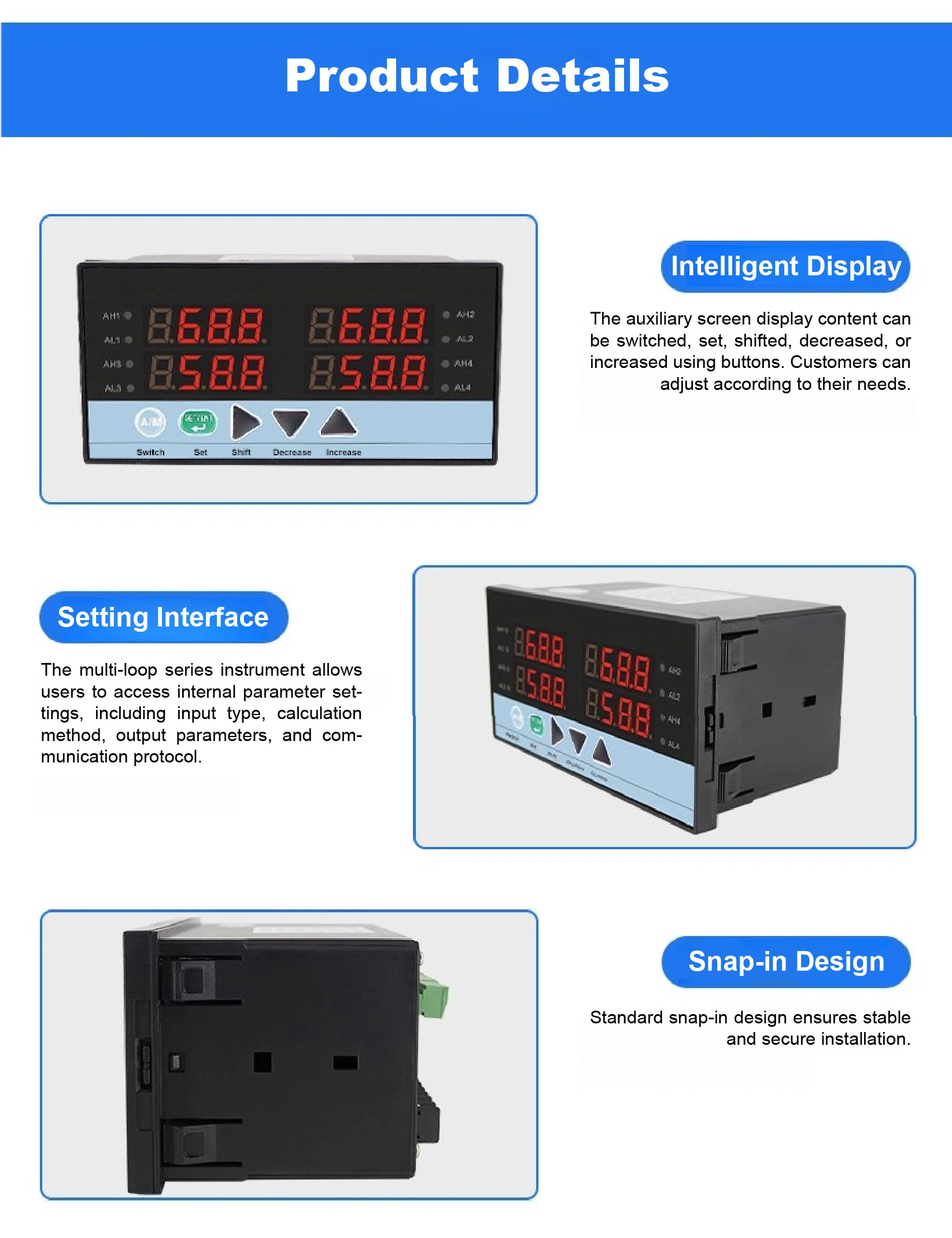

Intelligent Display: Dual-screen design allows quick and easy switching between displayed content with a single button press.
4.Applications
Automation and Remote Communication
Temperature and Signal Monitoring
Industrial Process Control







5.FAQs
Q1: Can the input channels be expanded?
A1: Yes, the device supports customization for 4-channel and 8-signal inputs.
Q2: What is the communication distance of RS485?
A2: RS485 communication distance can reach up to 1km.
Q3: Is there password protection for parameter settings?
A3: Yes, all configured parameters are permanently saved and protected by a password lock.
