【VAT Free for EU】 K11-100mm/K12-100mm 4 Jaw Chuck & NEMA23 step Motor With 65mm Tailstock Ratio 50:1: 1 CNC 4th Axis Gapless Harmonic deducer Gearbox

$709.49

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

K11-100mm/K12-100mm 4 Jaw Chuck & NEMA23 Stepper Motor With 65mm Tailstock Ratio 50:1 100:1 CNC 4th Axis Gapless Harmonic Ducer Gearbox


Package include:

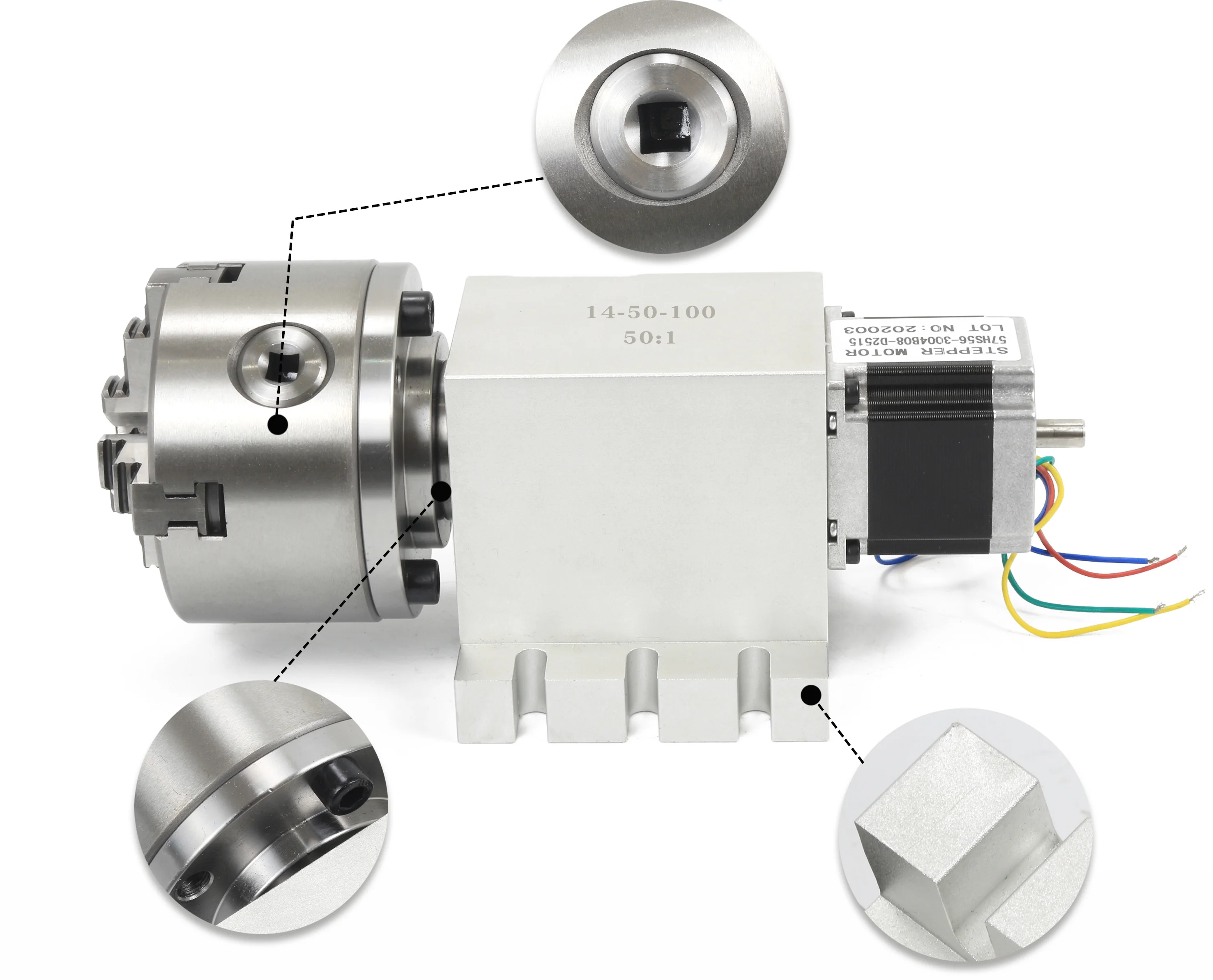

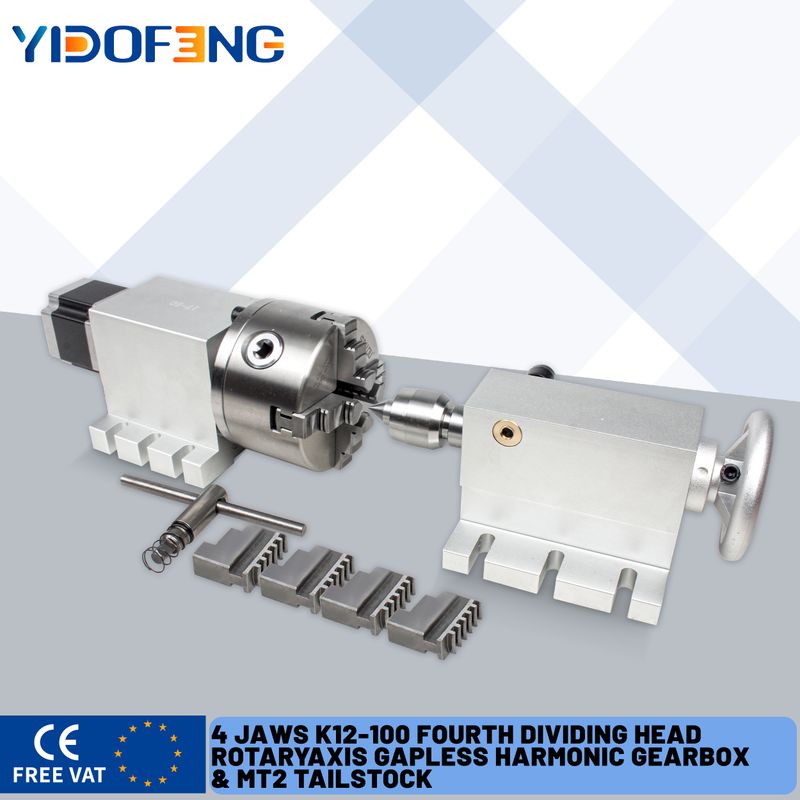

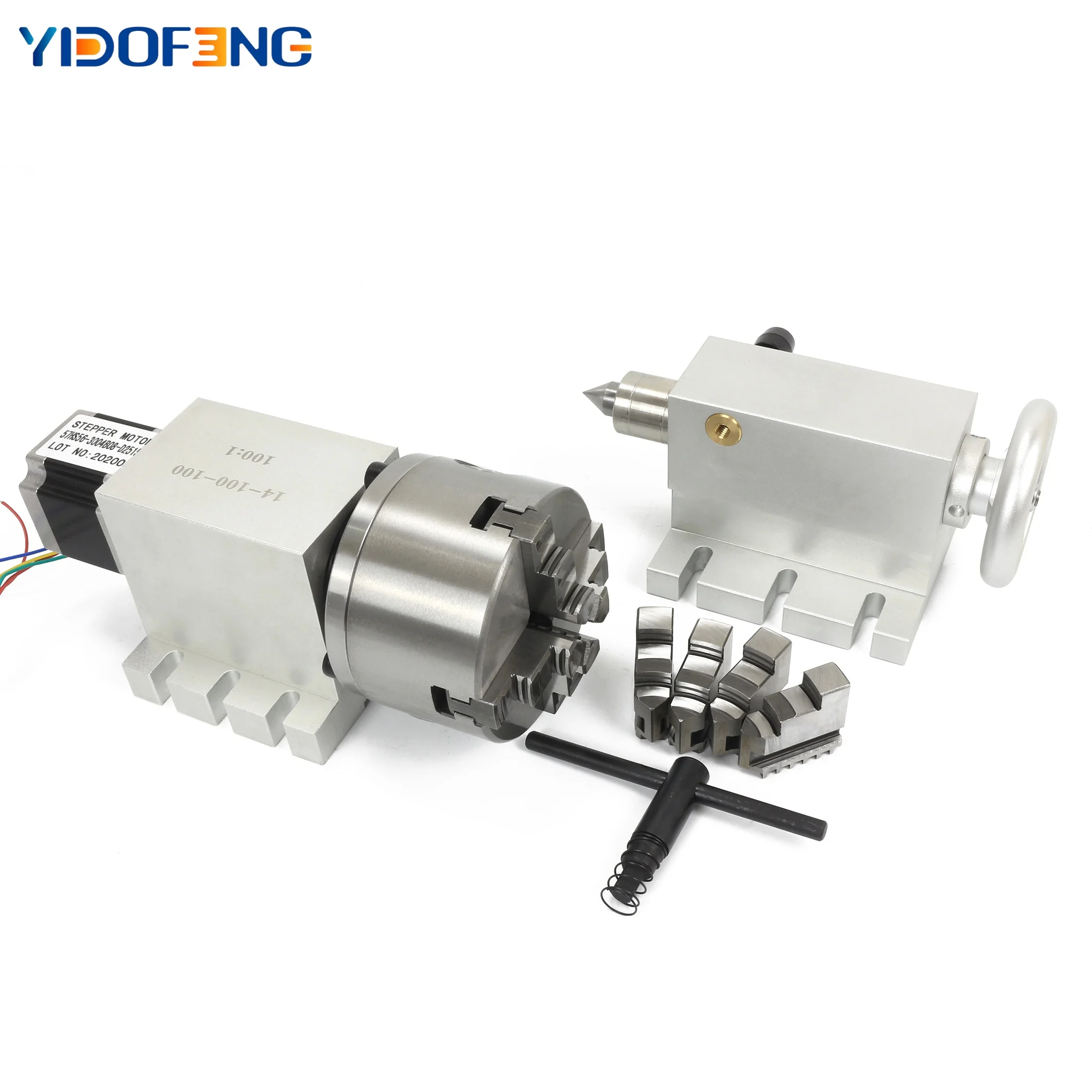

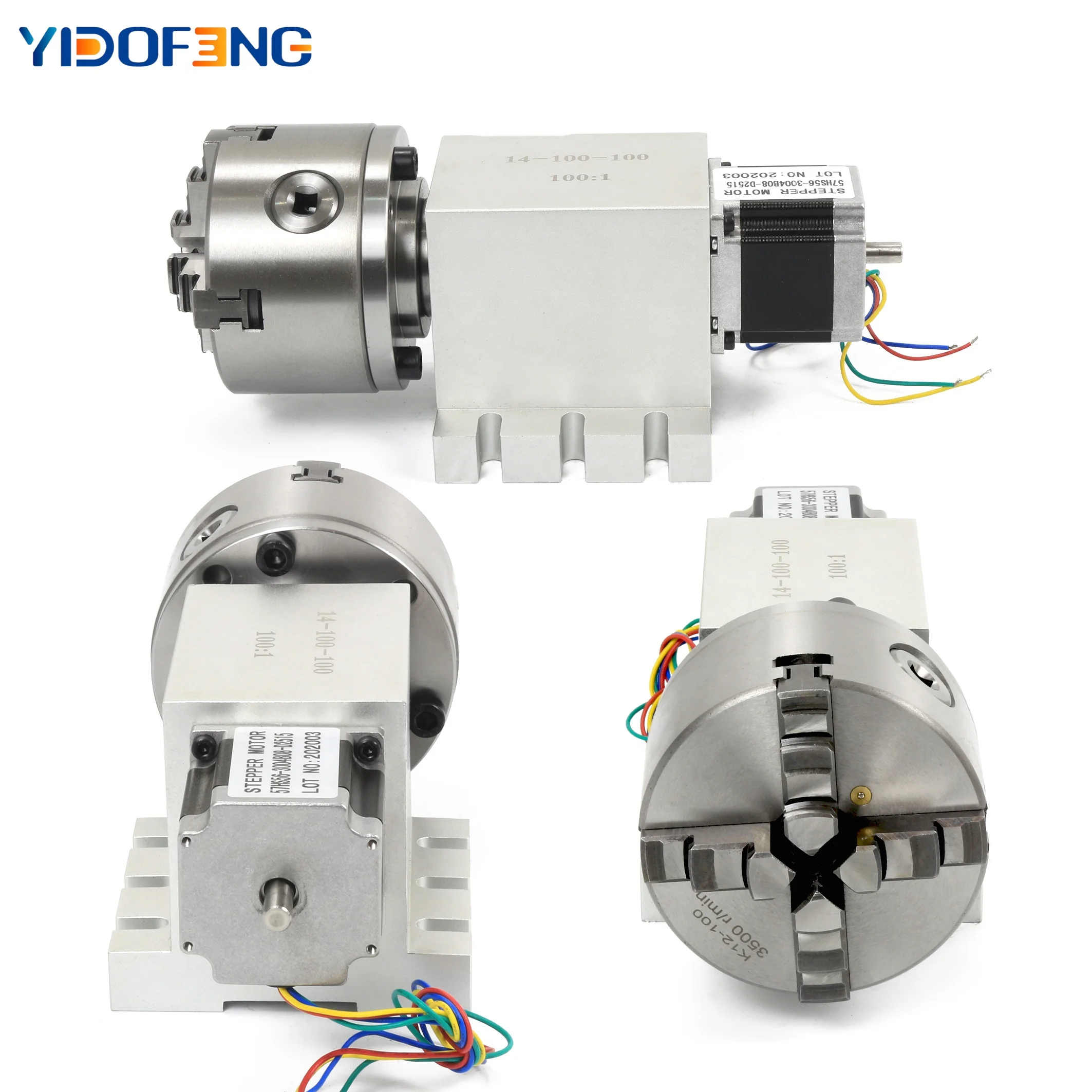

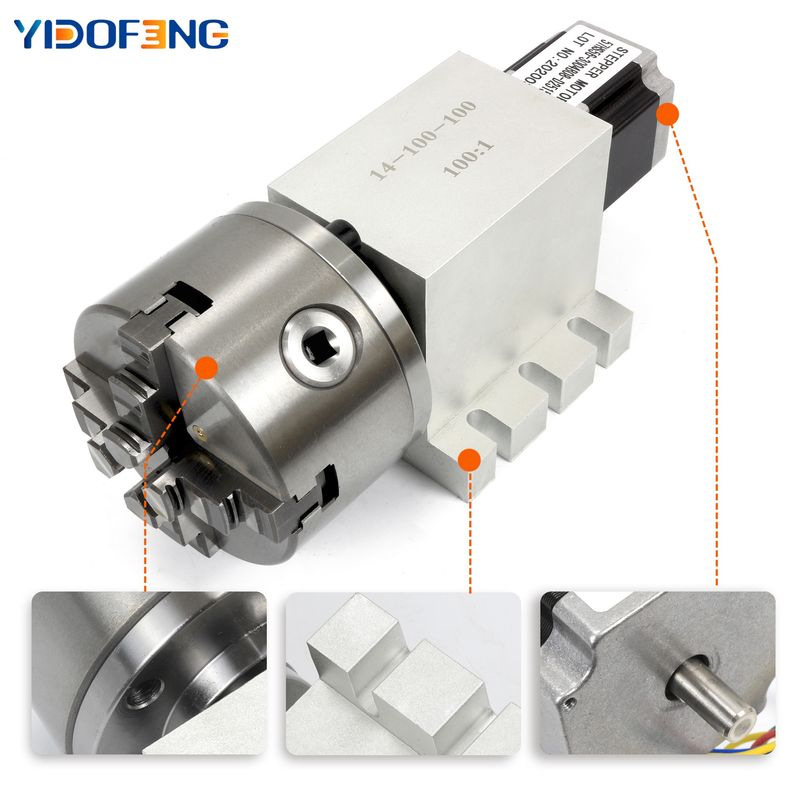

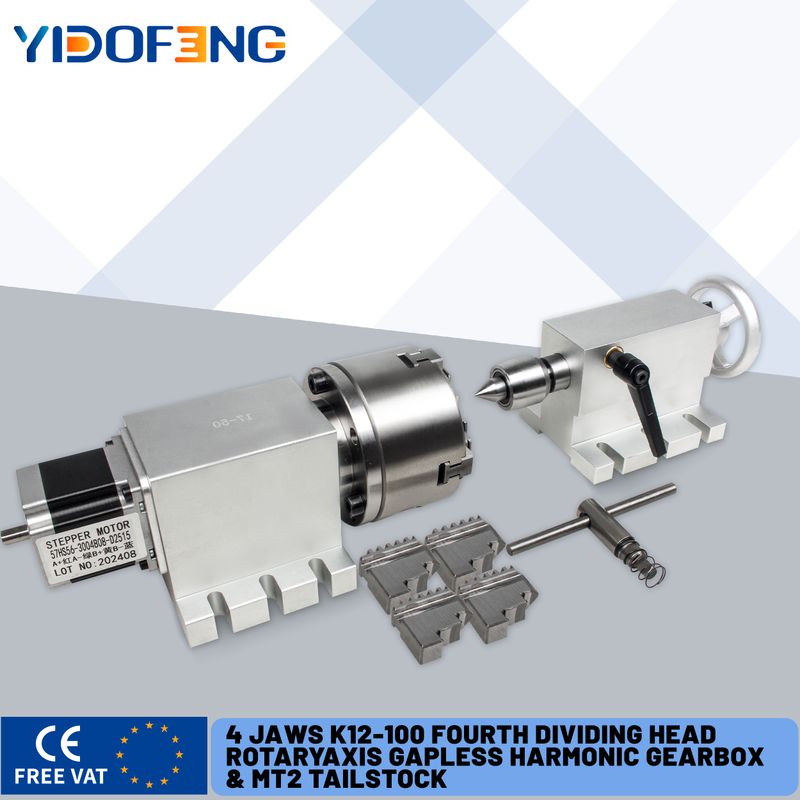

1 x 4th Axis Gapless Harmonic K11-100mm Gold K12-100mm (Includes a motor and a 4 jaw chuck, optional ratio)

1x65mm Tailstock

1 x wrap



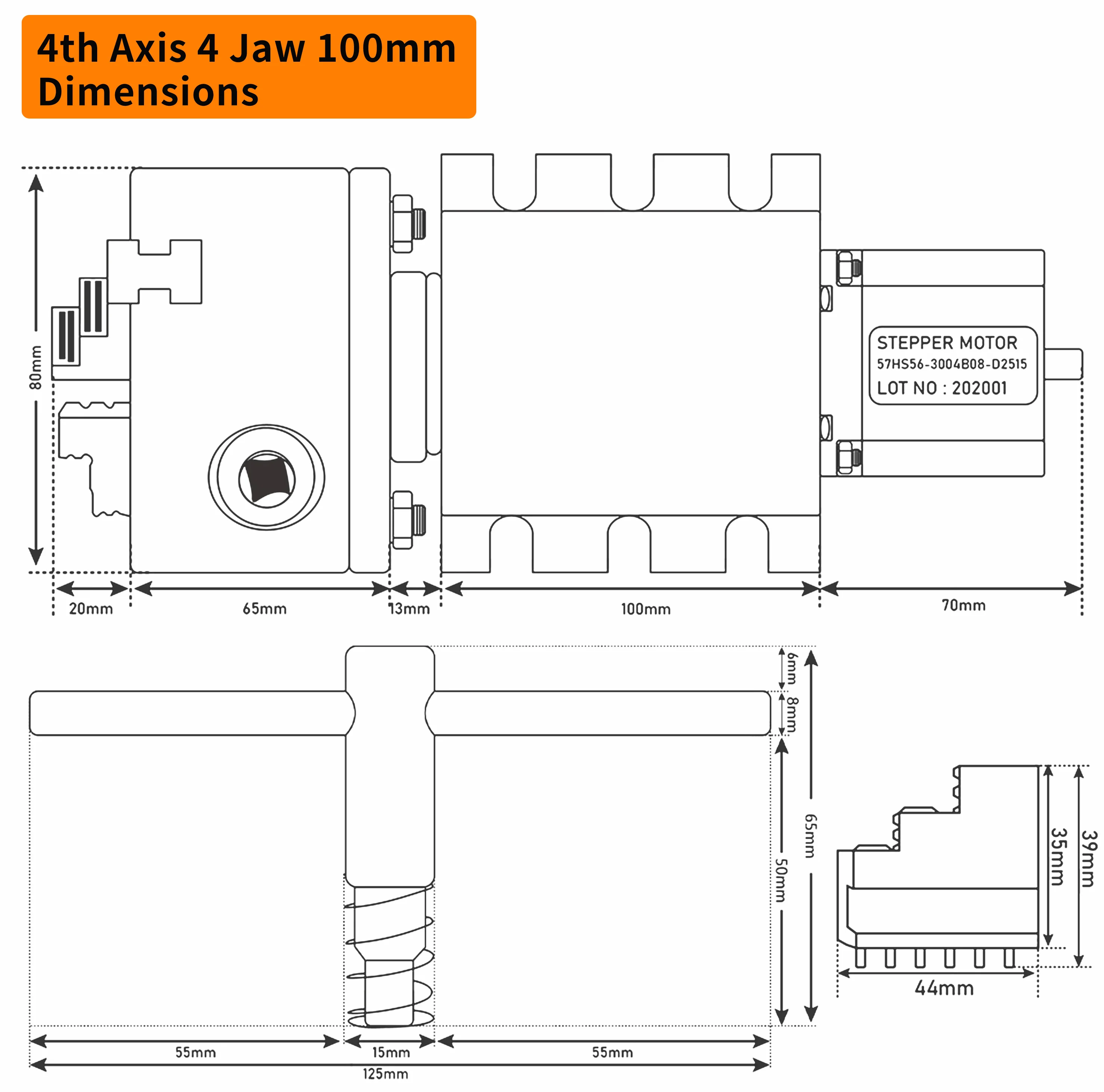

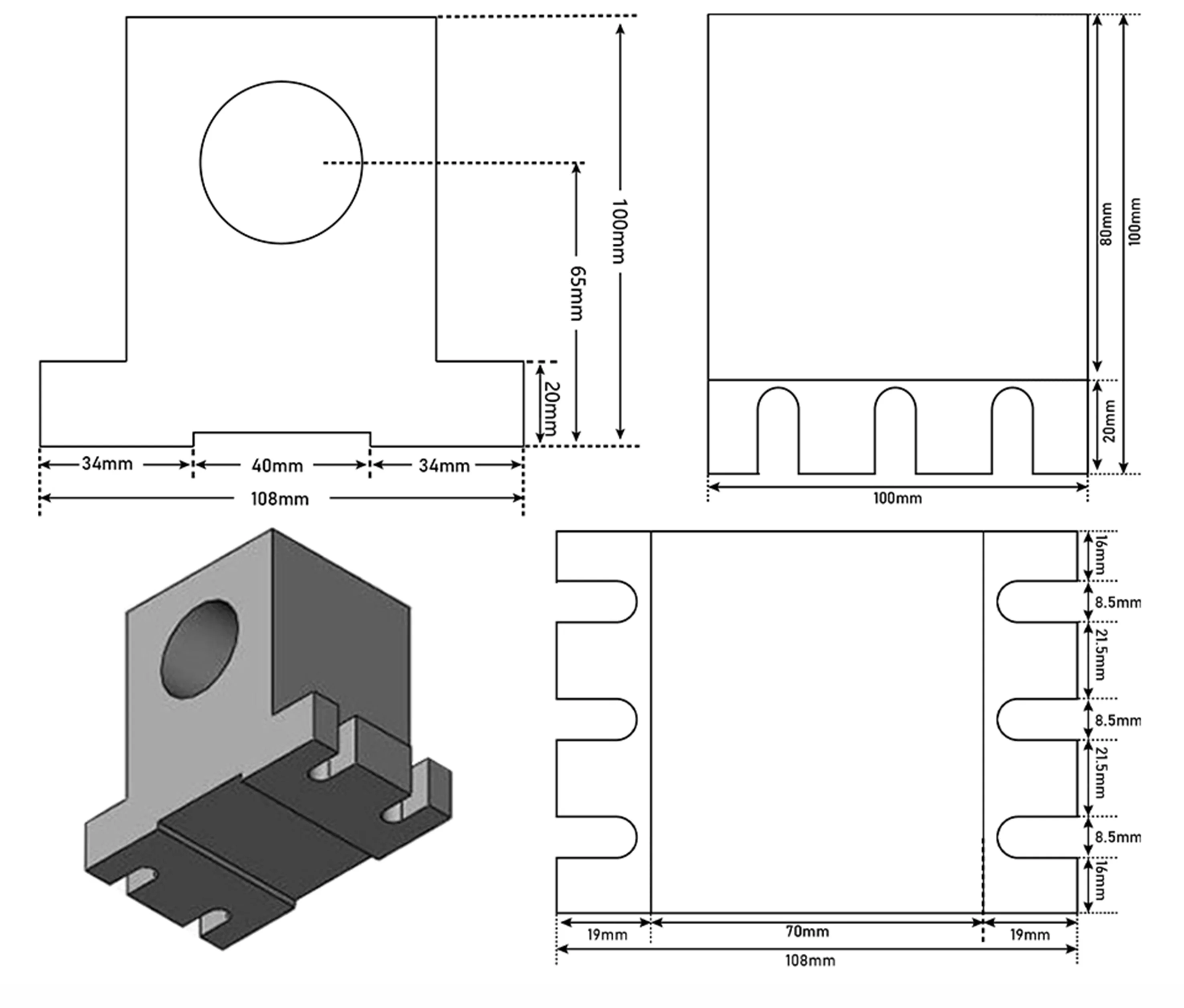

Description:

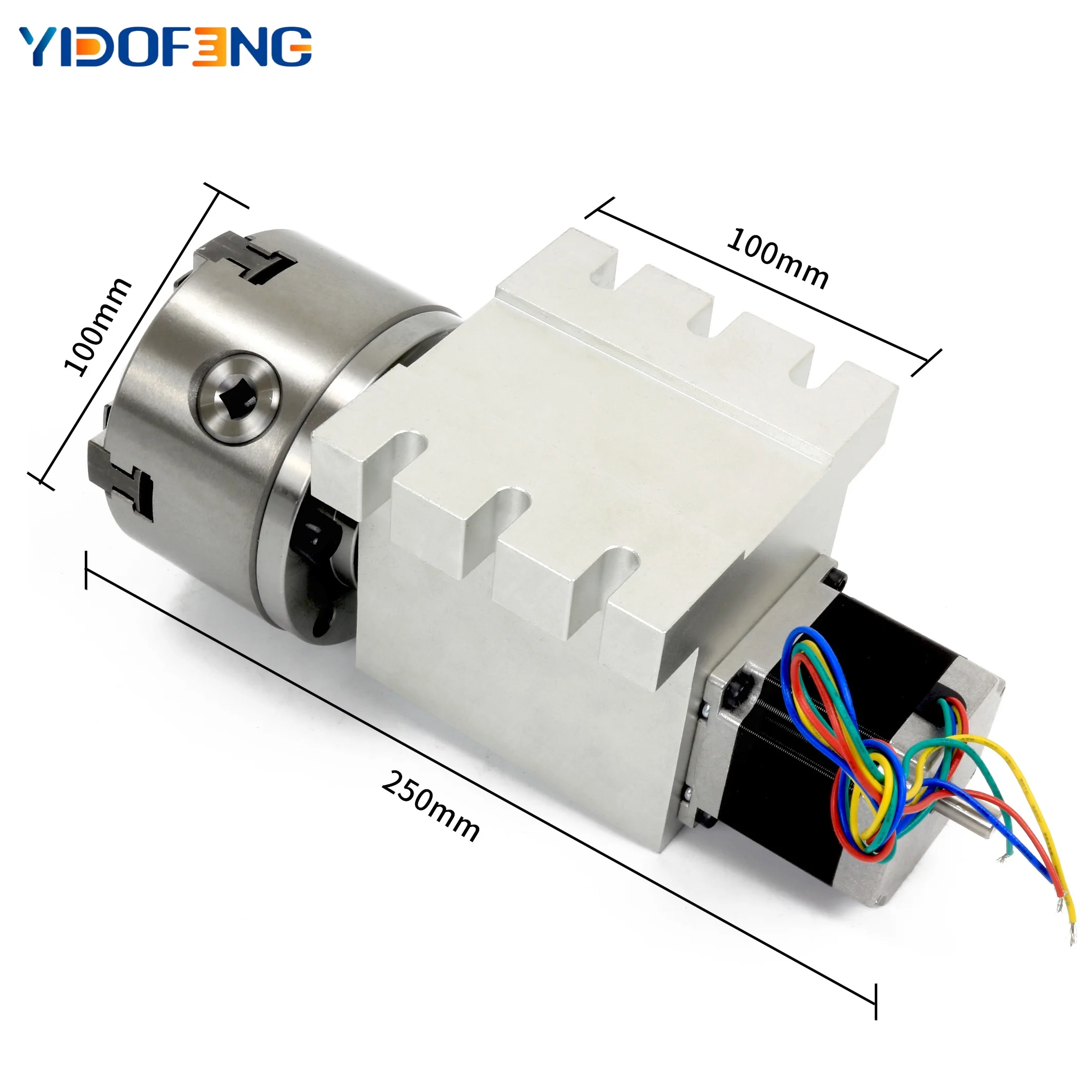

Chuck type:K11 100mm three jaw centering chuck

Center Heights:65mm

Total Heights:115mm

Angle:0.018 °/ step

Gear box output jump diameter:25mm

Reducing ratio:50:1

Steper motor:Nema23 57mm 3A 2-phase 4 wire

Accessories:Set of Anti-claw and wrenches

Weight:6.5KG

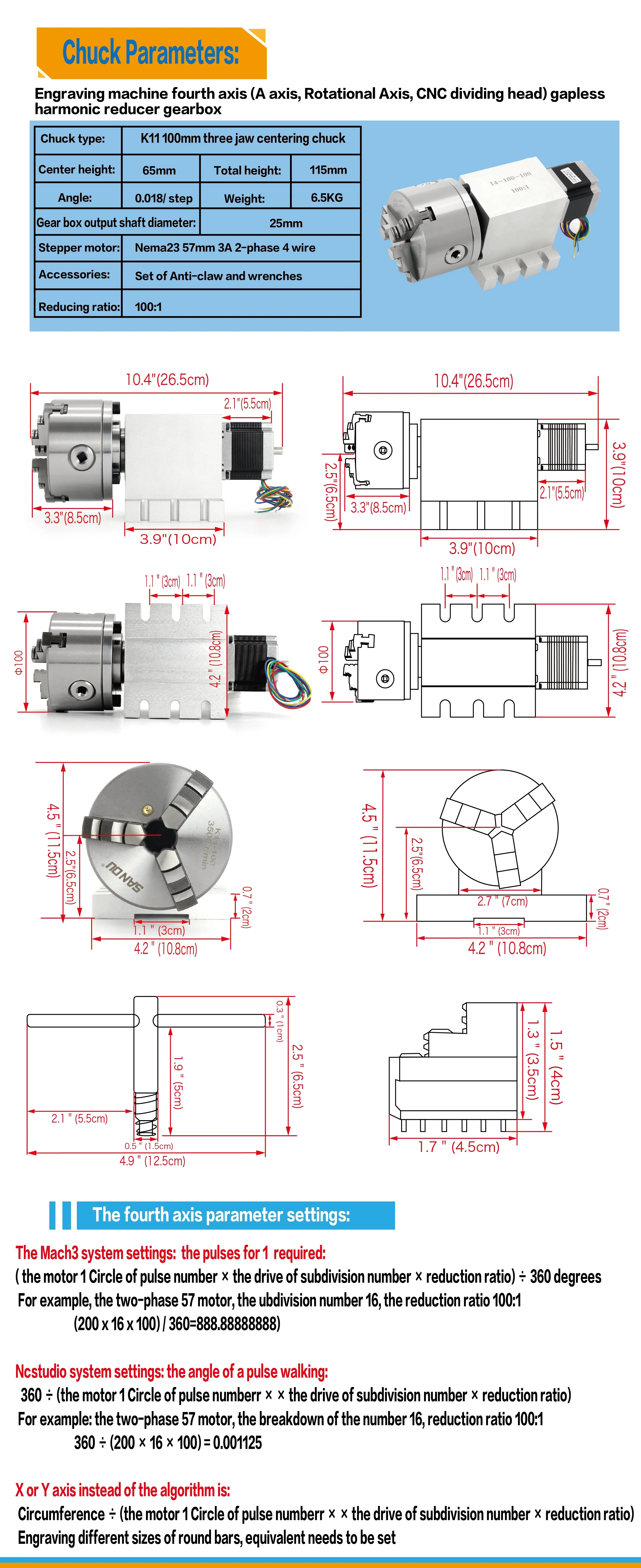

The four axis parameter settings:

Mach3 system settings:The pulses required for 1 °

(Motor 1 lap pulses X driver fine fraction x Reduction ratio) NL 360 °

For example:57mm 2-stepper motor phase, fine fraction of 16, 100 ratio reduction: 1

(200x16x100) / 360 = 888.888888)


Weihong system settings:1 pulse along the angle

360 °/(Motor 1 lap pulses X driver fine fraction x Reduction ratio)

For example:57mm 2-stepper motor phase, fine fraction of 16, 100 ratio reduction: 1

360 / (200x16x100) = 0.001125



K11-100mm:



K12-100mm:


The four axis parameter settings:

The Mach3 system settings: the pulses for 1 required:

(The Motor 1 Circle of pulse number × the drive of subdivision number × reduction ratio) Ju 360 degrees

For example, the two-phase nema23 motor, the ubdivision number 16, the reduction ratio 50:1

(200 × 16 × 50) ℃ 360 = 444.4444444)

Ncstudio system settings: the angle of a pulse walking:

360 ℃ (the motor 1 Circle of pulse numberr × the drive of subdivision number × reduction ratio)

For example: the two-phase nema23 motor, the breakdown of the number 16, reduction ratio 50:1

360 ℃ (200 × 16 × 50) = 0.00225

360 ℃ (200 × 16 × 50) = 0.00225


Oven jaw chuck

4 jaw chuck:

Suitable for clamping various types of materials.

X or Y axis instead of the algorithm is:

Circumbling (the motor 1 Circle of pulse numberr × the drive of subdivision number × reduction ratio)

Engrating different sizing of round bars, equivalent DS to be set.


Nema23 Steper Motor

· Step Angle: 1.8 deg.

· Holding Torque: 1.2Nm

· Resistance Phase: 1OHMS

· Present: 3A

· Inductance:2.8mH +/-20%

· Frame Size: 57x57x56mm

· Body length: 56mm

· Shaft: 6.35mm

· Lead: Red: A, Green: A-,Yellow: B, Blue: B-

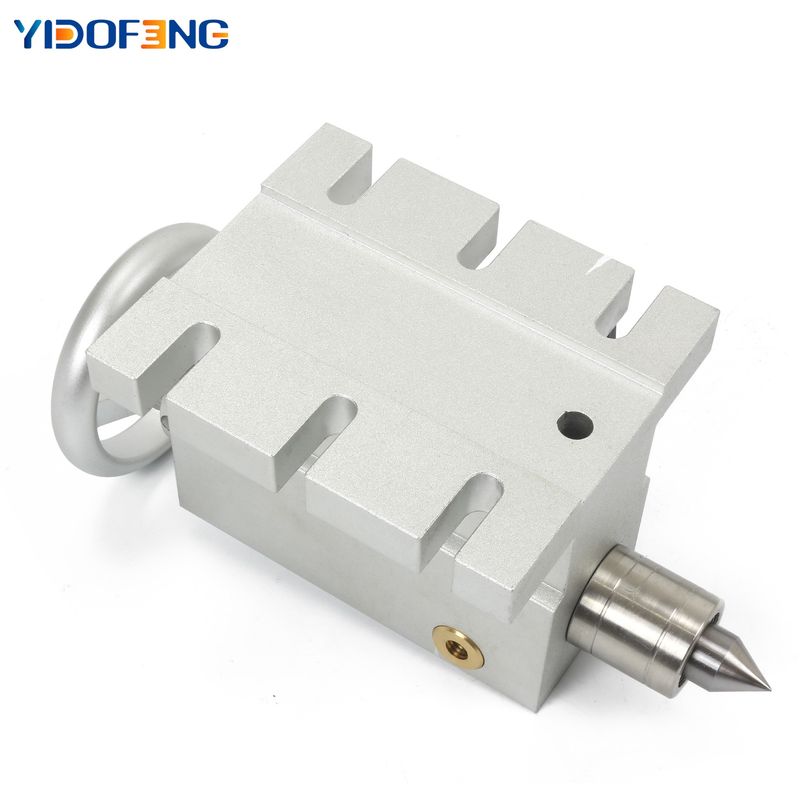

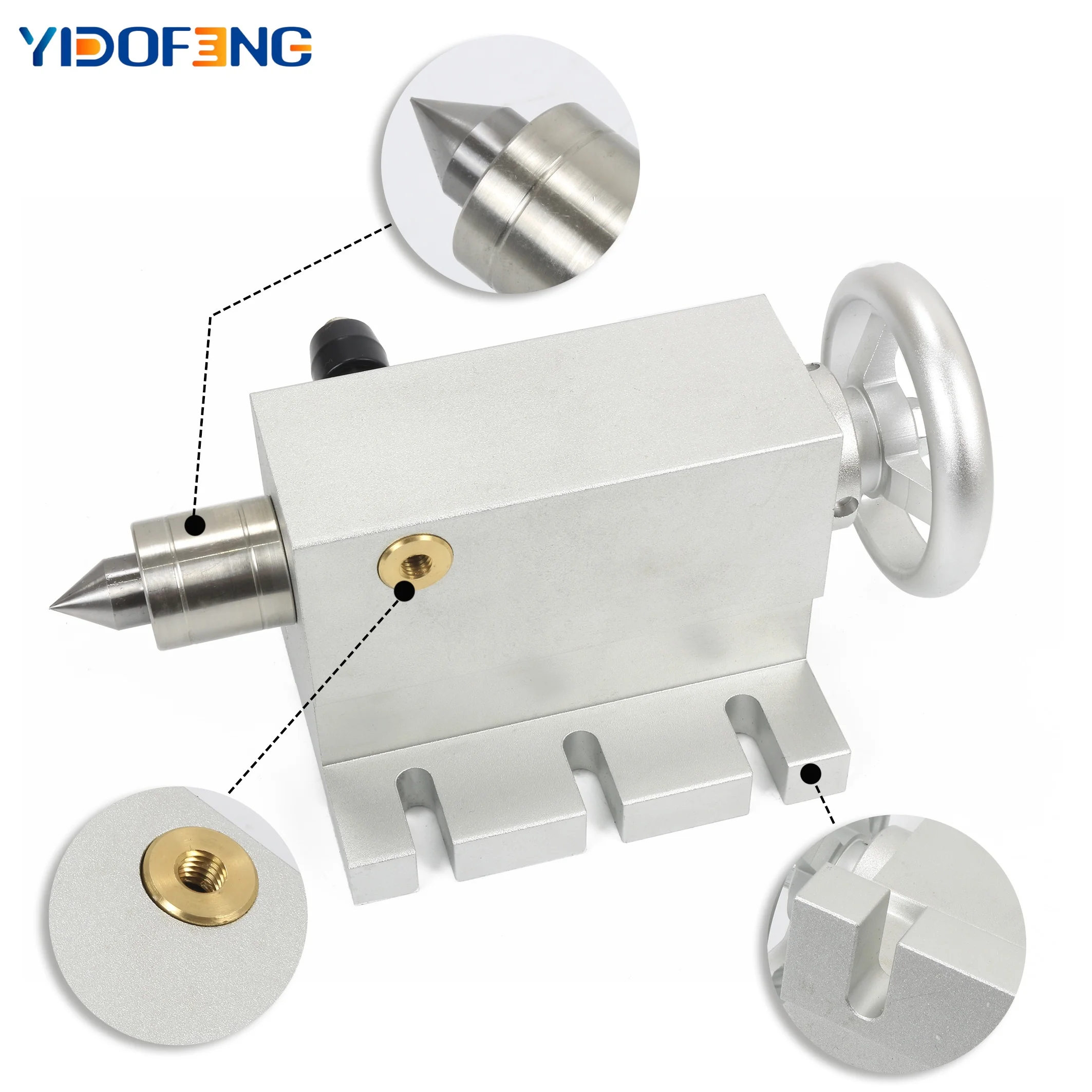

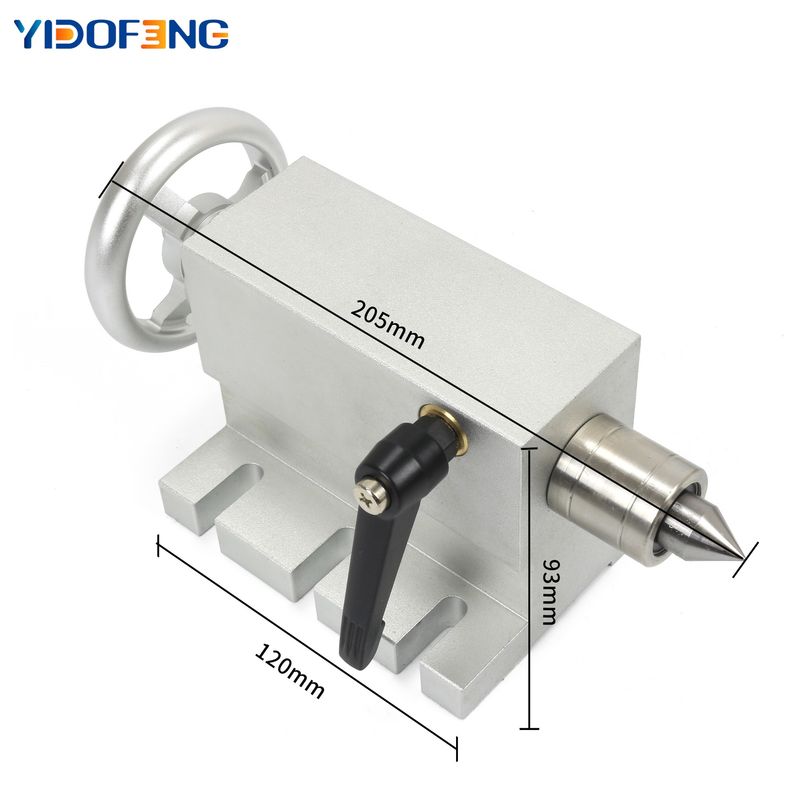

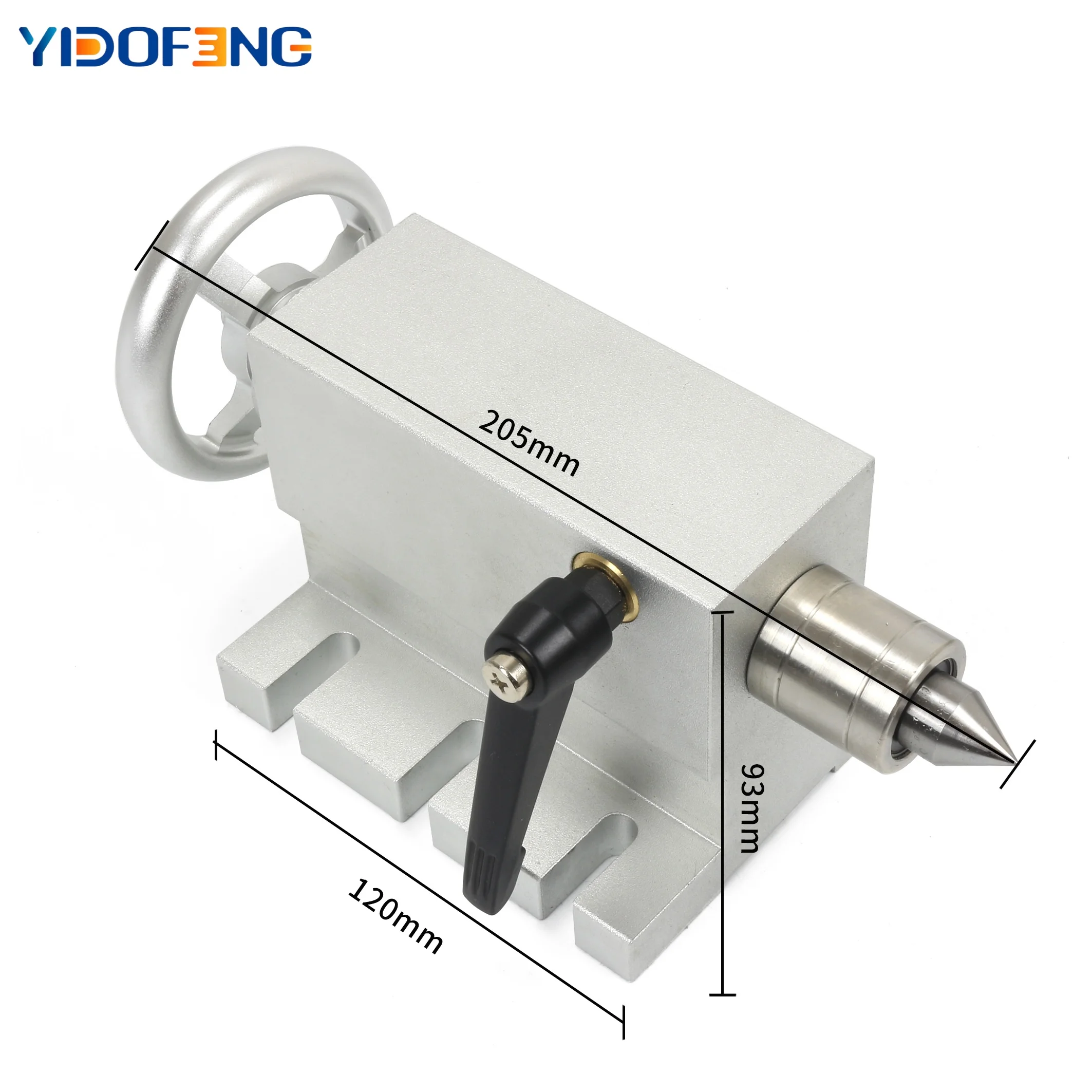

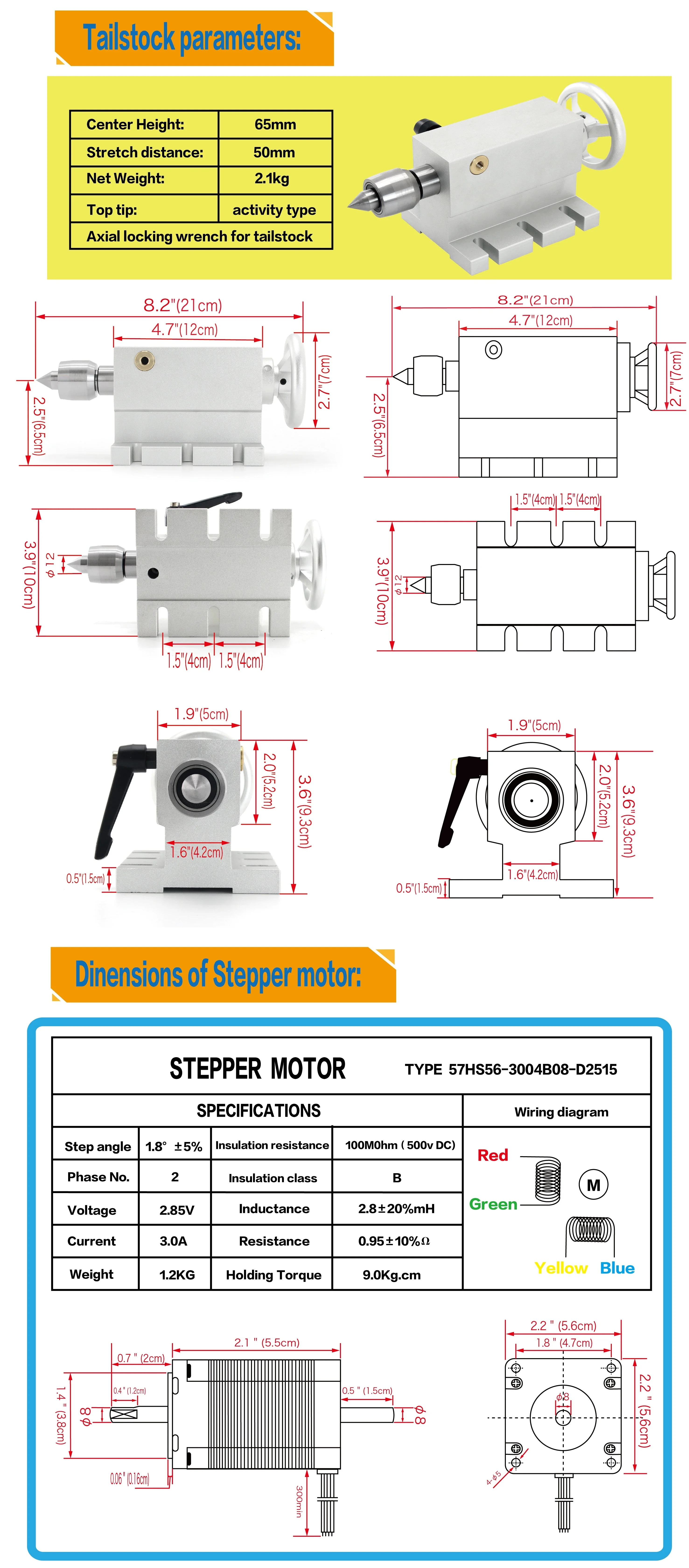

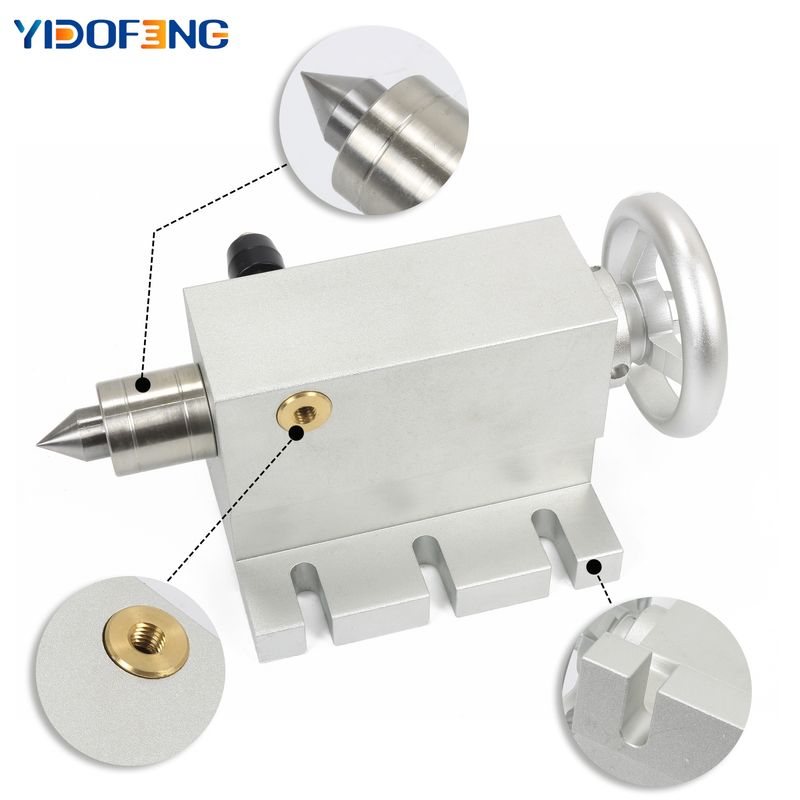

Tailstock type:


Center Heights: 65mm


Stretch distance:50mm


Top tip: activity type


Axial locking wench for Tailstock


Net Weight:2.1kg
