Voltage Doubler Rectifying Circuit Board 24 Times Rectifier 60000V High Voltage Multiplier Electrostatic Generator


The maximum boost is 24 times, for example: input 2500V, can output 60000V, suggest 100V~2500V/AC/50KHz, connect it to work, module has redundancy, 60000V long-term stable output. In addition, the frequency of 220V mains 50Hz is too low, and the effect of direct access will be very unsatisfactory. It is recommended to prepare a high-frequency AC high-voltage module with a frequency of not less than 10KHz.


Working parameters (type 102 DP-YA)

Size: 16cm*2.4cm

Input voltage: <2500V

Instantaneous current: <1A

Working frequency: <80kHz

Test frequency: 50KHz

Output voltage: <60KV

Overload power: <50W

Onboard capacitance: 6kv/1000pF

Onboard diode: 5kv


Working parameters (Type 103 DP-YC).

Size: 24cm*3.4cm

Input voltage: <2500V

Instantaneous current: <30A

Working frequency: <400kHz (supports higher frequency than type 102 DP-YA [A])

Test frequency: 50KHzA

Output voltage: <60KV

Overload power: <50W

Onboard capacitance: 6kv/10000pF

On-board diode: US1MG silicon stack type 5KV


Scope of application


It can be used for long-term high-frequency high-voltage ignition, voltage-doubling rectifier board power supply, and can also be used for capacitor charging after rectification

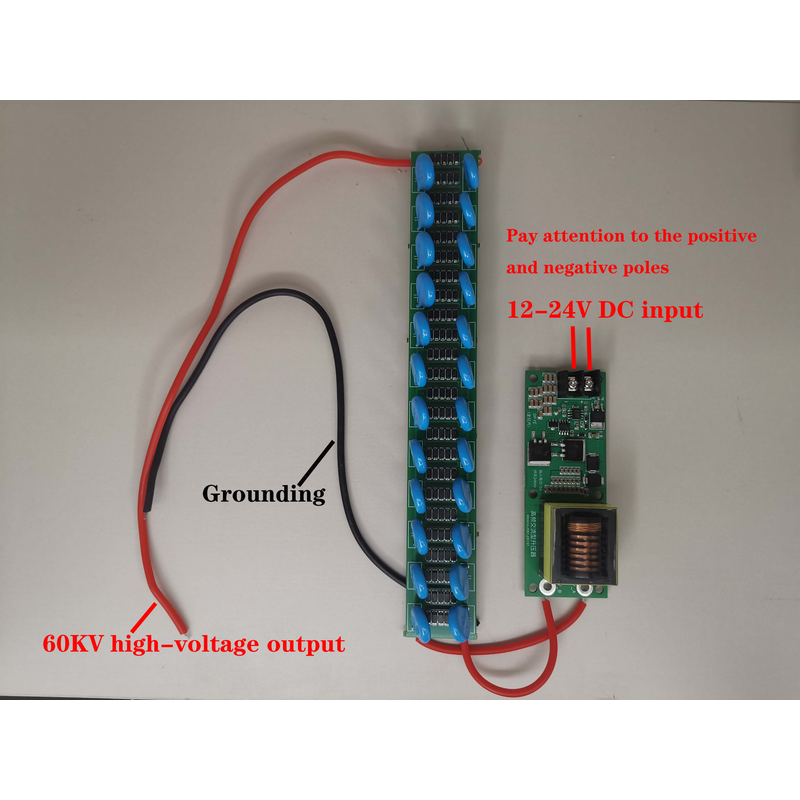

Working parameters(YE YC connection)

Continuous working time: when 12v input, AC ignition is 12h, and the working time is shortened with the increase of input voltage

No-load characteristics: can be no-load for a long time

Input voltage: 12V~24V wide input, the bigger the input, the bigger the output

Input current: <2A

Maximum power: 48W (varies with input voltage)

Output voltage: 82V~2000V

AC frequency: 23KHz

Initial discharge distance: 1~2mm, DC pulse 40mm after double voltage

Maximum arc drawing distance: 20mm, DC pulse 60mm after double voltage

Full power arc temperature: about 1600 degrees

Draw Arc Features: Orange High Temperature



Note: The voltage doubler rectifier module is an accessory. Don't buy the high voltage devices on the board if you don't understand, it is very dangerous. A slight improper operation will cause electric shock or even explosion!


Precautions

It needs to be within the working voltage range, the voltage is too low, it will not work, it is strictly forbidden to reverse the connection, and the reversed capacitor will explode. It is recommended that beginners buy the package model (the wire has been connected).
