YG Customized Double Engine Strong Powerful 100m3/h High Efficiency Diesel Portable Concrete Pump Machine for Construction Works
Includes all taxes
Meet your Seller
-
$16,631.22Sold by BILLIONS BIRDS
Description
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:

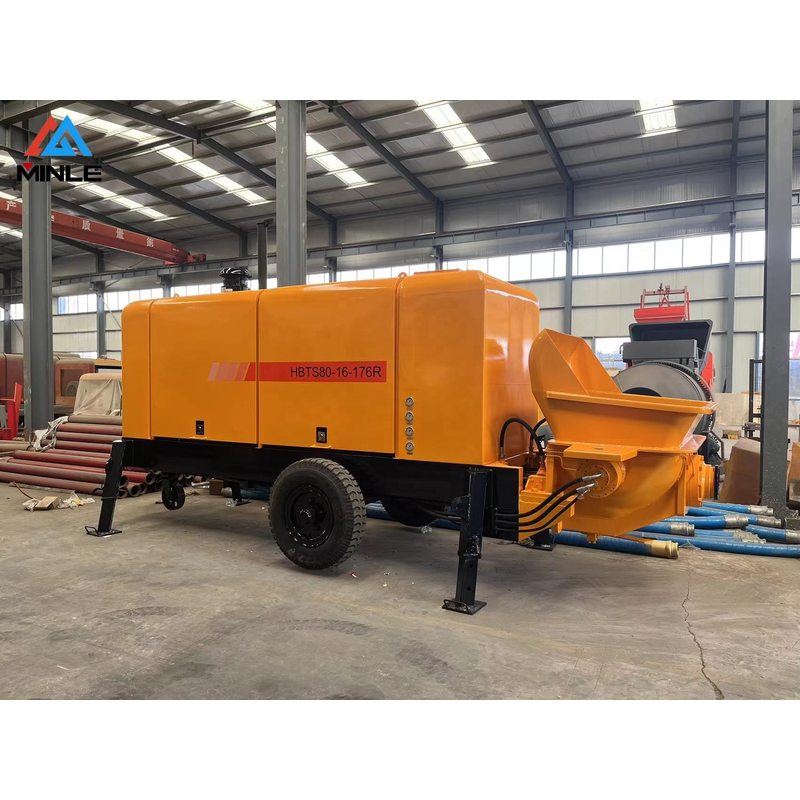

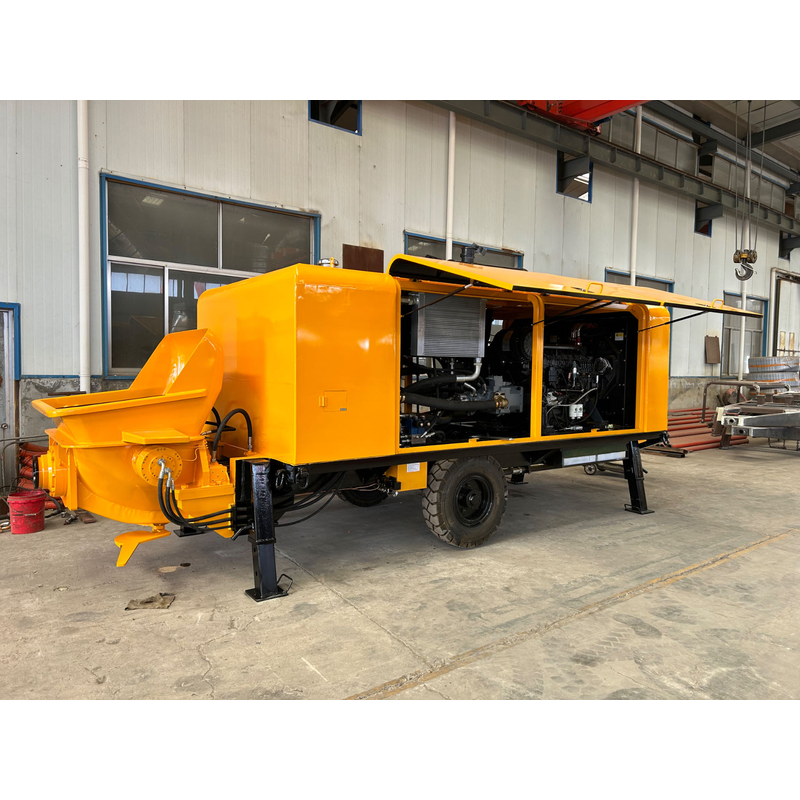

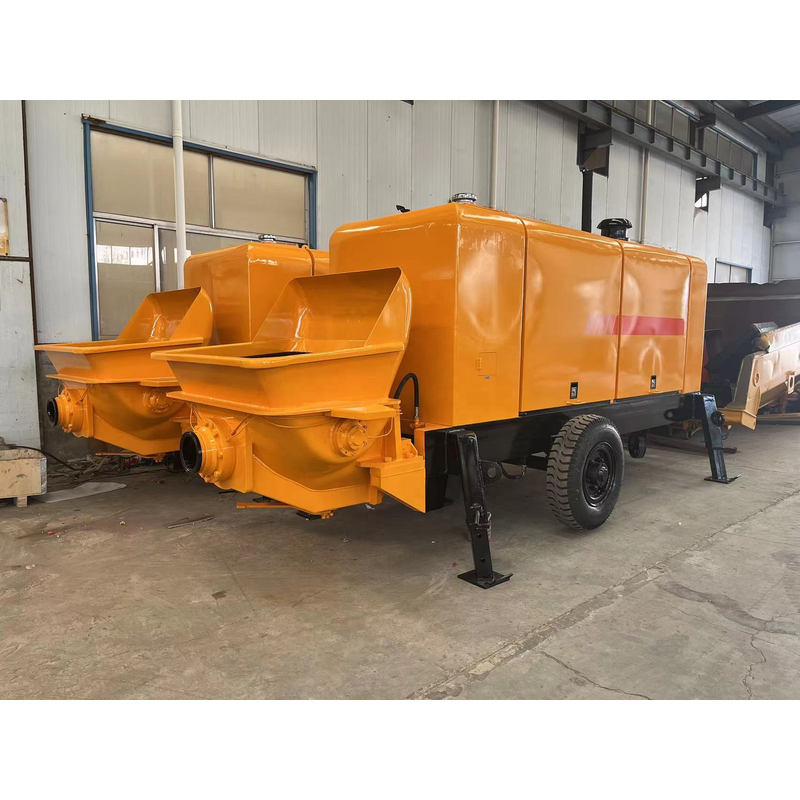

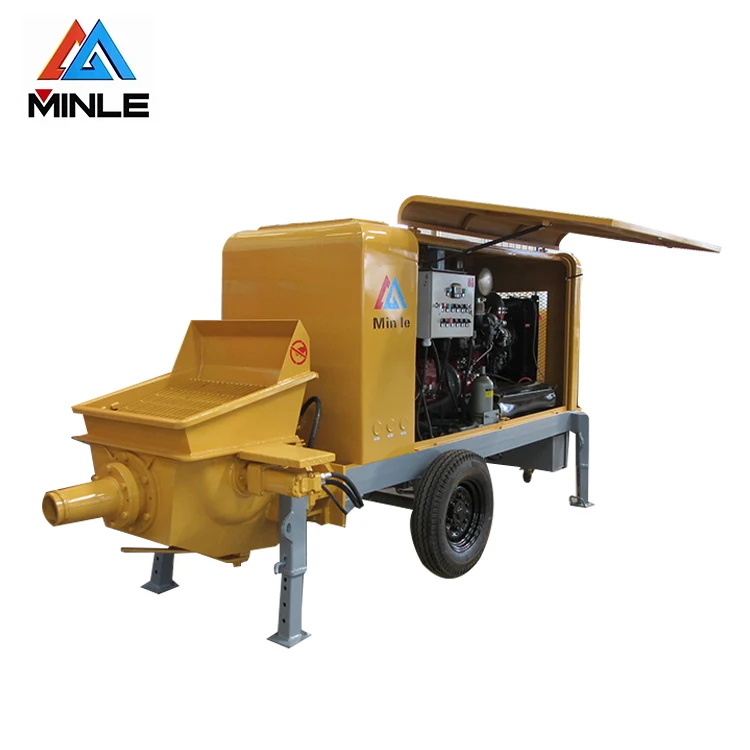

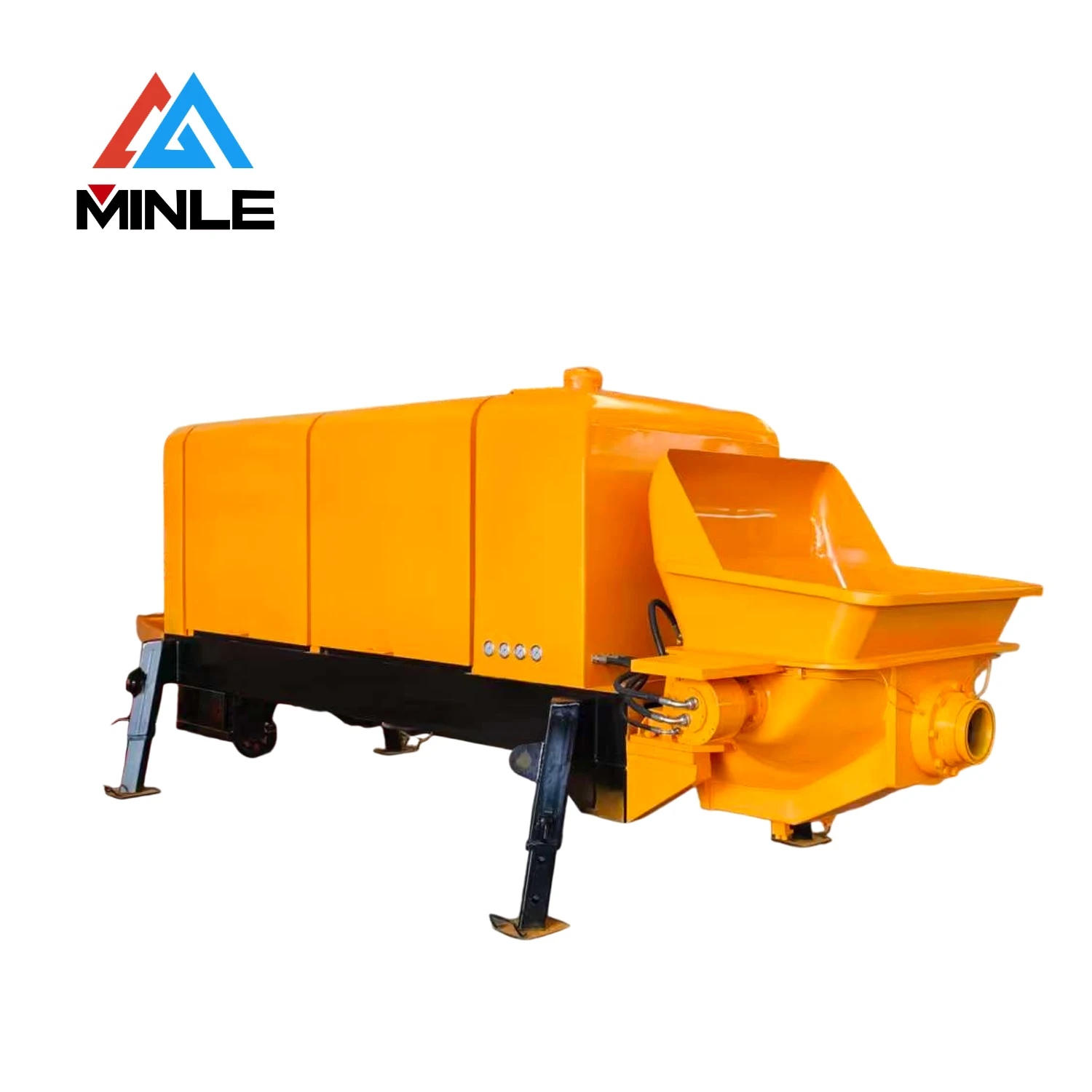

Double Engine Strong Powerful 100m3/h High Efficiency Diesel Portable Concrete Pump Machine for Construction Works
Mobile/WhatsApp: 008615066732025
Choose MINLE as partner,let us make every effort to support your custruction works!
Small Pumpcrete Diesel Concrete Pump Portable Concrete Line Pump Trailer Mounted
Trailer Concrete Pump, that is Portable Concrete pump, it is a construction equipment that relies on pressure to transport concrete through the pipeline. It is equipped with special pipes, which can continuously complete horizontal and vertical transportation of concrete along the pipeline. It is an ideal kind of existing concrete transportation equipment, which combines the production of ready-mixed concrete with the pumping construction and uses the concrete mixing transport truck for intermediate operation. Continuous pumping and pouring of concrete can be achieved. It is used for conveying concrete of other large concrete projects.

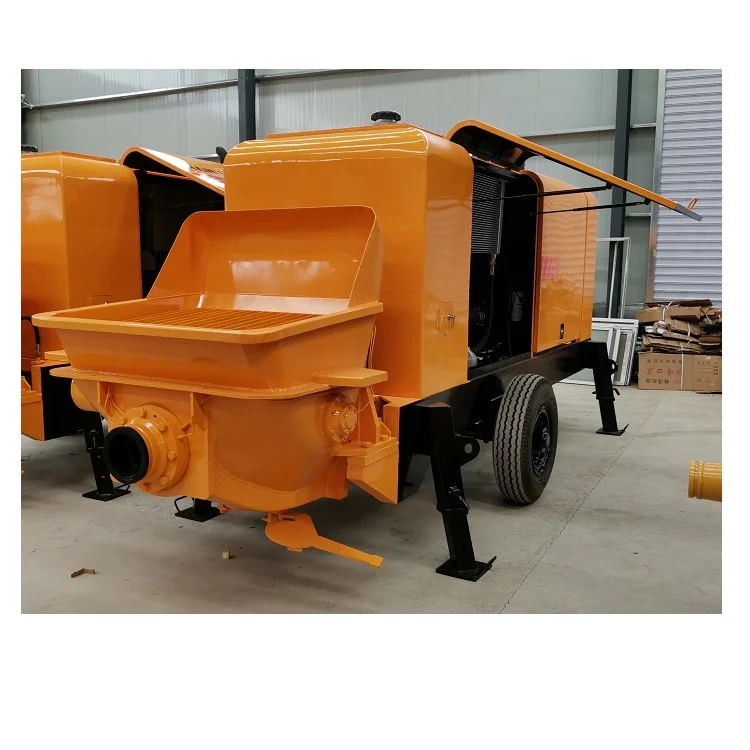

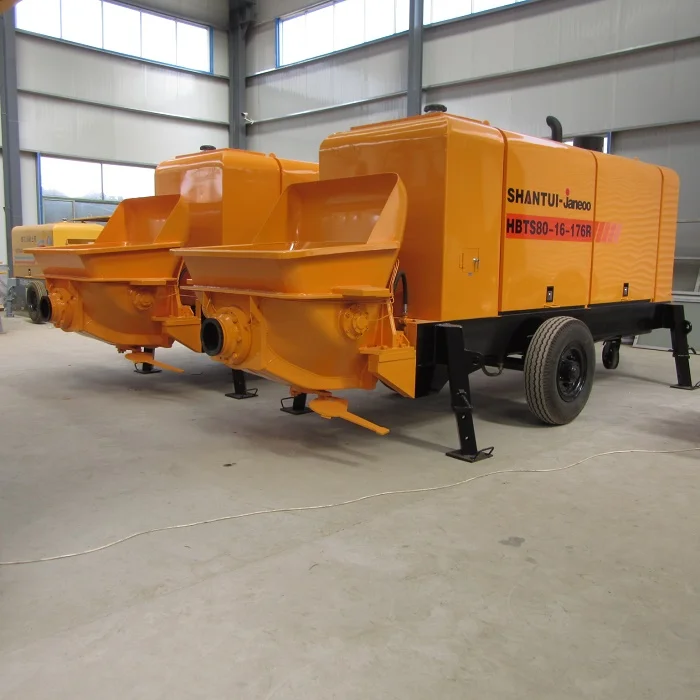

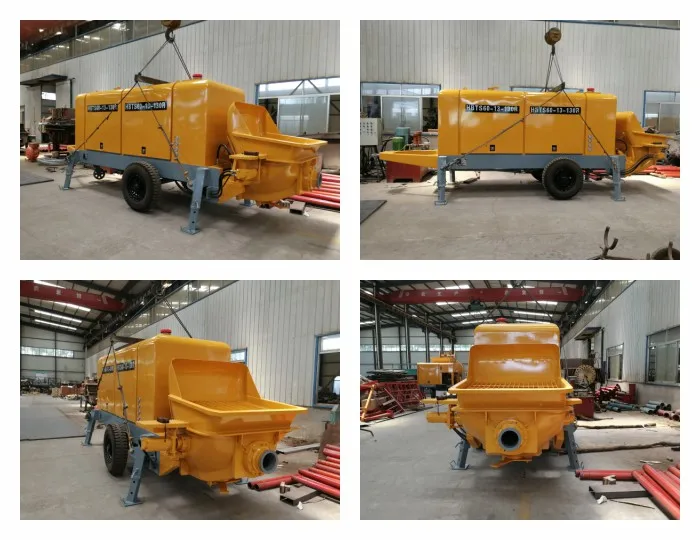

More Pics
| Item |
portable concrete pump |
| Max Theoretical Concrete Output (m³/h) |
100 |
| Max Concrete outlet Pressure (Mpa) |
18 |
| Power (KW) |
Double diesel motor176kw×2 |
| Aggregate size |
pebble≤50 gravel≤40 |
| Concrete Cylinder Diameter (mm) |
200/1650 |
| High-Low Pressure Switch |
yes |
| Max Theoretical Conveying Distance (vertical Height/Horizontal Distance) (m) |
220/1400 |
| Overall Dimension (mm) |
6600×2250×2350(adjusted) |
| Total Weight (kg) |
7120 |

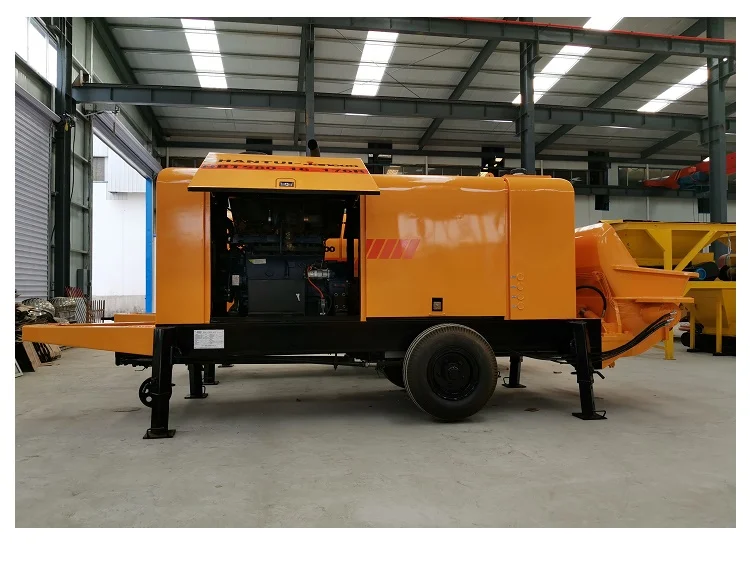

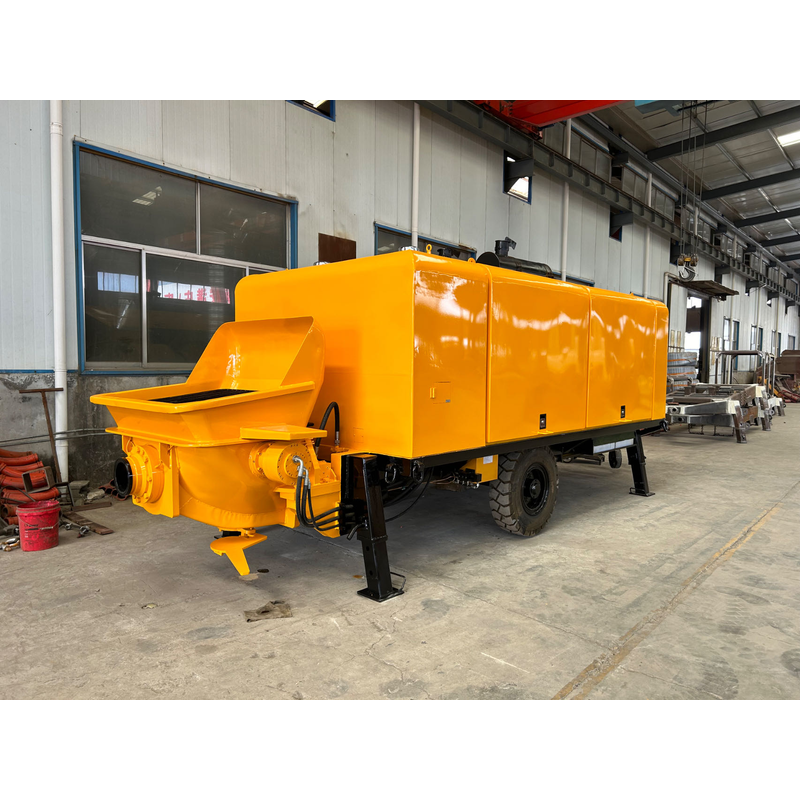

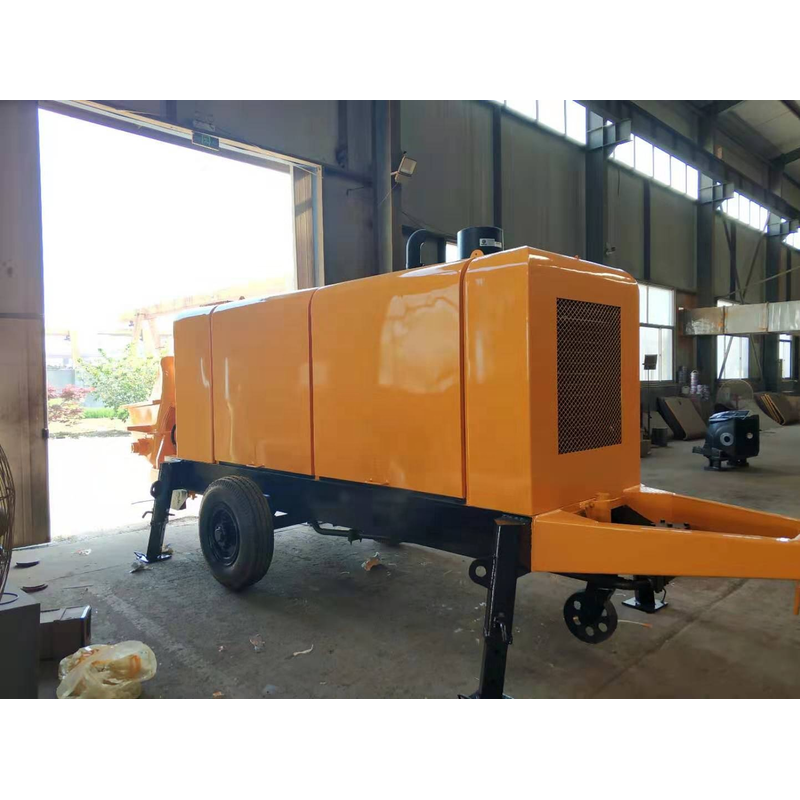

portable concrete pump,that is the trailer mounted concrete pump or stationary concrete pump, hard to access flexibly. MINLE brand new generation concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency.
Advantages using mibi mobile Concrete Pump:
1. Safe work, easy to operate and full of power;
2. Good durability, easy maintenance and long service life;
3. Mechanized construction, reduce labor force, construction is brief, high compressive strength;
4. Strong adaptability, wide range of concrete transport, concrete transport pipeline can make concrete under pressure filling casting in place;
5. High construction efficiency, continuous concrete pump delivery and casting work, so that the combination of concrete and steel bars to achieve the best performance;
Other big types:
Contact: Michael
Mobile/WhatsApp: +86-15066732025

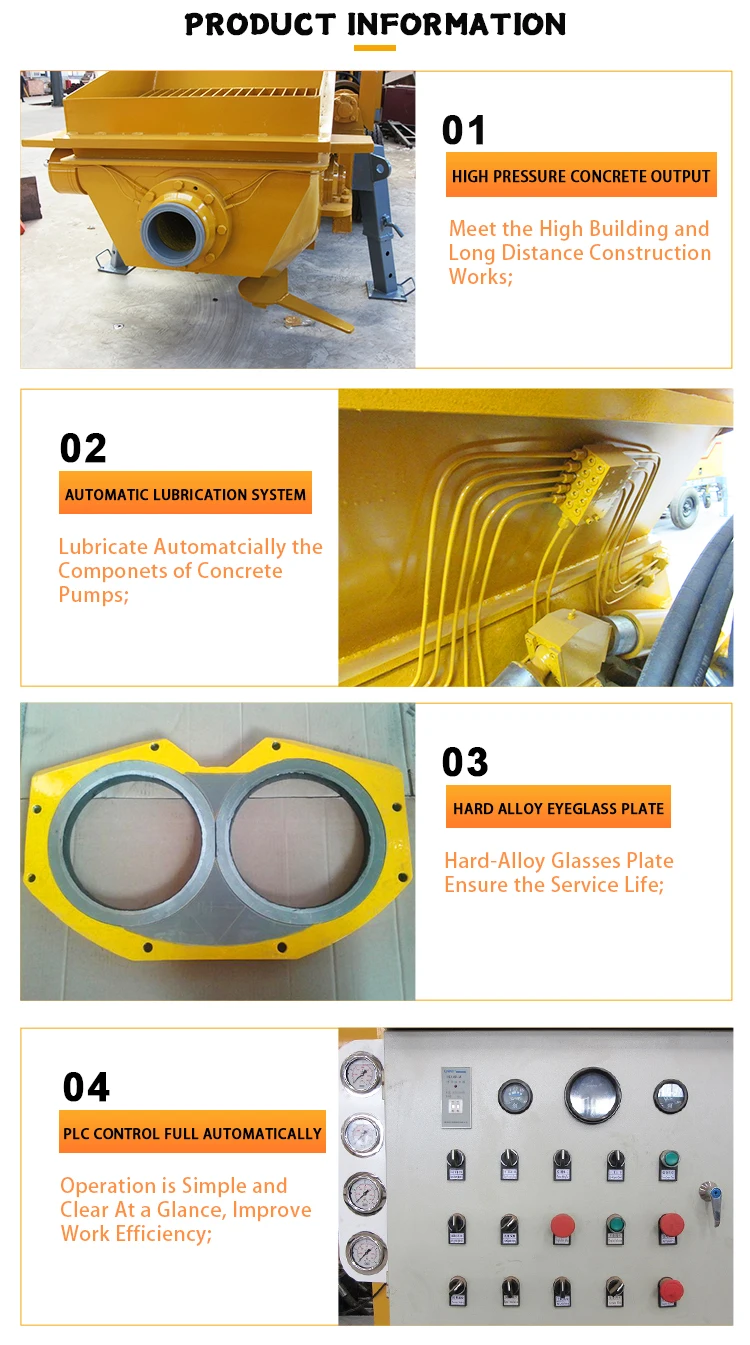

Features:
1. Streamlined appearance design, novel and beautiful, reasonable layout, compact structure, and rigidity of machine covers are greatly improved.
2. The oil pump and valve group adopt world -renowned brands to ensure the high reliability of the towing pump.
3. Use well -known brand motors, reliable performance guarantee, life -free maintenance.
4. Diesel engines use high -end brands with reliable performance and powerful power.
5. The tube is made of high -alloy steel overall precision casting. The arc fought of the three -dimensional optimized design has the characteristics of large volume and unsatisfactory materials.
6. Chromium plating on the inside of the concrete cylinder 0.25-0.28mm, which is greatly improved.
7. Use a large cycle diameter and long stroke main oil cylinder to ensure the highest construction distance and further.
8. Use dual pumps, dual -circuit open hydraulic systems, make the system simple, the element life is prolonged, the reliability is higher, and it is convenient for fault judgment and exclusion.
9. Glasses board, cutting ring and other wear parts. After continuous technical research, the service life is long.
10. The outstanding characteristics of the concrete pump electrical control system: advanced technology, simple, high reliability. All electrical components use original imported parts.
11. The design of key force components such as Fighting, S valve, etc., uses SeaS computing program to calculate its stress status, structural stiffness, and stress concentration status. Good craftsmanship, avoiding the deformation and S valve broken axis phenomenon during high -level transportation of similar products.
12. Fully consider simple maintenance and optimize design. Such as: replace the S tube, no need to disassemble the mixer, the S tube uses a long and short chrome sleeve, etc.

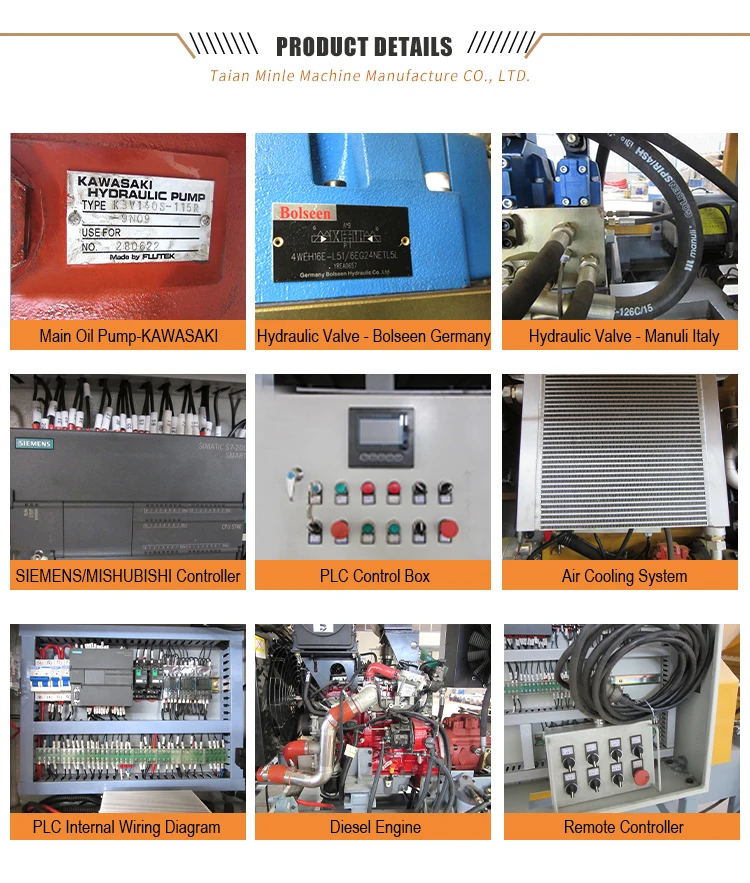

Main Parts:
Stationary Concrete Pump of us benefited from the cooperation with international brands-Produced high-quality concrete pumps-can better service the construction work of customers

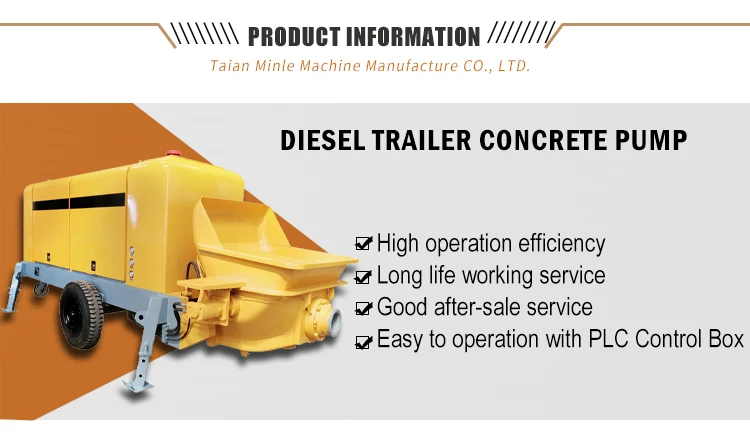

1.Power system Diesel Trailer Concrete Pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Yuchai, .etc.
2.Electronic control system Diesel Trailer Concrete Pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system Diesel Portable Concrete Pump
system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
4.Pumping system Diesel Portable Concrete Pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition. Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.
5. Lubricationi System Diesel Portable Concrete Pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
6.Cooling System Diesel Portable Concrete Pump
Compulsory air cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
*National High-tech Enterprise
*Free spare parts, on-line trainning for free
*ISO BV CE Certificate, past SGS Quality Test
*100% on time delivery, penalty agreement for delay
*120% satisfied, offer oversea service for you promptly
*Exported to 100 countries, offered s ervice more than 1000 Customers

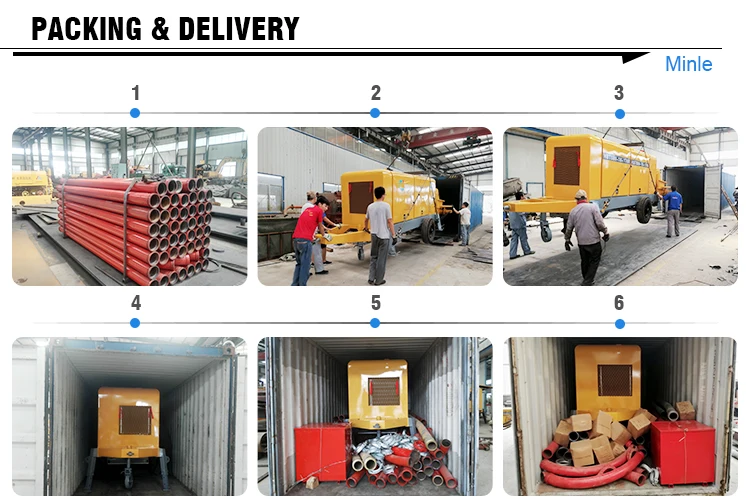

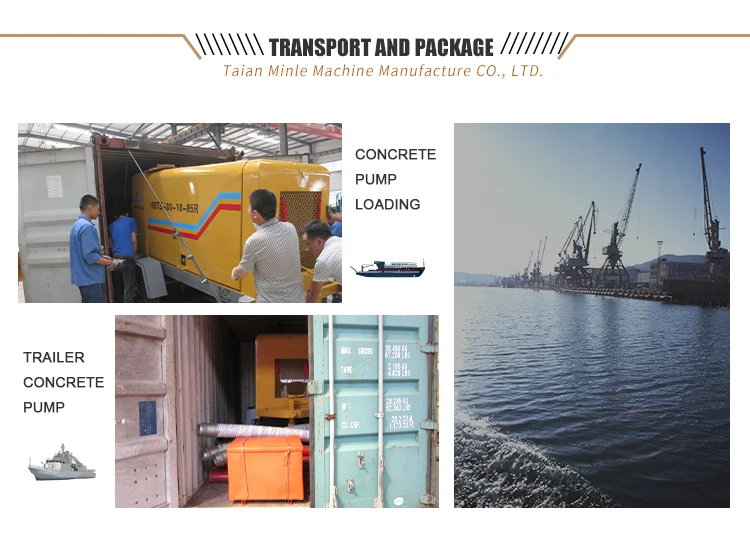

20ft container can be loaded 1 set( with 100m delivery pipes);
40ft container can be loaded 2 sets ( with 200m delivery pipes);
we have the professional shipping team and we have our own broker;
diesel concrete pump/ concrete line pump before work:
1, check the position of the drag pump, the drag pump should be installed on a roughly level, solid ground, four legs at the same time, to ensure that the tire is not loaded, the ground is soft, to prevent sinking need to add wood or wood to be fixed.
2, check the laying and connection of each pipe, check whether the straight pipe is in a line, whether the pipe distribution is reasonable, and whether the pipe port joint is dense.
3. Check whether the tank and hopper are filled with water.
4, check the hydraulic oil tank oil level, grease pump oil tank oil level is full, insufficient should be filled. Pump oil manually and check whether the oil supply at each lubrication point is normal.
5, check whether the cable connector is loose, broken, whether the switch is in the "off" position, and then close the power switch, click the motor, check whether the motor steering is correct, (if the steering is not correct, you should arbitrarily replace the two-phase power cord).
6. Before starting the motor, check whether the hopper screen and bottom door are closed and whether there are foreign bodies in the hopper.
7, the winter temperature is low, empty operation for a period of time, the temperature of the hydraulic oil rises to more than 20C to start pumping.
8. Empty operation for 10 minutes, check whether the pressure gauge is normal, whether the stirring device can be reversed, and whether the positive and negative pump action is normal.

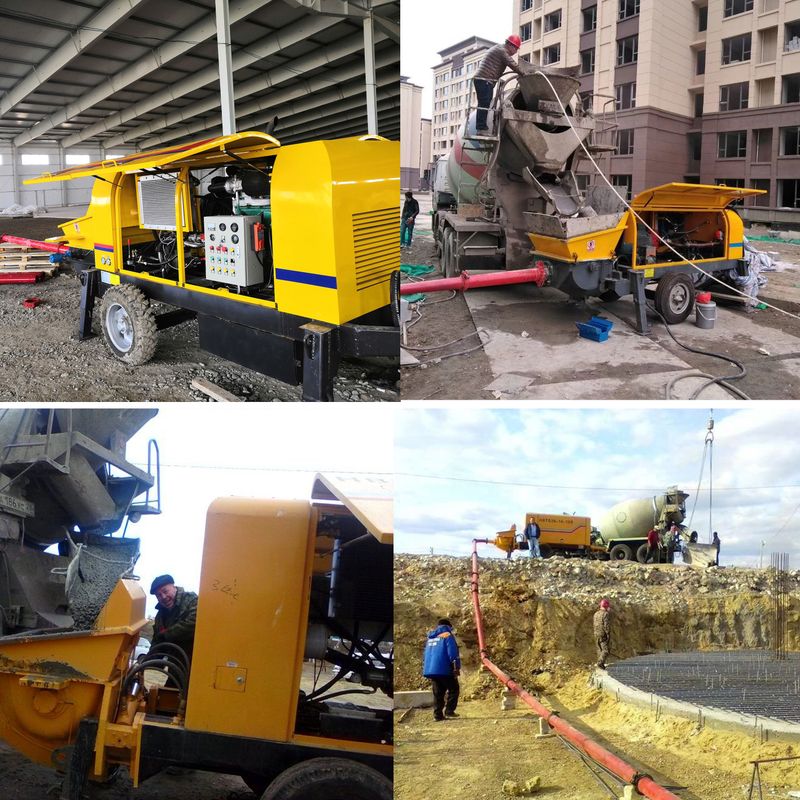

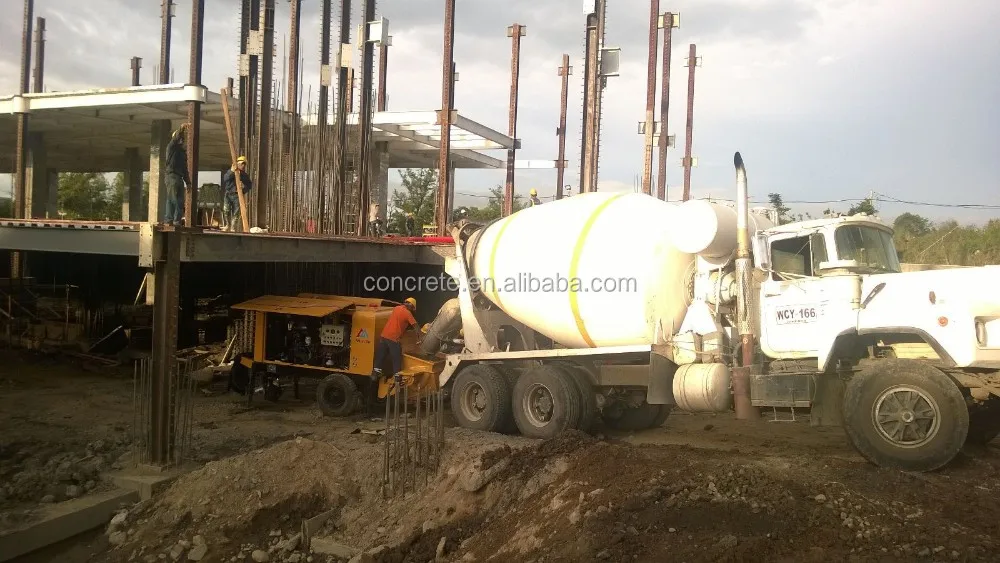

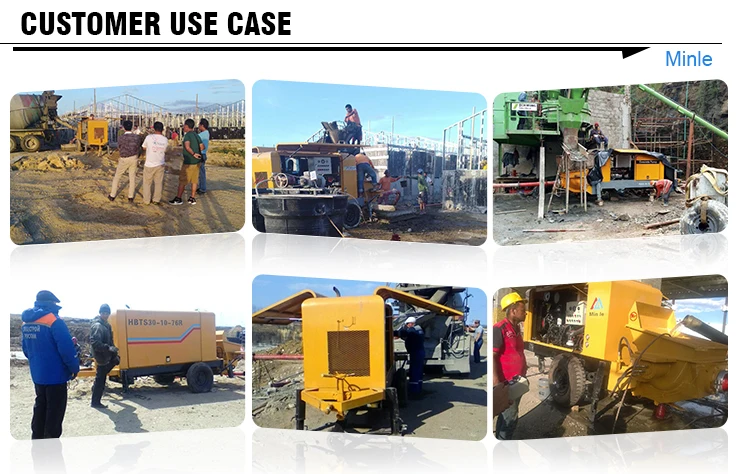

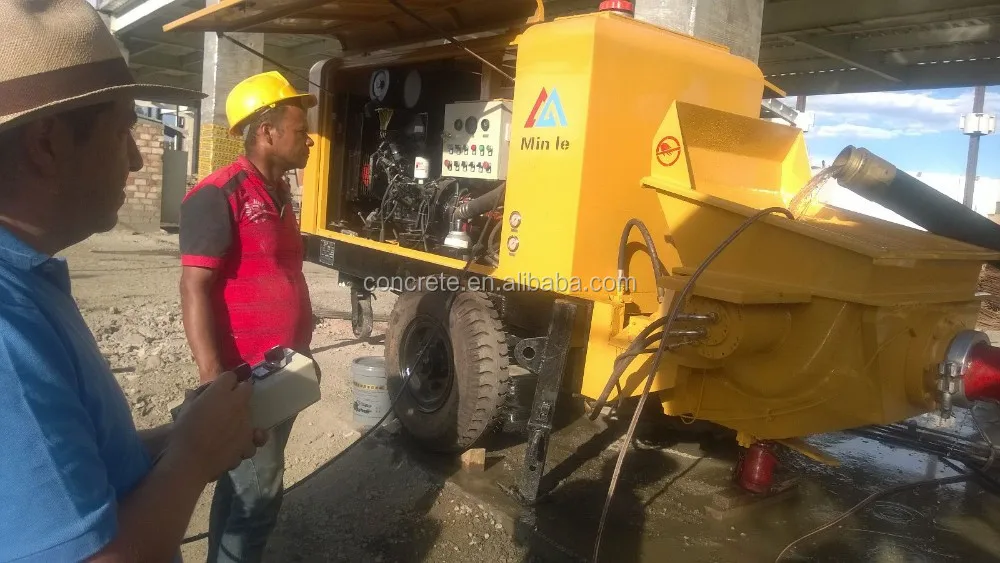

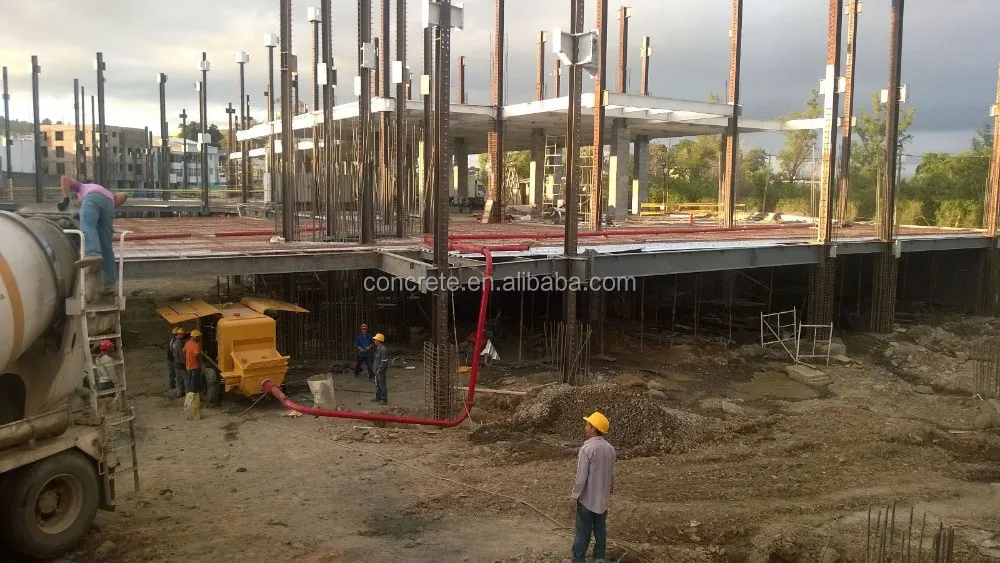

Client use our concrete pump in colombia, it is very nice! good operation condition!
At work
1. Before pumping concrete, first pump water to lubricate the pipeline, check whether the pipe is sealed and leaking, and then pump mortar to open the pipeline.
2, in the pumping process, the concrete should be ensured above the mixing axis, and no suction or no material pumping is allowed.
3, the pumping process should pay attention to the hydraulic oil temperature, rise to 50C should start the air cooling heat dissipation.
4, if the pump is suspended for a long time, it is necessary to open the pump every 10-20 minutes, reverse pump 1-2 strokes, and then pump 1-2 strokes to prevent concrete condensation in the pipe.
5, if the concrete collapse is too low, not allowed to add water mixing in the hopper, should be added to the tanker after mixing evenly into the hopper pumping.
6, the hopper screen can not be filled with concrete, to control the feed flow, can not be filled out of the hopper, to remove large aggregates, dirt and foreign bodies in time.
7. After the vertical upward pumping is interrupted, the pump is pumped again, and the reverse pump should be carried out first to make the concrete of the distributing valve recover the hopper.
8, command the reversing process, pay attention to the distance of the car, can not scratch the drag pump.
9, pumping gap to splash the concrete on the pump, excess lubricating oil, water tank splash scrub clean, to ensure that the drag pump clean and pollution-free
Client use our concrete pump in Philippines, easy operation
Finish work
1. After confirming the completion of the pumping of concrete, open the positive pump for 3-4 strokes, discharge the residual concrete, stop the positive pump, remove the residual concrete in the hopper and S pipe with a shovel, rake and other tools, open the discharge door at the lower part of the hopper, rinse the concrete inside and outside the hopper with water, and close the material door after it is cleared.
2. Fill the hopper with water, start the positive pump to pump water, the remaining concrete is pumped out, the water is discharged, open the hopper door, start the reverse pump, the stone and sand that are not pumped out with the water, close the hopper door, run empty for 20 minutes, continue to supply grease until the lubricating point is out. After cleaning, turn off the motor, turn off the power, and cover the pump.
3, put the water in the tank, especially in winter, and observe whether the water is turbid.
4. Clean and dry all parts of the fuselage. There can be no concrete blocks, mortar, mud and other dirt everywhere in the body of the drag pump.
After sale service 12 months warranty portable mini mobile concrete pump
Guarantee for free replacement or repair the key componentd which is ineffcient function or performance caused by poor material or technique. (Damage caused by improper use and natural aging are not covered under the guarantee. )
I serve worldwide clients with high-quality products,devoted professional services honorable credibility to meet customers' requirements
I will supply you 24 hoursa day and 7 days a week after-sale services. We can arrange our techinican to your side for trainning if you need.

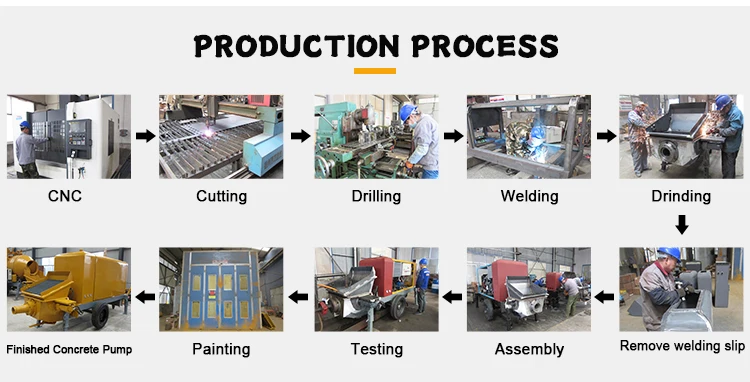

Factory with 25+ years of experience providing many types of concrete construction equipment, which has service more than 80 world-famous brands and maintained a repurchase rate of 95%.
The HBTS series concrete pump was widely used in building projects, such as water conservancy, electricity, railways,
highways, tunnels, bridges and culverts, ports, mines, high-rise buildings, national defense engineering, etc.
It was economical, practical, efficient, and can ensure the quality of concrete pouring, mixing or delivery, It is an ideal concrete conveying equipment.
Minle ConcretePumpFactory, is the global leader in new concrete pump, concrete line pumps, pumpcrete sales worldwide. We specialize in exporting concrete equipment, pumps and parts from the United States to anywhere in the world. As a factory, we have what you need. Our parts department can fill orders any size and expedite delivery anywhere in the world and the design is as the same as all major brands like Schwing, Putzmeister, Alliance, Sany, Reed, Cifa, Concord and many more.
Customers visit our factory, our boss meet them and take photos:
With good reputation on the international market-Minle concrete pump
Q1: Are you trading company or manufacturer?
A: We are factory. We can design and manufacture products with our patent.
Q2: How about your delivery time?
A: Usually 7-10 days if the goods are in stock. or 15-20 days if the goods are not available in stock, it is up to your quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.Money Gram;
Q4: How many types Concrete Mixer and Pump you have?
A: Diesel driven or electric motor If you need electric motor one, please let us know your power situation, such as in China, it is 380Voltege & 50 HZ. If you need diesel motor concrete mixer pump, the brand of diesel engine you like, it is Cummins or Deutz or Chinese Weichai,yuchai?
Q5: What is the capacity of your concrete mixer pump?
A: We have 30m-40m3/h. Q6: How long and high you want to pump?
A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.
Q7: The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.
----------------------
Michael Cheng
WeChat/WhatsApp: 86-15066732025
Taian Minle Machine Manufacture Co., Ltd.
http://www.concretepumpfactory.com
