0.1-12m TFmini-S Lidar Range Finder Sensor Module TOF Single Point Micro Ranging for Arduino Pixhawk Robot Drone UART &IIC

$88.10

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

TFmini VS TFmini-S

1.Product Upgrade Overview

TFmini-S is a single-point ranging Lidar based on TFmini upgrade. The blind zone of it is reduced from 30cm to 10cm, the outdoor ranging performance is further improved, the distance range is not disturbed by ambient light, which can be consistent with the indoor range, and the accuracy is further optimized. The error performance at 10% reflectivity approaches the background of 90% reflectivity, and the interface supports UART and I2C switching at any time.

2.Technical Specifications and Parameters


Item

TFmini

TFmini-S

Product

performance

Operating range

0.3~12m@90% reflectivity

0.1m~12m@90% reflectivity

Accuracy

±6cm@(0.3-6m)①

±1%@(6m-12m)

±6cm@(0.1-6m)①

±1%@(6m-12m)

Distance resolution

1cm

1cm

Frame rate

100Hz

100Hz

Ambient light immunity

70Klux

70Klux

Operation temperature

0℃~60℃

0℃~60℃

Enclosure rating

/

/

Optical

parameters

Light source

LED

VCSEL

Central wavelength

850nm

850nm

Photobiological safety

Exemption Level(EN62471)

Class1(IEC60825)

FOV

2.3°②

2°②

Electrical

parameters

Supply voltage

5V±0.1V

5V±0.1V

Average current

≤140mA

≤140mA

Power consumption

≤0.7W

≤0.7W

Peak current

800mA

800mA

Communication level

LVTTL(3.3V)

LVTTL(3.3V)

Communication interface

UART

UART / I2C

Others

Dimension

42mm*15mm*16mm(L*W*H)

42mm*15mm*16mm(L*W*H)

Housing

ABS+PC

ABS+PC

Storage temperature

-20℃~75℃

-20℃~75℃

Weight

5g±0.3g

5g±0.3g

Cable length

10cm

10cm

  • 1.Range based on the indoor test with the standard white board (90% reflectivity) at 25℃as the detection object;

  • 2.The angle is the theoretical value, but the actual angle has some deviation

3.Product Appearance and Structure

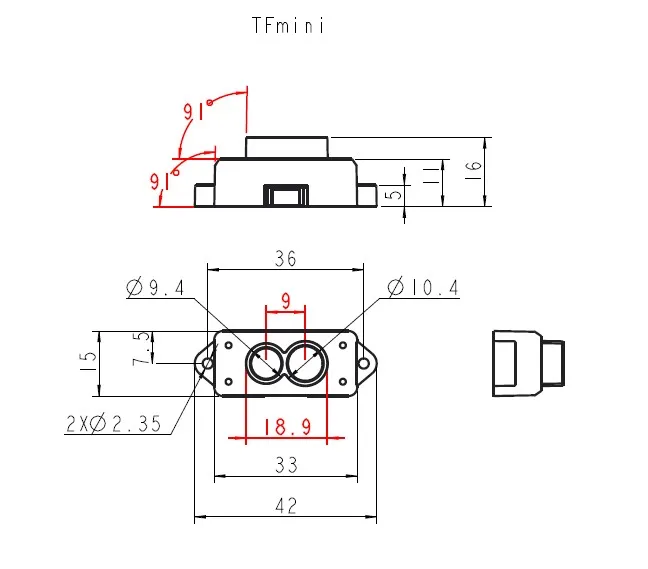

Fig.1 TFmini Dimensions

Fig.2 TFmini-S Dimensions(Increase the center distance of the lens by 1 mm)


4.Communication Interface

Table 2 Serial port communication protocol



Communication Interface

UART(TFmini)

UART(TFmini-S)

Default baud rate

115200(adjustable)

115200(adjustable)

Data bit

8

8

Stop bit

1

1

Parity check

None

None

5.Configurable parameters

Table3 the Configurable parameters of TFmini and TFmini-S

Configurable items

Description

TFmini Default

TFmini-S Default

communication interface

support communication interface configuration

UART

UART、I2C

Frame rate

Support serial port baud rate configuration

Adjustable from 1Hz to 100Hz

Adjustable from 1Hz to 1000Hz

Protocol format

Support 3 kinds of output format:9Bytes(cm)、Pixhawk、9Bytes(mm)

9Bytes(cm)

9Bytes(cm)

Exclude threshold

of Strength

When the strength is lower than the minimum threshold, the output is specified value

Minimum strength setting:20

Value below minimum strength:-1

Minimum strength setting:100

Value below minimum strength:0

Range limit

Threshold of ranging limit (mm),

Maximum: 1200cm

Minimum: -1cm

Maximum: 1200cm

Minimum: -1cm

Low-power Consumption Mode

enable/disable low-power mode

Not support

Off

Baud rate

Support baud rate setting of 9600-921600

115200

115200

Trigger sources

Setting internal trigger mode or external trigger mode

internal trigger

internal trigger

Restore factory

settings

Restore all configurations to factory configuration

/

/

TFmini-S LiDAR Module
1. Product Description
TFmini-S is a single-point ranging LiDAR based on TFmini upgrade. The blind zone is shortened to 10cm, the outdoor performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection.
the module is characterized by the following points:
⚫ Small size
⚫ Light weight
⚫ Low power consumption
⚫ High frame rate(up to 1000Hz)
Main application scenario:
⚫ Pedestrian detection
⚫ Vehicle detection
⚫ Intelligent barrier gate
⚫ Altimeter
