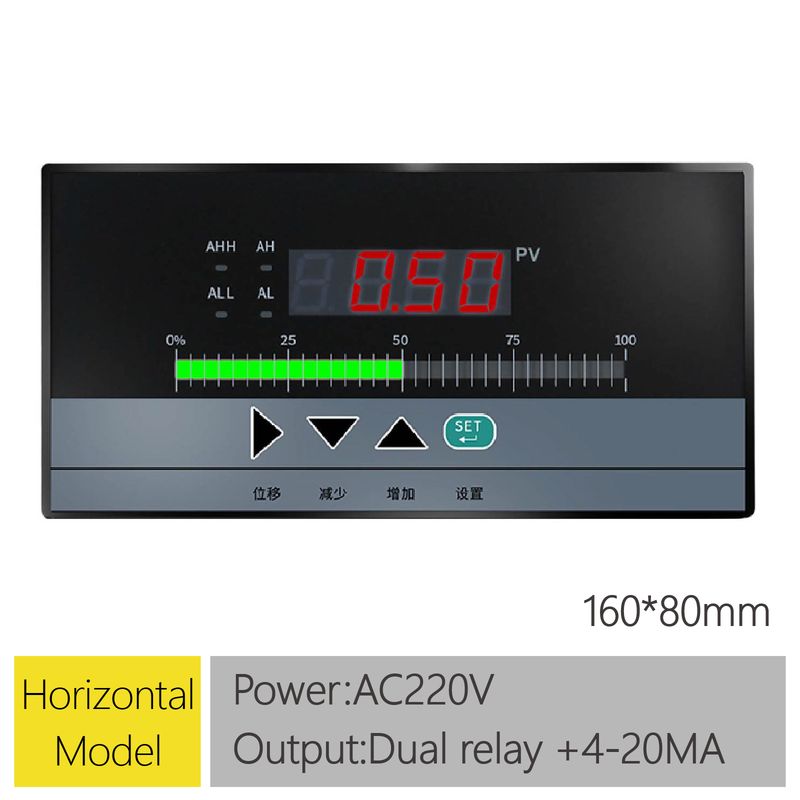

Smart Liquid Level Display Controller 4-20mA PID Process Temperature Pressure Instrument with Relay RS485 Panel Mount

$117.29

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description


1.NOTE:
Default Configuration:

· Size: 80*160mm

· Power Supply: AC220V

· Input: Universal signal input(B, S, K, E, J, T,PT100,4-20MA. etc)

· Output: Dual relay output

· Additional Output: One DC24V feed output

Customizable Options:

· Size: 160*80mm

· Power Supply: DC24V, AC90-260V

· Output: 4-20mA / RS485

Special Customization:

· Dual-loop digital display meter

· Size: 80*160mm

· Power Supply: AC220V

· Output: Four relay outputs

For customization requests, please contact us.


2.Parameters

Parameter

Specification

Input Signal

Resistance (PT100, CU50, pressure resistors), Thermocouple (B, S, K, E, J, T, WRE), Current (0-10mA, 4-20mA, 0-20mA, input resistance ≤250Ω), Voltage (0-5V, 1-5V, input resistance ≥250Ω)

Measuring Range

-1999 to 9999 digits

Measurement Accuracy

0.2%FS ±1 digit or 0.5% ±1 digit

Resolution

1, 0.1, 0.01, 0.001 digit

Temperature Compensation

0~50°C digital automatic compensation

Display Mode

-1999 to 9999 measured value, 0-100% bar graph, -1999 to 9999 set value, triode working status indication

Bar Graph Accuracy

±1%

Control Method

ON/OFF control with hysteresis

Analog Output

DC 0-10mA (load ≤750Ω), DC 4-20mA (load ≤500Ω), DC 0-5V (load ≤250Ω), DC 1-5V (load ≤250Ω)

Switch Output

Relay control (ON/OFF hysteresis), Contact capacity: AC220V/3A, DC24V/6A (resistive load)

Solid-State Relay Output

SSR (solid-state relay control signal), DC 6-24V/30mA

Communication Output

RS-232C, RS-422, RS-485, Modbus protocol

Alarm Method

Selectable 1-4 limit alarms, LED indicator, ON/OFF relay output

Alarm Accuracy

±1 digit

Protection Mode

Input circuit disconnection alarm, relay output, LED indication, over/under-range alarm, automatic reset after power loss, watchdog function

Working Environment

-10°C to 50°C, humidity ≤85% RH (non-condensing)

Power Supply

AC 220V ±10-15% (50Hz ±2Hz, linear power supply), AC90-260V (switching power supply), DC24V ±2V (DC power supply)

Power Consumption

≤5W (AC220V linear power supply), ≤4W (AC90-265V switching power supply), ≤4W (DC24V power supply)

Weight

420g

Structure

Standard snap-in


3. Features

Easy Installation– Standard snap-in design allows quick and secure mounting.

Stable Power Supply– AC 220V linear power ensures consistent performance with minimal noise.

Lightweight & Durable– Weighs only 420g, making it easy to integrate into various setups.

Comprehensive Protection– Built-in safeguards against overload, overvoltage, and short circuits.

Wide Operating Range– Functions reliably within -10°C to 50°C and 10%-90% RH humidity.


4.Applications

· Industrial automation systems

· Power supply modules for embedded devices

· Control panels and instrumentation

· Telecommunications and networking equipment


5.FAQs

Q1:Is this power supply compatible with all AC 220V systems?
A1:Yes, it is designed to work with standard AC 220V power sources.

Q2:How is the power supply installed?
A2:It features a snap-in design for quick and secure installation.

Q3: hat are the key advantages of using a linear power supply?
A3:A linear power supply provides stable voltage output with low noise, making it ideal for sensitive applications.

Would you like any modifications or additional details?
