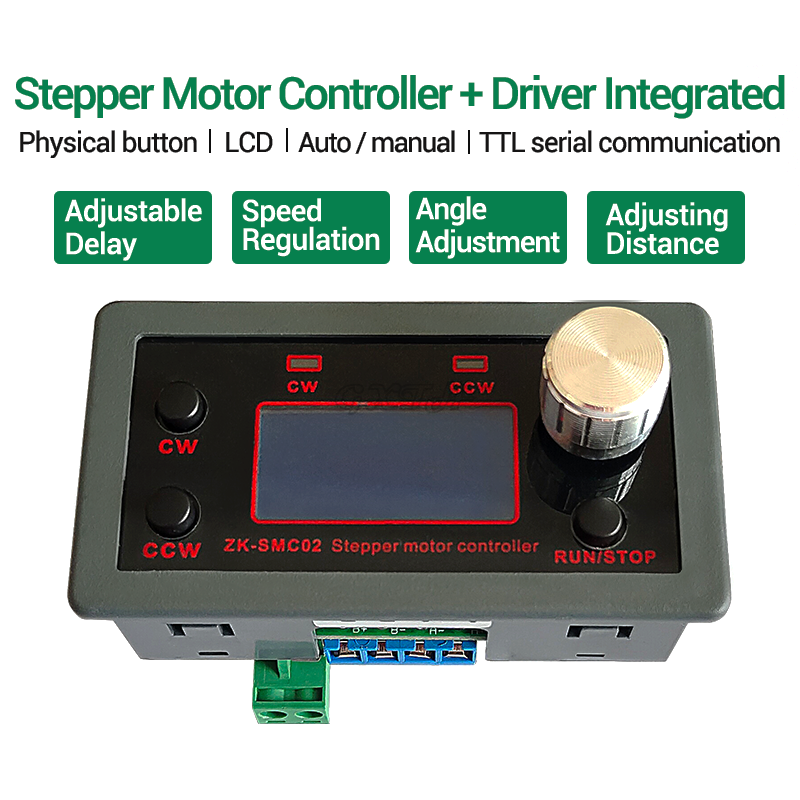

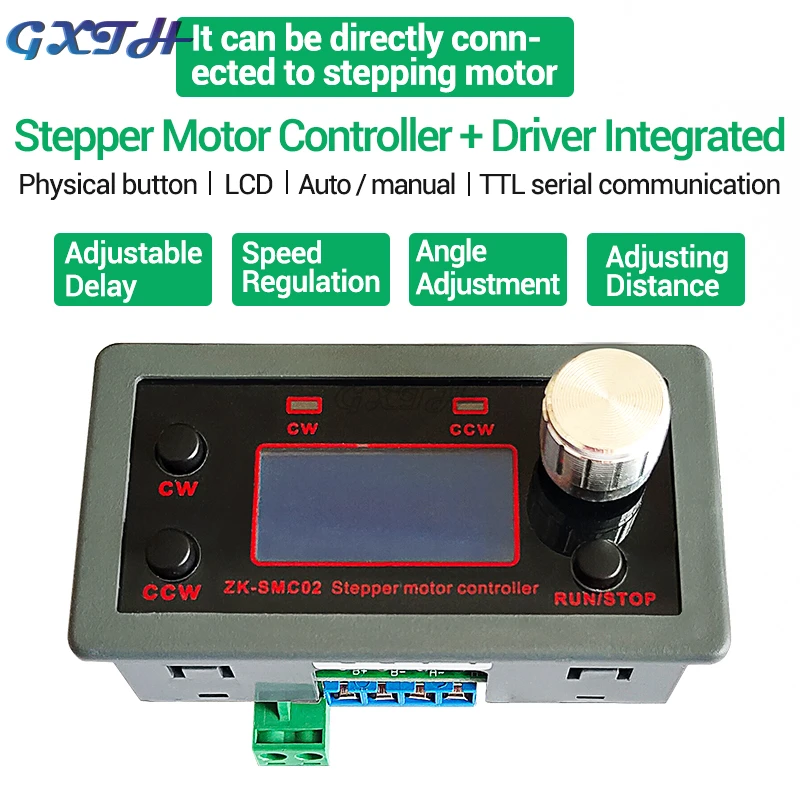

Drive Integrated 42 57 Stepper Motor Driver Controller Forward Reverse Control Driver Angle Pulse Speed PLC Serial Communication

Description

Product Declaration

For electronic module products, you need to have a certain electronic foundation and carefully read the product description before use; The product is not designed for medical, life-saving, life support and other purposes, and cannot be used in dangerous places such as coal mine and oil depot. We do not guarantee such responsibilities; The product profit is low, the user's operation ability and use occasions vary greatly, and any electronic equipment cannot be foolproof. The equipment owner shall make corresponding protective measures and risk management plan. The company shall not be liable for compensation for any personal or property loss directly or indirectly caused by the equipment.

Product introduction

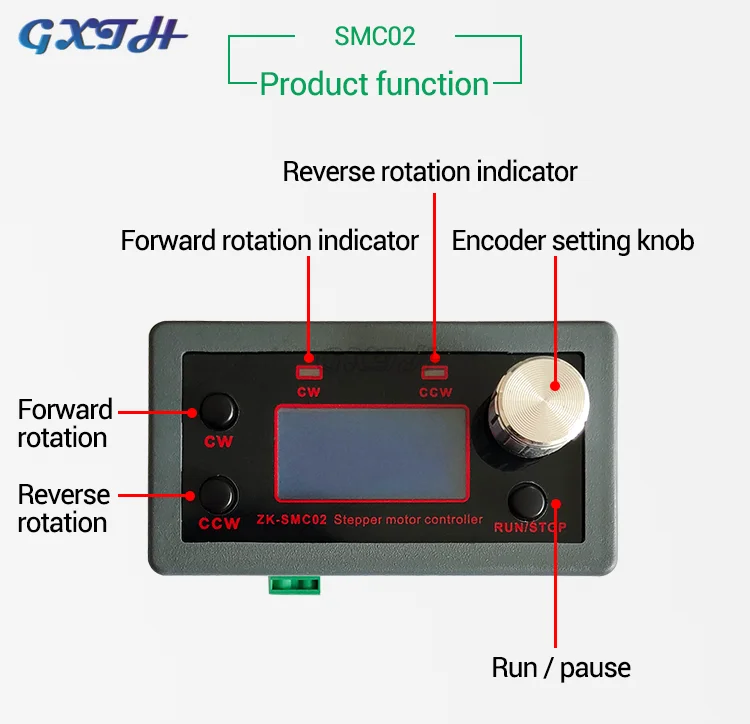

This is a special operation control module for single shaft stepping motor.

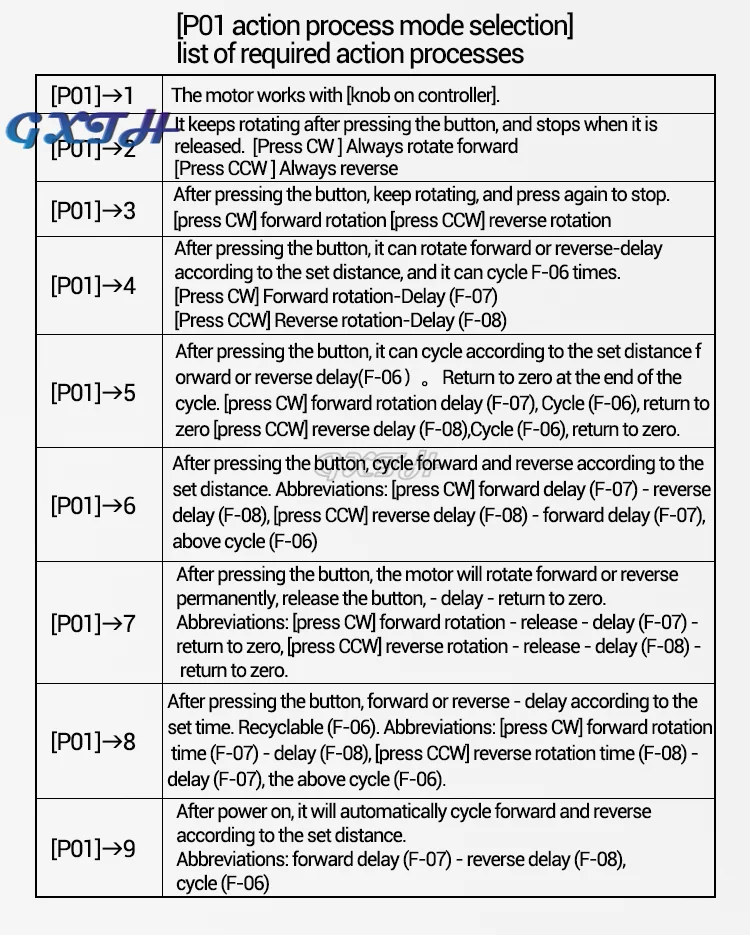

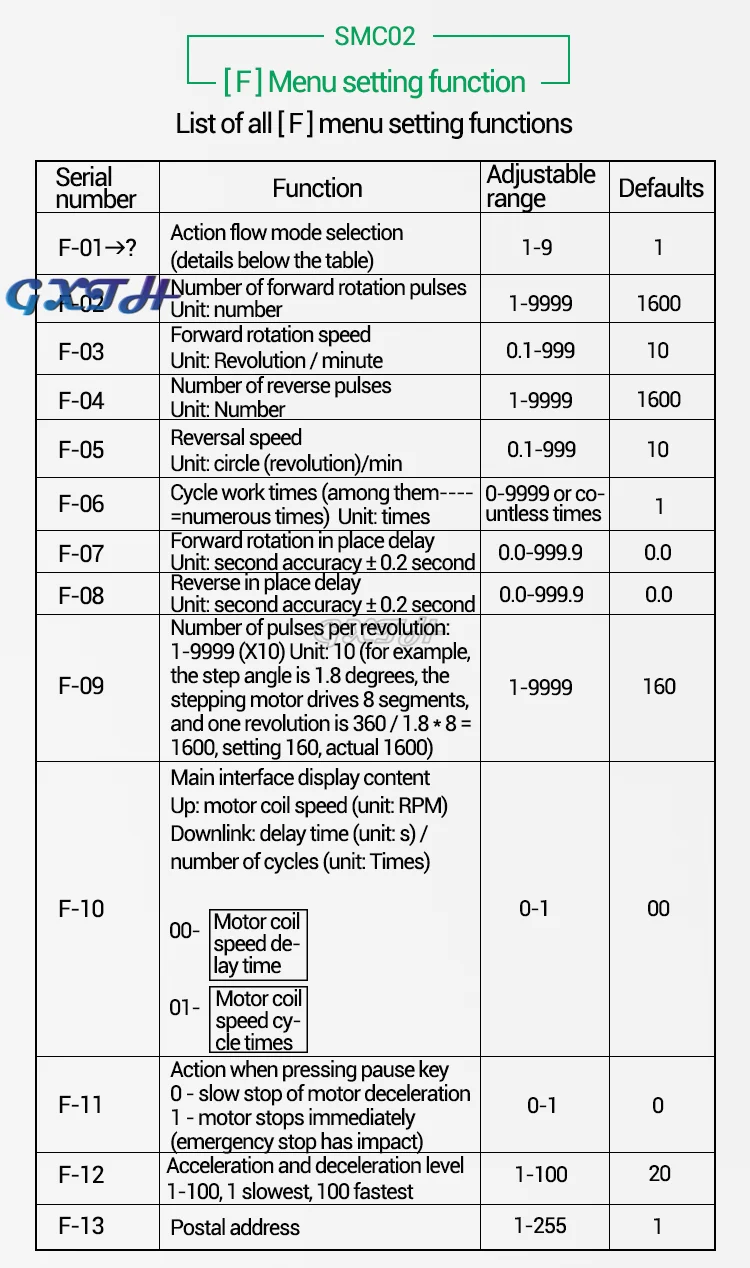

A variety of fixed operation modes are built in the module, and users can quickly select the appropriate motion track. The distance / speed / delay / number of cycles can be saved and set after power down. It can run independently as a module, or it can be used together with other systems.

It can be used in general industrial control occasions, not in special industries such as medical treatment and fire protection or life-threatening fields.

Product parameters

Model: Stepper motor controller + driver

Adaptive motor: stepping motor

Number of control axes: single axis

Motor signal: common cathode

Power supply range: DC 5-30V general

Driving capacity: 4A

Instruction features: streamline and optimize multiple common instructions

Acceleration and deceleration control: Yes

Input reverse connection protection: Yes

Remote communication control: TTL serial port

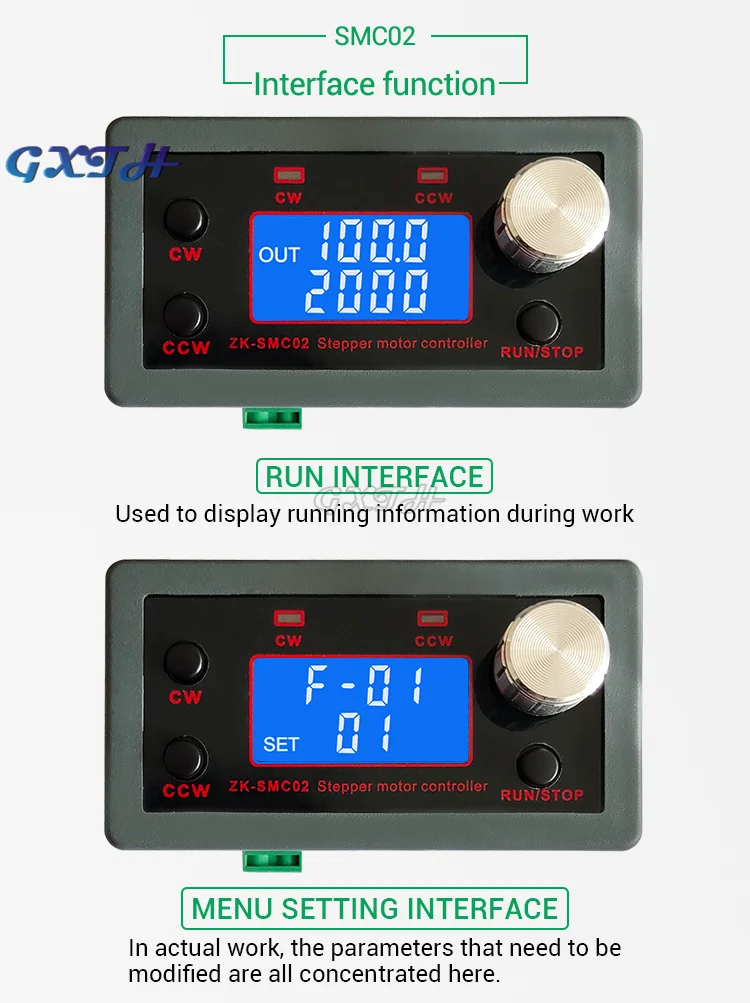

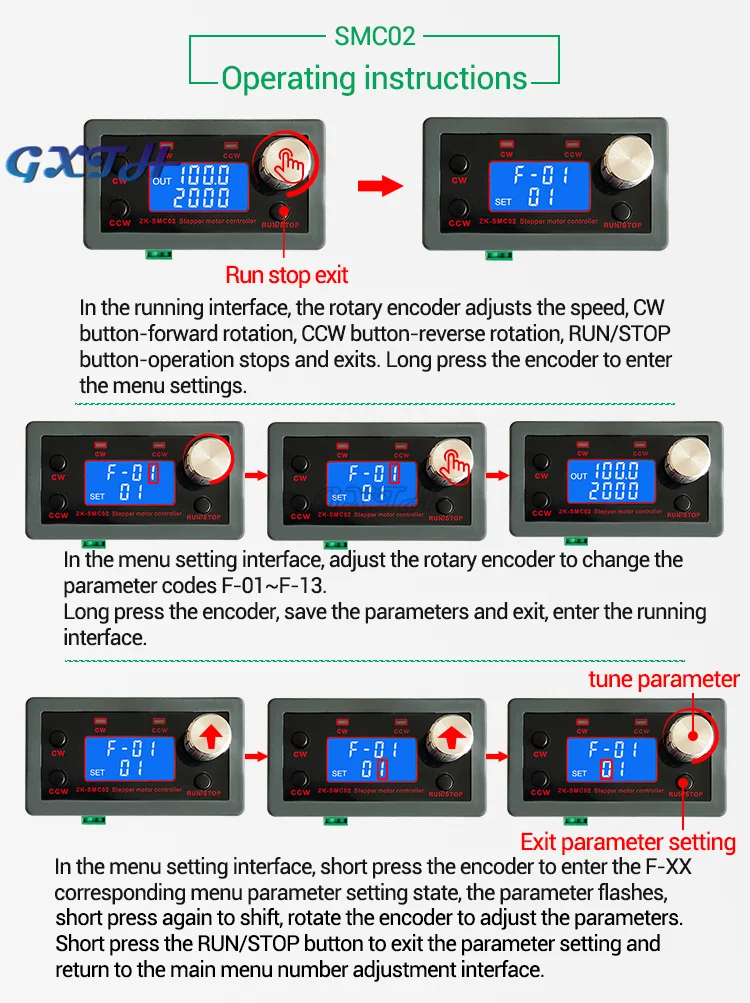

Main functions of the system: automatic, manual, setting and serial port control

Speed range: 0.1 ~ 999 laps / min

Number of forward rotation pulses: 1-9999 pulses

Number of reverse pulses: 1-9999 pulses

Number of cycles: 1-9999

Forward rotation delay time: 0.0-999.9 seconds

Reverse delay time: 0.0-999.9 seconds

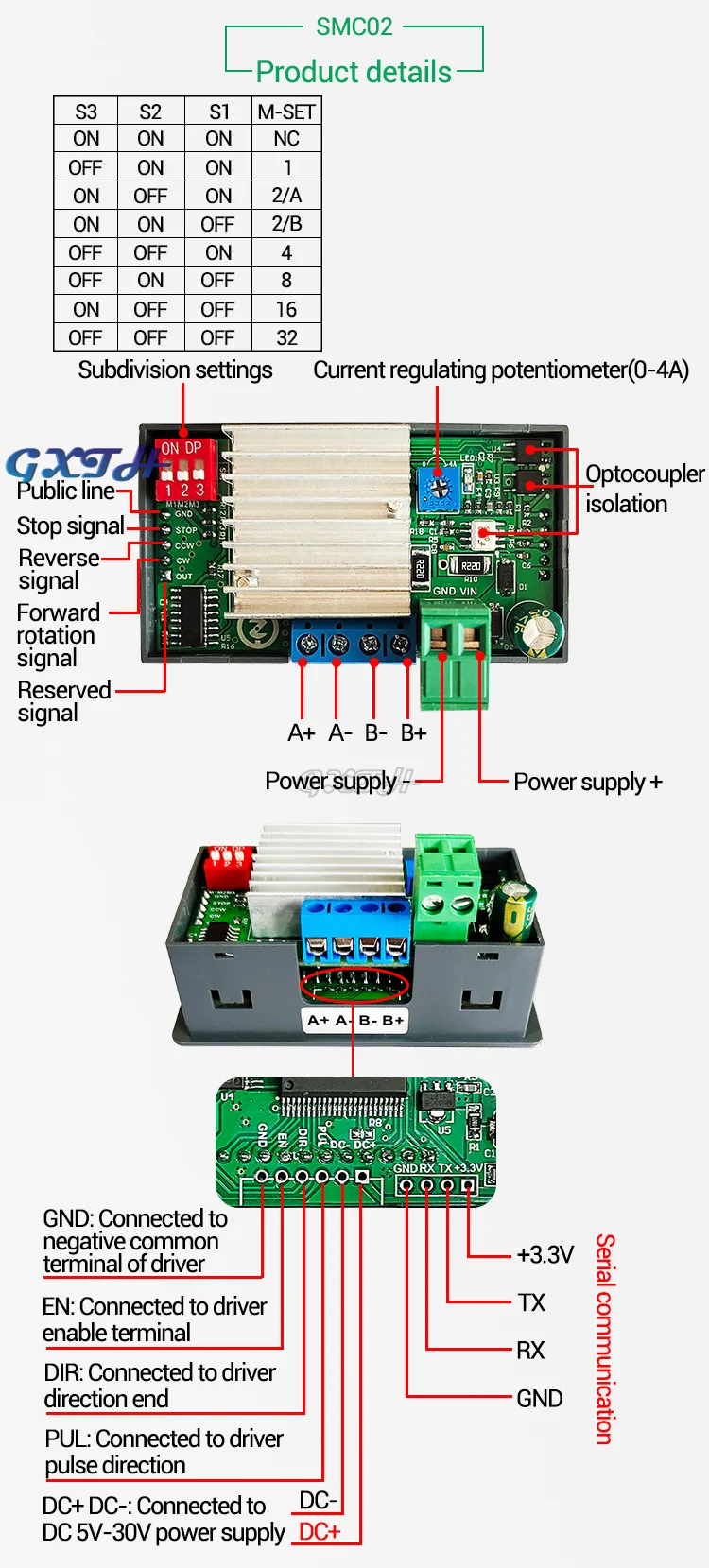

Subdivision selection range: 1-128 subdivision

Product service environment: - 5 ℃ - 60 ℃ (no condensation)
